HD119520.4 - Hair dryer Emerio - Free user manual and instructions

Product type	Hairdryer
Brand	Emerio
Model	HD119520.4
Operating voltage	220-240 V ~ 50-60 Hz
Rated power	1600-2000 W
Heat settings	3 levels: low, medium, high
Airflow settings	2 levels: gentle, strong + off (position 0)
Cool shot function	Yes, dedicated button (cool air maintained while pressed)
Included accessories	Concentrator nozzle, removable filter
Power cord	With rewinding button and protection cover
Hanging loop	Yes, for storage
Removable filter	Yes, washable with water, drying required before reassembly
Overheat protection	Yes (automatic shut-off in case of overheating)
Maintenance	Soft dry cloth, do not immerse
Warranty	2 years
Recommended use	Hair drying and styling
Area of use	Indoor, do not use near water
Recycling	Compliant with directive 2012/19/EU

Frequently Asked Questions - HD119520.4 Emerio

How to clean the hairdryer filter?

Unplug the device. Unscrew the filter by turning it counterclockwise. Clean it under water or with a soft brush, then dry it completely before reassembling by turning it clockwise.

What is the cool shot button for?

The cool shot button releases cool air to set your hairstyle. Press it while the device is running to switch to cool air mode, release to return to the selected heat setting.

How to rewind the power cord?

After use, turn off the device and unplug it. Press the rewinding button on the cord. Make sure the protection cover is in the central position to avoid sudden movements.

Can I use this hairdryer in the bathroom?

Yes, but with caution. Do not use it near a bathtub, shower, or basin filled with water. Unplug it after use and install a residual current device (30 mA) for optimal safety.

What to do if the hairdryer suddenly turns off?

Immediately set all buttons to the off position (airflow to 0) and unplug the device. Let it cool down completely. Check that the filter is not clogged. If the problem persists, contact customer service.

What accessories are included with model HD119520.4?

The hairdryer comes with a concentrator nozzle for targeted drying and a removable filter for easy cleaning.

What is the power of this device?

The power is between 1600 and 2000 watts, depending on the supply voltage (220-240 V).

How to adjust the temperature and airflow?

Use the buttons on the handle: the temperature button lets you choose between low, medium, or high heat; the airflow button lets you select gentle, strong, or off (position 0).

Can I use the hairdryer on wet hair?

Yes, that is its main use. Keep a distance between the nozzle and your hair to avoid burns and do not stay too long on the same area.

How to maintain the hairdryer?

Always unplug it before cleaning. Clean the housing with a soft dry cloth. The filter and nozzle can be washed with water, but dry them thoroughly before reassembling. Never immerse the device.

USER MANUAL HD119520.4 Emerio

Black hair dryer with attached power plug, no visible text or symbols

Hair dryer (EN)

Haartrockner (DE)

Sèche-cheveux (FR)

Hårtork (SE)

Haardroger (NL)

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Do not use this device in a bathtub, shower, or water-filled

reservoir. WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

1. When the hairdryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hairdryer is switched off. For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

2. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

3. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

4. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

5. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

6. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

7. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

8. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

9. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

10. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

11. Never leave the appliance unattended during use.

12. This appliance is not designed for commercial use.

13. Do not use the appliance for other than intended use.

14. Do not wind the cord around the appliance and do not bend it.

15. Keep the device and the cable away from heat, moisture, sharp edges and suchlike.

16. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.

17. Do not spray aerosol products when the hair dryer is in operation.

18. Use only original accessories.

19. Do not use the device outdoors.

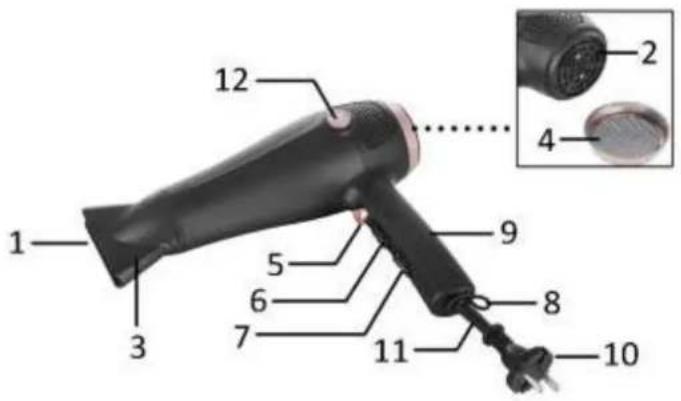

PARTS DESCRIPTION

1. Air outlet

2. Air inlet

3. Nozzle

4. Filter

5. Cool shot button

6. Heat switch

7. Airflow switch

8. Hanging loop

9. Handle

10. Power cord and plug

11. Cord protection cover

12. Cord rewinder button

Heat setting:

= low heat output

= medium heat output

= high heat output

Airflow setting:

"0" position = OFF

= Gentle airflow

= Strong airflow

BEFORE USE

1. Pull out the power cord. To prevent the power cord from overheating, pull out until the red mark. Do not pull the power cord beyond the red mark to prevent damage to the power cord.

2. Attach the nozzle onto the air outlet. Using the hairdressing nozzle, individual sections of the hair can be dried by bundling the air flow. Make sure that both the nozzle and filter are correctly assembled.

To detach/attach the nozzle

Snap the nozzle off from the air outlet. When you place it back, make sure it is firmly connected.

To detach/attach the filter

Hold and turn the filter anti-clockwise to release it from the appliance. When assembling the filter back, align and turn the filter clockwise until the filter is firmly assembled.

HOW TO USE THE HAIRDRYER

1. Make sure the airflow switch is set at the "0" position before you plug the appliance.

2. After connecting the power, select the desired heat and airflow to start drying or styling. Whichever the setting you choose, as long as you keep pressing the cool shot button, the appliance will send out cool air.

3. Move the hair dryer around your hair and keep your hair in a small distance with the nozzle. Avoid focusing too much heat on one area. Keep your hair away from the air inlet to prevent hair being drawn in.

4. After use, turn the airflow switch to the "0" position to turn off the appliance, and then remove the plug from the power outlet.

5. Press the cord rewinder button to rewind the power cord. Make sure the cord protection cover is set at/above the middle position of the power cord while rewinding to prevent swinging.

Note! Should the hair dryer stop for any reason, turn it off at once and cut off the power, then let it cool down.

CLEANING AND MAINTANENCE

• Ensure that the hair dryer is disconnected from the mains supply before cleaning.
• Never immerse the hair dryer in water or any other liquids. Never rinse the appliance either. Always ensure that the plug is kept dry.
• Clean the appliance with a soft and dry cloth without additives.
• The nozzle and filter can be taken off for separate cleaning. If they are washed, make sure they become completely dry before assembling.

Note! Frequently clean out any hair or fluff that becomes stuck in the filter. Failure to keep filter clean may result in overheating.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power consumption: 1600-2000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Höffer Weg 14

51519 Odenthal

Germany

Customer service:

T: [phone]

E: [e-mail]
