PO115984.1 - Pizza oven Emerio - Free user manual and instructions

Product Type	Pizza Oven
Brand	Emerio
Model	PO115984.1
Supply Voltage	230 V ~ 50 Hz
Power	1200 W
Lid Material	Terracotta
Cooking Plate Coating	Non-stick
Capacity	Up to 6 mini-pizzas (with included spatulas)
Main Functions	Pizza cooking, reheating
Operating Indicator Light	Yes (red)
Included Accessories	6 pizza spatulas, dough cutter, terracotta lid
Usage	Indoor only
Safety	Hot surface - use only by the handle
Lid Cleaning	Hot water and brush (not dishwasher)
Cleaning of the Plate and Spatulas	Hot water and dish brush (not dishwasher)
Base Cleaning	Damp cloth (do not immerse)
Warranty	2 years
Recommended Preheating	15 minutes
Typical Cooking Time	8 minutes
Plug Type	Grounded electrical outlet

Frequently Asked Questions - PO115984.1 Emerio

How to use the Emerio PO115984.1 pizza oven?

Before first use, clean the plate and spatulas. Plug the appliance into a grounded outlet. The red indicator light turns on. Preheat for 15 minutes. Prepare pizzas on the spatulas with a little flour to prevent the dough from sticking. Insert the spatula into an opening in the dome. Cook for about 8 minutes. Unplug after use and let cool for 30 minutes before cleaning.

How long does it take to cook a pizza?

Under normal conditions, the pizza is ready in about 8 minutes. The time may vary depending on the dough type, toppings, and ambient conditions (temperature, draft).

Can the pizza oven be used outdoors?

No, this appliance is designed for indoor use only. Do not use it outdoors or in humid environments.

How to clean the plate and spatulas?

Let the appliance cool for at least 30 minutes. Clean the plate and spatulas with hot water and a dish brush. Do not put them in the dishwasher. For the base, use a damp cloth without immersing the appliance.

What should I do if the indicator light does not turn on?

Check that the appliance is properly plugged into a working electrical outlet. Ensure the cord is not damaged. If the problem persists, contact customer service.

Is the terracotta lid fragile?

Yes, the terracotta lid is fragile. Avoid shocks and do not put it in the dishwasher. Do not place it on a cold surface when hot to prevent cracking. Clean it with hot water and a brush.

Can I put the parts in the dishwasher?

No, no part of the Pizzarette® should go in the dishwasher. The terracotta lid, cooking plate, spatulas, and dough cutter must be washed by hand with hot water.

How to assemble the knob on the lid?

Place the washer and knob on the terracotta lid. Insert the washer using the bolt above the lid, then turn the knob clockwise to fix it. Do not overtighten to avoid breaking the lid.

What pizza dough recipe do you recommend?

Mix 500 g flour, 1 pinch of salt, 4 tbsp olive oil, 20 g fresh yeast (or 1 packet dry yeast) and 250 ml warm water. Knead until obtaining a soft dough. Let rise for 45 minutes under a cloth. Roll out to 3 mm thickness and cut round bases.

What to do if there is smoke on first use?

It is normal to see slight smoke and an odor on first use. These disappear after a few minutes. Ensure good room ventilation.

USER MANUAL PO115984.1 Emerio

Plated food preparation setup with a pink ceramic stove containing pizza slices, surrounded by fresh vegetables and mushrooms on a wooden table (no text or symbols visible)

EN Pizzarette® / DE Pizzarette®

FR Pizzarette® / IT Pizzarette®

Content – Inhalt – Contenu – Contenuto

Instruction manual – English ...... - 2 -

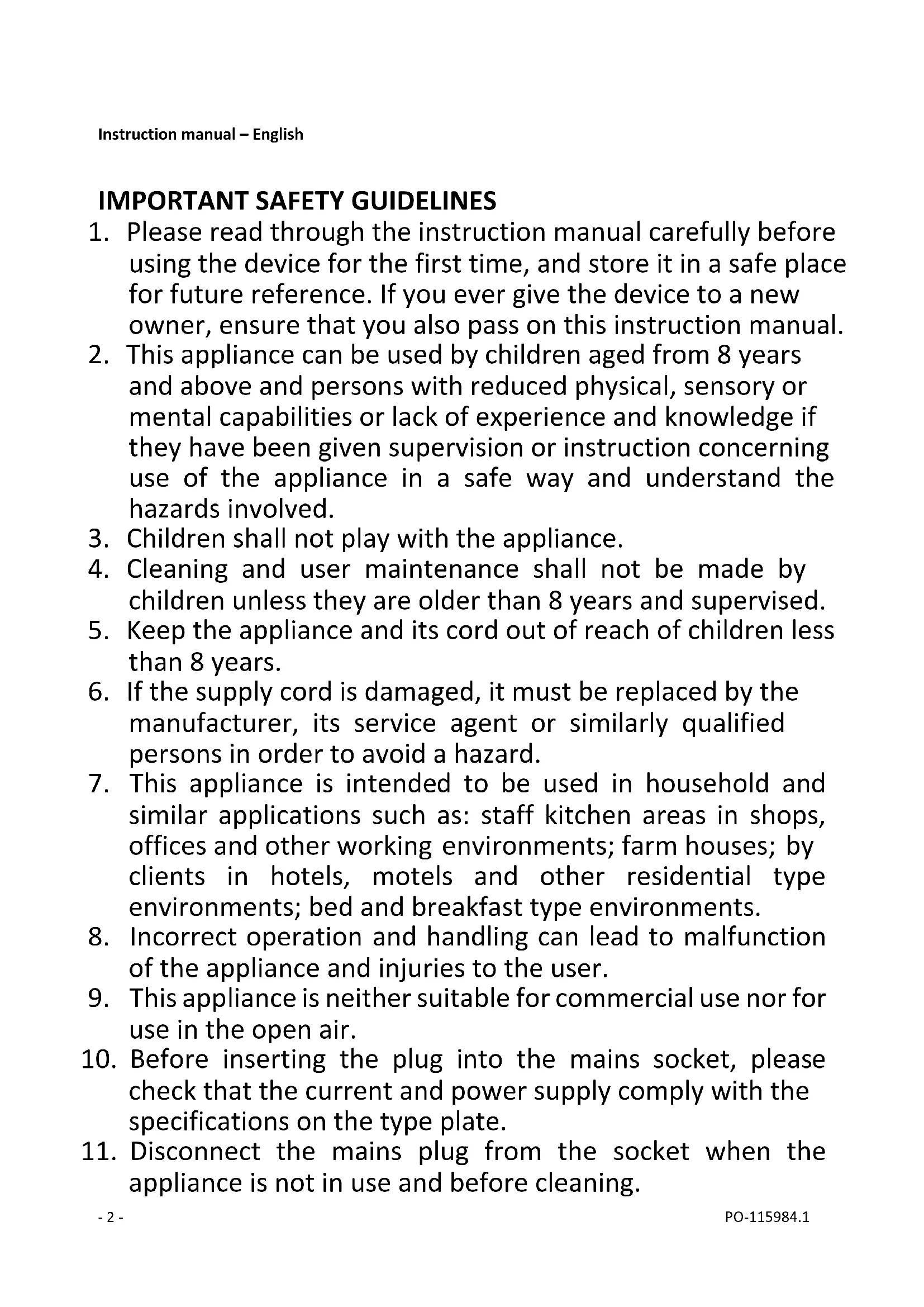

IMPORTANT SAFETY GUIDELINES

1. Please read through the instruction manual carefully before using the device for the first time, and store it in a safe place for future reference. If you ever give the device to a new owner, ensure that you also pass on this instruction manual.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
5. Keep the appliance and its cord out of reach of children less than 8 years.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
8. Incorrect operation and handling can lead to malfunction of the appliance and injuries to the user.
9. This appliance is neither suitable for commercial use nor for use in the open air.
10. Before inserting the plug into the mains socket, please check that the current and power supply comply with the specifications on the type plate.

11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

12. Parts of the appliance become hot during use. Therefore, the appliance must only be held by the handle. Avoid touching the metal parts as they become very hot.

13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
14. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
15. Place the appliance on a stable, level surface and not close to hot objects or open flames (e.g. hotplates).
16. Never leave the appliance unattended during use.
17. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
18. This appliance is not designed for commercial use.
19. Caution, hot surface.

Warning sign depicting steam rising inside a yellow triangle, indicating hazardous or hazardous material.

The baking surfaces as well as the sides and top of the appliance get very hot. Avoid any contact. Danger of burning! Only hold by the handle. The appliance must always be positioned horizontally during use.

1. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.
2. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "cleaning and maintenance" of the manual.

PARTS DESCRIPTION

Labeled diagram of a food appliance showing interior components and parts including a dome-shaped cooker, microwave oven, and kitchen utensils.

1. Dome
2. Non-Stick baking sheet
3. Handle
4. Power cord and plug
5. Mini -pizza shovel (6 pieces)
6. Pizza dough cutter
7. Control light
8. Heating element
9. Instruction Manual

BEFORE FIRST USE

1. There are no tools required to assemble the knob. Just put the washer and the knob on the terracotta dome. Have the washer inserted by the bolt on the top of the dome, and then rotate the knob clockwise to fix it on the dome. Do not over tighten. The terracotta dome might break.
2. Clean the baking sheet before using the appliance for the first time (see "Cleaning and maintenance"). The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal, and will stop soon.

OPERATING INSTRUCTIONS

1. Place the appliance on a flat, stable, heat-resistant and splash-proof surface where it cannot fall.
2. Do clean the heating element before plugging in.
3. Plug in the power cord into a grounded outlet wall socket to turn on the appliance.
4. The control light on the Pizzarette® will switch on and the appliance will heat up immediately.

NOTE: Turn on the pizza oven 15 minutes before use.

How to bake pizzas:

Place the pizza dough, the sauce and all the ingredients in small bowls on the table around the Pizzarette®. You can bake the pizza on the spatula.

Put some flour on the backside of the pizza dough to avoid sticking and place it on the mini - pizza shovel. Coat with tomato sauce, leaving an edge of about half a centimetre free. Don't spray additional olive oil on your pizza. Insert the pizza into one of the dome openings by using the mini - pizza shovel. Coating your pizza with too much ingredients will result in a longer cooking time and ingredients burning on the baking sheet, be gentle with the amount of toppings!

The baking time depends on the type of pizza dough, the pizza toppings, the number of pizzas to be baked at the same time and the ambient conditions where the pizza oven is located (temperature, draft-free place, etc.). Under normal conditions the pizza is ready in 8 minutes. It is best to slide the hot pizzas onto a flat plate. Careful!

The mini - pizza shovel is hot. Place the empty, hot mini - pizza shovel on a heat-resistant surface.

Turn off the Pizzarette® after use by pulling the plug from the socket and allow the Pizzarette® to cool down at least 30 minutes before cleaning and storing.

RECIPES

Pizza dough (for 4 people)

500 g white flour

1 tsp salt

4 tsp olive oil

20 g fresh yeast or 1 sachet of dried yeast

250 ml lukewarm water

Combine the flour, salt and oil in a bowl. If using fresh yeast, dissolve it in the water and mix until smooth, then combine with the flour. If using dried yeast, mix it directly with the flour and then add the oil and water. When all the ingredients are mixed, knead the dough well by hand and continually pull and stretch it. You could also use a mixer with dough hooks or a food processor. Form the dough into a ball and leave covered for 45 minutes in a warm place until it has risen to double the size. Sprinkle the dough with a bit of flour; roll it out to 3 mm thickness. Turn the dough around a few times and sprinkle with flour in order to prevent sticking; form pizzas with the pizza dough cutter. Put the rounds on a plate with grease-proof paper and lots of white flour between them to avoid sticking. While the dough is rising you can prepare the remaining ingredients.

Tomato sauce:

1 tin peeled tomatoes

1 small tin tomato paste

Salt, pepper, oregano

2 tbsp olive oil

2 pressed cloves of garlic

Finely chop the peeled tomatoes and mix them with the other ingredients.

Possible toppings:

mozzarella, grated parmesan cheese, grated Gouda cheese, basil, arugula, olives, mushrooms, anchovies, capers, pineapple, artichoke hearts, bell peppers, onions, tomatoes, ham, salami, smoked salmon, shrimp, tinned tuna.

CLEANING AND MAINTENANCE

1. Allow the hot appliance to cool down at least 30 minutes before cleaning and storing.
2. When hot, the terracotta dome must never come into contact with water or be placed on a cold surface (danger of cracks). Allow the hot appliance to cool down before cleaning and storing.
3. Normally, the terracotta dome does not have to be cleaned. If cleaning is necessary, use clear, warm water and a brush.
4. Caution: The terracotta dome is sensitive to breakage and is not suitable for a dishwasher.
5. Rinse the baking sheet and mini - pizza shovels with warm water and a brush. Don't put any parts in the dishwasher.
6. Never submerge the base in water. The surface can be cleaned by using a moist cloth.
7. Always use the original box to store the appliance and its accessories to avoid damage.
8. If the appliance is not to be used for a period of time, the baking sheet should be lightly oiled or greased to prevent rust.

TECHNICAL DATA

Operating voltage: 230V \~ 50Hz

Power: 1200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Warning sign depicting steam rising inside a yellow triangle, indicating hazardous or hazardous material.

Labeled diagram of a food appliance with numbered parts including a dome-shaped cooker, air conditioner, and cooking utensils.

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

CONSIGNES DE SÉCURITÉ IMPORTANTES

Labeled diagram of a food appliance with numbered parts including a dome-shaped top, air conditioner, and cooking utensils.

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Labeled diagram of a food appliance with numbered parts including a dome-shaped cooker, air conditioner, and cooking utensils.

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland
