USER MANUAL TFN110154.6 Emerio

White vertical tower-mounted air conditioner unit with dual buttons (no visible text or symbols)

Tower Fan (EN)

Turmventilator (DE)

Please read these Operating Instructions through carefully before connecting your appliance to the mains, in order to avoid damage due to incorrect use. Please pay particular attention to the safety information. If you pass the appliance on to a third party, these Operating Instructions must also be handed over.

WARNING – When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.

SAFETY INFORMATION

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Incorrect operation and improper handling can lead to faults on the appliance and injuries to the user.
6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.
7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.
8. Do not operate the appliance if the mains cable or the mains plug show signs of damage, if the appliance has fallen on the

floor or has been otherwise damaged. In such cases take the appliance to a specialist for checking and repair if necessary.

1. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
2. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.
3. Keep the appliance away from damp, and protect from splashes.
4. Keep the appliance away from hot objects (e.g. hotplates) and open flames.
5. Keep the appliance and its cord out of reach of children less than 8 years.
6. Use the appliance on a flat, dry and heat resistance surface.
7. Never leave the appliance in unattended during use.
8. Do not store or operate the appliance in the open air.
9. Keep the appliance in a dry place, inaccessible to children (in its packaging).
10. Never put fingers or any other objects through the grilles (fan guards) when the fan is running.
11. The appliance must be assembled completely before use.
12. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
13. Do not point the air flow to the people for a long time.
14. The rotor guard shall not be disassembled/ opened to clean the rotor blades.

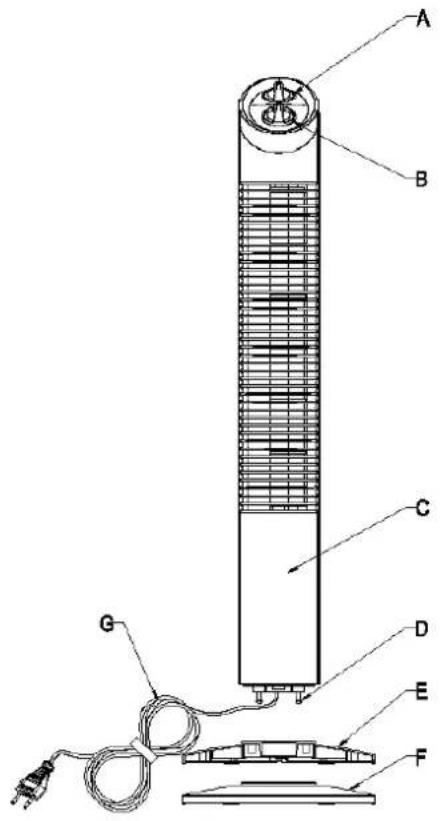

PARTS OF DESCRIPTION

A. Switch knob
B. Timer knob
C. Body
D. Screws
E. Front base
F. Back base
G. Power cord

Technical diagram of a vertical cylindrical device with labeled components A through G, showing internal structure and wiring connections.

ASSEMBLY

Technical line drawing of a mechanical component with a cylindrical body and internal components, showing a curved arrow indicating motion (no text or symbols)

1

Mechanical assembly diagram showing a rotating component with a shaft and housing (no text or symbols)

2.

Technical line drawing of a mechanical assembly with no visible text or symbols

3

Technical line drawing of a circular mechanical component with radial axes and mounting holes (no text or symbols)

4

1. Spin 3 screws out from the turnplate.
2. Fasten the back and front base together.

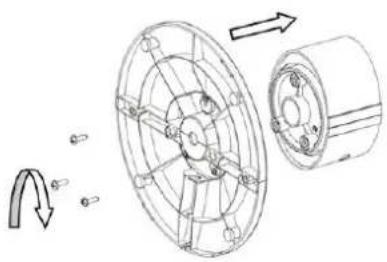

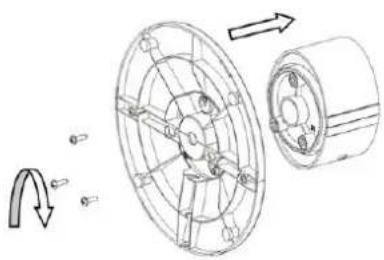

3. Align the base with turnplate and then spin into 3 screws.
4. Press the power cord into the line deduction.

CONTROL PANEL

A. Switch knob

OFF: Stop

1: Fan with low speed
2: Fan with medium speed
3: Fan with high speed

1 ↔ 2 ↔ 3 ---- Fan+ Oscillation

Oscillation angle: 0-70°

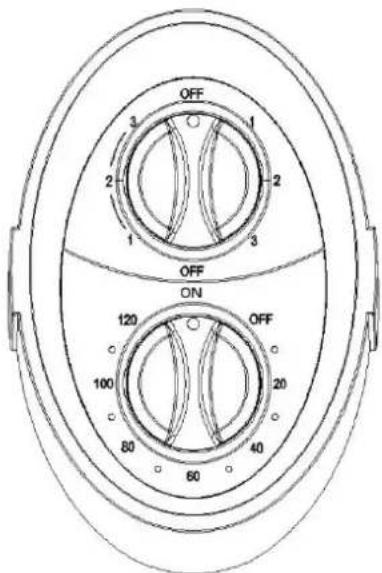

B. Timer knob

ON / OFF / Working time within 120 minutes

OFF 3 1 2 2 1 3 OFF ON 120 OFF 100 20 80 40 60

CARE AND CLEANING

CAUTION: ALWAYS UNPLUG THE PRODUCT FROM THE ELECTRICAL OUTLET PRIOR TO CLEANING IT.

1. Do not use the product in oily or dirty areas, as the air vents may become blocked.
2. Clean the plastic parts with a mild soap and a damp cloth or sponge.
3. Periodically check the screws on the product to ensure they are securely tightened.

4. Store the product in a cool, dry place.

5. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 30W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
