Product type	Pedestal fan (wooden tripod)
Brand	Emerio
Model	FN108740.4
Power supply	220-240 V ~ 50 Hz
Rated power	50 W
Maximum air flow	46.85 m³/min
Maximum air velocity	2.78 m/s
Noise level	62.8 dB(A)
Number of speeds	3 (low, medium, high)
Oscillation	Yes, via button on motor
Tilt	Adjustable via screw on support tube
Foot material	Wood (tripod)
Protection	Removable front and rear grilles
Maintenance	Clean with a damp cloth; vacuum dust from grilles
Safety	Do not immerse; keep out of reach of children under 8 years; do not insert objects into grilles
Warranty	2 years
Manufacturer	Coplax AG, Chamerstrasse 174, CH-6300 Zug
Country of origin	Not specified
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - FN108740.4 Emerio

How to assemble the fan tripod?

Remove the wing nuts from the feet, then attach the connection rods to the feet using these screws. Tighten well to ensure stability.

How to mount the rear grille?

Unscrew the rear grille fixing screw located at the front of the motor. Insert the two brackets without holes into the oval rings of the motor, then align the third bracket with the screw hole and fix it with the screw.

How to install the fan blade?

Loosen the blade fixing screw, slide the blade onto the motor shaft, align the screw with the locking notch, and tighten firmly.

How to attach the front grille?

Place the hook of the front grille on top of the rear grille, close the retaining clips, align the screw holes and fix with the grille fixing screw and nut.

How to adjust the fan height?

Loosen the fixing knob on top of the tripod, insert the support tube with the rubber ring, align the knob with the notch and retighten.

How to turn on the fan and change speed?

Plug in the unit, then use the switch on the motor: position 0 (off), 1 (low), 2 (medium), 3 (high).

How to activate oscillation?

Press the oscillation button located on top of the motor to activate it. To stop, pull the button upward.

How to tilt the fan?

Loosen the screw on the side of the support tube, adjust the desired angle, then retighten the screw to lock the position.

How to clean the fan?

Turn off and unplug the unit before cleaning. Use a damp cloth to wipe the exterior. For grilles, use a dry brush or vacuum cleaner. Never immerse the unit in water.

What are the important safety instructions?

Do not immerse the unit. Do not insert fingers or objects into the grilles. Keep out of reach of children under 8 years. Do not use if the cable is damaged. Unplug before maintenance.

USER MANUAL FN108740.4 Emerio

Exterior view of a modern office air conditioner with a metallic fan and wooden tripod base (no text or symbols visible)

Fan with wooden tripod (EN)

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.
6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.
7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.
8. Do not operate the device if the mains cable or the mains plug show signs of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.
9. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
10. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.
11. Keep the appliance away from damp, and protect from splashes.

12. Keep the appliance away from hot objects (e.g. hotplates) and open flames.

13. Keep the appliance and its cord out of reach of children less than 8 years.

14. Use the appliance on a flat, dry and heat resistance surface.
15. Never leave the device unattended during use.
16. Do not store or operate the appliance in the open air.
17. Keep the appliance in a dry place, inaccessible to children (in its packaging).
18. Never put fingers or any other objects through the fan guards when the fan is running.
19. Never operate the product without the fan guards in place, as serious personal injury may result.
20. The appliance must be assembled completely before use.
21. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
22. Do not point the air flow to the people for a long time.
23. Ensure that the fan is switched off from the supply mains before removing the guard.

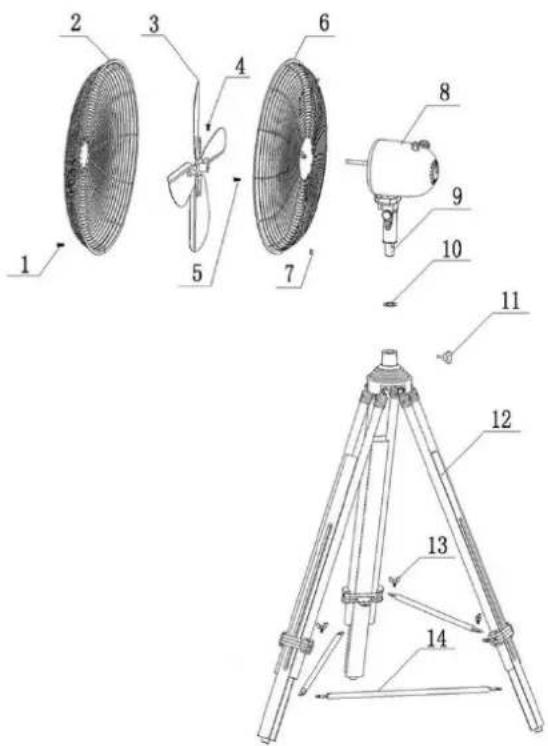

PARTS DESCRIPTION

1. Guard fastening screw
2. Front guard
3. Fan blade
4. Blade fastening screw
5. Rear guard fastening screw
6. Rear guard
7. Nut
8. Motor
9. Supporting tube
10. Rubber ring
11. Fastening knob
12. Tripod leg
13. Butterfly fastening screw
14. Connecting rod

ASSEMBLING INSTRUCTIONS

** Please assemble correctly by the following orders when using.

1. Tripod leg assembly

• Take down the butterfly fastening screws (13) from the legs.
- Attach the three connecting rods (14) together with each tripod leg (12). Fix them firmly by using the butterfly fastening screws through the holes in the connecting rods.
- Check the screws; make sure the legs stand securely.

1. Fan head assembly

1) Rear guard:

• Unscrew the rear guard fastening screw (5) on the front of the motor (8).
• Insert the two hangers (the ones without hole) on the rear guard into the two oval bushings (the bigger oval holes) on the front of the motor.
• Align the third hanger on the rear guard with the screw hole on the front of the motor and fix it by fastening the screw (5). Make sure the handle on the rear guard is on top of the fan basket.

2) Fan blade:

• Loosen the blade fastening screw (4) on the back of the fan blade (3).
• Slide the fan blade (3) onto the motor shaft.
• Align the blade fastening screw (4) with the locking notch on the motor shaft. Tighten the screw to secure the fan blade firmly.

3) Front guard:

• Put the hook of the front guard (2) onto the top of the rear guard (6).
• Close the retaining clips. Ensure the screw hole on the front guard and rear guard are lining up.

• Use the guard fastening screw (1) to secure the front guard and rear guard. Tighten with the nut (7).

• The whole assembly

• Loosen the fastening knob (11) on the top of the assembled tripod.

• Check and make sure the rubber ring (10) is on the supporting tube (9) of the fan head. Insert the supporting tube into the hole on the top of the assembled tripod.

- Align the fastening knob (11) with the locking notch on the supporting tube (9). Tighten the fastening knob to fix the fan head. Slightly twist the supporting tube left and right to ensure the fan head has been locked.

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.
2. Switch on the fan by using the speed switch on the motor housing. "0" = off, "1" = low speed, "2" = medium speed, "3" = high speed.
3. Tilting angles: You can loosen the screw on the side of the supporting tube to adjust the fan to your preferred elevation. Then fasten the elevation by tightening the screw.
4. Oscillation: to make the fan head oscillate, push down the oscillation knob on the top of the motor. To stop the fan head from oscillating, pull up the oscillation knob.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 50W

Eco design requirements
Product information requirements
Maximum fan flow rate (F)	46.85 m^3/min
Fan power input (P)	36.66 W
Service value (SV)	1.28( m^3/min )/W
Measurement standard for service value	IEC 60879: 1986 (corr.1992)
Standby power consumption (PSB)	0.00 W
Fan sound power level (LWA)	62.8 dB(A)
Maximum air velocity (c)	2.78 meters/sec
Contact details for obtaining more information	Coplax AGChamerstrasse 174CH-6300 Zug

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the

whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Coplax AG

Chamerstrasse 174

CH-6300 Zug
