USER MANUAL DF114989.1 Emerio

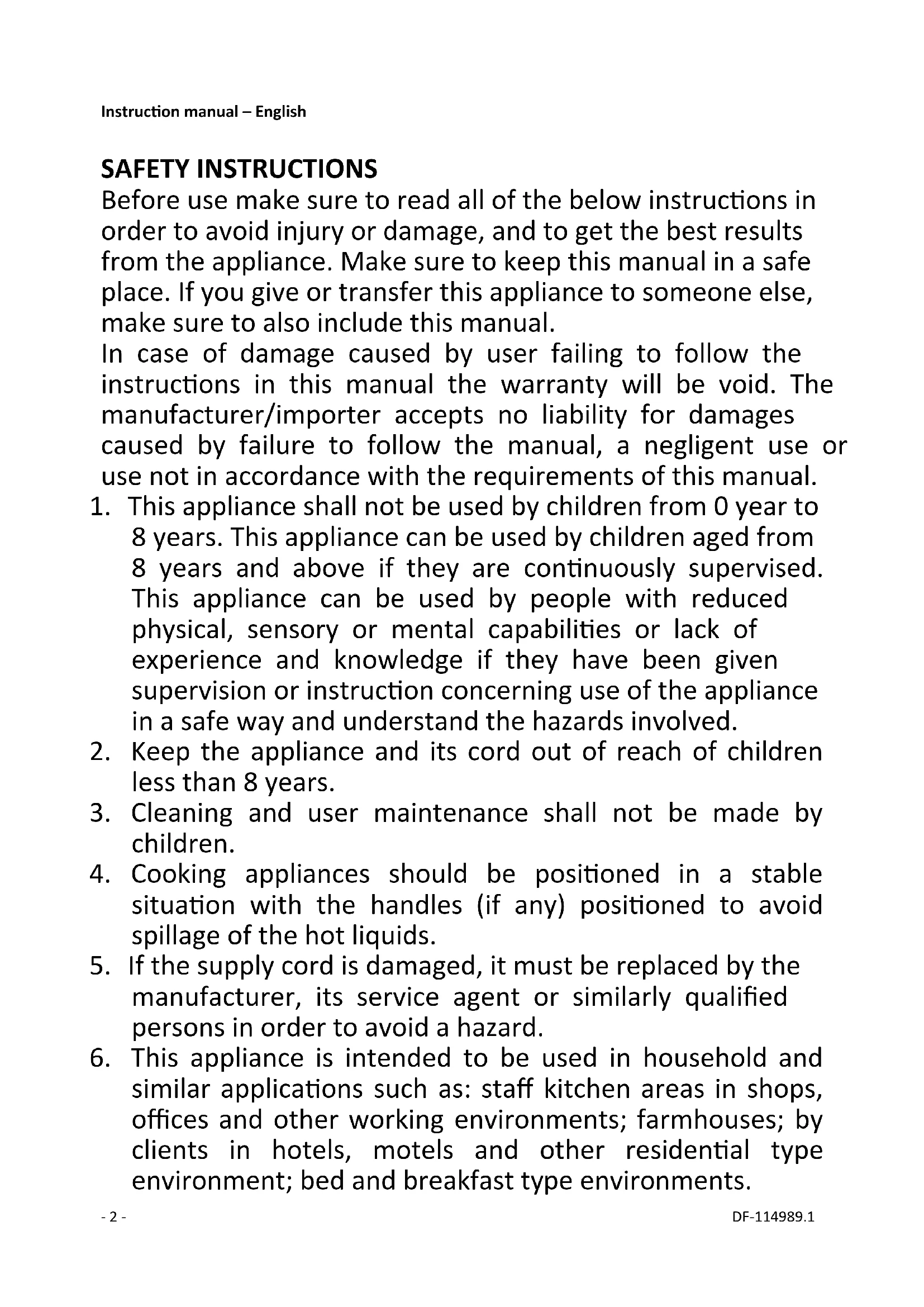

DF-114989.1 Deep fryer (EN) Fritteuse (DE) Friteuse (FR) Friggitrice (IT)- 1 - DF-114989.1 Content – Inhalt – Teneur – Contenuto Instruction manual – English ...................................................................................... - 2 - Bedienungsanleitung – Deutsch ................................................................................. - 8 - Mode d’emploi – Français ........................................................................................ - 15 - Manuale d'istruzioni – Italiano ................................................................................. - 22 -- 2 - DF-114989.1 Instruction manual – English SAFETY INSTRUCTIONS Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else, make sure to also include this manual. In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance shall not be used by children from 0 year to

8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Keep the appliance and its cord out of reach of children

3. Cleaning and user maintenance shall not be made by

4. Cooking appliances should be positioned in a stable

situation with the handles (if any) positioned to avoid spillage of the hot liquids.

5. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. This appliance is intended to be used in household and

similar applications such as: staff kitchen areas in shops, offices and other working environments; farmhouses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.- 3 - DF-114989.1

7. Regarding the instructions for cleaning the surfaces which

come in contact with food or oil, please refer to the paragraph “CLEANING AND MAINTENANCE” of the manual.

8. This appliance is not intended to be operated by means of

an external timer or separate remote-control system.

9. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

10. If an extension cord is used it must be suited to the power

consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

11. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

12. Ensure that the mains cable is not hung over sharp edges

and keep it away from hot objects and open flames.

13. Do not immerse the appliance or the mains plug in water

or other liquids. There is danger to life due to electric shock!

14. To remove the plug from the plug socket, pull the plug. Do

not pull the power cord.

15. Do not touch the appliance if it falls into water. Remove

the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

16. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

17. Never attempt to open the housing of the appliance, or to

repair the appliance yourself. This could cause electric shock.

18. Never leave the appliance unattended during use.

19. Never connect or disconnect the plug with wet hands.

20. This appliance is not designed for commercial use.

21. Do not use the appliance for other than intended use.- 4 - DF-114989.1

22. Do not wind the cord around the appliance and do not

23. Place the appliance on a stable, level surface from which

24. Do not operate the machine without supervision, if you

should leave the workplace, always switch the machine off or remove the plug from socket (pull the plug it self, not the lead).

25. Do not move the device when the fat is liquid/hot.

26. Please always use the frying basket for deep-frying.

27. Always make sure the oil tank is dry and free of water

before use. If not the hot oil can be blown out of the tank and burn and injure people, as the oil and the water have different boiling temperature.

28. Warning: Never mix fats and oils, as the deep fat fryer

could spill over, even the mixing of varous types of oil and fat with one another is dangerous.

29. If you use products with non-stick surfaces, please make

sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

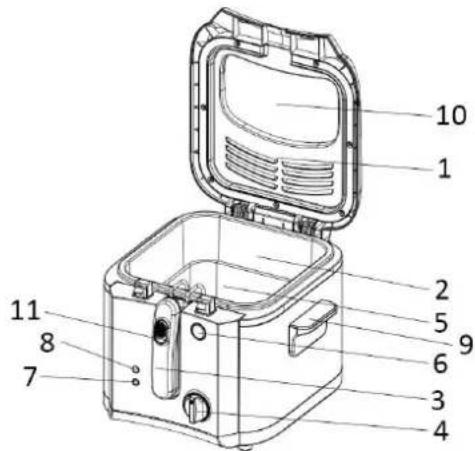

Caution, hot surface. WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.- 5 - DF-114989.1 PARTS DESCRIPTION

9. Carrying handle (on both sides)

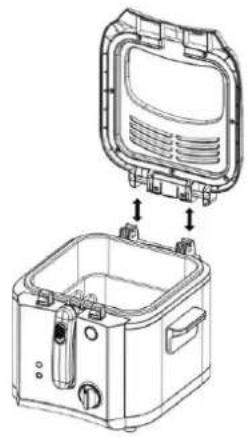

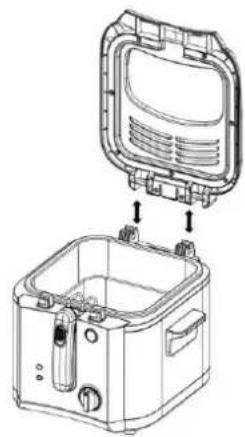

NOTE: You can take off the lid from the appliance simply by lifting the lid upwards when the lid forms a right angle with the main housing. There is an unmovable filter inside the lid. BEFORE USE First read all instructions before use and retain for later reference. Before first use, remove the packing materials. Then, wash the accessories in warm water. Dry them well before use. Make sure that the electrical parts remain dry. The deep fryer is equipped with an adjustable thermostat and indicator lights.

HOW TO OPPERATE THE DEEP FRYER

1. Never switch on the deep fryer without oil or fat, as this could damage the machine. Also, do not place

any other liquids such as water or other substances in the tank.

2. Place the deep fryer on a dry, stable surface.

3. Since the deep fryer becomes hot during use, make sure that it is not too close to other objects.

4. Press the lid opening button to open the lid. Unfold the handle of the frying basket upwards until it’s fixed

to lock position (You will hear a “click” sound). Remove the frying basket from the appliance.

5. Fill the deep fryer with the desired amount of oil or fat. Make sure that it is filled not less than minimum

level (“MIN”) and not higher than the maximum level (“MAX”) as indicated on the inside of the tank. For best results, we recommend that you use good quality vegetable oil or shortening for deep frying and do not mix different kinds of oil together.

6. Put back the frying basket and move the button on the handle to unlock the handle to its original place.

7. Connect the power plug to a suitable outlet. The power light will illuminate.

8. Set the thermostat to the required temperature setting; the heating light will illuminate.

9. The heating light will go out when the temperature you have selected has been reached. Always wait until

the selected temperature has been reached. To keep the oil at the selected temperature, the thermostat repeatedly goes on and off, and the heating light goes on and off as well.

10. Open the lid. Unfold the handle of the frying basket upwards until it’s fixed to lock position.

11. Place the food to be deep-fried into the basket. For the best result, put dry food into the basket.

12. Close the lid and you can check the process from the view window.

13. Open the lid and raise the basket again when the frying time has elapsed.

14. After frying let the product drip dry, never shake the basket.

15. Set the thermostat to the position “MIN”.

16. Remove the plug from the outlet.- 6 - DF-114989.1

FRYING TABLE The frying time in this chart is a guide and should be adjusted to suit the different quantities or thickness of the food and to suit your own taste. FOOD TEMP. SETTING TIME(MINUTES) Mushrooms 160°C 4-6 Breaded cod fillets 160°C 4-6 Chicken drumsticks 170°C 9-11 Scampi

Make sure that the deep fryer and the oil have totally cooled off before replacing the oil. Replace the oil regularly. This is definitely necessary if the oil becomes dark or takes on a different odour. In any case, replace the oil after every 10 times’ usage. Replace the oil completely; do not mix old and new oil. Discarded oil is a burden to the environment. Do not throw it in the normal rubbish bin, but follow the guidelines of the municipal waste collector in your area.

CLEANING AND MAINTENANCE

1. Clean the deep fryer on both the inside and outside regularly.

2. Clean the outside of the deep fryer with a damp cloth and dry with a soft, clean cloth.

3. Never use abrasive cleaners or sponges.

4. The frying basket and removable lid can be cleaned in warm soapy water, but only the frying basket is

dishwasher safe. Dry them well before using again.

5. Never immerse the main housing into water or any other liquids.

1. Always place the deep fryer on a stable surface and keep all flammable materials away.

2. Make sure that the deep fryer is not near or on a switched-on hot plate.

3. Before you use the deep fryer it must be filled with the required amount of oil or fat.

4. Never use the deep fryer without oil or fat because this could damage the unit.

5. Never move the deep fryer during use. The oil becomes very hot and you can get burned. Wait to move

the deep fryer until the oil has cooled down.

6. Never immerse the unit in water.

7. Never leave the deep fryer unattended while in use. Always ensure the safety of children if they are near

8. If the deep fryer and/or cord are damaged, they must be repaired by a professional service department.

9. Do not try to repair the unit by yourself, neither to replace a damaged cord. This requires special tools.

10. Be sure not to damage the heating element. (Do not bend or dent.)

THERMOSTAT The adjustable thermostat will switch off the deep fryer automatically. This can happen if temperature setting of the deep fryer is reached. If the adjustable thermostat switches off the deep fryer, please do not mind it. It will be ready for work again automatically when temperature is lower than your setting temperature. TECHNICAL DATA Operating voltage: 220-240V ~ 50/60Hz Power consumption: 1450-1600W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:- 7 - DF-114989.1 For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you cannot claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.
