USER MANUAL AC123227.1 Emerio

White air conditioner unit with black ventilation slots and a digital display (no visible text or symbols)

Air cooler (EN)

Luftkühler (DE)

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Unplug the appliance during filling and cleaning.
6. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
7. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
8. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

9. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

10. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

11. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
12. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
13. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
14. Never leave the appliance unattended during use.
15. This appliance is not designed for commercial use.
16. Do not use the appliance for other than intended use.
17. Do not wind the cord around the appliance and do not bend it.
18. Never insert fingers, pencils or any other object through the holes of the plastic shell.

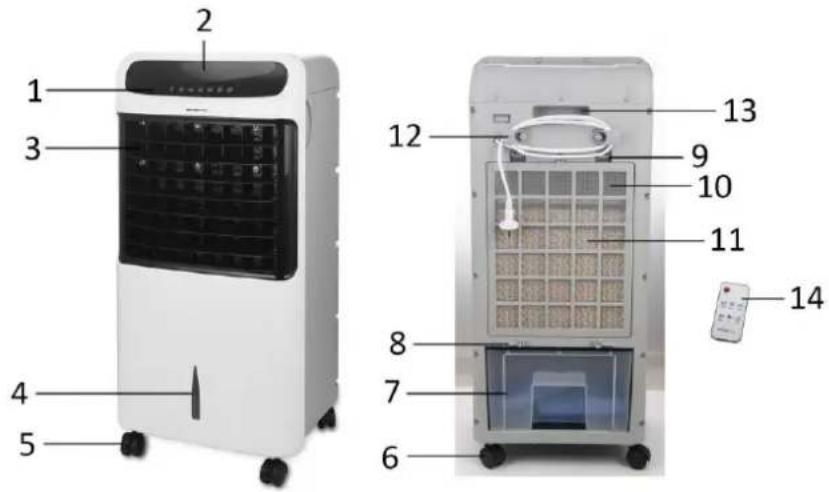

PARTS DESCRIPTION

The device consists of the following main components:

1. Control panel

2. Digital display

3. Air outlet

4. Water level window

5. Front wheels

6. Rear wheels with brake

7. Water tank

8. Water tank lock

9. Release tab

10. Dust filter

11. Cooling pad

12. Power cord hanger

13. Handle

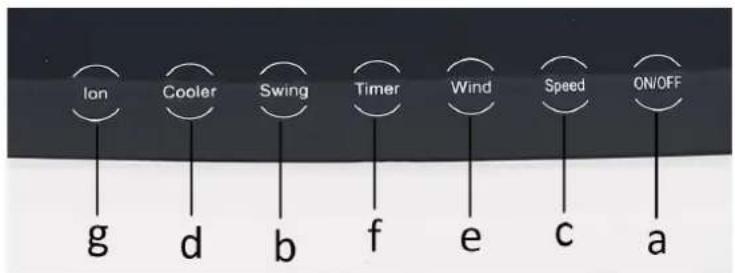

14. Remote control

a. ON/OFF button

b. Swing button

c. Speed selection button

d. Cooling button

e. Mode selection button

f. Timer setting button

g. lon mode button

1 2 3 4 5 6 7 8 9 10 11 12 13 14

Ion Cooler Swing Timer Wind Speed ON/OFF g d b f e c a

BEFORE USE

1. Pull the appliance out from the carton and place it on a solid heat-resistant horizontal surface.

2. Check if the accessories are complete including: one remote control, two ice packs, two wheels with brake and two wheels without brake.

3. Insert four wheels into the corner holes and ensure the wheels are assembled tightly. Make sure the two wheels with brake are assembled at the rear side of the appliance. (If you need to lock the wheels, just press down the brake lever.)

HOW TO USE

1. Turn the water tank lock to the horizontal position. Pull out the water tank and add water into the water tank. If you need the air sent out much cooler, put the ice pack (add water into the ice pack and frozen first; do not exceed the MAX line on the ice pack when adding water into it) into the water. Make sure the water level is between the MIN and MAX line (A) marked on the water tank.

Water

A

1. Plug the appliance into the appropriate power outlet. A beep sound sent out indicates the power is connected.

2. Turn on the appliance by pressing the ON/OFF button. The current environmental temperature is shown

on the screen and will be changed as the appliance works. The logo “✗” is also displayed to indicate the appliance is sending out air flow. To turn the appliance off, just press the ON/OFF button again.

1. Choose and set below functions as you want.

• Air flow speed selection:

Press the speed selection button to choose air flow speed, the corresponding speed level logo will be shown on the screen: LOW (logo "λ") → MEDIUM (logo "λ") → HIGH (logo "λ") → LOW (logo "λ")... in turn.

- Swing function and air flow direction:

Press swing button to make the air flow swing left and right; press it again to cancel the swing and fix the air flow at a specific direction horizontally. The logo “√” is shown on the screen when the louver swings.

To adjust the air flow direction vertically, just lift up or press down the louver outside.

- Cooling:

Press the cooling button to start the cooling function. The logo “” will be shown on the screen. Press again the button to cancel the function. This function is only effective when the water tank has ice pack(s) inside. Do not activate this function when the water in the water tank is below the “MIN” level; add enough water into the water tank first.

- Mode selection:

Press the mode selection button to choose the running mode from Sleeping mode → Natural mode → Normal mode → ... (Repeating).

1) Normal mode: under this mode, the motor works with the preset speed, and the logo “✗” is displayed. You can press the speed button to choose speed Low /Medium /High.
2) Natural mode: under this mode, the logo “↑” is displayed. The appliance runs according to the natural mode program. It is generating softer and more comfortable air flow, you will feel like the wind from the nature. You can press the speed button to choose Low /Medium /High natural wind.
3) Sleeping mode: under this mode, the logo " 🔊" is displayed. The appliance runs according to the sleeping mode program. Air flow will weaken with the decrease of body temperature when you fall asleep, which will protect you from catching cold. You can press the speed button to choose Low /Medium /High sleeping wind.

- Timer Setting:

Press the timer setting button to start the timer setting, you can set the appliance to automatically turn itself off in 1 hour /2 hours/ 3 hours/.../11 hours /12 hours (maximum setting). Continuously press the button to select the desired running time for the appliance. When the digital display shows "00", no operation for several seconds, and the timer will be canceled.

- Ion mode:

Press the Ion mode button to activate the ionizer function. The logo “ ” is displayed when this function is activated. Ions attract tiny particles in the air such as dust, pollen and mold spores etc. which cause them to become too heavy to remain airborne. This feature allows us to have clean air in the environment.

NOTES:

1. It is recommended to change water and clean water tank frequently.
2. Activating the cooling function with insufficient water may cause malfunction of the water pump.
3. Do not take out the water tank immediately after the appliance is just turned off. Wait several minutes to avoid the water dripping out from the cooling pad.

REMOTE CONTROL

This unit has a remote control. Please use one piece of CR2025 battery for this remote control. Please insert the battery to the remote control tightly (Refer to the instruction behind the remote control). If it is not in use for a long time, please take the battery out of the remote control. The functions of the remote control buttons are the same as the functions of the buttons on the control panel.

CLEANING AND MAINTENANCE

Unplug the appliance during filling and cleaning.

Make sure there is no water on the control panel.

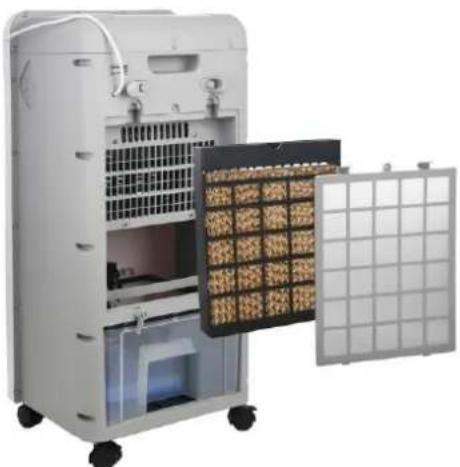

- Clean the dust filter and cooling pad

1. Unplug the appliance.
2. Loosen and take off the screw on the dust filter.
3. Press the two release tabs to take off the dust filter and then the cooling pad.

4. Rinse the dust filter and cooling pad under water to wash away the dust.

5. Put back the cooling pad and dust filter in place after cleaning. If you will not use the appliance immediately after cleaning, please dry them before putting back.

Exterior view of a white industrial air purifier unit with a grid-patterned open panel and internal cooling system (no visible text or symbols)

Note: After long time operation, the cooling pad becomes clogged with dust and dirt, which will greatly affect the performance of the appliance. It is recommended to clean the cooling pad frequently.

- Clean the water tank

1. Unplug the appliance.
2. Pull out the water tank.
3. Clean the water tank with a soft cloth and a little mild detergent, then rinse it in water.
4. Put back the water tank in place after cleaning.

Note: After some time of operation, the water tank may have dust and dirt. It is recommended to change water and clean the water tank frequently.

- Clean the main body

1. Unplug the appliance.
2. For slight dirt, wipe if off with a soft damp cloth. For greasy dirt, squeeze a little mild detergent on a soft damp cloth, then wipe the dirt off.
3. Let the main body dry completely before next use.

TECHNICAL DATA

Mains voltage: 220-240V \~ 50Hz

Power consumption: 80W

Airflow: 496 m ^3 /h

Water tank capacity: 12 litres

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE ORT CIRCUIT.

Manufactured by: Emerio Deutschland GmbH

Höffer Weg 14, 51519 Odenthal Germany

ERP information (EN)

Declare that the product detailed below:

Information requirements

Information to identify the AC-123227.1 to which the information relates to [Air Cooler]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	7,5	m^3/min
Fan power input	P	80	W
Service value	SV	0,09	(m^3/min)/W
Standby power consumption	P_SB	/	W
Fan sound power level	L_WA	65	dB(A)
Maximum air velocity	C	10	meters/sec
Measurement standard for service value	IEC 60879:1986 (corr. 1992)
Contact details for obtaining more information	Emerio Deutschland GmbHHöfferweg 1451519 OdenthalGermany

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
