Product type	Electric grill plate
Brand	Emerio
Model	BG110458.5
Power supply	220-240 V ~ 50/60 Hz
Power	2000 W
Drip tray capacity	0.3 L (min) - 0.8 L (max)
Temperature control	Yes, via rotary knob
Operation indicator light	Yes
Height-adjustable grill	Yes, two positions
Safety switch	Yes, prevents operation if control box is not properly installed
Grill material	Chrome-plated steel
Housing material	Plastic and metal
Cleaning of grill and tray	Washable with hot water and mild detergent
Cleaning of heating element and housing	Wipe with a clean, dry cloth; never immerse
Warranty	2 years
Included accessories	Plastic feet (4), screws, metal hook, M4 nut
Use	Indoor only, on a flat and stable surface
Child safety	Use from age 8 under supervision
Special feature	Drip tray with water to cool and reduce smoke
Do not use	Aluminum foil, external timer, charcoal

Frequently Asked Questions - BG110458.5 Emerio

How to assemble the grill plate?

Attach the four plastic feet to the main housing using the provided screws. Place the drip tray on the housing and secure it with the metal hook and M4 nut. Fill the tray with water between the Min 0.3L and Max 0.8L marks. Insert the heating element into the housing, ensuring the hook activates the safety switch. Place the grill into the height adjustment slots.

What is the importance of the water level in the tray?

The water in the drip tray helps to cool the tray, reduce smoke accumulation, and facilitate cleaning. Maintain the level between Min 0.3L and Max 0.8L during use. If the level becomes too low, the appliance may overheat.

Can I use aluminum foil on the grill?

No, aluminum foil is prohibited. Its use may cause overheating and compromise the safety of the appliance. Never cover the grill with any solid or flexible material.

How to clean the heating element?

Unplug the appliance and wait for it to cool completely. Clean the heating element and control box with a clean, dry cloth. Never immerse them in water or any other liquid.

What to do if the appliance does not turn on?

Check that the heating element is properly installed: the end of the metal hook must be inserted into the bottom hole of the control box to activate the safety switch. Also ensure the cord is plugged in and the outlet works.

Can I use the grill plate outdoors?

No, this appliance is designed for indoor use only. Do not use it outdoors or in humid environments.

What is the power of the appliance?

The rated power is 2000 W at 220-240 V ~ 50/60 Hz.

How to adjust the grill height?

The grill can be placed in two positions by inserting it into the height adjustment slots (high or low position) on the main housing. Use heat-resistant equipment to change the position during operation.

What to do in case of excessive smoke?

A slight smoke during first use is normal. If smoke is excessive, check the water level in the tray (keep between Min and Max). Avoid very fatty foods that may ignite. If the problem persists, unplug the appliance and let it cool.

What is the warranty period?

Emerio offers a 2-year warranty from the date of purchase. Keep your receipt. The warranty does not cover damage due to misuse or unauthorized repairs.

USER MANUAL BG110458.5 Emerio

Black electric grill with grid grating and power button (no visible text or symbols)

Barbecue-Grill (EN)

Barbecue-Grill (DE)

Barbecue gril (FR)

Barbecue (NL)

Grill (PL)

Content – Inhalt – Teneur – Inhoud – Treść

Instruction manual – English ...... - 2 -

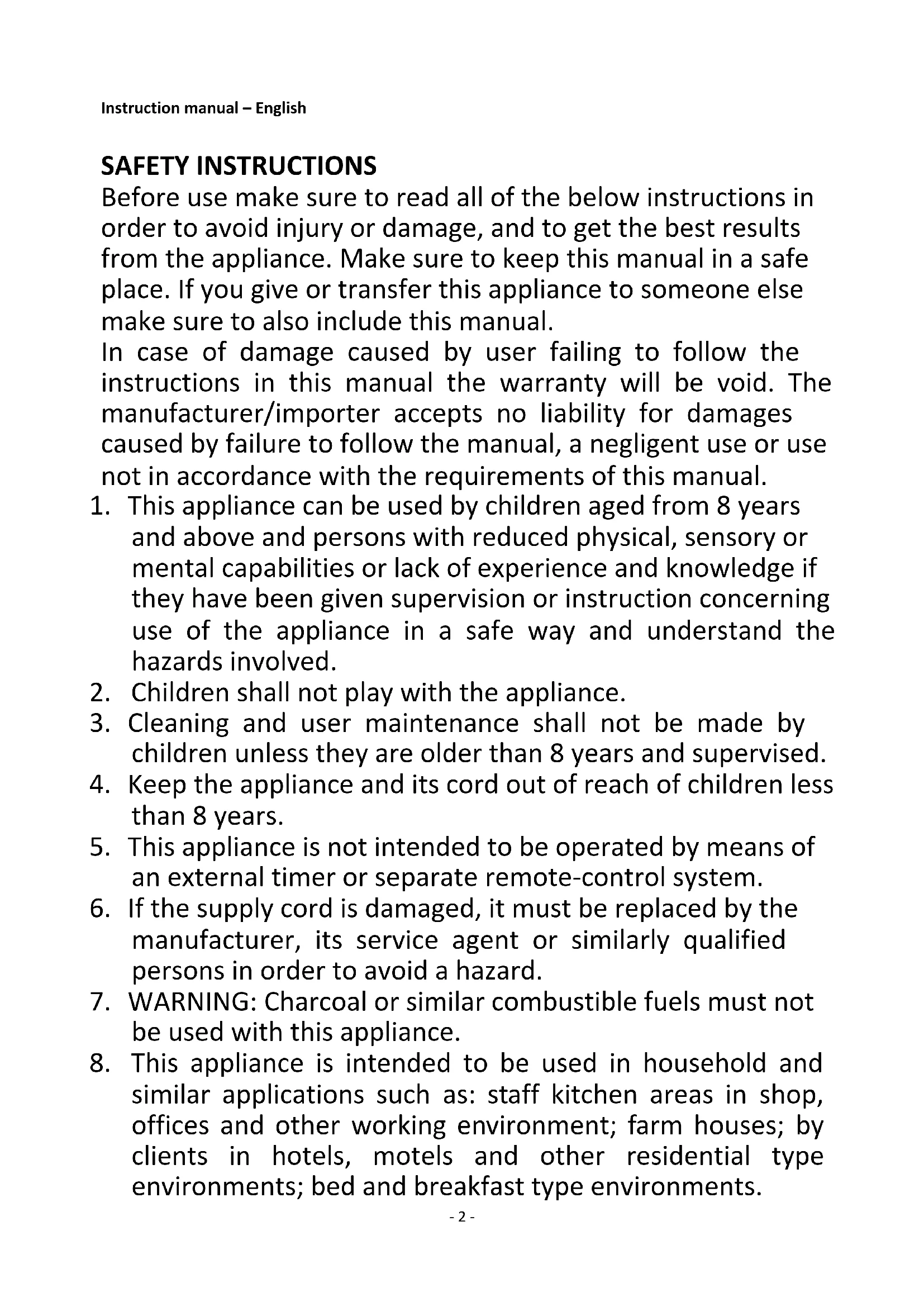

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. WARNING: Charcoal or similar combustible fuels must not be used with this appliance.

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shop, offices and other working environment; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

9. Incorrect operation and improper use can damage the appliance and cause injury to the user.

10. The appliance may be used only for its intended purpose. No responsibility can be taken for any possible damage caused through incorrect or improper handling.
11. Before connecting the appliance to the power source, check that the current and power match those given on the rating plate.
12. Do not put the appliance or the plug in water or any other liquid. However if the appliance accidentally fall into water, unplug the appliance immediately and have it checked by a qualified person before using it again. Non-observance could cause a fatal electric shock!
13. Do not use the appliance with wet hands, on a damp floor or when the appliance itself is wet.
14. Do not touch the plug with wet or damp hands.
15. Never attempt to repair the appliance by yourself. This could cause an electric shock.
16. Do not allow the cord to hang over sharp edges and keep it well away from hot objects and naked flames. Remove the plug from the socket only by holding the plug.
17. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
18. This appliance is designed for household use only and not for commercial applications.
19. Never leave the appliance unattended while it is in use.
20. Always remove the plug from the socket when the appliance is not in use and each time before it is cleaned.
21. Danger! Nominal voltage is still present in the appliance as long as the appliance is connected to the mains socket.
22. Switch off the appliance before disconnect from the mains.

23. Never use the cord to carry the appliance.

24. Before use, the appliance must be placed on a firm, flat surface and at least 50 cm away from the nearest wall or any flammable objects.

25. Attention! The appliance is become very hot! It must cool down completely, before its surface can be touched. Removing and cleaning of the barbecue grill, the control unit and the drip tray may only be done after the appliance has cooled down completely.
26. The appliance must not be stored outdoors. Indoor use only.
27. During first use, a small amount of smoke and faint smell might occur.
28. Burn hazard! Be careful when handling hot oil and fat. Beware of spitting oil and hot steam!
29. Do not move the appliance during use.
30. Due to safety reasons, if the control unit is removed from the body of the appliance, the barbecue must not be switched on.
31. WARNING: Never put the heating element, control box and the plug into water.
32. Remember that the food with a high fat or moisture content may tend to ignite.
33. Always fill the drip tray with water before you switch on the appliance. The water helps to cool down the drip tray, reduces the build-up of smoke, and also facilitates cleaning.
34. Ensure that the water level is kept between the “Min 0.3L” and “Max 0.8L” at all times during use.

! WATER

MAX 0.8L

MIN 0.3L

The maximum water capacity is 0.8L and the minimum water capacity is 0.3L. Do not add water that overflows the drip tray.

1. WARNING: Silver paper must not be used with this appliance.

2. WARNING: In order to avoid overheating, this appliance shall not be covered by any solid or flexible material such as an aluminum tray, aluminum foil or trays made of other heat resistant material. The use of such items or materials on the grill would impair the safety of your product and could lead to serious damage.

3. Before the grill is used, always check that the heating element is correctly fitted in the body and safely locked. Do not connect the grill to mains power until the drip tray has been filled with water.

4. Before carrying, transporting or storing the grill, ensure that is has sufficiently cooled down. Pour out any remaining water after use.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.

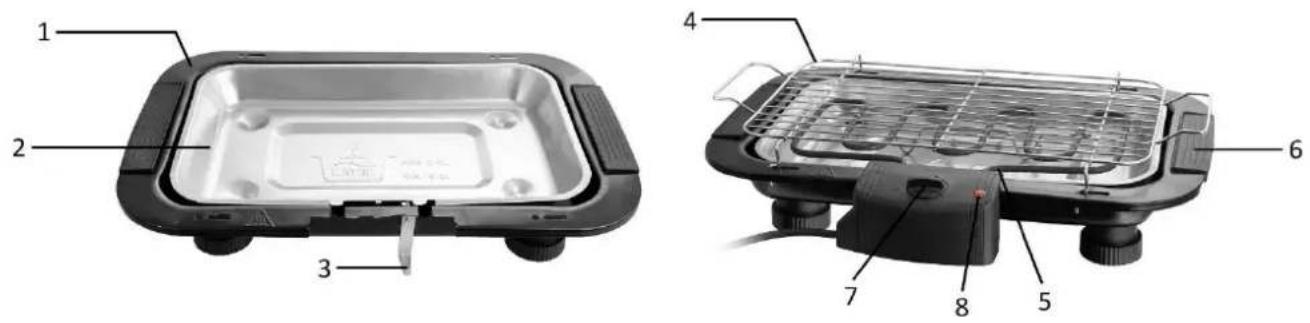

PARTS DESCRIPTION

Labeled diagram of a microwave oven and gas grating device with numbered parts

1. Main body
2. Drip tray
3. Metal hook
4. Grill rack
5. Heating element with control box
6. Handle (on both sides)
7. Control knob
8. Indicator light

BEFORE FIRST USE

• Remove all packaging.
• Clean the appliance, as described in Cleaning and Maintenance.
• Switch the barbecue on for 5 minutes without food on it before first use, so that possible production residues are removed. During that time, a smell might occur but this is not a defect of the appliance.

ASSEMBLY

A 1

B 2

Technical line drawing of a device housing with internal components and a close-up view showing a component labeled C (no text or symbols present)

Technical diagram of a portable air conditioner unit with labeled component D, showing internal wiring and housing (no text or symbols beyond label)

1. Turn the main body upside down. Fasten the four pieces of the plastic feet (A) onto the bottom with the screws provided.

2. Place the drip tray onto the main body. Be sure the long screw of the metal hook through the hole of the drip tray to make it sit properly. Screw the provided M4 nut (B) onto the long screw to fix the drip tray.

Fill the drip tray with cold water. The maximum water capacity is 0.8L and the minimum water capacity is 0.3L. Do not add water that overflows the drip tray.

During use the water in the drip tray will evaporate and should be refilled. Otherwise, the product will get too hot.

Note: Make sure you do not drip water on to the element.

1. Place the heating element with the control box on to the main body. Make sure the end of the metal hook is inserted into the bottom hole (C) of the control box, so that the safety switch is activated. Otherwise, the appliance cannot be switched on.

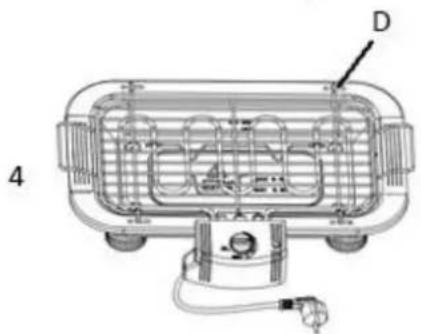

2. Place the grill rack on to the main body. Fix the grill rack into the slots of the height adjustor (D) to choose a high or a low grilling position.

IMPORTANT! Use proper heat resistant equipment (not supplied) if attempting to adjust the grilling position during operation.

OPERATION

- Place the appliance in the middle of the table. Connect the power plug into a suitable outlet.

- Turn the control knob to the "MAX" position, the indicator light will illuminate to indicate the heating element is heating up.

- After approximately 2-5 minutes, the heating element reaches the suitable temperature. Please place your food on the grill rack for grilling. During use, you can turn the control knob back to choose your desired position. Deep frozen food should be defrosted completely before barbecuing.

- To grill food evenly, it should be turned several times during the barbecue. The barbecuing time depends on the food to be grilled.

- Caution! To avoid a heat accumulation, do not place aluminum foil or other barbecue accessories on the barbecue grill.

- During use the water in the drip tray will evaporate and should be refilled. Otherwise the product will get too hot.

Note: Make sure you do not drip water on to the element.

• To switch off the appliance, turn the control knob to "MIN" position and unplug the power cord from outlet.

- The grill rack, the heating element and the control unit and other parts must be removed only after the appliance has cooled down completely.

CLEANING AND MAINTENANCE

• Before cleaning, unplug and allow the appliance to cool down.
- Never immerse the heating element and the control box into water or other liquid. Clean them with a clean dry cloth only.
• The other barbecue components can be cleaned with warm water and mild detergent.
- Let the appliance dry completely before it is reconnected to the supply.
- Use no sharp or abrasive cleaning agents.

TECHNICAL DATA

Operating voltage: 2 2 0 -240V \~ 50/60Hz

Power consumption: 2000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Manufactured by: Emerio B.V.

Oudeweg 115, 2031 CC Haarlem, The Netherlands
