WM122236.1 - Waffle Maker Emerio - Free user manual and instructions

Product Type	Waffle Maker
Brand	Emerio
Model	WM122236.1
Voltage	220-240 V ~ 50/60 Hz
Power	1200 W
On/Off indicator light	Red
Temperature indicator light	Green (lights up when temperature is reached)
Temperature adjustment	Rotary thermostat with cooking positions
Cooking plates	Non-stick
Cool-touch handle	Yes, for safe handling without risk of burns
Dimensions (approx.)	24 x 20 x 10 cm
Weight (approx.)	1.2 kg
Cord length	Approximately 1 m
Usage	Household use only
Cleaning	Wipe with a damp cloth; do not immerse
Housing material	Heat-resistant plastic
Warranty	2 years
Customer service	Emerio Deutschland GmbH, Tel: [phone]

Frequently Asked Questions - WM122236.1 Emerio

How to use my waffle maker for the first time?

Before first use, remove all packaging and clean the plates with a damp cloth. Plug in the appliance and heat it to maximum temperature for a few minutes to eliminate any manufacturing odors. Allow to cool, clean again, then it's ready to use.

What is the power of the waffle maker?

The Emerio WM122236.1 waffle maker has a power of 1200 W.

Can I use metal utensils on the non-stick plates?

No, never use metal utensils (knives, forks) as they would scratch the non-stick coating. Use a plastic or wooden spatula.

How to clean the cooking plates?

Let the appliance cool completely, then wipe the plates with a soft damp cloth. Do not use abrasive products and never immerse the appliance in water.

What does the green light mean?

The green light turns on when the cooking temperature is reached. It turns off and on during use to maintain constant heat.

Can I prepare other foods than waffles?

This waffle maker is designed only for making waffles. Do not use it for other foods.

The appliance emits an odor on first use, is this normal?

Yes, a slight odor may be released during the first few uses due to heating of new materials. This disappears quickly.

What is the recommended cooking time?

Cooking usually takes 2 to 4 minutes depending on desired browning. Monitor the color through the window (if present) or open gently.

How to adjust the temperature?

Turn the thermostat knob from minimum to maximum. Preheat to Max, then adjust according to recipe. The green light indicates the temperature is ready.

Is the appliance warranted?

Yes, the Emerio waffle maker comes with a 2-year warranty from the date of purchase. Keep your receipt. The warranty does not cover damage due to misuse.

USER MANUAL WM122236.1 Emerio

White electric oven with a black control knob and 'emeno' branding on the lid (no additional text or symbols visible)

Waffle maker double (EN)

Instruction manual – English ...... - 2 -

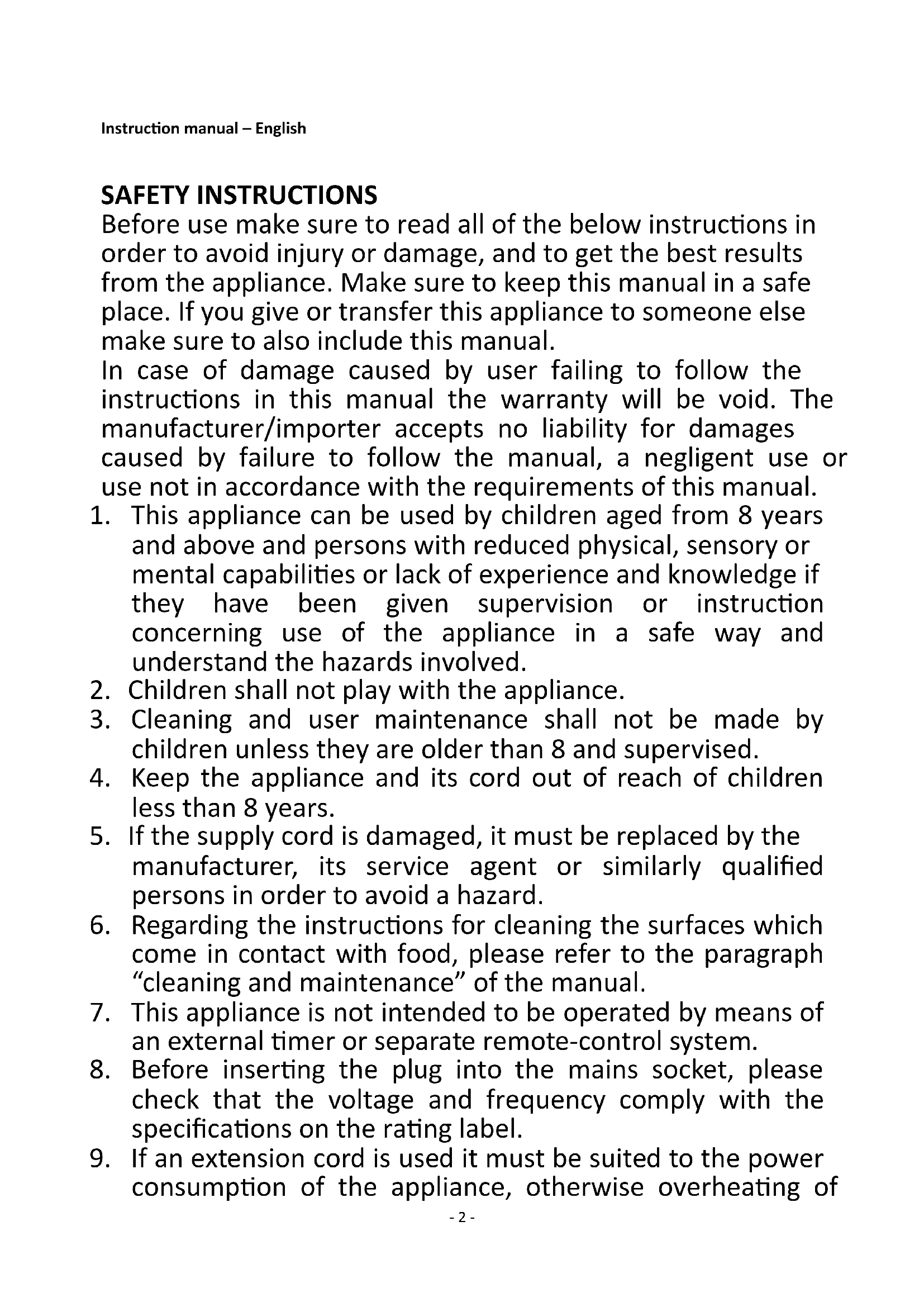

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "cleaning and maintenance" of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
8. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
9. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of

the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

1. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
2. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
3. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
4. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
5. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
6. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
7. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
8. Never leave the appliance unattended during use.
9. This appliance is not designed for commercial use.
10. Do not use the appliance for other than intended use.
11. Do not wind the cord around the appliance and do not bend it.
12. Place the appliance on a stable, level surface from which it cannot fall off.
13. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

Caution, hot surface

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

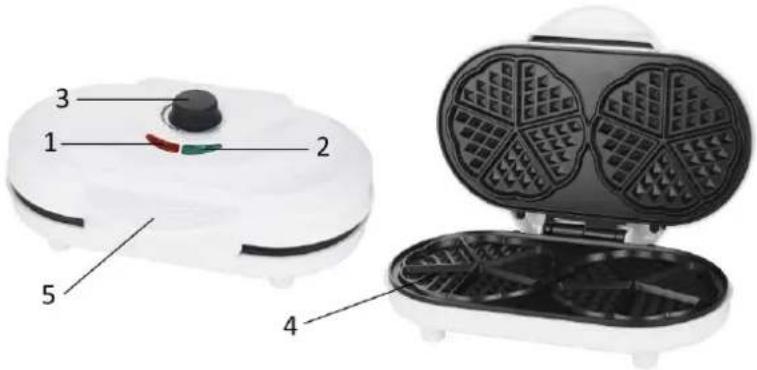

PARTS DESCRIPTION

1. Red power indicator
2. Green temperature indicator
3. thermostat control knob
4. Grill plates
5. Cool touch handle

BEFORE FIRST USE

1. Remove all packaging material.
2. Clean the heating surfaces with a soft damp cloth then dry them.
3. Uncoil the mains cable completely.
4. When first use, the device may give off a slight odor. This is normal and will not last for long.

OPERATING INSTRUCTIONS

1. Put the appliance on a level and heat-resistant surface.
2. Connect the device to an appropriate socket. The red light illuminates.
3. Switch the thermostat control knob to "Max" for preheating. When the green light turns on, you can switch the knob to your desired position, then you can begin waffle making.
4. Open the waffle machine at its handle.
5. Add some butter onto the grill plates if you like.
6. Pour the prepared dough onto the lower heating surface and distribute it evenly. Please ensure that the dough does not flow over the edge of the heating surface.
7. Hold the upper heating surface at the handle and close the waffle machine.
8. Bake the waffle for approx 2-4 minutes depending upon the degree of browning required.
9. Open the waffle machine as described above and remove the waffle with a plastic spatula. Do not use any metal objects (e.g. knife, fork etc.) as they will scratch the coating of the heating surface.
10. If you wish to bake more waffles, pour in more dough immediately.
11. When you have finished baking, remove the mains plug.
    Note: During cooking, the green temperature control light cycles on and off to maintain the temperature.

CLEANING AND MAINTENANCE

1. First of all remove the mains plug!
2. Do not commence cleaning until the device has cooled down completely.
3. Clean the outside surface and the heating surfaces with a brush or with a soft, damp cloth. Do not run the water directly onto the baking surfaces.
4. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush, knife) for cleaning.
5. Caution: Do not immerse the device in water or other liquids. There is a danger to life from electric shock!

TECHNICAL DATA

Supply voltage: 220-240V \~ 50/60Hz

Power: 1200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal

rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]
