Steel Pro 561ED - Above-ground pool BESTWAY - Free user manual and instructions

Product Type	Above-ground pool
Brand	Bestway
Model	Steel Pro 561ED
Category	Above-ground pool
Filter pump included	Yes (models 58381/58383/58386)
Filtration type	Filter cartridge
Power supply	220-240 V, 50 Hz, with isolation transformer or 30 mA RCD
Minimum distance from pool (pump)	3.50 m for the outlet, 2 m for the device
Recommended maximum water height	Not specified in the manual, but suitable for above-ground pools
Pool material	Steel (Steel Pro) and PVC
Dimensions (approx.)	Diameter: 366 cm, Height: 76 cm (estimate for this common model)
Water capacity (approx.)	Approximately 7,650 L (estimate for dimensions above)
Empty product weight (approx.)	Approximately 50 kg (estimate)
Weight of filter pump	Approximately 5 kg (estimate)
Safety	Power supply via 30 mA RCD, use prohibited for children without supervision, do not use if people are in the water
Recommended maintenance	Minimum operation 8 hours/day, weekly filter cleaning, cartridge replacement every 2 weeks
Winter storage	Disassemble and store indoors if temperature < 10°C, in a dry place between 10°C and 38°C
Spare parts	Available at bestwaycorp.com/support
Warranty	See Bestway website for conditions

Frequently Asked Questions - Steel Pro 561ED BESTWAY

What are the prerequisites for installing the Steel Pro 561ED pool?

Choose a flat, firm, and well-drained ground, more than 2 m from any electrical obstacle. The pump must be placed at least 3.50 m from the pool and powered via an isolation transformer or a 30 mA RCD.

How to install the included filter pump?

Place the pump on a solid base (ground, wood, or concrete) at the same level as the pool. Fix it with the provided bolts if necessary (9 mm holes, spacing according to capacity). Connect the hoses to the inlet/outlet ports, ensuring the valves are submerged before starting.

What is the safety distance between the pump and the pool?

The electrical outlet must be at least 3.50 m from the pool. The device (pump) must be placed more than 2 m from the pool edge.

Can I use the pool while the pump is running?

No, the pump must not be used when people are in the pool. Always unplug the pump before entering the water.

How to clean the pump filter?

Unplug the pump. Open the filter housing, remove the cartridge and rinse it with clean water. Put it back. Replace the cartridge every two weeks for optimal filtration.

How long should the pump run per day?

It is recommended to run the pump at least 8 hours per day to maintain clear and healthy water.

What to do if the power cord is damaged?

The cord cannot be replaced. If the cord is damaged, the device must be discarded. Do not use the pump and contact Bestway support.

How to store the pump in winter?

Disassemble the pump, clean and dry all parts completely. Remove the filter cartridge. Store in a dry place at moderate temperature (10-38°C). Do not store if ambient temperature is below 10°C.

Can I use the pump with an extension cord?

No, using extension cords is prohibited for safety reasons. The pump must be plugged directly into a grounded outlet.

Where to find spare parts or additional help?

Visit the site bestwaycorp.com/support for manuals, FAQ, videos, and spare parts. You can also check the Bestway YouTube channel for tutorials.

USER MANUAL Steel Pro 561ED BESTWAY

bestwaycorp.com/support

OWNER'S MANUAL

bestwaycorp.com/support

Visit the Bestway YouTube channel YouTube

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

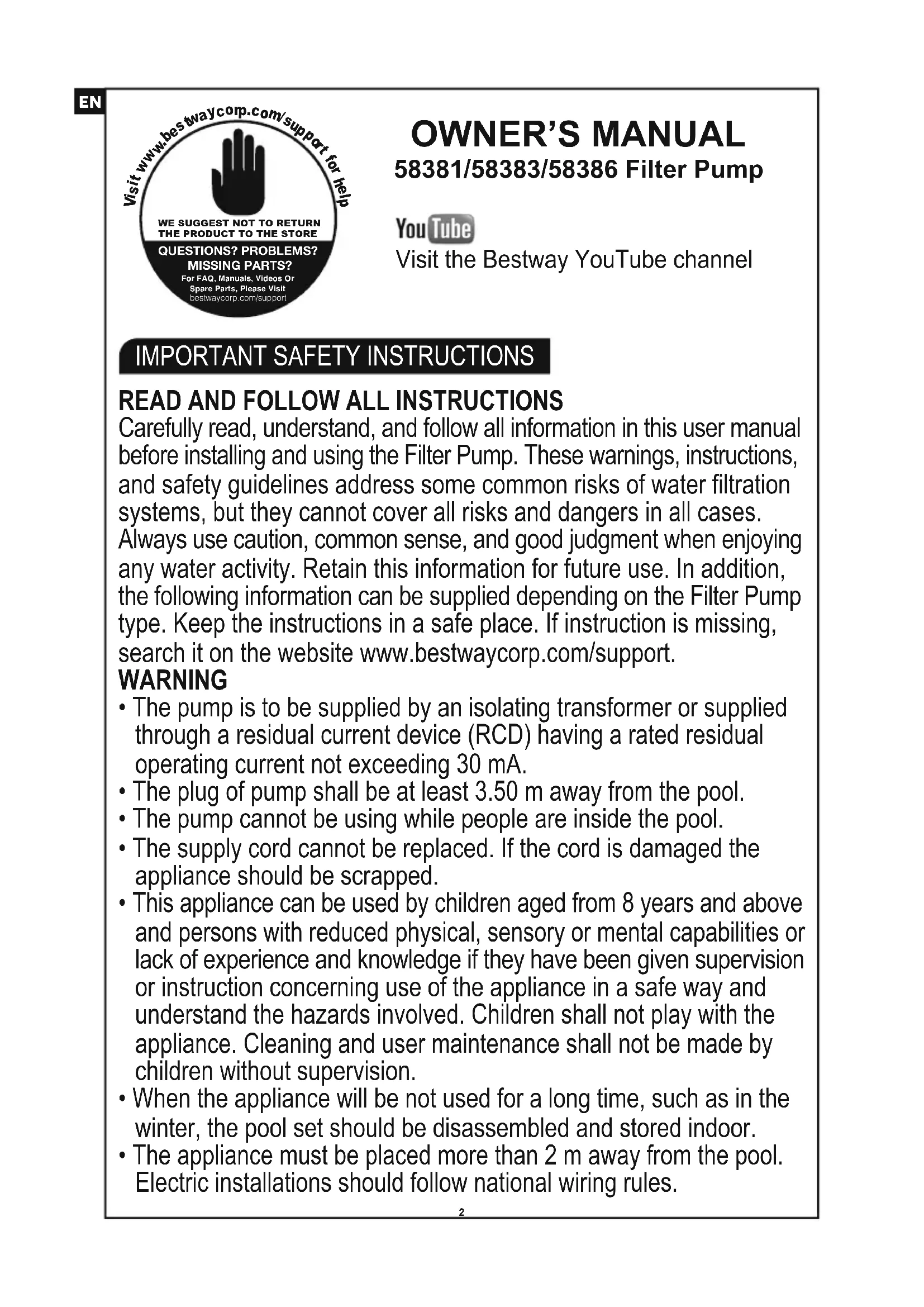

OWNER'S MANUAL

58381/58383/58386 Filter Pump

YouTube

Visit the Bestway YouTube channel

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS

Carefully read, understand, and follow all information in this user manual before installing and using the Filter Pump. These warnings, instructions, and safety guidelines address some common risks of water filtration systems, but they cannot cover all risks and dangers in all cases. Always use caution, common sense, and good judgment when enjoying any water activity. Retain this information for future use. In addition, the following information can be supplied depending on the Filter Pump type. Keep the instructions in a safe place. If instruction is missing, search it on the website www.bestwaycorp.com/support.

WARNING

• The pump is to be supplied by an isolating transformer or supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
• The plug of pump shall be at least 3.50 m away from the pool.
• The pump cannot be using while people are inside the pool.
• The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• When the appliance will be not used for a long time, such as in the winter, the pool set should be disassembled and stored indoor.

• The appliance must be placed more than 2 m away from the pool. Electric installations should follow national wiring rules.

• Only the media provided or specified by the manufacturer is to be used with product installation.

• It is essential to check that the suction openings are not obstructed.
• It is advisable to stop the filtration during maintenance operations on the filtration system.
• Regularly monitor the filter clogging level.
• A weekly check is recommended for cleaning.
• Minimum daily filtration operating time of 8 hours is recommended to ensure clear pool water.
• It is essential to change any damaged element or set of elements as soon as possible. Use only parts approved by person responsible for placing the product on the market.
• All filters and filter media shall be inspected regularly to ensure that there is not a build-up of detritus thus preventing good filtration.
  The disposal of any used filter media should also be in accordance with applicable regulations/legislation.
• The water circulation installation shall comply with the European as well as national/local regulations, especially when dealing with electrical issues. Any change of valve position, pump size, grille size can cause a change of the flow and the suction velocity can be increased.
• It is necessary to have the plug accessible after installation of the pool.
• Please read the instruction manual carefully and keep it for future reference.
• If instruction is missed, please contact with Bestway or search it in website: www.bestwaycorp.com.

DISPOSAL

Electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

SAFETY TECHNICAL INSTRUCTIONS

• The appliance must be supplied by a grounded power source.
• Extension cords can't be used.
• In case of damage to the filter pump, do not use the pool.
• Do not bury cord. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment.
• This pump is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled

to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.

- Using the pump with an unmatched electrical supply is dangerous and will result in catastrophic failure of pump.

- When working with electricity, turn the electrical power off at the circuit breaker and lock breaker door. Failure to do so will result in increased risk of shock, injury and possibly death.

- Do not remove the grounding prong or modify the plug in any way. Do not use adapter plugs. Consult a qualified electrician for any questions related to the validity of your plug's grounding.

- Handle the pump with care. Do not pull or carry the pump by the power cord. Never pull a plug from the outlet by yanking the power cord. Keep cord free from abrasions. Sharp objects, oil, moving parts, and heat should never be exposed to the filter pump.

- Cleaning and user maintenance must be performed by an adult above 18 years old who is familiar with the risk of electric shock.

- Consult a qualified electrician for any questions.

- In case of doubt on the pump or any circulation devices, contact a qualified installer, or the manufacturer/importer/distributor.

- Mind all the safety requirements and recommendations described in the manual.

- Please examine equipment before use. Notify Bestway at the customer service address listed on this manual for any manufacturing defect or missing parts at the time of purchase. Verify that the equipment components represent the filter pump model that you had intended to purchase.

- Atmospheric conditions may affect the performance and life span of your filter pump. Unnecessary wear and tear may occur during periods of cold, heat and exposure to sun. Whenever possible, shelter the pump from these conditions.

- It is important to ensure the factory equipped stopper plugs for the inlet and outlet ports replace the screens before removal or maintenance on the pump is attempted.

- Do not add chemicals in the filter pump.

- Don't plug or unplug the appliance if your hand is wet.

• Always unplug the appliance: on rainy days, before cleaning or other maintenance, and when leaving it unattended on holidays.

• This product is not intended for commercial use.

ATTACHING A BASE

FOR 330GAL

EN60335-2-41 TEST standard requires the filter pump to be vertically fixed on the ground or a base made of wood or concrete before use. There should be two holes 9 mm in diameter on the base, the space between which should be 127 mm. Put filter pump on the base and attach them together by fastening the bolts and nuts. All the base parts should weigh at least over 18 kg to prevent the pump from accidentally falling.

FOR 530GAL

EN60335-2-41 TEST standard requires the filter pump to be vertically fixed on the ground or a base made of wood or concrete before use. There should be two holes 9 mm in diameter on the base, the space between which should be 159 mm. Put filter pump on the base and attach them together by fastening the bolts and nuts. All the base parts should weigh at least over 18 kg to prevent the pump from accidentally falling.

FOR 800GAL

EN60335-2-41 TEST standard requires the filter pump to be vertically fixed on the ground or a base made of wood or concrete before use. There should be two holes 9 mm in diameter on the base, the space between which should be 166 mm. Put filter pump on the base and attach them together by fastening the bolts and nuts. All the base parts should weigh at least over 18 kg to prevent the pump from accidentally falling.

250 390 127 40 2-M8 nut 2-M8 bolt 390 127

250 390 159 40 2-M8 nut 2-M8 bolt 390 159

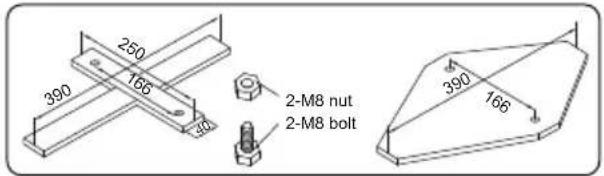

250 390 166 40 2-M8 nut 2-M8 bolt 390 166

SETUP

CHECK LIST

To check the parts included in the box, consult the part list inside this manual. Verify that the equipment components represent the model that you had intended to purchase. In case of any damaged or missing parts at the time of purchase, visit our website bestwaycorp.com/support.

CHOOSE THE CORRECT LOCATION

Place the Filter Pump on a solid and level ground; it must be positioned on the same level as the base of the pool. If the Filter Pump is in an upper or lower position than the base of the pool, the performance and life span of the Filter Pump can be compromised. The pool and the Filter Pump have to be positioned in an area with adequate drainage and easy access for maintenance operations. Never place the Filter Pump in a area that may accumulate water.

INSTALLATION

• For the installation instructions, refer to the illustration steps 📄. Drawings are for illustration purposes only. May not reflect actual product. Not to scale.
• Bestway will not be responsible for any damage caused to the Filter Pump due to mishandling or failure to follow these instructions.
• It is imperative to check that the hydraulic connectors are not obstructed.
• Do not dry run the Filter Pump. Make sure both the pool's inlet and outlet valves are fully covered by water before operating the Filter Pump.

MAINTENANCE

• Make sure that the Filter Pump is unplugged before any maintenance.
• For the maintenance instructions, refer to illustration steps inside this manual. Drawings are for illustration purposes only. May not reflect actual product. Not to scale.
• To optimize the Filter Pump performance and for sanitary reasons, we suggest replacing the filter cartridge with a new one every two weeks.

STORAGE

• Remove all accessories; be sure that Filter Pump, hoses and debris screens are completely clean and dry before the storage. If all the parts are not completely dry, mold may result.
• Before storage, remove and dispose of the filter cartridge.
  • We strongly recommend disassembling the Filter Pump when the environment temperature is below 10°C / 50°F.
• Store the Filter Pump in a dry place with a moderate temperature between 10^ / 50^ and 38^ / 100^ .

WARRANTY TERMS

For information concerning warranty terms, visit our website at: www.bestwaycorp.com.

CONDITIONS DE GARANTIE

2-M8-mutteri 2-M8-pulitti

250 390 159 40 2-M8-mutteri 2-M8-pulitti 390 159

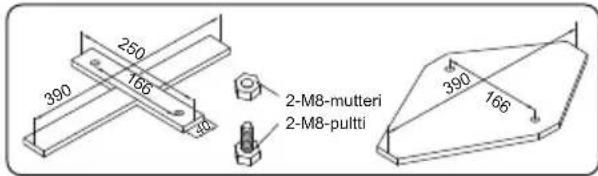

250 390 166 40 2-M8-mutteri 2-M8-pultti 390 166

ASETUS

TARKISTUSLISTA

CONDITIONS DE GARANTIE

2-M8 mutter 2-M8 built

MONTERING

CHECKLISTA

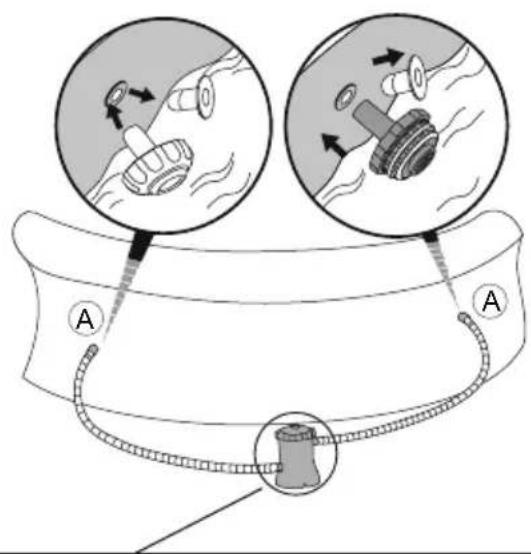

Diagram of a curved mechanical component with labeled points A and B, showing internal connection (no text or symbols beyond labels)

(1)

1

A B

2

x4 A B

3

4

Diagram illustrating a mechanical or fluidic device with labeled components and directional arrows, showing flow paths and movement.

(1) (2) (3) (4)

→

V
1min
