Product type	Automatic pool cleaning robot
Brand	Bestway
Model	Flowclear 58711
Power supply	Built-in rechargeable Li-ion battery
External charger	DSS18-0842000-B / DSS18-0842000-C
Initial charging time	Approximately 5 to 6 hours
Operating autonomy	Varies depending on conditions (full charge recommended before use)
Maximum operating depth	3 meters (10 feet)
Allowed water temperature	5 °C to 35 °C (41 °F to 95 °F)
Minimum water level	Above the swivel head
Usage	Underwater only, for pool
Movement method	Water nozzle propulsion, direction change by side fin
Functions	Suction of debris from the pool bottom, filtration via debris compartment
Debris compartment capacity	Not specified (regular cleaning recommended)
Maintenance	Rinse with fresh water, dry, store at 10-25°C, recharge every 3 months
Safety	Do not use with people/animals in water, use with GFCI breaker, do not use if damaged
Spare parts	Available at bestwaycorp.com/support (filter, float, etc.)
Repairability	Battery replacement by authorized technician only
Warranty	See manufacturer's conditions

Frequently Asked Questions - Flowclear 58711 BESTWAY

How to recharge the Flowclear 58711 robot?

Use only the provided external adapter (DSS18-0842000-B or DSS18-0842000-C) and the charging station. Make sure the robot is off, contacts are clean and dry. Red light indicates charging, green indicates charged (5-6 hours for a full charge). Do not charge for more than 10 hours.

What is the maximum operating depth?

The robot can operate up to a depth of 3 meters (10 feet). Water temperature must be between 5°C and 35°C.

The robot is not picking up debris, what should I do?

First check that the battery is charged. Then clean the debris compartment and filter. Inspect the rotor under the swivel head for obstructions. Make sure the suction mouth is not blocked.

Can I use the robot if people or animals are in the pool?

No, it is forbidden to use the robot when people or animals are in the water. Risk of suction or entrapment.

How to clean the robot's filter?

Remove the filter cover and clean it with clean water. Use a soft brush if necessary. Make sure the filter is properly in place before next use.

The robot moves in circles or does not cover the entire pool, what should I do?

Check that the debris compartment is not full. Adjust the position of the locking pin according to your pool length (3 meters or more, or less). Turn off the filtration system 15 minutes before use.

How to store the robot for winter?

Clean and dry the robot and its accessories. Charge the battery to 30-50%. Store in a cool (10-25°C), dry place, away from sun and chemicals. Recharge every three months.

Can I replace the battery myself?

No, battery replacement must be carried out by an authorized technician. Any unauthorized opening voids the warranty and poses a risk of injury.

What to do if the robot is not charging?

Make sure the charging station is properly connected to the adapter and the robot. Check that the contacts are clean and dry. If the problem persists, contact support via bestwaycorp.com/support.

Can the robot be used in a saltwater pool?

Yes, but make sure all salt is dissolved before putting the robot in the water. After use, rinse it with fresh water to avoid corrosion.

USER MANUAL Flowclear 58711 BESTWAY

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bestwaycorp.com/support

58711

OWNER'S MANUAL

bestwaycorp.com/support

Visit the Bestway YouTube channel YouTube

Visit www.bestwaycorp.com/support for help WE SUGGEST NOT TO RETURN THE PRODUCT TO THE STORE QUESTIONS? PROBLEMS? MISSING PARTS? For FAQ, Manuals, Videos Or Spare Parts, Please Visit bealwayscorp.com/support

OWNER'S MANUAL IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE

• This is not a TOY. Children should be kept out of reach from this robot and its accessories.
• Never allow children to operate this product.
• This robot is not intended for use by someone with reduced physical, sensory or mental capabilities or a lack of experience and knowledge unless they have been given instructions concerning the appliance and are under supervision of the person responsible for their safety.
• Make sure the robot is fully immersed in the water before operation. The minimum water level required to operate the robot must reach above the swivel head of the robot. Operating the robot when it is not immersed in the water correctly could damage the unit and void the warranty as a result.
• Maximum operating depth in water is 3 meters (10 ft.).
• Operating water temperature: 5°C (41°F) - 35°C (95°F).
• Only use the detachable supply unit (external adaptor) provided with this robot to charge the battery.
• D-□-C Detachable supply unit (external adaptor).
• For the purposes of recharging the battery, only use the detachable supply unit (external adaptor : DSS18-0842000-B / DSS18-0842000-C) and charging base that provided with this robot to charge the battery.
• WARNING - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (For EU market)
• WARNING - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that they do not play with the appliance. (For market other than EU)
- Connect the external adaptor to a power source through a residential current device (RCD) / a ground fault circuit interrupter (GFCI). If in doubt, consult a qualified professional electrician.
- Do not use this robot if any damage is detected.
- Replace damaged parts as soon as possible. Only use parts certified by the distributor or manufacturer.
- Turn off the robot, disconnect the external adaptor from the power source, and unplug the external adaptor from the charging base, before detaching the robot from the charging base.
- Disconnect the pump from the supply mains before carrying out user maintenance such as cleaning the filter.
- The battery installs is a rechargeable Li-ion battery pack. Nevel attempt to replace with this product.
- The robot is only to be recharged with external adaptor and charging base delivered with this product.
- DO NOT handle the robot, external adaptor and charging base while it is charging with wet limbs and without shoes.
- You should not operate this robot when people/pets are present in the water.
- DO NOT use this robot without an intact filter in place, otherwise your warranty will be voided as a result.
- Suction entrapment hazard: This robot generates suction. Do not allow hair, body, and any loose parts of your clothing to make contact with the suction hole of the robot during its operation.
- Never insert body parts, clothing and other objects into the openings and moving parts of the robot.
- DO NOT use this robot to pick up any toxic substance, flammable and combustible liquids such as gasoline, and in the presence of explosive or flammable fumes.
- Under no circumstances should you attempt to disassemble the robot and replace the impeller, motor, and battery by yourself.
- Never insert fingers and any object to touch the impeller.
- This robot shall not be used by children.
- The battery must be removed from the robot before it is scrapped.
- This robot contains a battery that are only to be removed by skilled persons.
- The robot must be disconnected from the supply mains as the battery is removed.
- For detail regarding battery dsiposal, refer to the section "Battery Disposal" in this manual.
- The battery must be disposed safely in accordance with local ordinances or regulations.
- The robot contains a maintenance-free, rechargeable lithium-ion battery pack, which must be disposed

properly. Recycling is required; please contact your local authorities for more information.

- External adaptor and charging base:

• Never use the external adaptor and charging base for anything other than charging the battery of the robot that is supplied in the same pack.
• The external adaptor and charging base should not be used outdoors, nor should it be exposed to rain, humidity, any liquid or heat.
• The transformer (or external adaptor) is to be located outside zone 1.
• Keep the external adaptor and charging base out of reach of children.
• Never use the external adaptor and charging base if any damage is detected.
• DO NOT handle the external adaptor and charging base with wet hands.
• Keep the external adaptor disconnected from power when it is not in use.
• Never attempt to open the external adaptor.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or an equally-qualified person in order to prevent hazards of any kind.
• Make sure the robot is completely dry before charging.

BATTERY DISPOSAL:

Recycling is required, please contact your local authority for information.

• The battery must be removed from the pool vacuum before it is scrapped.
• The pool vacuum must be disconnected from the supply mains (electrical outlet) when removing the battery.
• The battery must be disposed of safely and properly.

CAUTION!

• This robot is designed for underwater use only; it is not an all-purpose vacuum cleaner. DO NOT attempt to use it to clean anything other than your pool.
• Use only original accessories delivered with this product.
• DO NOT use this robot right after pool-shocking. It is recommended to first leave the pool circulating for at least 24-48 hours.
• If you are planning on using the robot in a saltwater pool, make sure all salt are dissolved before placing it into the water.
• It is not recommended to use this robot with another automatic cleaner/cleaner simultaneously.
• Avoid picking up hard, sharp objects with this product which may damage the robot and filter.
• To avoid damaging the external adaptor and charging base, do not attempt to carry the robot by the cable of external adaptor or pull the cable to disconnect it from

the power source and charging base.

• Charge the robot indoors in a clean, dry area with good ventilation and away from sunlight.
• DO NOT leave the robot charged for over 10 hours.
• If the robot will not be used for an extended period, detach it from the charging base and use a damp cloth to clean and dry the robot and its accessories. Make sure to charge the robot to about 30% to 50% of the battery capacity before it is stored. Store in a well-ventilated area away from sunlight, heat, ignition sources, pool chemicals, and children. Recharge the robot every three months.
• All actions concerning the disassembly of the swivel head (ie. battery disposal) can only be carried by an authorized technician.

Above warnings and cautions are not intended to incorporate all possible instances for risks and / or severe injuries. Pool / spa owners should always exercise extra caution and common sense when utilizing the product.

SAVE THESE INSTRUCTIONS

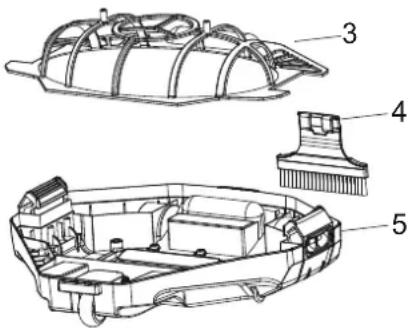

PART LIST

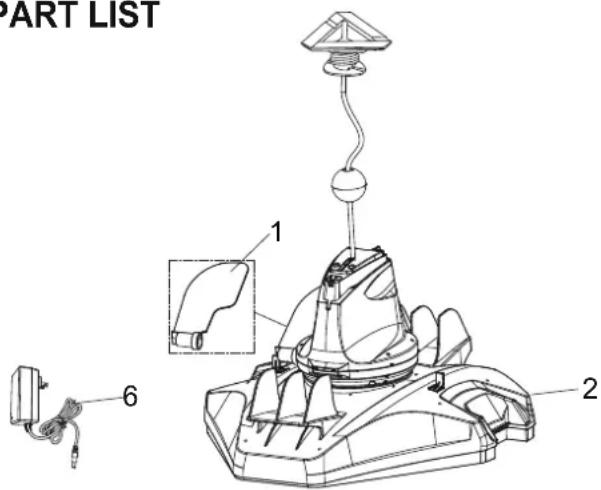

PART LIST 1 2 6

Technical diagram of a plastic housing assembly with numbered parts labeled 3, 4, and 5

Part No. QTY
1	1
2	1
3	1
4	1
5	1
6	1
7	1
8	1

The robot has a water-propelling nozzle at the bottom of the swivel head. Water is first sucked in through the suction mouth at the bottom of the robot, which then goes through the filter and is discharged via the propelling nozzle. Water jetting from the nozzle propels the robot forward. Once the robot stops against an obstacle such as the pool wall, its side flap sways and its swivel head turns 180^ , allowing the robot to move in the opposite direction. The robot moves in a generally straight pattern in one direction and in an arc pattern in the other direction. The robot vacuums the pool bottom as it moves, collecting debris in its compartment.

ASSEMBLY AND OPERATION

WARNING For Charging

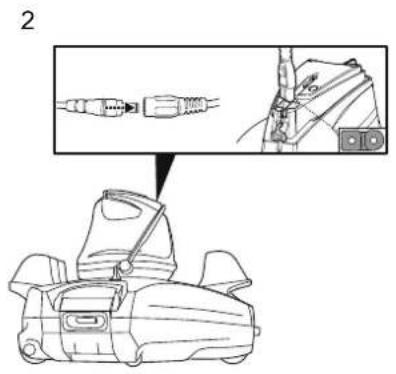

• Use only the original external adaptor and provided charging cable.
  • Make sure the robot and the charger port are clean and dry before set-up.

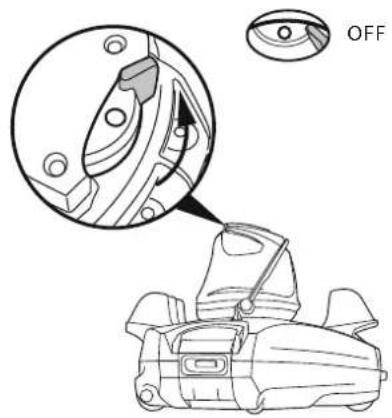

• Make sure that the robot is turned off by sliding the switch to OFF position prior to charging.

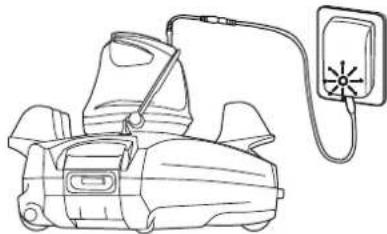

  • Fully charge the robot (about 5-6 hrs) before using it for the first time

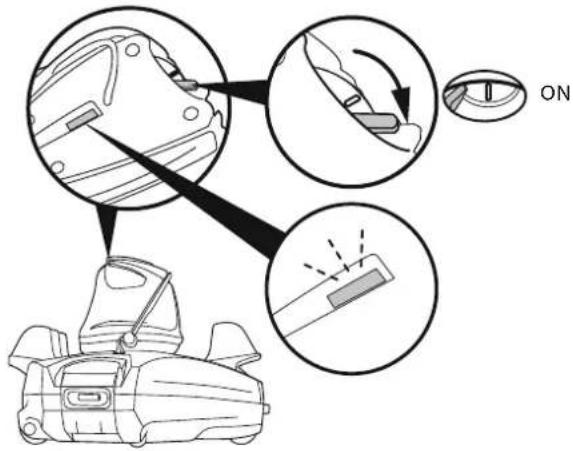

  • Power indicator light: No light - Power off / no power

Light - Power on

Blinking light - Battery power will cease within 10 minutes.

NOTE: Once the robot begins charging, the indicator light on the external adaptor will turn red. When the robot is almost fully charged, the indicator light will turn green.

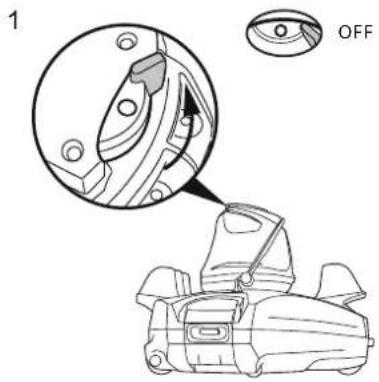

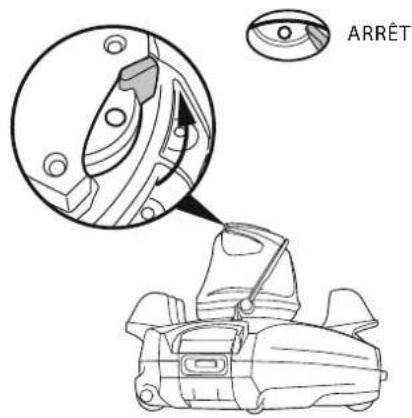

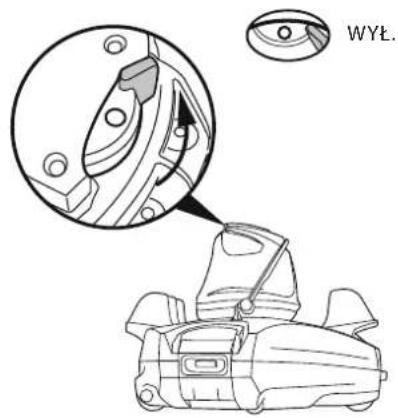

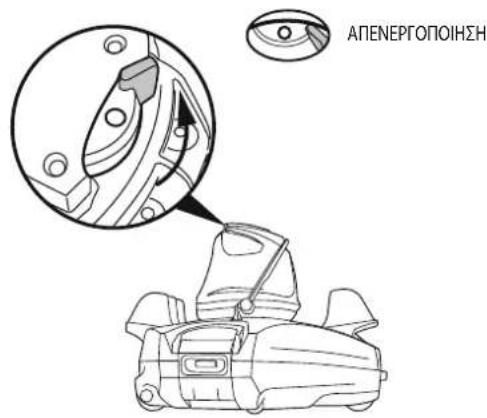

1 OFF

2

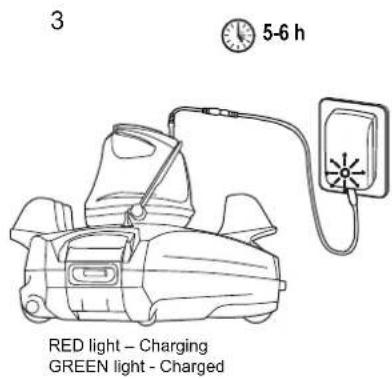

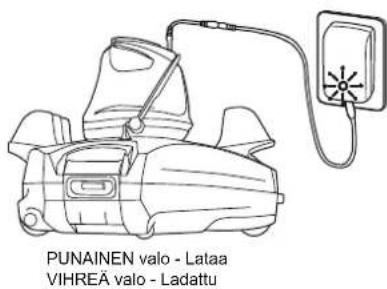

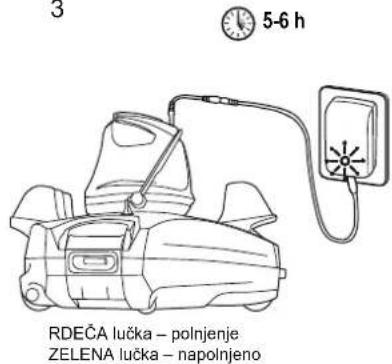

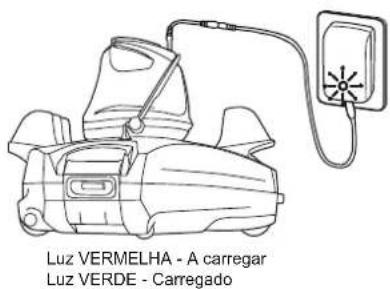

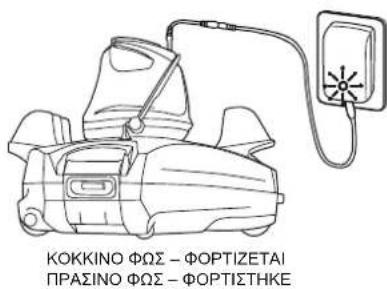

3 5-6 h RED light - Charging GREEN light - Charged

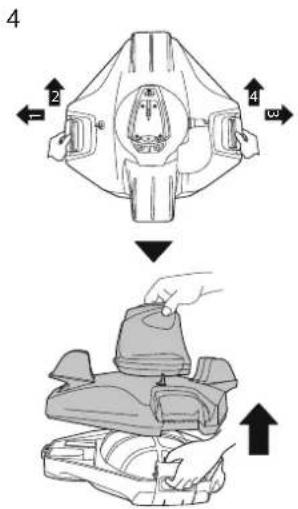

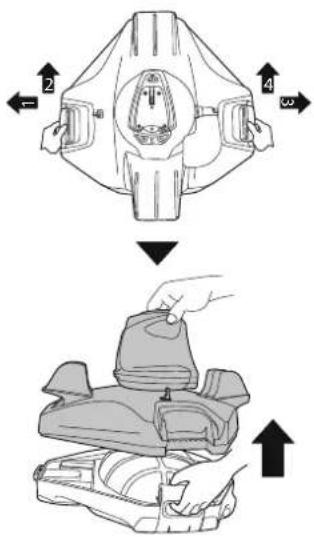

4 2 4 ↑ ↓ ↑

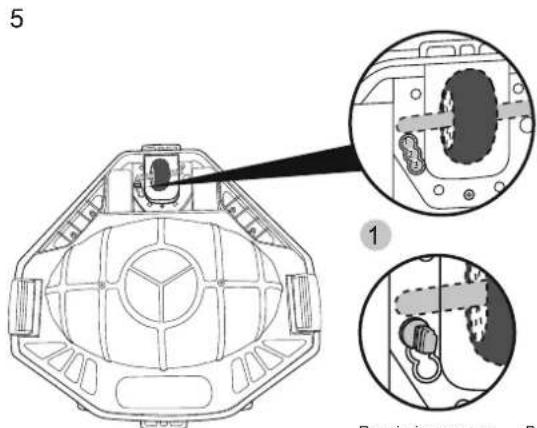

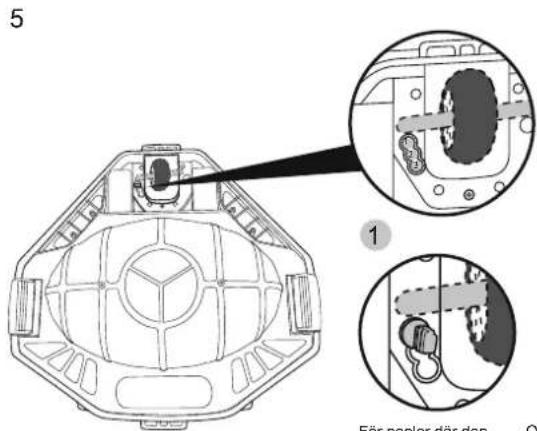

5 ① For pools where the . . . If

For pools where the
shortest length is
3 meters or above

If the robot does not cover the
entire pool with either pin position 4 or 3 try this setting. If the situation
For 3, try this setting. If the situation persists, deploy the robot from a
different location.

For pools where the
shortest length is 3
meters or below.
(Factory setting)

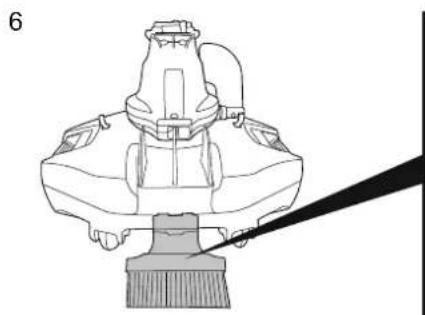

Line drawing of a cleaning or cleaning tool with a broom and lever (no text or symbols)

Medical illustration showing eight different manual techniques for a surgical procedure, with arrows indicating force direction and X marks highlighting specific points.

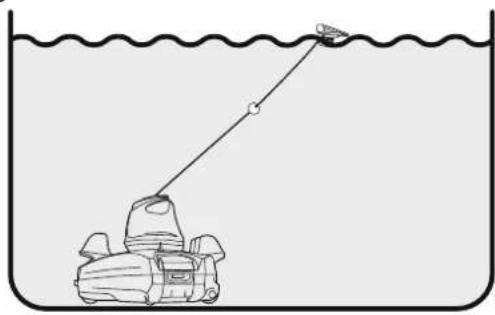

Simple line drawing of a tool interacting with a coiled spring and ball (no text or symbols)

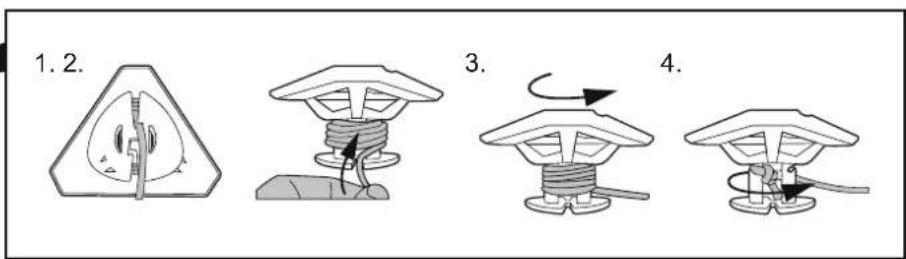

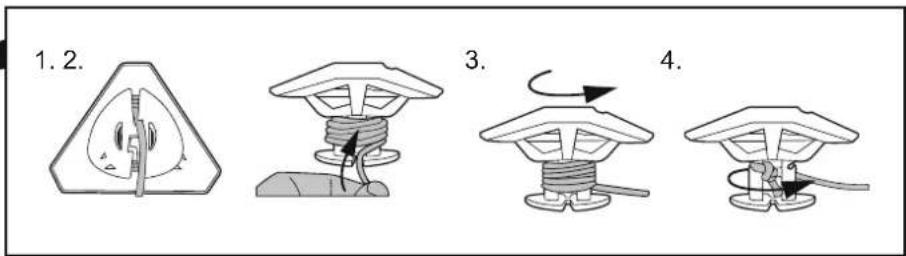

1. 2. 3. 4.

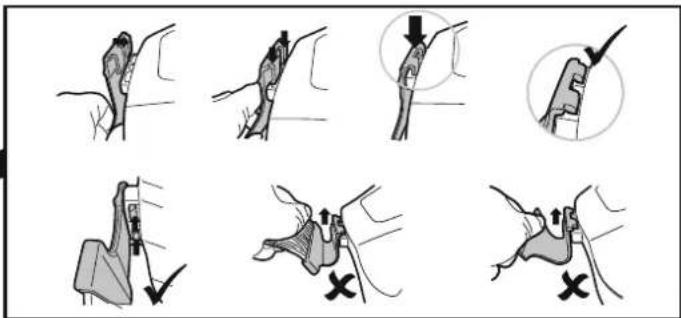

NOTE: Pry to detach the float cover and release the rope from the float to the depth of pool water plus about 0.5 m (19.7 in.).

8

Diagram illustrating the step-by-step assembly of a car seatbelt, showing disassembly and cleaning steps with labeled 'ON' button.

9

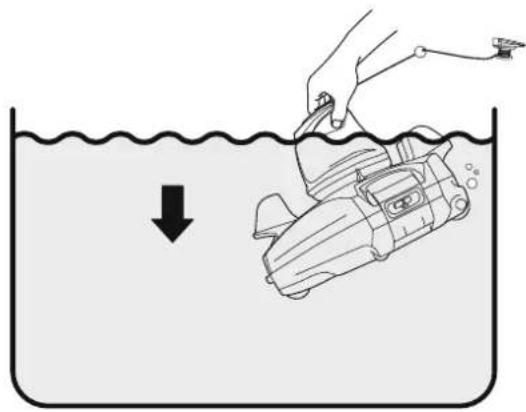

Illustration of a hand pulling a small boat into a beaker with an arrow indicating downward motion (no text or symbols)

10

Simple line drawing of a small boat pulling a fishing net in a container (no text or symbols)

11

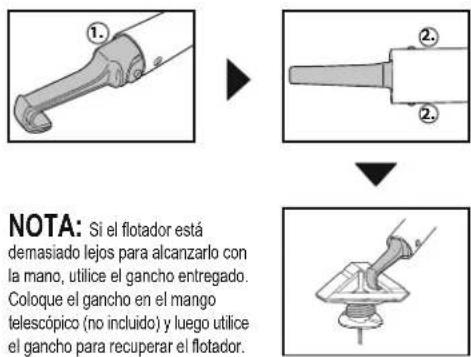

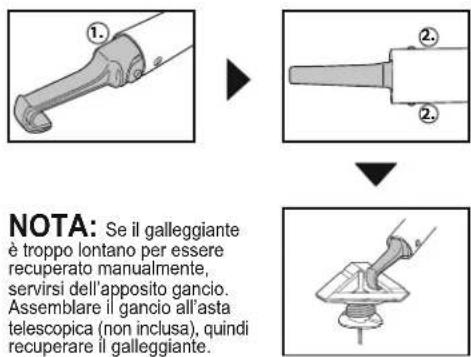

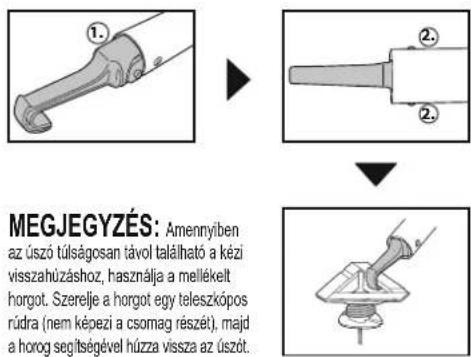

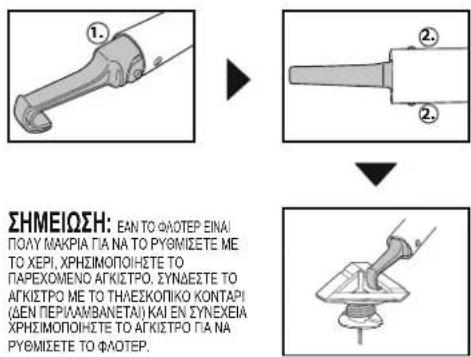

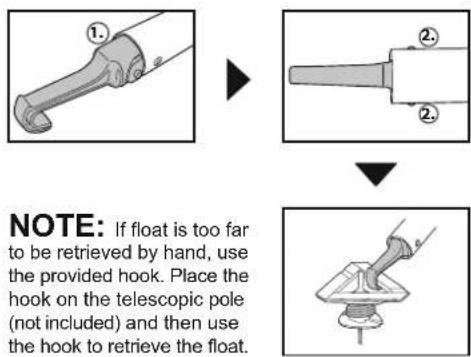

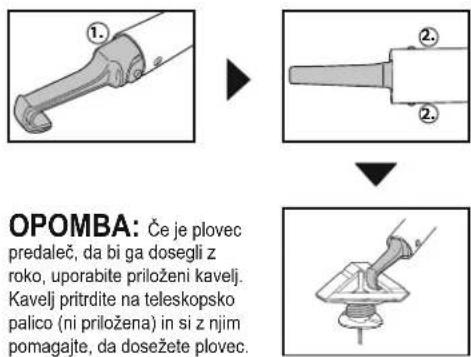

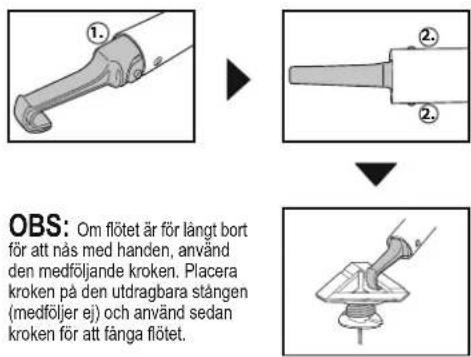

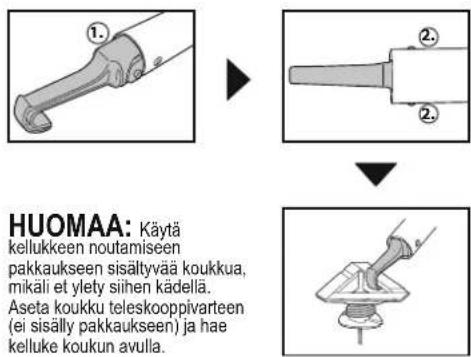

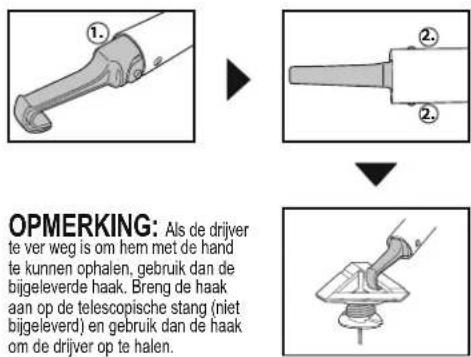

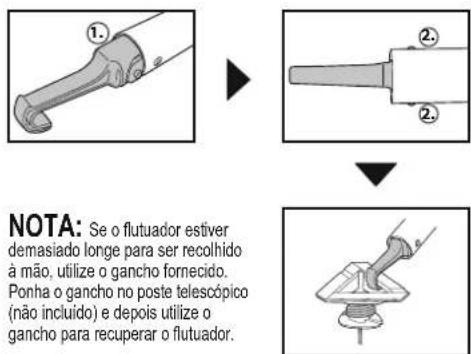

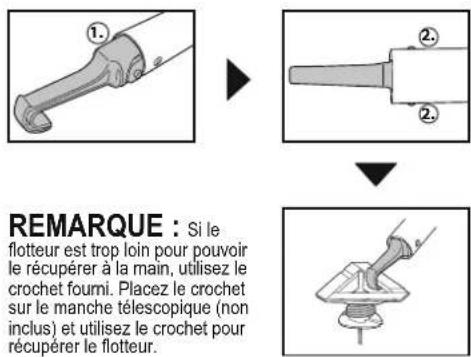

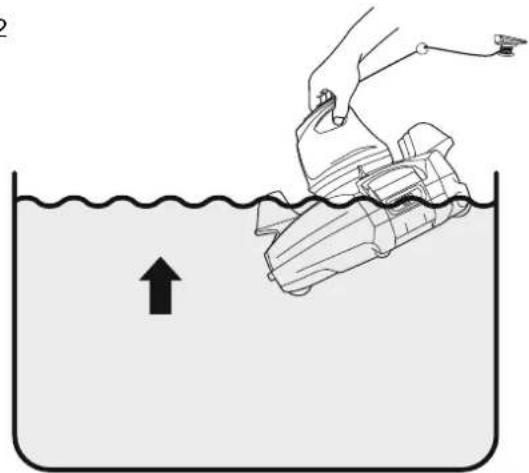

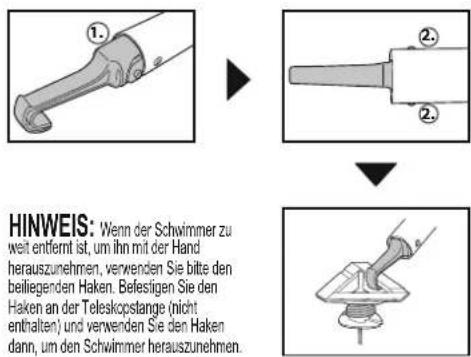

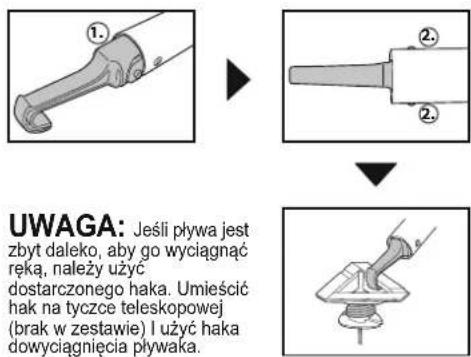

NOTE: If float is too far to be retrieved by hand, use the provided hook. Place the hook on the telescopic pole (not included) and then use the hook to retrieve the float.

12

Illustration of a hand pulling a plastic bag over a container with an upward arrow, no text or symbols present

13

OFF

14

Technical diagram showing mechanical assembly steps with numbered arrows indicating direction of movement

15

Technical line drawing of a mechanical assembly with two views showing internal components and fluid flow paths (no text or symbols)

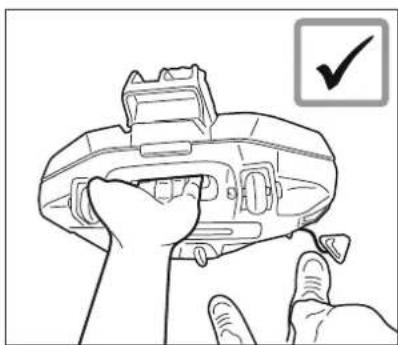

Line drawing of a hand holding a device with a checkmark icon (no text or symbols on the device itself)

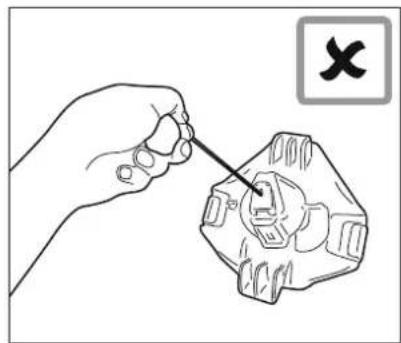

Hand holding a tool interacting with a mechanical component, no text or symbols visible

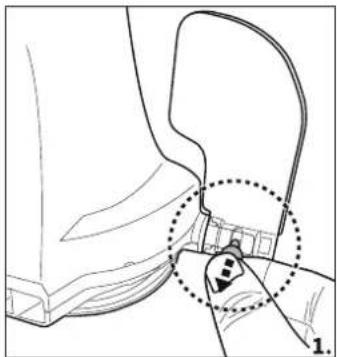

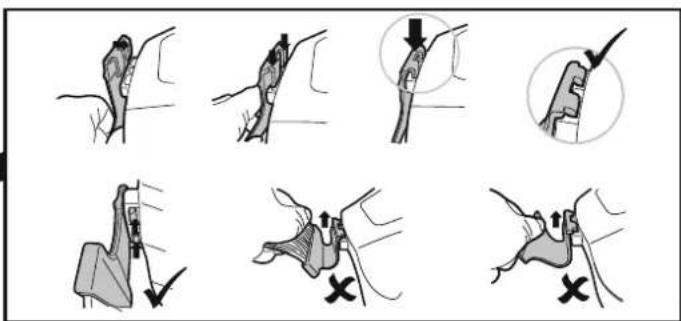

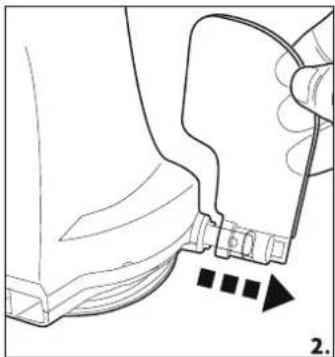

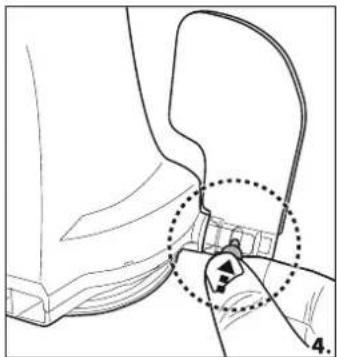

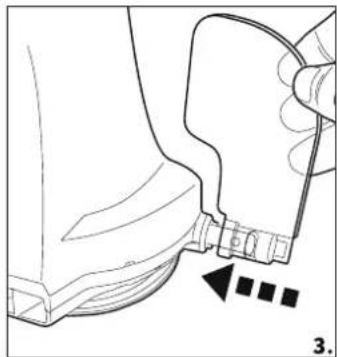

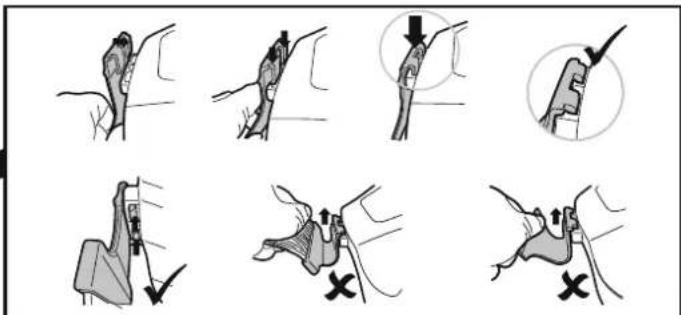

FLAP REPLACEMENT

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered label (no readable text or symbols)

MAINTENANCE AND STORAGE

1. Battery discharges on its own during storage. Make sure to fully-charge the robot before storage.
2. You must re-charge the battery at least once every three months when it is not in use.
3. Unplug the external adaptor from the socket and then unplug the charging cable from the external adaptor and robot.
4. Detach accessories from the robot. If necessary, rinse the robot and accessories with fresh water. DO NOT use detergent.

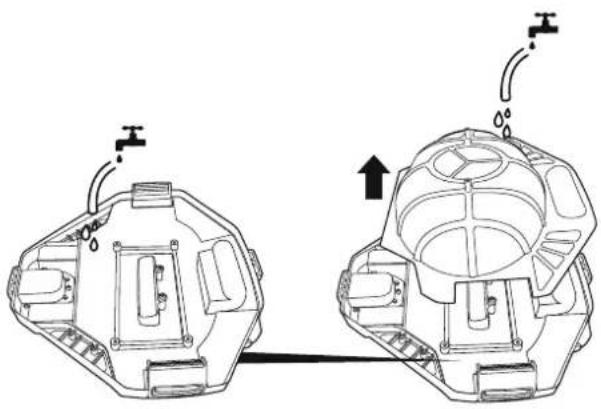

5. Be sure to drain the water from the robot before storing it.
6. Use a damp cloth to clean and dry the robot and its accessories.
7. Store them in a well-ventilated area away from sunlight, heat, ignition sources, pool chemicals and from children. Ambient temperature for storage should be 10^ - 25^ ( 50^ - 77^ ). NOTE: A higher storage temperature may reduce the battery life.

How to remove the battery pack

Recommended tools (not included): Screwdriver.

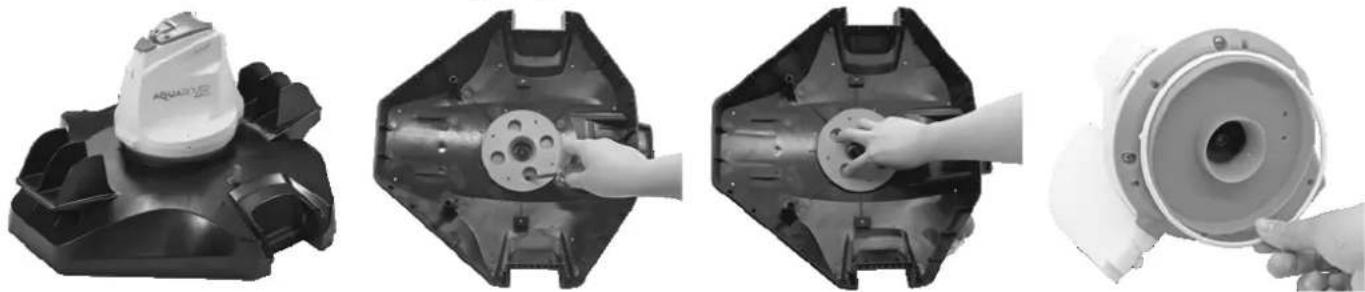

1. Release the top cover (preassembled with the swivel head). Turn the cover up side down and release the swivel head by turning its bottom locking plate counter-clockwise. Remove the swivel smoothing-ring.

Four-panel photo showing a mechanical component with hands operating it, including a spray gun and a circular housing (no visible text or symbols)

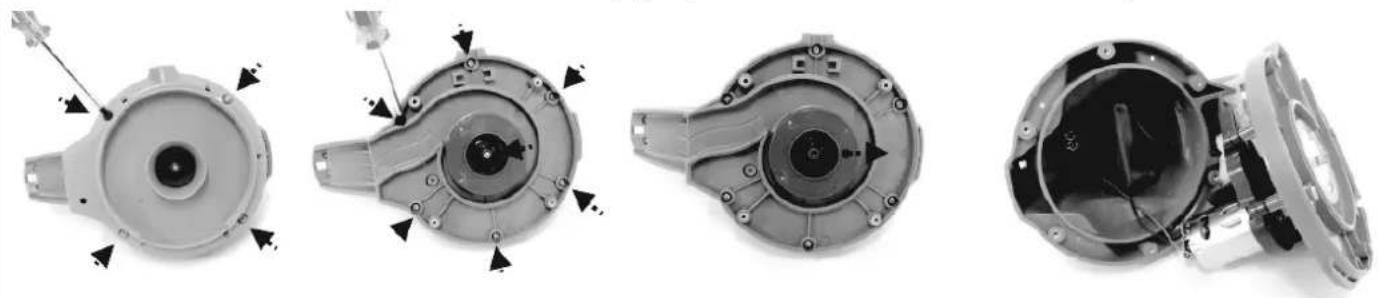

1. Use the screwdriver to unscrew the 4 screws located on the bottom of the head to release the bottom plate at first. Use the screwdriver to unscrew all the screws on the base as shown. Remove the impeller and then pry up the base and remove it to expose head inside.

Four views of a mechanical assembly showing internal components with arrows indicating features (no text or symbols present)

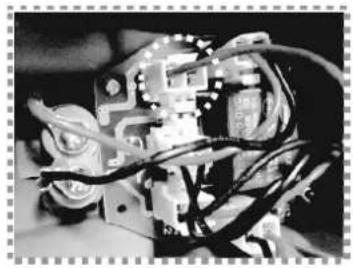

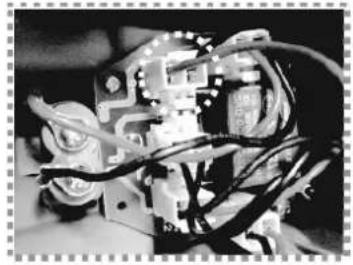

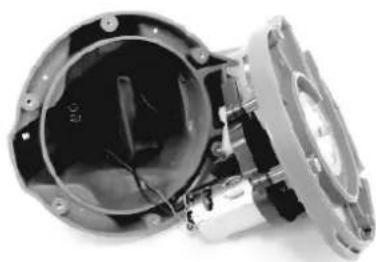

1. Remove the battery pack to expose the PCBA. To detach the battery connection wire, press the clip on the connector and then pull it out. NOTE: Wrap the connector immediately with insulating tape in order to avoid short circuit caused by contact of both wire terminals.

Close-up of a mechanical device with internal components and a highlighted square component (no visible text or symbols)

Close-up of a mechanical component with wires and components, no visible text or symbols

Circular mechanical assembly diagram with gear and mounting holes (no text or symbols)

Electric battery with a black plug inserted into its side, connected to a cable (no visible text or symbols)

DISPOSAL

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

TROUBLESHOOTING

Problem	Possible Cause	Solution
Robot does not capture the debris	Battery is running out Charge the robot again.
	Impeller is jammed	Power off the robot and inspect the hole under the swivel head to see if the impeller is jammed by large debris. For assistance, please visit the support section on our website, www.bestwaycorp.com.WARNING! Make sure the robot is off before the unit is serviced.
	Suction mouth is clogged	Remove clogged objects from the suction mouth.
	Impeller is broken	For assistance, please visit the support section on our website, www.bestwaycorp.com.
	Debris compartment is full	Clean both debris compartment and filter cover.
Robot stopped moving in the middle of pool but swivel head is still turning	Robot stopped by obstacle or large creases in the pool liner.	Check to see that if there is anything obstructing the cleaner.Remove the obstacle.
	Robot is stopped by suction from the main drain of pool floor	Turn off the filtration system as instructed in manual.
Swivel head rotates repeatedly	Air trapped inside the robot	The swivel head may rotate repeatedly for a few minutes once the robot sinks to the pool bottom.This phenomenon will stop once the air trapped inside the robot is gradually discharged and the robot will begin to move regularly.
Robot does not cover the entire pool	Debris compartment is full	Clean the debris compartment
	Operation time is shorter as expected	Clean the filter compartment and recharge the robot for 6 hrs
	Moving direction is interrupted by water circulation generated by filtration system	Turn off the filtration system (as instructed in filtration manual) at least 15 minutes before robot operation.
	Wheel is jammed	Check and remove debris from the wheel.
	Position of locking pin is not set properly.	Follow instruction to adjust the locking pin position.
	Algae renders the pool floor slippery which results in the robot going in circles.	Scrub the pool bottom and robot wheels to remove the algae
Robot moves along the pool wall	Position of locking pin-is not set properly / robot facing direction is wrong at beginning.	Follow instruction to adjust locking pin setting. Make sure that robot's front/back faces the pool wall at beginning.
Robot moves slowly or does not move at all.	Debris compartment is full or filter cover is clogged.	Clean the debris compartment. Flush the screen with water to remove small particles. If brush is deem necessary, use a soft brush to clean the screen gently.NOTE: make sure that the filter cover is In place before next operation
		Remove clogged objects from the suction mouthSuction mouth is close
	Impeller is jammed	Power off the robot and inspect the hole under the swivel head to see if the impeller is jammed by large debris. For assistance, please visit the support section on our website, www.bestwaycorp.com.WARNING! Make sure the robot is off before the unit is serviced.
Swivel head does not turn or turn noticeably slowly	Side flap does not come up.	Check and remove any debris that hinders the movement of the flap.
	Swivel head bottom is jammed	Detach the swivel head and smoothening-ring in accordance with instructions of section “How to remove the battery pack” from the manual, then:- Remove trapped debris- Verify the smoothening-ring and bottom plate are installed correctly (refer to below diagrams)- Inspect the smoothening-ring for potential damages and wear and tear. Replace with a new one if necessary
Debris escapes from the robot	Suction mouth’s flap (at cleaner bottom) is damaged	Suction mouth’s flap works like a door to prevent the debris from escaping from the debris compartment.For assistance, please visit the support section on our website, www.bestwaycorp.com.
	Debris clogged at suction mouth and prevents the flap to close.	Remove clogged debris from the suction mouth.
Debris leaks outside at the filter cover	Filter cover net is damaged	Replace with a new filter cover.For assistance, please visit the support section on our website, www.bestwaycorp.com.
Round float sinks	Float is broken and water leaks in	Replace with a new float.For assistance, please visit the support section on our website, www.bestwaycorp.com.
Robot operation lasts shorter than advertised	Battery is not fully charged	Charge the robot for at least 6 hrs.
Robot cannot be charged / recharged	Battery is damaged	For assistance, please visit the support section on our website, www.bestwaycorp.com.WARNING! DO NOT replace the battery by yourself. This could result in severe or fatal injuries and the warranty will be voided as a result.
	Charging base is not completely connected with external adaptor and robot.	Make sure that the charger base is connected with external adaptor and robot properly and completely.Refer to instruction manual.
	External adaptor is out of order	For assistance, please visit the support section on our website, www.bestwaycorp.com.WARNING! Using the wrong external adaptor will result in damaging the robot / battery and voiding the warranty as a result.

Technical diagram of a plastic housing assembly with numbered parts labeled 3, 4, and 5

N.° Peça QTD
1	1
2	1
3	1
4	1
5	1
6	1
7	1
8	1

Line drawing of a car seatbelt with attached cable and connector, showing a close-up detail (no text or symbols)

3

Luz VERMELHA - A carregar Luz VERDE - Carregado

5-6 h

4

Diagram illustrating a mechanical device with numbered parts and directional arrows indicating assembly or movement.

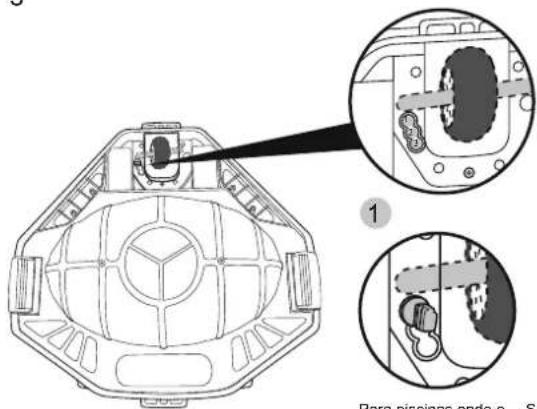

5

Line drawing of a mechanical device with a lever and base (no text or symbols)

Medical illustration showing eight different manual techniques for a surgical procedure, with arrows indicating force direction and cross symbols.

7

Simple line drawing of a mechanical device with a pointed tip and coiled cable (no text or symbols)

1.2.

1.
   4.

Illustration of a hand holding a small object submerged in a beaker with an arrow indicating downward motion (no text or symbols)

10

Simple line drawing of a small boat pulling a fishing net in a container (no text or symbols)

11

Illustration of a hand pulling a device into a container with an upward arrow, no text or symbols present

13

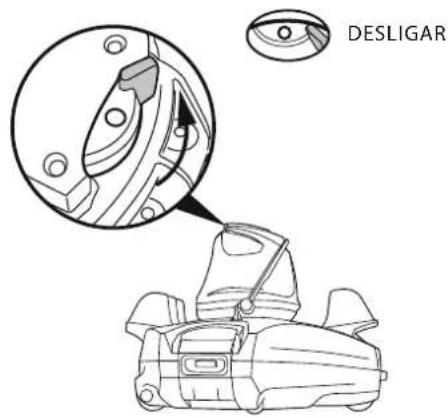

DESLIGAR

14

Technical diagram showing mechanical assembly steps with numbered arrows indicating direction of movement

15

Technical line drawing of a mechanical assembly with two views showing internal components and fluid flow paths (no text or symbols)

Line drawing of a hand holding a device with a checkmark icon (no text or symbols on the device itself)

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

SUBSTITUIÇÃO DA ABA

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Line drawing of a mechanical component with a knob and adjustment knob (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered annotation (no readable text or symbols)

Four-panel image showing a device with a central hub, hands adjusting the housing, and a close-up of its internal components (no visible text or symbols)

Four views of a mechanical assembly showing internal components with arrows indicating motion direction (no text or symbols present)

Close-up of a mechanical device with internal components and a highlighted square component (no visible text or symbols)

Close-up of a robotic arm with exposed wiring and mechanical components (no visible text or symbols)

Circular mechanical assembly with gear and mounting bracket (no visible text or symbols)

Electric battery with a black plug inserted into its side, connected to a wire (no visible text or symbols)

ELIMINAÇÃO

Technical diagram of a plastic housing assembly with numbered parts labeled 3, 4, and 5

N° de CANT.
1	1
2	1
3	1
4	1
5	1
6	1
7	1
8	1

4 2 4 ↑ ↓ ↑

Line drawing of a cleaning or cleaning device with a broom and handle (no text or symbols)

Medical illustration showing eight different manual techniques for a surgical procedure, with arrows indicating force direction and X marks highlighting specific points.

Simple line drawing of a tool interacting with a mechanical component (no text or symbols)

1. 2. 3. 4.

Diagram illustrating the step-by-step procedure for using a tool to adjust or remove a component, with magnified views showing the process.

9
ENCENDIDO

Illustration of a hand pulling a small boat into a beaker with an arrow indicating downward motion (no text or symbols)

10

Simple line drawing of a boat pulling a small boat in water (no text or symbols)

11

Illustration of a hand using a tool to lift a submerged object in a liquid container (no text or symbols)

13

APAGADO

14

Technical diagram showing mechanical assembly steps with numbered arrows indicating direction of movement

15

Technical line drawing of a mechanical assembly with two views showing internal components and fluid flow paths (no text or symbols)

Line drawing of a hand holding a device with a checkmark icon (no text or symbols on the device itself)

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

REEMPLAZO DE LA ALETA

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Line drawing of a mechanical component with a knob and adjustment knob (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Four-panel photo showing a device with a mounted component, including a hand holding the central hub, and a close-up of its internal structure (no visible text or symbols)

Four views of a mechanical assembly showing internal components with arrows indicating motion direction (no text or symbols present)

Close-up of a mechanical device with internal components and a highlighted square component (no visible text or symbols)

Close-up of a robotic arm with exposed wiring and mechanical components (no visible text or symbols)

Circular mechanical assembly with gear and mounting bracket (no visible text or symbols)

Electric battery with a black plug inserted into its side, connected to a wire (no visible text or symbols)

ELIMINACIÓN

Technical diagram of a mechanical component with numbered parts labeled 3, 4, and 5

4 2 4 ↑ ↓ ↑

Line drawing of a cleaning or cleaning device with a broom and handle (no text or symbols)

Medical illustration showing eight different manual techniques for a surgical procedure, with arrows indicating force direction and X marks highlighting specific points.

Simple line drawing of a tool interacting with a coiled cable and a ring, no text or symbols present

1. 2. 3. 4.

Illustration of a hand holding a small boat inside a beaker with an arrow indicating downward motion (no text or symbols)

10

Simple line drawing of a small boat pulling a fishing net in a container (no text or symbols)

11

Illustration of a hand pulling a plastic bag over a container with an upward arrow, no text or symbols present

13

AUS

14

Technical diagram showing mechanical assembly steps with numbered arrows indicating direction of movement

15

Technical line drawing of a mechanical assembly with two views showing internal components and fluid flow paths (no text or symbols)

Line drawing of a hand holding a device with a checkmark icon (no text or symbols on the device itself)

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

ERSETZEN DER KLAPPE

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Line drawing of a mechanical component with a knob and adjustment knob (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered annotation (no readable text or symbols)

PFLEGE UND LAGERUNG

Four-panel image showing a device with a central hub, hands adjusting the housing, and a close-up of its internal components (no visible text or symbols)

Four views of a mechanical assembly showing internal components with arrows indicating motion direction (no text or symbols present)

Close-up of a mechanical device with internal components and a highlighted square component (no visible text or symbols)

Close-up of a robotic arm with exposed wiring and mechanical components (no visible text or symbols)

Circular mechanical assembly with gear and mounting bracket (no visible text or symbols)

Electric battery with a small plug inserted into its side, shown in black and white (no text or symbols visible)

ENTSORGUNG

Technical diagram of a plastic housing assembly with numbered parts labeled 3, 4, and 5

Osanume MÄÄR
1	1
2	1
3	1
4	1
5	1
6	1
7	1
8	1

Line drawing of a car seatbelt with a close-up inset showing cable connector detail (no text or symbols)

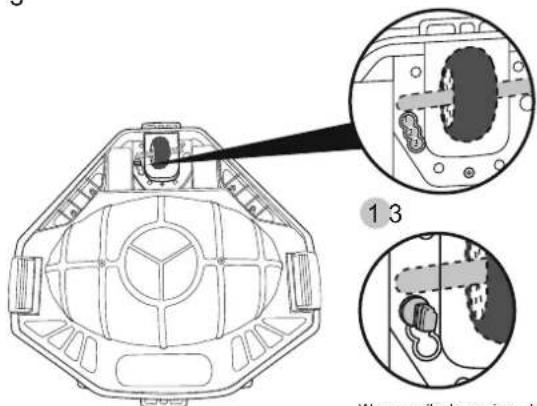

3

PUNAINEN valo - Lataa VIHREÄ valo - Ladattu

5-6 h

4

Technical diagram showing a mechanical component before and after assembly, with numbered arrows indicating directional changes.

5

1 Lima-altaile joiden

Line drawing of a mechanical device with a lever and base (no text or symbols)

Medical illustration showing eight different manual techniques for a surgical procedure, with arrows indicating force direction and X marks.

7

Simple line drawing of a mechanical device with a string and coiled cable (no text or symbols)

1.2.

1.
   4.

Diagram illustrating the step-by-step procedure for using a tool to adjust or remove a component, with magnified views showing key steps.

9

Illustration of a hand pulling a small boat into a beaker with an arrow indicating downward motion (no text or symbols)

10

Simple line drawing of a small boat pulling a fishing net in a container (no text or symbols)

11

Illustration of a hand pulling a plastic bag over a container with an upward arrow, no text or symbols present

13

POIS PÄÄLTÄ

14

Technical diagram showing mechanical assembly steps with numbered arrows indicating direction of movement

15

Technical line drawing of a mechanical assembly with two views showing internal components and fluid flow paths (no text or symbols)

Line drawing of a hand holding a device with a checkmark icon (no text or symbols on the device itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

LÄPÄN VAIHTAMINEN

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

KUNNOSSAPITO JA SÄILYTYS

Four-panel photo showing a mechanical component being handled, with one being held by hands (no visible text or symbols)

Close-up of a mechanical component with arrows indicating direction (no text or symbols visible)

Mechanical component with mounting holes and directional arrows indicating assembly (no text or symbols)

Mechanical component with central bore and mounting holes (no visible text or symbols)

Close-up of a mechanical assembly with internal components and wiring (no visible text or symbols)

Close-up of a mechanical device with internal components and a highlighted square component (no visible text or symbols)

Close-up of a mechanical component with wires and components, no visible text or symbols

Circular mechanical assembly diagram with gear and mounting holes (no text or symbols)

Black cylindrical battery with a curved cable and a small black plug inserted, connected to a white surface (no visible text or symbols)

HÄVITTÄMINEN

4 2 4 ↑ ↓ ↑

5 ① Voor zwembaden

Technical line drawing of a mechanical device with a lever and base (no text or symbols)

Medical illustration showing eight different manual techniques for a surgical procedure, with arrows indicating force direction and X marks highlighting specific points.

Diagram of a cable being inserted into a wire, showing rope routing and a black tip (no text or symbols)

1. 2. 3. 4.

Diagram illustrating the step-by-step assembly of a car seatbelt, showing disassembly and cleaning steps with labeled 'ON' button.

9

Illustration of a hand pulling a small boat into a beaker with an arrow indicating downward motion (no text or symbols)

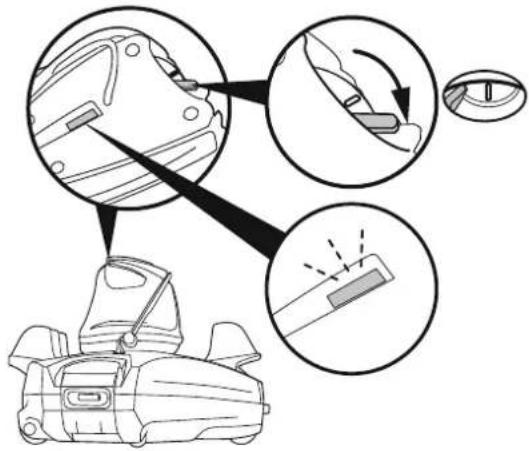

10

Simple line drawing of a small boat pulling a fishing net in a container (no text or symbols)

11

Illustration of a hand using a tool to lift a submerged object in a liquid container (no text or symbols)

13

OFF

14

Technical diagram showing mechanical assembly steps with numbered arrows indicating direction of movement

15

Technical line drawing of a mechanical assembly with two views showing internal components and fluid flow paths (no text or symbols)

Line drawing of a hand holding a device with a checkmark icon (no text or symbols on the device itself)

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

FLAP TERUGPLAATSEN

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Line drawing of a mechanical component with a knob and adjustment knob (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered annotation (no readable text or symbols)

Close-up of a white and black industrial vacuum cleaner (no visible text or symbols)

Close-up of a hand holding a mechanical component with a circular housing and central hub (no visible text or symbols)

Hand pressing a circular component into a mechanical housing (no text or symbols visible)

Close-up of a hand holding a white cylindrical device with a central hole (no visible text or symbols)

Close-up of a mechanical component with arrows indicating direction (no text or symbols visible)

Mechanical component with arrows indicating assembly or movement (no visible text or symbols)

Mechanical component with central bore and mounting holes (no visible text or symbols)

Close-up of a mechanical assembly with internal components and wiring (no visible text or symbols)

Close-up of a mechanical device with internal components and a highlighted square component (no visible text or symbols)

Close-up of a mechanical component with wires and components, no visible text or symbols

Circular mechanical assembly diagram with gear and mounting holes (no text or symbols)

Black cylindrical battery with a curved cable and a small black plug inserted, connected to a white surface (no visible text or symbols)

WEGGOOIEN

Technical diagram of a plastic housing assembly with numbered parts labeled 3, 4, and 5

Cod. QTA
1	1
2	1
3	1
4	1
5	1
6	1
7	1
8	1

4 2 4 ↑ ↓ ↑

5 1 Pre-picking on one

Technical line drawing of a cleaning or spray gun with a broom and lever (no text or symbols)

Medical illustration showing eight different manual techniques for a surgical procedure, with arrows indicating force or movement and X marks highlighting specific points.

Diagram of a cable being inserted into a clamp, showing rope routing and a black tip (no text or symbols)

1. 2. 3. 4.

Diagram illustrating the step-by-step assembly of a car seatbelt, showing disassembly and cleaning steps with labeled 'ON' button.

9

Illustration of a hand pulling a small boat into a beaker with an arrow indicating downward motion (no text or symbols)

10

Simple line drawing of a small boat pulling a fishing net in a container (no text or symbols)

11

Illustration of a hand pulling a plastic bag over a container with an upward arrow, no text or symbols present

13

OFF

14

Technical diagram showing mechanical assembly steps with numbered arrows indicating direction of movement

15

Technical line drawing of a mechanical assembly with two views showing internal components and fluid flow paths (no text or symbols)

Line drawing of a hand holding a device with a checkmark icon (no text or symbols on the device itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Close-up of a white and black plastic spray gun component (no visible text or symbols)

Close-up of a hand holding a small mechanical component inside a black plastic housing (no visible text or symbols)

Hand placing a circular component into a mechanical housing (no text or symbols visible)

Close-up of a hand holding a white cylindrical device with a central hole (no visible text or symbols)

Close-up of a mechanical component with arrows indicating assembly or movement (no visible text or symbols)

Mechanical component with mounting holes and directional arrows indicating assembly (no text or symbols)

Mechanical component with central bore and mounting holes (no visible text or symbols)

Close-up of a mechanical assembly with internal components and wiring (no visible text or symbols)

Close-up of a mechanical device with internal components and a highlighted square component (no visible text or symbols)

Close-up of a robotic arm with exposed wiring and mechanical components (no visible text or symbols)

Circular mechanical assembly with gear and mounting bracket (no visible text or symbols)

Electric battery with a small plug inserted into its side, shown in black and white (no text or symbols visible)

SMALTIMENTO

4 2 4 ↑ ↓ ↑

Line drawing of a cleaning or cleaning device with a broom and handle (no text or symbols)

Medical illustration showing eight different manual techniques for a surgical procedure, with arrows indicating force direction and X marks highlighting specific points.

Simple line drawing of a tool interacting with a coiled cable and a ball (no text or symbols)

1. 2. 3. 4.

Diagram illustrating the step-by-step procedure for using a tool to adjust or remove a component, with magnified views showing key steps.

9

Illustration of a hand pulling a small boat into a beaker with an arrow indicating downward motion (no text or symbols)

10

Simple line drawing of a small boat pulling a fishing net in a container (no text or symbols)

11

Illustration of a hand pulling a plastic bag over a container with an upward arrow, no text or symbols present

13

ARRÊT

14

Technical diagram showing mechanical assembly steps with numbered arrows indicating direction of movement

15

Technical line drawing of a mechanical assembly with two views showing internal components and fluid flow paths (no text or symbols)

Line drawing of a hand holding a device with a checkmark icon (no text or symbols on the device itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

REPLACEMENT DE L'AILETTE

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered label (no text or symbols present)

ENTRETIEN ET RANGEMENT

Four-panel photo showing a mechanical component being handled, with one being held by hands (no visible text or symbols)

Four views of a mechanical assembly showing internal components with arrows indicating motion direction (no text or symbols present)

Close-up of a mechanical device with internal components and a highlighted square component (no visible text or symbols)

Close-up of a mechanical component with wires and components, no visible text or symbols

Circular mechanical assembly diagram with gear and mounting holes (no text or symbols)

Electric battery with a black plug inserted into its side, connected to a cable (no visible text or symbols)

MISE AU REBUT

Line drawing of a car seatbelt with connector details (no text or symbols)

3

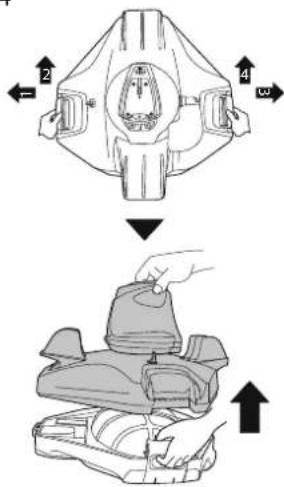

Diagram illustrating a mechanical assembly process with numbered components and directional arrows indicating movement or assembly.

5

1 FA DISINET OPOY TO FA

Line drawing of a mechanical device with a lever and base (no text or symbols)

Medical illustration showing eight different manual techniques for a surgical procedure, with arrows indicating direction and X marks.

7

Simple line drawing of a mechanical device with a string and coiled cable (no text or symbols)

1.2.

1.
   4.

Diagram illustrating the step-by-step procedure for using a tool to adjust or remove a component, with magnified views showing the process.

9
ΕΝΕΡΓΟΠΟΙΗΣΗ

Illustration of a hand pulling a small boat into a beaker with an arrow indicating downward motion (no text or symbols)

10

Simple line drawing of a small boat pulling a fishing net in a container (no text or symbols)

11

Illustration of a hand pulling a plastic bag over a container with an upward arrow, no text or symbols present

13

Technical diagram showing mechanical assembly steps with numbered arrows indicating direction of movement

15

Technical line drawing of a mechanical assembly with two views showing internal components and fluid flow paths (no text or symbols)

Line drawing of a hand holding a device with a checkmark icon (no text or symbols on the device itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered label (no readable text or symbols)

Four-panel photo showing a mechanical component with hands operating it, including a spray gun and a circular housing (no visible text or symbols)

Four views of a mechanical assembly showing internal components with arrows indicating motion direction (no text or symbols present)

Close-up of a mechanical device with a highlighted internal component (no visible text or symbols)

Close-up of a robotic arm with exposed wiring and mechanical components (no visible text or symbols)

Close-up of a mechanical component with gear teeth and a tool, no visible text or symbols

Electric battery with a small plug inserted into its side, shown in black and white (no text or symbols visible)

АПОРРИΨΗ

Line drawing of a car seatbelt with a close-up inset showing cable connector (no text or symbols)

3

3 5-6 h RDEČA lučka – polnjenje ZELENA lučka – napoljneno

4

Technical diagram showing a mechanical component before and after assembly, with numbered arrows indicating directional changes.

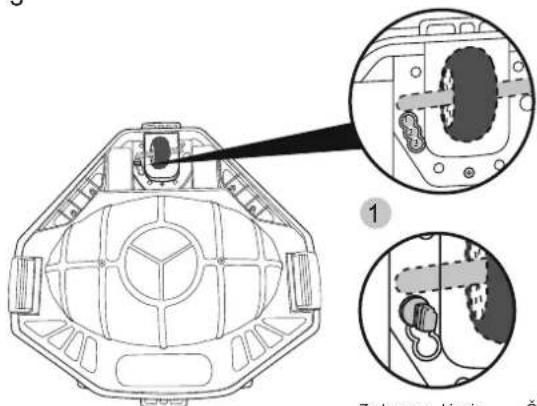

5

Zn bungga, kias in

Line drawing of a mechanical device with a lever and base (no text or symbols)

Medical illustration showing eight different manual techniques for a surgical procedure, with arrows indicating direction and X marks.

7

Simple line drawing of a mechanical device with a string and coiled cable (no text or symbols)

1.2.

1.
   4.

OPOMBA: snemite pokrov plovca in sprostite vrv, tako da bo segala od plovca do dna bazena plus 0,5 m (19,7 palcev).

8

Diagram illustrating the step-by-step procedure for using a tool to adjust or remove a component, with magnified views showing the process.

9
VKLOP (ON)

Illustration of a hand pulling a small boat inside a beaker with an arrow indicating downward motion (no text or symbols)

10

Simple line drawing of a small boat pulling a fishing net in a container (no text or symbols)

11

Illustration of a hand pulling a plastic bag over a container with an upward arrow, no text or symbols present

13

IZKLOP (OFF)

14

Technical diagram showing mechanical assembly steps with numbered arrows indicating direction of movement

15

Technical line drawing of a mechanical assembly with two views showing internal components and fluid flow paths (no text or symbols)

Line drawing of a hand holding a device with a checkmark icon (no text or symbols on the device itself)

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

ZAMENJAVA LOPUTE

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Line drawing of a mechanical component with a knob and adjustment knob (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered label (no text or symbols present)

VZDRŽEVANJE IN SHRANJEVANJE

Four-panel photo showing a robotic vacuum cleaner's internal components, including a hand holding a small component, with no visible text or symbols.

Four views of a mechanical component showing internal components with arrows indicating features (no text or symbols present)

Close-up of a mechanical device with internal components and a highlighted square component (no visible text or symbols)

Close-up of a mechanical component with wires and components, no visible text or symbols

Circular mechanical assembly diagram with gear and mounting holes (no text or symbols)

Electric battery with a black plug inserted into its side, connected to a cable (no visible text or symbols)

ODSTRANJEVANJE

Technical diagram of a plastic component with labeled parts 3, 4, and 5

Line drawing of a car seatbelt with a close-up inset showing cable connector detail (no text or symbols)

5-6 h

Line drawing of a car with a mounted sensor or sensor connected to a wall-mounted device (no text or symbols present)

Technical diagram showing a mechanical component before and after assembly, with numbered arrows indicating directional changes.

5

Technical diagram of a vehicle interior with labeled parts and magnified views showing internal components

Line drawing of a mechanical device with a lever and base (no text or symbols)

Medical illustration showing eight different manual techniques for a surgical procedure, with arrows indicating direction and X marks.

7

Simple line drawing of a mechanical device with a string and coiled cable (no text or symbols)

1.2.

1.
   4.

Technical diagram showing mechanical assembly steps with magnified views and a close-up of a component labeled 'W1'

9

Illustration of a hand holding a small object submerged in a beaker with an arrow indicating fluid flow (no text or symbols)

10

Simple line drawing of a boat pulling a small boat in water (no text or symbols)

11

Illustration of a hand pulling a device into a container with an upward arrow, no text or symbols present

13

WYL.

14

Technical diagram showing mechanical assembly steps with numbered arrows indicating direction of movement

15

Technical line drawing of a mechanical assembly with two views showing internal components and fluid flow paths (no text or symbols)

Line drawing of a hand holding a device with a checkmark icon (no text or symbols on the device itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

WYMIANA KLAP

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered label (no text or symbols present)

KONSERWACJA I PRZECHOWYWANIE

Four-panel photo showing a mechanical component being handled, with one being held by hands (no visible text or symbols)

Four views of a mechanical assembly showing internal components with arrows indicating motion direction (no text or symbols present)

Technical diagram of a plastic housing assembly with numbered parts labeled 3, 4, and 5

4 2 4 ↑ ↓ ↑

5 1 A 3 méteres vany H

Line drawing of a cleaning or cleaning device with a broom and handle (no text or symbols)

Medical illustration showing eight different manual techniques for a surgical procedure, with arrows indicating force direction and X marks highlighting specific points.

Diagram of a mechanical device with wires and a pointed tip, no text or symbols present

1. 2. 3. 4.

Illustration of a hand holding a small object submerged in a beaker with an arrow indicating downward motion (no text or symbols)

10

Simple line drawing of a small boat pulling a fishing net in a container (no text or symbols)

11

Illustration of a hand pulling a plastic bag over a container with an upward arrow, no text or symbols present

13

KI

14

Technical diagram showing mechanical assembly steps with numbered arrows indicating direction of movement

15

Technical line drawing of a mechanical assembly with two views showing internal components and fluid flow paths (no text or symbols)

Line drawing of a hand holding a device with a checkmark icon (no text or symbols on the device itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

FÜL CSERÉJE

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered label (no text or symbols present)

Four-panel photo showing a mechanical component with hands operating it, including a spray gun and a circular housing (no visible text or symbols)

Four views of a mechanical assembly showing internal components with arrows indicating motion direction (no text or symbols present)

Close-up of a mechanical device with internal components and a highlighted square component (no visible text or symbols)

Close-up of a robotic arm with exposed wiring and mechanical components (no visible text or symbols)

Circular mechanical assembly with gear and mounting bracket (no visible text or symbols)

Electric battery with a small plug inserted into its side, shown in black and white (no text or symbols visible)

ÁRTALMATLANÍTÁS

Technical diagram of a plastic housing assembly with numbered parts labeled 3, 4, and 5

Del nr. ANTAL
1	1
2	1
3	1
4	1
5	1
6	1
7	1
8	1

4 2 4 ↑ ↓ ↑

Line drawing of a cleaning or cleaning device with a broom and handle (no text or symbols)

Medical illustration showing eight different manual techniques for a surgical procedure, with arrows indicating force direction and X marks highlighting specific points.

Simple line drawing of a tool interacting with a coiled cable and a ball (no text or symbols)

1. 2. 3. 4.

Illustration of a hand pulling a small boat into a beaker with an arrow indicating downward motion (no text or symbols)

10

Simple line drawing of a small boat pulling a fishing net in a container (no text or symbols)

11

Illustration of a hand pulling a plastic bag over a container with an upward arrow, no text or symbols present

13

AV

14

Technical diagram showing mechanical assembly steps with numbered arrows indicating direction of movement

15

Technical line drawing of a mechanical assembly with two views showing internal components and fluid flow paths (no text or symbols)

Line drawing of a hand holding a device with a checkmark icon (no text or symbols on the device itself)

Hand holding a tool interacting with a mechanical component, no text or symbols visible

ERSÄTT KLAFF

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Technical line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Line drawing of a mechanical component with a handle and arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section and numbered label (no readable text or symbols)

UNDERHÅLL OCH FÖRVARING

Four-panel photo showing a mechanical component with hands operating it, including a spray gun and a circular housing (no visible text or symbols)

Four views of a mechanical assembly showing internal components with arrows indicating motion direction (no text or symbols present)

1. Remove the battery pack to expose the PCBA. To detach the battery connection wire, press the clip on the connector and then pull it out. NOTE: Wrap the connector immediately with insulating tape in order to avoid short circuit caused by contact of both wire terminals.

Close-up of a mechanical device with internal components and a highlighted square component (no visible text or symbols)

Close-up of a mechanical component with wires and components, no visible text or symbols

Circular mechanical assembly diagram with gear and mounting holes (no text or symbols)

Black cylindrical battery with a curved cable and a small black plug inserted, connected to a white surface (no visible text or symbols)

AVFALLSHANTERING

For support please visit us at:

bestwaycorp.com/support

©2022 Bestway Inflatables & Material Corp.

All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten/Tutti i diritti riservati

Trademarks used in some countries under license from/

Manufactured, distributed and represented in the European Union by/

Distributed in Australia & New Zealand by Bestway Australia Pty Ltd, Unit 2/98-104 Carnarvon St Silverwater, NSW 2128, Australia

Tel: Australia: ([phone]; New Zealand: 0800 142 101

Distributed in United Kingdom by Bestway Corp UK Ltd. 8 Wentworth Road, Heathfield Industrial Estate, Newton Abbot, Devon, TQ12 6TL

Exported by/Exporté par/Exportado por/Exportiert von/Esportato da

Bestway (Hong Kong) International Ltd./Bestway Enterprise Company Limited

Suite 713, 7/Floor, East Wing, Tsim Sha Tsui Centre, 66 Mody Road, Kowloon, Hong Kong

www.bestwaycorp.com

Bestway.
