Express Compact GV7340 - Iron TEFAL - Free user manual and instructions

Brand	TEFAL
Model	Express Compact GV7340
Appliance type	Steam generator
Tank capacity	1.6 L
Power supply voltage	220 - 240 V
Plug type	Grounded plug
Temperature setting	Manual (Synthetic, Silk, Wool, Cotton, Linen)
Steam function	Continuous steam, Vertical steaming, ECO mode
Dry ironing	Yes (without pressing steam button)
Anti-scale system	Removable scale collector, rinsing recommended every 6 months
Safety	Overpressure valve, Thermal fuse, Automatic shut-off not mentioned
Iron locking (Lock System)	Yes (depending on model)
Recommended water type	Tap water (mix 50/50 with demineralized water if very hard)
Soleplate cleaning	Non-metallic sponge
Housing cleaning	Soft slightly damp cloth
Spare parts	Scale collector, Drain plug (replacement at authorized service center)
Repairability	Authorized Service Centers
Weight	Not specified (estimate: approx. 4 kg)

Frequently Asked Questions - Express Compact GV7340 TEFAL

What type of water to use in the TEFAL Express Compact GV7340 steam generator?

Use tap water. If your water is very hard, mix 50% tap water and 50% demineralized water. Never use rainwater, water containing additives (starch, perfume) or water from household appliances.

How to descale the steam generator?

The appliance is equipped with a scale collector. When the orange Anti-calc light flashes, wait for the appliance to be cold and unplugged for more than 2 hours, remove the cover and unscrew the collector. Rinse it under running water. For deep descaling, let it soak in lemon juice or white vinegar for 4 hours. Screw it back on after cleaning and press the OK button to turn off the light.

What to do if the red 'Empty tank' light flashes?

This means the water tank is empty. Turn off and unplug the generator, open the tank flap and fill it to the Max level (1.6 L maximum). Replug, turn on and press the OK button if the light stays on.

How to use ECO mode?

First set the iron thermostat to the appropriate fabric type. Press the ECO button located on the control panel. ECO mode reduces energy consumption while providing sufficient steam flow for efficient ironing. For very thick fabrics, use normal mode.

Why does water leak from the soleplate holes?

This can happen if the iron is not hot enough. Check the temperature setting: wait for the iron light to turn off before using steam. If using steam for the first time or after a long stop, press the steam button several times away from the laundry to remove condensation.

How to store the steam generator after use?

Place the iron on the iron rest plate, fold down the support arch until you hear a click for locking. Store the power cord in its housing and the steam cord in its compartment. Let it cool for about 1 hour before storing in a cupboard.

What to do if white or brown marks appear on the laundry?

White marks are often due to excess scale: rinse the boiler (see descaling procedure). Brown marks may come from the use of chemicals in the water: never add descaling agents or additives. If the problem persists, contact an authorized service center.

How to clean the iron soleplate?

Clean the soleplate regularly with a non-metallic sponge. Never use abrasive cleaning products or descaling agents on the soleplate or housing. Do not run the iron under tap water.

The steam generator does not turn on, what to do?

Check that the appliance is properly plugged into a functional grounded outlet and that the illuminated on/off switch is on. If no light comes on, contact an authorized service center. Do not disassemble the appliance.

Can I use the steam generator with starch?

Yes, but always spray the starch on the reverse side of the fabric to be ironed, never directly on the soleplate. Avoid adding starch to the water tank.

USER MANUAL Express Compact GV7340 TEFAL

EXPRESS COMPACT ANTI-CALC

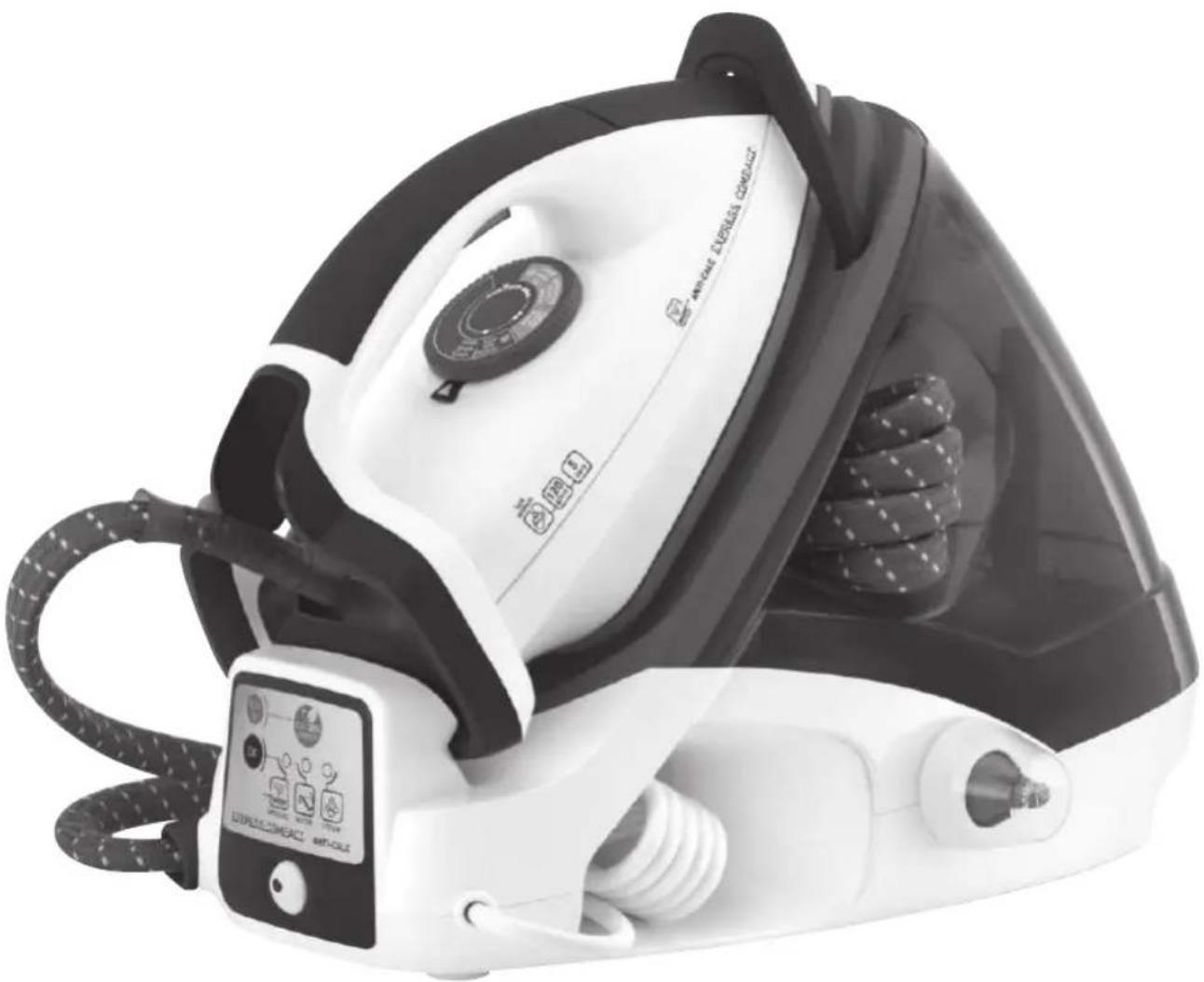

Exterior view of a white electric steam iron with attached power cord and control panel (no visible text or symbols)

fig. 1 fig. 2 fig. 3

Illustration of a hand using a power iron to press down a machine, with an upward arrow indicating motion (no text or symbols present)

Illustration of a hand pouring liquid from a container into a container with a lid (no text or symbols)

fig. 4 fig. 5 fig. 6

Illustration of a hand using an iron on a computer screen with a cloud below (no text or symbols)

Illustration of a person using a machine to lift a cup, with arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to interact with a car seatbelt, showing mechanical components and directional arrows (no text or symbols)

fig. 7 fig. 8

Illustration of a hand cleaning a white iron with a cloth, enclosed in a circular frame (no text or symbols)

fig. 9

fig. 10 fig. 11 fig. 12

Illustration of a hand turning a car key into a circular component (no text or symbols)

Illustration of a hand using a tool to lift a car's seatbelt, showing mechanical components and motion direction (no text or symbols)

Illustration of a window with grid pattern and a hand holding a tool, enclosed in a circular frame (no text or symbols)

Illustration of a hand inserting a plug into a car seatbelt, showing the arrow direction (no text or symbols)

fig. 13 fig. 14 fig. 15

Circular icon with a sun, smokestack, and steam cloud symbol (no text or numbers)

Circular icon with a camera and steam cloud symbol, no readable text or labels

fig. 16 fig. 17 fig. 18

Circular icon with 'OK' text and abstract curved lines, no readable text or symbols beyond the icon design

Abstract diagram of a sphere with a curved line and a dark circular spot, enclosed in a circular frame (no text or symbols)

fig. 19 fig. 20 fig. 21

Sicherheitshinweise

Sicherheitshinweise

Important recommendations Safety instructions

- Please read these instructions carefully before first use. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

- For your safety, this appliance conforms to the applicable standards and regulations (Low Voltage, Electomagnetic Compatibility, Environmental Directives, as applicable...).

- Your steam generator is an electrical appliance. It should be used under normal conditions. It is intended for domestic use only.

- Your generator is fitted with 2 safety systems:

- A valve avoids any excess pressure build-up, to let excess steam escape in the event of the appliance malfunctioning;

- a thermal fuse to prevent the appliance from overheating.

• Always plug your steam generator into:

- an electrical installation with voltage between 220V and 240V.

- a socket outlet with ab earth connection.

Connecting to the wrong voltage may cause irreparable damage to the appliance and will invalidate your guarantee.

If you are using a mains extension lead, ensure that it is correctly rated (16A) with an earth connection, and is fully extended.

- Completely unwind the power cord from its storage space before connecting to an earthed socket outlet.

- If the electric power cord or the iron-unit is damaged, it must be replaced by an Approved Service Centre in order to prevent any danger.

- Do not unplug the appliance by pulling on the cord. Always unplug your appliance:

- before rinsing out the boiler or before filling the water tank,

- before cleaning your generator, - after each use.

- The appliance must be used and positioned on a stable, heat-resistant surface.. When you place the iron on the iron rest, make sure that the surface on which you place it is stable.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

- The temperature of the surfaces may be high when the appliance is in operation, which could cause burns. Do not touch the hot surfaces of the appliance (accessible metal parts and plastic parts near the metal parts).

- Never leave the appliance unattended :

- when it is connected to the mains,

- until it has cooled down (around 1 hour).

- The soleplate and generator iron-rest can become very hot and cause burns: never touch these parts. Never touch the electric cords with the soleplate of the iron.

- Your appliance gives off steam which can cause burns. Handle your iron carefully, particularly when using the vertical steam function. Never direct the steam towards persons or animals.

- Before unscrewing the boiler rinse cap, wait until the generator is cold (unplugged for more than 2 hours).

- While rinsing out the boiler, never fill it directly under the tap.

- If you lose or damage the boiler rinse cap, have it replaced by an approved Service Centre.

- Never immerse your steam generator in water or any other liquid. Never hold it under the water tap.

- The appliance must not be used if it has fallen to the floor, shows evidence of damage, leaks or fails to function correctly. Never dismantle your appliance. To avoid any danger, have it inspected at a Tefal approved service centre.

- This appliance has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

PLEASE KEEP THIS INSTRUCTION LEAFLET IN A SAFE PLACE

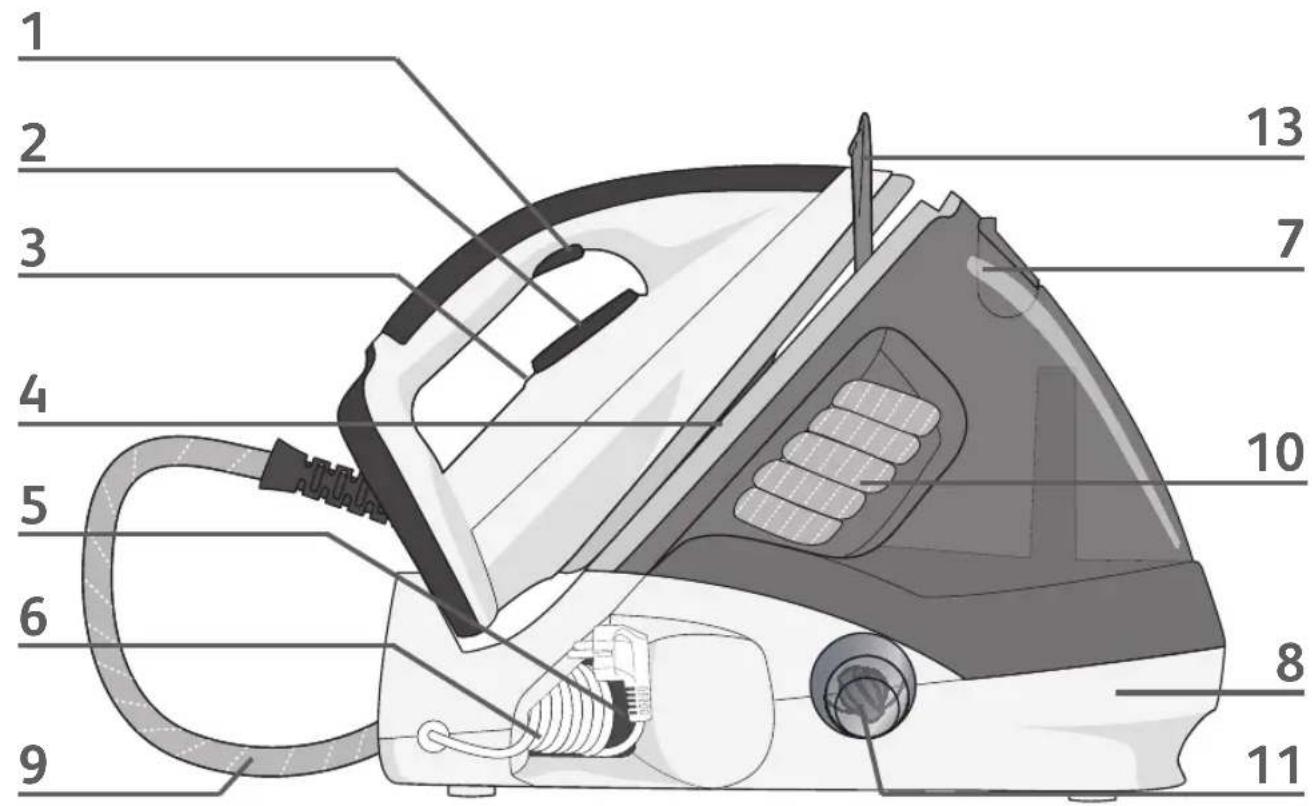

Description

1. Steam control button

2. Iron temperature adjustment dial

3. Iron thermostat light

4. Iron rest

5. Power cord storage space

6. Power cord

7. Water tank

8. Steam generator boiler (in the base unit)

9. Iron-base steam cord

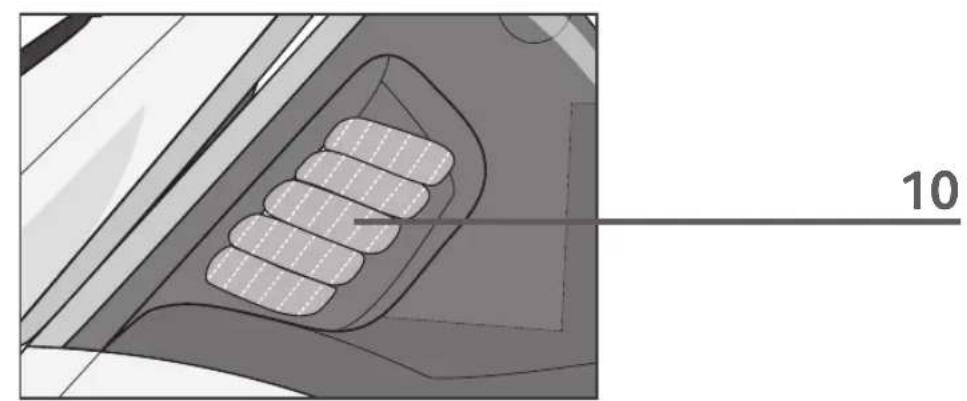

10. Steam cord storage compartment

11. Scale collector

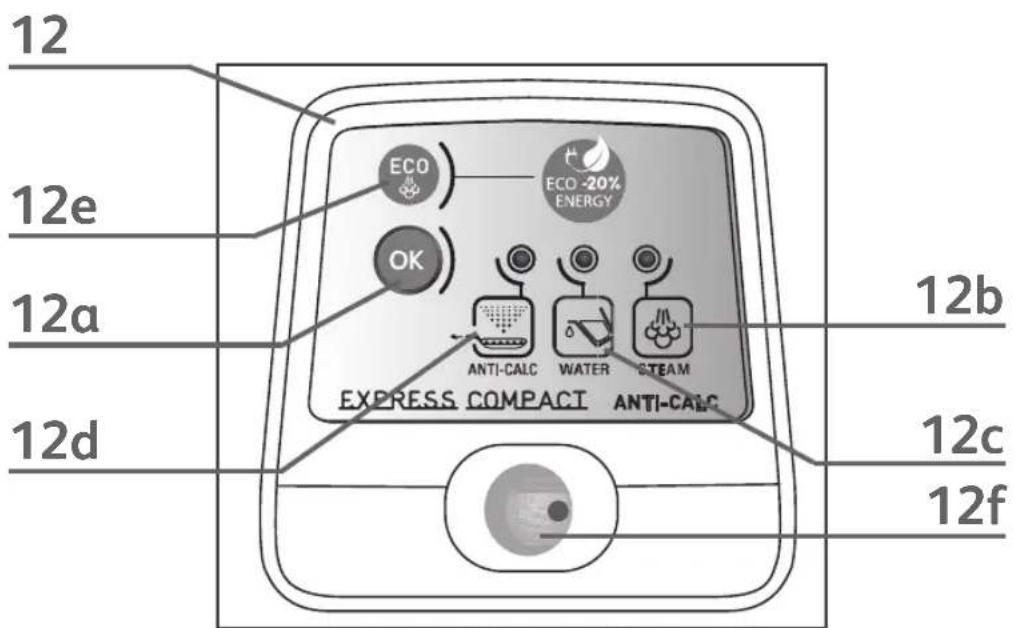

12. Control panel

a - OK button

b - "Steam ready" light

c - "water tank e empty" light

d - "Anti-calc" indicator

e - ECO mode button

f - Illuminated on/off switch

1. Lock-System hoop (depending on model)

EN

Locking system for retaining the iron on the base - Lock system

(depending on model)

- Your steam generator is equipped with a retaining hoop which locks the iron on its base for easier transport and storage:

- Locking - fig.1

- Unlocking - fig.2

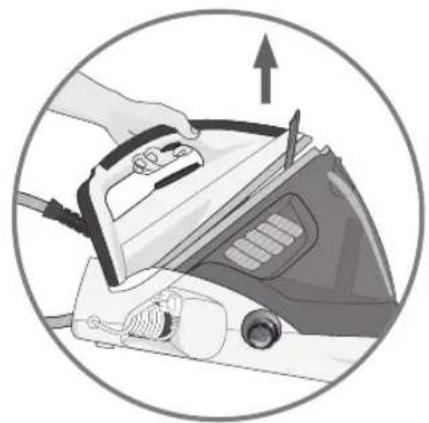

- To carry your steam generator by the iron handle:

- Place the iron on the iron rest of the generator and raise the retaining hoop over the iron until it locks into place (audible click) - fig.1.

- Grasp the handle of the iron to carry your steam generator - fig.3.

Preparation

What water may be used?

- Tap water:

Your appliance has been designed to function using untreated tap water. If your water is very hard, we recommend you use a mix of 50% untreated tap water and 50% distilled water available in most shops.

- Types of water not to use :

Heat concentrates the elements contained in water during evaporation. The types of water listed below may contain organic waste, mineral or chemical elements that can cause spitting, brown staining or premature wear of the appliance: water from clothes dryers, scented or softened water, water from refrigerators, batteries, air conditioners, rain water, boiled, filtered or bottled water. These types of water should not be used in your TEFAL iron. Also only use distilled water as advised above.

• Always remember :

Never use rainwater or water containing additives (like starch, fragrance or water from domestic appliances). Such additives can affect the steam properties and at high temperature, form deposits in the steam generator chamber which are likely to stain your washing.

Filling the water tank

• Place your steam generator on a stable, flat heat-resistant surface.
• We recommend that you use a mesh type ironing board to allow steam to pass through the garments for better ironing results and also to prevent steam venting sideways.
• Check that your appliance is unplugged and open the flap on the tank.

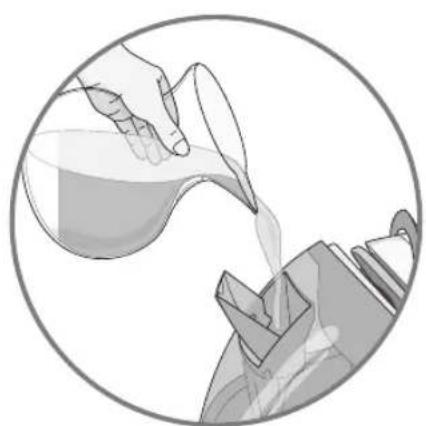

• Pour in untreated tap water up to the max mark - fig.4.

Using your steam generator

• Completely unwind the power cord and the steam cord from its storage space.
• Tilt the locking ring of the iron forwards to release the safety catch (according to the model).
• Plug in your steam generator to an earthed socket.

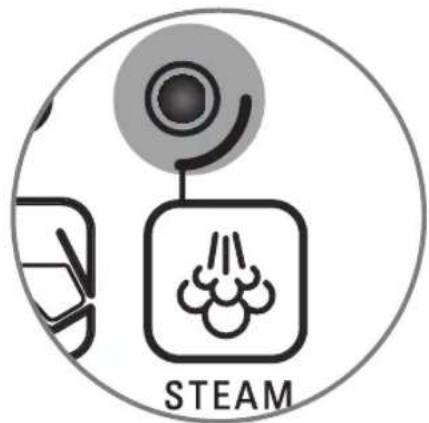

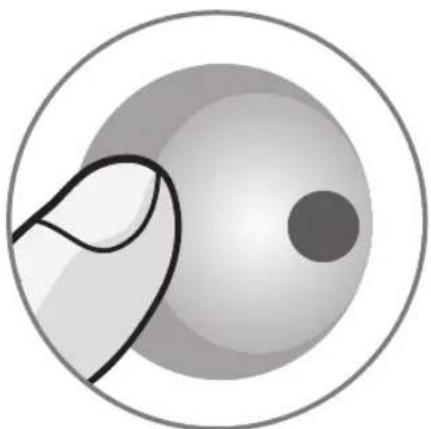

• Press on the on / off switch. The green light (located on the control panel) flashes and the boiler heats up - fig.12b.

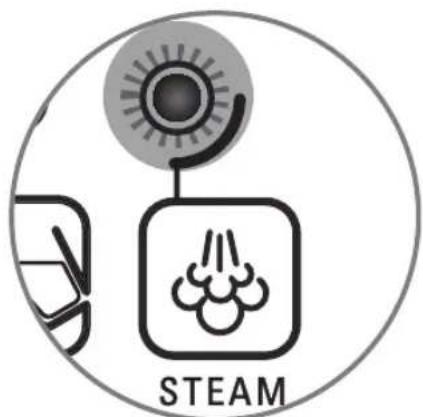

When the green “steam ready” light stops flashing (after 2 minutes approximately), the appliance is ready.

- When starting, and regularly while it is being used, your steam generator's electric pump injects water into the boiler. It makes a noise but this is quite normal. You may also hear a clicking noise which is the steam valve opening. Again this is normal.

The first time the appliance is used, there may be some fumes and smell but this is not harmful. They will not affect use and will disappear rapidly.

Use

Steam ironing

• Place the iron's temperature control dial according to the type of fabric to be ironed (see tabl below).
• The thermostat light comes of important: whenever you start using your iron and whenever you reduce the temperature during use, the iron is fully ready for use when its thermostat light goes out and when the green light located on the control panel stops flashing and remains on. During use, when you increase the temperature of the iron, you can start ironing immediately.
• While ironing, the light on top of the iron and the steam ready light turn on and off, as the temperature adjusts without interrupting ironing.
• To obtain steam, press on the steam control button under the iron handle and keep it pressed - fig.5. The steam will stop when you release the button.
  • Always spray starch onto the reverse side of the fabric to be ironed.

Do not place the iron on a metal

support. When taking a break from ironing, always place the iron on the iron rest plate of the unit. It is equipped with non-slip pads and has been designed to withstand high temperatures.

Setting the temperature

To prime the steam circuit, either before using the iron for the first time, or if you have not used the steam function for a few minutes, press the steam control button several times in a row, holding the iron away from your clothes. This will enable any cold water to be ejected from the steam circuit.

SETTING THE TEMPERATURE AND STEAM OUTPUT ACCORDING TO TYPE OF FABRIC TO BE IRONED:
TYPE OF FABRICS	Setting temperature control
Synthetics Silk, (polyester, acetate, acrylic, polyamide)	●
Wool, Viskose	●●
Linen, cotton	●●●

- Iron temperature setting:

• Start with the fabrics to be ironed at a low temperature (•) and finish with those which need higher temperatures (••• or Max).
• Mixed fibre fabric: set the ironing temperature to the setting for the most delicate fabric.

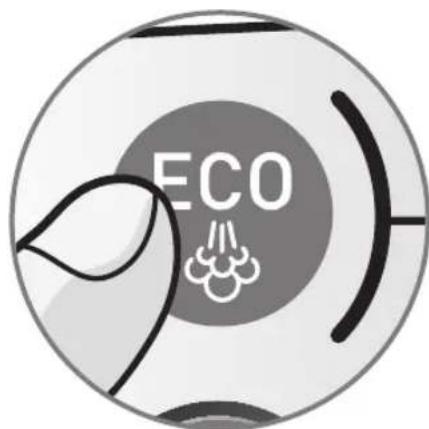

ECO MODE: Your steam generator iron has an ECO mode function which uses less power whilst still guaranteeing a sufficient steam flow for you to iron your garments properly. In order to use this function, once the thermostat of your iron has been correctly set (see table above), press on the ECO mode button located on the control panel. The ECO mode can be used on all types of fabrics, nevertheless for very thick or very creased fabrics, we recommend that you use the normal steam flow for best results.

Dry ironing

- Do not press the steam control button under the iron handle.

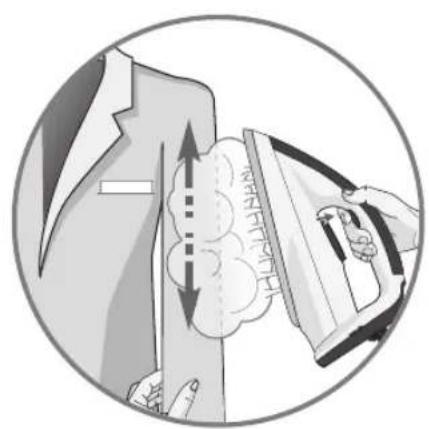

Vertical steam ironing

Recommendations : for fabrics other than linen or cotton, hold the iron a few centimetres from the garment to avoid burning the fabric.

• Set the iron temperature control dial to the MAX position.
• Hang the garment on a coat hanger and hold the fabric slightly taut with one hand.
  As steam is very hot : never attempt to remove creases from a garment while it is being worn, always hang garments on a coat hanger.

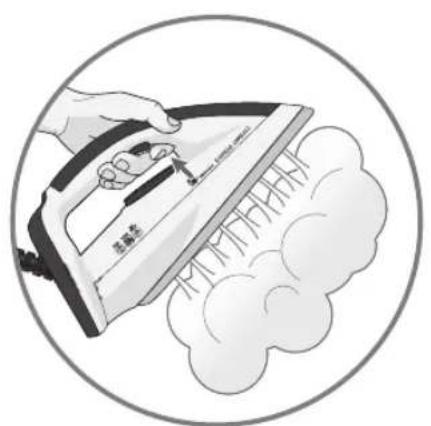

• Holding the iron in a vertical position, tilted slightly forwards, press repeatedly on the steam control button fig.5 (underneath the iron handle) moving the iron from top to bottom - fig.6.

Refilling the water tank

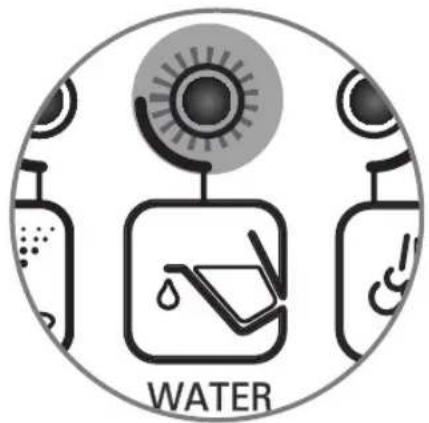

• When the red "water tank empty" light starts flashing, it means that you have no more steam - fig.16. The water tank is empty.
• Switch off then unplug the steam generator and open the flap on the tank.
• Pour in untreated tap water up to the max mark - fig.4.
• Reconnect then switch the steam generator on again by pressing the on/off switch 12f.

Maintenance and cleaning

Cleaning your generator

• Do not use detergent or descaling products for cleaning the soleplate base-unit.
• Never hold the iron or the base unit under the tap.
• Regularly clean the soleplate with a damp, non-metallic washing up pad.
• Clean the plastic parts of the appliance occasionally with a soft cloth.

Before cleaning, ensure your steam generator is unplugged and that the soleplate and the iron have cooled down.

To extend the life of your steam generator and avoid scale on your ironing, your steam generator is equipped with a built-in scale collector. This valve, located in the tank, automatically removes the scale that forms inside.

Do not use any descaling substances (vinegar, industrial descaling products, etc.) when rinsing the anti-scale valve: they could damage it. Before emptying your steam generator, it must always be left to cool for 2 hours to avoid any risks of scalding.

Operation:

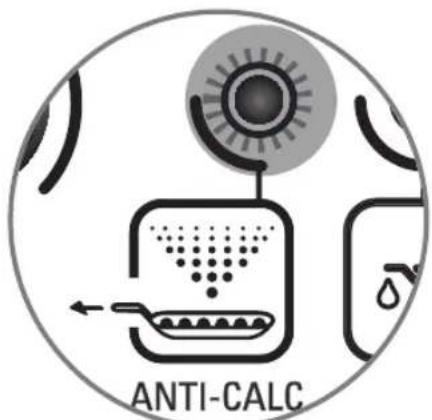

- An orange “anti-scale” light located on the control panel starts blinking to tell you that the anti-scale valve needs rinsing - fig.9.

⚠️ Important: This operation must not be carried out unless the steam generator has been unplugged for at least two hours and has cooled down completely. To carry out this operation, the steam generator must be close to a sink as water may come out of the tank when it is opened.

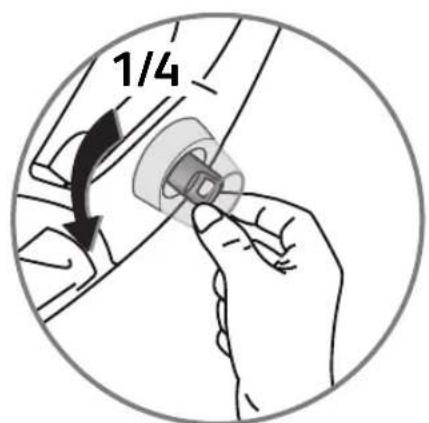

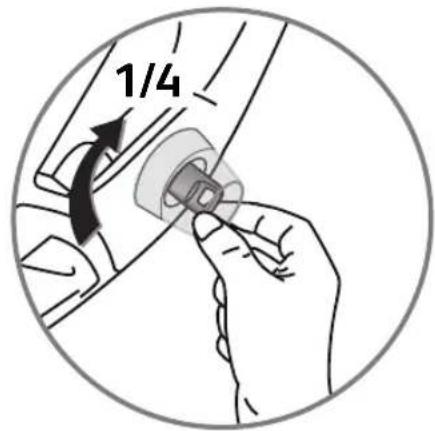

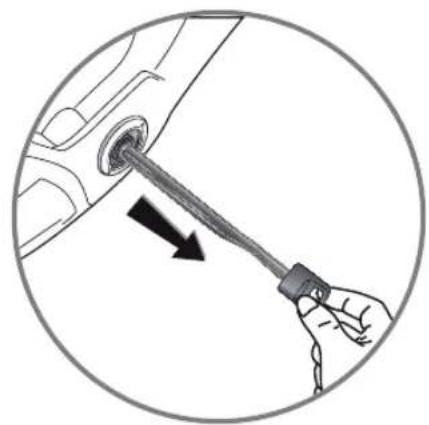

- Once the steam generator has cooled down completely, remove the scale collector cover - fig. 10. - Unscrew the anti-scale valve and remove it from the housing; it contains the scale that has built up in the tank - fig.11 and fig.12.

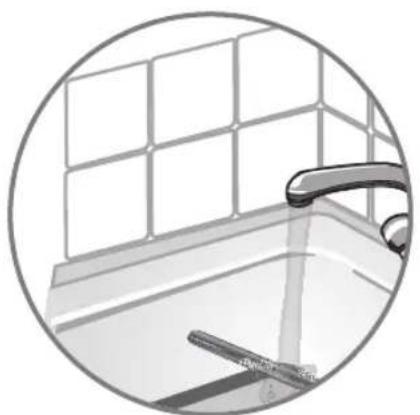

• To clean the valve properly, just rinse it under running water to remove the scale it contains - fig.13.
• If you find that scale is building up on the collector, from time to time you can leave it to soak in a container filled with lemon juice or white vinegar for around 4 hours. Rinse afterwards under running water.

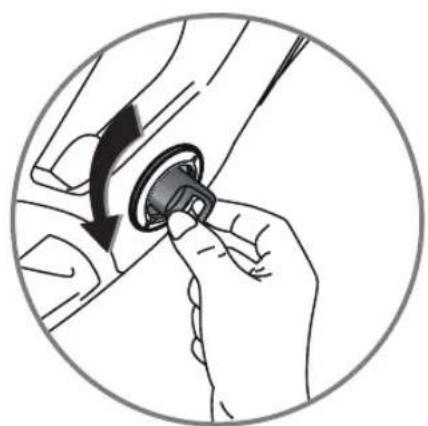

• Put the valve back into its housing and screw it in completely to keep it watertight - fig.14.
• Refit the scale collector cover - fig. 15.
• In addition to this regular maintenance, we recommend complete rinsing of the tank every six months or after every 25 uses. To do this:
• Check that the steam generator is cold and has been unplugged for more than 2 hours.

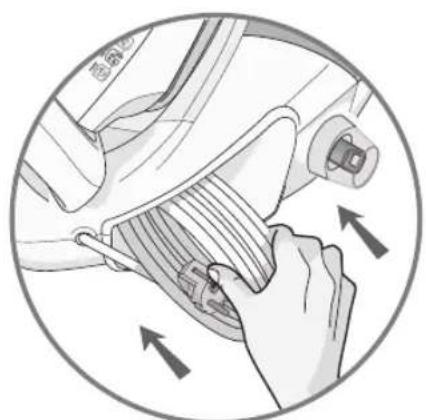

• Place the steam generator on the edge of the sink and put the iron standing upright alongside it.

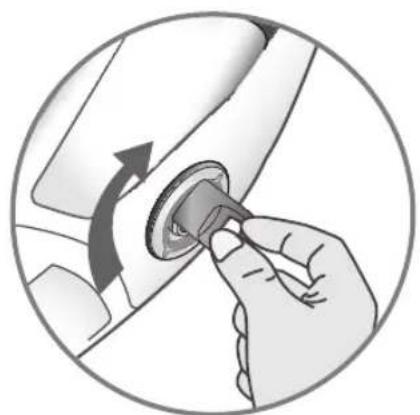

• Remove the collector cover and unscrew the scale collector.
• Hold your steam generator at an angle and use a jug to fill the boiler with with 1/4 litre of tap water.
• Shake the case for a few seconds then empty it completely into the sink.
• Fit the collector back in its housing and screw it on tightly to ensure it is watertight.
• Put the scale collector cover back in place.

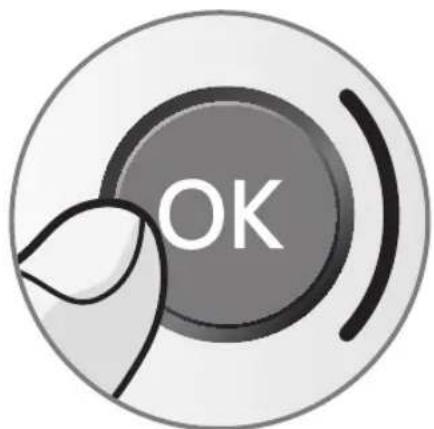

The next time you use your iron, press the “OK” button on the control panel to turn off the orange “anti-scale” light.

Storing your generator

• Warning: do not touch the soleplate while still hot.

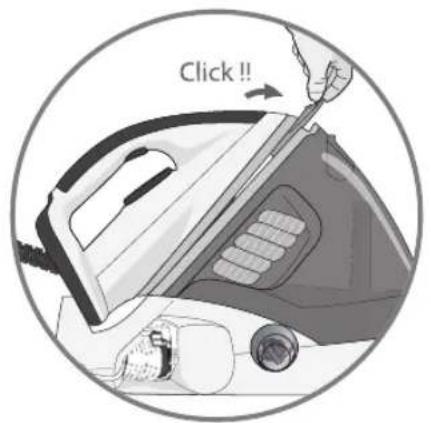

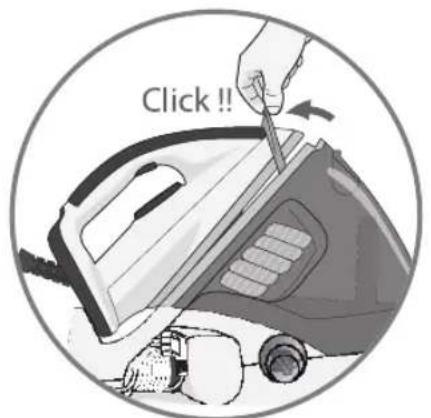

• Fold the carrying arm down onto the iron until it clicks into position, ensuring that your iron is safely locked onto its housing (depending on model).

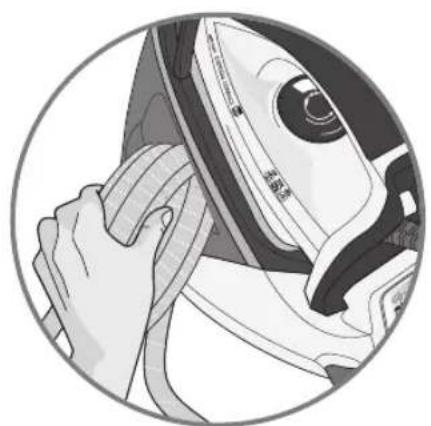

• Store the electrical cord in its storage place - fig.7.
• Store the steam cord away in its compartment - fig.8.
• Leave the iron (and the iron rest) to cool down for 1 hour before storing it away.

A problem with your generator?

PROBLEMS CAUSES	SOLUTIONS
The steam generator does not switch on or the iron indicator and ON/OFF indicator do not switch on.	The appliance is not switched on.	Check that your appliance is correctly plugged in and press the illuminated on/off switch.
Water runs out of the holes in the soleplate.	Water has condensed in the pipes because you are using steam for the first time or you have not used it for some time.	Press on the steam control button away from your ironing board until the iron produces steam.
	The soleplate is not hot enough.	Wait for the thermostat light to go out before activating the steam button.
Water streaks appear on the linen.	Your ironing board is saturated with water because it is not suitable for use with a steam generator.	Check that your ironing board is suitable. We recommend that you use a mesh type ironing board.
PROBLEMS CAUSES SOLUTIONS
White streaks come through the holes in the soleplate.	Your boiler has a build-up of scale because it has not been rinsed out regularly.	Rinse out the boiler.
Brown streaks come through the holes in the soleplate and stain the linen.	You are using chemical descaling agents or additives in the water for ironing.	Never add this type of product in the water tank or in the boiler (see § “for what water may be used”). Contact an Approved Service Centre.
The soleplate is dirty or brown and may stain the linen.	You are ironing at too high a temperature.	See our recommendations regarding temperature control setting.
	Your linen is not rinsed sufficiently or you have ironed a new garment before washing it.	Ensure linen is rinsed thoroughly to remove any soap deposits or chemicals on new garments which may be sucked up by the iron.
	You are using starch. Always spray starch	on the reverse side of the fabric to be ironed.
There is no steam or there is little steam.	The water tank is empty (red light is flashing).	Fill the tank and press the "OK" button until the indicator goes out.
	The soleplate temperature is set to the maximum.	The generator is working but steam is very hot and dry As a consequence, it is less visible.
Steam escapes from the rinse plug.	The anti-scale valve plug has not been tightened correctly.	Tighten the anti-calc valve plug correctly.
	The anti-scale valve plug is damaged.	Contact an Approved Service Centre to order a new rinse plug seal.
	The generator is faulty. Stop using the generator and contact an Approved Service Centre.
The red “water tank empty” light is flashing.	The water tank is empty. Press the “OK”	button on the control panel until the warning light goes out.
Steam or water escapes under the appliance.	The generator is faulty. Stop using the generator and contact an Approved Service Centre.
While ironing your steam generator can make a loud electric pump noise.	This is normal and is the pump injecting water into the boiler, or the steam valve opening.	If necessary refill your water tank (see page 3 for filling the water tank).
The “anti calc” indicator is flashing.	YYour generator requires descaling.	Press the “OK” button on the control panel until the warning light goes out. The next time you use your iron, press and hold the “OK” button for a few seconds on the control panel to turn off the orange "anti-scale" light

Environment protection first!

i Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a civic waste disposal centre.

If you have any problems or queries please call our Customer Relations team first for expert help and advice: 0845 602 1454 - UK / [phone] - ROI

or consult our website - www.tefal.co.uk

Recommendations importantes

TENTO NÁVOD K POUŽITÍ SI PROSÍM USCHOVEJTE.

POPIS

SAČUVAJTE OVE UPUTE ZA UPORABU I POHRANITE IH NA SIGURNOM MJESTU

OPIS

1.MTipka za paru

1. Izbornik temperature
