Product Type	Wireless Controller for PlayStation 4
Brand	Scuf Gaming
Model	Infinity 4PS Pro
Compatibility	PlayStation 4
Rear Paddles	4 interchangeable and removable paddles
Joysticks	Interchangeable joysticks with SCUF Ring system
Triggers	Adjustable triggers (tension) and quick trigger stop system
Button Remapping	Paddles reassignable via EMR magnetic key
EMR Magnetic Key	Powerful neodymium magnet (caution: keep away from pacemakers)
Power	Rechargeable via USB cable (estimated)
Weight	Approximately 280 g
Dimensions	Approximately 160 x 100 x 60 mm
Material	High-quality plastic with rubber grips
Warranty	Limited warranty (see scufgaming.com)
Maintenance	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Keep the magnetic key away from pacemakers, credit cards, and children.
Spare Parts Available	Paddles, joysticks, trigger extensions, EMR magnetic key

Frequently Asked Questions - Infinity 4PS Pro Scuf Gaming

How to remove and replace the rear paddles?

Gently lift the bottom of the paddle, push upward and twist slightly to remove it. To replace, twist the paddle into the cavity from the top and slide until it clicks into place.

How to change the joysticks?

Use the SCUF Lock mounting tool to unlock the SCUF Ring by turning counterclockwise. Remove the Ring then the joystick. Insert the new joystick correctly onto the stem, replace the Ring and lock by turning clockwise.

How to adjust trigger tension?

First remove the trigger extensions. Insert the 0.9 mm SCUF key into the adjustment screw and turn clockwise to tighten (activate) or counterclockwise to loosen (deactivate). Adjust in-game to verify.

How to activate the quick trigger stop?

Insert the 0.9 mm SCUF key into the quick system screw and turn 180° one way to activate, then 180° the other way to deactivate. This feature is optional.

How to remap paddles with the EMR magnetic key?

Turn on the console and controller. Place the magnetic key (red side against the controller) on the back between the paddles. Hold the desired paddle down, then hold the button (X, O, etc.) to assign. Release the button first, then the paddle. Remove the key more than 50 cm away.

What precautions to take with the EMR magnetic key?

The key contains a powerful neodymium magnet. Keep it away from pacemakers, credit cards, and sensitive objects. Do not let children handle it. If ingested, consult a doctor immediately.

How to clean the Infinity 4PS Pro controller?

Use a soft, dry cloth to clean the surface. Do not use chemical or abrasive products that could damage the grips or components.

Where to find the warranty and complete instructions?

The limited warranty is available at scufgaming.com/limited-warranty. Complete instructions are at scufgaming.com/instructions.

What are the trigger extensions and how to install them?

Trigger extensions are removable pieces that change the shape of the triggers. To remove, push the trigger with the trigger stop open and pull the extension. To replace, press the trigger fully, position the wide side first and press to snap on.

Is the controller compatible with consoles other than the PS4?

The Infinity 4PS Pro model is specifically designed for the PlayStation 4. For other consoles, please check other Scuf Gaming models.

USER MANUAL Infinity 4PS Pro Scuf Gaming

Black and white photo of a PlayStation controller with visible scroll, lens, and grip (no text or symbols)

SCUF ∞ ^4PS PRO

PRODUCT GUIDE

TABLE OF CONTENTS

SCUF Limited Warranty 2

SCUF Infinity ^4PS PRO Controller Set-Up 3

SCUF Inifinity ^4PS PRO Paddle Removal & Replacement 3

Interchangeable Thumbstick Control Area 3

SCUF Trigger Covers 4

SCUF Adjustable Hair Trigger 4

SCUF Quick Shift Trigger Stop 5

SCUF EMR 5

Spanish 6

French 9

German 12

Italian 15

SCUF GAMING LIMITED WARRANTY

For Scuf Gaming Limited Warranty information, please visit:

US & International: https://scufgaming.com/limited-warranty/

Europe: https://scufgaming.com/limited-warranty-eu

Europa: https://scufgaming.com/limited-warranty-eu

Europe: https://scufgaming.com/limited-warranty-eu

Europa: https://scufgaming.com/limited-warranty-eu

Europa: https://scufgaming.com/limited-warranty-eu

DIRECTIONS

Controller Set-Up

To set up your SCUF first turn on your gaming console, then sync controller to console. Start a game of your choice. Instructions may be found at: scufgaming.com/instructions

SCUF Infinity ^4PS PRO Paddle Removal and Replacement

Step 1 Lift up slightly on the bottom of the paddle to be removed.

Step 2 Push the paddle upwards, and twist slightly out toward the closest handle to remove the paddle.

Step 3 To replace a paddle, twist the paddle into the paddle cavity from the top. Then slide to secure into place. You will hear a click when the paddle is secured in place.

Interchangeable Thumbstick Control Area

Step 1 Place the SCUF Lock over the Infinity Ring and thumbstick on the controller. The notches on the bottom of the SCUF Lock will insert into the grooves of the Infinity Ring.

Step 2 Turn the lock counter clockwise until movement stops. Pull straight up on the thumbstick to remove both ring and thumbstick at the same time.

Step 3 Place a new thumbstick into your controller, make sure to line up the thumbstick on the thumbstick shaft to ensure correct placement. The thumbstick will lock into place on the controller.

Step 4 Use your SCUF Lock to secure the ring in place by turning the lock clockwise until movement stops.

Illustration of a person wearing a hat and holding a small object, with another hand partially visible (no text or symbols)

Close-up of hands holding a mechanical component with a circular opening (no visible text or symbols)

Illustration of a person inserting a device into a device (no text or symbols visible)

Close-up of a hand holding a rose, no visible text or symbols

SCUF Trigger Covers

Step 1 To remove the trigger cover, push the trigger down on the Quick Shift Trigger Stop.

Step 2 Lift the bottom of the cover straight up to separate from the trigger mechanism.

Step 3 To replace the trigger cover, push the trigger down on the Quick Shift Trigger Stop, then snap the top part of the cover on first, then tilt the cover down to snap on the bottom.

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

SCUF INFINITY ^4PS PRO

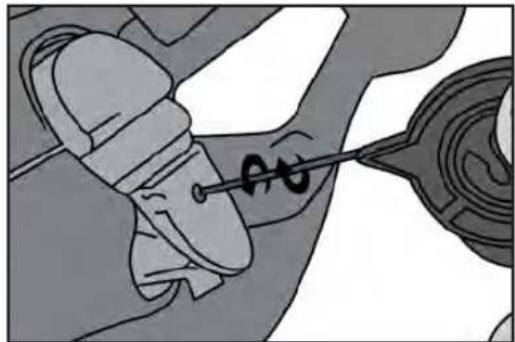

SCUF Adjustable Hair Trigger

Step 1 Remove the short trigger cover or trigger extender.

Step 2 Insert the 0.9mm SCUF key into the adjustable screw.

Step 3 With trigger stops off turn the 0.9mm SCUF key two full clockwise turns to tighten and activate the adjustable hair trigger.

Step 4 Turn the key counterclockwise to loosen and fine tune the adjustable hair trigger.

Note: It is recommended to adjust the hair triggers in-game to adjust to preference. Tighten the adjustable hair trigger in-game until the weapon fires, then loosen slightly to playing preference.

Step 5 To turn the adjustable hair trigger off, Insert the 0.9mm SCUF key into the adjustable screw on the top of the trigger mechanism and turn counterclockwise until the top of the screw is flush against the top of the trigger mechanism.

Note: To adjust the hair triggers you must remove the trigger cover or trigger extenders Trigger Cover Removal instructions above.

Illustration of a car wheelster with a screwdriver inserted, showing mechanical components (no text or symbols)

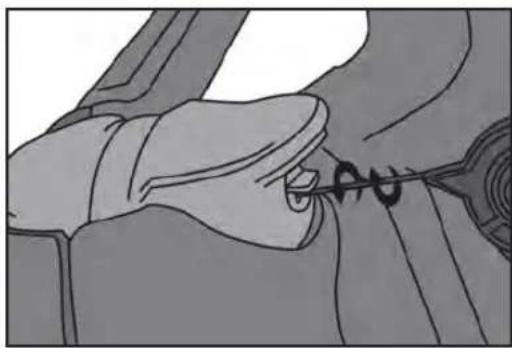

SCUF Quick Shift Trigger Stop

Step 1 Insert the 0.9mm SCUF Key into the Quick Shift Trigger Stop on the trigger mechanism.

Step 2 Turn the 0.9mm SCUF Key 180° to either the left or right in order to turn on the Quick Shift Trigger Stop.

Step 3 To turn off the Quick Shift Trigger Stop, Insert the 0.9mm SCUF Key into the trigger mechanism and turn 180° to either the left or right.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a mechanical component with a close-up inset showing a circular dial labeled 'ON' (no text or symbols on the main diagram)

Trigger Stop ACTIVATED Trigger Stop DEACTIVATED

SCUF EMR (Electro Magnetic Remapping)

PLEASE NOTE: This is an optional feature available if selected at time of purchase.

WARNING: The SCUF Mag Key contains a powerful Neodymium Magnet. See last page for Safety.

Step 1 Turn on the game console and your SCUF controller.

Step 2 Place the EMR Mag Key on the back of the controller (as indicated) so the magnet symbol latches onto the controller.

Step 3 Press and hold the paddle that you wish to remap a function.

Step 4 Press and hold the function (X, O, Δ, □, L DPAD, R DPAD, Left Thumbstick down, Right Thumbstick down) that you would like to map to a paddle.

Step 5 Release the function.

Step 6 Release the paddle.

Step 7 Remove the EMR Mag Key and place it at least 5cm away from the back of the controller to prevent the SCUF controller from accidentally entering remapping mode.

Top-down view of a game controller with 'SoFiP 400' branding and a circular logo on the grip (no readable text beyond branding)

Visit scufgaming.com/EMR for a list of functions available for remap. Additional instructions at scufgaming.com/instructions

DIRECCIONES

SCUF INFINITY ^4PS PRO

Illustration of a person wearing a cap and gloves, interacting with a mechanical device (no visible text or symbols)

Close-up of hands holding a mechanical component with a circular opening (no visible text or symbols)

Illustration of a person inserting a device into a device (no text or symbols visible)

Illustration of a hand holding a rose, no text or symbols present

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

SCUF Adjustable Hair Trigger

Illustration of a car's seatbelt being inserted into a tire (no text or symbols)

SCUF Quick Shift Trigger Stop

Illustration of a hand holding a car tire with a dart, no visible text or symbols

Diagram of a mechanical component with an inset showing a circular dial labeled 'ON' (no text or symbols on the main diagram)

Trigger Stop ACTIVADO Trigger Stop DESACTIVADO

SCUF INFINITY ^4PS PRO

SCUF EMR (Electro Magnetic Remapping)

Illustration of a game controller with two labeled buttons (no text or symbols on the device itself)

Illustration of a person inserting a device into a device with a circular component (no text or symbols visible)

Close-up of hands inserting a device into a container (no visible text or symbols)

Illustration of a hand inserting a circular component into a ring (no text or symbols)

Close-up of a hand holding a rose, no visible text or symbols

Extensions de Gâchettes Courtes

Illustration of a person's hand and arm in a seated position, showing no text or symbols

SCUF INFINITY ^498 PRO

SCUF Adjustable Hair Trigger

Illustration of a mechanical component with a pointed tool and spiral motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a mechanical component with a close-up inset showing a circular dial labeled 'ON' (no text or symbols on the main diagram)

Diagram of a mechanical component with an inset showing a circular dial labeled 'OFF' (no text or symbols on the main diagram)

Trigger Stop ACTIVÉ Trigger Stop DÉSACTIVÉ

SCUF EMR (Electro Magnetic Remapping)

Illustration of a game controller with 'SoFi Pro' branding and a padlock symbol (no readable text or symbols beyond branding)

Illustration of a person wearing a hat and holding a small object, with another figure partially visible below (no text or symbols)

Close-up of hands holding a mechanical component with a circular opening (no visible text or symbols)

Illustration of a hand inserting a small object into a circular container (no text or symbols visible)

Close-up of a hand holding a rose, no visible text or symbols

SCUF Trigger-Covers

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of a car wheelster with a screwdriver inserted, showing mechanical components (no text or symbols)

SCUF Quick Shift Trigger Stop

Illustration of a hand holding a tool with a screwdriver inserted, no text or symbols present

Illustration of a mechanical component with a circular inset showing a dial labeled 'ON' (no text or symbols on the main diagram)

Trigger Stop AKTIVIERT Trigger Stop DEAKTIVIERT

SCUF INFINITY ^4P8 PRO

SCUF EMR (Electro Magnetic Remapping)

Top-down view of a game controller with visible branding and control buttons (no readable text or symbols)

Illustration of a mechanical component with a central knob and surrounding parts (no visible text or symbols)

Illustration of a hand inserting a plug into a container with internal components (no text or symbols visible)

Illustration of a person inserting a device into a device (no text or symbols visible)

Close-up of a hand holding a rose, no visible text or symbols

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

SCUF INFINITY ^498 PRO

Illustration of a car wheelbelt with a hand inserting a screwdriver into the seat (no text or symbols)

Illustration of a hand holding a car tire with a screwdriver inserted (no text or symbols)

Diagram of a mechanical component with a circular inset showing a labeled 'ON' button (no text or symbols on the main diagram)

Trigger Stop ATTIVATO

Trigger Stop DISATTIVATO

Illustration of a game controller with 'SoFiP 80 Pro' branding and a circular logo on the handle (no readable text beyond branding)

WARNING: The SCUF Mag Key contains a powerful Neodymium Magnet

Liability: Scuf Gaming does not accept any responsibility for damages caused by the improper handling of the EMR Mag Key. The Mag Key may have a surprising amount of magnetic power and if handled incorrectly can be dangerous. If you are giving the EMR Mag Key as a gift, please ensure to enclose this warning sheet.

Children: Do not allow children to handle the EMR Mag Key, it contains a powerful magnet and may cause choking and trapping injuries and can be fatal if swallowed. Seek immediate medical attention if the EMR Mag Key is swallowed.

Magnetically Sensitive Items: Keep away from credit cards and other magnetically stored media.

Heart Pacemakers & Other Implanted Medical Devices: Keep the EMR Mag Key away from heart pacemakers and other implanted medical devices. The operation of these devices can be adversely affected by the close proximity of a magnet up to and including deactivating the operation of these devices.

CHOKING: Your game controller or accessory may contain small pieces. Please keep your controller or accessory out of reach of children under 3 years old. To avoid danger of suffocation, keep plastic bags away from babies and children. Do not use plastic bags in cribs, beds, carriages, or playpens. The thin film may cling to the nose and mouth and prevent breathing. A plastic bag is not a toy.

ADDITIONAL

• Do not attempt to repair your game controller or accessory. Please contact Scuf Gaming to discuss your warranty or other options you have for repair or replacement of your game controller or accessory.
• Do not expose your game controller or accessory to high temperature, strong wind or intense pressure.
• Do not allow your game controller or accessory to hit or come in contact with another person or object. Doing so may cause serious harm or injury. Make sure that you are clear of other people or any other object(s) before and while you are playing with your game controller or accessory.
• Properly clean your game controller or accessory with a clean cloth avoiding the use of cleaners, chemicals or any liquids.
• Do not drop, throw or exert force on your game controller or accessory.

⚠️ WARNING: CHOKING HAZARD — Small parts. Not for children under 3 years.
