2324056 - Coffee machine RUSSELL HOBBS - Free user manual and instructions

Product type	Drip coffee maker
Brand	Russell Hobbs
Model	2324056
Capacity	14 large cups (125 ml) / 21 small cups (83 ml)
Water tank	1.75 L (approx.)
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W (approx.)
Functions	Clock, programmable timer, automatic shut-off (40 min), keep warm, stronger coffee (1-4), anti-drip valve
Filter	Paper filter size #4 (not included)
Maintenance	Descaling recommended after 60 cycles (CL display). Dishwasher-safe parts (carafe, filter holder)
Safety	Use by children from 8 years old under supervision, hot surfaces
Weight	2.5 kg (approx.)
Dimensions (L x W x H)	28 x 20 x 35 cm (approx.)
Cable length	0.8 m (approx.)
Included accessories	Glass carafe, filter holder
Repairability	Spare parts available via after-sales service

Frequently Asked Questions - 2324056 RUSSELL HOBBS

How to set the clock on the Russell Hobbs 2324056 coffee machine?

Plug in the machine, then use the h (hours) and min (minutes) buttons to set the time in 24-hour format. The clock retains its settings as long as the appliance remains plugged in.

How to program the timer so that the coffee is ready at a specific time?

Make sure the clock is set to the correct time. Press the ⏻ (timer) button, set the desired time with h and min, then press ⏻ to confirm. The timer icon will appear. Add water and coffee, then the machine will automatically start at the programmed time.

What does the 1-4 function mean and how to use it?

The 1-4 function allows for a stronger coffee, especially for small quantities (1 to 4 cups). Press the 1-4 button before starting brewing; the indicator lights up. The machine slows the flow to extract more flavor.

How to descale the machine when the screen shows CL?

After 60 cycles, the screen flashes CL. For descaling, use a descaling solution suitable for plastics. Fill the tank with the descaling solution according to instructions, then run a cycle without coffee. Rinse with fresh water by running 2-3 cycles. To remove the constant CL, press and hold 1-4 and ⏻ simultaneously for 3 seconds.

Can you use the machine without setting the clock?

Yes, the clock is not mandatory for basic use. You can brew coffee immediately by pressing the start button. The clock is only necessary for the timer function.

What type of filter to use?

Use paper filters size #4 (not included). Place the filter in the filter holder before adding ground coffee.

Why should the carafe not remain empty on the hot plate?

The hot plate keeps the coffee warm, but if the carafe is empty, residual heat can damage the glass or the plate. Always remove the empty carafe after use.

How to stop the machine during brewing?

Press the (stop) button. The cycle is interrupted. To restart, press the start button again. Note that the coffee already in the carafe stays warm thanks to the hot plate.

What to do if coffee does not flow or flows slowly?

Check that the filter holder is properly locked in (audible click) and that the filter is not overfilled. Make sure the tank has enough water. Descaling may be necessary if limescale is blocking the system.

Are the machine parts dishwasher safe?

Yes, the carafe and filter holder can be washed on the top rack of the dishwasher. For other surfaces, clean with a damp cloth.

USER MANUAL 2324056 RUSSELL HOBBS

Exterior view of a modern stainless steel coffee maker with digital display and control buttons (no visible text or symbols on the device itself)

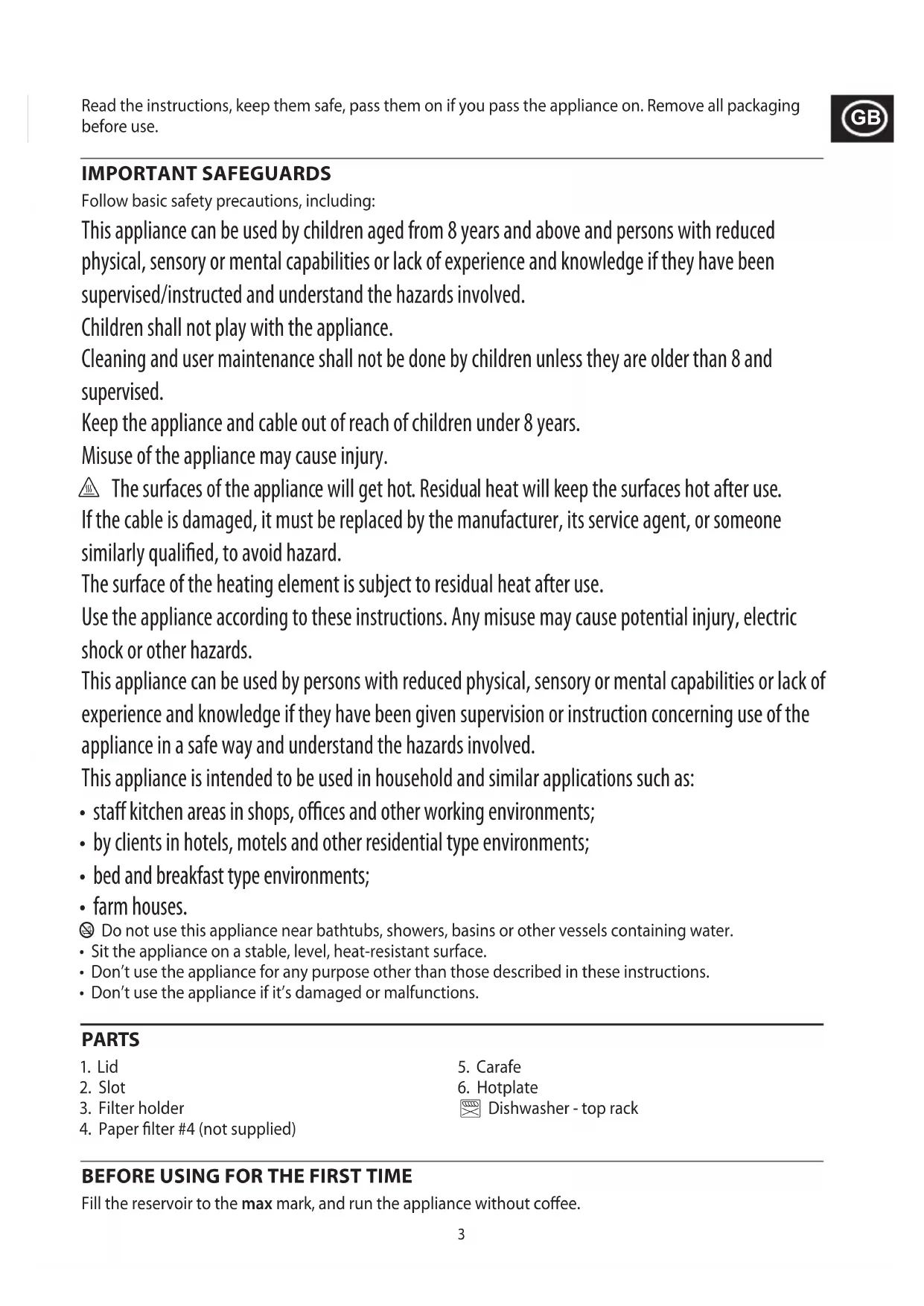

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

Keep the appliance and cable out of reach of children under 8 years.

Misuse of the appliance may cause injury.

The surfaces of the appliance will get hot. Residual heat will keep the surfaces hot after use. If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

The surface of the heating element is subject to residual heat after use.

Use the appliance according to these instructions. Any misuse may cause potential injury, electric shock or other hazards.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
• farm houses.
  Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
• Sit the appliance on a stable, level, heat-resistant surface.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use the appliance if it's damaged or malfunctions.

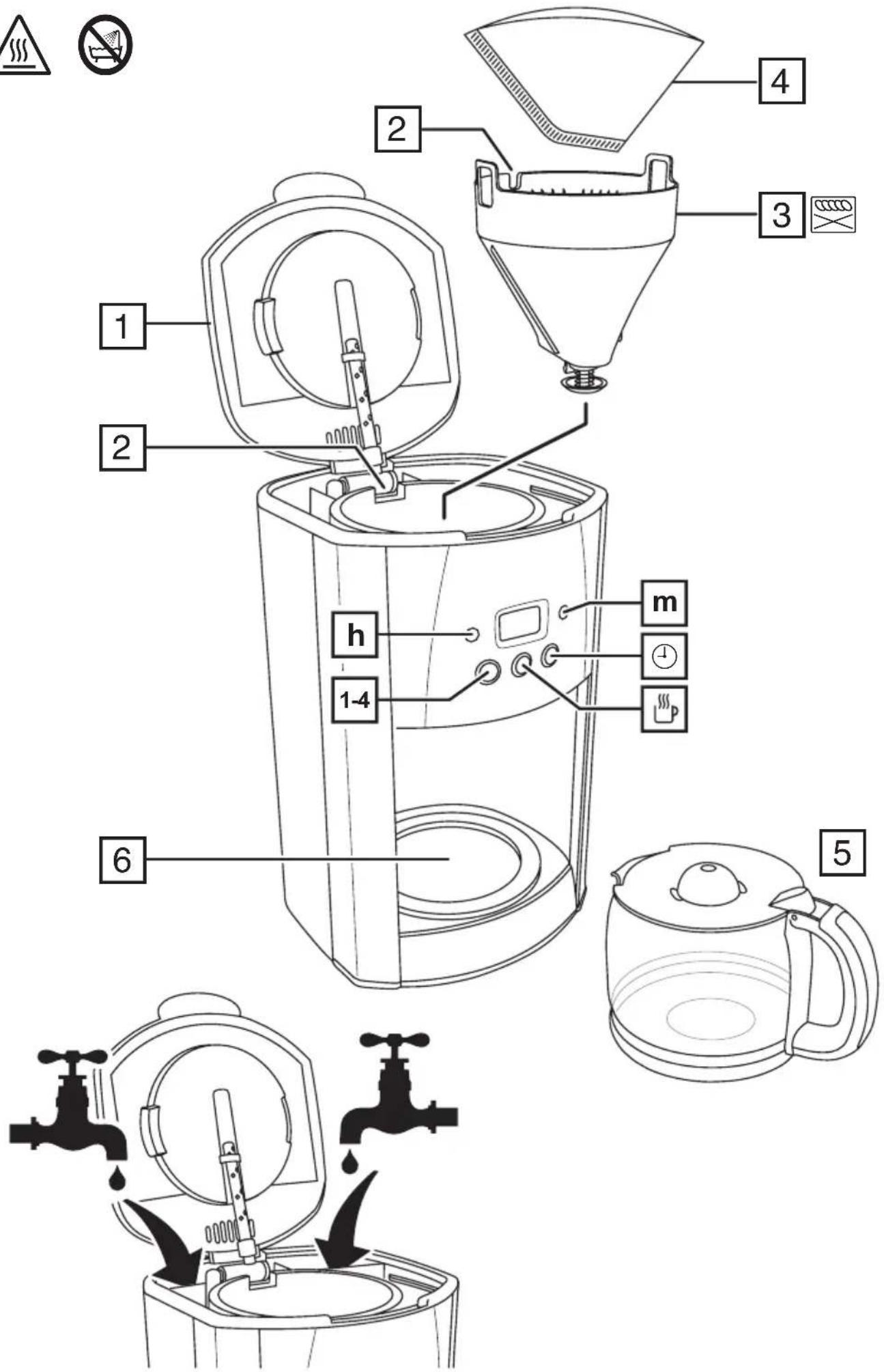

PARTS

1. Lid
2. Slot
3. Filter holder

4. Paper filter #4 (not supplied)

5. Carafe

6. Hotplate

Dishwasher - top rack

BEFORE USING FOR THE FIRST TIME

Fill the reservoir to the max mark, and run the appliance without coffee.

FILLING

1. Remove the carafe from the hotplate.
2. Open the lid.
3. Fill the reservoir with the exact amount of water required. Note that the brewing process will use all of the water that you put in the reservoir.
4. Make sure that the filter holder is pressed down all the way into position. It will click when correctly installed.
5. Put a #4 paper filter into the filter holder.
6. The reservoir is calibrated to give 14 large cups (at 125ml per cup) and 21 small cups (at 83ml per cup). For each large cup, add 6g of ground filter coffee and for each small cup add 4g.
7. Close the lid.
8. Replace the carafe on the hotplate.

SET THE CLOCK

It isn't necessary to set the clock to use your coffee maker but you will need to set it if you want to use the timer functions.

1. Put the plug into the power socket.
2. Use the h and min buttons to set the correct time in 24 hour format.
3. The clock will retain its settings until the coffee maker is unplugged.

COFFEE STRENGTH

Pressing the 1-4 button will make the brewed coffee slightly stronger. You can also use it if you are only brewing a partial carafe of coffee (i.e. not completely filling the reservoir). Your coffee maker will then alter the brewing process so your coffee will have about the same strength as it would if you had made a full carafe.

MAKING COFFEE

Note: If you want to use the coffee strength feature press the 1-4 button before pressing the 📋 button. The 1-4 button will light up.

1. Press the 🎨 button – the 🔺 icon will appear on the display. The 🎨 button will light up.
2. Shortly afterwards, coffee will start to drip into the carafe.
3. If you want to stop the coffee maker while it's brewing, press the 📋 button.
4. Once brewed, the hotplate will keep the carafe warm for up to 40 minutes.

USING THE TIMER

Note: Make sure the clock is set to the correct time. Use the h and min buttons.

1. Set the timer to the time you want to start brewing.

a) Press the ⏻ button.
b) Use the h and min buttons to set the time you want brewing to start.
If you don't press either the h or min buttons within 5 seconds, the coffee maker will revert to "normal", and the current time will show. Press the ⏻ button to start again.

1. When the time is programmed, press the ⏻ button. The ⏻ button will light up and the ⏻ icon will appear on the display. Your coffee maker is now set to make coffee at the selected time.

2. If you want to use the coffee strength feature when using the timer, press the 1-4 button now. The 1-4 button will light up.

• If you want to cancel the timer before brewing has started, press the 📋 button.
- If you want to stop the coffee maker while it's brewing, press the 📋 button.

KEEP WARM/AUTO SHUT-OFF

1. Your coffee maker will keep the coffee warm for about 40 minutes.
2. 40 minutes after brewing your coffee maker will shut down and the time of day will be displayed.
3. To wake the appliance, press the min button.

A QUICK CUP

If you want a quick cup of coffee before the brewing cycle has finished:

1. You can remove the carafe at any time. The non-drip valve will prevent coffee dripping on to the hotplate.
2. To prevent the filter holder overflowing, replace the carafe on the hotplate within about 20 seconds.
3. When you replace the carafe on the hotplate the non-drip valve opens to let any remaining coffee through.

CARE AND MAINTENANCE

1. Unplug the appliance and let it cool.
2. Tip the contents of the filter holder into the bin.
3. Wipe all surfaces with a clean damp cloth.
4. Press the lever at the rear of the carafe lid, above the handle, to open the carafe lid.
5. Hand wash the carafe and filter holder.

6. Replace the filter holder. Make sure that the filter holder is pressed down all the way into position. It will click when correctly installed.

7. Close the lid, and press down to lock it.

You may wash these parts in the top rack of a dishwasher.

DESCALING

• After 60 brewing cycles, the display will show CL, to indicate that the appliance needs descaling.
• To turn this function off, press the 1-4 and ⏻ buttons together, and hold them for 3 seconds.
- Use a proprietary brand of descaler suitable for use in plastic-bodied products. Follow the instructions on the package of descaler.
- Products returned under guarantee with faults due to scale will be subject to a repair charge.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
