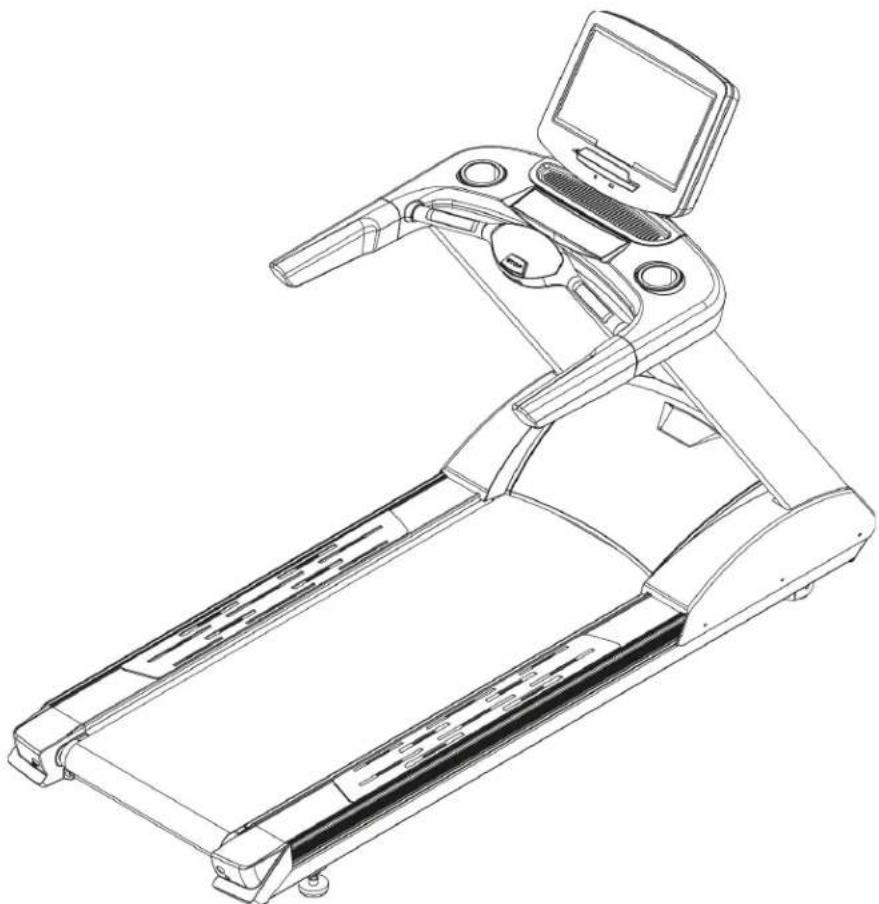

USER MANUAL LK700T CORE BH FITNESS

Important: Read all instructions carefully before using this product.

Register your product warranty online at: www.BHFitnessUSA.com.

Retain this owner's manual for future reference.

BH

TABLE OF CONTENTS

Title

Congratulations. 02

Maintenance and Cleaning. 02

Warnings and Lables. 03

Safety Information 04

Exercise Instruction. 05

Training Guidelines 06

Suggested Stretches 10

Assembly Checklist 12

Assembly Instructions 14

Card Holder and Power Switch. 23

Exploded View Drawing 24

Parts List. 25

Warranty 27

French / Français. 28

CONGRATULATIONS

Congratulations on your purchase of BH Fitness equipment. We hope you appreciate the style, quality, and value that exercisers around the world have come to expect from BH Fitness.

If you have any questions, concerns or product issues please call our Customer Service Team at 1-866-325-2339 or email us at [e-mail].

Carefully read through the instructions contained in this manual. They provide you with important information about assembly, safety, fitness and use of the machine. Please read ALL the safety information contained on the following page.

MAINTENANCE AND CLEANING

Care has been taken to assure that your equipment has been properly adjusted and lubricated at the factory. It is not recommended that the user attempt service on the internal components. Instead, seek service from an authorized service center. However, you may clean the outer surface. Use a soft cloth, dampened with warm water. Do not use aerosol sprays or pump bottles as they may deposit sediments upon the console surface. The use of harsh chemicals will destroy the protective coating and cause a static build-up that may damage the some of the components.

WARNING AND LABLES

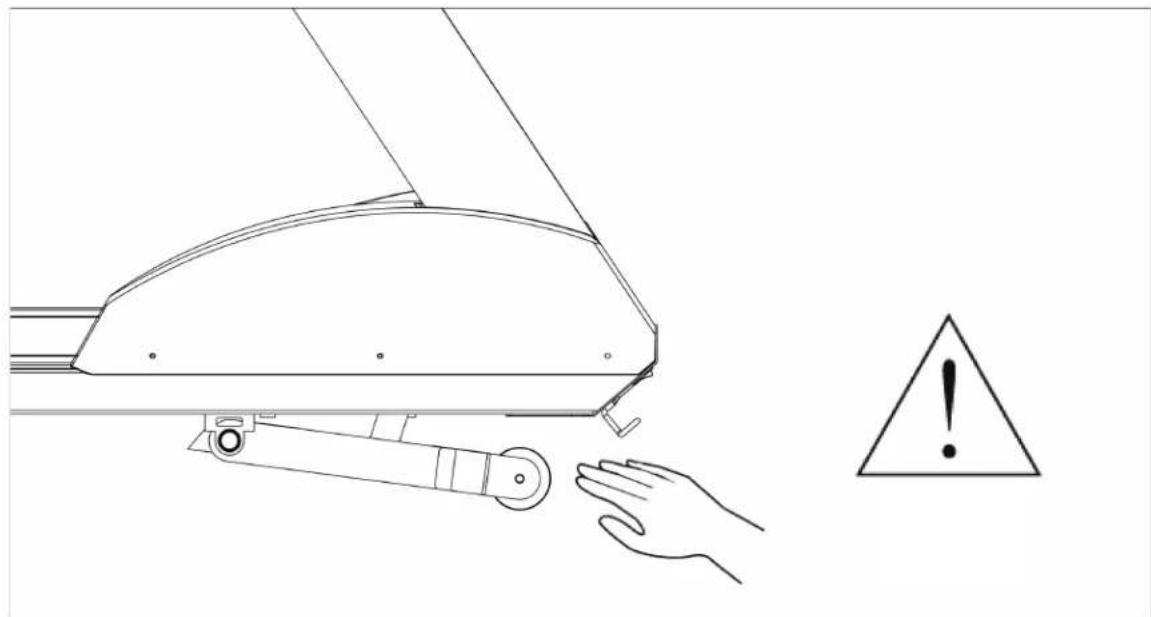

Running Belt

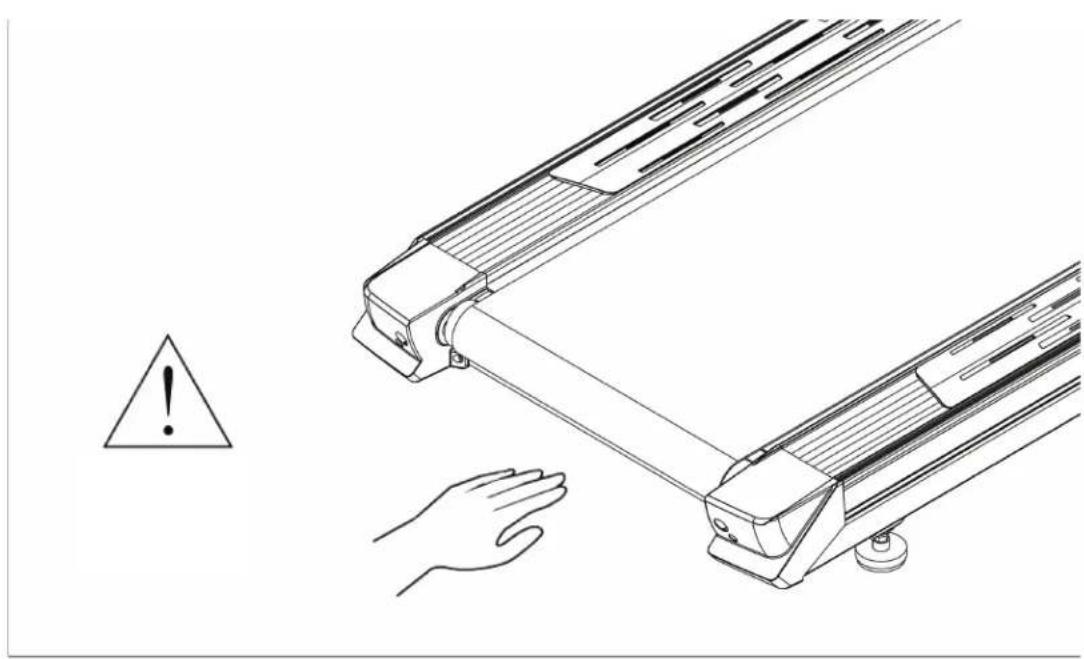

For your safety do not touch or put your hands near the running belt while the belt is running, injury can occur.

Incline Base

For your safety, do not put your hands in the area of the Incline Base while the treadmill is moving up or down.

SAFETY INFORMATION

PRECAUTIONS

This machine has been designed and constructed to provide maximum safety. Nevertheless, certain precautions should be taken when using exercise equipment. Read the whole manual before assembling and using the machine. Please observe the following safety precautions:

1. Keep children and pets away from this equipment at all times. DO NOT leave them unsupervised in the room where the machine is kept.
2. If you experience dizziness, nausea, chest pains or any other symptom while using this machine STOP the exercise. SEEK IMMEDIATE MEDICAL ATTENTION!
3. Use the machine on a level and solid surface. Adjust the feet for stability.
4. Keep your hands away from any of the joints and moving parts.
5. Wear clothing suitable for doing exercise. Do not wear baggy clothing that might get caught in the machine. Always wear athletic shoes when using the machine and tie the laces securely.
6. This machine must only be used for the purposes described in this manual. DO NOT use accessories that are not recommended by BHFitness. Read manual prior to use and follow all warnings and instructions.
7. Do not place sharp objects near the machine.
8. Any person with physical or coordination limitations should not use the machine without the assistance of a qualified person or doctor. Misuse of this machine may result in serious injury.
9. Do warm-up stretching exercises before using the equipment.
10. Do not use the machine if it is not working correctly.
11. Before using the machine, thoroughly inspect the equipment for proper assembly.
12. Maintain a minimum safety clearance of 12" in the front, 24" on the sides and 79" to the rear of the treadmill.
13. Use only authorized and trained technicians if a repair is needed.
14. Please follow the advice for correct training, as detailed in the training guidelines.
15. Use only the tools provided to assemble this machine.
16. Replace warning labels if damaged, illegible or removed.
17. This machine was designed for a maximum user weight of 500 lbs (150 kgs)
18. The machine can only be used by one person at a time.

Caution: Consult your doctor before beginning to use the machine or any exercise program. Read all of the instructions before using any exercise equipment.

KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

EXERCISE INSTRUCTION

Use of the machine offers various benefits; it can improve fitness, muscle tone and when used in conjunction with a calorie controlled diet, it can help you lose weight.

1. Consult your doctor before starting any exercise program. It is advisable to undergo a complete physical examination.
2. Work at the recommended exercise level. Do not over exert yourself.
3. If you feel any pain or discomfort, stop exercising immediately and consult your doctor.
4. Wear appropriate clothing and footwear for the exercise; do not wear loose clothing; do not wear leather soled shoes or footwear with high heels.
5. It is advised that you do warm-up stretches before working out.
6. Get on the equipment slowly and securely.
7. Select the program or workout option that is most closely aligned with your workout interests.
8. Start slowly and work your way up to a comfortable pace.
9. Be sure to cool down after your workout.

TRAINING GUIDELINES

Exercise is one of the most important factors in the overall health of an individual. Listed among its benefits are:

• Increased capacity for physical work (strength endurance)
• Increased cardiovascular (heart and arteries/veins) and respiratory efficiency
  Decreased risk of coronary heart disease
  Changes in body metabolism, e.g. losing weight
• Delaying the physiological effects of age
• Reduction in stress, increase in self-confidence, etc.

There are several components of physical fitness and each is defined below.

STRENGTH

The capacity of a muscle to exert a force against resistance. Strength contributes to power and speed.

MUSCULAR ENDURANCE

The capacity to exert a force repeatedly over a period of time, e.g. it is the muscular endurance of your legs to carry you 10km without stopping.

FLEXIBILITY

The range of motion of your joints. Improving flexibility involves the stretching of muscles and tendons to maintain or increase suppleness, and it provides increased resistance to muscle injury or soreness.

CARDIO-RESPIRATORY ENDURANCE

The most essential component of physical fitness. It is the efficient functioning of the heart and lungs.

AEROBIC FITNESS

Is an exercise of relatively low intensity and long duration, which depends primarily on the aerobic energy system. Aerobic means "with oxygen", and refers to the use of oxygen in the body's metabolic or energy-generating process. Many types of exercise are aerobic, and by definition are performed at moderate levels of intensity for extended periods of time.

ANAEROBIC TRAINING

Is an exercise intense enough to trigger anaerobic metabolism. This means "without oxygen" and is the output of energy when the oxygen supply is insufficient to meet the body's long term energy demands. (For example, a 100 meter sprint.)

TRAINING GUIDELINES

OXYGEN UPTAKE

The effort that you can exert over a prolonged period of time is limited by your ability to deliver oxygen to the working muscles. Regular vigorous exercise produces a training effect that can increase your aerobic capacity by as much as 20 to 30% . An increased VO2 Max indicates an increased ability of the heart to pump blood, of the lungs to ventilate oxygen, and of the muscles to take up oxygen.

THE TRAINING THRESHOLD

This is the minimum level of exercise which is required to produce significant improvements in any physical fitness parameter.

OVERLOAD

This is where you exercise above your comfort level. The intensity, duration and frequency of exercise should be above the training threshold and should be gradually increased as the body adapts to the increasing demands. As your fitness level improves, the training threshold should rise. Working through your program and gradually increasing the overload factor is important.

PROGRESSION

As you become more fit, a higher intensity of exercise is required to create an overload and therefore provide continued improvement.

SPECIFICS

Different forms of exercise produce different results. The type of exercise that is carried out is specific to the muscle groups being used and to the energy source involved. There is little transfer of the effects of exercise, i.e. from strength training to cardiovascular fitness. That is why it is important to have an exercise program tailored to your specific needs.

REVERSIBILITY

If you stop exercising or do not do your program often enough, you will lose the benefits you have gained. Regular workouts are the key to success.

WARM-UP

Every exercise program should start with a warm-up where the body is prepared for the effort to come. It should be gentle and preferably use the muscles group to be involved later. Stretching should be included in both your warm-up and cool down, and should be performed after 3-5 minutes of low intensity aerobic activity or calisthenic type exercise.

This involves a gradual decrease in the intensity of the exercise session. Following exercise, a large supply of blood remains in the working muscles. If it is not returned promptly to the central circulation, pooling of blood may occur in the muscles.

TRAINING GUIDELINES

HEART RATE

As you exercise, your heart rate increases. This is often used as a measure of the required intensity of an exercise. You need to exercise hard enough to condition your circulatory system, and increase your pulse rate, but not enough to strain your heart.

Your initial level of fitness is important when developing an exercise program. Depending on the individual, when starting an exercise program, you can achieve good training results with a heart rate of 110-120 beats per minute (BPM). If you are more fit, you will need a higher threshold of stimulation.

To begin with, you should exercise at a level that elevates your heart rate to about 65 to 70% of your maximum heart rate. If you find this is too easy, you may want to increase it, but it is better to lean on the conservative side.

As a rule of thumb, your maximum heart rate is calculated by subtracting your age from 220. As you increase in age, your heart, like other muscles, loses some of its efficiency. Some of this loss can be won back as fitness improves.

HOW TO CALCULATE YOUR HEART RATE

Immediately after exercising, take your heart rate by applying two fingers to your wrist or carotid artery in the neck. Count the beats for ten seconds. Multiply the number of beats times 6 to calculate your current heart rate in BPM (beats per minute). Ten seconds is long enough for accuracy. Since heart rate slows as you recover, a count longer than ten seconds isn't as accurate.

The following tables are guides for target heart rate per beginning fitness and above average fitness levels based on your age.

BEGINNER FITNESS LEVEL

AGE	GROUP	25	30	35	40	45	50		55		60	65
10 Second Count	23	22	21	20	19	18
Heart Rate In Beats Per Minute			138	132	132	126	120	114	114	108	108
ABOVE AVERAGE FITNESS LEVEL
AGE	GROUP	25	30	35	40	45	50		55		60	65
10 Second Count			26	26	25	24	23	22		22		21	20
Heart Rate In Beats Per Minute			156	156	150	144	138	132	132	126	120

Don't push yourself too hard to reach the figures on this table. It can be very uncomfortable if you over exercise. Let it happen naturally as you work through your program. Remember, the target is a guide, not a rule, a little above or below is just fine.

Don't be concerned with day to day variations in your pulse rate. Being under pressure or not enough sleep can affect it. Your pulse rate is a guide, don't become obsessed with it.

TRAINING GUIDELINES

MUSCLE SORENESS

For the first week or so, muscle soreness may be the only indication you have that you are on an exercise program. This, of course, does depend on your overall fitness level. A confirmation that you are on the correct program is a very slight soreness in most major muscle groups. This is quite normal and will disappear in a matter of days.

If you experience major discomfort, you may be on a program that is too advanced, or you have increased your program too rapidly.

If you experience pain during or after exercise, your body is telling you something. Stop exercising and consult your doctor.

WHAT TO WEAR

Wear clothing that will not restrict your movement in any way while exercising. Clothes should be light enough to allow the body to cool. Excessive clothing that causes you to perspire more than you normally would give you no advantage. The extra weight you lose is body fluid and will be replaced with the next glass of water you drink. Always wear a pair of athletic shoes.

BREATHING DURING EXERCISE

Do not hold your breath while exercising. Breathe normally as much as possible. Remember, breathing involves the intake and distribution of oxygen, which feeds the working muscles.

REST PERIODS

Once you start your exercise program, you should continue through to the end. Do not break off halfway through and then restart at the same place later on without going through the warm-up stage again. The rest period required between exercises may vary from person to person.

SUGGESTED STRETCHES

HEAD ROLLSS

Rotate your head to the right for one count while feeling the stretch up the left side of your neck. Next, rotate your head back for one count, stretching your chin to the ceiling. Rotate your head to the left for one count, and finally, drop your head to your chest for one count.

SHOULDER LIFTS

Lift your left shoulder up toward your ear for one count. Then lift your right shoulder up for one count as you lower your left shoulder.

SIDE STRETCHES

Open your arms to the side and continue lifting them until they are over your head. Reach your left arm as far upward as you can for one count. Feel the stretch up your left side. Repeat this action with your right arm.

QUADRICEPS STRETCH

With one hand against a wall for balance, reach behind you and pull your left foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with right foot up.

SUGGESTED STRETCHES

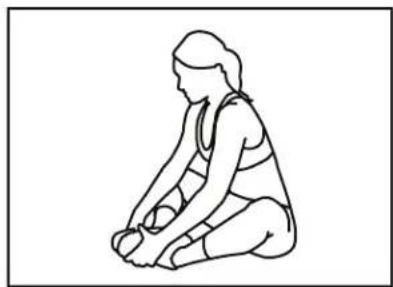

INNER THIGH STRETCH

Sit with the soles of your feet together with your knees pointing outward. Pull your feet as close into your groin as possible. Gently push your knees towards the floor. Hold for 15 counts.

TOE TOUCHES

Slowly bend forward from your waist, letting your back and shoulders relax as you stretch toward your toes. Reach down as far as you can and hold for 15 counts.

HAMSTRING STRETCHES

Sit with your right leg extended. Rest the soles of your left foot against your right inner thigh. Stretch toward your toes as far as possible. Hold for 15 counts. Relax and then repeat with left leg extended.

CALF/ACHILLES STRETCHES

Lean against a wall with your right leg in front of the left and your arms forward. Keep your left leg straight and the right foot on the floor; then bend the right leg and lean forward by moving your hip toward the wall. Hold, then repeat on the other side for 15 counts.

ASSEMBLY CHECKLIST

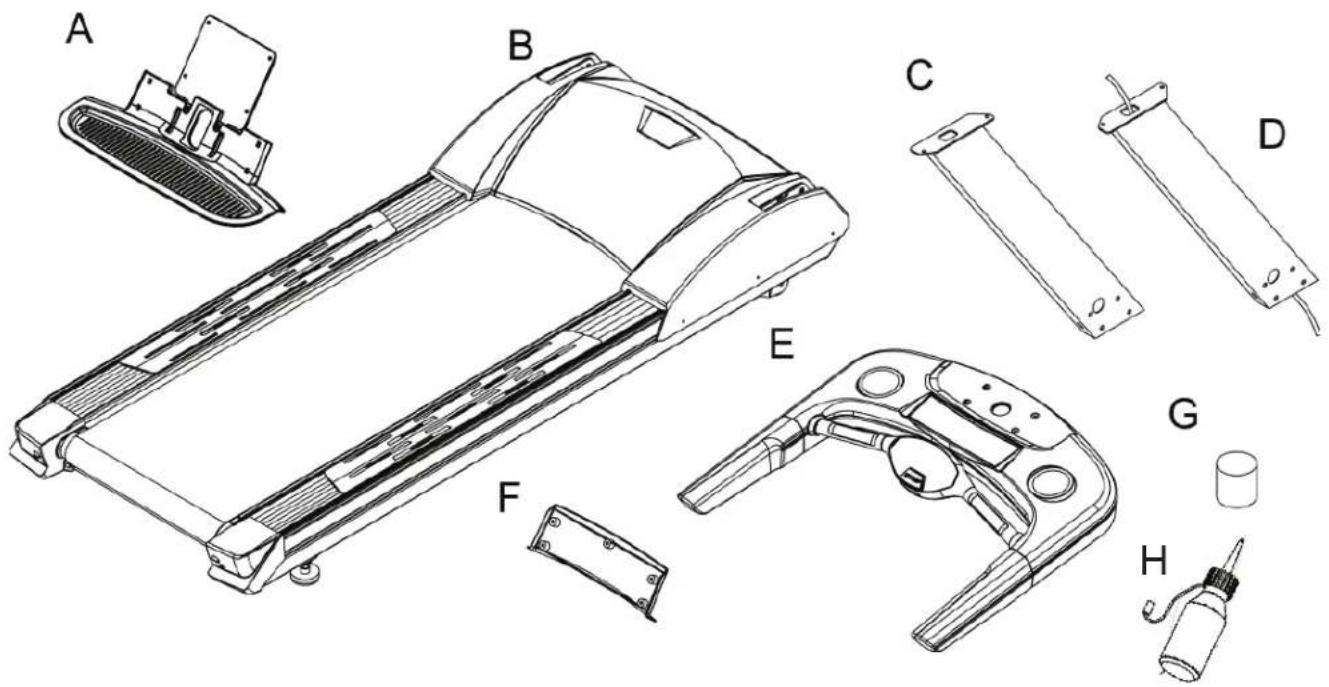

ITEM Description Qty
A Bracket assembly 1
B Frame 1
C Left Upright 1
D Right Upright 1
E Lower Console Tray 1
F Rear Bracket Cover 1
G Cups	2
H Silicone	1

ASSEMBLY CHECKLIST

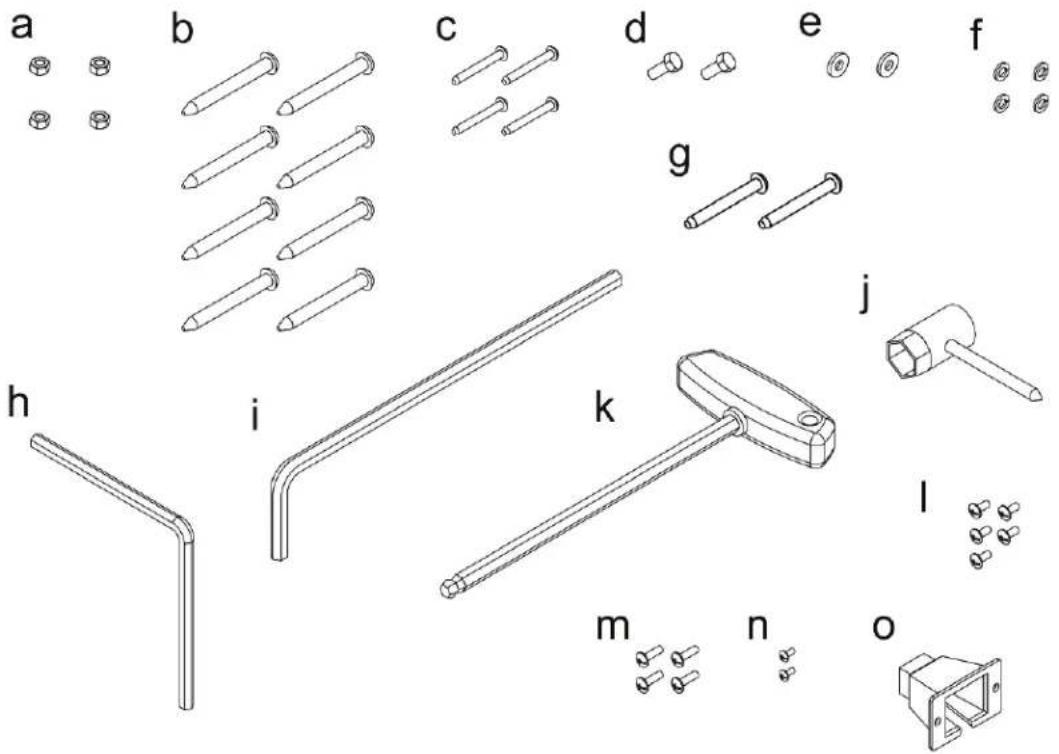

HARDWARE PACK

ITEM DESCRIPTION QTY
a Nylon Nut 4
b Hex Screw 8
c Hex Screw (13) 4
d Allen Bolt (20) 2
e Washer 2
f Spring Washer	4
g	Knockdown Truss Hex Screw (85)	2
h	Hex Wrench (6mm)	1
i	Hex Wrench (5mm)	1
j	Wrench + Screwdriver (13mm)	1
k	T-shaped Wrench (8mm)	1
l	Philips Screw (10)	5
m	Philips Screw (15)	4
n	Philips Screw (10)	2
o	Power Cord Cover	1

ASSEMBLY INSTRUCTIONS

STEP1

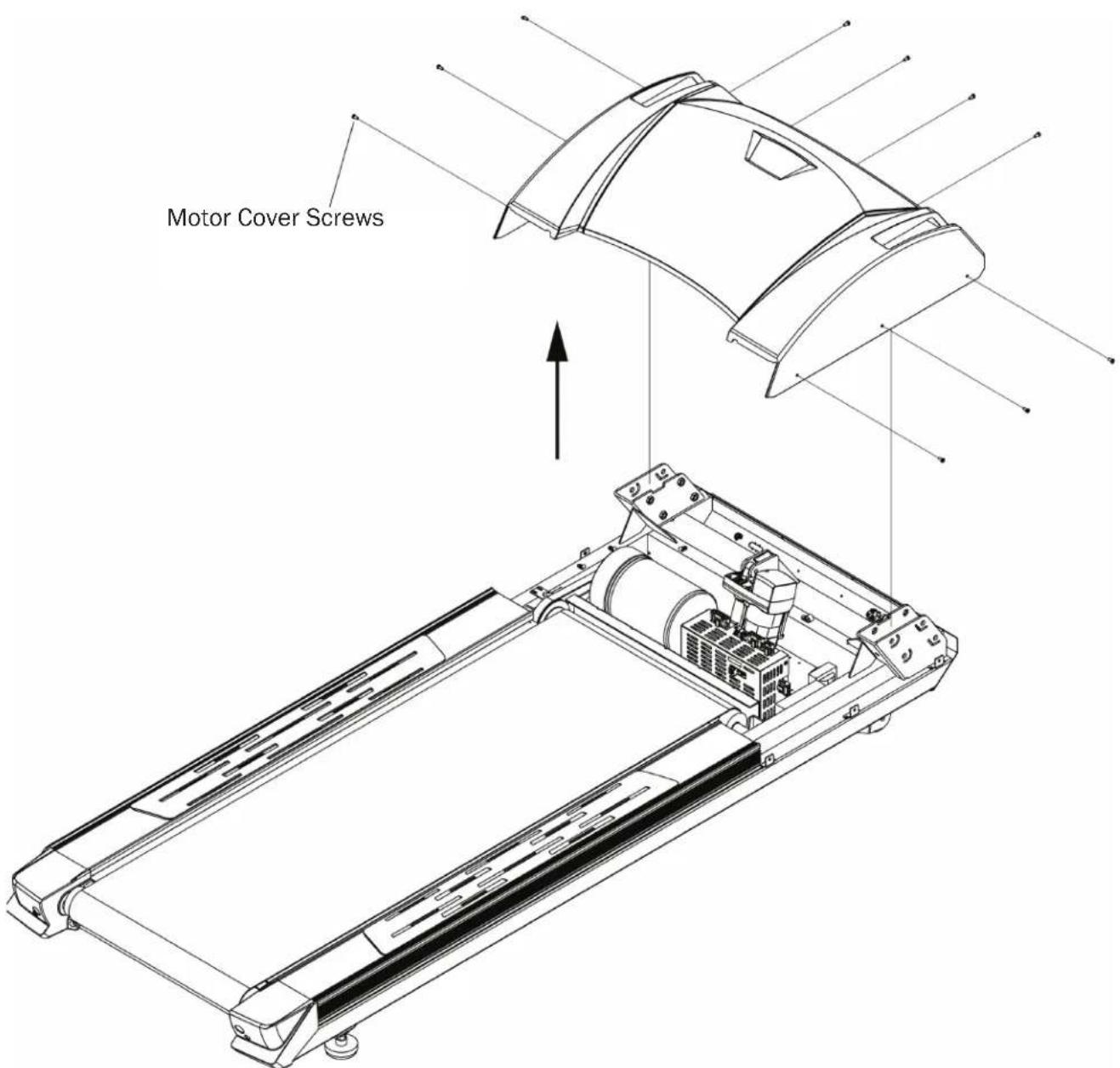

Unscrew the 10 screws on the motor cover and set them aside. Remove the Motor Cover

The assembly of this product requires two or more people. When assembling the uprights, one person should hold the uprights to prevent them from falling.

ASSEMBLY INSTRUCTIONS

STEP 2 (THIS STEP WILL REQUIRE TWO PEOPLE)

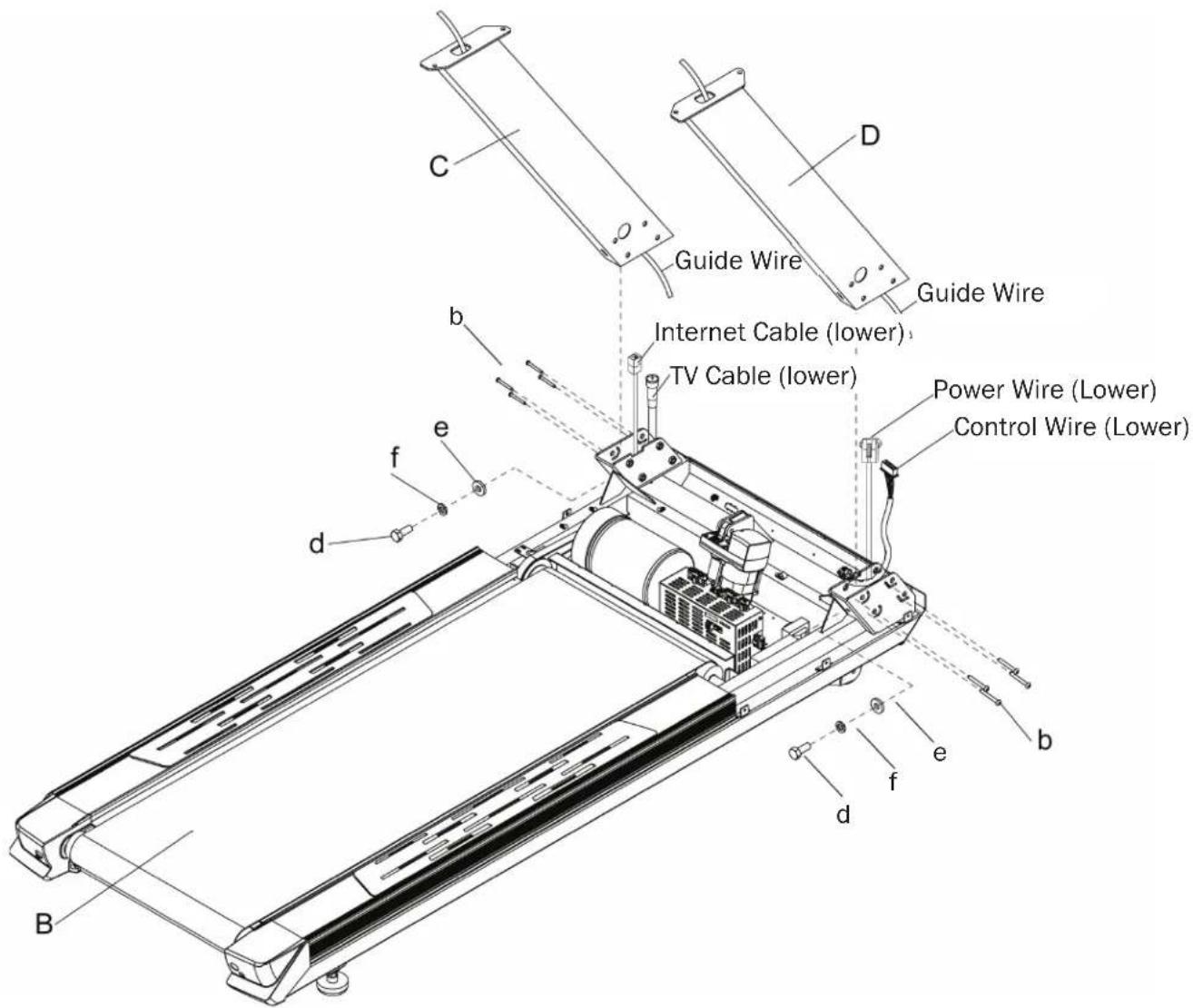

Take the Left Upright (C) and attach the Guide Wire coming out of the bottom of the Left Upright (C) to the Internet Cable (lower) and the TV Cable (Lower). Pull the Guide Wire up through the Left Upright (C) until the Internet Cable (lower) and the TV Cable (lower) come through the top of the Left Upright (C). Once the cables are through, attach the Left Upright (C) to the Frame with the 4 Hex Screws (b), 1 Screw (d), 1 Spring Washer (f) and 1 Washer (e) but do not tighten. Detach the Guide Wire it is no longer necessary. Use the same procedure for attaching the Right Upright (D).

*Note: Leaving the screws loose will make it easier to install the Lower Console Tray.

ASSEMBLY INSTRUCTIONS

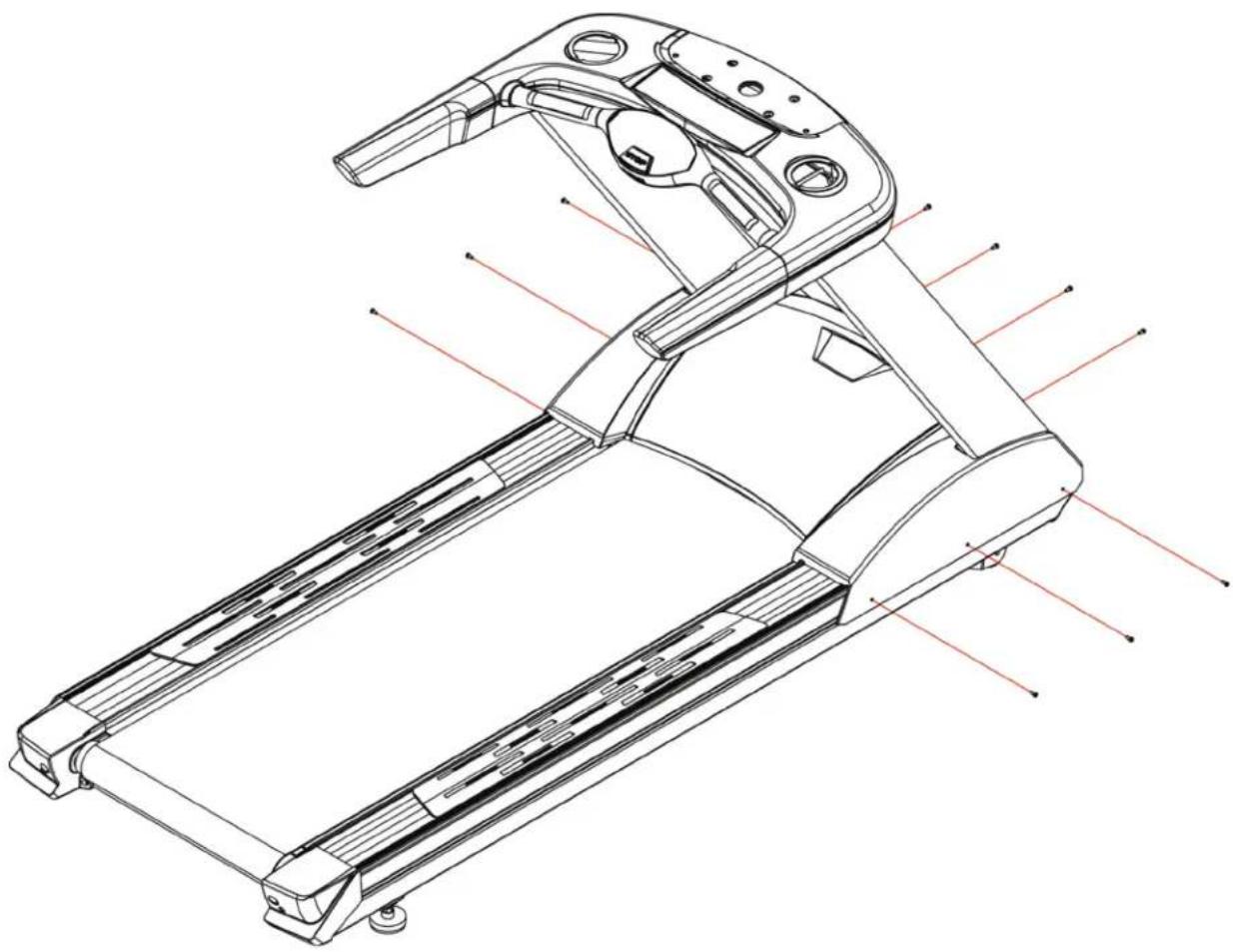

STEP3

Replace the motor cover and tighten with screws previously set aside.

ASSEMBLY INSTRUCTIONS

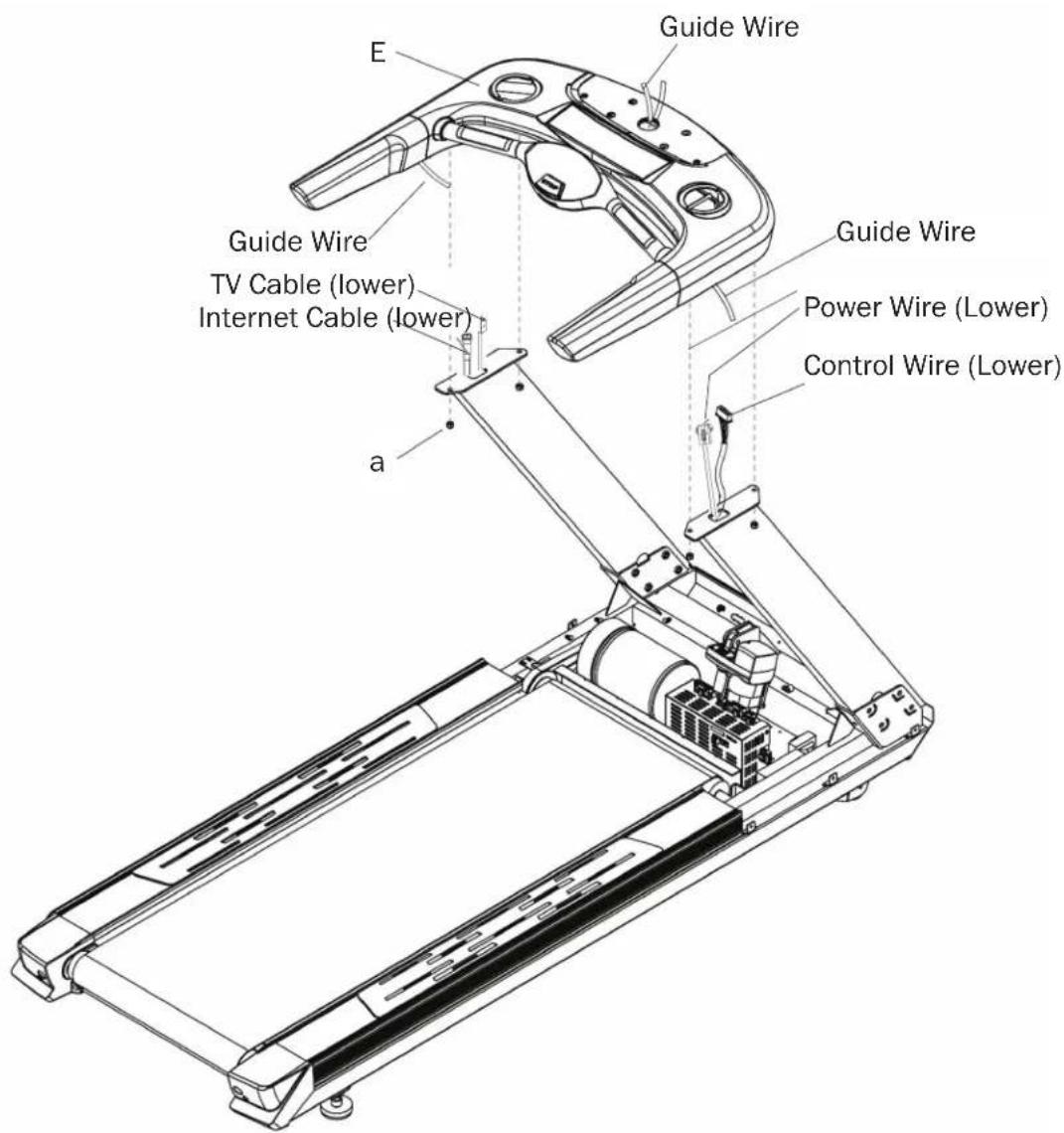

STEP 4 (THIS STEP WILL REQUIRE TWO PEOPLE)

Place the Lower Console Tray (E) above the Left & Right uprights (C,D). Attach the Control Wire (lower) and Power Wire (lower) sticking out of the Right Upright (D) to the guide wire located on the bottom right of the Lower Console Tray. Then pull the Control Wire (lower) and Power Wire (lower) through the lower console structure with the guide wire. Discard the Guide Wire. Use the same procedure on the left side of the Console Tray (E) to thread the TV Cable (lower) and the Internet Cable (lower). Once the wires are threaded through the hole in the middle of the console, attach the Lower Console Tray (E) onto the Left & Right Uprights (C,D), secure with 4 Nylon Nut (a). Be careful not to pinch the wires. Now tighten Screws (b,d) on the bottom of the Left and Right Uprights that were left loose. All bolts and nuts should be tight.

ASSEMBLY INSTRUCTIONS

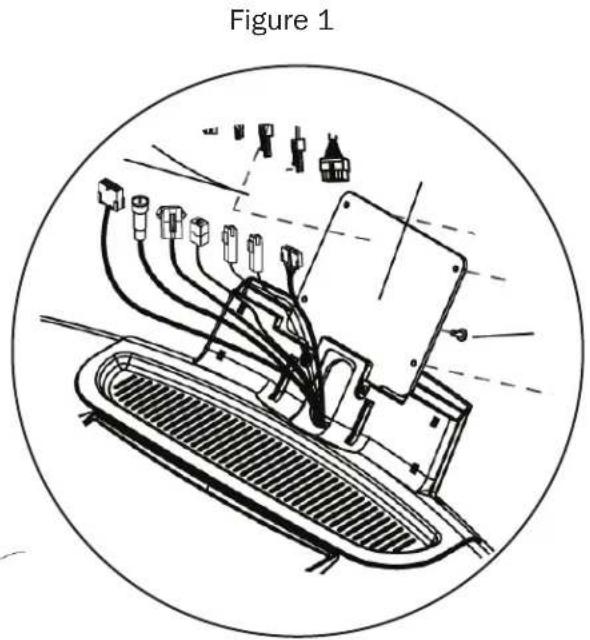

STEP 5: INSTALLING THE BRACKET ASSEMBLY

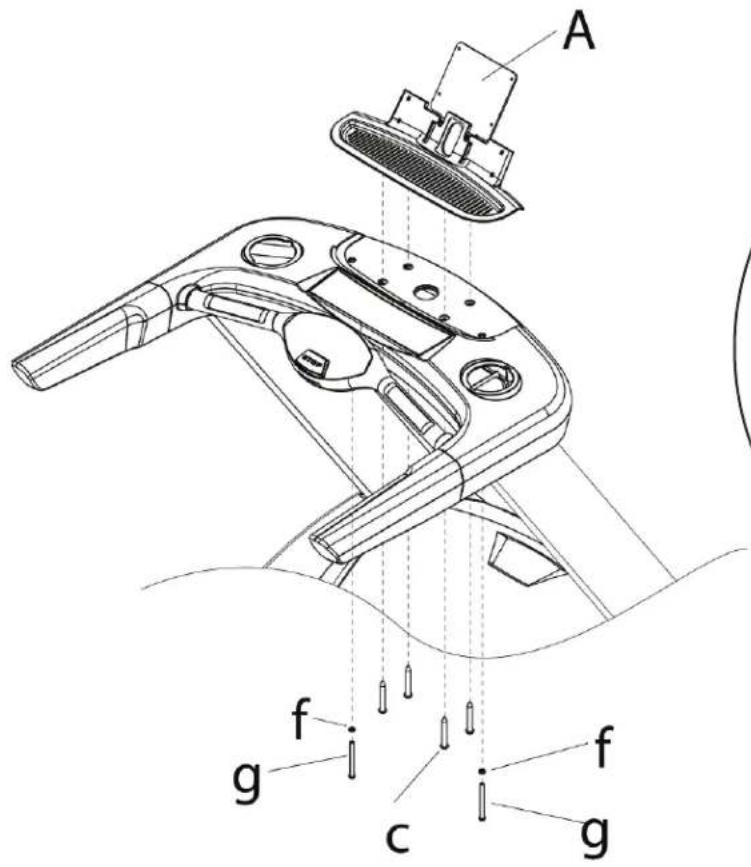

Place the Bracket Assembly (A) on top of the Lower Console Tray (E) and thread the wires from the console through the hole in the Bracket Assembly (A) see Fig. 1. From underneath the Lower Console Tray (E) secure the Bracket Assembly (A) with 4 Screws (C), 2 Spring Washers (F) and 2 Screws (G).

Note: make sure the wires are not pinched when installing the screws.

ASSEMBLY INSTRUCTIONS

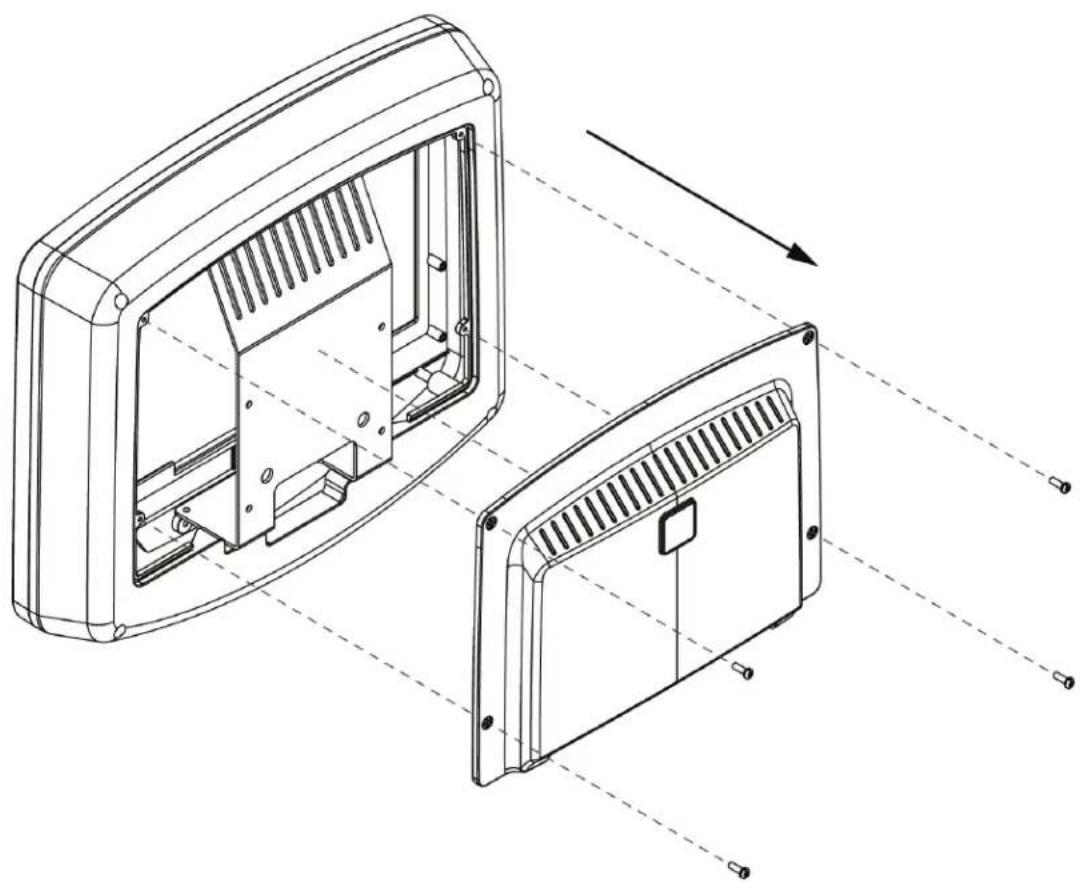

STEP 6: TAKING OFF THE BACK OF THE CONSOLE

Unscrew the 4 screws on the back of the console and take off the back cover and set aside.

ASSEMBLY INSTRUCTIONS

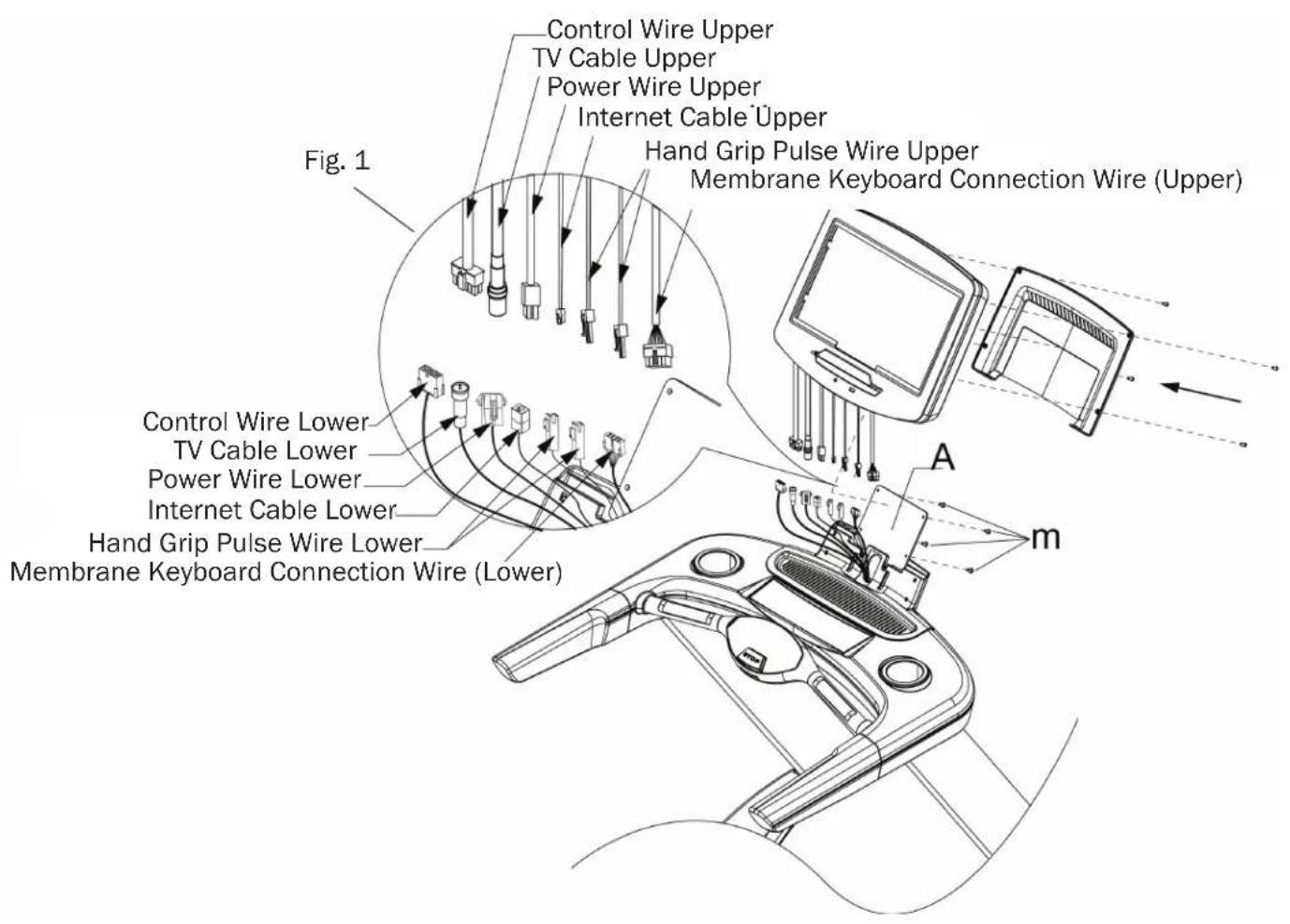

STEP 7: CONNECTING THE COMPUTER CONSOLE (This step requires 2 people)

Connect the Computer Console Wires to the wires coming from the Bracket Assembly (A). See Figure 1 for connection instructions. Once the wires are connected, align the Computer Console with the Bracket Assembly (A) and secure with 4 Phillips Screws (m).

Note: Make sure not to pinch the wires when securing the Computer Console.

When the Computer Console is secure, replace the back cover and secure with 4 screws previously set aside.

ASSEMBLY INSTRUCTIONS

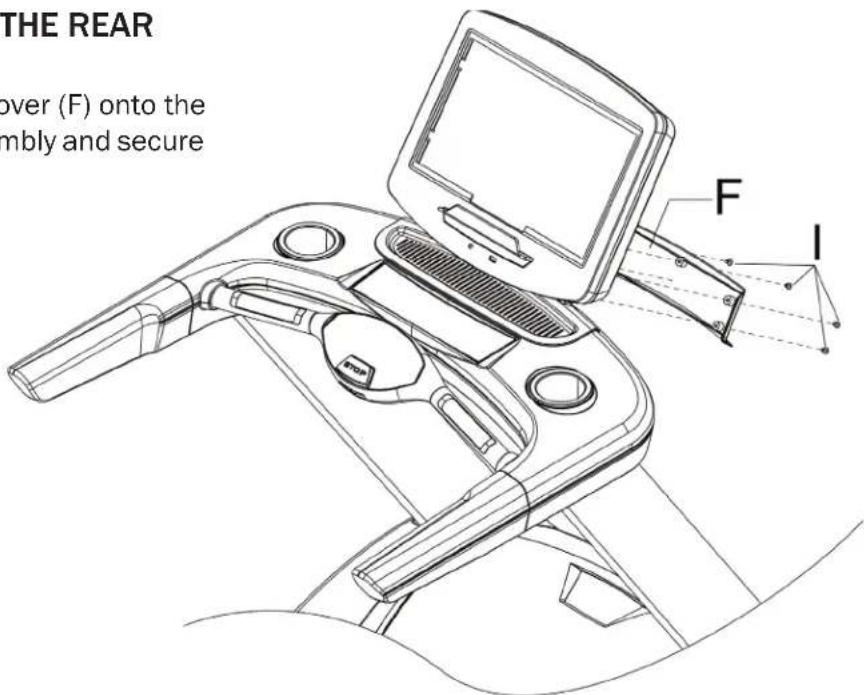

STEP 8: INSTALLING THE REAR BRACKET COVER

Align the Rear Bracket Cover (F) onto the back of the Bracket Assembly and secure with 4 Screws (I).

STEP 9: INSTALLING THE CUP HOLDERS

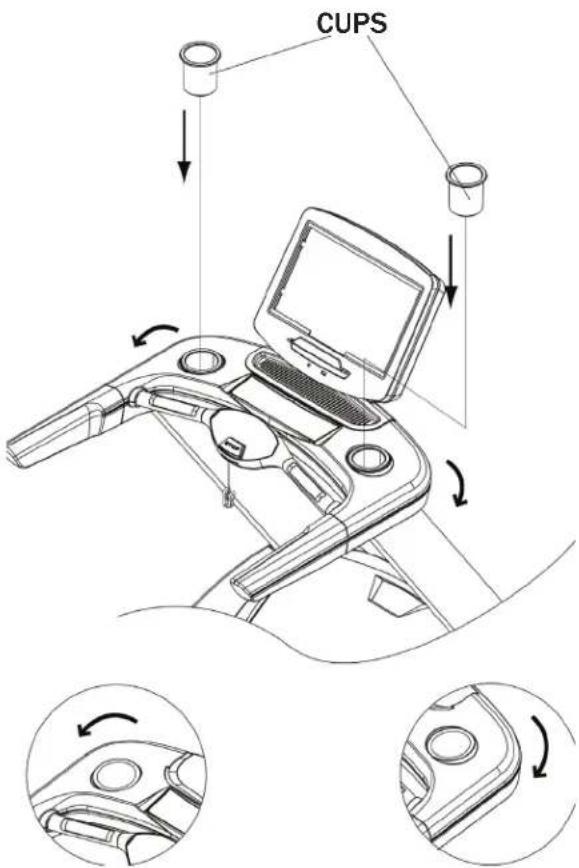

Insert the cups into the holes in the Lower Console Tray and Rotate the cups (see diagram) until secure.

ASSEMBLY INSTRUCTIONS

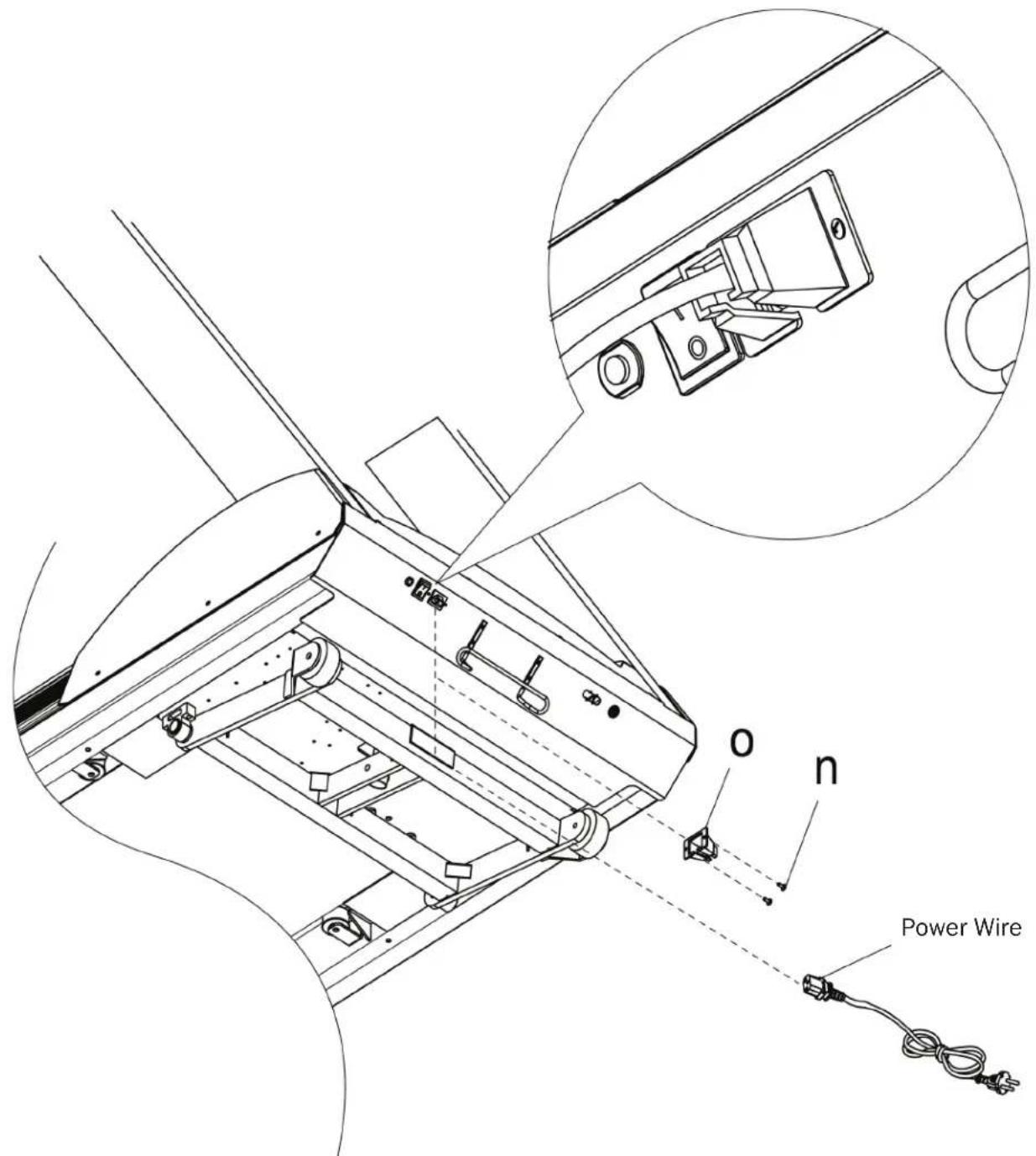

STEP 10: INSTALLING THE POWER WIRE

Take the Power Wire and plug it into the treadmill socket. Cover with the Plug Cover (o), and Secure the Plug Cover (o) with 2 Screws (n).

CORD HOLDER AND POWER SWITCH

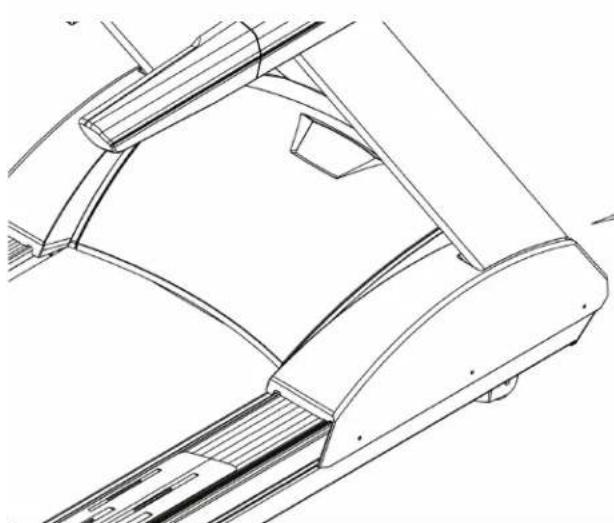

Cord Holder

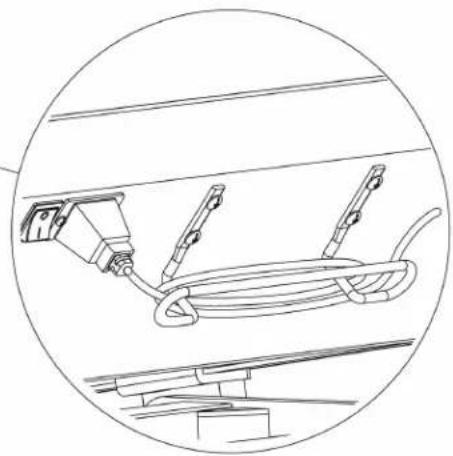

Twist the power cord around the cord holder. Note: Don't carry the treadmill by the cord holder. Pulling it by force will result in distortion. It can damage the cord holder.

POWER SWITCH

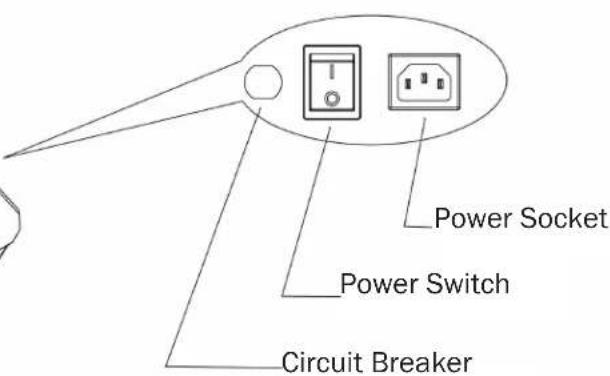

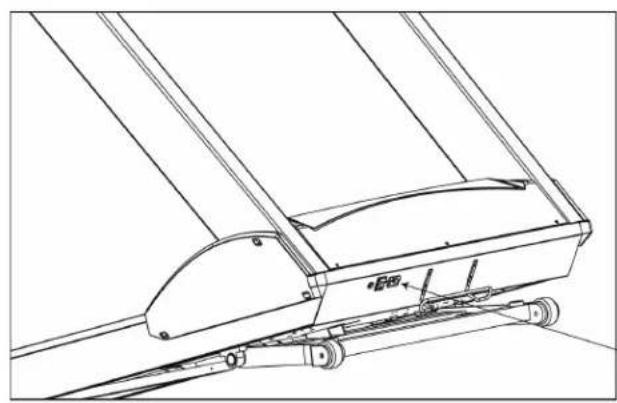

The power switch is on the panel at the bottom of the treadmill. 1 represents on and 0 represents off.

CIRCUIT BREAKER

If the current exceeds the rated current, the circuit breaker will bounce. If the circuit breaker trips, wait 10 minutes and depress the circuit breaker button.

POWER SOCKET

The power socket is next to the Power Switch. (Pay attention to the voltage 110V or 220V)

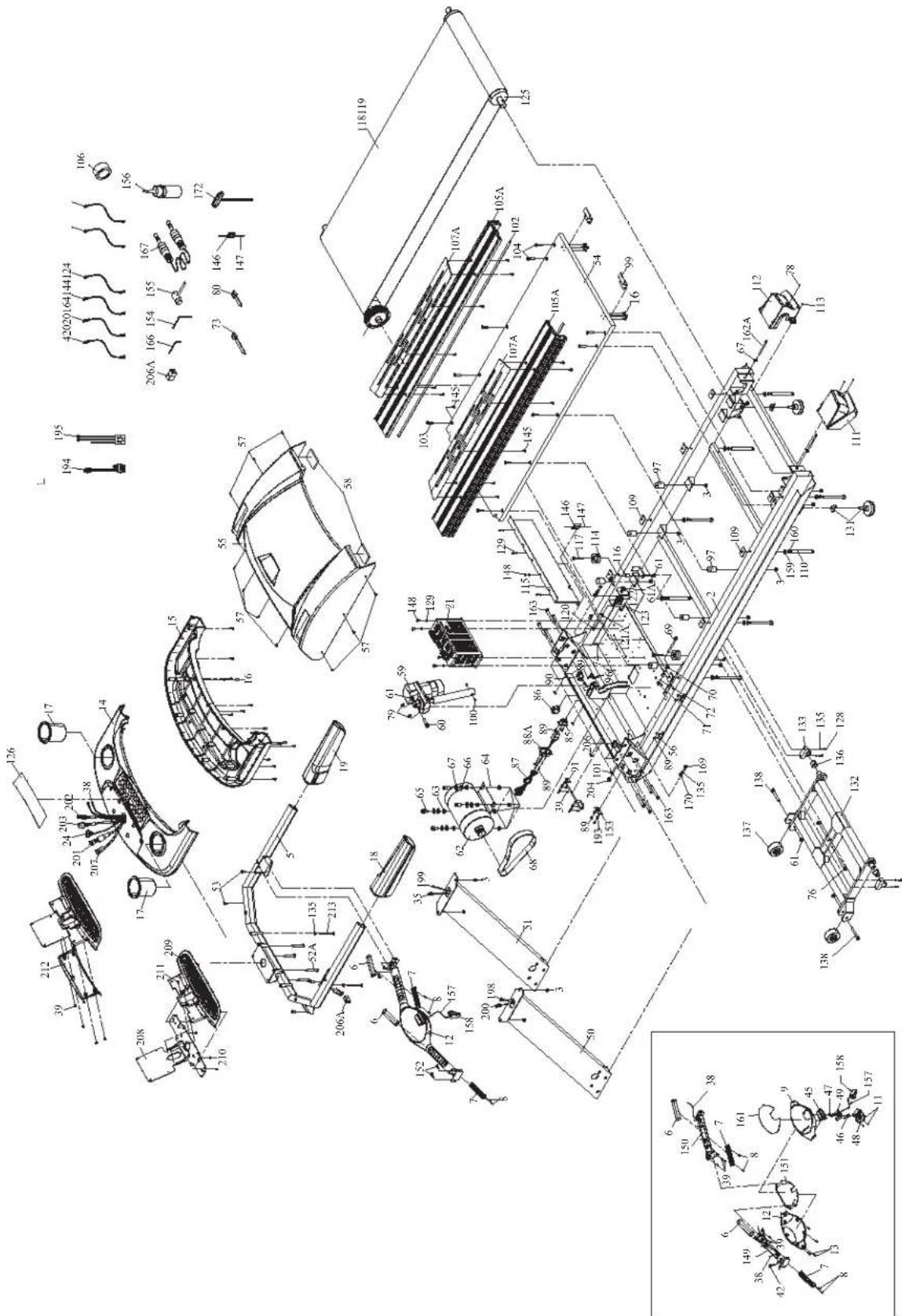

EXPLODED VIEW

PARTS LIST

To order replacement parts: provide your customer service representative with the product model number and the part number located on the Parts List below, along with the quantity you require.

PART # DESCRIPTION	QTY PART # DESCRIPTION QTY
LK700TCore-2 Frame Assembly 1 LK700TCore-62 Motor 1
LK700TCore-3 Nut	14 LK700TCore-63 Upper Bushing 4
LK700TCore-4 Extension Wire (White)	1	LK700TCore-64 Lower Bushing 4
LK700TCore-5 Lower Console Frame	1	LK700TCore-65 Hex Screw (25) 4
LK700TCore-6 Pulse Grip (Upper)	2	LK700TCore-66 Washer	4
LK700TCore-7 Pulse Grip (Lower)	2	LK700TCore-67 Spring Washer	6
LK700TCore-8 Screw (25)	4	LK700TCore-68 Motor Belt	1
LK700TCore-9	Control Box Cover (Upper)	1	LK700TCore-69	Hex Screw (95)	1
LK700TCore-11	Phillips Screw (8)	4	LK700TCore-70	Nut	1
LK700TCore-12	Control Box Cover (Lower)	1	LK700TCore-71	Adjusting Screw Sleeve	1
LK700TCore-13 Phillips Screw (20)		6	LK700TCore-72 Washer	1
LK700TCore-14	Console Tray Cover (Upper)	1	LK700TCore-73	Zip Tie (330 mm)	10
LK700TCore-15	Console Tray Cover (Lower)	1	LK700TCore-74	Phillips Screw (10)	3
LK700TCore-16	Phillips Screw (16)	23	LK700TCore-76	Hex Screw (15)	1
LK700TCore-17	Water Bottle Holder	2	LK700TCore-78	Phillips Screw (12)	2
LK700TCore-18	Handrail Cover (L)	1	LK700TCore-79	Plastic Washer	2
LK700TCore-19	Handrail Cover (R)	1	LK700TCore-80	Zip Tie (80 mm)	1
LK700TCore-20	Extension Wire (Black)	2	LK700TCore-85	Power Wire Socket	1
LK700TCore-21	Transducer	1	LK700TCore-86	Power Switch	1
LK700TCore-24	Keyboard Membrane Wire	1	LK700TCore-87	Power Wire	1
LK700TCore-35	Lower Control Wire	1	LK700TCore-88A	Power Wire Switch Cover	1
LK700TCore-38	Hand Grip Pulse Wire (Lower)	2	LK700TCore-89	Phillips Screw (10)	17
LK700TCore-39	Phillips Screw (10)	9	LK700TCore-90	Circuit Breaker	1
LK700TCore-42	Control Box Wire	1	LK700TCore-91	Cord Holder	1
LK700TCore-45	Safety Switch 1 LK700TCore-96 Wire Clip		1
LK700TCore-46	Safety Switch Sensor	1	LK700TCore-97	Suspension Pad	6
LK700TCore-47	Compression Spring	1	LK700TCore-99	Running Board Extension Plate	2
LK700TCore-48	Safety Switch Seat	1	LK700TCore-101	Rubber Pad	4
LK700TCore-49	Safety Switch Slide Seat	1	LK700TCore-102	Rail Pad	2
LK700TCore-50	Upright Tube (L)	1	LK700TCore-103	Hex Screw (35)	6
LK700TCore-51	Upright Tube (R)	1	LK700TCore-104	Hex Screw (40)	4
LK700TCore-52A	Hex Screw	4	LK700TCore-105A	Aluminum Rail	2
LK700TCore-53	Hex Screw (20)	4	LK700TCore-106	Iron Core Ring	1
LK700TCore-54	Running Board	1	LK700TCore-107A	Rail Cover	2
LK700TCore-55	Motor Cover	1	LK700TCore-109	Rail Cover Plate	8
LK700TCore-56	Motor Cover Bracket	6	LK700TCore-110	Hex Screw (115)	8
LK700TCore-57	Phillips Screw (15)	20	LK700TCore-111	End Cap (L)	1
LK700TCore-58	Foam Pad	2	LK700TCore-112	End Cap (R)	1
LK700TCore-59	Incline Motor	1	LK700TCore-113	Hex Screw (16)	2
LK700TCore-60	Hex Screw	1	LK700TCore-114	Training Wheel	2
LK700TCore-61	Nut	6	LK700TCore-115	Fender	1
LK700TCore-61A	Nut	1

PARTS LIST

To order replacement parts: provide your customer service representative with the product model number and the part number located on the Parts List below, along with the quantity you require.

PART # DESCRIPTION QTY	PART # DESCRIPTION QTY
LK700TCore-116 Bushinng (9.5) 2 LK700TCore-157 Safety Key Cord 1
LK700TCore-117 Hex Screw (35) 2 LK700TCore-158 Safety Clip 1
LK700TCore-118	Running Belt 1 LK700TCore-159 Washer (20)			8
LK700TCore-119	Front Roller	1	LK700TCore-161	Computer Control Box Overlay	1
LK700TCore-120	Hex Screw (100)	1	LK700TCore-162A	Hex Screw (80)	2
LK700TCore-121A	Washer (20) 1 LK700TCore-163 Hex Screw			8
LK700TCore-122	Lock Washer	1	LK700TCore-164	Terminal Wire (400)	1
LK700TCore-123	Hex Nut	1	LK700TCore-166	Hex Wrench 5Mm	1
LK700TCore-124	Terminal Wire (Green 450)	1	LK700TCore-167	Mp3 Sound Wire	1
LK700TCore-125	Rear Roller 1 LK700TCore-169 Hex Screw (20) 2
LK700TCore-126	Console Tray Overlay	1	LK700TCore-170	Washer (19)	2
LK700TCore-128	Hex Screw (30)	4	LK700TCore-172	T Shaped Wrench (8mm)	1
LK700TCore-129	Spring Washer	8	LK700TCore-184	Grounding Sticker	2
LK700TCore-130	Guide Thread 2 LK700TCore-185 Grounding Sticker 3
LK700TCore-131 Adjustment Foot 2 LK700TCore-193 Spring Washer				2
LK700TCore-132	Incline Base Assembly	1	LK700TCore-194	Choke Wire	1
LK700TCore-133	Incline Base Bracket	2	LK700TCore-195	Transducer Power Wire	1
LK700TCore-135	Spring Washer	16	LK700TCore-198	TV Cable (Lower)	1
LK700TCore-136	Plastic Sleeve	2	LK700TCore-199	Computer Power Wire (Lower)	1
LK700TCore-137	Transportation Wheel	2	LK700TCore-200	Internet Wire (Lower)	1
LK700TCore-138	Hex Screw (35)	2	LK700TCore-201	TV Cable (Middle)	1
LK700TCore-144	Terminal Wire (500)	1	LK700TCore-202	Computer Power Wire (Middle)	1
LK700TCore-145	Phillips Screw (12)	13	LK700TCore-203	Control Wire (Middle)	1
LK700TCore-146	Wire Clip Base	2	LK700TCore-204	Wire Protector	1
LK700TCore-147	Zip Tie (163)	3	LK700TCore-206	RJ45 Transfer NC-IC2-CE/BK	1
LK700TCore-148	Phillips Screw (12)	8	LK700TCore-206A	RJ45 Transfer NC-IC1A-CE/BK	2
LK700TCore-149	Pulse Grip Assembly (L)	1	LK700TCore-207	Internet Wire (Middle)	1
LK700TCore-150	Pulse Grip Assembly (R)	1	LK700TCore-208	Bracket Assembly	1
LK700TCore-151	Control Box Bracket	1	LK700TCore-209	Accessory Tray	1
LK700TCore-152	Hex Screw (15)	4	LK700TCore-210	Phillips Screw (10)	4
LK700TCore-153	Bracket	1	LK700TCore-211	Phillips Screw (10)	2
LK700TCore-154	Hex Wrench	1	LK700TCore-212	Rear Bracket Cover	1
LK700TCore-155	Box Wrench + Screw Driver	1	LK700TCore-213	Hex Screw (20)	2
LK700TCore-156	Silicon	1

WARRANTY

CLUB COMMERCIAL WARRANTY*

BH North America will repair or replace, free of charge, at its option, parts that are defective as a result of material or workmanship. Lifetime replacement warranty coverage on frame and three (3) years and other parts. Labor warranty coverage is two (2) years. Warranty covers the original consumer purchaser only.

*Club Commercial Warranty Disclaimer: For all dues paying facilities, regardless of usage.

COMMERCIAL WARRANTY*

BH North America will repair or replace, free of charge, at its option, parts that are defective as a result of material or workmanship. Lifetime replacement warranty coverage on frame and five (5) years on other parts. Labor warranty coverage is two (2) years. Warranty covers the original consumer purchaser only.

*Commercial Warranty Disclaimer: For non-dues paying facilities, with less than 8 hours of use per day.

RESIDENTIAL WARRANTY

BH North America will repair or replace, free of charge, at its option, parts that are defective as a result of material or workmanship. Lifetime replacement warranty coverage on frame and ten (10) years on other parts. Labor warranty coverage is two (2) years. Warranty covers the original consumer purchaser only.

COSMETICS PARTS DISCLAIMER

For all products and all level of warranty, cosmetic parts shall be warranted for 1 year from date of purchase against manufactures defect. "Cosmetics" includes: External plastics, overlays/decals and covers.

THIS WARRANTY DOES NOT COVER

• Pre-delivery set-up.
• Components that require replacement due to dirt or lack of regular maintenance.
• Repairs necessary because of operator abuse or negligence or the failure to operate and maintain the equipment according to the instructions contained in the Owner's Manual.

For more detailed warranty information or to register your product warranty easily online, visit our website at: www.BHFitnessUSA.com

FOR WARRANTY REPAIRS, PLEASE DO NOT TAKE YOUR MACHINE BACK TO THE RETAIL STORE. CONTACT BH FITNESS FIRST.

BH North America Corporation

620 N. 2nd Street | St. Charles, MO 63301

Phone:[phone]; Toll Free: 866.325.2339

Web: www.BHFITNESSUSA.COM

Mon - Fri 8am - 5pm CST

CONSOMMATION D'OXYGENE

ÉTAPE 8: REPLACER LE LE COUVERCLE DE LA CONSOLE

BH North America Corporation

620 N. 2nd Street | St. Charles, MO 63301

Phone:[phone]; Toll Free: 866.325.2339

Courriel:[e-mail]

Web: www.BHFITNESSUSA.COM
