S3TiB - Treadmills BH FITNESS - Free user manual and instructions

Product type	Treadmill
Brand	BH Fitness
Model	S3TiB
Dimensions (L x W x H)	190.5 cm x 94 cm x 144.8 cm (75 in x 37 in x 57 in)
Net weight	106 kg (233 lb)
Power supply	120 V ~ 60 Hz, 15-20 A, dedicated circuit
Power plug	Grounded, 3-prong
Motor	3.0 HP
Maximum speed	18 km/h (11 mi/h)
Incline	0 to 12%
Running surface	50.8 cm x 152.4 cm (22 in x 55 in)
Maximum user weight	159 kg (350 lb)
Workout programs	15 programs (manual, 12 preset, body fat, heart rate)
Heart rate measurement	Contact grips + Polar® chest strap (wireless)
Console	iConcept Bluetooth compatible, blue backlit LCD screen
Connectivity	Bluetooth, DualKit compatible (sold separately), USB/tablet port
Additional features	Built-in fan, bottle holder, safety key, Active-Flex II suspension
Auto stop	After 5 minutes of inactivity
Maintenance and cleaning	Belt lubrication based on usage, exterior cleaning with damp cloth
Warranty	Lifetime (frame and motor), 5 years parts, 1 year labor

Frequently Asked Questions - S3TiB BH FITNESS

What tools are needed to assemble the BH Fitness S3TiB treadmill?

Assembly requires the provided tools: a 6 mm T-wrench and a 5 mm T-wrench. It is recommended to have two people to hold the upright posts during installation.

What should I do if the treadmill does not start and displays error code E07?

Error code E07 indicates the safety key is not detected. Check that it is properly inserted and in good condition. If the problem persists, replace the key.

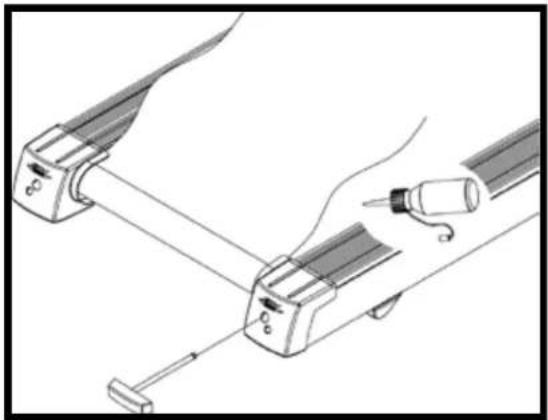

How do I lubricate the S3TiB running belt?

Use the provided silicone lubricant. Unscrew the rear roller bolt with the hex key, lift the belt, and apply a thin layer of silicone to the center of the deck. Retighten the screw and center the belt. Frequency: every 6 months for moderate use.

How do I pair my smartphone with the treadmill via Bluetooth?

Download the Pafers app from the App Store or Google Play. Insert the BH DualKit module (sold separately) into the USB port of the console. Enable Bluetooth on your device, select the device, and launch the app within 2 minutes.

What does error code E01 on the display mean?

Error code E01 indicates a communication problem between the lower control board and the console. Check the connections of the 4 console wires: ensure they are not pinched, damaged, or loose. Tighten or replace cables if necessary.

How do I adjust the running belt if it drifts to the left?

Stop the treadmill and use the provided hex key to turn the hex screw at the rear end. If the belt drifts left, tighten the screw about 1/4 turn clockwise. Restart and check; repeat until centered.

What is the maximum weight supported by the S3TiB treadmill?

The maximum user weight is 159 kg (350 lb). Do not exceed this limit to ensure safety and durability of the machine.

How does the Heart Rate Control (HRC) program work?

After selecting the HRC program, set your age and a target heart rate. The treadmill automatically adjusts speed to keep your heart rate near the target. If your pulse exceeds the limit (220-age), the machine slows down and stops. Requires a wireless heart rate chest strap.

What should I do if the running belt slips during use?

Belt slip is usually due to lack of lubrication or insufficient tension. Apply silicone to the deck (see lubrication question). If the problem persists, check belt tension and adjust via the rear screws.

How do I clean the display and console?

Use a soft, damp cloth with warm water. Never use chemicals, aerosols, or sprays, as they can damage the protective layer and generate static electricity. Wipe gently.

USER MANUAL S3TiB BH FITNESS

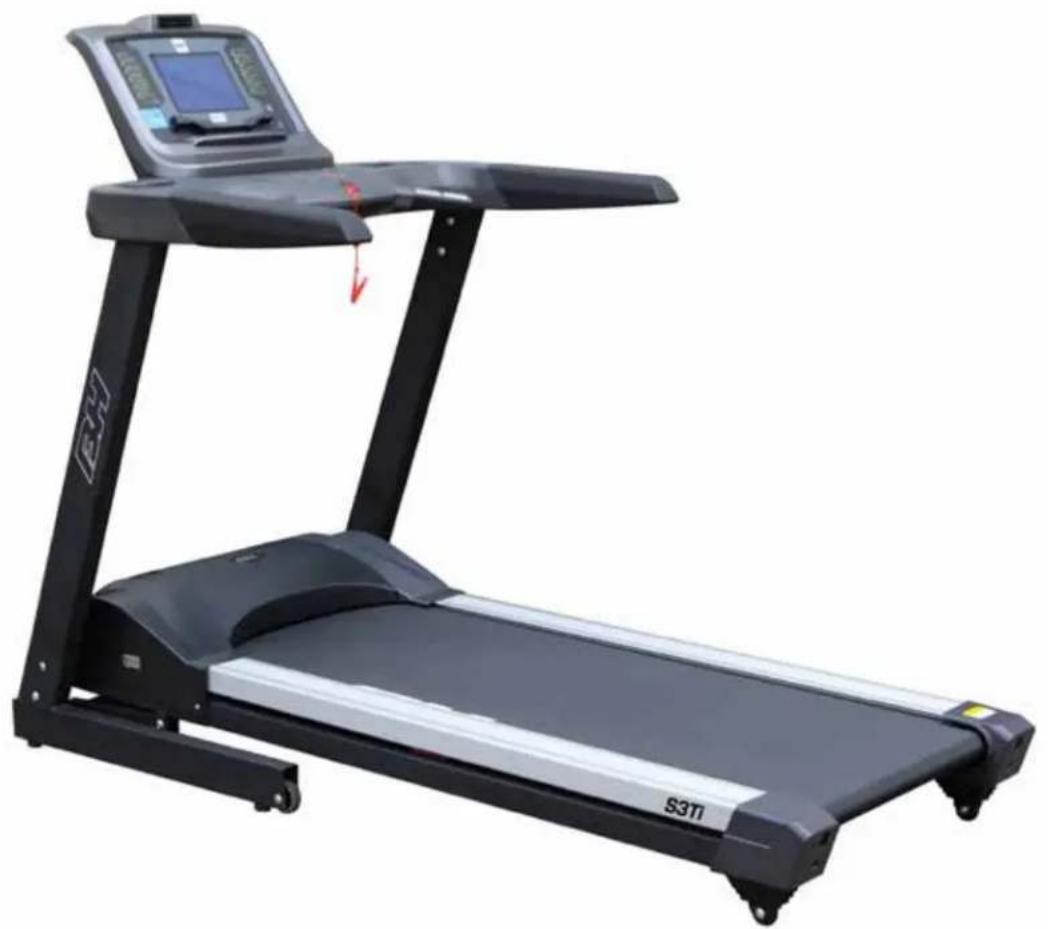

Black treadmill with digital display and 'S3TI' branding, no visible text or symbols on the device itself.

OWNER'S MANUAL

Important: Read all instructions carefully before using this product. Retain this owner's manual for future reference.

BH North America | 20155 Ellipse, Foothill Ranch, California 92610 | p.949.206.0330 | f.949.206.0350 | www.BHFitnessUSA.com

BH

TABLE OF CONTENTS

Title	Page
Introduction	03
Warning Labels	04
Safety Information	05
Exercise Instruction	08
Training Guidelines	09
Workout and Stretching	11
Overview	13
Assembly Instructions	14
Belt Adjustments	18
Console Operations	19
Downloading Apps and Pairing
Your Device with Your Equipment	28
Maintenance and Cleaning	31

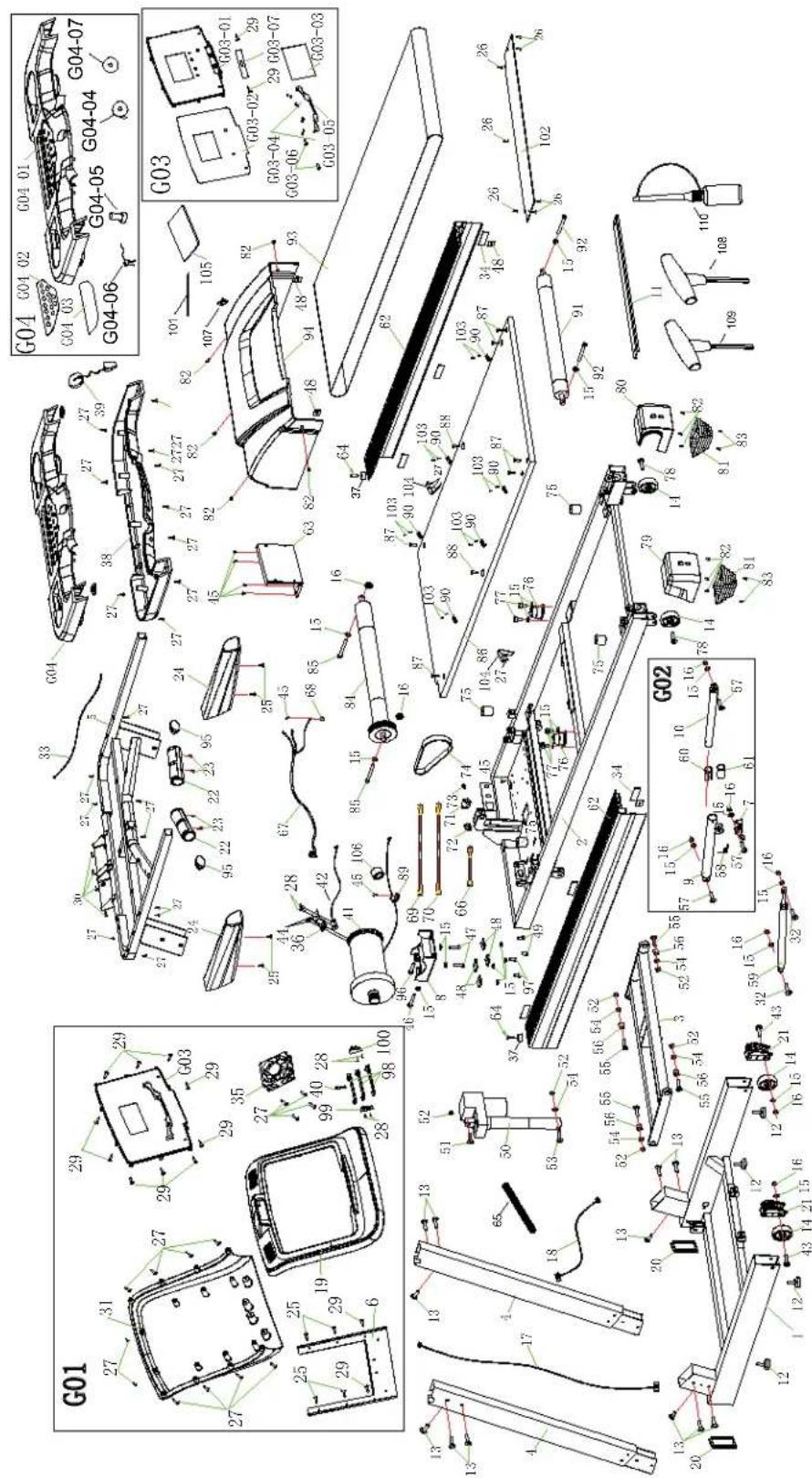

Exploded View Drawing	32
Parts List	33
Warranty	35
French / Français	36

CONGRATULATIONS

Congratulations on your purchase of BH Fitness equipment. We hope you appreciate the style, quality, and value that exercisers across North America have come to expect from BH Fitness.

If you have any questions, concerns or product issues, please call our Customer Service at 1-866-325-2339 or email us at [e-mail].

Carefully read through the instructions contained in this manual. They provide you with important information about assembly, safety, fitness and use of the machine. Please read ALL the safety information contained on the following page.

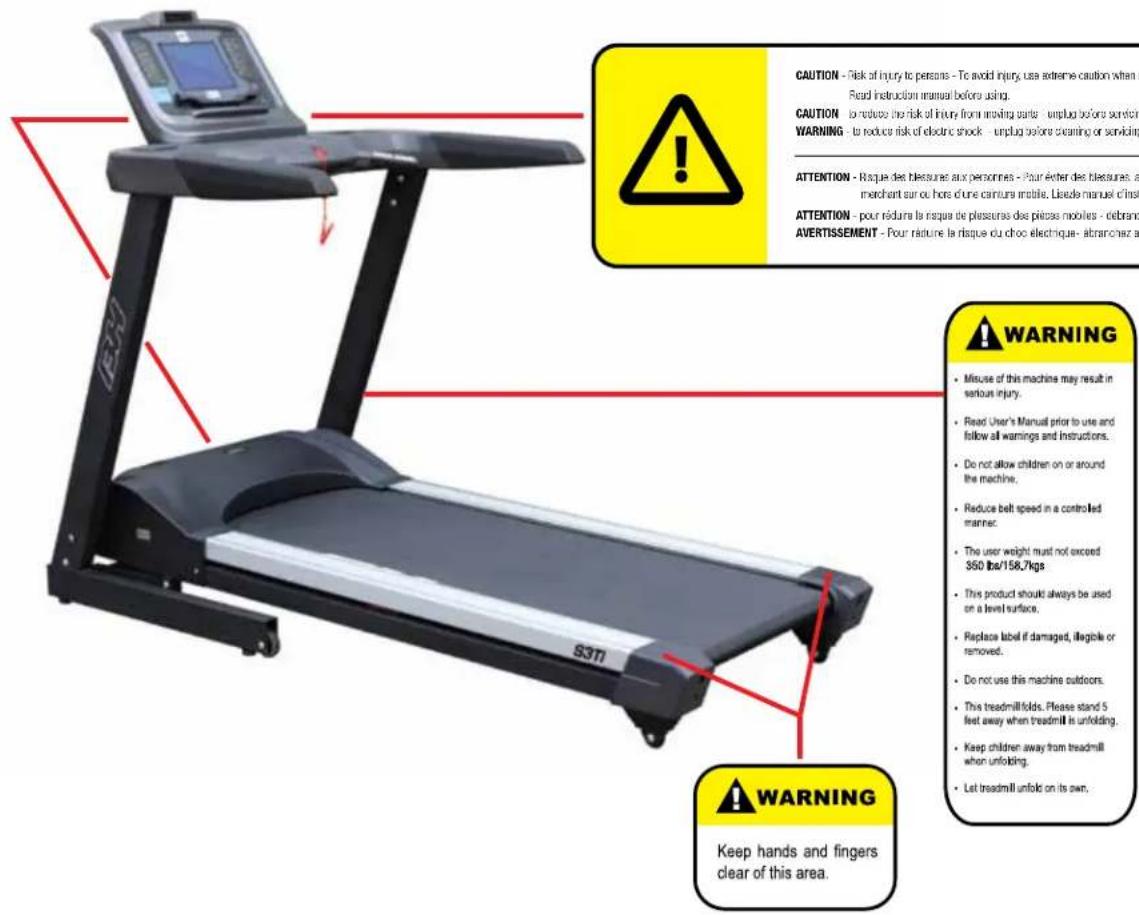

WARNING LABELS

CAUTION - Risk of injury to persons - To avoid injury, use extreme caution when s Read instruction manual before using. CAUTION to reduce the risk of injury from moving parts - unplug before servicing WARNING to reduce risk of electric shock - unplug before cleaning or servicing ATTENTION - Risque des blessures aux personnes - Pour d'Exter des blessures, an merchant sur ou hors d'une carrière imable. Lirée manuel d'inst ATTENTION - pour réduire la risque de pleasures des pièces mooles - debrancha AVERTISSEMENT - Pour réduire la risque du choo électrique - abranchez au WARNING - Misuse of this machine may result in serious injury. - Read User's Manual prior to use and follow all warnings and instructions. - Do not allow children on or around the machine. - Reduce belt speed in a controlled manner. - The user weight must not exceed 350 lbs/156.7kgs - This product should always be used on a level surface. - Replace label if damaged, illegible or removed. - Do not use this machine outdoors. - This treadmillfolds. Please stand 5 feet away when treadmill is unfolding. - Keep children away from treadmill when unfolding. - Let treadmill unfold on its own. WARNING Keep hands and fingers clear of this area.

SAFETY INFORMATION

PRECAUTIONS

The machine has been designed and constructed to provide maximum safety. Nevertheless, certain precautions should be taken when using exercise equipment. Read the whole manual before assembling and using the machine. Please observe the following safety precautions:

1. Keep children and pets away from this equipment at all times. DO NOT leave them unsupervised in the room where the machine is kept.
2. If you experience dizziness, nausea, chest pains or any other symptom while using this machine STOP exercising. SEEK IMMEDIATE MEDICAL ATTENTION!
3. Use the machine on a level and solid surface. Adjust the feet for stability.
4. Keep your hands away from any of the joints and moving parts.
5. Wear clothing suitable for doing exercise. Do not wear baggy clothing that might get caught in the machine. Always wear athletic shoes when using the machine and tie the laces securely.
6. This machine must only be used for the purposes described in this manual. DO NOT use accessories that are not recommended by BH Fitness.
7. Do not place sharp objects near the machine.
8. Any person with physical or coordination limitations should not use the machine without the assistance of a qualified person or doctor.
9. Do warm-up stretching exercises before using the equipment.
10. Do not use the machine if it is not working correctly.
11. Before using the machine, thoroughly inspect the equipment for proper assembly.
12. Maintain a minimum safety clearance of 12" in the front, 24" on the sides and 79" to the rear of the treadmill.
13. Use only authorized and trained technicians if a repair is needed.
14. Please follow the advice for correct training, as detailed in the Training Guidelines.
15. Use only the tools provided to assemble this machine.
16. This machine was designed for a maximum user weight of 350 lbs (159 kg)
17. The machine can only be used by one person at a time.
18. Auto Stop Safety Feature: If the treadmill detects that there is no user on the treadmill for 5 minutes, the treadmill will come to a stop automatically.

Caution: Consult your doctor before beginning to use the machine or any exercise program. Read all of the instructions before using any exercise equipment.

KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this machine:

DANGER – To reduce the risk of electric shock:

Always shut off and unplug this machine from the electrical outlet immediately after using and before cleaning.

WARNING – To reduce the risk of burns, fire, electric shock, or injury to persons:

1. The machine should never be left unattended when plugged in. Unplug from outlet when not in use and before maintenance or repair of the machine.
2. Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled persons. Keep children away from the treadmill belt.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, or has been damaged. For repair, use only authorized and trained technicians.
5. Keep the cord away from heated surfaces.
6. Never drop or insert any object into any opening.
7. Do not use outdoors.
8. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
9. To disconnect, turn all controls to the off position, then remove plug from outlet.
10. Connect this appliance to a properly grounded outlet only. See Grounding Instructions.

1. Care has been taken to assure that your equipment has been properly adjusted and lubricated at the factory. It is not recommended that the user attempt service on the internal components. Instead, seek service from an authorized service center. However, you may clean the outer surface. Use a soft cloth, dampened with warm water. Do not use aerosol sprays or pump bottles as they may deposit sediments upon the console surface. The use of harsh chemicals will destroy the protective coating and cause a static build-up that may damage some of the components.

2. This product has a circuit breaker that will shut the machine down completely when it reaches a set Amperage. The button on the breaker will pop out when the breaker is engaged. The breaker needs to be reset for the machine to function. Resetting the breaker can be done by pushing in the beaker button next to the power cord on the machine.

GROUNDING INSTRUCTION

This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

DANGER – Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This product is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug illustrated in sketch A in following figure. Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.

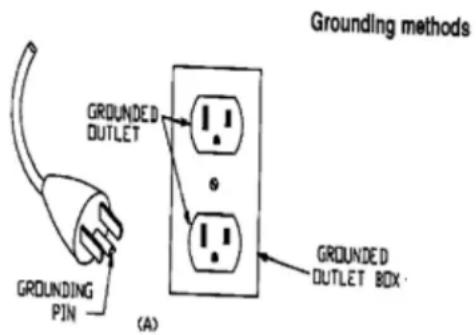

Grounding method

Grounding methods GROUNDED OUTLET GROUNDED OUTLET BOX (A) GROUNDING PIN

EXERCISE INSTRUCTION

Use of the machine offers various benefits; it will improve fitness, muscle tone and when used in conjunction with a calorie controlled diet, it will help you lose weight.

1. Consult your doctor before starting any exercise program. It is advisable to undergo a complete physical examination.
2. Work at the recommended exercise level. Do not over exert yourself.
3. If you feel any pain or discomfort, stop exercising immediately and consult your doctor.
4. Wear appropriate clothing and footwear for the exercise; do not wear loose clothing; do not wear leather soled shoes or footwear with high heels.
5. It is advised that you do warm-up stretches before working out.
6. Step on to the equipment slowly and securely.
7. Select the program or workout option that is most closely aligned with your workout interests.
8. Start slowly and work your way up to a comfortable pace.
9. Be sure to cool down after your workout.

TRAINING GUIDELINES

Exercise is one of the most important factors in the overall health of an individual. Listed among its benefits are:

• Increased capacity for physical work (strength endurance)
• Increased cardiovascular (heart and arteries/veins) and respiratory efficiency
  • Decreased risk of coronary heart disease
  • Changes in body metabolism, e.g. losing weight
• Delaying the physiological effects of age
• Reduction in stress, increase in self-confidence, etc.

There are several components of physical fitness and each is defined below.

STRENGTH

The capacity of a muscle to exert a force against resistance. Strength contributes to power and speed.

MUSCULAR ENDURANCE

The capacity to exert a force repeatedly over a period of time, e.g. it is the muscular endurance of your legs to carry you 10 km without stopping.

FLEXIBILITY

The range of motion of your joints. Improving flexibility involves the stretching of muscles and tendons to maintain or increase suppleness, and it provides increased resistance to muscle injury or soreness.

CARDIO-RESPIRATORY ENDURANCE

The most essential component of physical fitness. It is the efficient functioning of the heart and lungs.

AEROBIC FITNESS

Is an exercise of relatively low intensity and long duration, which depends primarily on the aerobic energy system. Aerobic means "with oxygen", and refers to the use of oxygen in the body's metabolic or energy-generating process. Many types of exercise are aerobic, and by definition are performed at moderate levels of intensity for extended periods of time.

ANAEROBIC TRAINING

Is an exercise intense enough to trigger anaerobic metabolism. This means “without oxygen” and is the output of energy when the oxygen supply is insufficient to meet the body’s long term energy demands. (For example, a 100 meter sprint.)

OXYGEN UPTAKE

The effort that you can exert over a prolonged period of time is limited by your ability to deliver oxygen to the working muscles. Regular vigorous exercise produces a training effect that can increase your aerobic capacity by as much as 20 to 30%. An increased VO2 Max indicates an increased ability of the heart to pump blood, of the lungs to ventilate oxygen, and of the muscles to take up oxygen.

THE TRAINING THRESHOLD

This is the minimum level of exercise which is required to produce significant improvements in any physical fitness parameter.

OVERLOAD

This is where you exercise above your comfort level. The intensity, duration and frequency of exercise should be above the training threshold and should be gradually increased as the body adapts to the increasing demands. As your fitness level improves, the training threshold should rise. Working through your program and gradually increasing the overload factor is important.

PROGRESSION

As you become more fit, a higher intensity of exercise is required to create an overload and therefore provide continued improvement.

SPECIFICS

Different forms of exercise produce different results. The type of exercise that is carried out is specific to the muscle groups being used and to the energy source involved. There is little transfer of the effects of exercise, i.e. from strength training to cardiovascular fitness. That is why it is important to have an exercise program tailored to your specific needs.

REVERSIBILITY

If you stop exercising or do not do your program often enough, you will lose the benefits you have gained. Regular workouts are the key to success.

WARM-UP

Every exercise program should start with a warm-up where the body is prepared for the effort to come. It should be gentle and preferably use the muscles group to be involved later. Stretching should be included in both your warm-up and cool down, and should be performed after 3-5 minutes of low intensity aerobic activity or callisthenic type exercise.

This involves a gradual decrease in the intensity of the exercise session. Following exercise, a large supply of blood remains in the working muscles. If it is not returned promptly to the central circulation, pooling of blood may occur in the muscles.

HEART RATE

As you exercise, your heart beat increases. This is often used as a measure of the required intensity of an exercise. You need to exercise hard enough to condition your circulatory system, and increase your pulse rate, but not enough to strain your heart.

Your initial level of fitness is important when developing an exercise program for you. When starting, you can get a good training effect with a heart rate of 110-120 beats per minute (BPM). If you are more fit, you will need a higher threshold of stimulation.

To begin with, you should exercise at a level that elevates your heart rate to about 65 to 70% of your maximum. If you find this is too easy, you may want to increase it, but it is better to lean on the conservative side.

As a rule of thumb, the maximum heart rate is 220 minus your age. As you increase in age, your heart, like other muscles, loses some of its efficiency. Some of its natural loss is won back as fitness improves. The following table is a guide to those who are “starting fitness.”

Age	Target	Heart	Rate			25		30	35	40	45	50	55	60
10	Second	Count		23		22		22	21	20	19	19	18	18
Beats per Minute		138	132	132	126	120	114	114	108	108

PULSE COUNT

The pulse count (on your wrist or carotid artery in the neck, taken with two index fingers) is done for ten seconds, taken a few seconds after you stop exercising. This is for two reasons: (a) 10 seconds is long enough for accuracy, (b) the pulse count is to approximate your BPM rate at the time you are exercising. Since heart rate slows as you recover, a longer count isn't as accurate.

The target is not a magic number, but a general guide. If you're above average with your fitness, you may work comfortably a little above that suggested for your age group. The following table is a guide.

Age	Target	Heart	Rate	25			30	35	40	45	50	55	60
10	Second	Count	26	26	25	24	23	22	22	21	20
Beats	per	Minute	156	156	150	144	138	132	132	126	120

Don't push yourself too hard to reach the figures on this table. It can be very uncomfortable if you over exercise. Let it happen naturally as you work through your program. Remember, the target is a guide, not a rule, a little above or below is just fine.

Two final comments: (1) don't be concerned with day to day variations in your pulse rate, being under pressure or not enough sleep can affect it; (2) your pulse rate is a guide, don't become a slave to it.

MUSCLE SORENESS

For the first week or so, muscle soreness may be the only indication you have that you are on an exercise program. This, of course, does depend on your overall fitness level. A confirmation that you are on the correct program is a very slight soreness in most major muscle groups. This is quite normal and will disappear in a matter of days.

If you experience major discomfort, you may be on a program that is too advanced, or you have increased your program too rapidly.

If you experience PAIN during or after exercise, your body is telling you something. Stop exercising and consult your doctor.

WHAT TO WEAR

Wear clothing that will not restrict your movement in any way while exercising. Clothes should be light enough to allow the body to cool. Excessive clothing that causes you to perspire more than you normally would give you no advantage. The extra weight you lose is body fluid and will be replaced with the next glass of water you drink. It is advisable to wear a pair athletic shoes.

BREATHING DURING EXERCISE

Do not hold your breath while exercising. Breathe normally as much as possible. Remember, breathing involves the intake and distribution of oxygen, which feeds the working muscles.

REST PERIODS

Once you start your exercise program, you should continue through to the end. Do not break off halfway through and then restart at the same place later on without going through the warm-up stage again. The rest period required between exercises may vary from person to person.

SUGGESTED STRETCHES

Head Rolls

Rotate your head to the right for one count while feeling the stretch up the left side of your neck. Next, rotate your head back for one count, stretching your chin to the ceiling. Rotate your head to the left for one count, and finally, drop your head to your chest for one count.

Shoulder Lifts

Lift your left shoulder up toward your ear for one count. Then lift your right shoulder up for one count as you lower your left shoulder.

Side Stretches

Open your arms to the side and continue lifting them until they are over your head. Reach your left arm as far upward as you can for one count. Feel the stretch up your left side. Repeat this action with your right arm.

Quadriceps Stretch

With one hand against a wall for balance, reach behind you and pull your left foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with right foot up.

Simple line drawing of a human figure with no text or symbols

Line drawing of a person wearing a high-brimmed top and necklace (no text or symbols)

Line drawing of a person performing a stretching exercise with arms raised (no text or symbols)

Line drawing of a woman in athletic wear performing a stretching pose (no text or symbols)

SUGGESTED STRETCHES

Inner Thigh Stretch

Sit with the soles of your feet together with your knees pointing outward. Pull your feet as close into your groin as possible. Gently push your knees towards the floor. Hold for 15 counts.

Line drawing of a person in a seated posture, possibly performing a stretching or exercise (no text or symbols)

Toe Touches

Slowly bend forward from your waist, letting your back and shoulders relax as you stretch toward your toes. Reach down as far as you can and hold for 15 counts.

Line drawing of a person in a forward bend yoga pose (no text or symbols)

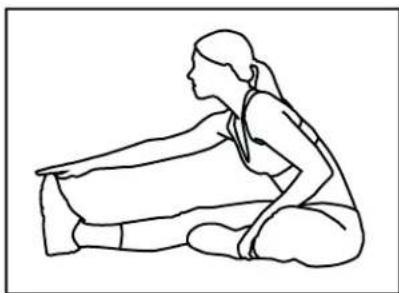

Hamstring Stretches

Sit with your right leg extended. Rest the soles of your left foot against your right inner thigh. Stretch toward your toes as far as possible. Hold for 15 counts. Relax and then repeat with left leg extended.

Line drawing of a seated woman in a kneeling pose, viewed from the side (no text or symbols)

Calf/Achilles Stretches

Lean against a wall with your right leg in front of the left and your arms forward. Keep your left leg straight and the right foot on the floor; then bend the right leg and lean forward by moving your hip toward the wall. Hold, then repeat on the other side for 15 counts.

Line drawing of a person in motion, possibly dancing or gesturing (no text or symbols)

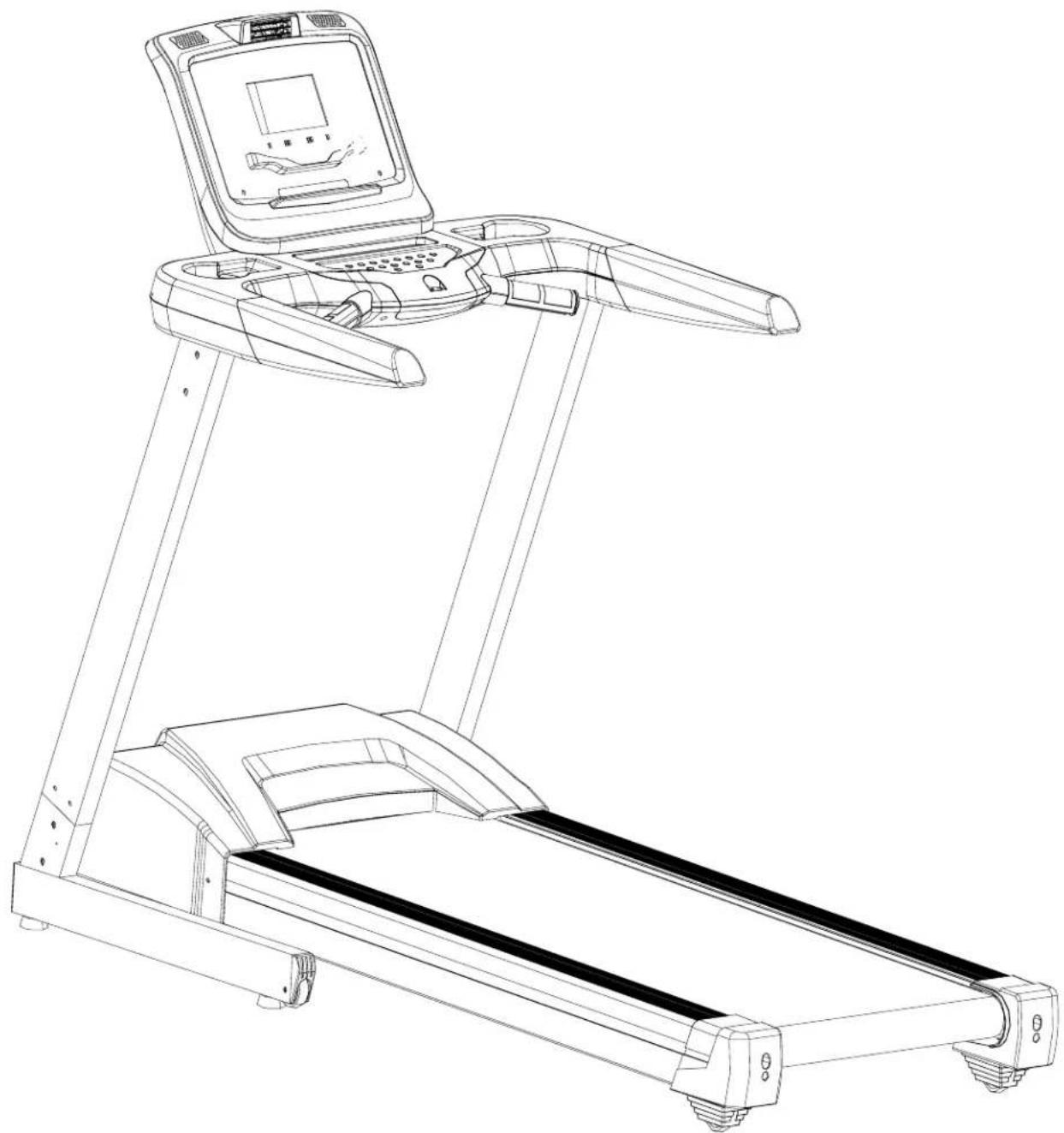

OVERVIEW

Line drawing of a treadmill with open lid and side-mounted screen (no text or symbols)

The assembly of this product requires two or more people. When assembling the uprights, one person should hold the uprights to prevent them from falling.

ASSEMBLY INSTRUCTIONS

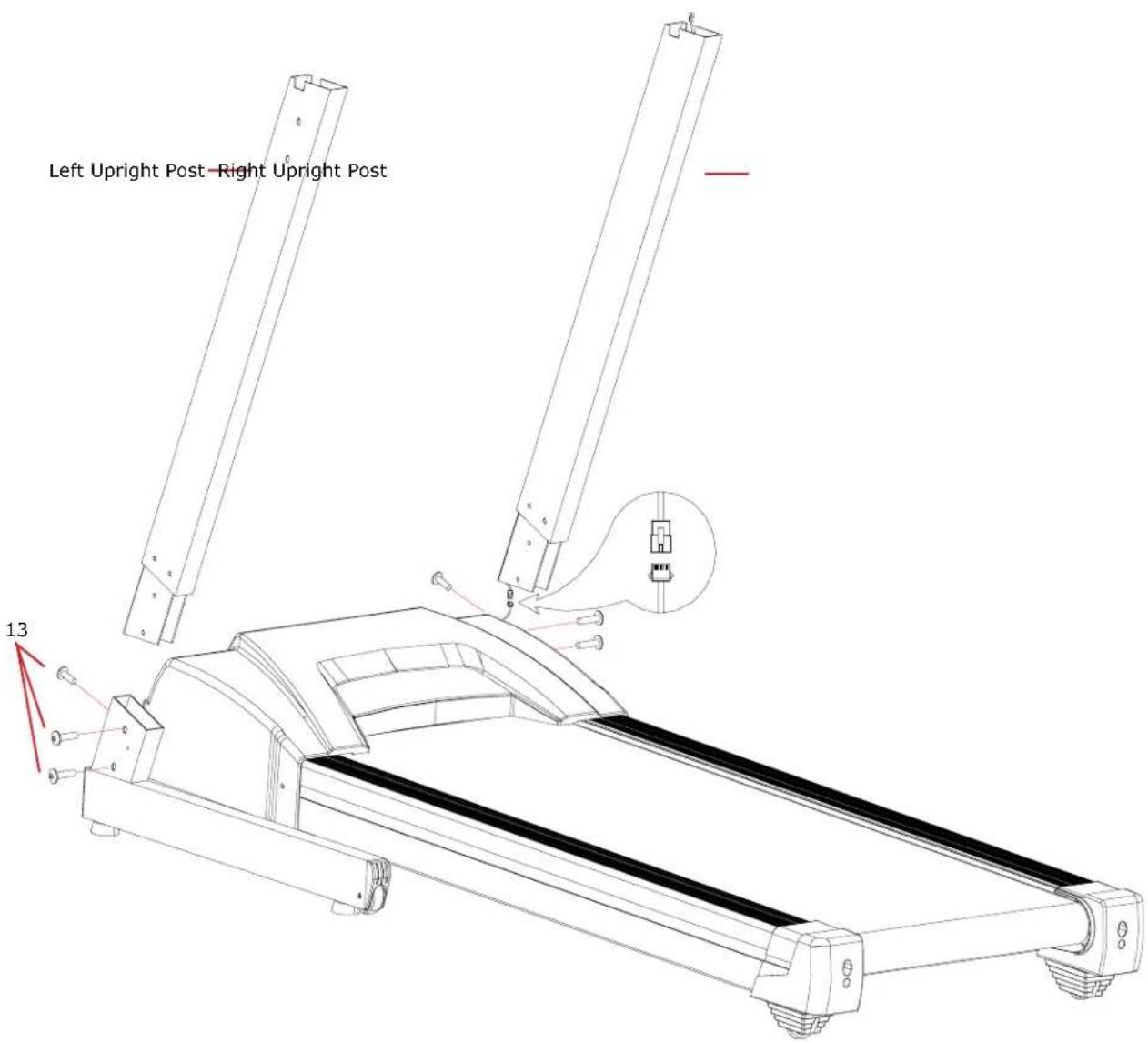

STEP 1 (this step will require two people)

Take the treadmill and the parts from the carton. Take the right upright post and connect the wire on the bottom of the post with the wire in the bracket at the front right of the machine. After connecting the wires, slide the right upright post into the right bracket. Make sure not to pinch the wires. Take the left upright post and place it in the left bracket. Secure the posts with 6 pcs of Screws (13). Leave them hand tight.

Left Upright Post - Right Upright Post 13

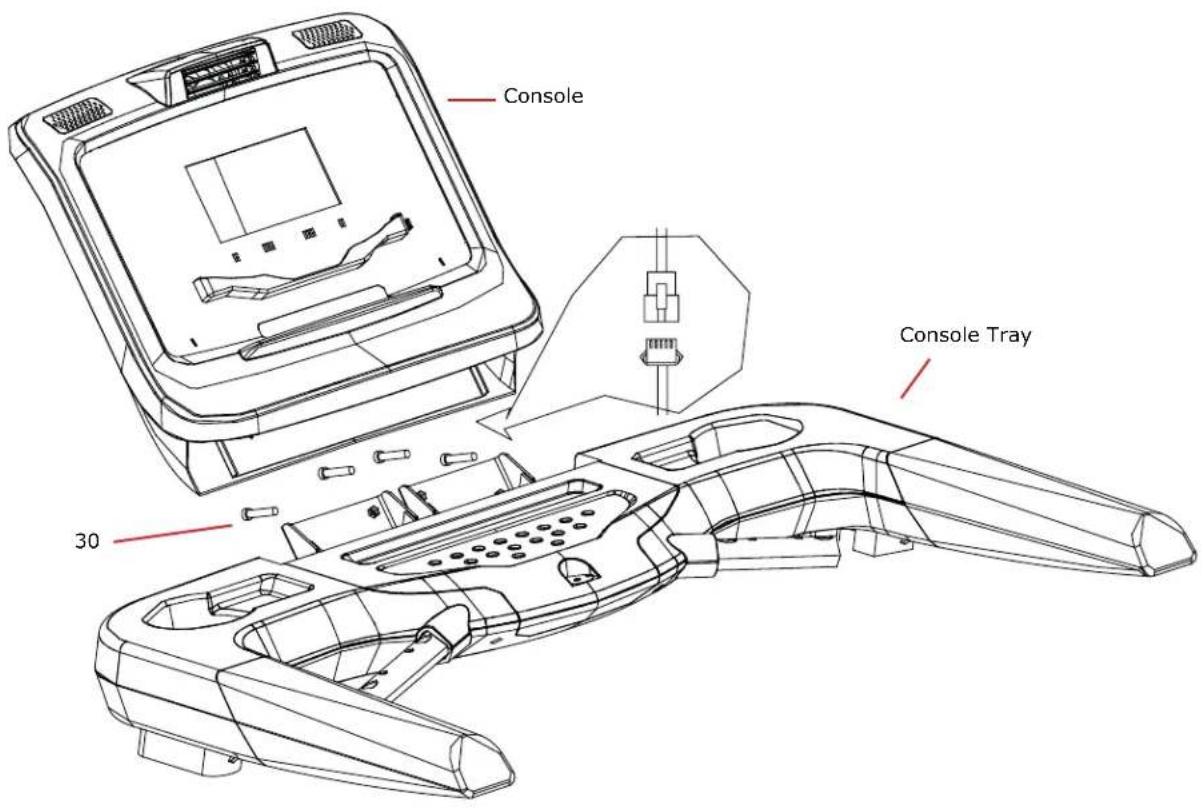

STEP 2

Connect wires from the console to the wires from the console tray. After connecting the wires, tuck them into the console. Secure the console housing with 4pcs Screws (30). Make sure not to pinch the wires when tightening down the console.

Console 30 Console Tray

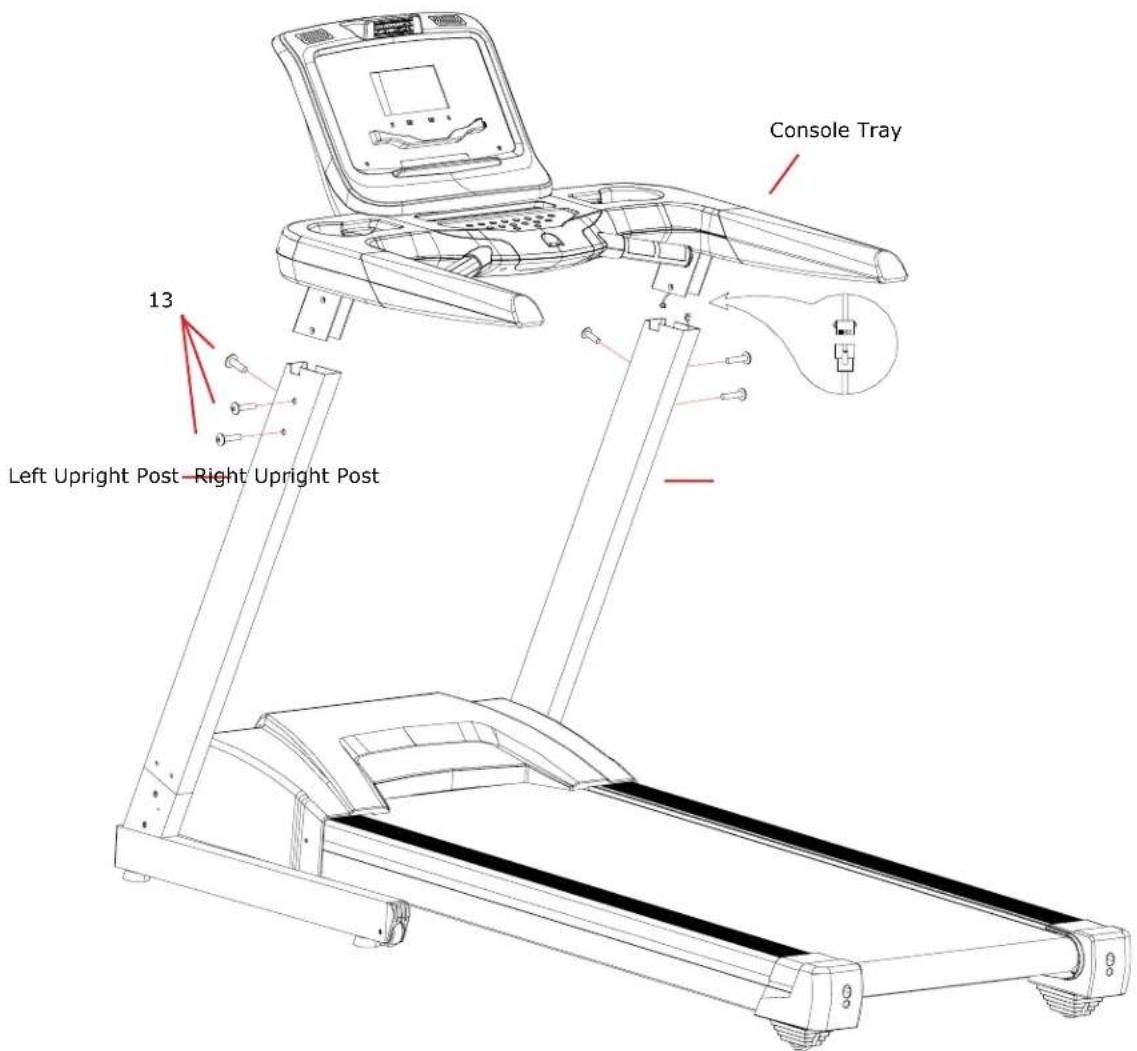

STEP 3 (this step will require two people)

Connect the wire in the right upper end of the upright post with the wire from the bottom right console tray bracket. Slide the left and right console tray brackets into the upright posts. Align the holes in the console tray brackets with the upright post holes and secure them with 6pcs of Screws (13).

TIP: If you are having trouble getting the console tray into the upright posts, make sure that the screws at the bottom of the upright posts are loose. This gives some play in the upright posts and you can seat the console tray more easily.

Console Tray 13 Left Upright Post - Right Upright Post

STEP 4

Tighten the screws on the upright posts where they connect to the frame and console tray. There should be 12 total screws. Once you have done that, installation is complete.

Line drawing of a standard treadmill with open lid and side-mounted legs (no text or symbols)

BELT ADJUSTMENTS

To adjust the running belt, stop the treadmill, then use the Hex Wrench and adjust the Hex Screw located in the Rear End Cap. If the running belt is moving towards the left side, tighten the left Hex Screw about 1/4 turn (clockwise); if the running belt is moving towards the right side, tighten the right Hex Screw about 1/4 turn (clockwise); Turn the treadmill on after it has been adjusted. If you find that the belt has not moved to the proper position, please repeat the steps above. Don't use the treadmill until the running belt returns to the center position.

The position of running belt might not stay precisely in the center, it can and will shift slightly towards the left and right sides, however, you do not need to adjust the belt if it is not rubbing against the side rails.

Depending on the usage of the product, please apply silicon according to the chart to the right. Use the Hex Wrench to unscrew the bolt inside the Rear Roller. Then pull the belt up and put some silicon to the center of the board. After that, adjust the belt to the center of the deck, followed by tightening the screw to the original set.

When the belt is sliding, please follow the above method to lubricate the running board.

Technical line drawing of two mechanical components connected by a rod, with a separate gear mechanism shown in the corner (no text or symbols)

Technical line drawing of a mechanical clamp or clamp device with no visible text or symbols

Silicon Chart

KGS/LBS Speed Interval
KGS	6KM/hr Below	1 year
	6~12KM/hr 6 months
	12KM/hr Above	3 months
LBS	4mile/hr Below	1 year
	4~8mile/hr 6 months
	8mile/hr Above	3 months
Note: This maintenance is intended for household use. If used for business, it is suggested to examine the product every other month.

CONSOLE OPERATIONS

GETTING STARTED: SWITCHING FROM MPH TO KM AND VICE VERSA

1. When taking out the safety key, E-07 will appear on the screen. Press the PROGRAM and MODE button at the same time.
2. MPH (M) and KM (KM) will appear on the screen. Choose according to preferences.
3. Release the PROGRAM and MODE buttons. The screen will light up and the E07 will once again, appear on screen.
4. Place the safety key back in the treadmill to start the machine operation.

QUICK START

1. The LCD will display the following:
   Distance, Time, Speed, Calories, Heartbeat, Incline.
2. To QUICK START: Stop > Program > Press any of these buttons: Speed+, Speed-, Incline+, Incline-, Fan, ECO, Instant speed keys button: 2/6/10M/H, and Instant incline keys: 4,8,12%.

BUTTON DESCRIPTIONS

A. P01-P02-P03-P04-P05-P06-P07-P08-P09-P10-P11-P12-HRC-Program: When treadmill stops, press 'Program' to choose 'Manual-P01-P02-P03-P04-P05-P06-P07-P08-P09-P10-P11-P12-HRC-Body fat' programs in a circle.
B. Mode: please refer to below 'body fat function' description.
C. Stop: Stop the treadmill.
D. Speed+: While setting a program, this button will increase a setting value and when the motor is running, it is used to increase the running speed.
E. Speed-: While setting a program, this button will decrease a setting value and when the motor is running, it is used to decrease the running speed.
G. Incline+: Increases the incline angle
H. Incline-: Decreases the incline angle
I. Instant SPEED keys: provides an instant and easy speed change to 2/6/10M/H
J. Instant INCLINE keys: provides an instant and easy incline change to 4,8,12%.
K. Fan: turns fan off/on
L: Start: on/off ECO function.

CHOOSING AND STARTING A PROGRAM

1. Program description:

A. One Manual program:
Normal, time count-down, calories count-down, distance count-down.
B. P01, P02, P03, P04, P05, P06, P07, P08, P09, P10, P11, P12: 12 pre-set programs.
C. One body fat program.
D. One HRC program.

1. How to start:

A. Place the safety key in place. The LCD screen will light up for 2 seconds, the beeper will then make a sound. You can now enter into the Manual Program mode.
B. Press 'START'. To start without any settings, press "QUICK START", and the time window will display: 3-2-1, then the treadmill starts.

MANUAL PROGRAM MODE

1. Entering into the manual mode:

A. Press the ON switch. Manual mode is the default mode setting, so it will be the first screen you will encounter.

1. Time, Distance, and Calorie Setting:

A. When entering into the manual program, the time window will display 0:00
B. Under the Manual program, press ‘Mode’ to enter into Time count-down mode. The time window flashes and the initial value is 30:00. Press ‘Speed+/Speed-’ to set the desired exercise time. The range is 5:00-99:00 minutes.
C. Under the TIME count-down mode, press 'Mode'. This takes you to the CALORIES count-down mode. The initial calorie value is 50kal. Press the 'Speed+/Speed-' to set the calories range: 5-999 calories.
D. Under the CALORIES count down mode, Press 'Mode'. This takes you to the DISTANCE count-down mode, and the initial value is 1 mile. Press 'Speed+/Speed-' to set the desired distance. The range is 1-99 miles.

1. Operating the Manual Mode:

A. Press start, after 3 seconds, the machine will start at an initial speed of 0.6MPH.
B. Press Speed+/- to adjust the speed.
C. Press Incline+/- to adjust incline.
D. Press the "STOP" button to stop the treadmill.
E. Press INSTANT SPEED keys to set speed.
F. Press INSTANT INCLINE keys to set incline.
G. For an emergency stop or to stop immediately, pull off the safety key. The screen

will display: E07 while the beeper will make a sound. This machine will come to a complete stop within 3 seconds.

H. When the count down hits zero for time, speed, calories, and distance all halt and the display will read "END". This means that the countdown is complete.

PROGRAM

1. Initial time is 30:00, time range: 5:00-99:00 minutes. Press speed +/- button to adjust time.
2. Press 'start', and the treeadmill starts at the preset speed.
3. Press speed+/- to adjust speed.
4. Press incline+/- to adjust incline.
5. Press the instant speed keys to set speed instantly.
6. Press the instant incline keys to set incline instantly.
7. Each program is divided into 10 segments, every segment lasts 1/10 of total time.
8. The machine will make a sound when entering into the next segment.
9. Press the stop key to stop the treadmill.
10. When the time counts down to zero, the speed will slow down to zero, and the console will display 'End'.

BODY FAT PROGRAM

1. When on the main screen, press the 'PROGRAM' key to navigate to the BODY FAT function.
2. The distance window will display the setting value, and the calories window will display the parameter.
3. SETTING GENDER: After entering into body fat function, calories window will display: 01 (gender: male), and can be changed into 02 (gender: female) by pressing the UP/DOWN Speed buttons.
4. SETTING AGE & CALORIES: Press Mode to set age, calories window will display:02, distance window will display 25(years old), These can all be adjusted by pressing the UP/DOWN Speed buttons.
5. SETTING HEIGHT: Press Mode to set height, calories window will display: 03, distance window will show: 68(inches), press the UP/DOWN Speed buttons to adjust height (40-80inches).

6. SETTING WEIGHT: Press Mode to set weight, calories window will display: 04, distance window will show 154 pounds, press the UP/DOWN Speed buttons to adjust the weight (44-330 pounds)

7. BODY FAT RATE: Press Mode to enter into body fat function, calories window will display: 05, distance window will show 00 (body fat rate). To display the body fat rate: place two hands on the handle pulse sensor for about 8 seconds, distance window will then show the user's body fat rate.

8. To start the fan, press the on/off fan button. It can also be turned off when the safety key is removed and placed back again, as well as pressing the STOP button.

PARAMETERS

Time (minute:second)	Initial value Set initial value	Setting range Display range
Time 0:00 30:00 5:00-99:00 0:00-99:59

Speed MH 0.0 N/A	N/A	0.6-11
Incline (%)	00	N/A	N/A	00-15
Distance(KM)	0.0 1.00	1-99	0.0-99.9
Calories(Cal.)	0	50	50-999	0-999

PROGRAM PARAMETERS: M/H

	P1		P2		P3		P4		P5		P6
	Golf Course Walk		Interval (Beginner)		Interval (Intermediate)		Interval (Advanced)		Interval (Professional)		Calorie Burner
No.	Speed	Incline	Speed	Incline	Speed	Incline	Speed	Incline	Speed	Incline	Speed	Incline
1	1.8	0	1.2	0	1.2	0	2	0	2.5	0	2.5	3
2	2.2	0	1.2	0	3.1	0	4.3	0	6.5	0	3	4
3	2.5	1	3.1	2	5.6	4	7.2	5	9.5	6	3.5	5
4	2.5	4	1.2	0	3.1	0	4.3	0	6.5	0	4	6
5	2.5	3	3.1	2	5.6	4	7.2	5	10	6	4.5	7
6	2.5	3	1.2	0	3.1	0	4.3	0	6	0	4.5	8
7	2.5	4	3.1	2	5.6	4	7.5	5	10.5	6	4.5	9
8	2	2	1.2	0	3.1	0	4.3	0	6	0	4.5	10
9	1.8	1	3.1	2	5.6	4	7.5	5	10.5	1	4.5	11
10	1.2	0	1.2	0	2	0	2	0	2	0	1.8	0

	P7		P8		P9		P10		P11		P12
	Weight Loss(Beginner)		Weight Loss(Intermediate)		Hill Run		Hill Climb		Rolling Hills		Speed Run
No.	Speed	Incline	Speed	Incline	Speed	Incline	Speed	Incline	Speed	Incline	Speed	Incline
1	2	0	3	1	3.2	0	1.2	0	1.2	0	3	0
2 2.5	1 3.5 2 3.7	1 1.7 1 3.	1 1 4 0
3 3 1	4 2 4.2 2 2.	2 2 4.3 2	5 0
4 3.5	2 4.5 3 4.7	3 2.7 3 5.	6 3 6 0
5 4.5	3 5.5 4 5.2	4 3.2 4 6.	8 4 7 0
6 5.5	4 6.5 5 5.7	5 3.7 5 3.	1 3 8 0
7 4.5	3 5.5 4 6.2	6 4.2 6 4.	3 2 9 0
8 4 2	4.5 3 6.7 7	4.7 7 5.6	2 10 0
9 3.5	1 3.5 2 7.2	8 5.2 8 3.	1 1 11 0
10 3 0	1.8 1 1.8 0	1.2 0 1.8	0 1.5 0

SETTING INFORMATION

1. Age setting: 15-80 years old.
2. (220-AGE) X 0.9. Target heart rate setting: 80: (220-AGE) X 0.9
3. Maximum heart rate can not exceed the limit:220-AGE.
4. Heart rate minus=target heart rate-user's heart rate
5. HRC program only acknowledges a wireless heart rate. When a user uses hand pulse the HRC program will not recognize.
6. The incline will not change when running, it can be user-defined.

SETTING THE HRC PROGRAM

1. Press program to choose HRC program while the treadmill is not running. The program window will show HR. It has entered into the HRC program when window shows 13. Press the speed +/- button to set the time, when the time value flashes in the HRC program it will show "30:00" Minutes. The time range is 5-99 minutes.
2. Under the time setting, press Mode to set age, the time value will then flash to show age 25. Press the speed +/- button to set the age of the user. The age range is 15-80 years old.
3. Press Mode to set target heart rate, the time value will flash to show a sport target heart rate. Press the speed +/- button to set the sport target. The range is 80-(220-AGE) X0.9.
4. Press Mode to set time.
5. Press START to operate.

OPERATING THE HRC PROGRAM

1. Press the START key to run. The initial speed will be 0.6 MPH, while the initial incline is 0.
2. Treadmill will run for 1 minute within a speed of 0.6 MPH.
3. After 1 minute, calculate the heart rate minus (target heart rate-user's heart rate), comparing with 30:

A: (target heart rate-user's heart rate) > 30, speed will increase 1.2 MPH.

BH

B: (target heart rate-user's heart rate)<30, speed will increase 0.6 MPH.
C: (user's heart rate-target heart rate)>30, speed will reduce 1.2 MPH.
D: (user's heart rate-target heart rate)<30, speed will reduce 0.6 MPH.

1. The machine will do this evaluation every 30 seconds.

2. If the user's heart rate exceeds (220-AGE), the speed will slow down to 0.6 MPH immediately and run for 15 seconds. An alarm will sound every second, then the treadmill will stop.

3. If the pulse handle is not in use, the speed will not change. If after two 30 second evaluations and there is no heart rate signal detected, the speed will slow down to 0.6 MPH and run for 15 seconds with an alarm every second until stopped.

COMMON ERRORS AND SOLUTIONS

PROBLEM POSSIBLE CAUSE SOLUTION
Treadmill does not work	a. No connected to power supply	Plug into socket
	b. Safety key not inserted Insert safety key
	c. Signal not being received Check	connections to lower control board
	d. Treadmill is not on Switch on
	e. Fuse is broken Change the fuse
Belt does not run properly	a. Running belt needs lubrication	Lubricate board with silicon
	b. Running belt is too tight Adjust	running belt
Belt is slipping	a. Running belt is too loose Adjust	running belt
	b. Motor belt is too loose Adjust the motor belt

1. ELECTRONIC ERROR: E01

A: E01: The lower control board is having difficulty communicating with the console.
B: Solution: Check the 4 lines that connect the console and see if they are connected properly. Check for pinched, damaged, or loose cables. Secure the cable connections if they are loose, replace the cables if damaged.

2. ELECTRONIC ERROR: E02

A: E02: The lower control board does not detect motor voltage.
B: Solution: Check the + and - connection wires. Make sure they are connected to the + and - terminals and that the wires are not damaged.

3. ELECTRONIC ERROR: E03

A: E03: No speed signal is detected

B: Solution: Check to see if the speed sensor is connected securely. Check to see if the sensor is in line with the magnet on the motor and the gap between them is 3-5mm. If the problem persists, change the speed sensor.

4. ELECTRONIC ERROR: E05

A: E05: Motor current is over limited.
B: Solution: Visually inspect the motor to see if it turns freely. Make sure that there is nothing obstructing the movement of the running belt on rollers. If the problem persists, change the motor.

5. ELECTRONIC ERROR: E06

A. E06: Incline Motor Problem
B. Solution: Recalibrate incline motor

6. ELECTRONIC ERROR: E07

A: E07: Safety key is not detected.
B: Solution: Make sure that the safety key is installed. If problem persists, replace the safety key.

DOWNLOADING APPS AND

PAIRING YOUR DEVICE WITH YOUR EQUIPMENT

DOWNLOADING THE SOFTWARE

Connect the Apple device with the App Store (iTunes) or your Android Device with Google Play, search for "Pafers", then read the APP introductions and Download the APPs with bicycle/elliptical machine functions to your device. Note: if you download an APP for a treadmill and pair it with an Elliptical it will not work.

• The App uses bluetooth mode, so please make sure the machine and device you are using has the optional DUALKIT installed. See BH DualKit installation on this page.
• The App contains the following functions, the user must open a 3G network or wi-fi network:

(a) Managing Data - After completing the registration in the "Pafers" App, log on to your personal account. Now that you have registered you can record all of your workout data and save it to your device.

(b) Some APPs need connection to Google maps in order to function correctly.

BH DUALKIT INSTALLATION

1. To Access iConcept compatible apps, an optional (purchased separately) BH DualKit Module is required.

INSTALLATION:

1.) There should be a blue square on the front of the console that says "DualKit". This is where the DualKit Module plugs in.
2.) Select the appropriate BH DualKit Module. On the front of the module, it will say the machine type and on the back of the module it will say if it is a SMART or CLASSIC type. There are 3 types of modules:

a.) Bike & Elliptical - Classic

b.) Treadmill - Classic

c.) BH DualKit - Works for all machine types

3.) Make sure the USB part is extended from the module.

- Push up on the sides of the DualKit Module (Fig. 1)

- The USB Port should extend out of the bottom of the module (Fig. 2)

4.) Push the module in the USB slot on the front of the console (Fig. 3)

PAIRING THE BLUETOOTH DEVICE WITH AN APPLE DEVICE

1. Place the Apple Device on the area in front of the LCD screen.

2. Enter into settings and turn Bluetooth on.

3. Your Apple Device will detect all Bluetooth devices within range (following on screen instructions), click on the appropriate bluetooth device name and confirm your connection.

4. After pairing successfully, please start the APP within 2 minutes, if you do not, Bluetooth will automatically cancel the pairing. Please keep the Apple Device within a range of 2 meters for best quality connection. If you see “not connected,” please perform the above steps again.

5. Press the Apple Device home button, the screen will return to the desktop.

6. Start the APP you downloaded. When the APP connects with the equipment successfully, the APP screen buttons will unlock. Start from APP interface using a variety of modes to control the exercise equipment. Pay attention to the APP instructions and function introduction. If you need help with the APP, please browse the APPs download page description or contact Pafers for instructions.

7. When you are done using the APP, please press the HOME button on the Apple Device twice and close the APP.

PAIRING THE BLUETOOTH DEVICE WITH AN ANDROID DEVICE

1. Place the Android Device on the area in front of the LCD screen.
2. Enter into settings and turn Bluetooth on.
3. Your Android Device will detect all Bluetooth devices within range (following on screen instructions), click on the appropriate bluetooth device name and confirm your connection.
4. After pairing successfully, please start the APP within 2 minutes, if you do not, Bluetooth will automatically cancel the pairing. Please keep the Android Device within a range of 2 meters for best quality connection. If you see “not connected,” please perform the above steps again.
5. Press the home button, the screen will return to the desktop.
6. Start the APP you downloaded. When the APP connects with the equipment successfully, the APP screen buttons will unlock. Start from APP interface using a variety of modes to control the exercise equipment. Pay attention to the APP instructions and function introduction. If you need help with the APP, please browse the APPs download page description or contact the third party for instructions.
7. When you are done using the APP, please press main screen button on the Android Device twice and close the APP.

COMPATIBLE DEVICES

Android

Bluetooth & App Enabled Android Device

Apple Products

iPod touch (4th generation) iPod touch (3rd generation)

iPhone	5	iPhone	4S
iPhone	4	Mini	iPad
iPad		iPad	2

BH Fitness i. Concept Bluetooth products are compatible with Apple devices with iOS 5.1 or later. It is recommended to update iOS to the latest version to obtain the best user experience.

iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch, is a registered trademark of Apple, Inc., in the United States and other countries.

“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory

has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

MAINTENANCE AND CLEANING

Care has been taken to assure that your equipment has been properly adjusted and lubricated at the factory. It is not recommended that the user attempt service on the internal components. Instead, seek service from an authorized service center. However, you may clean the outer surface. Use a soft cloth, dampened with warm water. Do not use aerosol sprays or pump bottles as they may deposit sediments upon the console surface. The use of harsh chemicals will destroy the protective coating and cause a static build-up that may damage the some of the components.

MACHINE INFORMATION AND RECOMMENDATION

• It is recommended that the machine run on a 15-20 A, 110-120 V dedicated circuit.
• Equipment must be connected to electrical circuits with an earth/ground connection. If not, the user risks receiving an electric shock.
• Treadmills are not compatible with GFCI (Ground Fault Circuit Interrupt) plugs.
  • Each machine has a breaker that will engage at 15 Amps.
  • Power cord length is 72 inches (6ft)

SPECIFICATIONS

• Blue Backlit LCD Display
• Bluetooth Enabled i.Concept Technology
• Polar® Heart Rate Strap Compatible
• Contact Heart Rate Grips
• Cooling Fan
  • 15 Built-in Programs
• 22" x 55" Running Surface
• 0-11 MPH
• 0-12% Incline
  • 3.0 HP Motor
• 2" Rollers

• Active-Flex II Suspension
- Removable Safety Key
- Removable Water Bottle Holders
• Max User Weight: 350 lbs.
• Treadmill Weight: 233 lbs.
- Step Up Height: 6.5"
• Length (75in) Width (37 in.) Height (57in.)

EXPLODED VIEW DRAWING

G01 27 31 29 29 29 29 27 25 25 29 19 6 28 98 100 G03 35 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 27 101 G04 33 G04 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16

PARTS LIST

To order replacement parts: provide your customer service representative with the product model number and the part number located on the Parts List below, along with the quantity you require.

No.	Description	Qty	SpacerHydraulic 1	No.	Description	Qty
S3TiB-1 Base	frame 1 S3TiB-52 Hex self-locking nut M10 6
S3TiB-2 Main	frame 1 S3TiB-53 Allen C.K.S. half thread screw M10*65 1
S3TiB-3	Incline frame	1		S3TiB-54	Flat washer Φ10	5
S3TiB-4	Upright post (L & R)	2		S3TiB-55	Allen C.K.S. half thread screw M10*55	4
S3TiB-5 Computer frame		1 S3TiB-56		S3TiB-57	Allen C.K.S. half thread screw M8*40	3
S3TiB-6	Console bracket	1		S3TiB-58	Spring	1
S3TiB-7 Foot pedal release		1 S3TiB-58		S3TiB-60	Plastic bushing	1
S3TiB-8 Motor base frame		1 S3TiB-59		S3TiB-61	Plastic bushing	1
S3TiB-9	External extension tube frame	1		S3TiB-62	Side rail	2
S3TiB-10	Internal extension tube frame	1		S3TiB-63	Lower control board	1
S3TiB-11	Runing desk reinforcing rib	1		S3TiB-64	Phillips C.K.S. self-tapping screw	2
S3TiB-12	Adjustable foot	4		S3TiB-65	Wire protector	1
S3TiB-13	Allen C.K.S. full thread screw M8*15	12		S3TiB-66	Wire L=100□red□	1
S3TiB-14	Transportation wheel	4		S3TiB-67	Power cord	1
S3TiB-15	Flat washer (Φ8)	22		S3TiB-68	Washer Φ5	1
S3TiB-16	Self-fixing bolt M8	9		S3TiB-69	Wire L-400□red□	1
S3TiB-17	Main cable L-1200	1		S3TiB-70	Wire L-400□black□	1
S3TiB-18	Controller cable L-800	1		S3TiB-71	Breaker switch	1
S3TiB-19	Console housing (front)	1		S3TiB-72	Power switch	1
S3TiB-20	End cap (front)	2		S3TiB-73	Cable ring	1
S3TiB-21	End cap (rear)	2		S3TiB-74	Motor belt	1
S3TiB-22	Handle pulse grip	2 pairs		S3TiB-75	Shock absorber Φ30×M6	4
S3TiB-23	Phillips C.K.S. self-tapping screw ST3*25	4		S3TiB-76	Cushion with holder	2
S3TiB-24	Foam grip (Left, right)	1 pair		S3TiB-77	Allen C.K.S full thread screw M8*10	4
S3TiB-25	Phillips C.K.S. self-tapping screw ST4*20	8		S3TiB-78	Allen C.K.S full thread screw M8*35	2
S3TiB-26	Phillips C.K.S. self-tapping screw ST4*15	8		S3TiB-79	End cap(left)	1
S3TiB-27	Phillips C.K.S. self-tapping screw ST4*16	46		S3TiB-80	End cap(right)	1
S3TiB-28	Phillips self-tapping screw ST3*10	6		S3TiB-81	Foot pad	2
S3TiB-29	Phillips C.K.S. steel self-tapping screw ST4*12	10		S3TiB-82	Phillips C.K.S. full thread screw M5*10	11
S3TiB-30	Allen socket full thread screw M6*25	4		S3TiB-83	Phillips C.K.S. full thread screw M5*15	4
S3TiB-31	Console housing (rear)	1		S3TiB-84	Front roller	1
S3TiB-32	Allen C.K.S. half thread screw M8*30	2		S3TiB-85	Allen socket head half thread screw M8*65	2
S3TiB-33	Cable L-700	1		S3TiB-86	Running deck	1
S3TiB-34	Rail pad	6		S3TiB-87	Allen countersunk full thread screw M6×30	6
S3TiB-35	Fan	1		S3TiB-88	Phillips countersunk self-tapping screw M8*25	2
S3TiB-36	Sensor bracket	1		S3TiB-89	Cable guide	2
S3TiB-37	Spacer	2		S3TiB-90	Side rail guide	6
S3TiB-38	Console tray (lower)	1		S3TiB-91	Rear roller	1
S3TiB-39	Safety Key	1		S3TiB-92	Allen socket full thread screw M8×75	2
S3TiB-40	Clinker	1		S3TiB-93	Running belt	1
S3TiB-41	Motor	1		S3TiB-94	Motor cover	1
S3TiB-42	Speed sensor	1		S3TiB-95	End cap Φ32	2
S3TiB-43	Allen C.K.S. half thread bolt M8*50	2		S3TiB-96	Allen socket head full thread screw M8*40	1
S3TiB-44	Phillips C.K.S. self-tapping full thread screw M4*6	2		S3TiB-97	Allen C.K.S. full thread screw M8*20	2
S3TiB-45	Phillips C.K.S. full thread screw M4*10	9		S3TiB-98	Fan plate	3
S3TiB-46	Allen socket full thread screw M8*50	1		S3TiB-99	Bracket (left)	1
S3TiB-47	Allen socket full thread screw M8*30	2		S3TiB-100	Bracket (right)	1
S3TiB-48	Square cushion	9		S3TiB-101	Banding	12
S3TiB-49	Hex full thread bolt M8*20	2		S3TiB-102	Back cover	1
S3TiB-50	Incline motor	1
S3TiB-51	Allen C.K.S. half thread bolt M10*45	1

PARTS LIST

To order replacement parts: provide your customer service representative with the product model number and the part number located on the Parts List below, along with the quantity you require.

No. Description Qty
S3TiB-103 Phillips	self-tapping screw ST4×15 12
S3TiB-104 Belt guide 2
S3TiB-105 Device	pad 1
S3TiB-106 Choke 1
S3TiB-107 Rail pad 4
S3TiB-108 T wrench 6mm 1
S3TiB-109 T wrench 5mm 1
S3TiB-110 Lubricant 1
S3TiB-G01 Console Assembly
S3TiB-G03 Console Board (PCB) 1
S3TiB-G03-01	Console Board	1
S3TiB-G03-02	Console board overlay	1
S3TiB-G03-03	Screen PCB board	1
S3TiB-G03-04	Clinker	8
S3TiB-G03-05	Ipad tray 1
S3TiB-G03-06	Phillips C.K.S. full thread screw M5*15	2
S3TiB-G03-07	MP3 socket cover	1
S3TiB-G04 Console tray assembly		1
S3TiB-G04-01	Console tray (upper)	1
S3TiB-G04-02	Console overlay	1
S3TiB-G04-03	PCB key board	1
S3TiB-G04-04	Safety key plate	1
S3TiB-G04-05	Safety post	1
S3TiB-G04-06	Safety yellow sticker	1
S3TiB-G04-07	Micro switch	1

WARRANTY

LIMITED RESIDENTIAL WARRANTY\*

BH Fitness will repair or replace, free of charge, at its option, parts that are defective as a result of material or workmanship. Lifetime replacement warranty coverage on frame and motor. Five (5) year on other parts. Labor warranty coverage is one (1) year. Warranty covers the original consumer purchaser only.

*Residential Disclaimer: Please note: The equipment that you are purchasing is intended for single-family home use only. Use of this equipment in a commercial environment shall void the warranty.

COSMETICS PARTS DISCLAIMER

For all products and all level of warranty, cosmetic parts shall be warranted for 1 year from date of purchase against manufactures defect. "Cosmetics" includes: External plastics, overlays/decals and covers.

THIS WARRANTY DOES NOT COVER

• Pre-delivery set-up.
• Components that require replacement due to dirt or lack of regular maintenance.
• Repairs necessary because of operator abuse or negligence or the failure to operate and maintain the equipment according to the instructions contained in the Owner's Manual.

For more detailed warranty information or to register your product warranty easily online, visit our website at: http://www.BHFitnessUSA.com

FOR WARRANTY REPAIRS, PLEASE DO NOT TAKE YOUR MACHINE BACK TO THE RETAIL STORE. CONTACT BH FITNESS FIRST.

BH North America Corporation

20155 Ellipse

Foothill Ranch, CA 92610

Phone: [phone]; Toll Free: 866.325.2339; Fax: [phone]

Web: www.BHFitnessUSA.com

Mon - Fri 8am - 5pm PST

S3TiB

Black treadmill with digital display and 'S3TI' branding, no visible text or symbols on the device itself.

GUIDE D'UTILISATION

TOUTES NOS FÉLICITATIONS!

CAUTION - Risk of injury to persons - To avoid injury, use extreme caution when at read instruction manus before using. CAUTION - to reduce the risk of injury from moving parts - unplug before servicing WARNING - to reduce risk of electric shock - unplug before cleaning or servicing. ATTENTION - Roque des blessures aux personnes - Pour after des blessures, as merchant sur ou hors d'une carrière mobile. Use le manuel d'achat ATTENTION - pour réduire le rhaque de blessures des slices mobiles - diordant AVERTISSEMENT - Pour réduire le risque du choc électrique - étranchez av WARNING - Misuse of this machine may result in serious injury. - Read User's Manual prior to use and follow all warnings and instructions. - Do not allow children on or around the machine. - Reduce belt speed in a controlled manner. - The user weight must not exceed 350 kg/158,7kgs - This product should always be used on a level surface. - Replace label if damaged, illegible or removed. - Do not use this machine outdoors. - This treadmill folds. Please stand 5 feet away when treadmill is unfolding. - Keep children away from treadmill when unfolding. - Let treadmill unfold on its own. WARNING Keep hands and fingers clear of this area.

RENSEIGNEMENTS RELATIFS À LA SÉCURITÉ

PRÉCAUTIONS

Simple line drawing of a human figure with no text or symbols

Line drawing of a person wearing a tank top and high-brimmed headband (no text or symbols)

Line drawing of a person performing a stretching exercise with one arm raised (no text or symbols)

Line drawing of a person performing a stretching exercise (no text or symbols)

ÉTIREMENTS SUGGÉRÉS

Line drawing of a person in a seated posture, possibly performing a stretching or kneeling motion (no text or symbols)

Flexions avant

Line drawing of a person in a forward bend yoga pose (no text or symbols)

Étirements des ischio-jambiers

Line drawing of a person in a seated posture, viewed from the side (no text or symbols)

Line drawing of a person in motion, possibly dancing or gesturing (no text or symbols)

VUE D'ENSEMBLE

Line drawing of a standard treadmill with open lid and side-mounted legs (no text or symbols)

Line drawing of a treadmill with open lid and side-mounted legs (no text or symbols)

RÉGLAGES DE LA COURROIE

Technical line drawing of two mechanical components connected by a rod, with a separate circular component and a tool nearby (no text or symbols)

Technical line drawing of a mechanical clamp or clamp device with a tool inserted, no visible text or symbols

Tableau silicone

MODE DE PROGRAMME MANUEL

BH North America Corporation

20155 Ellipse
