2900PSI - Pressure washer Generac - Free user manual and instructions

Product Type	Pressure Washer
Brand	Generac
Model	2900PSI
Maximum Pressure	2900 PSI (200 bar)
Water Flow Rate	3.8 gallons per minute (14.4 L/min)
Engine Type	4-stroke gasoline engine
Fuel Type	Unleaded gasoline (87 octane min, up to 10% ethanol)
Fuel Tank Capacity	Not specified (estimated ~1.5 L)
Engine Oil Capacity	Approximately 0.6 L (check dipstick)

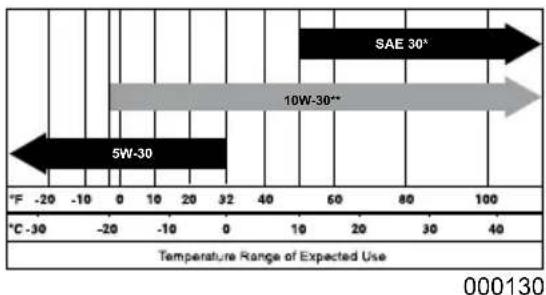

Recommended Engine Oil Type	SAE 10W-30 (depending on temperature)
High Pressure Hose Length	Not specified (estimated ~7.5 m)
Included Nozzles	4 nozzles: red (max), green (general), white (delicate), black (detergent)
Weight	Approximately 25 kg (estimated)
Dimensions (L×W×H)	Approximately 60 × 50 × 80 cm (estimated)
Main Features	High pressure cleaning with nozzle selection, detergent application, automatic cooling system (thermal relief)
Maintenance and Cleaning	Engine oil change every 20 hours, air filter cleaning, spark plug maintenance, rinse detergent tube after use
Safety	Trigger with lock, quick-connect nozzles, protection against liquid injection, hot surfaces, carbon monoxide
Spare Parts and Repairability	Available via Generac customer service 1-888-GENERAC; parts: spark plug, filters, hoses, nozzles
General Information	Warranty under conditions, online registration required. Outdoor use only.

Frequently Asked Questions - 2900PSI Generac

How to start the Generac 2900PSI pressure washer?

Make sure the water supply is connected (flow rate > 17.3 L/min). Turn on the fuel valve, close the choke, set the switch to ON, then pull the recoil starter. Once started, gradually open the choke.

What engine oil to use?

Use a quality detergent oil SJ or higher. Viscosity depends on temperature: SAE 30 for hot weather, 10W-30 for moderate weather, 5W-30 for cold weather.

How to apply detergent correctly?

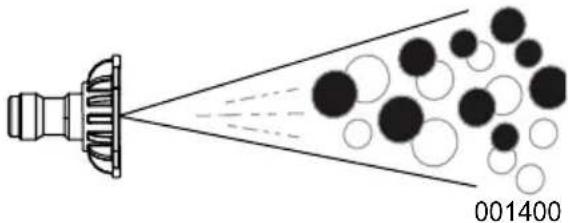

Install the black nozzle (detergent only). Dip the siphon tube into the solution. Start at the bottom of the surface and work upward with even strokes. Do not rinse immediately; let it sit for a few moments.

What to do if pressure is low or uneven?

Check if the nozzle is clogged (clean with a paperclip). Inspect the water inlet filter, high pressure hose, and ensure water supply is sufficient (> 3.8 GPM). Replace nozzle if necessary.

How to winterize or store the pressure washer?

Drain all water from the pump by pulling the recoil starter 6 times. Use Generac Pump Shield or RV antifreeze in the inlet hose. Add fuel stabilizer, drain oil, and store in a dry, frost-free location.

When and how to change engine oil?

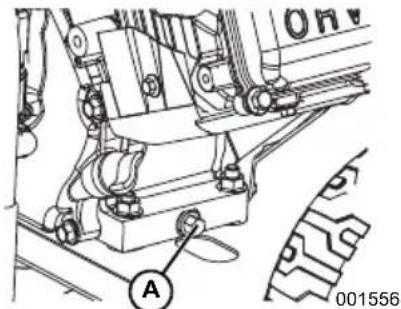

Change oil after the first 5 hours, then every 20 hours or each season. The engine should be warm. Disconnect spark plug, remove drain plug, let drain, then replace and fill with correct viscosity.

Can I use a standard garden hose?

Yes, but the length should not exceed 15.2 m to avoid pressure loss. Minimum flow rate required is 17.3 L/min at 206.8 kPa. Do not use a check valve.

What does the thermal relief system mean?

If the engine runs for more than 3 to 5 minutes without triggering the trigger, the pump heats up and automatically releases hot water onto the ground to cool it. This prevents pump damage.

How to clean the detergent siphon tube?

After each use, place the tube in a bucket of clean water with the black nozzle installed. Run the unit for 1 to 2 minutes to rinse. Turn off, release pressure, and store.

What are important safety precautions?

Never point the spray at people, animals, or electrical outlets. Wear safety goggles. Use only outdoors due to carbon monoxide. Hold the gun firmly with both hands to counter the kickback effect.

USER MANUAL 2900PSI Generac

Section 1 Introduction and Safety 1

Introduction 1

Safety Rules 1

Safety Symbols and Meanings ..... 2

Section 2 General Information and

Setup 3

Know Your Power Washer ...... 3

Emissions 3

Remove Contents from Carton ..... 3

Assembly 3

Add Engine Oil 4

Fuel 4

Water Supply 5

Connect Water Supply 5

Connect High-Pressure Hose and Lance 5

Spray Gun 6

Detergent Tank (if equipped) ...... 6

Nozzles 6

Section 3 Operation ...... 7

Operation and Use Questions ...... 7

Before Starting Engine 7

Prepare Power Washer for Use ..... 7

Power Washer Start-Up 7

Power Washer Shut Down 8

Apply Detergent 8

Rinsing 9

Clean Detergent Siphoning Tube .... 9

Automatic Cool Down System

(Thermal Relief) 9

Section 4 Maintenance and

Troubleshooting ....10

Maintenance Recommendations ...10

Maintenance Schedule 10

Pump Oil 10

Preventive Maintenance ....10

Engine Maintenance ....11

Service Spark Plug 12

Storage 13

Notes 16

! WARNING

Operating, servicing and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your equipment in a well-ventilated area and wear gloves or wash your hands frequently when servicing your equipment. For more information go to www.P65Warnings.ca.gov. (000393)

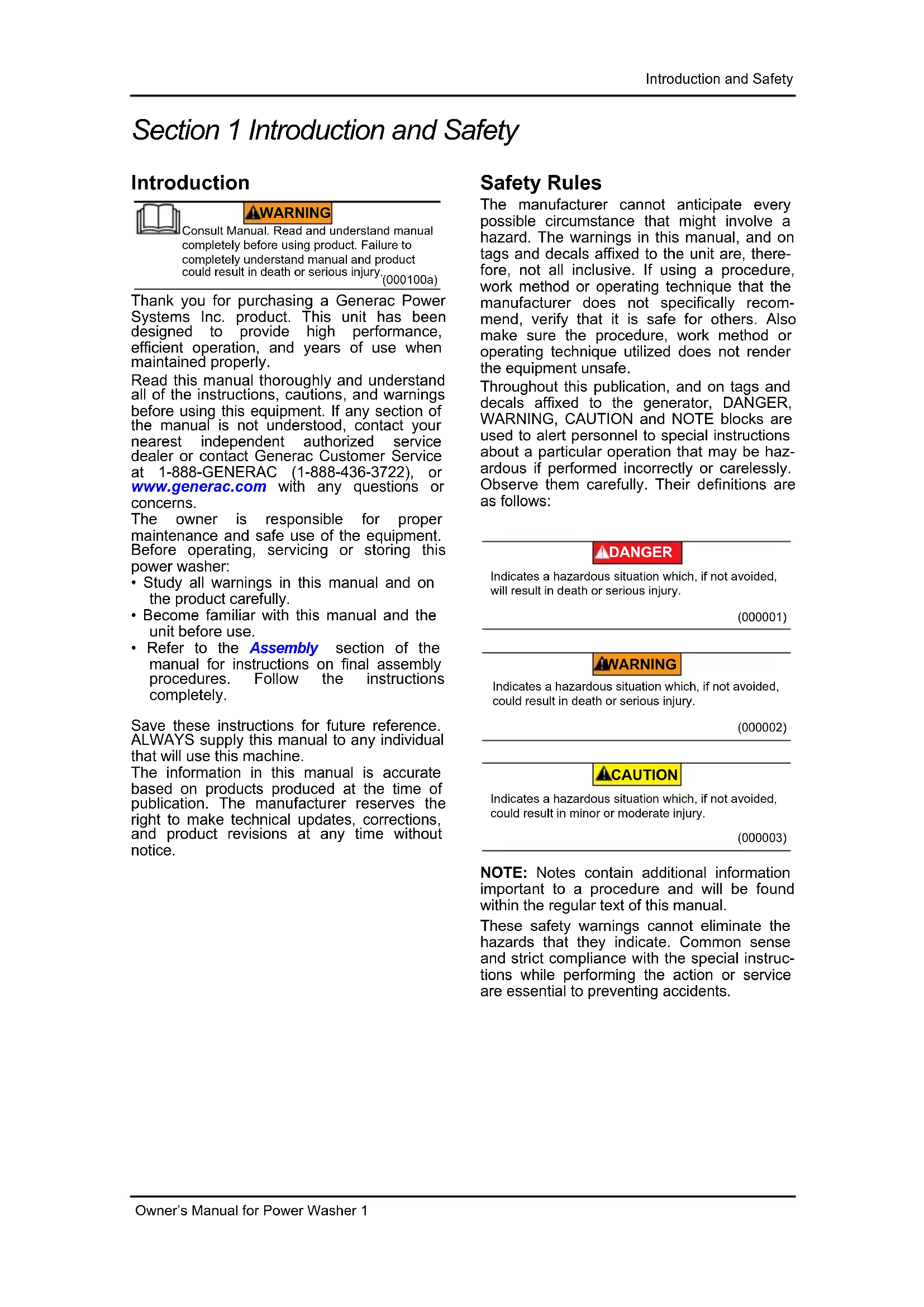

Section 1 Introduction and Safety

Introduction

WARNING

Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury. (000100a)

Thank you for purchasing a Generac Power Systems Inc. product. This unit has been designed to provide high performance, efficient operation, and years of use when maintained properly.

Read this manual thoroughly and understand all of the instructions, cautions, and warnings before using this equipment. If any section of the manual is not understood, contact your nearest independent authorized service dealer or contact Generac Customer Service at 1-888-GENERAC (1-888-436-3722), or www.generac.com with any questions or concerns.

The owner is responsible for proper maintenance and safe use of the equipment. Before operating, servicing or storing this power washer:

• Study all warnings in this manual and on the product carefully.
- Become familiar with this manual and the unit before use.
- Refer to the Assembly section of the manual for instructions on final assembly procedures. Follow the instructions completely.

Save these instructions for future reference. ALWAYS supply this manual to any individual that will use this machine.

The information in this manual is accurate based on products produced at the time of publication. The manufacturer reserves the right to make technical updates, corrections, and product revisions at any time without notice.

Safety Rules

The manufacturer cannot anticipate every possible circumstance that might involve a hazard. The warnings in this manual, and on tags and decals affixed to the unit are, therefore, not all inclusive. If using a procedure, work method or operating technique that the manufacturer does not specifically recommend, verify that it is safe for others. Also make sure the procedure, work method or operating technique utilized does not render the equipment unsafe.

Throughout this publication, and on tags and decals affixed to the generator, DANGER, WARNING, CAUTION and NOTE blocks are used to alert personnel to special instructions about a particular operation that may be hazardous if performed incorrectly or carelessly. Observe them carefully. Their definitions are as follows:

DANGER

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

(000001)

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

(000002)

CAUTION

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

(000003)

NOTE: Notes contain additional information important to a procedure and will be found within the regular text of this manual.

These safety warnings cannot eliminate the hazards that they indicate. Common sense and strict compliance with the special instructions while performing the action or service are essential to preventing accidents.

Safety Symbols and Meanings

DANGER

Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury. (000103)

DANGER

Electrocution. Water contact with a power source, if not avoided, will result in death or serious injury. (000104)

!DANGER

Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Add fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury. (000105)

WARNING

Fluid Injection. This machine produces high-pressure fluid streams that can pierce skin. Fluid injection could result in death or serious injury. (000106b)

WARNING

Risk of Fire. Hot surfaces could ignite combustibles, resulting in fire. Fire could result in death or serious injury. (000110)

WARNING

Vision Loss. Eye goggles are required to be worn when using this machine. Failure to wear eye goggles could result in permanent vision loss. (000101)

WARNING

Hearing Loss. Hearing protection is recommended when using this machine. Failure to wear hearing protection could result in permanent hearing loss. (000107)

WARNING

Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. (000108)

WARNING

Risk of Fire. Verify machine has properly cooled before installing cover and storing machine. Hot surfaces could result in fire. (000109)

WARNING

Moving Parts. Keep clothing, hair, and appendages away from moving parts. Failure to do so could result in death or serious injury. (000111)

WARNING

Risk of Falling. Use of machine creates wet areas and trip hazards. Be aware of work area conditions. A fall could result in death or serious injury. (000112)

WARNING

Risk of Falling. Do not use this machine or any components on elevated surfaces. Doing so can result in a fall, serious injury, or death. (000114)

WARNING

Recoil Hazard. Recoil could retract unexpectedly if water pressure is not properly relieved from pump, creating kickback. Kickback could result in death or serious injury. (000113)

WARNING

Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury.(000100a)

WARNING

Moving Parts. Do not wear jewelry when starting or operating this product. Wearing jewelry while starting or operating this product could result in death or serious injury. (000115)

WARNING

Personal injury. Risk of fluid injection. Do not aim spray gun at people, animals, electrical devices, or fragile items. Keep out of reach of children. Failure to do so could cause death or serious injury. (000117c)

WARNING

Environmental Hazard. Always recycle batteries at an official recycling center in accordance with all local laws and regulations. Failure to do so could result in environmental damage, death or serious injury. (000228)

WARNING

Personal Injury / Equipment Damage. Place wand in holster and verify that handle is locked into place before moving. Failure to do so could result in death, serious injury, or equipment damage. (000244)

Section 2 General Information and Setup

Know Your Power Washer

WARNING

Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury. (000100a)

Read this manual thoroughly before assembling and operating this unit. Save this manual for future and immediate reference. Replacement owner's manuals are available at www.generac.com.

Emissions

The United States Environmental Protection Agency (US EPA) (and California Air Resources Board (CARB), for engines/equipment certified to California standards) requires that this engine/equipment complies with exhaust and evaporative emissions standards. Locate the emissions compliance decal on the engine to determine applicable standards. For emissions warranty information, please reference the included emissions warranty. It is important to follow the maintenance specifications in the manual to ensure that the engine complies with the applicable emissions standards for the duration of the product's life.

Remove Contents from Carton

1. Open carton completely by cutting each corner from top to bottom.

2. Remove and verify carton contents prior to assembly. Carton contents should contain one each of the following:

3. Main Unit

4. Handle Assembly
   • High-pressure Hose
   • Siphon Hose & Filter
5. Spray Gun
6. L a n c e
   • Oil
   • Hose Hook Wireform

7. Parts Bag (includes):

8. Owner's Manual
   – Owner's Registration Card

9. Bag of Colored Nozzles

10. Funnel

11. Call Generac Customer Service at 1-888-GENERAC (1-888-436-3722) with the unit model and serial number for any missing carton contents.

12. Record model, serial number, and date of purchase on front cover of this manual.

Assembly

WARNING

Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury.(000100a)

Call Generac Customer Service at 1-888-GENERAC (1-888-436-3722) for any assembly issues or concerns. Please have model and serial number available.

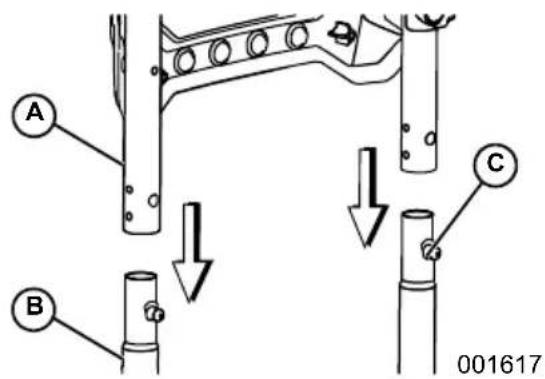

1. See Figure 2-1. Place handle (A) onto handle supports (B). Push in latch buttons (C) and allow handle to slide into position. Button will lock handle into place.

A B C 001617

Figure 2-1. Insert Handle

NOTE: It may be necessary to move the handle supports from side to side in order to align the handle so it will slide over the handle supports.

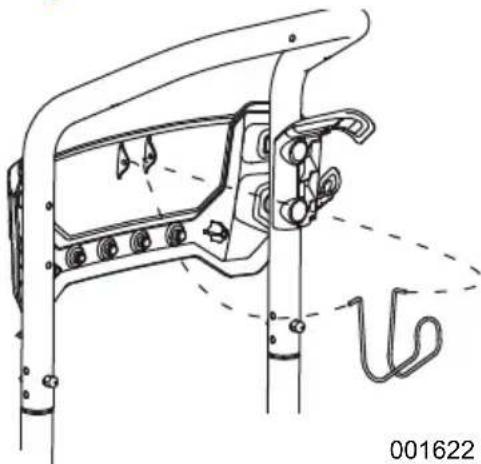

1. See Figure 2-2. Install hose hook.

Technical line drawing of a mechanical component with mounting holes and a hook, no text or symbols present

Figure 2-2. Install Hose Hook

1. See Figure 2-3. Insert and snap nozzles into spaces provided in handle.

Technical line drawing of a car interior panel with screw fasteners and directional arrows indicating movement (no text or symbols)

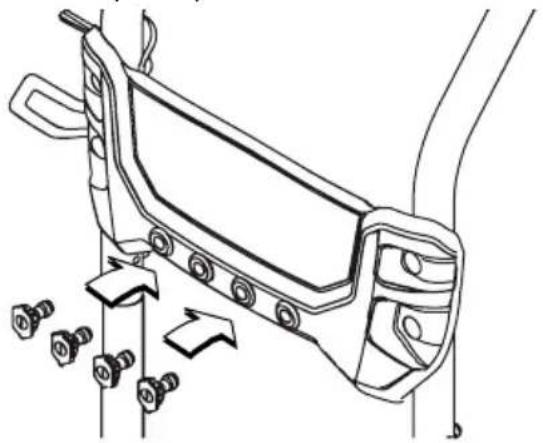

Figure 2-3. Insert Nozzles

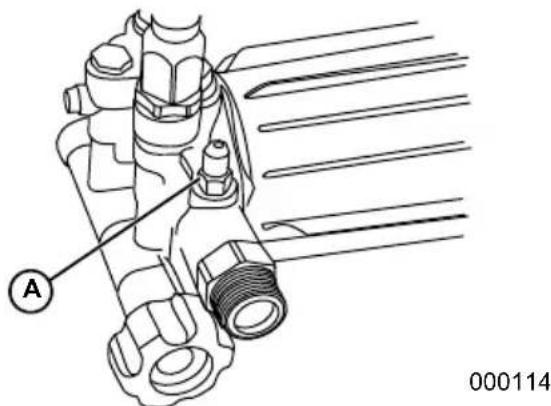

1. See Figure 2-4. Attach siphon tube to siphon tube connection (A).

A 000114

Figure 2-4. Attach Siphon Tube

Add Engine Oil

Unit is shipped with no oil in the engine. Add engine oil before starting. See Engine Oil Recommendations.

1. Place power washer on a level surface.
2. Verify oil fill area is clean.
3. Remove oil fill cap and wipe dipstick clean.

Illustration of a hand turning a valve with a water tap, showing mechanical components and fluid flow (no text or symbols)

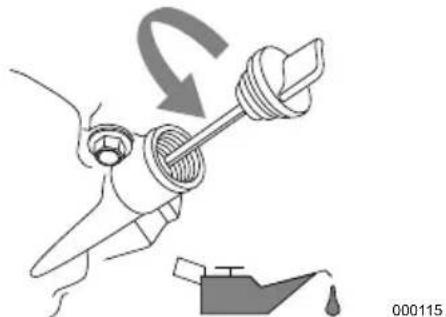

Figure 2-5. Remove Dipstick

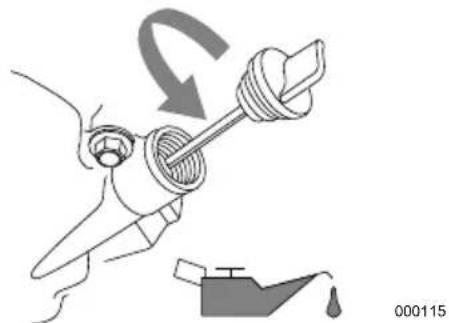

1. Add recommended engine oil.

NOTE: Some units have more than one oil fill location. It is only necessary to use one oil fill point.

1. Thread dipstick into oil filler neck. Oil level is checked with dipstick fully inserted.
2. See Figure 2-6. Remove dipstick and verify oil level is within safe operating range.

Technical line drawing of a mechanical connector or connector assembly (no text or symbols)

000116

Figure 2-6. Safe Operating Range

1. Install oil fill cap/dipstick and hand-tighten.

Fuel

DANGER

Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Add fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury. (000105)

Fuel requirements are as follows:

• Clean, fresh, unleaded gasoline.
• Minimum rating of 87 octane/87 AKI (91 RON).
• Up to 10% ethanol (gasohol) is acceptable.
  • DO NOT use E85.
  • DO NOT use a gas oil mix.
• DO NOT modify engine to run on alternate fuels.

• Add a fuel stabilizer prior to storing.

• Verify unit is OFF and cooled for a minimum of two minutes prior to fueling.

• Place unit on level ground in a well ventilated area.
• See Figure 2-7. Clean area around fuel cap and remove cap slowly.
• Slowly add recommended fuel. Do not overfill

Line drawing of a hand using a lever to lift a car intake manifold, with a fuel pump illustration below (no text or symbols)

Figure 2-7. Add Recommended Fuel

1. Install fuel cap.

NOTE: Allow spilled fuel to evaporate before starting unit.

Water Supply

NOTE: DO NOT run unit without sufficient water supply. Failure to follow water supply requirements will void unit warranty.

Water supply must meet the following requirements:

• DO NOT siphon standing water for the water supply.
• Water temperature must be less than 100^ (38°C).
  • Water supply hose length must not exceed 50 ft (15.2 m).
  • Water must be greater than 3.8 gallons per minute (17.3 liters per minute) and no less than 30 psi (206.8 kPa).
• DO NOT use a one-way valve, vacuum breaker, or check valve in any part of the water supply.

Connect Water Supply

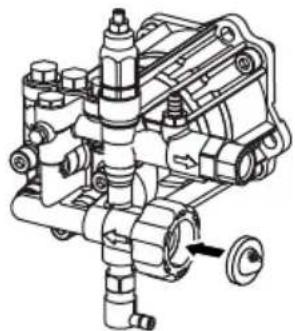

1. Remove and discard shipping cap from the pump water inlet.
2. Run water supply for 30 seconds prior to connection to eliminate debris.
3. See Figure 2-8. Inspect inlet screen for debris. Clean screen or replace as necessary. DO NOT run power washer if inlet screen is damaged or missing.

Mechanical assembly diagram showing interconnected components with no visible text or symbols

001563

Figure 2-8. Inspect Inlet Screen

1. See Figure 2-9. Connect water supply hose to pump water inlet and hand-tighten.

Diagram of mechanical components with a curved arrow indicating motion or assembly (no text or symbols present)

000119

Figure 2-9. Connect Water Supply Hose

Connect High-Pressure Hose and Lance

1. See Figure 2-10. Connect lance to spray gun and hand-tighten.

Diagram showing a mechanical component being rotated by a curved arrow, no text or symbols present

Figure 2-10. Connect Lance

1. Place spray gun and nozzle extension into spray gun holder.

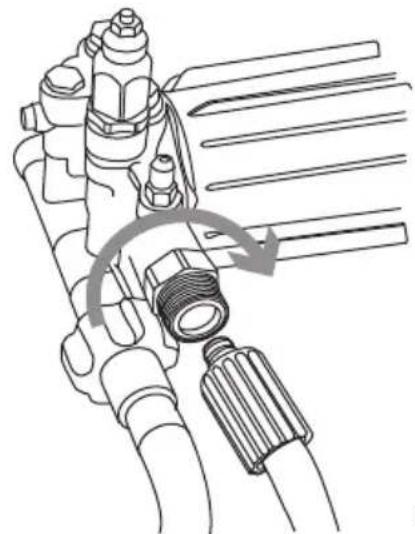

2. See Figure 2-11. Connect high-pressure hose to pump and hand-tighten.

Technical line drawing of a mechanical assembly with no visible text or symbols

000121

Figure 2-11. Connect High-Pressure Hose to Pump

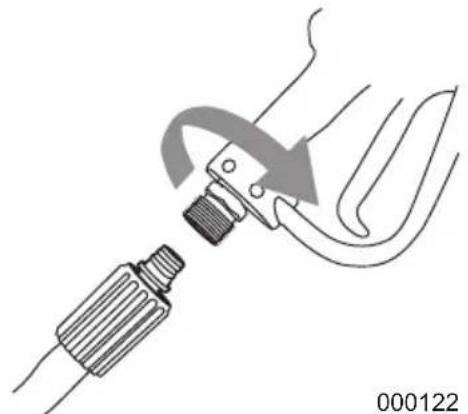

1. See Figure 2-12. Connect high-pressure hose to base of spray gun and hand-tighten.

Diagram of a mechanical component being inserted into a tool, showing a curved arrow indicating rotation (no text or symbols present)

Figure 2-12. Connect High-Pressure Hose to Spray Gun

Spray Gun

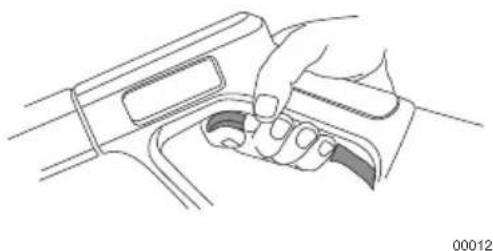

Become familiar with spray gun trigger and locking system prior to use.

1. See Figure 2-13. With unit OFF, hold spray gun and squeeze trigger to learn how trigger mechanism and locking system can be activated and deactivated.

Line drawing of a hand inserting a component into a device (no text or symbols)

Figure 2-13. Spray Gun (typical)

1. Turn ON the water, and squeeze the trigger to purge the pump system of air.
2. Verify spray gun is OFF with lock engaged before starting power washer.

Detergent Tank (if equipped)

Power washer is shipped with siphoning tube and cap.

1. See Figure 2-14. Insert siphoning tube through hole in cap.

Line drawing of a mechanical component with curved arms and central hub (no text or symbols)

001487

Figure 2-14. Siphoning Tube and Cap

1. Insert siphoning tube into detergent and snap siphoning tube cap onto detergent tank.

Nozzles

1. Select correct nozzle for task.
2. See Figure 2-15. Pull back quick-connect collar and install nozzle.
3. Release quick-connect collar to secure nozzle.
4. Verify nozzle is locked in place.

Diagram of a connector with a bulb and threaded body, showing an arrow indicating direction (no text or symbols)

Figure 2-15. Insert Nozzle

Blast Pressure Nozzle (Red)

MAXIMUM - Higher pressure and lower flow for stubborn or hard to reach surface such as second story surfaces, paint removal, oil stains, rust removal or other stubborn substances (tar, gum, grease, wax, etc.).

Pure mechanical component diagram without any text, numbers, or symbols

Clean Pressure Nozzle (Green)

GENERAL - Medium pressure and medium flow for most all purpose cleaning such as home siding, brick patios, wood decks, driveways and sidewalks, garage floors, etc.

Diagram of a spray gun emitting liquid, showing spray nozzle and fan (no text or symbols)

Wash Pressure Nozzle (White)

DELICATE - Lower pressure and higher flow for gentle cleaning of cars/trucks, boats, RV's, patio furniture, lawn equipment, etc.

Diagram of a spray gun emitting particles from a nozzle, labeled 001399 (no text or symbols on diagram)

Detergent Nozzle (Black)

DETERGENT ONLY (BLACK), Only use power washer safe detergents/soaps to help break down stubborn dirt and grime on a variety of surfaces.

Diagram showing spray nozzle emitting particles from a container, with no text or symbols present

Section 3 Operation

Operation and Use Questions

Call Generac Customer Service at 1-888-GENERAC (1-888-436-3722) with questions or concerns about unit operation and maintenance.

Before Starting Engine

Unit is shipped with no oil in the crankcase. Add engine oil before starting. See Engine Oil Recommendations.

1. Verify engine oil level is correct.
2. Verify fresh fuel level is correct.
3. Verify all fittings and couplers are properly secured.
4. Verify sufficient water supply is properly connected.
5. Verify thermal relief valve is rotated and open to ground.
6. Verify unit is secure on level ground, with proper clearance and is in a well ventilated area.

Prepare Power Washer for Use

1. Place unit on level ground, within the specified clearance required.
2. Connect appropriate water supply.

Power Washer Placement for Use

DANGER

Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury. (000103)

WARNING

Risk of Fire. Hot surfaces could ignite combustibles, resulting in fire. Fire could result in death or serious injury.

(000110)

WARNING

Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. (000108)

It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrestor, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws. Only operate power washer outdoors in a well ventilated area. Never operate power washer indoors, or in a confined space. Be aware of building openings and ventilation systems where exhaust may enter during use.

• Verify power washer is placed on level ground to avoid tipping during operation.
• Only use the unit outdoors. Verify exhaust gas does not enter a confined area through windows, doors, ventilation intakes.

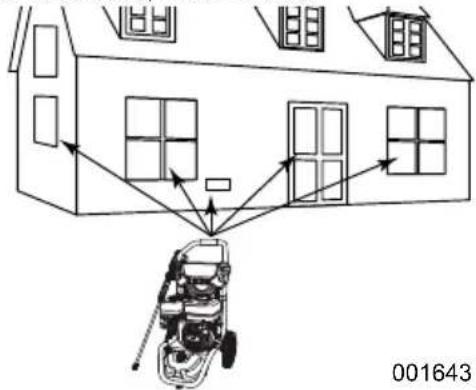

  • See Figure 3-1 Keep at least 5 ft (1.5 m) of clearance on all sides of power washer including overhead from dwellings and combustibles, when in use.

001643

Figure 3-1. Five Feet of Minimum Clearance

Transporting/Tipping of the Unit

Do not operate, store or transport the unit at an angle greater than 15 degrees.

WARNING

Personal Injury / Equipment Damage. Place wand in holster and verify that handle is locked into place before moving. Failure to do so could result in death, serious injury, or equipment damage. (000244)

Power Washer Start-Up

NOTE: DO NOT run power washer without a sufficient water supply turned ON. Damage to equipment resulting from failure to follow this instruction will void warranty.

1. Connect a sufficient water supply.

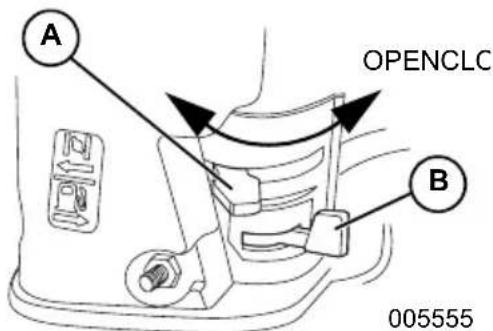

2. See Figure 3-2. Move fuel valve lever (B) to ON position.
3. For cold engine, move choke lever (A) to CLOSED position.

A OPENCLC B 005555

Figure 3-2. Fuel Valve and Choke

NOTE: For warm engine, verify choke lever is in OPEN position.

1. See Figure 3-3. Turn engine switch ON.

OFF ON 000128

Figure 3-3. Engine Switch

WARNING

Vision Loss. Eye goggles are required to be worn when using this machine. Failure to wear eye goggles could result in permanent vision loss. (000101)

1. Relieve spray gun pressure.
2. Place foot on unit to secure unit from movement when pulling recoil.
3. See Figure 3-4. Firmly grasp the recoil handle. Pull slowly until resistance is felt. Then pull rapidly to start engine.

WARNING

Recoil Hazard. Recoil could retract unexpectedly if water pressure is not properly relieved from pump, creating kickback. Kickback could result in death or serious injury. (000113)

WARNING

Personal injury. Risk of fluid injection. Do not aim spray gun at people, animals, electrical devices, or fragile items. Keep out of reach of children. Failure to do so could cause death or serious injury. (000117c)

After engine-start attempt, if engine fails to run, point spray gun in safe direction, and squeeze spray gun trigger to release high pressure.

Line drawing of a mechanical component with no visible text or symbols

003129
Figure 3-4. Engine Recoil

1. Return recoil handle slowly. DO NOT let recoil snap back against recoil housing.
2. See Figure 3-2. When engine starts, slowly move choke lever (A) to OPEN position as engine warms. If engine falters, move choke lever to CLOSE position, then to OPEN position.

- If engine fails to start after six pulls, move choke lever (A) to "OPEN" position, and repeat steps 6 through 9.

WARNING

Fluid Injection. This machine produces high-pressure fluid streams that can pierce skin. Fluid injection could result in death or serious injury. (000106b)

WARNING

Risk of Fire. Hot surfaces could ignite combustibles, resulting in fire. Fire could result in death or serious injury. (000110)

WARNING

Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. (000108)

Power Washer Shut Down

WARNING

Fluid Injection. This machine produces high-pressure fluid streams that can pierce skin. Fluid injection could result in death or serious injury. (000106b)

IMPORTANT: Spray gun traps high-pressure water, even when engine is stopped and water is disconnected. Always point spray gun in safe direction, and squeeze spray gun trigger to release high-pressure. Engage trigger lock when not in use.

1. Release spray gun trigger.
2. Turn engine switch OFF.
3. Turn water supply OFF.
4. Squeeze spray gun trigger and release high-pressure water.
5. Engage trigger lock.

Apply Detergent

WARNING

Fluid Injection. This machine produces high-pressure fluid streams that can pierce skin. Fluid injection could result in death or serious injury. (000106b)

WARNING

Personal injury. Risk of fluid injection. Do not aim spray gun at people, animals, electrical devices, or fragile items. Keep out of reach of children. Failure to do so could cause death or serious injury. (000117c)

NOTE: DO NOT use caustic liquid with power washer. Use ONLY power washer safe detergents. Follow all manufacturer's instructions on the detergent label.

Apply detergent as follows:

1. Verify black detergent nozzle is installed.
2. Open detergent tank cap, if equipped.
3. Prepare detergent solution as required by job.
4. Depending on model, insert filter on end of siphoning tube through hole in cap (supplied).

NOTE: Verify siphoning tube and filter remain fully submerged in detergent while in use.

NOTE: When inserting siphon tube into detergent tank, route tube to prevent muffler contact. Contact with muffler while in use can damage detergent siphoning tube.
5. Verify black detergent nozzle is installed.
NOTE: Detergent cannot be applied with high-pressure nozzle (White, Green or Red). Only use black nozzle with detergent.
6. Start engine.
7. Apply detergent to a dry surface. Start at lower portion of area to be washed and work upward using long, even, overlapping strokes.

IMPORTANT: Flush the detergent siphoning system after each use. Contact an authorized dealer or qualified service center with questions.

Rinsing

WARNING

Risk of Falling. Use of machine creates wet areas and trip hazards. Be aware of work area conditions. A fall could result in death or serious injury. (000112)

! WARNING

Risk of Falling. Do not use this machine or any components on elevated surfaces. Doing so can result in a fall, serious injury, or death. (000114)

1. Remove black detergent nozzle from lance.
2. Select and install desired high-pressure nozzle.
3. Point spray gun in safe direction and squeeze trigger to flush remaining detergent from system.
4. Keep spray gun a safe distance from area you plan to spray.
5. Spray gun may kick back when using high pressure spray. To avoid injury, firmly grasp spray gun with both hands.
6. Apply a high-pressure spray to a small area and then inspect surface for damage. If no damage is found, continue rinsing.
7. Start at top of area to be rinsed, working down with same overlapping strokes as used for cleaning.

Clean Detergent Siphoning Tube

Flush detergent siphoning tube after each use before stopping the engine.

1. Place detergent siphoning tube/filter in bucket of clean water.
2. Remove high-pressure nozzle from lance.
3. Select and install black detergent nozzle.
4. Flush for 1-2 minutes.
5. Shut engine OFF.
6. Point spray gun in a safe direction, squeeze spray gun trigger to release retained high water pressure. Engage trigger lock.

After Each Use

DO NOT allow water to remain in unit for long periods of time. Sediments or minerals can deposit on pump parts and freeze pump. Follow these procedures after every use:

1. Shut engine OFF.
2. Turn water supply OFF.
3. Point spray gun in a safe direction, and squeeze trigger to relieve trapped pressure.
4. Let engine cool.
5. Disconnect hoses from spray gun and high-pressure outlet on pump. Drain water from hoses, spray gun, and lance. Use a rag to wipe off components.
6. Pull recoil handle approximately six times to remove remaining liquid from pump.
7. Switch fuel valve to OFF.
8. Store unit in a clean, dry area.
   NOTE: If storing for more than 30 days, see Storage.

Automatic Cool Down System (Thermal Relief)

When power washer runs for 3-5 minutes without spray gun activation, circulating water in pump can reach a temperature sufficient to engage the thermal relief system. The pump is cooled by discharging water onto ground.

Section 4 Maintenance and Troubleshooting

Maintenance Recommendations

Regular maintenance will improve performance and extend engine/equipment life. Generac Power Systems, Inc. recommends that all maintenance work be performed by an Independent Authorized Service Dealer (IASD). Regular maintenance, replacement or repair of the emissions control devices and systems may be performed by any repair shop or person of the owner's choosing. However, to obtain emissions control warranty service free of charge, the work must be performed by an IASD. See the emissions warranty.

Power washer warranty does not cover items subjected to operator abuse or negligence. To receive full warranty value, operator must maintain power washer as instructed in this manual, including proper storage as detailed in Storage.

NOTE: Call 1-888-GENERAC (1-888-436-3722) with questions about component replacement.

NOTE: All required service and adjustments should be each season, as detailed in Maintenance Schedule.

Maintenance Schedule

Follow maintenance schedule intervals, whichever occurs first according to use.

NOTE: Adverse conditions will require more frequent service.

First 5 Hours

Change engine oil

Every 8 Hours or Daily

Inspect/clean water inlet screen*

Inspect high-pressure hose

Inspect detergent siphoning hose/filter

Inspect spray gun and assembly for leaks

Clean debris

Inspect engine oil level

Every 20 Hours or Every Season

Change engine oil**

Every 50 Hours or Every Season

Inspect/clean air cleaner filter**

Inspect muffler and spark arrestor*

Every 100 Hours or Every Season

Service spark plug

* Clean if clogged. Replace if perforated or torn.

** Service more often under dirty or dusty conditions.

Pump Oil

DO NOT attempt any oil maintenance on pump. Pump is lubricated and sealed at factory. No additional maintenance is required for life of pump.

Preventive Maintenance

Dirt or debris can cause improper operation and equipment damage. Clean power washer daily or before each use. Keep area around and behind muffler free from combustible debris. Inspect all cooling air openings on power washer.

• Use a damp cloth to wipe exterior surfaces clean.
• DO NOT insert any objects through cooling air openings.
• Use a soft bristle brush to loosen caked on dirt, oil, etc.
• Use a vacuum to pick up loose dirt and debris.

Inspect and Clean Inlet Screen

Inspect inlet screen on pump water inlet. Clean clogged screen and replace screen if damaged.

Inspect High-Pressure Hoses

High-pressure hoses can develop leaks from wear, kinking, or abuse. Inspect hoses before each use. Inspect for cuts, leaks, abrasions, bulging, and damage or movement of couplings. If these conditions exist, replace hose immediately.

NOTE: DO NOT repair high-pressure hose. Replace with hose that meets or exceeds maximum pressure rating of unit.

Inspect Detergent Siphoning Tube

Inspect filter on detergent tube and clean if clogged. Tube should fit tightly on barbed fitting. Examine tube for leaks or tears. Replace filter or tube if either is damaged.

Inspect Spray Gun

NOTE: Replace spray gun immediately if it fails any test steps.

Line drawing of a hand holding a device with a handle (no text or symbols)

000123
Figure 4-1. Test Spray Gun (typical)

1. Verify spray gun hose connection is secure.
2. Squeeze and release trigger.
   NOTE: Trigger should spring back into place and lock when released.

Nozzle Maintenance

A pulsing sensation felt when squeezing spray gun trigger may be caused by excessive pump pressure. Typical causes of excessive pump pressure are nozzle clog or restriction. Immediately clean nozzle as follows:

WARNING

Fluid Injection. This machine produces high-pressure fluid streams that can pierce skin. Fluid injection could result in death or serious injury. (000106b)

1. Turn engine and water supply OFF.
   NOTE: Keep high-pressure hose connected to pump and spray gun while system is pressurized.
2. Relieve spray gun water pressure.
3. Remove nozzle from lance.
4. See Figure 4-2. Use a paper clip to remove debris.
5. See Figure 4-3. Remove lance from spray gun and back flush thoroughly.
6. Install nozzle on lance.
7. Install lance on spray gun.

Line drawing of two hands holding a small object, possibly a tool or device (no text or symbols present)

Figure 4-2. Remove Debris

Line drawing of two connected cable or wire connectors (no text or symbols)

Figure 4-3. Back Flush Lance

1. Verify hose is connected to pump water inlet, and high-pressure hose is connected to spray gun and pump.
2. Turn water ON.
3. Start engine.
4. Test power washer by operating with each quick connect nozzle.

Engine Maintenance

Engine Oil Recommendations

To maintain the product warranty, the engine oil should be serviced in accordance with the recommendations of this manual. For your convenience, Generac Maintenance Kits are available that include engine oil, oil filter, air filter, spark plug(s), a shop towel and funnel. These kits can be obtained from an Independent Authorized Service Dealer (IASD). Only high-quality detergent oils classified for service SJ or higher are recommended. DO NOT use special additives.

Climate determines proper engine oil viscosity. See chart to select correct viscosity.

Figure 4-4. Oil Viscosity

* Below 50°F (10°C) use of SAE 30 will result in hard start.
** Above 80°F (27°C) use of 10W30 may cause increased oil consumption. Inspect oil level more frequently.

Inspect Engine Oil Level

Inspect engine oil level prior to each use, or every 8 hours of operation.

1. Place power washer on a level surface.
2. Clean area around oil fill.
3. See Figure 4-5. Remove oil fill cap and wipe dipstick clean.

Illustration of a hand holding a tool with a valve, showing mechanical components and a water level indicator (no text or symbols)

Figure 4-5. Engine Oil Fill

1. See Figure 4-6. Screw dipstick into filler neck. Verify proper oil level on dipstick.

Technical line drawing of a mechanical component with threaded end and textured internal structure (no text or symbols)

Figure 4-6. Oil Level

1. Add recommended engine oil as necessary.
2. Replace oil fill cap and hand-tighten.

NOTE: Some units have more than one oil fill location. It is only necessary to use one oil fill point.

Change Engine Oil

When using power washer under extreme, dirty, dusty conditions, or in extremely hot weather, change oil more frequently.

NOTE: Don't pollute. Conserve resources. Return used oil to collection centers.

Change oil while engine is still warm from running, as follows:

1. Place power washer on a level surface.
2. Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.
3. Clean area around oil fill, and oil drain plug.
4. Remove oil fill cap.
5. See Figure 4-7. Remove oil drain plug (A) and drain oil completely into a suitable container.
6. Install oil drain plug and tighten securely.
7. See Figure 4-6. Slowly pour oil into oil fill opening until oil level is between L and H marks on dipstick. DO NOT overfill.
8. Install oil fill cap, and finger tighten.
9. Wipe up any spilled oil.
10. Properly dispose of oil in accordance with all applicable regulations.

Mechanical assembly diagram showing components like gears and springs (no readable text or symbols)

Figure 4-7. Oil Drain Plug

Air Filter

Engine will not run properly and may be damaged if run with a dirty air cleaner. Service air cleaner more frequently in dirty or dusty conditions.

To service air cleaner:

1. Remove air cleaner cover.
2. Remove filter element(s).
3. Inspect filter element(s) and replace if damaged. To order replacements, contact Generac Customer Service at 1-888-GENERAC (888-436-3722) for the name of your nearest Independent Authorized Service Dealer.
4. Clean foam filter element in warm soapy water. Rinse, and allow to dry thoroughly. Dip in clean engine oil and squeeze out excess oil.
5. Tap paper filter element several times on hard surface to remove dirt. Compressed air (not exceeding 30 psi (207 kPa) can also be used to blow through filter element from the inside.

6. Use a clean, damp cloth to wipe dirt from inside air cleaner cover.

7. Put cleaned or new filter element(s) in place. Verify gasket is in place (if equipped).

8. Install air cleaner cover. Tighten air cleaner screws or fasteners securely.

Service Spark Plug

To service spark plug:

1. Clean area around spark plug.
2. Remove and inspect spark plug.
3. See Figure 4-8. Inspect electrode gap with wire feeler gauge and replace spark plug if gap (A) is not within specification listed on Product Specifications Sheet.

Technical illustration showing a spark plug being inserted into a device with a close-up view of its internal components (no text or symbols present)

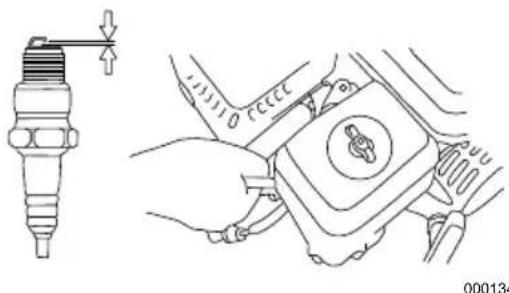

Figure 4-8. Spark Plug

NOTE: Replace spark plug if electrodes are pitted, burned or porcelain is cracked. Use ONLY recommended replacement plug. See Product Specifications Sheet.

1. Install spark plug finger tight, and tighten an additional 3/8 to 1/2 turn using spark plug wrench.

Inspect Engine Spark

WARNING

Accidental Start-up. Disconnect spark plug wire when working on unit. Failure to do so could result in death or serious injury.

(000102)

1. Disconnect spark plug wire from spark plug.
2. Secure spark plug wire where it cannot contact spark plug.
3. Test spark plug with approved spark plug tester.

NOTE: DO NOT inspect for spark with spark plug removed.

Inspect Muffler And Spark Arrestor

NOTE: It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrestor, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws.

NOTE: Call 1-888-GENERAC (1-888-436-3722) with questions about component replacement.

NOTE: Use ONLY original equipment replacement parts.

Inspect muffler for cracks, corrosion, or other damage. Remove spark arrestor, if equipped, inspect for damage or carbon blockage. If replacement parts are required.

Inspect Spark Arrestor Screen (if equipped)

WARNING

Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. (000108)

1. See Figure 4-9. Loosen fasteners (A) and remove heat shield from muffler.
2. See Figure 4-10. Loosen fasteners (B) and remove spark arrestor from muffler.
3. Inspect spark arrestor. Replace if torn, perforated or otherwise damaged.
   • Spark Arrestor P/N 0K1851
4. If screen is not damaged, clean it with a commercial solvent and replace.

A A 000135

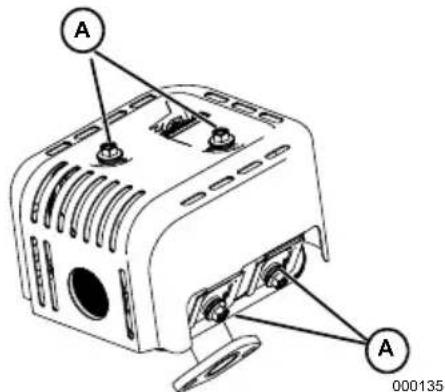

Figure 4-9. Heat Shield Fasteners

Technical line drawing of a mechanical component with labeled part B (no text or symbols beyond label)

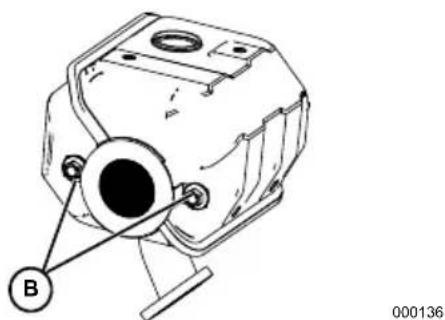

Figure 4-10. Spark Arrestor Fasteners

Storage

General

ADANGER

Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Add fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury. (000105)

WARNING

Risk of Fire. Verify machine has properly cooled before installing cover and storing machine. Hot surfaces could result in fire. (000109)

• DO NOT place a storage cover on a hot power washer. Allow unit to cool to room temperature before storage.
  • DO NOT store fuel from one season to another unless properly treated.
• Replace fuel container if rust is present. Rust in fuel will cause fuel system problems.
  • Cover unit with a suitable protective, moisture resistant cover.
• Store unit in a clean and dry area.
  • Always store power washers and fuel away from heat and ignition sources.

Prepare Fuel System for Storage

Fuel stored over 30 days can go bad and damage fuel system components. Keep fuel fresh, use fuel stabilizer.

If fuel stabilizer is added to fuel system, prepare and run engine according to Power Washer Start-Up. Run engine for 2 minutes to circulate stabilizer throughout fuel system. Adequately prepared fuel can be stored up to 24 months.

NOTE: If fuel has not been treated with fuel stabilizer, it must be drained into an approved container. Run engine until it stops from lack of fuel. Use of fuel stabilizer in fuel storage container is recommended to keep fuel fresh.

Prepare Engine for Storage

1. Change engine oil.
2. Remove spark plug.
3. Pour a tablespoon (5-10cc) of clean engine oil or spray a suitable fogging agent into cylinder.
4. Pull starter recoil several times to distribute oil in cylinder.
5. Install spark plug.
6. Pull recoil slowly until resistance is felt. This will close valves so moisture cannot enter engine cylinder. Gently release recoil.

Change Oil

Change engine oil before storage. See Change Engine Oil.

Prepare Pump for Storage

NOTE: If not using power washer for more than 30 days, prepare engine and pump for storage.

Protect unit from freezing temperatures. Failure to do so will permanently damage pump and render unit inoperable. Freeze damage is not covered under warranty.

Protect unit from freezing temperatures as follows:

1. Shut engine OFF.
2. Turn fuel valve to OFF.
3. Turn water supply OFF.
4. Point spray gun in a safe direction, and squeeze trigger to relieve trapped pressure.
5. Let engine cool.
6. Disconnect hoses from spray gun and high-pressure outlet on pump. Drain water from hoses, spray gun, and lance. Use a rag to wipe off components.
7. Empty pump of all remaining liquids.
8. Pull recoil handle approximately six times to remove remaining liquid from pump.
9. Winterize pump with Generac Pump Shield™ (P/N 0L2414). This minimizes freeze damage and lubricates pistons and seals.

NOTE: If Generac Pump Shield™ is not available, connect a 3 ft (1 m) section of garden hose to water inlet adapter. Pour RV-antifreeze (alcohol free antifreeze) into hose. Pull recoil handle twice. Disconnect hose.

Store unit in a clean and dry area.

Table 4-1. Troubleshooting

Problem Cause Correction
Pump fails to produce pressure, has erratic pressure, chattering, loss of pressure, low water volume.	1. Low pressure nozzle installed.2. Water inlet is obstructed.3. Inadequate water supply.4. Inlet hose kinked or leaking.5. Clogged hose inlet screen.6. Water supply is over 100°F (37.8°C).7. High-pressure hose is obstructed, or leaks.8. Spray gun leaks.9. Nozzle is obstructed.10. Pump is faulty.	1. Replace with high-pressure nozzle.2. Clean inlet.3. Provide adequate water flow.4. Straighten inlet hose, patch leak.5. Inspect and clean inlet hose screen.6. Provide cooler water supply.7. Clear obstructions or replace hose.8. Replace spray gun.9. Clean nozzle.10. Contact Independent Authorized Service Dealer.
Detergent fails to mix with spray.	1. Detergent siphoning tube is not submerged.2. Detergent siphoning tube/ filter is obstructed or cracked.3. High-pressure nozzle installed.	1. Insert detergent siphoning tube into detergent.2. Clean or replace filter/ detergent siphoning tube.3. Install low-pressure nozzle.
Engine runs well at no-load, but bogs down when load is applied.	Engine speed too low. Contact Independent Authorized Service Dealer.
Engine will not start, or starts and runs rough.	1. Dirty air filter.2. Out of fuel3. Stale fuel.4. Spark plug wire not connected to plug.5. Bad spark plug.6. Water in fuel.7. Excessively rich fuel mixture.8. Choke in ON position.	1. Clean or replace air filter.2. Fill fuel tank.3. Replace with fresh fuel.4. Connect wire to spark plug.5. Replace spark plug.6. Drain fuel tank, replace with fresh fuel.7. Contact Independent Authorized Service Dealer.8. Set choke to OFF position.
Engine shuts down during operation.	Out of fuel. Fill fuel tank.
Engine lacks power. Dirty air filter.	Replace air filter.

Notes

Part No.0L5053 Rev. B 01/18/2018

©2018 Generac Power Systems, Inc.

All rights reserved

Specifications are subject to change without notice.

No reproduction allowed in any form without prior

written consent from Generac Power Systems, Inc.

GENERAC®

Generac Power Systems, Inc.

S45 W29290 Hwy. 59

Waukesha, WI 53189

1-888-GENERAC (1-888-436-3722)

www.generac.com

Lavadora a presión

Technical line drawing of a mechanical component with mounting holes and a dashed outline indicating a detail (no text or symbols)

Technical line drawing of a car front panel with bolted components and directional arrows indicating movement (no text or symbols)

Illustration of a hand holding a tool with a circular arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with threaded end and textured base (no text or symbols)

000116

Line drawing of a hand using a lever to lift a valve on a control panel, with a fuel pump nearby (no text or symbols)

Mechanical assembly diagram showing interconnected components with no visible text or symbols

001563

Diagram of mechanical components with a curved arrow indicating rotation or assembly (no text or symbols present)

000119

Diagram of a pipe fitting with a valve and connector, showing a circular arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

000121

Diagram of a mechanical component being inserted into a tool, showing a curved arrow indicating rotation (no text or symbols present)

Line drawing of a hand holding a device with a strap, no text or symbols present

Technical line drawing of a mechanical component with curved arms and central hub (no text or symbols)

Technical line drawing of a connector with threaded body and connector, showing directional arrow (no text or symbols)

Figura 2-15. Inserción de la boquilla

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a spray gun emitting liquid, showing spray nozzle and fan (no text or symbols)

Diagram of a spray gun emitting particles from a central component, labeled 001399 (no text or symbols on diagram itself)

Diagram showing spray pattern from a nozzle to a spherical object, with no text or symbols present

Sección 3 Operación

Line drawing of a mechanical component with no visible text or symbols

000129

Line drawing of a hand holding a device with a curved handle (no text or symbols)

Line drawing of two hands holding a small object with a vertical line above, no text or symbols present

Simple line drawing of a pipe joint with two ends, no text or symbols present

Illustration of a hand holding a tool with a circular arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with threaded end and textured body (no text or symbols)

Figura 4-6. Nivel de aceite

Mechanical assembly diagram showing components like gears and a labeled part (A), with no readable text or symbols beyond the label.

Technical line drawing showing a spark plug and a close-up of a mechanical component (no text or symbols)

000134a

Figura 4-8. Bujía

Technical line drawing of a mechanical component with labeled point B (no text or symbols beyond label)

000136

©2018 Generac Power Systems, Inc.

Technical line drawing of a vehicle door frame with mounting brackets and a hook attachment (no text or symbols)

Technical line drawing of a car interior frame with bolted components and directional arrows indicating movement (no text or symbols)

Figure 2-3. Insertion des buses

Illustration of a hand holding a tool with a valve, showing mechanical components and a water level indicator (no text or symbols)

Technical line drawing of a mechanical component with threaded end and textured base (no text or symbols)

000116

Line drawing of a hand using a lever to lift a valve on a control panel, with a fuel pump icon nearby (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of mechanical components with arrows indicating motion or assembly (no text or symbols)

000119

Diagram of a connector being inserted into a cable, showing a circular arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical component being inserted into a tool, showing a curved arrow indicating rotation (no text or symbols present)

Line drawing of a hand holding a device with a strap, no text or symbols present

Figure 2-13. Pistolet de pulvérisation (normal)

Line drawing of a mechanical component with curved arms and central hub (no text or symbols)

001487

Technical line drawing of a connector with a threaded body and shaft, showing an arrow indicating direction (no text or symbols)

Figure 2-15. Insertion de la buse

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a spray gun emitting liquid, showing spray nozzle and fan structure (no text or symbols)

Diagram of a spray gun emitting particles from a nozzle, labeled 001399 (no text or symbols on diagram)

Diagram showing a spray gun emitting particles from a nozzle, with no text or symbols present.

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand holding a device with a strap, no text or symbols present

Line drawing of two hands holding a small object with a vertical line above, no text or symbols present

Simple line drawing of a mechanical or electrical component with two ends and a central threaded section (no text or symbols)

Figure 4-3.Rinçage de la lance

Illustration of a hand holding a tool with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with threaded end and textured shaft (no text or symbols)

Technical illustration showing a spark plug and a close-up of hands adjusting a component (no text or symbols present)

Technical line drawing of a mechanical component with labeled point B (no text or symbols beyond label)

Figure 4-10. Fixations du pare-étincelles

Entreposage

Généralités

! DANGER

©2018 Generac Power Systems, Inc.
