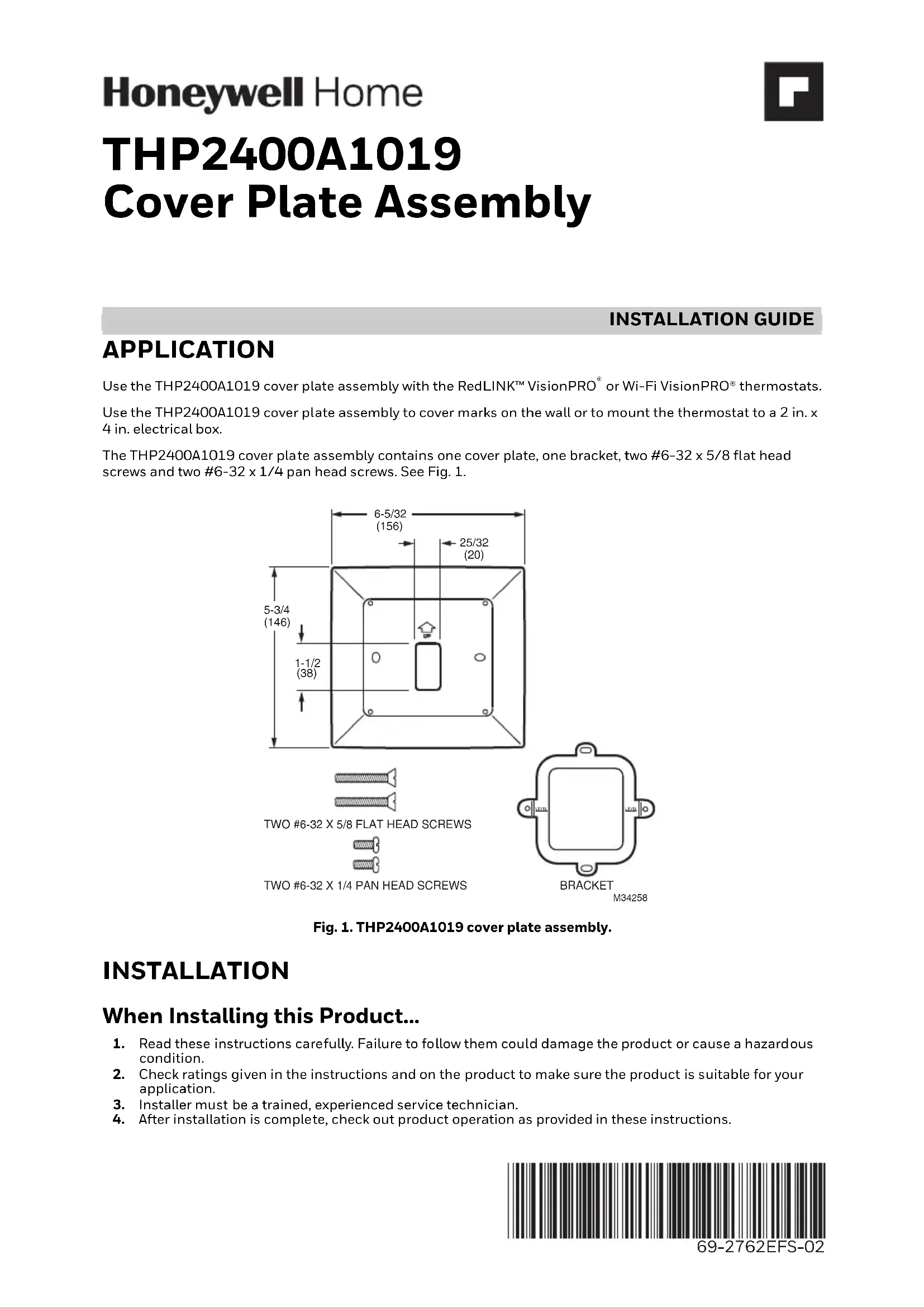

INSTALLATION GUIDE 69-2762EFS-02 THP2400A1019 Cover Plate Assembly APPLICATION Use the THP2400A1019 cover plate assembly with the RedLINK™ VisionPRO or Wi-Fi VisionPRO® thermostats. Use the THP2400A1019 cover plate assembly to cover marks on the wall or to mount the thermostat to a 2 in. x 4 in. electrical box. The THP2400A1019 cover plate assembly contains one cover plate, one bracket, two #6-32 x 5/8 flat head screws and two #6-32 x 1/4 pan head screws. See Fig. 1.Fig. 1. THP2400A1019 cover plate assembly. INSTALLATION When Installing this Product…

1. Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous

2. Check ratings given in the instructions and on the product to make sure the product is suitable for your

3. Installer must be a trained, experienced service technician.

4. After installation is complete, check out product operation as provided in these instructions.

M34258TWO #6-32 X 5/8 FLAT HEAD SCREWS TWO #6-32 X 1/4 PAN HEAD SCREWS BRACKETLEVELLEVEL25/32 (20) 6-5/32(156)1-1/2 (38)

5-3/4(146)THP2400A1019 COVER PLATE ASSEMBLY

69-2762EFS—02 2 CAUTION Electrical Hazard. Can cause electrical shock or equipment damage. Disconnect power before beginning installation. Mount Cover Plate Mount Cover Plate Directly to Wall (See Fig. 2)

1. Pull the wires through the wire hole on the cover plate and wall plate.

2. Position the cover plate and wall plate on the wall with the arrows pointing up. Level the wall plate for

3. Use a pencil to mark the mounting holes for your thermostat.

4. Remove the cover plate and wall plate from the wall and drill two 3/16-in. holes in the wall (if drywall) as

marked. For firmer material such as plaster, drill two 7/32-in. holes. Tap the wall anchors (provided with the thermostat) into the holes, until the anchor collar touches the wall.

5. Pull the wires through the wire hole on the cover plate and wall plate. Position the cover plate and wall

plate on the wall anchors.

6. Insert the mounting screws (provided with the thermostat) into the wall anchors. Check leveling, if desired,

and tighten the mounting screws. Fig. 2. Mount cover plate, wall plate and thermostat directly to wall. WALL OPENINGWALL ANCHORS (2)(PROVIDED WITH THERMOSTAT)DRILLED HOLES (2) WALL

MOUNTING SCREWS (2)(PROVIDED WITH THERMOSTAT) M34259

WIRE WIRE HOLECOVER PLATEMOUNTING HOLES (2)THERMOSTATWIRE HOLEWALL PLATEMOUNTING HOLES (2)THP2400A1019 COVER PLATE ASSEMBLY 3 69-2762EFS—02 Mount Cover Plate to a Vertical 2 in. X 4 in. Electrical Box (See Fig. 3)

1. Position the bracket on the electrical box. Insert two #6-32 X 5/8 flat head screws. Check leveling, if

desired, and tighten the flat head screws.

2. Pull the wires through the wire hole on the cover plate and wall plate. Position the cover plate and wall

plate on the bracket with the arrows pointing up.

3. Insert two #6-32 X 1/4 pan head screws and tighten.

Fig. 3. Mount bracket, cover plate, wall plate and thermostat to a vertical 2 in. X 4 in. electrical box.

HEAD SCREWS (2) THERMOSTAT WIRE HOLE WALL PLATE MOUNTING HOLES (2)

1. Pull the wires through the wire hole on the cover plate and wall plate. Position the cover plate and wall

plate on the electrical box with the arrows pointing up.

2. Insert two #6-32 X 5/8 flat head screws. Check leveling, if desired, and tighten the flat head screws.

Fig. 4. Mount cover plate, wall plate and thermostat to a horizontal 2 in. X 4 in. electrical box.

6-32 X 5/8 (2) MF34261
