MOTOTRBO CP100d - Radio MOTOROLA - Free user manual and instructions

Product Type	Portable Two-Way Radio
Brand	Motorola
Model	MOTOTRBO CP100d
Power Supply	Lithium-ion battery (1500 mAh) or NiMH battery (1300 mAh)
Battery Life	Varies by battery; initial charge time: 14 to 16 hours
Weight	Approximately 290 g with standard battery
Dimensions	Approximately 130 x 60 x 40 mm
Number of Channels	Up to 160
Modes	Analog and Digital (DMR)
Call Functions	Group, Individual, All Calls, Broadcast, OVCM, No Recipient
Text Messaging	Quick Messages (50 predefined) and Free Messages
Advanced Features	Scanning (3 lists, 16 members each), Permanent Listen, Contact List (256 max), Call Log, Call Alert
Security	Keypad Lock, Remote Enable/Disable
Display	LCD screen with status icons
Indicators	LED indicator (green, red, yellow) and audio tones
Maintenance and Cleaning	Clean with a dry cloth; avoid contact with liquids
Warranty	Radio: 2 years; accessories: 1 year; battery: 12 months (80% capacity)

Frequently Asked Questions - MOTOTRBO CP100d MOTOROLA

How to charge the battery of the Motorola MOTOTRBO CP100d?

Turn the radio off during charging. Use an approved Motorola Solutions charger. For a new battery, charge for 14 to 16 hours before first use. Prefer charging at room temperature.

How to make a group call?

Select the channel corresponding to the group alias or ID, then press the PTT button. Wait for the talk permit tone to end (if enabled) and speak clearly into the microphone. Release PTT to listen for a response.

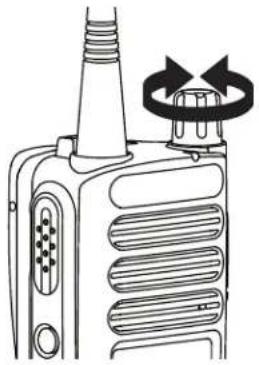

How to adjust the volume?

Turn the On/Off/Volume knob clockwise to increase volume, and counterclockwise to decrease it. A minimum volume can be programmed by your dealer.

How to activate channel scanning?

Press the programmed Scan button or access the Scan menu. The scan icon appears on the display. The radio scans the scan list of the current channel for voice activity.

How to send a quick text message?

Press the programmed Text Message button or go to the Messages > Quick Text menu. Select the desired predefined message. Your radio sends the message to the predefined alias. A tone confirms successful sending.

How to install the battery?

Align the battery with the grooves on the back of the radio. Press firmly and slide the latch upward until it clicks, then lock it.

How to adjust the squelch level?

Go to Utilities > Radio Settings > Squelch. Choose between Filtered (suppresses background noise) or Normal. Confirm with OK.

How to change the interface language?

Go to Utilities > Radio Settings > Languages. Select the desired language (e.g., French). The display shows a checkmark next to the selected language.

How to know if the battery is low?

The Battery icon on the screen indicates the level. When the battery is low, the icon flashes and the red LED flashes during transmission. Recharge the battery as soon as possible.

How to use the permanent listen function?

Press the programmed Permanent Listen button. The yellow LED turns on and the Monitor icon appears. The radio continuously monitors channel activity. Press again to deactivate.

USER MANUAL MOTOTRBO CP100d MOTOROLA

Black motorola radio device with visible signal waves and control buttons (no text or symbols on device body)

FEBRUARY 2021

© 2021 Motorola Solutions, Inc. All rights reserved.

MN007803A01-AA

English

Contents

Supplier's Declaration of Conformity....6

Important Safety Information....8

Notice to Users (FCC)....9

Notice to Users (Industry Canada).... 10

Canada Licensing Information....11

Software Version.... 12

Copyrights.... 13

Computer Software Copyrights.... 15

Chapter 1: Introduction......16

1.1 Icon Information....16

1.2 Conventional Analog and Digital Modes.....16

Chapter 2: Getting Started.... 18

2.1 Charging the Battery....18

2.2 Attaching the Battery.... 18

2.3 Removing the Battery.... 18

2.4 Attaching the Antenna.... 19

2.5 Attaching and Removing the Belt Clip...... 20

Attaching the Belt Clip.... 20

Removing the Belt Clip.... 21

2.6 Turning the Radio On.... 21

2.7 Adjusting the Volume....22

Chapter 3: Radio Controls....23

3.1 Programmable Buttons....24

3.1.1 Assignable Radio Functions...... 24

3.1.2 Assignable Settings or Utility Functions.... 25

3.1.3 Using the Keypad.... 26

3.2 Push-To-Talk Button....28

Chapter 4: Status Indicators....29

4.1 Icons.... 29

4.2 LED Indicators 31

4.3 Tones....32

4.3.1 Audio Tones....32

4.3.2 Indicator Tones.... 33

Chapter 5: Channel Selections....34

5.1 Selecting Channels....34

Chapter 6: Calls....35

6.1 Group Calls....35

6.1.1 Making Group Calls.... 35

6.1.2 Making Group Calls by Using the Contacts List 36

English

6.1.3 Responding to Group Calls......37

6.2 Private Calls 37

6.2.1 Making Private Calls 📄......38

6.2.2 Making Private Calls by Using the Contacts List 39

6.2.3 Responding to Private Calls 📁.... 39

6.3 All Calls....40

6.3.1 Receiving All Calls.... 40

6.4 Broadcast Voice Calls.... 41

6.4.1 Making Broadcast Voice Calls..... 41

6.4.2 Receiving Broadcast Voice Calls...41

6.5 Unaddressed Calls.... 42

6.5.1 Making Unaddressed Calls......42

6.5.2 Responding to Unaddressed Calls....42

6.6 Open Voice Channel Mode (OVCM)...... 43

6.6.1 Making OVCM Calls.... 43

6.6.2 Responding to OVCM Calls......43

6.7 Dual Tone Multi Frequency.... 44

6.7.1 Initiating DTMF Tone...... 44

Chapter 7: Advanced Features.... 45

7.1 Talkaround....45

7.1.1 Toggling Between Repeater and Talkaround Modes.... 45

7.2 Monitor Feature 46

7.2.1 Monitoring Channels......46

7.2.2 Permanent Monitor 46

7.2.2.1 Turning Permanent Monitor On or Off.... 46

7.3 Scan Lists.... 47

7.3.1 Viewing Entries in the Scan List ... 47

7.4 Scan.... 47

7.4.1 Turning Scan On or Off .....48

7.4.2 Responding to Transmissions During Scanning.... 48

7.4.3 Deleting Nuisance Channels...... 49

7.4.4 Restoring Nuisance Channels..... 49

7.5 Contacts Settings.... 50

7.5.1 Setting Default Contact 📄......50

7.6 Call Indicator Settings....51

7.6.1 Activating or Deactivating Call Ringers for Private Calls 📄 ....51

English

7.6.2 Activating or Deactivating Call Ringers for Text Messages 📄......52
7.6.3 Assigning Ring Styles.... 52

7.7 Call Log Features 53

7.7.1 Viewing Recent Calls....53
7.7.2 Viewing Call List Details 54
7.7.3 Deleting Calls from the Call List 54

7.8 Call Alert Operation.... 55
7.8.1 Responding to Call Alerts 55
7.9 Text Messaging.... 56
7.9.1 Quick Text Messages 📄...... 56

7.9.1.1 Sending Quick Text Messages 📄 56

7.9.1.2 Sending Quick Text Messages with the One Touch Access Button.... 57

7.9.2 Text Messages 57

7.9.2.1 Viewing Text Messages... 57
7.9.2.2 Responding to Text Messages 58

7.9.2.3 Forwarding Text Messages 58
7.9.2.4 Resending Text Messages....59
7.9.2.5 Deleting All Text Messages from the Inbox ..... 60
7.9.2.6 Deleting Text Messages from the Inbox.... 61

7.9.3 Sent Text Messages 📄 61

7.9.3.1 Viewing Sent Text Messages 📁 62
7.9.3.2 Sending Sent Text Messages 📁 62
7.9.3.3 Deleting All Sent Text Messages from the Sent Items Folder ....63

7.10 Security 64
7.11 Notification List 64

7.11.1 Accessing Notification List ...... 65

7.12 Auto-Range Transponder System ..65 Chapter 8: Utilities....67

English

8.1 Locking or Unlocking the Keypad.... 67
8.2 Squelch Levels 67

8.2.1 Setting Squelch Levels 68

8.3 Power Levels.... 68
8.3.1 Setting Power Levels.... 69
8.4 Adjusting Display Brightness.... 69
8.5 Voice Operating Transmission.... 70
8.6 Turning Radio Tones/Alerts On or Off...... 71
8.7 Turning Power Up Tone On or Off....71
8.8 Setting Tones/Alerts Volume Offset Levels 72
8.9 Turning Talk Permit Tone On or Off...... 73
8.10 Setting Languages....73
8.11 Turning LED Indicators On or Off...... 74
8.12 Turning Voice Announcement On or Off .. 75
8.13 Turning Analog Microphone AGC On or Off 75
8.14 Turning Digital Microphone AGC On or Off 76
8.15 General Radio Information 77

8.15.1 Accessing Battery Information .... 77

8.15.2 Checking Radio Alias and ID ..... 78

Chapter 9: Authorized Accessories List....79
Batteries and Chargers Warranty....82

The Workmanship Warranty....82

The Capacity Warranty....82

Limited Warranty....83

MOTOROLA SOLUTIONS COMMUNICATION PRODUCTS.... 83
I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG: 83
II. GENERAL PROVISIONS.... 84
III. STATE LAW RIGHTS: 84
IV. HOW TO GET WARRANTY SERVICE......84
V. WHAT THIS WARRANTY DOES NOT COVER....84
VI. PATENT AND SOFTWARE PROVISIONS..85
VII. GOVERNING LAW.... 86

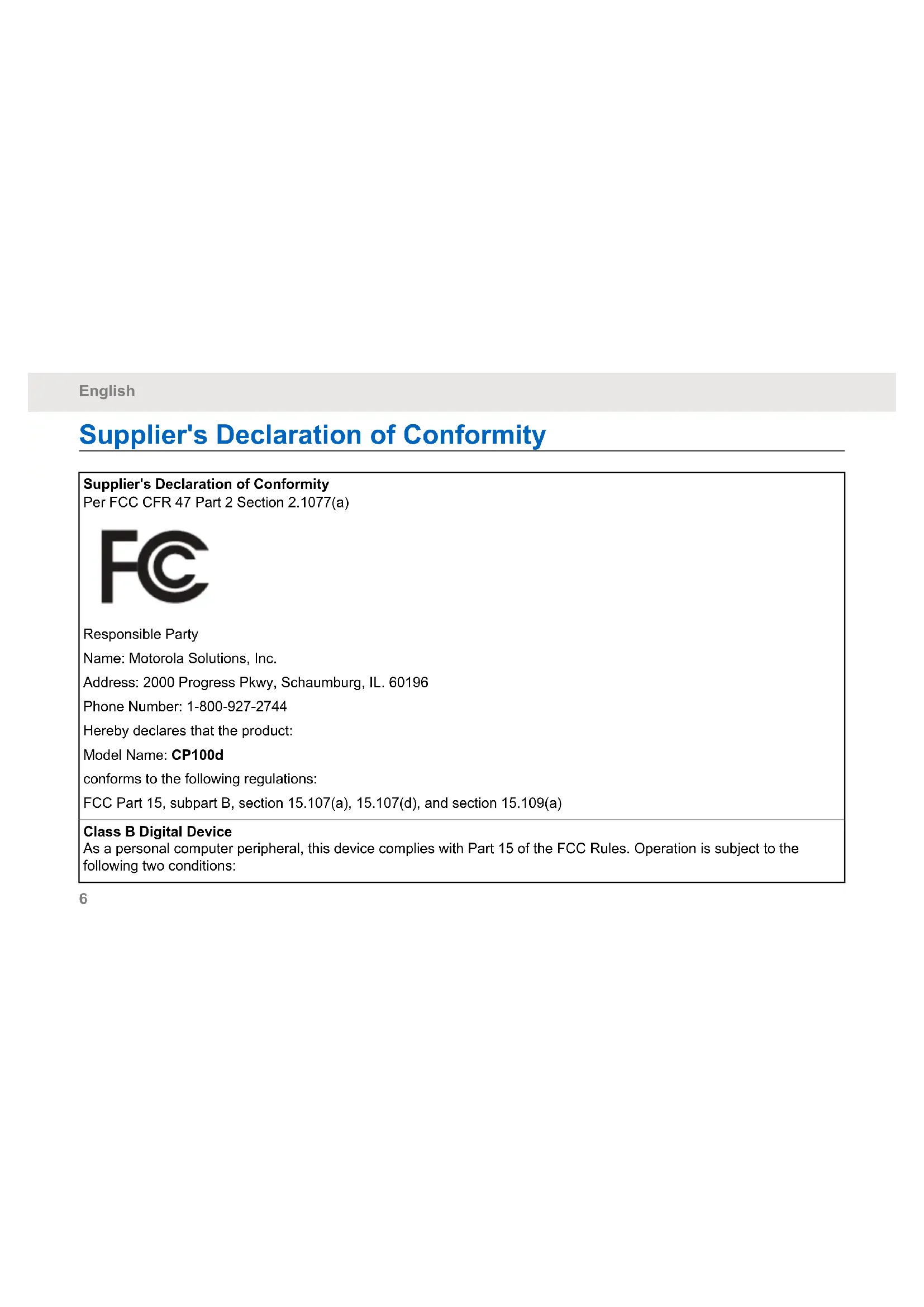

Supplier's Declaration of Conformity

Supplier's Declaration of Conformity

Per FCC CFR 47 Part 2 Section 2.1077(a)

Responsible Party

Name: Motorola Solutions, Inc.

Address: 2000 Progress Pkwy, Schaumburg, IL. 60196

Phone Number: 1-800-927-2744

Hereby declares that the product:

Model Name: CP100d

conforms to the following regulations:

FCC Part 15, subpart B, section 15.107(a), 15.107(d), and section 15.109(a)

Class B Digital Device

As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference that may cause undesired operation.

NOTICE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or TV technician for help.

Important Safety Information

RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios

CAUTION:

This radio is restricted to Occupational use only.

Before using the radio, read the RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios which contains important operating instructions for safe usage and RF energy awareness and control for Compliance with applicable standards and Regulations.

Any modification to this device, not expressly authorized by Motorola Solutions, may void the user's authority to operate this device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

This radio transmitter has been approved by Industry Canada to operate with Motorola Solutions-approved antenna with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Notice to Users (FCC)

This device complies with Part 15 of the FCC rules per the following conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
• Changes or modifications made to this device, not expressly approved by Motorola Solutions, could void the authority of the user to operate this equipment.

English

Notice to Users (Industry Canada)

The operation of your Motorola Solutions radio is subject to the Radiocommunications Act and must comply with rules and regulations of the Federal Government's department of Industry Canada. Industry Canada requires that all operators using Private Land Mobile frequencies obtain a radio license before operating their equipment.

Canada Licensing Information

Notice to Users (Industry Canada)

The operation of your Motorola Solutions radio is subject to the Radiocommunications Act and must comply with rules and regulations of the Federal Government's department of Industry Canada. Industry Canada requires that all operators using Private Land Mobile frequencies obtain a radio license before operating their equipment.

The License Application

1 Fill in the items as per the instructions. If you need additional space for any item use the reverse side of the application.
2 Be sure to print legibly
3 Make a copy for your files.
4 Prepare a cheque or money made out to the "Receiver General for Canada", for an amount, which is on the following schedule, for each radio purchased. (License is renewed on April 1st each year, and issued for a period of 12 months).

5 Mail your completed application, along with your cheque or money order to the closest Industry Canada District office, according to the list on pages.

To obtain the latest Canadian License Application form, please go to http://www.ic.gc.ca/ic_wp-pa.htm.

English

Software Version

All the features described in the following sections are supported by the software version R01.21.01.0000 or later.

Contact your dealer or administrator for more information.

Copyrights

The Motorola Solutions products described in this document may include copyrighted Motorola Solutions computer programs. Laws in the United States and other countries preserve for Motorola Solutions certain exclusive rights for copyrighted computer programs. Accordingly, any copyrighted Motorola Solutions computer programs contained in the Motorola Solutions products described in this document may not be copied or reproduced in any manner without the express written permission of Motorola Solutions.

© 2021 Motorola Solutions, Inc. All Rights Reserved

No part of this document may be reproduced, transmitted, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without the prior written permission of Motorola Solutions, Inc.

Furthermore, the purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication, estoppel or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions, except for the normal non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Disclaimer

Please note that certain features, facilities, and capabilities described in this document may not be applicable to or licensed for use on a specific system, or may be dependent upon the characteristics of a specific mobile subscriber unit or configuration of certain parameters. Please refer to your Motorola Solutions contact for further information.

Trademarks

MOTOROLA, MOTO, MOTOROLA SOLUTIONS, and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.

Open Source Content

This product contains Open Source software used under license. Refer to the product installation media for full Open Source Legal Notices and Attribution content.

English

European Union (EU) Waste of Electrical and Electronic Equipment (WEEE) directive

The European Union's WEEE directive requires that products sold into EU countries must have the crossed out trash bin label on the product (or the package in some cases).

As defined by the WEEE directive, this cross-out trash bin label means that customers and end-users in EU countries should not dispose of electronic and electrical equipment or accessories in household waste.

Customers or end-users in EU countries should contact their local equipment supplier representative or service centre for information about the waste collection system in their country.

Computer Software Copyrights

The Motorola Solutions products described in this manual may include copyrighted Motorola Solutions computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola Solutions certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. Accordingly, any copyrighted Motorola Solutions computer programs contained in the Motorola Solutions products described in this manual may not be copied, reproduced, modified, reverse-engineered, or distributed in any manner without the express written permission of Motorola Solutions. Furthermore, the purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product.

The AMBE+2 ^™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc.

This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form.

U.S. Pat. Nos. #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166.

English

Introduction

This user guide covers the operation of your radios.

Your dealer or system administrator may have customized your radio for your specific needs. Check with your dealer or system administrator for more information.

You can consult your dealer or system administrator about the following:

• Is your radio programmed with any preset conventional channels?
• Which buttons have been programmed to access other features?
• What optional accessories may suit your needs?
• What are the best radio usage practices for effective communication?
• What maintenance procedures that helps promote longer radio life?

1.1

Icon Information

Throughout this publication, the icons described are used to indicate features supported in either the conventional analog or conventional digital mode.

Indicates a conventional Analog Mode-Only feature.

Indicates a conventional Digital Mode-Only feature.

For features that are available in both conventional analog and digital modes, both icons are not shown.

1.2

Conventional Analog and Digital Modes

Each channel in your radio can be configured as a conventional analog or conventional digital channel.

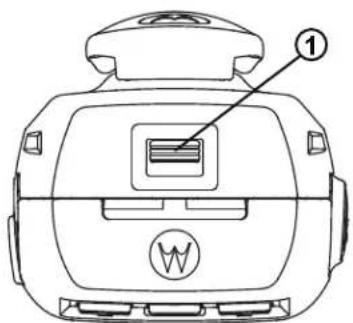

1 : Channel Selector Knob

Certain features are unavailable when switching from digital to analog mode.

Your radio also has features available in both analog and digital modes. The minor differences in the way each feature works do not affect the performance of your radio.

NOTICE:

Your radio also switches between digital and analog modes during a dual mode scan. See Scan on page 47 for more information.

Getting Started

Getting Started provides instructions to prepare your radio for use.

2.1

Charging the Battery

Your radio is powered by a Lithium-Ion (Li-Ion) battery.

Turn off your radio when charging.

• To comply with warranty terms and avoid damages, charge the battery using a Motorola Solutions authorized charger as described in the charger user guide.
• Charge a new battery 14 to 16 hours before initial use for best performance.
  Batteries charge best at room temperature.

2.2

Attaching the Battery

Follow the procedure to attach the battery to your radio.

1 Align the battery with the rails on the back of the radio.
2 Press the battery firmly, and slide upwards until the latch snaps into place.

Line drawing of a handheld electronic device with ports and a speaker (no text or symbols)

3 Slide battery latch into lock position.

2.3

Removing the Battery

Follow the procedure to remove the battery from your radio.

Ensure that the radio is turned off.

1 Move the battery latch into unlock position and hold.

1 : Battery Latch

2 Slide the battery down and lift off the rails.

Line drawing of a walkie-talkie device with no visible text or symbols

2.4

Attaching the Antenna

Turn off your radio.

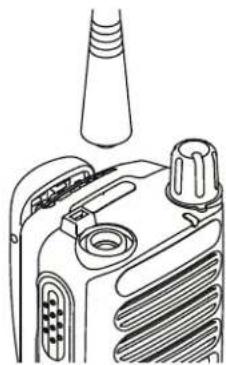

Set the antenna in the receptacle and turn clockwise.

NOTICE:

To protect best against water and dust, ensure that antenna is tightly fitted.

English

Technical line drawing of a mechanical device with no visible text or symbols

NOTICE:

To remove the antenna, turn the antenna counterclockwise.

CAUTION:

To prevent damages, replace the faulty antenna with only MOTOTRBO antennas.

2.5

Attaching and Removing the Belt Clip

Attaching the Belt Clip

Align the grooves on the clip with the grooves on the battery and press it downwards until it clicks.

Technical line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

Removing the Belt Clip

1 To remove the clip, press the belt clip tab away from the battery.
2 Slide the clip upwards and away from the radio.

2.6

Turning the Radio On

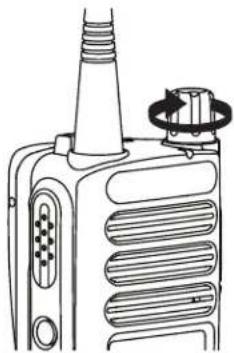

Rotate the On/Off/Volume Control knob clockwise until it clicks.

Line drawing of a portable radio with ventilation slots and a knob (no text or symbols)

If successful, your radio shows the following indications:

- A tone sounds.

NOTICE:

If the Tones/Alerts function is disabled, there is no tone upon powering up.

• The green LED lights up.
• The display shows MOTOROLA.

If your radio does not power up, check your battery. Make sure that the battery is charged and properly attached.

Contact your dealer if your radio still does not power up.

English

2.7

Adjusting the Volume

To adjust the volume of your radio, perform one of the following actions:

• To increase the volume, turn the On/Off/Volume Control knob clockwise.
- To decrease the volume, turn the On/Off/Volume Control knob counterclockwise.

Line drawing of a walkie-talkie with a mounted antenna and ventilation slots (no text or symbols)

NOTICE:

Your radio can be programmed to have a minimum volume offset where the volume level cannot be lowered past the programmed minimum volume.

Radio Controls

This chapter explains the buttons and functions to control the radio.

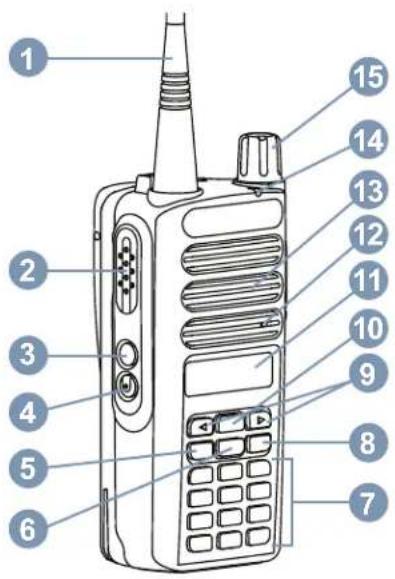

1 Antenna
2 Push-to-Talk (PTT) Button
3 Side Button 1 ^1
4 Side Button 2 ^1
5 Front Button P1 1
6 Back/Home Button
7 Keypad
8 Front Button P2 1
9 Channel Selector Keypad
10 Menu/OK Button
11 Display
12 Microphone
13 Speaker
14 LED Indicator
15 On/Off/Volume Control Knob

English

3.1

Programmable Buttons

Depending on the duration of a button press, your dealer can program the programmable buttons as shortcuts to radio functions.

Short press

Pressing and releasing rapidly.

Long press

Pressing and holding for the programmed duration.

Press and hold

Keeping the button pressed.

The programmed duration of a button press is applicable to all assignable radio/utility functions or settings.

3.1.1

Assignable Radio Functions

The following radio functions can be assigned to the programmable buttons.

Battery Type

Allows selection of battery type between Li-Ion and NiMH.

Contacts

Provides direct access to the Contacts list.

Call Log

Selects the call log list.

Manual Dial

Initiates a Private or Phone Call by keying in any subscriber ID or phone number.

Mic AGC

Toggles the internal microphone automatic gain control (AGC) on or off.

Monitor

Monitors a selected channel for activity.

Notifications

Provides direct access to the Notifications list.

Nuisance Channel Delete

Temporarily removes an unwanted channel, except for the Selected Channel, from the scan list. The Selected Channel refers to the selected zone or channel combination of the user from which scan is initiated.

One Touch Access

Directly initiates a predefined Private, Phone or Group Call, a Call Alert, or a Quick Text message.

Permanent Monitor

Monitors a selected channel for all radio traffic until function is disabled.

Power Battery Indicator

Displays the current status of the battery level.

Radio Alias and ID

Provides radio alias and ID.

Repeater/Talkaround

Toggles between using a repeater and communicating directly with another radio.

Scan

Toggles scan on or off.

Voice Announcement On/Off

Toggles voice announcement on or off.

Voice Announcement for Channel

Plays zone and channel announcement voice messages for the current channel. This function is unavailable when Voice Announcement is disabled.

Voice Operating Transmission (VOX)

Toggles VOX on or off.

3.1.2

Assignable Settings or Utility Functions

The following radio settings or utility functions can be assigned to the programmable buttons.

Tones/Alerts

Toggles all tones and alerts on or off.

Backlight

Toggles display backlight on or off.

Backlight Brightness

Adjusts the brightness level.

Keypad Lock

Toggles keypad between locked and unlocked.

Power Level

Toggles transmit power level between high and low.

Squelch

Toggles squelch level between tight and normal.

English

3.1.3

Using the Keypad

You can use the 3 x 4 alphanumeric keypad to access your radio features. Many characters require that you press a key multiple times. The following table shows the number of times a key needs to be pressed to generate the required character.

Key Number of Times Key is Pressed
	1 2 3 4 5 6 7 8 9 10 11 12 13
1,.?	1.,?!@&'%—:*#
2ABC	A B C 2
3DEF	D E F 3
4GHI	G H I 4
5JKL	J K L 5

Key Number of Times Key is Pressed
	1 2 3 4 5 6 7 8 9 10 11 12 13
	M N O 6
	P Q R S 7
	T U V 8
	W X Y Z 9
	0	[HZS2]	NOTICE:Press to enter “0” and long press to activate the CAPS lock. Another long press to turn off the CAPS lock.
	* or del		NOTICE:Press during text entry to delete the character. Press during numeric entry to enter a “*”.
[HZ6]	# or space		NOTICE:Press during text entry to insert a space. Press during numeric entry to enter a “#”. Long press to change text entry method.

English

3.2

Push-To-Talk Button

The Push-to-Talk (PTT) button serves two basic purposes:

• While a call is in progress, the PTT button allows the radio to transmit to other radios in the call. The microphone is activated when the PTT button is pressed.
• While a call is not in progress, the PTT button is used to make a new call.

If the Talk Permit Tone is enabled, wait until the short alert tone ends before talking.

If the Channel Free Indication feature is enabled on your radio (programmed by your dealer), you hear a short alert tone the moment the target radio (the radio that is receiving your call) releases the PTT button, indicating the channel is free for you to respond.
You hear a continuous Talk Prohibit Tone if your call is interrupted. You should release the PTT button if you hear a continuous Talk Prohibit Tone.

Status Indicators

This chapter explains the status indicators and audio tones used in the radio.

4.1

Icons

The following are icons that appear on the radio display.

Table 1: Display Icons

	Received Signal Strength Indicator (RSSI)The number of bars displayed represents the radio signal strength. Four bars indicate the strongest signal. This icon is only displayed while receiving.
[wept]	MonitorSelected channel is being monitored.
	NotificationNotification List has one or more missed events.

English

L or H	Power LevelRadio is set at Low power or Radio is set at High power.
	Tones DisableTones are turned off.
	ScanScan feature is enabled.
	SecureThe Privacy feature is enabled.
	UnsecureThe Analog Scrambling feature is disabled.
	TalkaroundIn the absence of a repeater, radio is currently configured for direct radio to radio communication.
☐☐☐☐	BatteryThe number of bars (0–4) shown indicates the charge remaining in the battery. The icon blinks when the battery is low.

Table 2: Call Icons

The following icons appear on the radio display during a call. These icons also appear in the Contacts list to indicate ID type.

Private Call

Indicates a Private Call in progress. In the Contacts list, it indicates a subscriber alias (name) or ID (number).

Group Call/All Call

Indicates a Group Call or All Call in progress. In the Contacts list, it indicates a group alias (name) or ID (number).

Table 3: Mini Notice Icons

The following icons appear momentarily on the radio display after an action to perform a task is taken.

Successful Transmission (Positive)

Successful action taken.

Failed Transmission (Negative)

Failed action taken.

Transmission in Progress (Transitional)

Transmitting. This is seen before indication for Successful Transmission or Failed Transmission.

- The text message to a subscriber alias or ID is pending transmission, followed by waiting for acknowledgement.

Table 4: Sent Items Icons

The following icons appear at the top right corner of the radio display in the Sent Items folder.

	Sent SuccessfullyThe text message has been successfully sent.
	Send FailedThe text message cannot be sent.
	In Progress• The text message to a group alias or ID is pending transmission.

4.2

LED Indicators

LED indicators show the operational status of your radio.

Blinking Red

Radio has failed the self-test upon powering up.

Radio is receiving an emergency transmission.

Radio is transmitting in low battery state.

Radio has moved out of range if Auto-Range

Transponder System is configured.

Solid Green

Radio is powering up.

Radio is transmitting.

Indicates full battery capacity when the programmed

Battery Strength button is pressed.

When pressing the Battery Type button to set the battery type as NiMH.

English

Blinking Green

Radio is receiving a call or data.

Radio is detecting activity over the air.

Solid Yellow

Radio is monitoring a conventional channel.

When pressing the Battery Type button to set the battery type as Li-Ion.

Indicates fair battery charge when programmable button is pressed.

Blinking Yellow

Radio is scanning for activity.

Radio has yet to respond to a Call Alert.

Radio has Flexible Receive List enabled.

Double Blinking Yellow

Radio is actively searching for a new site.

Radio has yet to respond to a Group Call Alert.

Radio is locked.

4.3

Tones

The following are the tones that sound through on the radio speaker.

High Pitched Tone

Low Pitched Tone

4.3.1

Audio Tones

Audio tones provide you with audible indications of the status, or response to data received on the radio.

Continuous Tone

A monotone sound. Sounds continuously until termination.

Periodic Tone

Sounds periodically depending on the duration set by the radio. Tone starts, stops, and repeats itself.

Repetitive Tone

A single tone that repeats itself until it is terminated by the user.

Momentary Tone

Sounds once for a short duration set by the radio.

4.3.2

Indicator Tones

Indicator tones provide you with audible indications of the status after an action to perform a task is taken.

Positive Indicator Tone

Negative Indicator Tone

English

Channel Selections

This chapter explains the operations to select a channel on your radio.

Your radio supports up to 160 channels.

Each channel can be programmed with different features and or support different groups of users.

In the home screen, the display shows the channel number followed by the channel alias. For example, if the current channel number is 1, and the channel alias is 'City Parks', the display shows Ch:1 City Parks.

5.1

Selecting Channels

Follow the procedure to select the required channel on your radio.

1

Press or to advance from one channel to another.

The display shows Ch2: Channel Alias.

NOTICE:

To advance to the following channels faster,

press and hold or

2 Enter the channel number by pressing the numeric

keypad and press OK to change channel. To delete a number press

The display shows the entered channel number and channel alias.

NOTICE:

You can only enter 3 digits. A negative tone sounds when more than 3 digits are entered.

Calls

This chapter explains the operations to receive, respond to, make, and stop calls.

You can select a subscriber alias or ID, or group alias or ID after you have selected a channel by using one of these features:

Channel Selector Keypad

This method is used for Group and Private Calls.

Contacts List

This method provides direct access to the Contacts list.

The LED lights up solid green while the radio is transmitting and blinks green when the radio is receiving.

6.1

Group Calls

Your radio must be configured as part of a group to receive a call from or make a call to the group of users.

6.1.1

Making Group Calls

Follow the procedure to make Group Calls on your radio.

1 Do one of the following:

• Select a channel with the active group alias or ID.
• Press the programmed One Touch Access button.

2 Press the PTT button to make the call.

The green LED lights up. The display shows the Group Call icon and the group call alias.

3 Do one of the following:

• Wait for the Talk Permit Tone to end and speak clearly into the microphone if enabled.
• Wait for the PTT Sidetone to end and speak clearly into the microphone if enabled.

4 Release the PTT button to listen.

The green LED blinks when the target radio responds. The display shows the Group Call icon, the group alias or ID, and the transmitting radio alias or ID.

5 If the Channel Free Indication feature is enabled, you hear a short alert tone the moment the

English

transmitting radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond to the call.

The call ends when there is no voice activity for a predetermined period. The radio returns to the screen you were on prior to initiating the call.

6.1.2

Making Group Calls by Using the Contacts List

Follow the procedure to make Group Calls on your radio by using the Contacts list.

1

2

s. Press

3

ired alias or ID.

4 Press the PTT button to make the call.

The green LED lights up.

5 Do one of the following:

• Wait for the Talk Permit Tone to end and speak clearly into the microphone if enabled.
• Wait for the PTT Sidetone to end and speak clearly into the microphone if enabled.

6 Release the PTT button to listen.

The green LED blinks when any user in the group responds. The display shows the Group Call icon, and alias or ID, and the transmitting radio alias or ID.

7 If the Channel Free Indication feature is enabled, you hear a short alert tone the moment the transmitting radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond to the call.

The call ends when there is no voice activity for a predetermined period.

6.1.3

Responding to Group Calls

To receive a call from a group of users, your radio must be configured as part of that group. Follow the procedure to respond to Group Calls on your radio.

When you receive a Group Call:

• The green LED blinks.
• The display shows the Group Call icon and the group call alias.
• Your radio unmutes and the incoming call sounds through the speaker.

1 Do one of the following:

• If the Channel Free Indication feature is enabled, you hear a short alert tone the moment the transmitting radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond to the call.
• If the Voice Interrupt feature is enabled, press the PTT button to interrupt the audio from the

transmitting radio and free the channel for you to respond.

The green LED lights up.

2 Do one of the following:

• Wait for the Talk Permit Tone to end and speak clearly into the microphone if enabled.
• Wait for the PTT Sidetone to end and speak clearly into the microphone if enabled.

3 Release the PTT button to listen.

The call ends when there is no voice activity for a predetermined period.

6.2

Private Calls

A Private Call is a call from an individual radio to another individual radio.

There are two ways to set up a Private Call. The first type sets up the call after performing a radio presence check, while the second type sets up the call immediately. Only

English

one of these types can be programmed to your radio by your dealer.

If this feature is not enabled, a negative indicator tone sounds when you make a Private Call through the Menu, Contacts list, Call Log, One Touch Access button, the programmed number keys, or the Channel Selector Keypad.

6.2.1

Making Private Calls

Your radio must be programmed to initiate a Private Call. If this feature is not enabled, a negative indicator tone sounds when you initiate the call. Follow the procedure to make Private Calls on your radio.

1 Do one of the following:

• Select a channel with the active subscriber alias or ID.
• Press the programmed One Touch Access button.

2 Press the PTT button to make the call.

The green LED lights up. The display shows the Private Call icon, and subscriber alias alternating with Calling.

3 Wait for the Talk Permit Tone to end and speak clearly into the microphone if enabled.
4 Release the PTT button to listen.

The green LED blinks when the target radio responds.

5 If the Channel Free Indication feature is enabled, you hear a short alert tone the moment the transmitting radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond to the call.

The call ends when there is no voice activity for a predetermined period. A tone sounds. The display shows Call Ended.

6.2.2

Making Private Calls by Using the Contacts List

1 Press to access the menu.

2 Press or to Contacts. Press to select.

3 Press ▶ or ▶ to the required alias or ID. Press □ OK to select.

4 Press the PTT button to make the call. The green LED lights up. The display shows the destination alias.

5 Wait for the Talk Permit Tone to end and speak clearly into the microphone if enabled.

6 Release the PTT button to listen.

The green LED blinks when the target radio responds. The display shows the transmitting user alias or ID.

7 If the Channel Free Indication feature is enabled, you hear a short alert tone the moment the transmitting radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond to the call.

The call ends when there is no voice activity for a predetermined period. A tone sounds. The display shows Call Ended.

6.2.3

Responding to Private Calls

Follow the procedure to respond to Private Calls on your radio.

When you receive a Private Call:

- The green LED blinks.

English

- Your radio unmutes and the incoming call sounds through the speaker.

1 Do one of the following:

• If the Channel Free Indication feature is enabled, you hear a short alert tone the moment the transmitting radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond to the call.
• If the Transmit Interrupt Remote Dekey feature is enabled, press the PTT button to stop an ongoing interruptible call and free the channel for you to respond.

The green LED lights up.

2 Wait for the Talk Permit Tone to end and speak clearly into the microphone if enabled.
3 Release the PTT button to listen.

The call ends when there is no voice activity for a predetermined period.

All Calls

An All Call is a call from an individual radio to every radio on the channel. An All Call is used to make important announcements, requiring full attention from the user. The users on the channel cannot respond to an All Call.

6.3.1

Receiving All Calls

When you receive an All Call:

• A tone sounds.
• The green LED blinks.
• Your radio unmutes and the incoming call sounds through the speaker.

An All Call does not wait for a predetermined period before ending.

If the Channel Free Indication feature is enabled, you hear a short alert tone when the transmitting radio releases the PTT button, indicating the channel is free for you to use.

You cannot respond to an All Call.

NOTICE:

The radio stops receiving the All Call if you switch to a different channel while receiving the call. You are not able to continue with any programmed button functions until the end of an All Call.

6.4

Broadcast Voice Calls

A Broadcast Voice Call is a one-way voice call from any user to an entire talkgroup.

The Broadcast Voice Call feature allows only the call initiating user to transmit to the talkgroup, while the recipients of the call cannot respond (no Call Hang Time).

Your radio must be programmed to allow you to use this feature. Check with your dealer or system administrator for more information.

6.4.1

Making Broadcast Voice Calls

Program your radio to make Broadcast Voice Calls.

1 Select a channel with the active group alias or ID.

2 Press the PTT button to make the call.

The radio returns to the previous menu after the call ends.

6.4.2

Receiving Broadcast Voice Calls

When you receive a Broadcast Voice Call:

• A tone sounds.
  • The green LED blinks.
• Your radio unmutes and the incoming call sounds through the speaker.

A Broadcast Voice Call does not wait for a predetermined period before ending.

English

You cannot respond to a Broadcast Voice Call.

NOTICE:

The radio stops receiving the Broadcast Voice Call if you switch to a different channel while receiving the call. You cannot continue with any programmed button functions until the end of the Broadcast Voice Call.

6.5

Unaddressed Calls

An Unaddressed Call is a group call to one of the 16 predefined group IDs.

This feature is configured using CPS-RM. A contact for one of the predefined IDs is required to initiate and/or receive an Unaddressed Call. Check with your dealer or system administrator for more information.

6.5.1

Making Unaddressed Calls

1 Select a channel with the active group alias or ID.
2 Press the PTT button to make the call.

3 Release the PTT button to listen.

A momentary tone sounds.

4 If the Channel Free Indication feature is enabled, you hear a short alert tone the moment the transmitting radio releases the PTT button, indicating that the channel is free for you to respond. Press the PTT button to respond to the call.

The call ends when there is no voice activity for a predetermined period.

6.5.2

Responding to Unaddressed Calls

When you receive an Unaddressed Call:

• The green LED blinks.
  • A momentary tone sounds.
• Your radio unmutes and the incoming call sounds through the speaker.

1 Do one of the following:

- If the Channel Free Indication feature is enabled, you hear a short alert tone the moment the

transmitting radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond to the call.

- If the Voice Interrupt feature is enabled, press the PTT button to interrupt the audio from the transmitting radio and free the channel for you to respond.

2 Release the PTT button to listen.

The call ends when there is no voice activity for a predetermined period.

6.6

Open Voice Channel Mode (OVCM)

An Open Voice Channel Mode (OVCM) allows a radio that is not preconfigured to work in a particular system to both receive and transmit during a group or individual call.

The OVCM group call also supports broadcast calls. Program your radio to use this feature. Check with your dealer or system administrator for more information.

6.6.1

Making OVCM Calls

Your radio must be programmed for you to make an OVCM Call. Follow the procedure to make OVCM Calls on your radio.

1 Select a channel with the active group alias or ID.

2 Press the PTT button to make the call.

6.6.2

Responding to OVCM Calls

When you receive an OVCM Call:

- The green LED blinks.

- Your radio unmutes and the incoming call sounds through the speaker.

1 Do one of the following:

- If the Channel Free Indication feature is enabled, you hear a short alert tone the moment the transmitting radio releases the PTT button, indicating the channel is free for you to respond. Press the PTT button to respond to the call.

English

- If the Voice Interrupt feature is enabled, press the PTT button to interrupt the audio from the transmitting radio and free the channel for you to respond.

2 Release the PTT button to listen.

The call ends when there is no voice activity for a predetermined period.

6.7

Dual Tone Multi Frequency

The Dual Tone Multi Frequency (DTMF) feature allows your radio to operate in a radio system with an interface to the telephone systems.

Disabling all radio tones and alert will automatically turn off the DTMF tone.

6.7.1

Initiating DTMF Tone

Follow the procedure to initiate a DTMF tone on your radio.

1 Press and hold the PTT button.

2 Do one of the following:

• Enter the desired number to initiate a DTMF tone.
• Press to initiate a DTMF tone.
• Press to initiate a DTMF tone.

Advanced Features

This chapter explains the operations of the features available in your radio.

Your dealer or system administrator may have customized your radio for your specific needs. Check with your dealer or system administrator for more information.

7.1

Talkaround

This feature allows you to continue communicating when your repeater is non-operational, or when your radio is out of range from the repeater but within the talk range of other radios.

The talkaround setting is retained even after powering down.

7.1.1

Toggling Between Repeater and Talkaround Modes

Follow the procedure to toggle between Repeater and Talkaround modes on your radio.

1 Do one of the following:

- Press the programmed Repeater/Talkaround button. Skip the following steps.

- Press to access the menu.

2

Press or to utilities. Press to select.

3

Press or to Radio Settings. Press OK to select.

4

Press or to Talkaround. Press OK to select.

The display shows ▼ beside On.

The display shows √ beside Off.

The screen automatically returns to the previous screen.

English

7.2

Monitor Feature

The feature allows you to ensure that a channel is free before transmitting.

7.2.1

Monitoring Channels

Follow the procedure to monitor channels.

1 Long press the programmed Monitor button. The Monitor icon appears on the display and the LED lights up solid yellow.

2 Depending on how your radio is programmed, you hear radio activity or total silence. This indicates that the channel is in use.

3 Wait until you hear "white noise". This indicates that the channel is free.

4 Press the PTT button to talk. Release the PTT button to listen.

7.2.2

Permanent Monitor

The Permanent Monitor feature is used to continuously monitor a selected channel for activity.

7.2.2.1

Turning Permanent Monitor On or Off

Follow the procedure to turn Permanent Monitor on or off on your radio.

Press the programmed Permanent Monitor button.

When the radio enters the mode:

• An alert tone sounds.
  • The yellow LED lights up.

- The display shows Permanent Monitor On and the Monitor icon.

When the radio exits the mode:

• An alert tone sounds.
• The yellow LED turns off.

• The display shows Permanent Monitor Off.

7.3

Scan Lists

Scan lists are created and assigned to individual channels or groups. Your radio scans for voice activity by cycling through the channel or group sequence specified in the scan list for the current channel or group.

Your radio can support up to 3 scan lists, with a maximum of 16 members in a list.

Each scan list supports a mixture of both analog and digital entries.

You can add, delete, or prioritize channels by editing a scan list.

7.3.1

Viewing Entries in the Scan List

Follow the procedure to view the entries in the Scan list on your radio.

1

Press to access the menu.

2

Press or to Scan Press to select.

3

Press or to View/Edit List. Press OK to select.

4

Press or to view each member on the list.

The Priority icon appears left of the member's alias, if set, to indicate whether the member is on a Priority 1 or Priority 2 channel list.

NOTICE:

You cannot have multiple Priority 1 or Priority 2 channels in a scan list. There is no Priority icon if priority is set to None.

7.4

Scan

Your radio cycles through the programmed scan list for the current channel looking for voice activity when you start a scan.

English

During a dual-mode scan, if you are on a digital channel, and your radio locks onto an analog channel, it automatically switches from digital mode to analog mode for the duration of the call. This is also true for the reverse.

There are two ways of initiating scan:

Main Channel Scan (Manual)

Your radio scans all the channels or groups in your scan list. On entering scan, your radio may, depending on the settings, automatically start on the last scanned active channel or group, or on the channel where scan was initiated.

Auto Scan (Automatic)

Your radio automatically starts scanning when you select a channel or group that has Auto Scan enabled.

7.4.1

Turning Scan On or Off

Follow the procedure to turn scan on or off on your radio.

1 Do one of the following:

• Press the programmed Scan button. Skip the following steps.
• Press to access the menu.

2

Press select.

to

3

If scan is enabled:

• The display shows Turn On.
If scan is disabled:
• The display shows Turn Off.

7.4.2

Responding to Transmissions During Scanning

During scanning, your radio stops on a channel or group where activity is detected. The radio stays on that channel for a programmed duration known as hang time. Follow the procedure to respond to transmissions during scanning.

1

If the Channel Free Indication feature is enabled, you hear a short alert tone the moment the transmitting radio releases the PTT button, indicating

the channel is free for you to respond. Press the PTT button during hang time.

The green LED lights up.

2 Do one of the following:

• Wait for the Talk Permit Tone to end and speak clearly into the microphone if enabled.
• Wait for the PTT Sidetone to end and speak clearly into the microphone if enabled.

3 Release the PTT button to listen.

The radio returns to scanning other channels or groups if you do not respond within the hang time.

7.4.3

Deleting Nuisance Channels

If a channel continually generates unwanted calls or noise, (termed a "nuisance" channel), you can temporarily remove the unwanted channel from the scan list. This capability does not apply to the channel designated as the Selected Channel. Follow the procedure to delete nuisance channels on your radio.

1 When your radio locks on to an unwanted or nuisance channel, press the programmed Nuisance Channel Delete button until you hear a tone.

2 Release the programmed Nuisance Channel Delete button.

The nuisance channel is deleted.

7.4.4

Restoring Nuisance Channels

Follow the procedure to restore nuisance channels on your radio.

Do one of the following:

• Turn the radio off and then power it on again.
• Stop and restart a scan using the programmed Scan button or menu.
• Change the channel using the Channel Selector Keypad.

English

7.5

Contacts Settings

Contacts provides address book capabilities on your radio. Each entry corresponds to an alias or ID that you use to initiate a call. The entries are alphabetically sorted.

Each entry, depending on context, associates with the different call types: Group Call, analog scrambling-enabled call, PC Call or Dispatch Call.

PC Call and Dispatch Call are data-related. They are only available with the applications. Refer to the data applications documentation for further details.

Additionally, Contacts menu allows you to assign each entry to a programmable number key or more on a keypad microphone. If an entry is assigned to a number key, your radio can perform a quick dial on the entry.

Your radio supports Digital contacts, with a maximum of 256 members for each Contacts list.

Each entry within Contacts displays the following information:

• Call Type
• Call Alias
• Call ID

NOTICE:

You can add, or edit subscriber IDs for the Digital Contacts list. Deleting subscriber IDs can only be performed by your dealer.

7.5.1

Setting Default Contact

Follow the procedure to set the default contact on your radio.

1 Press OK to access the menu.

2 Press or to Contacts. Press to select.

3 Press ▶ or ▶ to the required alias or ID. Press □ OK to select.

English

4

Press or to Set as Default. Press OK to select.

A positive indicator tone sounds. The display shows a positive mini notice. The display shows beside the selected default alias or ID.

7.6

Call Indicator Settings

This feature allows you to configure call or text message ringing tones.

7.6.1

Activating or Deactivating Call Ringers for Private Calls

Follow the procedure to activate or deactivate call ringers for Private Calls on your radio.

1

Press to access the menu.

2

Press or to Utilities. Press to select.

OK

3

Press or to Radio Settings. Press OK to select.

4

Press or to Tanes/Alerts. Press OK to select.

5

Press or to Call Ringers. Press OK to select.

6

Press or to Private Call. Press OK to select.

The display shows ▼ beside On if Private Call ringing tones are enabled.

The display shows √ beside Off if Private Call ringing tones are disabled.

English

7.6.2

Activating or Deactivating Call Ringers for Text Messages

Follow the procedure to activate or deactivate call ringers for text messages on your radio.

1 Press to access the menu.

2 Press or to Utilities. Press to select.

3 Press or to Radio Settings. Press OK to select.

4 Press ▶ or to Tones/Alerts. Press OK to select.

5 Press or to Call Ringers. Press OK to select.

6 Press or to Messages. Press to select.

The display shows √at the current tone.

7 Press or to the required tone. Press OK to select.

The display shows ▼ beside the newly selected tone.

7.6.3

Assigning Ring Styles

The radio can be programmed to sound one of eleven predefined ringing tones when receiving a Private Call, a Call Alert, or a Text Message from a particular contact. The radio sounds out each ring style as you navigate through the list.

1 Press OK to access the menu.

2

Press or to Contacts. Press to select.

The entries are alphabetically sorted.

3

Press or to the required alias or ID. Press to select.

4

Press or to View/Edit. Press to select.

5

Press until display shows Ringer menu A √ indicates the current selected tone.

6

Press or to the required tone. Press OK to select.

A √appears beside the selected tone.

Call Log Features

Your radio keeps track of all recent outgoing, answered, and missed Private Calls. The call log feature is used to view and manage recent calls.

Missed Call Alerts may be included in the call logs, depending on the system configuration on your radio. You can perform the following tasks in each of your call lists:

• Store Alias or ID to Contacts
• Delete Call
• Delete All Calls
• View Details

7.7.1

Viewing Recent Calls

1

Press to access the menu.

2

Press or to Call Log. Press to select.

English

3 Press or to the preferred list. The options are Missed, Answered, and Outgoing lists. Press to select. The display shows the most recent entry.

4 Press or to view the list. You can start a call with the alias or ID the display is currently showing by pressing the PTT button.

7.7.2 Viewing Call List Details

Follow the procedure to view call details on your radio.

1 Press to access the menu.

2 Press or to Call log. Press to select.

3 Press or to the required list. Press OK to select.

4 Press or to the required alias or ID. Press to select.

5 Press ▶ or ▶ to view Details. Press OK to select.

The display shows the call details.

7.7.3 Deleting Calls from the Call List

Follow the procedure to delete calls from the Call list.

1 Press to access the menu.

2 Press or to Call Log. Press to select.

3

Press or to the required list. Press

OK to select.

If the list is empty:

• A tone sounds.
  • The display shows List Empty.

4

Press or to the required alias or ID.

Press to select.

5

Press or to Delete. Press to OK

select.

6 Do one of the following:

- Press to select Yes to delete the entry. The display shows a positive mini notice.

- Press or to No. Press to OK

The radio returns to the previous screen.

7.8

Call Alert Operation

Call Alert paging enables you to alert a specific radio user to call you back.

7.8.1

Responding to Call Alerts

When you receive a Call Alert:

• A repetitive tone sounds.
• The yellow LED blinks.
- The display shows the notification list listing a Call Alert with the alias or ID of the calling radio.

Do one of the following:

• Press the PTT button while the display still shows the Call Alert in the Notification List to respond with a Private Call.
• Press to exit the Notification List. The alert is moved to the Missed Call Log.

English

7.9

Text Messaging

Your radio is able to send data, for example a text message to another radio or an e-mail application.

7.9.1

Quick Text Messages

Your radio supports a maximum of 50 Quick Text messages as programmed by your dealer.

7.9.1.1

Sending Quick Text Messages

Follow the procedure to send predefined Quick Text messages on your radio to a predefined alias.

1 Do one of the following:

- Press the programmed Text Message button. Proceed to step 5.

- Press OK to access the menu.

2

Press or to Messages. Press to select.

3

Press or to Quick Text. Press OK to select.

4

Press or to the required Quick Text message. Press OK to select.

The display shows a transitional mini notice, confirming that your message is being sent.

5 Wait for acknowledgment.

If successful:

• A positive indicator tone sounds.
- The display shows a positive mini notice.
If unsuccessful:
• A negative indicator tone sounds.
- The display shows a negative mini notice.

7.9.1.2

Sending Quick Text Messages with the One Touch Access Button

To send a predefined Quick Text message to a predefined alias, press the programmed One Touch Access button.

If message is successfully sent, your radio shows the following indications:

• A positive tone sounds.
- The display shows a transitional mini notice.
- The display shows a positive mini notice.

If message fails to be sent, your radio shows the following indications:

• A negative tone sounds.
• The display shows a negative mini notice.

If the text message fails to send, the radio returns you to the Resend option screen.

7.9.2

Text Messages

The text messages are stored in an Inbox, and sorted according to the most recently received.

7.9.2.1

Viewing Text Messages

1 Press to access the menu.
2 Press ▶ or ▶ to Messages. Press to select.
3 Press or to Inbox. Press to select.

If the Inbox is empty:

• The display shows List Empty.
- A tone sounds, if the Keypad Tone is turned on.

English

4

Press or to the required message.

Press to select.

The display shows a subject line if the message is from an e-mail application.

7.9.2.2

Responding to Text Messages

Follow the procedure to respond to text messages on your radio.

When you receive a text message:

- The display shows the Notification list with the alias or ID of the sender.

• The display shows the Message icon.

NOTICE:

The radio exits the Text Message alert screen and sets up a Private or Group Call to the sender of the message if the PTT button is pressed.

Do one of the following:

• Press or to Read. Press to select.
  The display shows the text message. The display shows a subject line if the message is from an e-mail application.
• Press or to Read Later. Press OK to select.
  The radio returns to the screen you were on prior to receiving the text message.
• Press or to Delete. Press to select.

7.9.2.3

Forwarding Text Messages

Follow the procedure to forward text messages on your radio.

When you are at the Resend option screen:

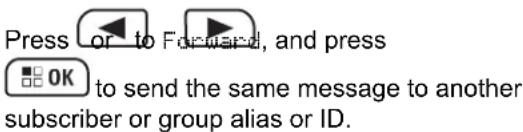

1

2

The display shows a transitional mini notice, confirming your message is being sent.

3 Wait for acknowledgment.

If successful:

• A positive indicator tone sounds.
- The display shows a positive mini notice.
If unsuccessful:
- A negative indicator tone sounds.
- The display shows a negative mini notice.

7.9.2.4

Resending Text Messages

When you are at the Resend option screen:

Press OK to resend the same message to the same subscriber or group alias or ID.

If successful:

• A positive indicator tone sounds.
- The display shows a positive mini notice.
If unsuccessful:
• A negative indicator tone sounds.
- The display shows a negative mini notice.

NOTICE:

Changing the volume, and pressing any buttons,

except for OK or returns you to

the message.

The radio exits the Resend option screen if you press the PTT button to initiate a Private or Group Call, or to respond to a Group Call. The radio also exits the screen when it

English

receives a text message, an emergency call or alarm, or a call alert.

The display returns to the Resend option screen if you press the PTT button to initiate a Private Call (except when the radio is displaying the Missed Called screen), and at the end of an All Call.

If you exit the message sending screen while the message is being sent, the radio updates the status of the message in the Sent Items folder without providing any audio or visual indication.

If the radio changes mode or powers down before the status of the message in Sent Items is updated, the radio cannot complete any In-Progress messages and automatically marks it with a Send Failed icon.

The radio supports a maximum of five In-Progress messages at one time. During this period, the radio cannot send any new message and automatically marks it with a Send Failed icon.

7.9.2.5

Deleting All Text Messages from the Inbox

Follow the procedure to delete all text messages from the Inbox on your radio.

1 Do one of the following:

- Press the programmed Text Message button. Proceed to step 3.

- Press to access the menu.

2

Press ▼ or ▲ to Messages. Press to select.

3

Press or to Inbox Press to select.

If the Inbox is empty:

• The display shows List Empty.
- A tone sounds.

4

Press or to Delete All. Press OK to select.

5

Press

to

The display shows a positive mini notice.

7.9.2.6

Deleting Text Messages from the Inbox

Follow the procedure to delete text messages from the Inbox on your radio.

1 Do one of the following:

• Press the programmed Text Message button. Proceed to step 3.
• Press to access the menu.

2

ssages. Press

[Non-Text]

to sele

[Non-Text]

[Non-Text]

3

-

Inbox

Press to

4

Press or to the required message.

Press to select.

The display shows a subject line if the message is from an e-mail application.

5

Press to access the sub-menu.

6

Press or to Delete Press to select.

7

Press or to Yes. Press to select.

The display shows a positive mini notice. The screen returns to the Inbox.

7.9.3

Sent Text Messages

Once a message is sent to another radio, it is saved in Sent Items folder. The most recent sent text message is always added to the top of the Sent Items folder.

English

The Sent Items folder is capable of storing a maximum of 30 last sent messages. When the folder is full, the next sent text message automatically replaces the oldest text message in the folder.

If you long press at any time, the radio returns to the Home screen.

7.9.3.1

Viewing Sent Text Messages

Follow the procedure to view sent text messages on your radio.

1 Do one of the following:

- Press the programmed Text Message button. Proceed to step 3.

- Press to access the menu.

2

Press or to Messages. Press to select.

3

Press or to Send Items. Press OK to select.

4

Press or to the required message. Press to select.

The display shows a subject line if the message is from an e-mail application. The icon at the top right corner of the screen indicates the status of the message. See Sent Item Icons.

7.9.3.2

Sending Sent Text Messages

You can either select Forward, Resend, or Delete while viewing text messages. Follow the procedure to send a sent text message on your radio.

When you are viewing a Sent message:

1

Press ☐ QK while viewing the message.

2

Press or to access the Forward, Resend, or Delete option screen. Do one of the following:

• Select Forward to send the selected text message to another subscriber/group alias or ID. See Forwarding Text Messages on page 58 for more information.
• Select Resend to resend the selected text message to the same subscriber/group alias or ID.
• Select Delete to delete the text message.

3 Wait for acknowledgment.

If successful:

• A positive indicator tone sounds.
• The display shows a positive mini notice.
If unsuccessful:
• A negative indicator tone sounds.
• The display shows a negative mini notice.

NOTICE:

If the channel type (i.e. conventional digital or Capacity Plus-Single-Site or Capacity Plus-Multi-Site) is not a match, you can only edit, forward, or delete a Sent message.

7.9.3.3

Deleting All Sent Text Messages from the Sent Items Folder

Follow the procedure to delete all sent text messages from the Sent Items folder on your radio.

1 Do one of the following:

- Press the programmed Text Message button. Proceed to step 3.

- Press to access the menu.

2

Press or to Messages. Press to select.

English

3

If the Sent Items folder is empty:

• The display shows List Empty.
- A tone sounds.

4

5 Do one of the following:

- Press sele

. Press to

The display shows a positive mini notice.

- Press sele

to

The radio returns to the previous screen.

7.10

Security

This feature allows you to enable or disable any radio in the system.

For example, you may want to disable a stolen radio to prevent unauthorized users from using it, and enable the radio when it is recovered.

NOTICE:

Performing Radio Disable and Enable is limited to radios with these functions enabled.

Check with your dealer or system administrator for more information.

7.11

Notification List

Your radio has a Notification list that collects all your unread events on the channel, such as unread text messages, telemetry messages, missed calls, and call alerts. Unread Job Tickets are also stored in the notification list.

The display shows the Notification icon when the Notification list has one or more events.

The list supports a maximum of 40 unread events. When the list is full, the next event automatically replaces the oldest event. After the events are read, they are removed from the Notification list.

7.11.1

Accessing Notification List

Follow the procedure to access the Notification list on your radio.

1 Press to access the menu.

2 Press or to Notification. Press OK to select.

3 Press or to the required event. Press OK to select.

Long press to return to the Home screen.

Auto-Range Transponder System

The Auto-Range Transponder System (ARTS) is an analog-only feature designed to inform you when your radio is out-of-range of other ARTS-equipped radios.

ARTS-equipped radios transmit or receive signals periodically to confirm that they are within range of each other.

Your radio provides indications of states as follows:

First-Time Alert

A tone sounds.

The display shows channel alias and In Range.

ARTS-in-Range Alert

A tone sounds, if programmed.

The display shows channel alias and In Range.

ARTS-Out-of-Range Alert

A tone sounds. The red LED rapidly blinks.

English

The display shows Out of Range alternating with the Home screen.

NOTICE:

Check with your dealer or system administrator for more information.

Utilities

This chapter explains the operations of the utility functions available in your radio.

8.1

Locking or Unlocking the Keypad

Follow the procedure to lock or unlock the keypad of your radio.

1 Do one of the following:

• Press the programmed Side Button. Skip the following steps.
• Press OK followed by *Skip the following steps.
• Press to access the menu.

2

Press or to Utilities. Press to select.

3

Press or to Radio Settings. Press OK to select.

4

Press or to Keypad Lock. Press OK to select.

• If the keypad is locked, the display shows Keypad Locked.
• If the keypad is unlocked, the display shows Keypad Unlocked.

The radio returns to the Home screen.

8.2

Squelch Levels

You can adjust the squelch level to filter out unwanted calls with low signal strength or channels with noise higher than normal background.

Normal

This is the default setting.

English

Tight

This setting filters out unwanted calls and/or background noise. Calls from remote locations may also be filtered out.

8.2.1

Setting Squelch Levels

Follow the procedure to set the squelch levels on your radio.

1 Do one of the following:

• Press the programmed Squelch button. Skip the following steps.
• Press to access the menu.

2

Press or to Utilities. Press to select.

3

Press or to Radio Settings. Press OK to select.

4

Press or to Squetch. Press to select.

OK

5 Do one of the following:

- Press or to Normal. Press to select.

OK

The display shows ▼ beside Normal.

- Press or to Tight Press to select.

OK

The display shows ▼ beside Tight.

The screen automatically returns to the previous menu.

8.3

Power Levels

You can customize the power setting to high or low for each channel.

High

This enables communication with radios located at a considerable distance from you.

Low

This enables communication with radios in closer proximity.

8.3.1

Setting Power Levels

Follow the procedure to set the power levels on your radio.

1 Do one of the following:

• Press the programmed Power Level button. Skip the steps below.
• Press to access the menu.

2

Press or to Utilities. Press to select.

3

Press or to Radio Settings. Press OK to select.

4

Press or to Power. Press to select.

5 Do one of the following:

• Press or to High. Press to select. The display shows ▼ beside High.
• Press or to Low Press to select. The display shows √ beside Low. Screen returns to the previous menu.

6

Long press to return to the Home screen.

8.4

Adjusting Display Brightness

Follow the procedure to adjust the display brightness on your radio. Display brightness cannot be adjusted when Auto Brightness is enabled.

1 Do one of the following:

- Press the programmed Brightness button. Skip the following steps.

English

- Press

s the menu.

2

Press

Uiliti

es. Press

3

ettings. Press

to select.

4

lightness. Press

to select.

The display shows the progress bar.

5

crease or increas

display brightness. Press to select.

The setting value is varied from 1 to 4.

Voice Operating Transmission

The Voice Operating Transmission (VOX) allows you to initiate a hands-free voice-activated call on a programmed channel. The radio automatically transmits, for a programmed period, whenever the microphone on the VOX-capable accessory detects voice.

You can enable or disable VOX by doing one of the following:

• Turn the radio off and then power it on again to enable VOX.
• Turn VOX on or off by using the programmed VOX button.
• Press the PTT button during radio operation to disable VOX.

If the Talk Permit Tone is enabled, use a trigger word to initiate the call. Wait for the Talk Permit Tone to finish before speaking clearly into the microphone. See Turning Talk Permit Tone On or Off on page 73 for more information.

NOTICE:

Turning this feature on or off is limited to radios with this function enabled. Check with your dealer or system administrator for more information.

8.6

Turning Radio Tones/Alerts On or Off

You can enable and disable all radio tones and alerts, if needed, except for incoming Emergency alert tone. Follow the procedure to turn tones and alerts on or off on your radio.

1 Do one of the following:

• Press the programmed All Tones/Alerts button. Skip the following steps.
• Press to access the menu.

2

Press

to select.

ilities. Press

3

ettings. Press

to select.

4

Press or to Tones/Alerts. Press OK to select.

5

Press or to All tones. Press to select.

6 Do one of the following:

- Press or to On. Press to select. The display shows √ beside On. - Press or to Off Press to select. The display shows √ beside Off.

8.7

Turning Power Up Tone On or Off

Follow the procedure to turn Power Up Tone on or off on your radio.

1

Press to access the menu.

English

2

Press or to Utilities. Press to select.

OK

3

Press or to Radio Settings. Press OK to select.

4

Press or to Tones/Alerts. Press OK to select.

5

Press or to Power Up. Press to select.

OK

6 Do one of the following:

- Press or to On. Press to select. The display shows √beside On. - Press or to Off Press to select. The display shows √beside Off.

8.8

Setting Tones/Alerts Volume Offset Levels

This feature adjusts the volume of the tones or alerts, allowing it to be higher or lower than the voice volume. Follow the procedure to set the tones and alerts volume offset levels on your radio.

1

Press to access the menu.

2

Press or to Utilities. Press to select.

OK

3

Press or to Radio Settings. Press OK to select.

4

Press or to Tones/Alerts. Press OK to select.

5

Press or to Vol. Offset. Press OK to select.

6

Press or to the required volume offset level.

A feedback tone sounds with each corresponding volume offset level.

7 Do one of the following:

- Press OK to select. The required volume offset level is saved.

- Press to exit. The changes are discarded.

8.9

Turning Talk Permit Tone On or Off

Follow the procedure to turn Talk Permit Tone on or off on your radio.

1

Press OK to access the menu.

2

Press or to Utilities. Press to select.

3

Press or to Radio Settings. Press OK to select.

4

Press or to Tones/Alerts. Press OK to select.

5

Press or to Talk Permit. Press OK to select.

6 Do one of the following:

- Press or to On. Press to select. The display shows beside On.

- Press or to off. Press to select. The display shows beside off.

8.10

Setting Languages

Follow the procedure to set the languages on your radio.

English

1 Press to access the menu.

2 Press or to Utilities. Press to select.

3 Press or to Radio Settings. Press OK to select.

4 Press or to Languages. Press to select.

5 Press or to the required language. Press OK to select.

The display shows √beside the selected language.

1 Press to access the menu.

2 Press or to Utilities. Press to select.

3 Press or to Radio Settings. Press OK to select.

4 Press or to LED Indicator. Press OK to select.

5 Do one of the following:

- Press or to On. Press to OK select. The display shows beside On.

- Press or to Off. Press to OK select. The display shows beside Off.

8.11

Turning LED Indicators On or Off

Follow the procedure to turn the LED indicators on or off on your radio.

8.12

Turning Voice Announcement On or Off

This feature enables the radio to audibly indicates the current zone or channel the user has just assigned, or the programmable button the user has just pressed.

This is typically useful when the user has difficulty reading the content shown on the display.

This audio indicator can be customized according to customer requirements. Follow the procedure to turn Voice Announcement on or off on your radio.

1 Do one of the following:

• Press the programmed Voice Announcement button. Skip the following steps.
• Press to access the menu.

2

Press or to Utilities. Press to select.

3

Press or to Radio Settings. Press OK to select.

4

Press or to Voice Announcement. Press to select.

5 Do one of the following:

• Press or to On. Press to select. The display shows beside On.
• Press or to off. Press to select. The display shows beside off.

8.13

Turning Analog Microphone AGC On or Off

The Analog Microphone Automatic Gain Control (AGC) controls the microphone gain of the radio automatically while transmitting on an analog system.

English

This feature suppresses loud audio or boosts soft audio to a preset value in order to provide a consistent level of audio. Follow the procedure to turn Analog Microphone AGC on or off on your radio.

1 Press to access the menu.
2 Press ▶ or ▶ to Utilities. Press to select.
3 Press or to Radio Settings. Press OK to select.
4 Press or to Mic HGJ-A. Press to select.
5 Do one of the following:

- Press or to. Press to OK select. The display shows beside On.

- Press or to Off Press to select. The display shows √ beside Off.

8.14

Turning Digital Microphone AGC On or Off

The Digital Microphone Automatic Gain Control (AGC) controls the microphone gain of the radio automatically while transmitting on a digital system.

This feature suppresses loud audio or boosts soft audio to a preset value in order to provide a consistent level of audio. Follow the procedure to turn Digital Microphone AGC on or off on your radio.

1 Press to access the menu.
2 Press ▶ or to Utilities. Press to select.
3 Press or to Radio Settings. Press OK to select.
4 Press or to Mic ABC-D. Press to select.

5 Do one of the following:

select. The display shows √beside On.

select. The display shows √ beside Off.

8.15

General Radio Information

Your radio contains information on various general parameters.

The general information of your radio is as follows:

- Battery information.

- Radio alias and ID.

- Firmware and Codeplug versions.

NOTICE:

Press to return to the previous screen. Long

press to return to the Home screen. The radio exits the current screen once the inactivity timer expires.

8.15.1

Accessing Battery Information

Displays information of your radio battery.

1 Press to access the menu.

2 Press or to Utilities. Press to select.

3 Press or to Radio Info. Press OK to select.

English

4

Press or to Battery Info. Press

OK to select.

NOTICE:

For IMPRES batteries only: The display reads Recondition Battery when the battery requires reconditioning in an IMPRES charger. After the reconditioning process, the display then shows the battery information.

The display shows the battery information.

8.15.2

Checking Radio Alias and ID

1 Do one of the following:

- Press the programmed Radio Alias and ID button. Skip the following steps. A positive indicator tone sounds.

- Press to access the menu.

2

Press or to Utilities. Press to select.

3

Press or to Radio Info. Press OK to select.

4

Press or to My Number. Press to select. The display shows Name.

5

Press ▶ again. The display shows the radio name.

6

Press to Number and press again. The display shows the radio number.

Authorized Accessories List

Antennas

• UHF, 403–433 MHz, 9 cm Stubby Antenna (PMAE4002_)
• UHF, 430–470 MHz, 9 cm Stubby Antenna (PMAE4003_)
• UHF, 465–495 MHz, 9 cm Stubby Antenna (PMAE4006_)
• UHF, 403–520 MHz, Antenna Whip (PMAE4016_)
  • VHF, 146–162 MHz, 9 cm Stubby Antenna (HAD9742_)
  • VHF, 162–174 MHz, 8 cm Stubby Antenna (HAD9743_)
  • VHF, 146–174 MHz, 15 cm Heliflex Antenna (NAD6502_R)
  • VHF, 136–155 MHz, 9 cm Stubby Antenna (PMAD4012_)
  • VHF, 136–155 MHz, 14 cm Antenna (PMAD4014_)
• VHF, 136–150.8 MHz, 14 cm Heliflex Antenna (PMAD4042_)

Batteries

• High Capacity Li-Ion, 2150 mAh Battery (Without belt clip)(PMNN4080_)
  • Li-Ion, 1500 mAH Battery (PMNN4081_)
  • NiMH, 1300 mAH Battery (PMNN4092_)
  • Li-Ion, 1750 mAh IP54 Battery (PMNN4476_)

Cables

- Programming Cable USB (PMKN4128_)

Carry Devices

• Universal Chest Pack (HLN6602_)
- Spring Belt Clip (For 1.5 in. Belt Width)(HLN9844_)
- Waterproof Bag, Includes Large Carry Strap (HLN9985_)
- Adjustable Black Nylon Carrying Strap (Attaches to D-Ring on Carry Case)(NTN5243_)
• Nylon Carry Case (PMLN7075_)
- Break-A-Way Chest Pack (RLN4570_)
- Universal Radio Pack and Utility Case (Fanny Pack) (RLN4815_)

English

Chargers

• Desktop Single-Unit Charger, Base (PMPN4132_)
• Desktop Single-Unit Charger, US/NA Plug (PMPN4172_)
• Standard Multi-Unit Charger, INT (PMLN6593_)
• Standard Multi-Unit Charger, US/NA Plug (PMLN6597_)

Earbuds and Earpieces

• Receive-Only Earbud (AARLN4885_)
• D-Shell Receive Only Earpiece (One Size) for Remote Speaker Microphone (PMLN4620_)
• Ear Receiver with In-Line Microphone/PTT/VOX Switch (Mag One)(PMLN6531_)
• Swivel Earpiece with In-Line Microphone and PTT (PMLN6532_)
• Earset with Combined Microphone and PTT (PMLN6533_)

• Earbud with In-Line Microphone/PTT/VOX Switch (Mag One)(PMLN6534_)
  • D-Style Earpiece with Microphone/PTT (PMLN6535_)

• Earset with Boom Microphone and In-Line PTT/VOX Switch (Mag One) (PMLN6537_)

• Receive-Only Earpiece with Translucent Tube for Remote Speaker Microphone (RLN4941_)
  • Over-the-Ear Receiver for Remote Speaker Microphone (WADN4190_)

Headsets and Headset Accessories

• Lightweight Headset with Swivel Boom Microphone (PMLN6538_)
  • Lightweight Temple Transducer Headset (PMLN6541_)
• MagOne Ultra-Lite Headset, behind-the-head, adjustable with boom microphone and In-Line PTT (PMLN6542_)
• Heavy Duty Headset, Noise Cancelling Boom Mic Headset (PMLN6854_)
• Medium Weight Over-the-Head Dual Muff Headset (PMLN7468_)

Remote Speaker Microphones

- Remote Speaker Microphone with 3.5 mm Audio Jack (PMMN4013_)

• Remote Speaker Microphone IP57 (PMMN4029_)
• Remote Speaker Microphone (Mag One) (PMMN4092_)

Surveillance Accessories

- 2-Wire Surveillance Kit with Clear Acoustic Earpiece, Beige (Palm Garden) (PMLN6445_)

- 2-Wire Surveillance Kit, with Clear Acoustic Earpiece, Black (Palm Garden) (PMLN6530_)

- 2-Wire Surveillance Kit with Quick Disconnect Acoustic Tube, Black (OTTO) (PMLN6536_)

NOTICE:

Consult your authorized Motorola Solutions dealer on the availability of these accessories.

English

Batteries and Chargers Warranty

The Workmanship Warranty

The workmanship warranty guarantees against defects in workmanship under normal use and service.

All MOTOTRBO Batteries 24 Months

The Capacity Warranty

The capacity warranty guarantees 80% of the rated capacity for the warranty duration.

Nickel Metal-Hydride (NiMH) or Lithium-Ion (Li-Ion) Batteries

12 Months

Limited Warranty

MOTOROLA SOLUTIONS COMMUNICATION PRODUCTS

I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG:

Motorola Solutions, Inc. ("Motorola Solutions") warrants the Motorola Solutions manufactured Communication Products listed below ("Product") against defects in material and workmanship under normal use and service for a period of time from the date of purchase as scheduled below:

Portable Radios Two (2) Years

Product Accessories One (1) Year

Motorola Solutions, at its option, will at no charge either repair the Product (with new or reconditioned parts), replace it (with a new or reconditioned Product), or refund the purchase price of the Product during the warranty period provided it is returned in accordance with the terms of this warranty. Replaced parts or boards are warranted

for the balance of the original applicable warranty period. All replaced parts of Product shall become the property of Motorola Solutions.

This express limited warranty is extended by Motorola Solutions to the original end user purchaser only and is not assignable or transferable to any other party. This is the complete warranty for the Product manufactured by Motorola Solutions. Motorola Solutions assumes no obligations or liability for additions or modifications to this warranty unless made in writing and signed by an officer of Motorola Solutions.

Unless made in a separate agreement between Motorola Solutions and the original end user purchaser, Motorola Solutions does not warrant the installation, maintenance or service of the Product.

Motorola Solutions cannot be responsible in any way for any ancillary equipment not furnished by Motorola Solutions which is attached to or used in connection with the Product, or for operation of the Product with any ancillary equipment, and all such equipment is expressly excluded from this warranty. Because each system which may use the Product is unique, Motorola Solutions disclaims liability for range, coverage, or operation of the system as a whole under this warranty.

English

II. GENERAL PROVISIONS

This warranty sets forth the full extent of Motorola Solutions responsibilities regarding the Product. Repair, replacement or refund of the purchase price, at Motorola Solutions option, is the exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL MOTOROLA SOLUTIONS BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR SAVINGS OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW.

III. STATE LAW RIGHTS:

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATION ON HOW LONG AN IMPLIED

WARRANTY LASTS, SO THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY.

This warranty gives specific legal rights, and there may be other rights which may vary from state to state.

IV. HOW TO GET WARRANTY SERVICE

You must provide proof of purchase (bearing the date of purchase and Product item serial number) in order to receive warranty service and, also, deliver or send the Product item, transportation and insurance prepaid, to an authorized warranty service location. Warranty service will be provided by Motorola Solutions through one of its authorized warranty service locations. If you first contact the company which sold you the Product (for example, dealer or communication service provider), it can facilitate your obtaining warranty service. You can also call Motorola Solutions at 1-800-927-2744.

V. WHAT THIS WARRANTY DOES NOT COVER

1 Defects or damage resulting from use of the Product in other than its normal and customary manner.

2 Defects or damage from misuse, accident, water, or neglect.
3 Defects or damage from improper testing, operation, maintenance, installation, alteration, modification, or adjustment.
4 Breakage or damage to antennas unless caused directly by defects in material workmanship.
5 A Product subjected to unauthorized Product modifications, disassembles or repairs (including, without limitation, the addition to the Product of non-Motorola Solutions supplied equipment) which adversely affect performance of the Product or interfere with Motorola Solutions normal warranty inspection and testing of the Product to verify any warranty claim.
6 Product which has had the serial number removed or made illegible.
7 Rechargeable batteries if:

- any of the seals on the battery enclosure of cells are broken or show evidence of tampering.

- the damage or defect is caused by charging or using the battery in equipment or service other than the Product for which it is specified.

8 Freight costs to the repair depot.

9 A Product which, due to illegal or unauthorized alteration of the software/firmware in the Product, does not function in accordance with Motorola Solutions published specifications or the FCC certification labeling in effect for the Product at the time the Product was initially distributed from Motorola Solutions.
10 Scratches or other cosmetic damage to Product surfaces that does not affect the operation of the Product.
11 Normal and customary wear and tear.

VI. PATENT AND SOFTWARE PROVISIONS

Motorola Solutions will defend, at its own expense, any suit brought against the end user purchaser to the extent that it is based on a claim that the Product or parts infringe a United States patent, and Motorola Solutions will pay those costs and damages finally awarded against the end user purchaser in any such suit which are attributable to any such claim, but such defense and payments are conditioned on the following:

1 Motorola Solutions will be notified promptly in writing by such purchaser of any notice of such claim,

English

2 Motorola Solutions will have sole control of the defense of such suit and all negotiations for its settlement or compromise, and
3 Should the Product or parts become, or in Motorola Solutions opinion be likely to become, the subject of a claim of infringement of a United States patent, that such purchaser will permit Motorola Solutions, at its option and expense, either to procure for such purchaser the right to continue using the Product or parts or to replace or modify the same so that it becomes non-infringing or to grant such purchaser a credit for the Product or parts as depreciated and accept its return. The depreciation will be an equal amount per year over the lifetime of the Product or parts as established by Motorola Solutions.

Motorola Solutions will have no liability with respect to any claim of patent infringement which is based upon the combination of the Product or parts furnished hereunder with software, apparatus or devices not furnished by Motorola Solutions, nor will Motorola Solutions have any liability for the use of ancillary equipment or software not furnished by Motorola Solutions which is attached to or used in connection with the Product. The foregoing states the entire liability of Motorola Solutions with respect to infringement of patents by the Product or any parts thereof.

Laws in the United States and other countries preserve for Motorola Solutions certain exclusive rights for copyrighted Motorola Solutions software such as the exclusive rights to reproduce in copies and distribute copies of such Motorola Solutions software. Motorola Solutions software may be used in only the Product in which the software was originally embodied and such software in such Product may not be replaced, copied, distributed, modified in any way, or used to produce any derivative thereof. No other use including, without limitation, alteration, modification, reproduction, distribution, or reverse engineering of such Motorola Solutions software or exercise of rights in such Motorola Solutions software is permitted. No license is granted by implication, estoppel or otherwise under Motorola Solutions patent rights or copyrights.

VII. GOVERNING LAW

This Warranty is governed by the laws of the State of Illinois, U.S.A.

Français canadien

Table des matières

VI. DISPOSITIONS RELATIVES AUX BREVETS ET AUX LOGICIELS....92

VII. LOI APPLICABLE....93

Line drawing of a walkie-talkie device with no visible text or symbols

Line drawing of a walkie-talkie device with no visible text or symbols

2.4

Technical line drawing of a mechanical device with no visible text or symbols

AVIS :

Technical line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

Français canadien

Line drawing of a portable radio with ventilation slots and a speaker cone (no text or symbols)

Line drawing of a walkie-talkie with a mounted antenna and ventilation slots (no text or symbols)

AVIS :

VI. DISPOSITIONS RELATIVES AUX BREVETS ET AUX LOGICIELS

Motorola Solutions, Inc.

500 W Monroe Street

Chicago, IL 60661 U.S.A.

MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2021 Motorola Solutions, Inc. All rights reserved.
