JSR002211 - Tumble drier Jocel - Free user manual and instructions

Product type	Tumble dryer
Brand	Jocel
Model	JSR002211
Box dimensions	250 x 368 x 290 mm
Net weight	3,35 kg
Rated voltage	220 V
Rated frequency	50 Hz
Maximum drying capacity	10 kg
Adjustable drying time	0 to 180 minutes
Main functions	Tumble dryer, heater, wardrobe
Heating type	PTC (Positive Temperature Coefficient)
Safety devices	Double heating protection, automatic shutdown in case of blockage
Cover	Waterproof, with zipper
Included parts	Motor, waterproof plate, top support, tripod, connector, 3 supports, cover, instruction manual
Installation	Mounting the supports, tripod, and connector, placing the cover
Maintenance	Wipe with a damp cloth; do not rinse with water
Safety distance	At least 1.5 m from water or fire sources
Grounding	Required
Repairability	Repair by qualified technician only
Warranty	24 months (household appliances)
Technical support	Tel. [phone], email [e-mail]

Frequently Asked Questions - JSR002211 Jocel

How to install the Jocel JSR002211 tumble dryer?

To install the device, start by inserting the three supports into the holes at the bottom of the motor unit. Then screw the connector into the upper tube of the support clockwise. Attach the waterproof plate to the lower tube and screw the tripod to the motor block. Place the suspension arms in a horizontal position, hang the clothes on the hangers, then put on the cover and close the zipper.

What is the maximum drying capacity?

The drying capacity is 10 kg maximum.

How to set the drying time?

Turn the knob to LIGADO (on) to start the appliance, then set the desired duration from 0 to 180 minutes. For unlimited time use, turn the knob counterclockwise.

What to do if the appliance stops suddenly?

This may be due to blockage of the air inlet or outlet (the safety system activates) or exceeding the programmed drying time. Check the air openings and adjust the duration.

How to clean the appliance?

Wipe the appliance with a damp cloth; do not rinse it with water.

How to disassemble the tumble dryer?

Follow the installation steps in reverse: unscrew the items in reverse order, remove the cover, hangers, tripod, connector, and supports.

What safety precautions should I take?

Place the appliance at least 1.5 m away from any water or fire source. Use a grounded outlet. Do not touch the metal parts at the air outlet to avoid burns. Keep the appliance out of reach of children.

How to use the wardrobe function?

After installing the suspension arms, place the clothes on the hangers, then close the cover with the zipper. The hot air inside dries the laundry.

What if the indicator light does not turn on and the appliance does not work?

Check if the outlet is working, if a fuse has blown, or if an internal fuse has burned out. Contact a technician if necessary.

What is the warranty period?

The warranty is 24 months for household appliances, from the date of purchase. It does not cover damage due to misuse.

USER MANUAL JSR002211 Jocel

Read the Instruction Manual carefully.

Telef. 00351252910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.° 280

4770-569 S. COSME DO VALE

V.N. de FAMILICAO

Telef: 252910350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

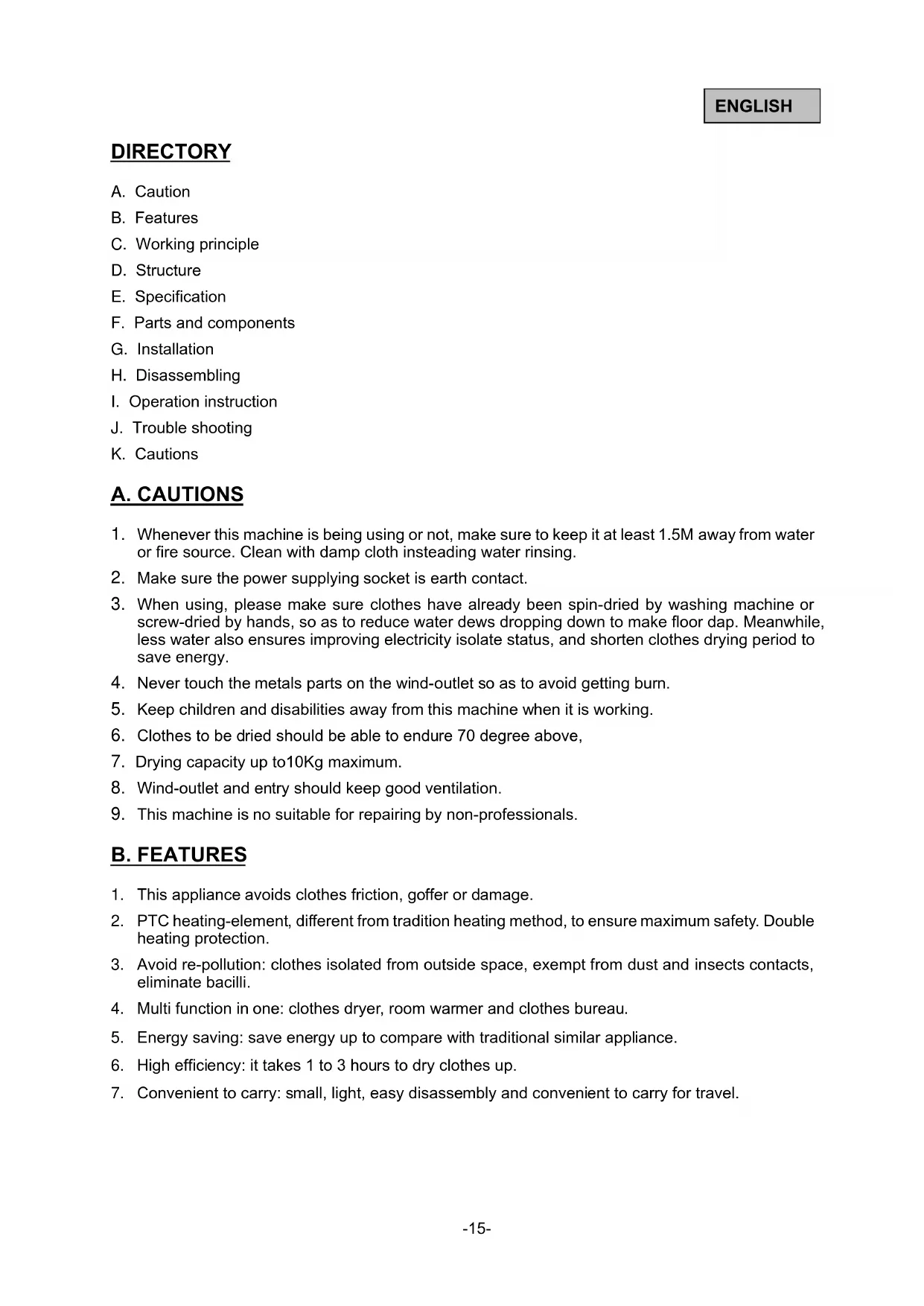

A. Caution
B. Features
C. Working principle
D. Structure
E. Specification
F. Parts and components
G. Installation
H. Disassembling
I. Operation instruction
J. Trouble shooting
K. Cautions

A. CAUTIONS

1. Whenever this machine is being using or not, make sure to keep it at least 1.5M away from water or fire source. Clean with damp cloth instead of water rinsing.
2. Make sure the power supplying socket is earth contact.
3. When using, please make sure clothes have already been spin-dried by washing machine or screw-dried by hands, so as to reduce water dews dropping down to make floor dap. Meanwhile, less water also ensures improving electricity isolate status, and shorten clothes drying period to save energy.
4. Never touch the metals parts on the wind-outlet so as to avoid getting burn.
5. Keep children and disabilities away from this machine when it is working.
6. Clothes to be dried should be able to endure 70 degree above,
7. Drying capacity up to10Kg maximum.
8. Wind-outlet and entry should keep good ventilation.
9. This machine is no suitable for repairing by non-professionals.

B FEATURES

1. This appliance avoids clothes friction, goffer or damage.
2. PTC heating-element, different from tradition heating method, to ensure maximum safety. Double heating protection.
3. Avoid re-pollution: clothes isolated from outside space, exempt from dust and insects contacts, eliminate bacilli.
4. Multi function in one: clothes dryer, room warmer and clothes bureau.
5. Energy saving: save energy up to compare with traditional similar appliance.
6. High efficiency: it takes 1 to 3 hours to dry clothes up.
7. Convenient to carry: small, light, easy disassembly and convenient to carry for travel.

C. WORKING PRINCIPLE

PTC heating element features safe, energy saving, long using life and erosion proof.

This appliance adopts working principle of:

Fan to form a positive air pressure inside the cover.
- Entering air to be heated by the PTC element, then come inside the cover.
Clothes, in static status, processed by hot wind, then moistore be get rid of and impel out side the cover.

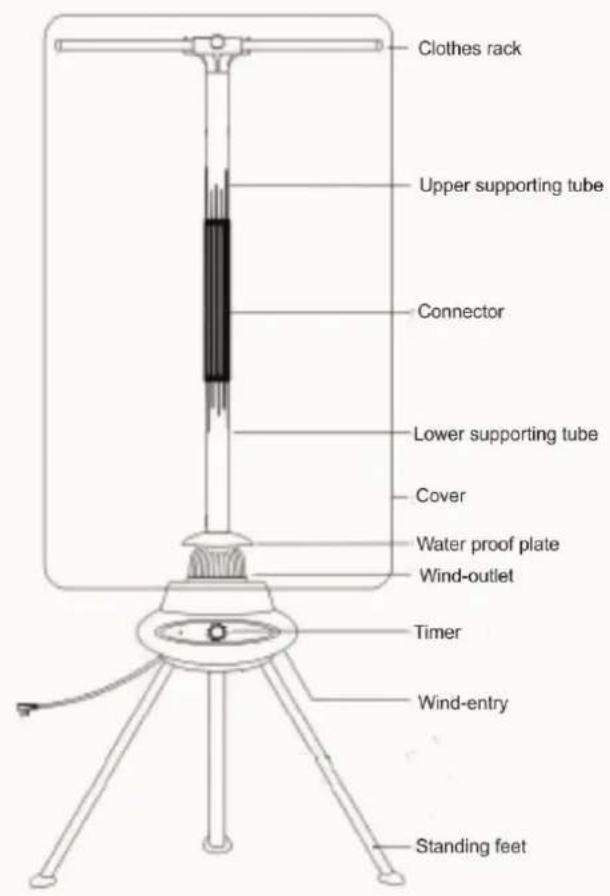

D. STRUCTURE

E. SPECIFICATIONS

Gift box size (1pc): A 250 x A 368 x P 290mm
Appliance net weight: 3.35Kg
Rated voltage: 220V
Rated frequency: 50Hz
Rated power: 1000W
Rated clothes to be dried < 10Kg Clothes drying period: 0 - 180min

F. PARTS AND COMPONENTS TABLE

Name	Quantity	Unit
Motor unit	1	Pcs
Water proof plate	1	Pcs
Upper supporting groupware	1	Set
Lower supporting tuve	1	Pcs
Connector	1	Pcs
Standing feet	3	Pcs
Cover	1	Pcs
User manual	1	Pcs

G. INSTALLATION

Insert 3 pcs of standing feet into correspond holes on the bottom of the motor unit.

Fit the connector on to the upper supporting tube (groupware), screw it clockwise until reach position.

Fit the water-proof plate on to the lower supporting tube, then fix the lower supporting tube, then fix the lower supporting feet onto the motor unit, screw it clockwise to ensure reaching the position

Insert the hanger groupware into the upper supporting tube, then put down the aluminum hangers to level position.

Put the clothes onto the clothes racks, put on the cover and close with zipper.

H. DISASSEMBLING

To disassemble this machine, just follow the above installation steps contrarily.

1. Insert the power plug into power socket that should be with earth contact.

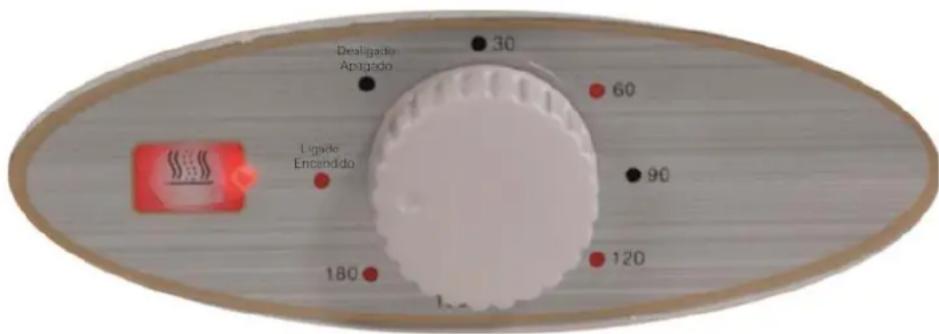

2. Rotate the switch, machine go on working, ate the meantime, power indicator illuminate.

1. Rotate the switch to LIGADO (on) position and set time for drying clothes.
2. Rotate the switch to DSLIGADO (off) to turn off the motor.
3. Rotate switch knob anti-clockwise to set it work without time limit.

J. TROUBLE SHOOTING

N°	Problem	Possible cause
1	Drying time too long (>180mn)	1. Clothes too thick. 2. Clothes not spin-dried by washing machine or screw-dried by hand. 3. Cover not close appropriately wind leaking.
2	Machine suddenly stop when working	1. Wind-entry or outlet blocked by clothes or other things, machine startup protection process. 2. Having exceeded set time
3	Power indicator doesn't illuminate, machine do not work.	1. Power cut. 2. Power socket fuse melt break. 3. Machine fuse melt break.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00351252910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

HEADQUARTERS:

Rua Alto do Curro, n.° 280

4770-569 S. COSME DO VALE

V.N.deFAMALICAO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt
