Product Type	RGBY Laser Effect Machine
Model	Scorpion Storm RGBY
Brand	Chauvet
Dimensions (L x W x H)	165 x 149 x 157.5 mm (6.5 x 5.9 x 6.2 in)
Weight	1.4 kg (3.2 lb)
Power Supply	100-240 VAC, 50/60 Hz, 16 W
Current Consumption	0.22 A (120 V) / 0.13 A (230 V)
Fuse	T 1 A, 250 V
Light Sources	Red laser 650 nm 100 mW, green 520 nm 40 mW, blue 450 nm 100 mW, yellow 574 nm 20 mW
Laser Classification	Class 3R
Coverage Angle	119°
Strobe Frequency	0 to 27 Hz
DMX Connectors	3-pin XLR (input/output)
DMX Modes	5 or 7 channels
Main Functions	DMX, automatic, sound-activated, IR remote (IRC-6), master/slave
Operating Temperature	15 °C to 35 °C (59 °F to 95 °F)
Cooling System	Fan-assisted convection
Installation	Mounting at height, safety cable required, minimum distance 3 m from floor and audience
Maintenance	Clean at least twice a month with vacuum or compressor and ammonia-free glass cleaner
Spare Parts	Replaceable T 1A 250V fuse; other repairs by authorized technician
Package Contents	Scorpion Storm RGBY, power cord, user manual

Frequently Asked Questions - Scorpion Storm RGBY Chauvet

How to safely install the Scorpion Storm RGBY?

Mount the fixture at least 3 meters above the floor and away from the audience. Always use a safety cable and a structure capable of supporting the weight (1.4 kg). Never point the laser beam at people or reflective surfaces.

What control modes are available?

The fixture can be controlled via DMX (5 or 7 channels), automatic mode (fast or slow programs), sound-activated mode (reacts to low frequencies), via the IRC-6 infrared remote, or in master/slave mode without a controller.

How to set the DMX starting address?

Press MENU until 001-506 appears, use UP/DOWN to select the address, then press ENTER to confirm. Take into account the number of channels used (5 or 7) to avoid conflicts.

What to do if the laser does not respond to the IRC-6 remote?

First check that rEM mode is activated on the fixture (menu). Make sure it is not in slave or DMX mode. Press Blackout on the remote to reactivate. Replace batteries if necessary.

How to clean the fixture?

Unplug the fixture and let it cool. Use a vacuum or compressor for vents, and a soft lint-free cloth with ammonia-free glass cleaner or isopropyl alcohol for optical surfaces. Clean at least twice a month.

What type of fuse to use and how to replace it?

Use a T 1A 250V fuse. Unplug the fixture, insert a flathead screwdriver into the fuse holder, pry it out, replace the fuse, then reinsert the fuse holder.

Can I use this fixture outdoors?

No, the Scorpion Storm RGBY is designed for indoor use only (IP20). Do not expose it to rain or moisture to avoid fire or electric shock.

How does master/slave mode work?

Set slave fixtures to SLv mode via the menu. Connect the DMX output of the master to the input of the first slave, then daisy-chain the rest. The master must be in standalone or IR mode. Do not connect a DMX controller.

What laser safety precautions should be taken?

Never look directly into the beam. The laser is Class 3R and can cause irreversible eye damage. Install the fixture at least 3 m from the audience. Do not point at aircraft, people, or reflective surfaces.

How to activate sound-activated mode?

Press MENU until Sou appears, press ENTER, use UP/DOWN to set sensitivity from S 0 (no sound) to S 9 (very sensitive), then press ENTER. The laser turns off after 3 seconds of silence.

USER MANUAL Scorpion Storm RGBY Chauvet

User Manual

English

Español

Français

LASER LIGHT

AVOID DIRECT EYE EXPOSURE

CLASS 3R LASER PRODUCT

CLASSIFIED PER EN/IEC 60825-1:2007

Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 08, 2019.

CHAUVET3

TABLE OF CONTENTS

1. Before You Begin 2

What Is Included 2

Unpacking Instructions.... 2

Claims 2

Text Conventions 2

Symbols 2

Disclaimer 2

Intellectual Property 2

Safety Notes.... 3

Non-Interlocked Housing Warning 4

Laser Safety Notes...... 4

Laser Safety Label Reproduction.... 5

Laser Emission Data.... 5

Laser Compliance Statement.... 5

2. Introduction...... 6

Product Overview.... 6

Product Dimensions 6

3. Setup.... 7

AC Power 7

Fuse Replacement.... 7

Mounting 8

Orientation....8

Rigging 8

Proper Usage 8

4. Operation.... 9

Control Panel Operation.... 9

Menu Map 9

Configuration (DMX) 9

Starting Address.... 9

DMX Channel Assignments and Values 10

7-Channel.... 10

5-Channel.... 11

Configuration (Standalone) 12

Automatic Mode 12

Sound Sensitivity.... 12

IRC-6 Infrared Remote Control 13

IRC-6 Operation.... 13

Master/Slave Mode 14

5. Maintenance.... 15

Product Maintenance 15

6. Technical Specifications.... 16

Returns.... 17

Contact Us.... 18

ÍNDICE

Configuration (DMX) 43

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Garantía Limitada

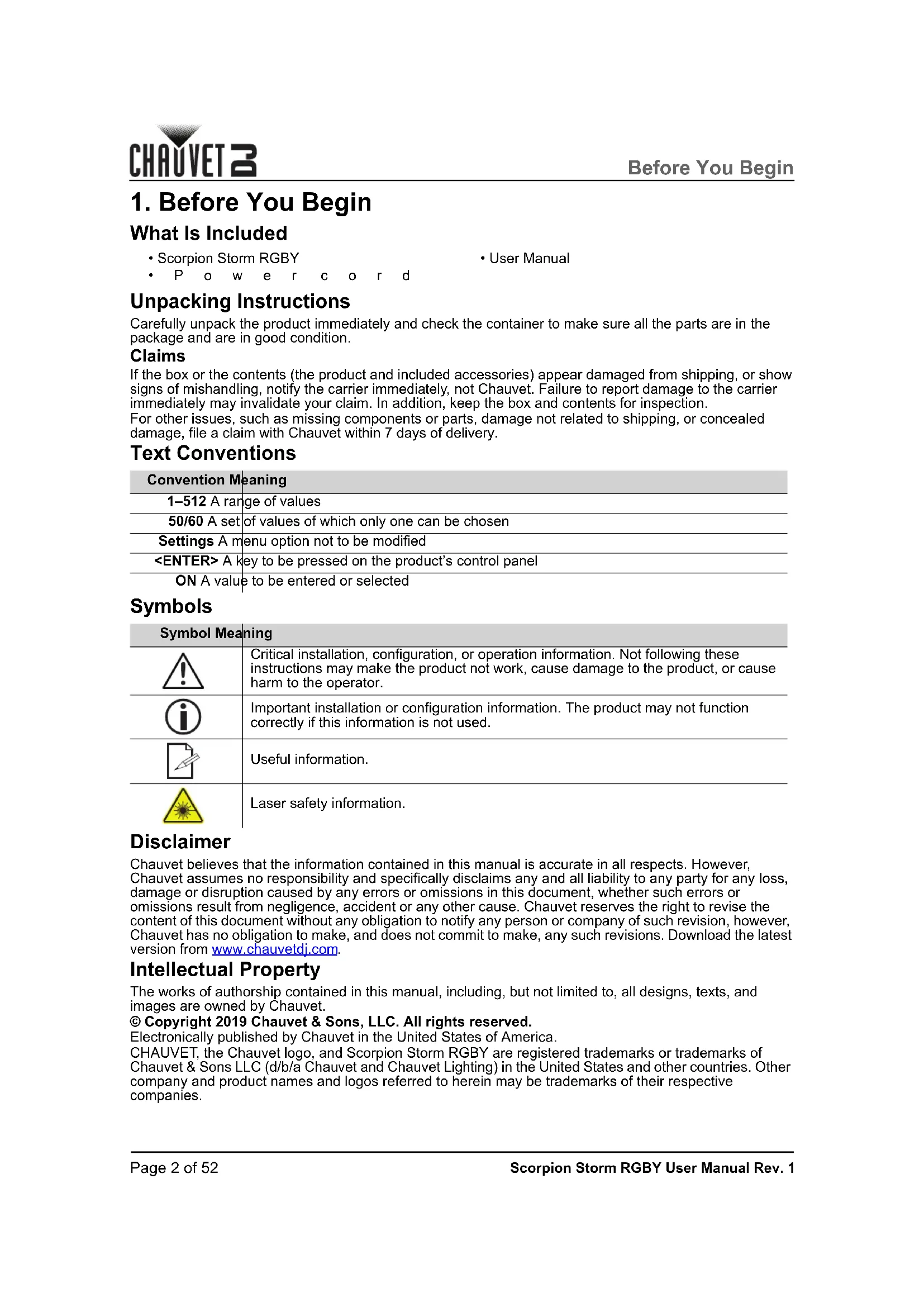

Unpacking Instructions

Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition.

Claims

If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.

For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery.

Text Conventions

Convention Meaning

1-512 A range of values

50/60 A set of values of which only one can be chosen

Settings A menu option not to be modified

A key to be pressed on the product's control panel

ON A value to be entered or selected

Symbols

Symbol Meaning
	Critical installation, configuration, or operation information. Not following these instructions may make the product not work, cause damage to the product, or cause harm to the operator.
	Important installation or configuration information. The product may not function correctly if this information is not used.
	Useful information.
	Laser safety information.

Disclaimer

Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss, damage or disruption caused by any errors or omissions in this document, whether such errors or omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com.

Intellectual Property

The works of authorship contained in this manual, including, but not limited to, all designs, texts, and images are owned by Chauvet.

© Copyright 2019 Chauvet & Sons, LLC. All rights reserved.

Electronically published by Chauvet in the United States of America.

CHAUVET, the Chauvet logo, and Scorpion Storm RGBY are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

Safety Notes

The Safety Notes include important laser system safety information. Read and understand all instructions before powering on the laser for the first time. Knowing these safety instructions is crucial to avoiding laser eye injury and breaking the law. Keep this User Manual in a safe place for future reference.

STOP AND READ ALL LASER SAFETY DATA

• Lasers can be hazardous and have unique safety considerations. Permanent eye injury and blindness are possible if lasers are used incorrectly. Pay close attention to each safety REMARK and WARNING statement in this User Manual. Read all instructions carefully BEFORE operating this device.
  • Always connect the product to a grounded circuit to avoid the risk of electrocution.
  • Always disconnect the product from the power source before cleaning.
• Avoid direct eye exposure to the light source while the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect the product from power by pulling or tugging on the cord.
• If mounting the product overhead, always secure to a fastening device using a safety cable.
• Make sure there are no flammable materials close to the product when operating.

• Do not touch the product's housing when operating because it may be very hot.

• This product is not intended for permanent installation.

• Always make sure that the voltage of the outlet to which you are connecting the product is within the range stated on the decal or rear panel of the product.
• The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the product to rain or moisture.
• Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the product's housing are blocked.
• Never connect the product to a dimmer.
• Make sure to replace the fuse with another of the same type and rating.
• Always use the mounting bracket to carry the product.
• Do not switch the product on/off in short intervals. This will reduce the laser diode life.
• Do not shake this product. Avoid brute force when mounting or operating this product.
• ALWAYS use a safety cable when mounting the product overhead.
• The ambient operating temperature for the laser is 59 °F to 95 °F (15 °C to 35 °C). Do not operate this product outside this range.
• In the event of a serious operating problem, stop using the product immediately.
• Never try to repair the product. Repairs carried out by unskilled people can lead to damage or malfunction. Contact the nearest authorized technical assistance center.

CAUTION! Use of controls, adjustments, or procedures other than THOSE specified IN THIS USER MANUAL may result in hazardous radiation exposure.

• Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to direct laser light.
• This laser product can potentially cause instant eye injury or blindness if laser light directly strikes the eyes.
• It is illegal and dangerous to shine this laser into audience areas, where the audience or other personnel could get direct laser beams or bright reflections into their eyes.
• It is a U.S. federal offense to shine any laser at aircraft.
• To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.
• DO NOT attempt any repairs. Repairs and servicing must be carried out by a certified technician. Unauthorized modifications are forbidden for safety reasons!

Keep this User Manual for future consultation. If transferring ownership of the product to another user, be sure this document is kept with the laser.

Non-Interlocked Housing Warning

• This unit contains high-powered laser devices internally.
• Do not open the laser housing, due to potential exposure to unsafe levels of laser radiation.
• The laser power levels, accessible if the unit is opened, can cause instant blindness, skin burns, and fires.

Laser Safety Notes

STOP AND READ ALL THE LASER SAFETY NOTES BELOW

Laser light is different from any other light. Laser light can cause eye injury if the product is not set up and used properly. Laser light is a thousand times more concentrated than any other kind of light. This concentration can cause instant eye injuries by burning the retina (the light-sensitive portion at the back of the eye). The heat from a laser light cannot be felt, but it can still injure or blind product operators and the audience. Even very small amounts of laser light at long distances are potentially hazardous.

DO NOT assume that exposure to an individual laser beam is safe, even a tiny beam split off from a larger beam. This laser product uses dozens of milliwatts of laser power—Class 3B levels internally—and splits them into multiple beams—Class 3R levels. The individual Class 3R level beams are potentially hazardous to the eyes.

DO NOT assume that a moving laser light is safe. Laser light is never without risk. As eye injuries can occur instantly, it is critical to prevent the possibility of ANY direct eye exposure. According to laser safety regulations, it is not legal to aim Class 3R lasers into areas where people can be exposed, even if the laser is aimed below people's faces, such as at a dance floor.

• Do not operate the laser without first reading and understanding all the safety and technical data in this manual.
  • ALWAYS set up and install all laser effects so that any laser light is at least 3 meters (9.8 feet) above the floor on which people are standing. See the Proper Usage section of this manual.
• After setup, and prior to public use, test the lasers to ensure they are functioning properly. Do not use the product if any defect is detected.

- DO NOT point lasers at people or animals.

- DO NOT look into the laser aperture or laser beams.

- DO NOT point lasers into areas where people could be exposed to them.

- DO NOT point lasers at highly reflective surfaces such as windows, mirrors, and shiny metal. Even laser reflections can be hazardous.

- Never point a laser at aircraft; this is a U.S. federal offense.

- Never point unterminated laser beams into the sky.

- Do not expose the output optic (aperture) to harsh cleaning chemicals.

- Do not use the laser if the housing is damaged, open, or if the optics appear damaged in any way.

- Never open the laser housing. The high laser power levels inside of the protective housing can start fires or burn skin, and will cause instant eye injury.

- Never leave this product running unattended.

- The operation of a Class 3R laser show is allowed only if the lasers are operated by a skilled and well-trained professional, who is familiar with the data included in this manual.

- The legal requirements for using laser entertainment products vary from country to country. The user is responsible for the legal requirements in the location/country of use.

CAUTION! Do not operate this device in ways not specified in this User Manual. Failure to follow the instructions will void the warranty, may damage the product, or injure the user or the audience.

CAUTION! This product cannot be discarded with household waste. Contact your local waste management service for electronic disposal regulations in your area.

Laser Safety Label Reproduction

Laser Exposure Warning

LASER LIGHT AVOID DIRECT EYE EXPOSURE

Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard “For Safe Use of Lasers”, available from the Laser Institute of America: www.lia.org. Many local governments, corporations, agencies, military, and others, require all lasers to be used under the guidelines of ANSI Z136.1. Laser Display guidance can be obtained via the International Laser Display Association: www.ilda.com.

Laser Emission Data

As measured under IEC measurement conditions for classification.

Laser classification	Class 3R
Red laser medium	LD/650 nm/100 mW
Green laser medium	LD/520 nm/40 mW
Blue laser medium	LD/450 nm/100 mW
Yellow laser medium	LD/574 nm/20 mW
Beam diameter	<5 mm at aperture
Pulse data	All pulses <4 Hz (>0.25 sec)
Divergence (each beam)	<2 mrad
Divergence (total light)	<119°

Laser power of each beam from aperture* <5 mW
*As measured under IEC measurement conditions for classification.

Laser Compliance Statement

Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 08, 2019. No maintenance is required to keep this product in compliance with laser performance standards.

2. Introduction

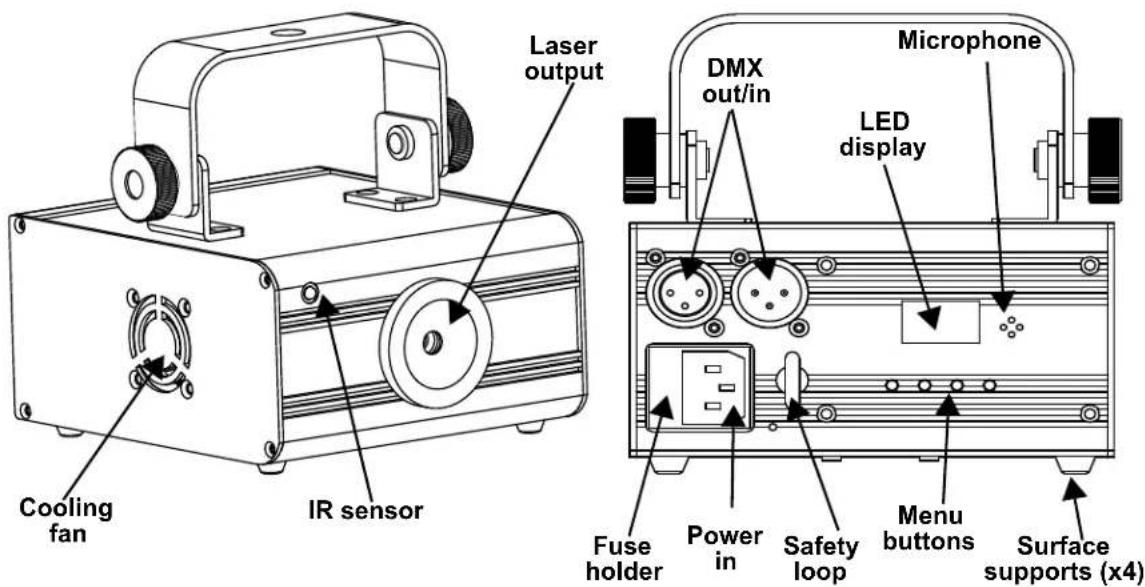

Product Overview

Product Dimensions

3. Setup

AC Power

The Scorpion Storm RGBY has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To determine the product's power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product's back panel, or refer to the product's specifications chart. The listed current rating indicates the product's average current draw under normal conditions.

• Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure the product has an appropriate electrical ground to avoid the risk of electrocution or fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the fuse holder out of the housing.
4. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
5. Insert the fuse holder back in place and reconnect power.

Disconnect the product from the power outlet before replacing the fuse.

Always replace a blown fuse with one of the same type and rating.

Mounting

Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.

Orientation

The Scorpion Storm RGBY must be mounted in a position that includes planning for safe laser usage. In addition, make sure adequate ventilation is provided around the product.

Rigging

• Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming.
• Make sure that the structure or surface onto which you are mounting the product can support the product's weight (see Technical Specifications)
• When mounting the product overhead, always use a safety cable. Mount the product securely to a rigging point, such as an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• The bracket adjustment knobs allow for directional adjustment when aiming the product to the desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs.

Mounting Diagram

Proper Usage

This product is for overhead mounting only. For safety purposes, Chauvet recommends mounting lighting effect products on steady elevated platforms or sturdy overhead supports using suitable hanging clamps. In all cases, use safety cables. Obtain appropriate mounting hardware from your lighting vendor. International laser safety regulations require that laser products must be operated in the fashion illustrated below, with a minimum of 3 meters (9.8 ft) of vertical separation between the floor and the lowest laser light. Additionally, 3 meters of horizontal separation is required between laser light and audience or other public spaces.

CAUTION! Use of controls, adjustments, or procedures other than THOSE specified IN THIS USER MANUAL may result in hazardous radiation exposure.

4. Operation

This product is not designed for continual use. Make sure there are regular breaks during operation to maximize the life of the lasers. Always disconnect the Scorpion Storm RGBY from power when not in use.

Control Panel Operation

To access the control panel functions, use the four buttons located underneath the display. Please refer to the Product Overview to see the button locations on the control panel.

Button Function
	Exits from the current menu or function
	Navigates upwards through the menu list or increases a selected numeric value
	Navigates downwards through the menu list or decreases a selected numeric value
	Enables the currently displayed menu or sets a selected value into the selected function

Menu Map

Mode Programming Levels Description
Auto mode	AuF	ALL, GbY, rbY, rGY,rGb, bY, GY, Gb, rY, rb,rG, Y, b, G, r, rdM	Auto program (fast)
	AuS	ALL, GbY, rbY, rGY,rGb, bY, GY, Gb, rY, rb,rG, Y, b, G, r, rdM	Auto program (slow)
Sound sensitivity	Sou	S 0–9	Sound sensitivity
Slave mode	SLV		Slave mode
DMX mode	001–506		Selects DMX starting address
Remote control	rEM		Wireless remote control(Does not work in Slave and DMX modes)

Configuration (DMX)

The Scorpion Storm RGBY works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website: http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf.

Starting Address

When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. If the starting address is set too high, access to some of the product's channels could be restricted.

The Scorpion Storm RGBY uses 5 and 7 DMX channels, which defines the highest configurable address to 506.

For information about the DMX protocol, download the DMX Primer from www.chauvetdj.com.

To select the starting address, do the following:

1. Press repeatedly until 001–506 shows on the display.
2. Use or to increase or decrease the starting address.
3. Press .

DMX Channel Assignments and Values

7-Channel

Channel Function Value Percent/Setting
1 Control mode				000 ⇔ 050	No function
				051 ⇔ 075	Auto program, fast
				076 ⇔ 100	Auto program, slow
				101 ⇔ 150	Sound program
				151 ⇔ 200	DMX mode 1
				201 ⇔ 255	DMX mode 2
2	R o t a t			000 ⇔ 004	No function
				005 ⇔ 127	Clockwise rotation, slow to fast
				128 ⇔ 133	Stop
				134 ⇔ 255	Counterclockwise rotation, slow to fast
3	Line			000 ⇔ 255	Line segments, short to long
4	Red			000 ⇔ 004	Blackout
				005 ⇔ 010	Red
				011 ⇔ 254	Strobe, slow to fast
				255 Strobe, sound active
5	G r e e n			000 ⇔ 010	No function
				005 ⇔ 010	Green
				011 ⇔ 254	Strobe, slow to fast
				255 Strobe, sound active
6	B l u e			000 ⇔ 010	No function
				005 ⇔ 010	Blue
				011 ⇔ 254	Strobe, slow to fast
				255 Strobe, sound active
7	Y e l l o			000 ⇔ 010	No function
				005 ⇔ 010	Yellow
				011 ⇔ 254	Strobe, slow to fast
				255 Strobe, sound active

• For sound-active operation of laser using DMX control, set Channel 1 to sound program mode (101 ⇔ 150)
• To access the 7-personality mode using DMX control, set Channel 1 to DMX mode 1 (151 ⇔ 200).
• To access the 5-personality mode using DMX control, set Channel 1 to DMX mode 2 (201 ⇔ 255).

5-Channel

Channel Function Value Percent/Setting
1 Control mode		000 ⇔ 050	No function
		051 ⇔ 075	Auto program (fast)
		076 ⇔ 100	Auto program (slow)
		101 ⇔ 150	Sound program
		151 ⇔ 200	DMX mode 1
		201 ⇔ 255	DMX mode 2
2	R o t a t	000 ⇔ 004	No function
		005 ⇔ 127	Clockwise rotation, slow to fast
		128 ⇔ 133	Stop
		134 ⇔ 255	Counterclockwise rotation, slow to fast
3	Line	000 ⇔ 255	Line segments (short to long)
4 Color select		000 ⇔ 004	Blackout
		005 ⇔ 012	Red
		013 ⇔ 020	Green
		021 ⇔ 028	Blue
		029 ⇔ 036	Yellow
		037 ⇔ 044	Red on, Green strobe
		045 ⇔ 052	Red on, Blue strobe
		053 ⇔ 060	Red on, Yellow strobe
		061 ⇔ 068	Green on, Red strobe
		069 ⇔ 076	Green on, Blue strobe
		077 ⇔ 084	Green on, Yellow strobe
		085 ⇔ 092	Blue on, Red strobe
		093 ⇔ 100	Blue on, Green strobe
		101 ⇔ 108	Blue on, Yellow strobe
		109 ⇔ 116	Yellow on, Red strobe
		117 ⇔ 124	Yellow on, Green strobe
		125 ⇔ 132	Yellow on, Blue strobe
		133 ⇔ 138	Red and Green strobe
		139 ⇔ 144	Red and Blue strobe
		145 ⇔ 150	Red and Yellow strobe
		151 ⇔ 156	Green and Blue strobe
		157 ⇔ 162	Green and Yellow strobe
4 Color select	163 ⇔ 168	Blue and Yellow strobe
	169 ⇔ 174	Red, Green, and Blue strobe
	175 ⇔ 180	Red, Green, and Yellow strobe
	181 ⇔ 186	Red, Blue, and Yellow strobe
	187 ⇔ 192	Green, Blue, and Yellow strobe
	193 ⇔ 198	Red, Green, Blue, and Yellow strobe
	199 ⇔ 204	Red and Green alternating strobe
	205 ⇔ 210	Red and Blue alternating strobe
	211 ⇔ 215	Red and Yellow alternating strobe
	216 ⇔ 220	Green and Blue alternating strobe
	221 ⇔ 225	Green and Yellow alternating strobe
	226 ⇔ 230	Blue and Yellow alternating strobe
	231 ⇔ 235	Red, Green, and Blue alternating strobe
	236 ⇔ 240	Red, Green, and Yellow alternating strobe
	241 ⇔ 245	Red, Blue, and Yellow alternating strobe
	246 ⇔ 250	Green, Blue, and Yellow alternating strobe
	251 ⇔ 255	Red, Green, Blue, and Yellow alternating strobe
5 Strobe	000 ⇔ 004	No function
	005 ⇔ 254	Strobe, slow to fast
	255 Sound strobe

Configuration (Standalone)

Set the product in one of the standalone modes to control without a DMX controller.

Never connect a product that is operating in any standalone mode to a DMX string connected to a DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller.

Automatic Mode

To run the Scorpion Storm RGBY in automatic mode, follow the instructions below.

1. Press repeatedly until AuF or AuS shows on the display.
2. Press .
3. Use or to select from ALL, GbY, rbY, rGY, rGb, bY, GY, Gb, rY, rb, rG, Y, b, G, r, or rdM.
4. Press .

Sound Sensitivity

To set the sound sensitivity on the Scorpion Storm RGBY, follow the instructions below.

1. Press repeatedly until Sou shows on the display.
2. Press .
3. Use or to select from S 0-9.
4. Press .

• The product will only respond to low frequencies of music (bass and drums).
• The laser will black out when in Sound-Active mode after 3 seconds of silence or noise below the sensitivity setting.

IRC-6 Infrared Remote Control

The Scorpion Storm RGBY can be operated with the CHAUVET IRC-6. To enable IR wireless control, follow the instructions below.

1. Press

   repeatedly until rEM shows on the display.

2. Press .

IRC-6 Operation

Automatic Mode

To turn on Automatic mode with the IRC-6:

1. Press on the IRC-6.

Sound-Active Mode

To turn on Sound-Active mode with the IRC-6:

1. Press on the IRC-6.

2. Press the numbers <0-9> to increase or decrease the sensitivity (9 is the most sound-sensitive).

Strobe

To activate strobe with the IRC-6:

1. Press on the IRC-6.

2. Press the desired color, from (red), (green), (blue), or (yellow).

3. Press the numbers <0–9> to increase or decrease the strobe rate (0 is blackout, 1 is the fastest, 8 is the slowest, and 9 is sound-activated strobe).

Manual Control

To manually select the laser color with the IRC-6:

1. Press the desired color, from (red), (green), (blue), or (yellow).

Speed

To adjust the motor speed with the IRC-6:

1. Press on the IRC-6.

2. Press the numbers <0-9> to increase or decrease the motor speed (0 is stop, 1 is the fastest, and 9 is the slowest).

Line Segments

To adjust the length of line segments with the IRC-6:

1. Press <%> on the IRC-6.

2. Press the numbers <0-9> to increase or decrease the length of the line segments (0 is shortest; 9 is longest).

Wireless Remote Control

To enter the remote control mode with the IRC-6 (does not work in Slave/DMX modes):

1. Press on the IRC-6 to enter remote control mode.

2. Press again to go back to the last mode.

Black Out

To black out the lasers with the IRC-6:

1. Press on the IRC-6.

This will turn off all the lasers until the button is pressed again.

NOTE: The IRC-6 will not respond to any inputs when Black Out is activated. If the product does not respond when a button is pressed, try pressing . Black Out may have been activated.

- Any setting on the IRC-6 will be saved until the system is rebooted. The system will revert to Auto Mode after reboot.

- The buttons on the IRC-6 not listed above are reserved for future use.

Master/Slave Mode

The Master/Slave mode allows a single Scorpion Storm RGBY product (the "master") to control the actions of one or more Scorpion Storm RGBY products (the "slaves") without the need of a DMX controller. The master product will be set to operate in either standalone mode or with the IR remote, while the slave products will be set to operate in slave mode. Once set and connected, the slave products will operate in unison with the master product.

Configure the products as indicated below.

Slave products:

1. Press repeatedly until SLV shows on the display.
2. Press .
3. Connect the DMX input of the first slave product to the DMX output of the master product.
4. Connect the DMX input of the subsequent slave products to the DMX output of the previous slave product.
5. Finish setting and connecting all the slave products.

Master product:

1. Set the master product to operate in standalone mode or with the IR remote.
2. Make the master product the first product in the DMX daisy chain.

• Configure all the slave products before connecting the master to the daisy chain.
• Never connect a DMX controller to a DMX string configured for Master/Slave operation because the controller may interfere with the signals from the master.

5. Maintenance

Product Maintenance

Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source's life and/or mechanical wear. To maintain optimum performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency.

To clean the product, follow the instructions below:

1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external surface/vents.
4. Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl alcohol.
5. Apply the solution directly to a soft, lint-free cotton cloth or a lens-cleaning tissue.
6. Softly drag any dirt or grime to the outside of the transparent surface.
7. Gently polish the transparent surfaces until they are free of haze and lint.

Always dry the transparent surfaces carefully after cleaning them.

6. Technical Specifications

Dimensions and Weight

Length Width Height Weight

6.5 in (165 mm) 5.9 in (149 mm) 6.2 in (157.5 mm) 3.2 lb (1.4 kg)

Note: Dimensions in inches are rounded.

Power

Power Supply Type Range Voltage Selection
Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging

Parameter 120 V, 60 Hz 230 V, 50 Hz
Consumption	16 W	16 W
Operating current 0.22 A		0.13 A
Fuse	T 1 A, 250 V	T 1 A, 250 V
Power I/O	U.S./Worldwide	UK/Europe
Power input connector	IEC	IEC
Power output connector Edison		IEC
Power cord plug	Edison (U.S.)	Local plug

Light Source

Type	Power	Wavelength
Laser (red)	100 mW	650 nm
Laser (green)	40 mW	520 nm
Laser (blue)	100 mW	450 nm
Laser (yellow)	20 mW	574 nm

Photo Optics

Strobe Rate	Coverage Angle
0 to 27 Hz	119°

Thermal

Laser Minimum External Temp.	Laser Maximum External Temp.	Cooling System
59 °F (15 °C)	95 °F (35 °C)	Fan-assisted convection

DMX

I/O Connector Channel Range
3-pin XLR	5 and 7

Ordering

Product Name	Item Code	UPC Number
Scorpion Storm RGBY	10061673	781462220211

RoHS

Returns

In case you need to get support or return a product:

• If you are located in the U.S., contact Chauvet World Headquarters.
• If you are located in the U.K. or Ireland, contact Chauvet Europe Ltd.
• If you are located in Benelux, contact Chauvet Europe BVBA.
• If you are located in France, contact Chauvet France.
• If you are located in Germany, contact Chauvet Germany.
• If you are located in Mexico, contact Chauvet Mexico.
• If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetdj.com for distributors outside the U.S., UK, Ireland, Benelux, France, Germany, or Mexico.

If you are located outside the U.S., UK, Ireland, Benelux, France, Germany, or Mexico, contact your distributor of record and follow their instructions on how to return Chauvet products to them. Visit our website www.chauvetdj.com for contact details.

Call the corresponding Chauvet Technical Support office and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause for the return.

To submit a service request online, go to www.chauvetdj.com/service-request.

Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags.

Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number.

Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box.

Before sending the product, clearly write the following information on a piece of paper and place it inside the box:

• Your name
• Your address
• Your phone number
• RMA number
• A brief description of the problem

Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended.

Chauvet reserves the right to use its own discretion to repair or replace returned product(s).

Contact Us

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetdj.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetdj.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère Email: [e-mail]

91380 Chilly-Mazarin

France Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Germany

Address: Bruno-Bürgel-Str. 11 Email: [e-mail]

28759 Bremen

Germany Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Mexico

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetdj.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.

1. Antes de Empezar

Qué va Incluido

- Scorpion Storm RGBY

- Manual de usuario

3. Instalación

Corriente alterna

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Sitio web: www.chauvetdj.eu

NG16 6NT

Voz: [phone]

Fax: [phone]

Chauvet Europe BVBA

Dirección: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Sitio web: www.chauvetdj.eu

Voz: [phone]

Chauvet France

Dirección: 3, Rue Ampère 91380 Chilly-Mazarin Email: [e-mail]

France Sitio web: www.chauvetdj.eu

Voz: [phone]

Chauvet Germany

Dirección: Bruno-Bürgel-Str. 11 Email: [e-mail]

28759 Bremen

Germany Sitio web: www.chauvetdj.eu

Voz: [phone]

Chauvet Mexico

3. Configuration

Alimentation CA

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Site web : www.chauvetdj.eu ____

NG16 6NT

(Entrance by Calle 2)

E-mail : [e-mail]

Zona Industrial Lerma Site web : www.chauvetdj.mx
