USER MANUAL SlimPAR Q12 BT Chauvet


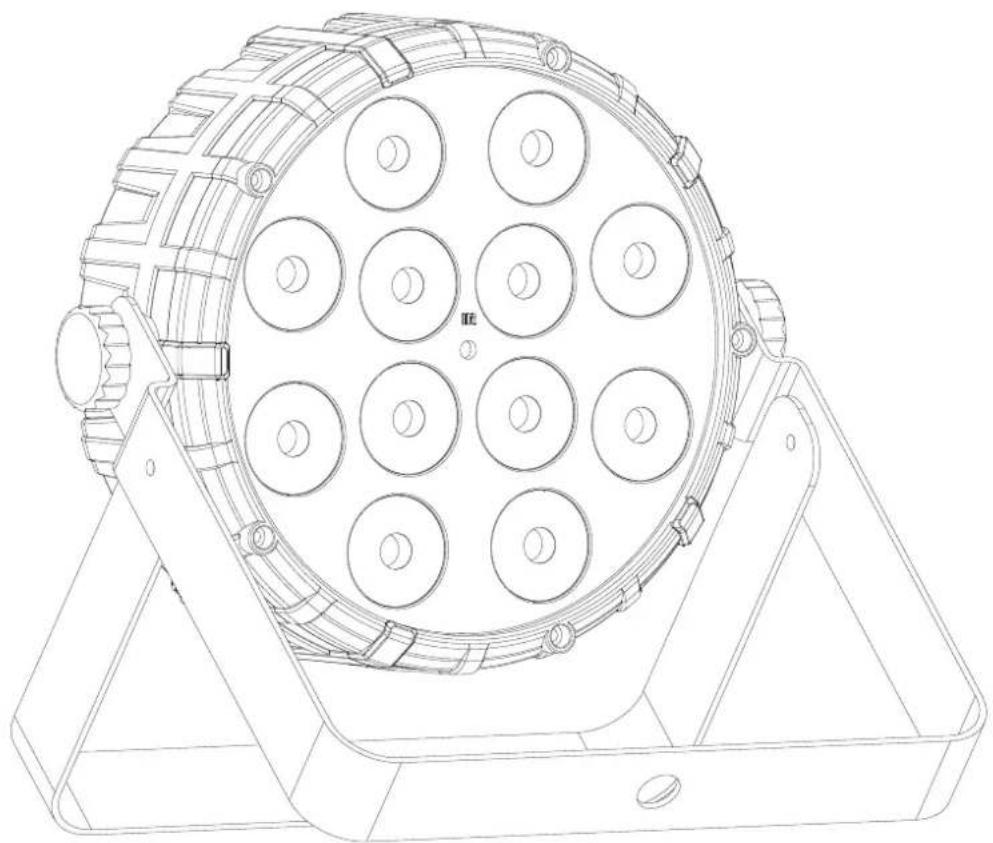

Technical line drawing of a mechanical component with circular holes and mounting bracket (no text or symbols)CHAUVET 3
About This Guide
The SlimPAR Q12BT Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details. Patent pending.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
• Always connect the product to a grounded circuit.
- Make sure the power cord is not crimped or damaged.
• Always disconnect the product from the power source before cleaning it or replacing the fuse.
- Never disconnect the product from the power source by pulling or tugging on the cord.
- If mounting the product overhead, make sure there is adequate support for the product's weight and always secure the product using a safety cable.
• Make sure there are no flammable materials close to the product when it is operating.
- Avoid direct eye exposure to the light source while the product is on.
- Do not touch the product's housing when the product is operating because the housing can be very hot.
- The product is not intended for permanent installation.
- The product is for indoor use only. It is rated at IP20.
- Do not expose the product to rain or moisture.
- Always connect the product to a power source that is within the voltage range stated on the label or rear panel of the product.
- Never connect the product to a dimmer or rheostat.
• Make sure to replace the fuse with another of the same type and rating.
• Always install the product in a location with adequate ventilation.
• Always leave at least 20 in (50 cm) between the product and adjacent surfaces.
- Be sure that no ventilation slots on the product's housing are blocked.
- Do not operate the product at an ambient temperature higher than 104^ (40 °C).
- Never carry the product by the power cord or any moving part.
• Always use the mounting/hanging bracket to lift the product.
• If there is a serious operating problem, stop using the product immediately.
- Never try to repair the product. Repairs carried out by untrained people can lead to damage or malfunction.
- To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.
Contact
Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Visit www.chauvetdj.com for contact information.
What is Included
- SlimPAR Q12BT
- Power cord
- Quick Reference Guide
To Begin
Unpack your SlimPAR Q12BT and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.
AC Power
This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Power Linking
For the maximum number of SlimPAR Q12BT products that you can power link at each voltage, see the User Manual or the specification sticker on the product.
Fuse Replacement
- Disconnect the product from power.
- Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
- Pry the safety cap out of the housing.
- Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
- Re-insert the fuse holder and reconnect power.
Mounting
Before mounting this product, read the Safety Notes.

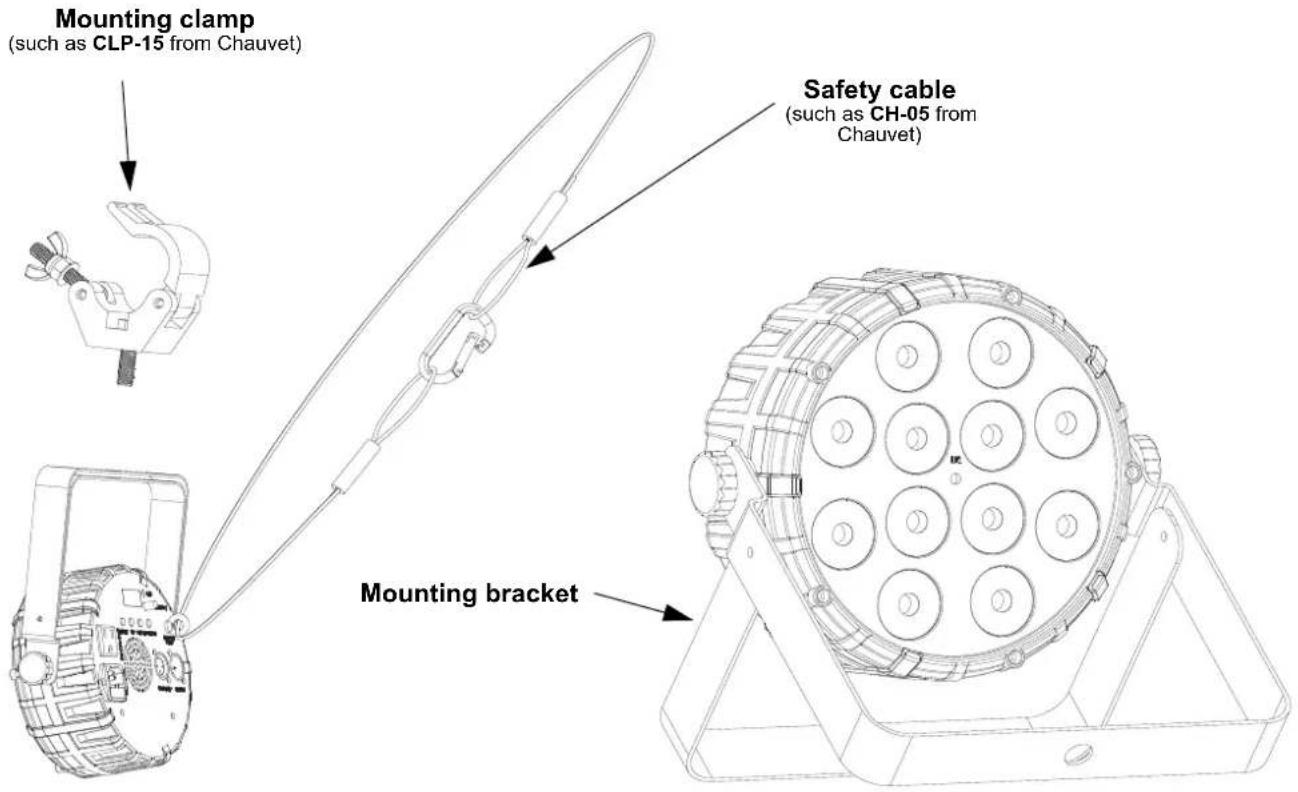

Mounting Diagram
Control Panel Description
| BUTTON FUNCTION | |
| Exits from the current menu or function | |
| Navigates upwards through the menu list and increases the numeric value when in a function | |
| Navigates downwards through the menu list and decreases the numeric value when in a function | |
| Enables the currently displayed menu or sets the currently selected value into the selected function | |
Menu Map
| MODE PROGRAMMING LEVELS DESCRIPTION | ||||
| DMX Mode | 4Ch d001-509 | Sets the DMX personality | ||
| 8Ch d001-505 | ||||
| Static Colors C-- C001-019 Static colors | ||||
| Auto Programs | P-- | P 1-5 | Auto programs | |
| Auto Speed | S-- | S001-100 | Program speed for P1~P5 | |
| Dimmer | diM | L001-255 | Adjust the dimmer on auto and sound programs | |
| Sound-Active Mode | Snd | Snd1-5 | Sound-active programs | |
| Custom Color Mixing | u-- | r000-255 | Custom static colorsCombines Red, Green, Blue, and Amber | |
| g000-255 | ||||
| b000-255 | ||||
| A000-255 | ||||
| s000-100 | Strobe slow to fast (1-100) | |||
| Bluetooth Mode* | bLE | ---- | Bluetooth control mode, displays Bluetooth ID | |
| Control Mode | SEt | IR | on | Turns infrared on or off |
| oFF | ||||
| OUT | DMX Enable Master/Slave with non-BT products | |||
| SLAV | Enable Master/Slave with other BT products | |||
*The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Chauvet & Sons, LLC is under license. Other trademarks and trade names are those of their respective owners.
DMX Linking
The SlimPAR Q12BT can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.
Starting Address
To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 505.
Master/Slave Connection
The SlimPAR Q12BT uses the DMX data connection for its Master/Slave mode. Information about configuring the SlimPAR Q12BT for Master/Slave operation is in the User Manual, which is available from the Chauvet website.
IRC-6 (Infrared Remote Control)
The SlimPAR Q12BT can be operated with the CHAUVET IRC-6. For more information about the IRC-6, download instructions for the IRC-6 or the SlimPAR Q12BT User Manual from www.chauvetdj.com.
Bluetooth control
The SlimPAR Q12BT can be operated with the BT Air application over a Bluetooth connection. For more information on using the BT Air app, download the BT Air User Manual from www.chauvetdj.com
DMX Values
8Ch
| CHANNEL FUNCTION VALUE PERCENT/SETTING | ||
| 1 Red 000 | 255 0-100% | |
| 2 Green 000 | 255 0-100% | |
| 3 Blue 000 | 255 0-100% | |
| 4 Amber 000 | 255 0-100% | |
| 5 Strobe 000 | 255 0-20 Hz, slow to fast | |
| 6 Auto Program | 000 005 No function | |
| 006 055 Program 1 | ||
| 056 106 Program 2 | ||
| 107 157 Program 3 | ||
| 158 208 Program 4 | ||
| 209 255 Program 5 | ||
| 7 Auto Program Speed | 000 250 Speed, slow to fast | |
| 251 255 Sound Active Mode | ||
| 8 Dimmer 000 | 255 Auto and Sound Programs | |
4Ch
| CHANNEL FUNCTION VALUE PERCENT/SETTING | |
| 1 Red 000 | 255 0–100% |
| 2 Green 000 | 255 0–100% |
| 3 Blue 000 | 255 0–100% |
| 4 Amber 000 | 255 0–100% |
Acerca de esta guía
General Information Technical Support
Chauvet World Headquarters
Address: 5200 NW 108th Ave. Voice: (844) 393-7575
Sunrise, FL 33351 Fax: (954) 756-8015
Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com
Fax: (954) 929-5560
Toll Free: (800) 762-1084 Website: www.chauvetdj.com
Chauvet Europe Ltd
Address: Unit 1C Email: UKtech@chauvetlighting.eu
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK Website: www.chauvetdj.eu
NG16 6NT
Voice: +44 (0) 1773 511115
Fax: +44 (0) 1773 511110
Chauvet Europe BVBA
Address: Stokstraat 18 Email: BNLtech@chauvetlighting.eu
9770 Kruishoutem
Belgium Website: www.chauvetdj.eu
Voice: +32 9 388 93 97
Chauvet France
Address: 3, Rue Ampère
91380 Chilly-Mazarin
Email: FRtech@chauvetlighting.fr
France Website: www.chauvetdj.eu
Voice: +33 1 78 85 33 59
Chauvet Germany
(Entrance by Calle 2)
Email: servicio@chauvet.com.mx
Zona Industrial Lerma Website: www.chauvetdj.mx
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.
SlimPAR Q12BT QRG ML6 Rev. 7
© Copyright 2019 Chauvet
All rights reserved.
Printed in the P.R.C.
