7c G3 - Tablet Arnova - Free user manual and instructions

Product Type	Touchscreen Tablet
Brand	Arnova
Model	7c G3
Screen	7-inch capacitive touchscreen
Connectivity	WiFi 802.11 b/g/n, Bluetooth (unspecified), 3G via SIM card
Storage	Micro-SD card slot (memory expansion)
Camera	Front camera (webcam) and rear camera
Ports	Micro-USB (charge and data), micro-HDMI (video output), 3.5 mm headphone jack
Sensors	Accelerometer (unspecified but likely)
Battery	Built-in rechargeable battery, typical battery life 4-6 hours depending on usage
Power Supply	Mains charger via micro-USB cable (included)
Weight	Approximately 320 g (estimated for a 7-inch tablet)
Dimensions	Approximately 192 x 112 x 11 mm (estimated)
Operating System	Android (version unspecified, likely 4.x Ice Cream Sandwich or Jelly Bean)
Main Functions	Internet browsing, email, multimedia playback, games, Android apps via AppsLib, camera, GPS (unspecified but possible via 3G)
Care and Cleaning	Clean with a soft, dry cloth; avoid liquids and abrasive products
Safety	If frozen, hold down the ON/OFF button for 10 seconds or use the Reset button; screen lock by pattern, PIN, or password
Spare Parts and Repairability	Non-removable battery; no information on repairability; SIM and micro-SD card slots accessible
General Information	Unlocked tablet (SIM free); registration recommended on arnovatech.com for technical support

Frequently Asked Questions - 7c G3 Arnova

How to charge the Arnova 7c G3 battery for the first time?

Plug the provided power cable into the tablet's micro-USB connector and a wall outlet. The battery will charge. It is recommended to fully charge it before first use.

What to do if the tablet screen becomes unresponsive?

If the tablet is unresponsive, press and hold the ON/OFF button for 10 seconds to turn it off. You can also use the Reset button (small hole) with a paperclip to reset the device.

How to set up a WiFi connection on the Arnova 7c G3?

From the status bar, tap the time, then the status panel, then the time again to access settings. Enable WiFi, select a network, enter the security key (WEP/WPA) if needed, and tap Connect.

How to insert a SIM card into the tablet?

Turn off the tablet before inserting the SIM card. Insert the SIM card into its slot (under a cover). Restart the tablet; if a PIN code is requested, enter it. The device will automatically connect to the 3G network.

Why is the tablet not connecting to the 3G network?

Check that you are in an area covered by 3G. If connection fails, go to Settings > Wireless & networks > More... > Mobile networks. Select your operator and configure the access point (APN) with the parameters provided by your operator.

How to add more apps to the Arnova 7c G3?

Connect the tablet to the internet, then open the AppsLib app. This portal offers thousands of free and paid apps to download. You can also obtain apps from other compatible Android sources.

How to extend the battery life of my tablet?

Disable WiFi and Bluetooth if not in use. Reduce screen brightness and shorten the sleep delay in Settings > Display. Disable automatic app sync in Settings > Accounts and sync.

How to lock the tablet screen with a PIN code?

Go to Settings > Security > Screen lock. Choose 'PIN' or 'Password' and follow the instructions. When the screen wakes up, you will need to enter the code to unlock.

How to organize apps on the home screen?

Press and hold an app icon until positioning lines appear, then drag the icon to the desired location. To create a folder, drop one icon onto another.

Where to find additional help for the Arnova 7c G3 tablet?

Check the official FAQ at http://arnovatech.com/faq or contact technical support via email at http://arnovatech.com/support. It is recommended to register your product beforehand at http://arnovatech.com/register.

USER MANUAL 7c G3 Arnova

Before using your ARNOVA for the first time, completely charge the battery!

Charging the Battery

1. Connect the supplied power cable to the ARNOVA and to a wall outlet.
   The ARNOVA device will start charging.
2. Press the Power button to turn on the device.

Installation Wizard

The first time you start up your ARNOVA, the installation wizard will bring you through a few screens to help you set up the principal settings: language, country, time, etc.

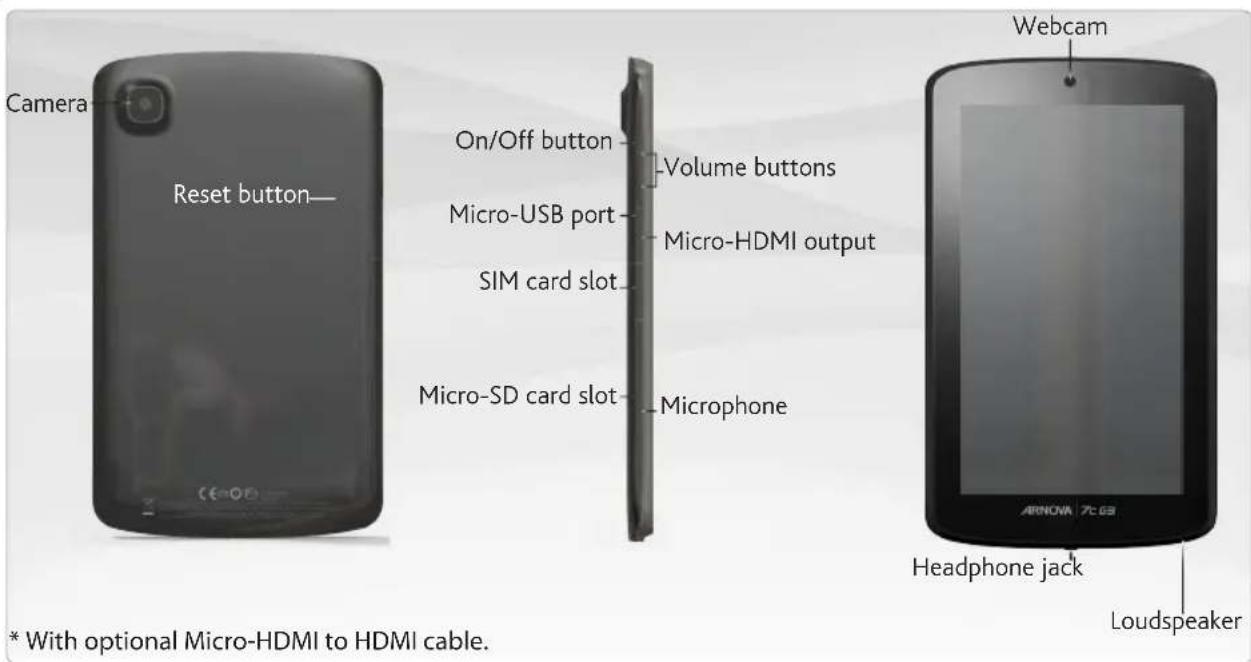

DESCRIPTION OF THE TABLET

IMPORTANT:

Your device is frozen. You can turn it off. Press the ON/OFF button for 10 seconds or press the reset button.

CONNECTING TO A 3G NETWORK

Your ARNOVA is equipped with a SIM card slot. Any standard SIM card can be inserted. There is no provider restriction. Note that the ARNOVA will only have signal if you are in an area covered by your 3G provider's 3G or EDGE network.

Inserting your SIM card

Important: Before inserting a SIM card, you must turn off the device.

1. Switch off the device.
2. Insert the SIM card in the SIM card slot.
3. Turn on the device.
4. A Pin number may be requested. Enter the SIM card pin number and tap OK.

Your device will attempt to connect to the 3G network of your provider.

Note: If your device does not connect to your 3G provider's network

1. Contact your 3G provider to obtain the connection parameters.
2. On your device, tap Settings.
3. Select Wireless & networks > More... > Mobile networks.
4. Contact your 3G provider to obtain the connection parameters.
5. On your device, tap Settings.
6. Select Wireless & networks > More... > Mobile networks.
7. In Network operators, select your operator.
8. In Access Point Names, select the correct access point name and enter the exact connection parameters.

CONNECTING TO THE WIFI NETWORK

For this procedure to work, you need to be in a WiFi zone that will allow you to connect to it. Every time the ARNOVA is in range of a network that you have already configured once, it will attempt to make a connection.

How to configure a WiFi network

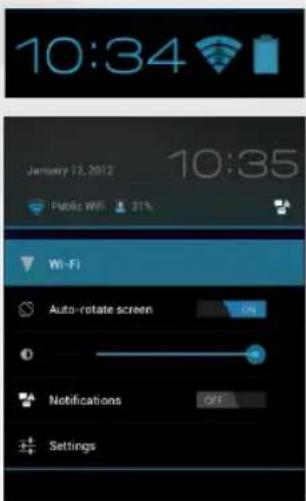

From the status bar, at the bottom right hand of the screen, you can access the WiFi settings quickly.

1. Touch the time in the status bar. The status dashboard is displayed.
2. Touch the time in the status dashboard. The setting dashboard is displayed below.
3. Touch WiFi to open the WiFi settings.
4. If the WiFi is off, slide the WiFi switch to the On position.
   Once the WiFi is on, the ARNOVA will scan for available WiFi networks.
   Secured networks are indicated with a Lock icon. If the device finds a network that you connected to previously, it connects to it.
5. Touch the network you want to connect to.
6. Enter the required network information* and touch Connect.
   We recommend that you select Show password in order to be able to see the characters you are typing.
   Your ARNOVA will attempt to establish a connection to that WiFi access point.

* For free access WiFi points, there is no need to enter any special information. For secured networks, you will need a key (a series of numbers and/or letters) of the type WEP, WPA, or WPA2. To obtain the exact connection parameters required, contact the Internet service provider.

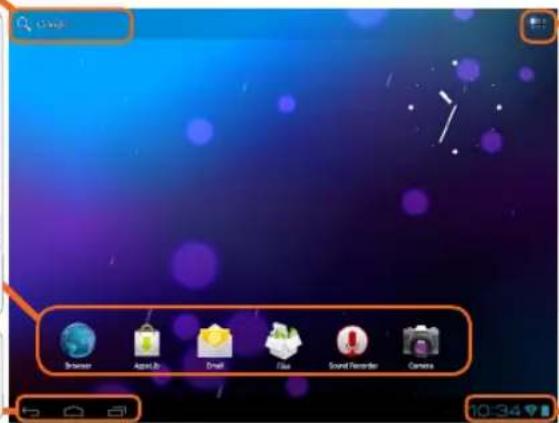

Touch for text search

Your ARNOVA device is equipped with a capacitive touchscreen. Use your fingertip to navigate.

These are default Android™ applications (Web Browser, EMail, etc.). Tap on an icon to open the corresponding application. You can customize the Home screen by adding/ removing shortcuts and widgets, changing the wallpaper etc. See next page.

All apps button

Tap on this icon to reveal all the Android™ applications and widgets installed on your ARNOVA (games, various tools, etc.). You can copy them onto the Home screen. You can get more Android™ applications from AppsLib

The status bar displays notifications and system icons.

Main Touchscreen buttons

The Back button - to go back to your previous screen.

The Search button - to type terms to search your tablet and the web.

The Home button - to return to the main screen.

The All apps button - to find all your apps and widgets.

The Recent Apps button - to navigate among your apps. - to remove a thumbnail from the list, swipe it left or right.

CUSTOMIZING YOUR TABLET

The extended Home screen

Navigate between different home screen panels by swiping left and right.

Abstract digital image with purple and blue tones, featuring scattered purple dots and a small white object (no text or symbols)

Illustration of a hand interacting with a device, showing bidirectional arrows and icons on a dark blue background (no text or symbols)

Digital video player interface with a timeline bar and abstract purple background (no readable text or symbols)

Customizing the Home screen panels

- To change your wallpaper, hold your finger on the screen at an empty location, then choose from the list.

Arranging & working with apps

• To move a Home screen item, touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.
• To remove a Home screen item, touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon. Removing an item from the All apps screens will uninstall the item.

Zoom: In some apps (such as

Browser, and Gallery) you can zoom in and out by placing two fingers on the screen at once and pinching them together (to zoom out) or spreading them apart (to zoom in).

Close-up of a purple flower with a white circular overlay and a white hand pointing to it (no text or symbols)

Creating application folders: you can combine several application icons in a folder. Drop one app icon over another on a Home screen and the two icons will be combined.

Changing the Settings

Tap on Settings and choose a menu among these categories: Wireless & networks, Device, Personal, System.

Adding more applications with APPSLIB : with the ARNOVA connected to the Internet, tap on the AppsLib icon 📋. This online library has thousands of applications to download and use.

CUSTOMIZING YOUR TABLET

Add widgets

Widgets are like windows into your apps. They're available from an All Apps tab for you to move onto your Home screens.

To see your widgets:

1. Touch the All Apps icon 📁 on your Home screen.
2. Touch Widgets at the top of the screen.

3. From the main Widgets screen, you can:

4. move between screens: Swipe left or right.

5. drag a widget to a Home screen. Touch and hold the widget's icon, slide your finger where you want to place it and lift your finger.

You may be asked to make further choices before the widget activates. If there isn't room where you have dropped it, the widget won't be added to the Home screen.

Use the lock screen

To protect personal information, you can adjust your tablet's lock settings:

1. From the Home or All Apps screen, touch the Settings icon.
2. Scroll down and touch Security.
3. Touch Screen lock.
4. Touch the type of lock you'd like to use. After you set a lock here, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

Extend the life of your battery

• If you aren't using WiFi, select the Settings app to turn it off.
• Turn down screen brightness and set a shorter Sleep timeout: Settings > Device > Display.
• If you don't need it, turn off automatic syncing for all apps: Settings > Personal > Accounts & sync. Note that this means you need to sync manually to collect messages, email, and other recent information, and won't receive notifications when updates occur.

REGISTER YOUR TABLET

On the web at http://arnovatech.com/register

We recommend that you take a few minutes to register it (http://arnovatech.com/register). This will allow you to get access to ARNOVA technical support (http://arnovatech.com/support).

?

NEED HELP?

On our Website: see the Frequently Asked Questions section on http://arnovatech.com/faq

Contact our Technical Support Team: visit http://arnovatech.com/support for e-mail support. Please register your product before contacting Technical Support (see Register your Product).

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

GO!

PREMIÈRE UTILISATION

L'INTERFACE ANDROID

Abstract digital image with purple and blue gradient background, no visible text or symbols

Illustration of a hand interacting with a device against a blue background (no text or symbols)

Digital video player interface with blue background and purple glowing effect (no readable text or symbols)

Close-up of a purple flower with a bee in the background (no text or symbols visible)

Alle Apps Symbol

ANPASSEN IHRES PRODUKTES

Abstract digital image with purple and blue gradient background, no visible text or symbols

Illustration of a hand pointing at a device with bidirectional arrows, set against a dark blue background (no text or symbols)

Digital video player interface with a blue gradient background and purple circular light effects (no readable text or symbols)

Hintergrund ändern

Close-up of a purple flower with a white circular overlay showing a finger pointing to it, set against a green background (no text or symbols)

ANPASSEN IHRES PRODUKTES

Widgets hinzufügen

EL INTERFAZ ANDROID

Abstract digital image with blue and purple gradient background, no visible text or symbols

White hand icon with double-headed arrows pointing to a dark blue background, surrounded by small app icons (no text or symbols)

Digital video player interface with blue background and purple glowing effect (no readable text or symbols)

Close-up of a purple flower with a white circular overlay and a white hand pointing to it (no text or symbols)

INTERFACCIA ANDROID

Abstract digital image with purple and blue gradient background, no visible text or symbols

Abstract digital interface with a white hand icon and bidirectional arrows, set against a blue background with floating icons (no text or symbols)

Digital video player interface with blue background and purple glowing effect (no readable text or symbols)

Cambiare lo sfondo

Close-up of a purple flower with green leaves against a blurred green background, featuring a white circular overlay and a white arrow pointing to the flower's tip (no text or symbols)

DE ANDROID-INTERFACE

Applicaties knop

PERSONALISEER UW PRODUCT

Abstract digital image with blue and purple gradient background, no visible text or symbols

Illustration of a hand interacting with a device, showing bidirectional arrows and app icons on a blue background (no text or symbols)

Digital video player interface with playback controls and abstract blue background (no readable text or symbols)

Close-up of a purple flower with a white circular overlay highlighting its shape (no text or symbols)

PERSONALISEER UW PRODUCT

Widgets toevoegen

Abstract blue gradient background with scattered purple and white circular spots (no text or symbols)

White hand icon pointing bidirectional with arrows, surrounded by blurred digital background (no text or symbols)

Abstract digital interface with blue and purple gradient background, no visible text or symbols

Close-up of a purple flower with green leaves, partially circled in white (no text or symbols visible)

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction Reason/remark

Bulgaria None General authorization required for outdoor

use and public service

France Outdoor use limited

to 10 mW e.i.r.p.

within the band

2454-2483.5 MHz

Military Radiolocation use. Refarming of the

2.4 GHz band has been ongoing in recent

years to allow current relaxed regulation. Full

implementation planned 2012

Italy None If used outside of own premises, general

authorization is required.

Luxembourg None General authorization required for network

and service supply (not for spectrum)

Norway Implemented This subsection does not apply for the

geographical aera within a radius of 20 km

from the centre of Ny-Alesund

Russian Federation None Only for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.arnovatech.com/products/declaration_conformity.html

Charging specifications

Adaptor Model: HNC050200X; Input: 100-240V; 50/60Hz; Output: 5.0V, 2.0A; Operationg Temperature: 0°C \~ 40°C. Relative Humidity: 10%\~90%

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/LICENSE-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARNOVA customer service at http://www.arnovatech.com and ARNOVA will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.
