USER MANUAL 8c G3 Arnova

Before using your ARNOVA for the first time, completely charge the battery!

Charging the Battery

1. Connect the supplied power cable to the ARNOVA and to a wall outlet.

2. The ARNOVA device will turn on and start charging.

3. The Power indicator light is red while the battery is charging.

4. It will turn yellow when the battery is fully charged.

Installation Wizard

The first time you start up your ARNOVA, the installation wizard will bring you through a few screens to help you set up the principal settings: language, country, time, etc.

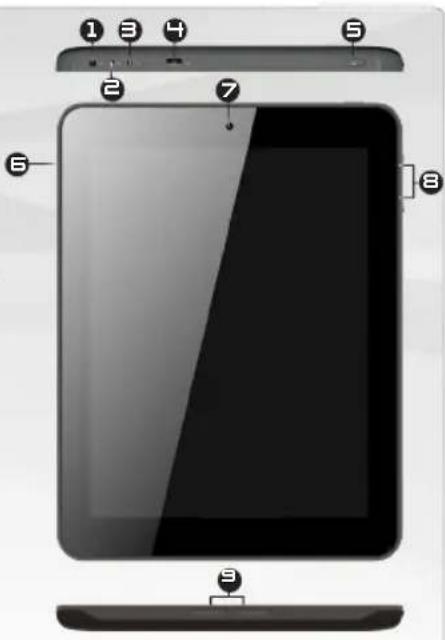

DESCRIPTION OF THE TABLET

1. Headphone jack
2. Microphone
3. Power connector
4. Micro-USB port: to connect your ARNOVA to your computer, using the included USB cable
5. On/Off button: enables to turn on or turn off the device.
6. Micro-SD card slot
7. Camera
8. Volume buttons
9. Loudspeakers

IMPORTANT:

Your device is frozen. You can turn it off. Press the ON/OFF button ⑤ for 10 seconds or use the reset button on the back of the device.

CONNECTING TO THE WIFI NETWORK

For this procedure to work, you need to be in a WiFi zone that will allow you to connect to it. Every time the ARNOVA is in range of a network that you have already configured once, it will attempt to make a connection.

How to configure a WiFi network

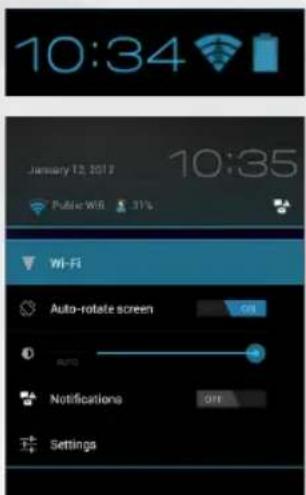

From the status bar, at the bottom right hand of the screen, you can access the WiFi settings quickly.

1. Touch the time in the status bar. The status dashboard is displayed.
2. Touch the time in the status dashboard. The setting dashboard is displayed below.
3. Touch WiFi to open the WiFi settings.

4. If the WiFi is off, slide the WiFi switch to the On position. Once the WiFi is on, the ARNOVA will scan for available WiFi networks. Secured networks are indicated with a Lock icon. If the device finds a network that you connected to previously, it connects to it.

5. Touch the network you want to connect to.

6. Enter the required network information* and touch Connect. We recommend that you select Show password in order to be able to see the characters you are typing.

Your ARNOVA will attempt to establish a connection to that WiFi access point.

* For free access WiFi points, there is no need to enter any special information. For secured networks, you will need a key (a series of numbers and/or letters) of the type WEP, WPA, or WPA2. To obtain the exact connection parameters required, contact the Internet service provider.

Gray horizontal bar with three small circular elements on the left, no text or symbols present.

Touch for text search

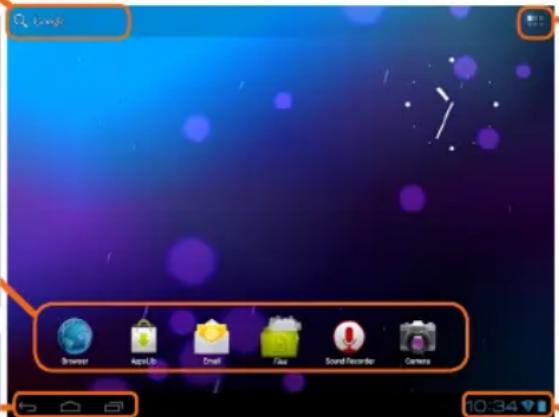

Your ARNOVA device is equipped with a capacitive touchscreen. Use your fingertip to navigate.

These are default Android™ applications (Web Browser, EMail, etc.). Tap on an icon to open the corresponding application. You can customize the Home screen by adding/ removing shortcuts and widgets, changing the wallpaper etc. See next page.

The navigation bar displays the Back, Home and Recent Apps buttons.

All apps button

Tap on this icon to reveal all the Android™ applications and widgets installed on your ARNOVA (games, various tools, etc.). You can copy them onto the Home screen. You can get more Android™ applications from AppsLib

The status bar displays notifications and system icons.

Main Touchscreen buttons

The Back button - to go back to your previous screen.

The Search button - to type terms to search your tablet and the web.

The Home button - to return to the main screen.

The All apps button - to find all your apps and widgets.

The Recent Apps button - to navigate among your apps. - to remove a thumbnail from the list, swipe it left or right.

CUSTOMIZING YOUR TABLET

The extended Home screen

Navigate between different home screen panels by swiping left and right.

Abstract digital image with purple and blue gradient background, no visible text or symbols

Illustration of a hand holding a device with bidirectional arrows, set against a dark blue background (no text or symbols)

Digital video player interface with blue background and purple glowing effects (no readable text or symbols)

Customizing the Home screen panels

- To change your wallpaper, hold your finger on the screen at an empty location, then choose from the list.

Arranging & working with apps

- To move a Home screen item, touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

-To remove a Home screen item, touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon. Removing an item from the All apps screens will uninstall the item.

Zoom: In some apps (such as

Browser, and Gallery) you can zoom in and out by placing two fingers on the screen at once and pinching them together

(to zoom out) or

spreading them apart (to zoom in).

Close-up of a purple flower with green background, featuring a white circular overlay and a white arrow pointing to it (no text or symbols)

Creating application folders: you can combine several application icons in a folder. Drop one app icon over another on a Home screen and the two icons will be combined.

Changing the Settings

Tap on Settings and choose a menu among these categories: Wireless & networks, Device, Personal, System.

Adding more applications with APPSLIB : with the ARNOVA connected to the Internet, tap on the AppsLib icon . This online library has thousands of applications to download and use.

CUSTOMIZING YOUR TABLET

Add widgets

Widgets are like windows into your apps. They're available from an All Apps tab for you to move onto your Home screens.

To see your widgets:

1. Touch the All Apps icon 📁 your Home screen.
2. Touch Widgets at the top of the screen.
3. From the main Widgets screen, you can:
4. move between screens: Swipe left or right.
   -drag a widget to a Home screen. Touch and hold the widget's icon, slide your finger where you want to place it and lift your finger.

You may be asked to make further choices before the widget activates. If there isn't room where you have dropped it, the widget won't be added to the Home screen.

Use the lock screen

To protect personal information, you can adjust your tablet's lock settings:

1. From the Home or All Apps screen, touch the Settings icon.

2. Scroll down and touch Security.

3. Touch Screen lock.

4. Touch the type of lock you'd like to use.

After you set a lock here, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

Extend the life of your battery

-If you aren't using WiFi, select the Settings app to turn it off.
- Turn down screen brightness and set a shorter Sleep timeout: Settings > Device > Display.
- If you don't need it, turn off automatic syncing for all apps: Settings > Personal > Accounts & sync. Note that this means you need to sync manually to collect messages, email, and other recent information, and won't receive notifications when updates occur.

TRANSFERRING MEDIA

For Windows:

1. On your tablet select Settings > Storage and tap the button
2. Select USB computer connection > Media device (MTP).
3. Connect your tablet to your computer using the USB cable.

Your device is automatically detected. It appears as an icon on "My Computer".

1. You can transfer your media files to the ARNOVA by copy/pasting them into the respective folders.
2. Once all your file transfers are finished, close any program that may have read or written to the ARNOVA.
3. You can now unplug the USB cable.

For Macintosh & Linux

1. On your tablet select Settings > Storage and tap the button
2. Select USB computer connection > Mass Storage.
3. Connect the supplied USB cable to the ARNOVA and to a running computer.
4. The ARNOVA will ask you if you want to connect it. Tap on Turn on USB storage to connect it and press OK to confirm. Within a few seconds the ARNOVA will appear as an icon on your computer.
5. You can transfer your media files to the ARNOVA either by copy/pasting them into the respective folders.
6. Once all your file transfers are finished, close any program that may have read or written to the ARNOVA. Mac: Drag the ARNOVA hard drive icon on the desktop toward the trash (which will change to an "unmount" icon) and drop it in.

Linux: Right-click on the ARNOVA USB device icon and select "unmount" or "safely remove."

1. You can now unplug the USB cable.

REGISTER YOUR TABLET

On the web at http://arnovatech.com/register

We recommend that you take a few minutes to register it (http://arnovatech.com/register). This will allow you to get access to ARNOVA technical support (http://arnovatech.com/support).

?

NEED HELP?

On our Website: see the Frequently Asked Questions section on http://arnovatech.com/faq

Contact our Technical Support Team: visit http://arnovatech.com/support for e-mail support. Please register your product before contacting Technical Support (see Register your Product).

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

GO!

PREMIÈRE UTILISATION

IMPORTANT:

L'INTERFACE ANDROID

Abstract digital image with purple and blue tones, featuring scattered purple dots and a small white star (no text or symbols)

White hand icon pointing at a device against a blue background with floating icons (no text or symbols)

Digital video player interface with a play button and abstract purple background (no readable text or symbols)

FRANÇAIS

Close-up of a purple flower with green background, partially circled in white (no text or symbols)

de pincement

WICHTIG:

ANPASSEN IHRES PRODUKTES

Abstract digital image with purple and blue gradient background, no visible text or symbols

Illustration of a hand interacting with a device, showing bidirectional arrows and app icons on a dark blue background (no text or symbols)

Abstract digital interface with blue gradient background and floating purple dots (no text or symbols)

Hintergrund ändern

Close-up of a purple flower with a white circular overlay and a white hand pointing to it (no text or symbols)

ANPASSEN IHRES PRODUKTES

Widgets hinzufügen

IMPORTANTE:

EL INTERFAZ ANDROID

Abstract digital image with purple and blue gradient background, no visible text or symbols

White hand icon pointing at a device with bidirectional arrows, set against a dark blue background (no text or symbols)

Abstract digital interface with blue gradient background and floating purple dots (no text or symbols)

Close-up of a purple flower with a white circular overlay and a white hand pointing to it (no text or symbols)

IMPORTANTE:

Abstract digital image with purple and blue gradient background, no visible text or symbols

White hand icon pointing at a device against a dark blue background with floating icons (no text or symbols)

Digital video player interface with playback controls and abstract blue background (no readable text or symbols)

Cambiare lo sfondo

Close-up of a purple flower with a white circular overlay and a pointing finger, set against a blurred green background (no text or symbols)

ITALIANO

BELANGRIJKE

DE ANDROID-INTERFACE

Applicaties knop

PERSONALISEER UW PRODUCT

Abstract digital image with purple and blue gradient background, no visible text or symbols

Illustration of a hand interacting with a device against a blue background (no text or symbols)

Digital video player interface with blue background and purple glowing effect (no readable text or symbols)

Close-up of a purple flower with a white circular overlay and a white hand pointing to it (no text or symbols visible)

PERSONALISEER UW PRODUCT

Widgets toevoegen

IMPORTANT:

A INTERFACE ANDROID

Abstract digital image with purple and blue gradient background, no visible text or symbols

Illustration of a hand interacting with a device, showing bidirectional arrows and app icons on a dark blue background (no text or symbols)

Digital video player interface with blue background and purple glowing effect (no readable text or symbols)

Close-up of a purple flower with a white circular overlay and a white hand pointing to it (no text or symbols visible)

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction Reason/remark

Bulgaria None General authorization required for

outdoor use and public service

France Outdoor use

limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz

Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012

Italy None If used outside of own premises, general

authorization is required.

Luxembourg None General authorization required for

network and service supply (not for spectrum)

Norway Implemented This subsection does not apply for the

geographical aera within a radius of 20 km from the centre of Ny-Alesund

Russian Federation None Only for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.arnovatech.com/products/declaration_conformity.html

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/LICENSE-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARNOVA customer service at http://www.arnovatech.com and ARNOVA will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.
