USER MANUAL 10b G2 Arnova

→On the web at http://arnovatech.com/register

Thank you for choosing this ARNOVA product. We hope that you will enjoy using it and that it will give you satisfaction for many years to come. Once you unpack your ARNOVA product, we recommend that you take a few minutes to register it (http://arnovatech.com/register). This will allow you to get access to ARNOVA technical support (http://arnovatech.com/support).

? NEED HELP?

On our Website: See the Frequently Asked Questions section on http://arnovatech.com/faq

Contact our Technical Support Team: Visit http://arnovatech.com/support for e-mail support. Please register your product before contacting Technical Support (seeRegister your Product).

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

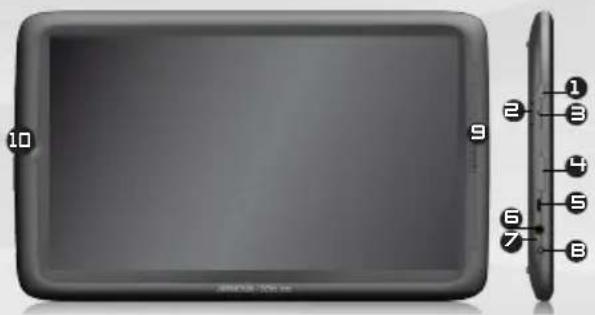

DESCRIPTION OF THE DEVICE

1 On/Off button: enables to turn on or turn off the device.
2 Micro-SD card slot
Hardware Reset
Volume + / Volume -
Micro-USB port: to connect your ARNOVA to your computer, using the included USB cable (to transfer files)
6 Headphone jack
7 Charging indicator: Red light: battery charging / Green: battery charged.
8 Power connector
9 Loudspeaker 10 Camera

IMPORTANT:

Your device is frozen. You can turn it off. Press the ON/OFF button for 10 seconds or press the reset button.

See Hardware Reset B.

GO!

STARTING UP

Before using your ARNOVA for the first time, completely charge the battery!

050

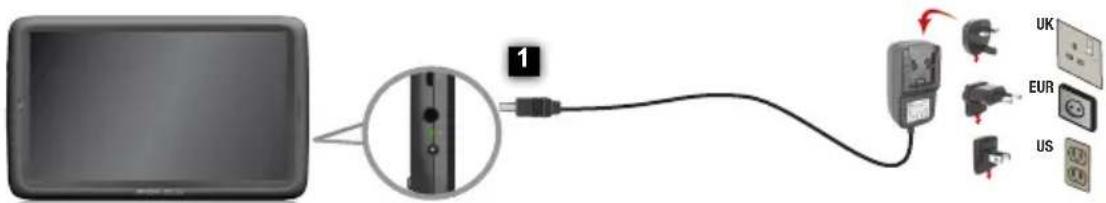

Charging the Battery

1 Connect the supplied power cable to the ARNOVA Power connector and to a wall outlet.
2 The ARNOVA device will turn on and start charging. The Power indicator light is red while the battery is charging. It will turn green when the battery is fully charged.

Installation Wizard

The first time you start up your ARNOVA, the installation wizard will bring you through a few screens to help you set up the principal settings: Language, country, time, etc.

CONNECTING TO THE WIFI NETWORK

For this procedure to work, you need to be in a WiFi zone that will allow you to connect to it. Every time the ARNOVA is in range of a network that you have already configured once, it will attempt to make a connection.

1

To configure a new WiFi network, go on the Home screen, tap Settings

2

In the Settings screen, select Wireless & networks.

3

If the WiFi is off, tap on the Wi-Fi line to turn it on. Then select Wi-Fi settings. The ARNOVA will scan for available WiFi networks and display them at the bottom of the screen.

4

Tap on the network you want to connect to, enter the required network information* and then tap on Connect. Your ARNOVA will establish a connection to that WiFi hot spot.

THE ARNOVA INTERFACE

Your ARNOVA device is equipped with a capacitive touchscreen. Use your finger pulp to navigate.

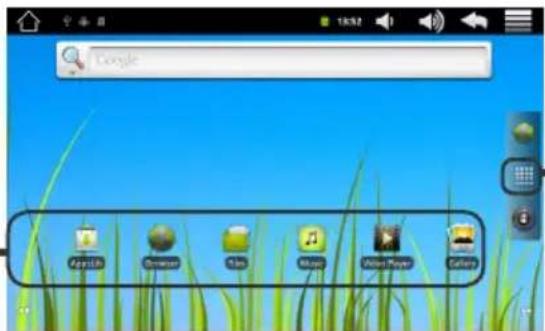

Home Screen

These are the default Android™ shortcuts (Web Browser, EMail, etc.). Tap on an icon to open the corresponding application. You can customize the Home screen by adding/removing shortcuts and widgets, etc. See next page.

Settings shortcut

Web browser shortcut

Application button

Tap on this icon to reveal all the Android™ applications installed on your ARNOVA (games, various tools, etc.). You can copy them onto the Home screen. You can get more Android™ applications from AppsLib

Top bar of the Interface (varies according to the screen you are in)

CUSTOMIZING YOUR PRODUCT

The extended Home screen

Slide your finger horizontally on the screen to go to the left or right side of the extended Home screen.

Monochrome abstract image with a large dark circle and faint horizontal lines, no visible text or symbols

Hand holding a digital interface with bidirectional arrows and control buttons (no text or symbols visible)

Grayscale landscape photo of a calm lake with distant hills and small boats, no visible text or symbols

Customizing the Home screen items

• To add a Home screen item (shortcuts, widgets, etc.), hold your finger on the screen at an empty location, then choose from the list. You can also tap on the Menu icon and select Add + , at the bottom of the screen.
• To move a Home screen item, hold your finger onto it until it gets larger, then drag it to the desired location, and release your finger.
• To remove a Home screen item, hold your finger onto it, drag it onto the recycle bin (while you're holding an item, the Applications tab, on the right side of the screen, turns into a recycle bin) and release your finger.

Adding more applications with APPSLIB : With the ARNOVA connected to the Internet, tap on the AppsLib icon . This online library of free and purchasable applications has thousands of fun games and useful applications to download and use.

Desktop screenshot showing a grassy window with icons and a blue sky background (no readable text or symbols)

Changing the Settings: From the Home screen, tap on Settings and choose a category: Wireless controls, Sound & display, Date & time, etc.

PLAYING MULTIMEDIA FILES

1 From the Home screen, tap on the video, audio or photo icon.
2 The ARNOVA will display a list of files or folders corresponding to the selected category.
3 Tap on an item to start playing it.

Only in Video and Photo modes: to display/hide the on-screen controls, tap anywhere on the screen.

Video

To pause or resume a video, tap on the icon 📋 ▶ (bottom of screen). To go to any particular point in the video, slide the progression bar to the desired point.

Music

To play the next or previous song, tap on the icons / Use the icons / and the progression bar as in the video player screen (see above).


To start a slide show, tap on the icon Slideshow . Tap the screen to stop the slideshow. To view the next or previous photo, swipe right or left.

TRANSFERRING MEDIA TO YOUR ARNOVA

1 Connect the supplied USB cable to the ARNOVA and to a running computer.
2 The ARNOVA will ask you if you want to connect it. Tap on Turn on USB storage to connect it and press OK to confirm. Within a few seconds the ARNOVA will appear as an icon on your computer.
3 You can transfer your media files to the ARNOVA either by copy/pasting them into the respective folders using Windows® Explorer (or the Finder on a Mac®), or by using Windows Media® Player. Open Windows Media Player® and then use the Sync tab to synchronize your music, videos, and photos onto your ARNOVA. See Windows Media Player®'s Help to learn more about this.
4 Once all your file transfers are finished, close Windows® Explorer and any other program that may have read or written to the ARNOVA. Click on the 'safely remove' icon in the system tray, next to the clock. You can now unplug the USB cable.

ENREGISTREZ VOTRE PRODUIT !

→ Sur Internet : http://arnovatech.com/register

Abstract grayscale image with a large circular shape and blurred horizontal lines, no visible text or symbols.

Monochrome landscape photo of a calm lake with distant hills and small boats (no text or symbols visible)

Installationsassistent

ANPASSEN IHRES PRODUKTES

Monochrome abstract image with a large dark circle and faint horizontal lines, no visible text or symbols

Monochrome landscape photo of a calm lake with distant hills and small boats, no visible text or symbols

LA INTERFAZ DEL ARNOVA

Abstract grayscale image with a dark circular shape and horizontal lines, no visible text or symbols

Grayscale landscape photo of a calm lake with distant hills and small boats (no text or symbols visible)

INTERFACCIA

Monochrome abstract image with a large dark circle and faint horizontal lines, no visible text or symbols

Monochrome landscape photo of a calm lake with distant hills and small boats, no visible text or symbols

Desktop screenshot showing a green grass with icons and a blue sky background (no readable text or symbols)

Installatiewizard

Snelkoppeling Instellingen

Snelkoppeling Web Browser

Applicaties knop

PERSONALISEER UW PRODUCT

Abstract grayscale image with a dark circular shape and horizontal lines, no visible text or symbols

Grayscale landscape photo of a calm lake with distant hills and small boats (no text or symbols visible)

Desktop screenshot showing a blue background with green grass and icons (no readable text or symbols)

MULTIMEDIABESTANDEN

Monochrome abstract image with a large dark circle and faint horizontal lines, no visible text or symbols

Monochrome landscape photo of a calm lake with distant hills and small boats, no visible text or symbols

Desktop screenshot showing a green grass with icons and a blue sky background (no readable text or symbols)

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction Reason/remark

Bulgaria None General authorization required for outdoor

use and public service

France Outdoor use lim-

ited to 10 mW e.i.r.p.

within the band

2454-2483.5 MHz

Military Radiolocation use. Refarming of the

2.4 GHz band has been ongoing in recent

years to allow current relaxed regulation. Full

implementation planned 2012

Italy None If used outside of own premises, general

authorization is required.

Luxembourg None General authorization required for network

and service supply (not for spectrum)

Norway Implemented This subsection does not apply for the geo-

graphical aera within a radius of 20 km from

the centre of Ny-Alesund

Russian Federation None Only for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.arnovatech.com/products/declaration_conformity.html
