Product Type	Drip Coffee Maker
Brand	WestBend
Model	56310
Capacity	12 cups (approx. 1.7 L)
Power Supply	120 V, 60 Hz
Filter Type	Reusable nylon filter or 8-12 cup paper filter
Functions	Manual shut-off, Pause & Serve
Indicator Light	Blue (indicates the appliance is on)
Cord Length	Adjustable (approx. 60 cm default)
Carafe Material	Glass
Warming Plate	Keeps coffee warm after brewing
Routine Maintenance	Clean parts with warm soapy water, do not put in dishwasher
Descaling	Recommended monthly with white vinegar
Safety	Polarized plug, never immerse, do not use without carafe
Replacement Parts	Available from the manufacturer within 2 weeks (carafe, filter basket, etc.)
Warranty	1-year limited (parts and labor)

Frequently Asked Questions - 56310 WestBend

How to use the Pause & Serve function?

During brewing, remove the carafe to pour a cup. Replace it on the warming plate within 30 seconds to avoid spills.

What type of filter to use?

Use an 8-12 cup paper filter or the included reusable nylon filter. Ensure the grind is not too fine to avoid overflow.

How to clean the coffee maker?

After each use, wash the carafe and filter basket with warm soapy water. Rinse the reusable filter thoroughly with hot water. Do not put any parts in the dishwasher and do not immerse the appliance.

How to descale the coffee maker?

Pour half a liter of white vinegar into the reservoir, place a filter (without coffee) and run a cycle. Discard the vinegar, then rinse by running a full cycle of clear water. Repeat monthly.

The coffee maker does not shut off automatically, what to do?

This appliance does not have an automatic shut-off. You must manually turn the switch to 'OFF' after use or when the carafe is empty.

Why does the coffee overflow?

This can happen if the grind is too fine or if the filter is clogged. Use a medium grind and make sure the filter basket is properly in place.

Can I use store-bought ground coffee?

Yes, use one level tablespoon of ground coffee per cup. For stronger coffee, increase the amount; for milder coffee, decrease it.

How to adjust the cord length?

Gently pull the cord to lengthen it or push it into the notch to shorten it. Never pull by the plug.

What to do if the carafe is cracked?

Do not use a cracked carafe or one with a loose handle. Order a replacement carafe from the manufacturer's website or customer service.

Where to find the model number?

The model number (56310) is located on the bottom or back of the appliance. It is necessary for ordering replacement parts.

USER MANUAL 56310 WestBend

WEST BEND® 12 CUP COFFEEMAKER Instruction Manual

Register this and other Focus Electronics products through our website: www.registerfocus.com

Important Safeguards..............2 Using Your West Bend® Coffeemaker..............4 Cleaning Your West Bend® Coffeemaker..............6 Warranty..........7

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• To protect against electrical shock, do not put the cord, plug or the motor assembly in water or other liquid.
• Close supervision is necessary when this appliance is used by or near children.
• Unplug the appliance from outlet when not in use, before putting on or taking off parts and before cleaning.
• Do not operate this appliance with a damaged cord or plug, after the appliance malfunctions or if the appliance is dropped or damaged in any manner. If you experience any problems with your appliance, unplug it immediately from the electrical outlet. For service information see warranty page.
• The use of accessory attachments, not recommended or sold by Focus Electronics may cause fire, electric shock or injury.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter or touch hot surfaces.
• Do not place on or near a hot gas or electrical burner or in a heated oven.
• Do not use this appliance for other than its intended use.
• Be sure to turn switch to "OFF" position after each use. This appliance does not have an auto-off feature.
• To disconnect, grip plug and pull from wall outlet. Never pull on cord to disconnect.
• Never leave the house while the appliance is on.
• Do not touch hot surfaces. Use handles or knobs where provided. Use hot pads or oven mitts when handling hot surfaces.
• Allow the appliance to cool before putting on or taking off parts and before cleaning.
• The carafe is designed for use with this appliance only. Do not use the carafe provided with this appliance for any other appliance or application.
• Do not place carafe on hot surface or in a heated oven.
• Do not put a hot carafe on a wet or cold surface.
• Do not use a cracked carafe or a carafe having a loose or weakened handle.

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

• Do not clean carafe with cleansers, steel wool pads, or other abrasive materials.
• Make sure glass carafe is in place when brewing coffee. If the glass carafe is not in place hot water or hot coffee will overflow.
• Do not remove any part of the coffeemaker, other than carafe; during the brew cycle as scalding could occur.
• The lid of the carafe must be in place and properly positioned on the coffee carafe during the brew process or hot water or hot coffee may overflow.
• Always use the proper grind of coffee. Too fine of a grind could clog the filter and cause hot water or hot coffee to overflow.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer, detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. While use of an extension cord is not recommended, if you must use one, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. The cord should be arranged so that it will not hang over the counter top or tabletop where it can be pulled by children or tripped over.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• For household use only.

SAVE THESE INSTRUCTIONS

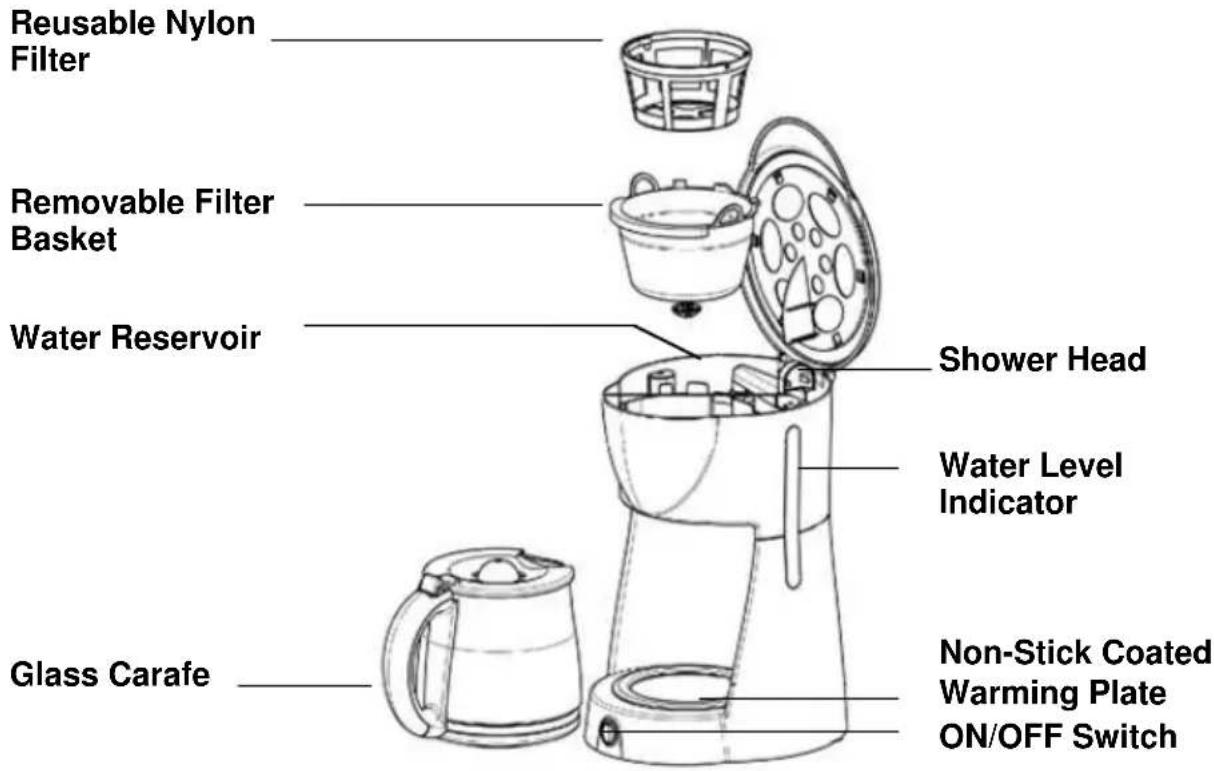

To use your West Bend® Coffeemaker, begin by assembling the appliance.

WARNING: The coffeemaker will remain "ON" until turned "OFF." Be sure to turn power off after each use and when carafe is empty.

1) Place the appliance on a clean, flat surface and plug into outlet. You can adjust the length of the power cord so that it is the exact length you desire.

a) To increase the length of the power cord: Grasp the power cord (not the power plug) and gently lift it out of the slot, then pull the cord away from the coffeemaker.
b) To decrease the length of the power cord: Grasp the power cord, lift out of the slot, and then feed cord into the coffeemaker opening. Place cord in the slot when finished.

2) Prior to first use, clean coffeemaker per instructions on page #6.
3) Remove carafe from appliance and fill with desired amount of cold water. Use the easy measuring marks on carafe to ensure correct amount of water. Open top lid and pour water into the water reservoir.

Note: The amount of brewed coffee will always be less than the amount of water placed into water reservoir; coffee grounds and the filter will absorb approximately 10% of the water.

4) With the lid still open, turn shower head to the back and remove the filter basket. Place filter in the filter basket. (Use quality disposable 8-12 cup filters or use reusable nylon filter provided.) Measure one tablespoon (level) of drip or regular grind coffee for each cup of coffee desired and place in filter. Be careful not to get any grounds on the filter basket.
5) Return filter basket to the appliance. Make sure filter basket tab fits into slot on filter basket holder. Move the shower head toward front over the filter basket until shower head clicks into place. Close top lid of coffeemaker. Do not open lid during brewing cycle; leaving lid down preserves the coffee's flavor and heat and prevents steam burns.
6) Replace glass carafe on warming plate.
7) Press the switch to "ON." A blue light will illuminate during operation.
8) Upon completion of brew cycle, wait 1 minute before removing carafe from the appliance to allow any remaining liquid to seep through.
9) Remove carafe and pour desired amount into cup(s). To keep coffee warm, place the carafe back on the warming plate of coffeemaker.

WARNING: With the carafe off the appliance, the warming plate is exposed and HOT. Do not touch.

10) Wait 10 minutes before brewing a second pot of coffee. Turn appliance off by pressing switch to "OFF;" the blue light will turn off.
11) This appliance does not turn off automatically. Switch power to "OFF" when carafe is empty or when the appliance is not in use. Unplug from wall outlet.

Tips for general operation

• To use Pause & Serve feature, remove carafe during brewing cycle and pour a cup of coffee. Replace carafe on warming plate within 30 seconds to avoid overflow or possible injury.
• For best results, always clean appliance after every use and use fresh, cold water when brewing.
• Finer grinds will produce a fuller extraction and provide a richer, full-bodied coffee. Regular grinds will need more coffee per cup to produce the same coffee strength of a finer grind.
• For stronger coffee, use more grounds; for weaker coffee, use less.
• Grinding whole beans immediately before use will produce optimum coffee flavor.
• Store coffee in a cool, dry place to maintain freshness. Do not reuse coffee grounds. This will impair the flavor of your coffee.

Care and Cleaning

Initial Use: Before using your new West Bend® 12 Cup Coffeemaker for the first time, be sure to thoroughly wash the glass carafe and filter basket in warm, soapy water. Rinse and dry. Thoroughly rinse reusable filter in WARM WATER ONLY as soap residue can leave a taste in your coffee. Wipe the exterior of appliance with a damp cloth to remove any dust or packing residue. Run one cycle through with just water. Follow directions on page #4, leaving out coffee and using only water.

After Each Use

1. Before cleaning, make sure appliance is turned off and is unplugged from the wall outlet.
2. Remove filter basket and dispose of coffee grounds and disposable filter, if used.
3. To clean carafe and filter basket, wash in warm, soapy water, rinse and dry. DO NOT WASH PARTS IN DISHWASHER. When cleaning the carafe, do not use abrasive materials as they may damage the carafe.
4. Thoroughly rinse reusable filter in warm water only.
5. When all parts are clean, return carafe and filter basket with reusable filter to the appliance.
6. To clean exterior of appliance, wipe with a damp cloth.

DO NOT SUBMERGE APPLIANCE IN WATER.

Extensive Cleaning

Extensive cleaning of your appliance is recommended once a month. Mineral deposits can build up over time in the water reservoir causing lengthy brew times and a decrease in the flavor of your coffee.

1. To clean, open top coffeemaker lid and pour 1 pint white vinegar into the water reservoir.
2. Place filter in filter basket - do not add coffee. Move shower head toward front over the filter basket until shower head clicks into place and close lid. Push the switch to "ON." The blue light will illuminate.
3. Run white vinegar through one brewing cycle. Once brewing cycle is finished, discard contents in carafe.
4. Remove carafe from the appliance and fill with 12 cups of cold water. Pour water into the water reservoir and repeat the brewing cycle using a fresh disposable filter or clean reusable filter. Do NOT add coffee; use only clear water. Once brewing cycle is finished, switch appliance to "OFF," unplug from the wall and discard contents in carafe.
5. Wash carafe and filter basket in warm, soapy water, rinse and dry. Rinse reusable filter in warm water only. Replace in appliance.
6. When the appliance has cooled, clean the exterior with a damp cloth. Your appliance is now clean and ready to brew.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electronics, LLC ("Focus Electronics") warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electronics' discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electronics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTYES, INCLUDING WARRANTYES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCUSED. IN NO EVENT SHALL FOCUS ELECTRICS BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electronics Customer Service Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. Focus Electronics is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electronics, LLC several ways. Order online at www.Focuselectrics.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

Focus Electronics, LLC

Attn: Customer Service

P.O.Box 2780

West Bend, WI 53095

To order with a check or money order, please first contact Customer Service for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the appliance, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Electronics, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electronics product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift:

Where purchased and price, if known:

Item number and Date Code (shown bottom/back of product):
