Product type	Convertible stroller (single or double inline mode)
Brand	Phil & Teds
Model	Go
Number of seats	1 or 2 children
Maximum child weight (single mode)	15 kg
Maximum child weight front (inline mode)	15 kg
Maximum child weight rear (inline mode)	13 kg
Maximum basket weight	5 kg per basket
Recommended age	From birth (reclined position) up to approx. 3 years
Wheel type	EVA (puncture-proof)
Restraint system	5-point safety harness
Seat recline	Adjustable, reclined position for newborns
Fold	Compact (details not provided)
Frame material	Aluminum
Warranty	1 year (extendable to 2 years upon registration)
Chassis maintenance	Clean with non-abrasive product and soft cloth, dry systematically
Fabric care	Damp sponge with warm water and mild soap, no detergents or bleach
Lubrication	Monitor and lubricate main components if necessary
Prohibited use	Jogging, rollerblading, escalators
Brakes	Parking brake, use to install or remove child
Accessories	Compatible car seat (adapters not included)
Origin	Designed in New Zealand, manufactured in China

Frequently Asked Questions - Go Phil & Teds

What is the maximum weight that the Phil & Teds Go stroller can carry?

In single mode, the child must not exceed 15 kg. In inline (double) mode, the front can go up to 15 kg and the rear up to 13 kg. Each basket supports a maximum of 5 kg.

Is this stroller suitable for newborns?

Yes, because the seat can be reclined to a flat position. It is recommended to use the most reclined position for newborns.

Can I use the stroller for jogging or rollerblading?

No, this product is not suitable for jogging or rollerblading, as indicated in the warnings.

How to clean the stroller?

The chassis can be cleaned with a soft cloth and non-abrasive product. Fabrics should be cleaned with a damp sponge using warm water and mild soap. Do not use detergents or bleach.

What is the warranty of the Phil & Teds Go stroller?

The warranty is 1 year against material and manufacturing defects. By registering the product online within 30 days, you get an additional year. You can also purchase an extended warranty.

How to register my stroller for warranty?

Go to philandteds.com/register and follow the instructions to register your product within 30 days of purchase.

Can I use non-official spare parts?

No, you must only use spare parts or accessories approved by the manufacturer. Use of unapproved parts may affect safety.

How to safely fold and unfold the stroller?

Keep children away when folding and unfolding to avoid injury. Ensure all locking devices are engaged before use.

Is the stroller stable with a child seated?

Yes, provided you do not exceed the recommended maximum loads and do not attach heavy objects to the handlebar. Always use the wrist strap.

Can I use a car seat with this stroller?

Yes, with a compatible car seat and appropriate adapters (not included). However, this configuration does not replace a cradle or bed for sleeping.

USER MANUAL Go Phil & Teds

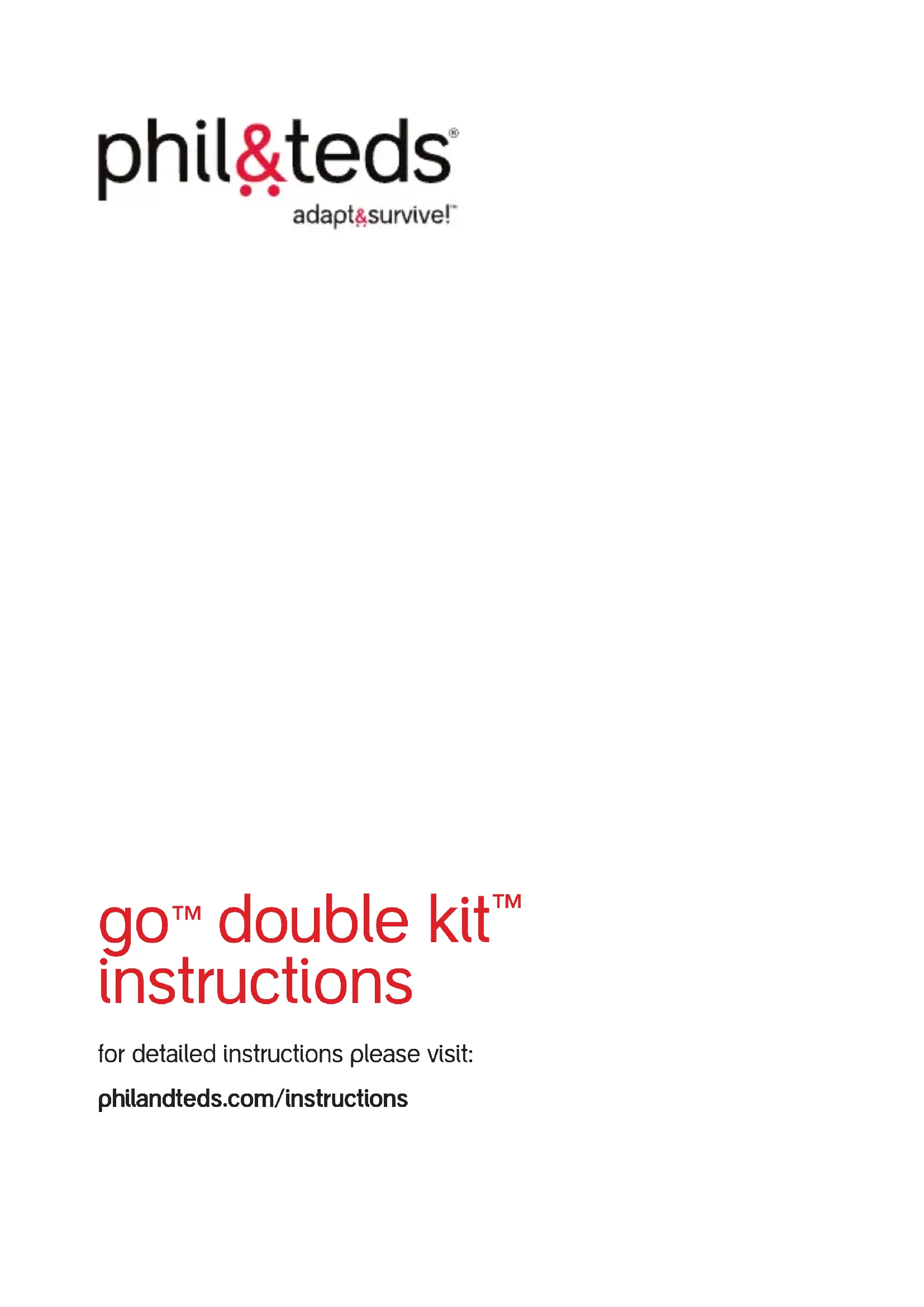

go™ double kit™ instructions

for detailed instructions please visit:

philandteds.com/instructions

care information

if your product is damaged in any way, or you're not sure how to use it, please consult our support team (www.philandteds.com/support).

• Brush dirt (or cracker crumbs) off the frame & wheels regularly.
• Clean frame with non-abrasive household cleaner & a soft cloth. always dry frame if wet.
• go™ fabric can be sponge cleaned with warm water, using mild natural soap. do not use detergents or bleach on go™.
• Improper care will void any warranties. do not use go™ if deterioration is detected or suspected.
• Do not use go™ on stairs or escalators.
  • Always use the handle tether strap.

• Excessive wear can reduce effectiveness & safety. parts may need lubrication. inspect essential components for:

• fraying – especially webbing straps & safety harness.

• wear – locks, snap fasteners, tyres, plastic & moving parts.
• safety – locks must not be loose.

important information

EVA tyres

• Tyres are not under warranty.
• go™ uses EVA tyres on the front & rear – these are immune from punctures & eliminate the need for tube replacements.
• With use, tyres can show signs of wear. This is normal.

Warranty

• Our products have a one year warranty from date of purchase against defects in material and workmanship.*
• When you register your product online within 30 days of purchase, you are eligible for a 2 year warranty free of charge.
• Once registered, you can further extend the warranty to 3 years by purchasing the extended warranty option within 30 days of purchase.

Please register your product purchase online now

philandteds.com/register

*You may be entitled to other terms and rights in some countries.

Two black baby strollers with red backrests and white covers, displayed side by side (no text or symbols visible)

Two black baby strollers with red backrests and wheels, displayed against a white background (no text or symbols visible)

Two black and red baby strollers with black roofs, displayed side by side against a white background (no text or symbols visible)

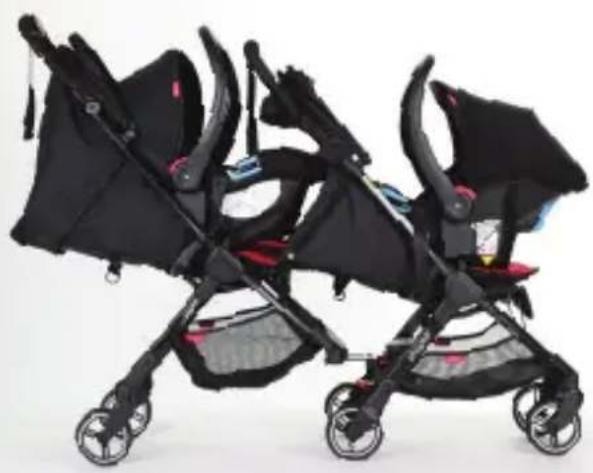

alpha™ infant car seat with travel system belt accessory

Black and red baby stroller with twin designs, no visible text or symbols

max 9kg / 20lbs per infant car seat

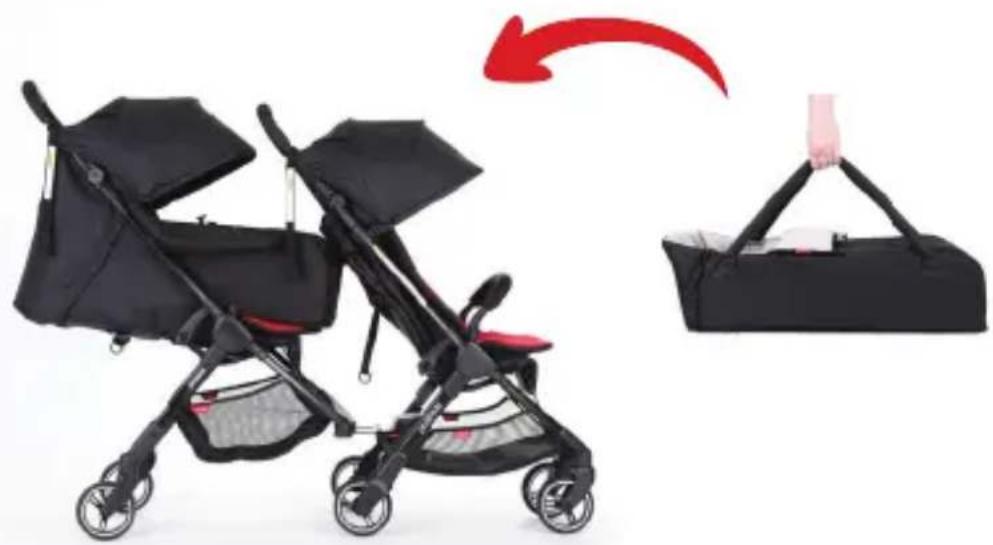

cocoon™ accessory

Illustration of a black stroller with red trim and a hand holding a bag, showing a red arrow indicating rotation or change (no text or symbols present)

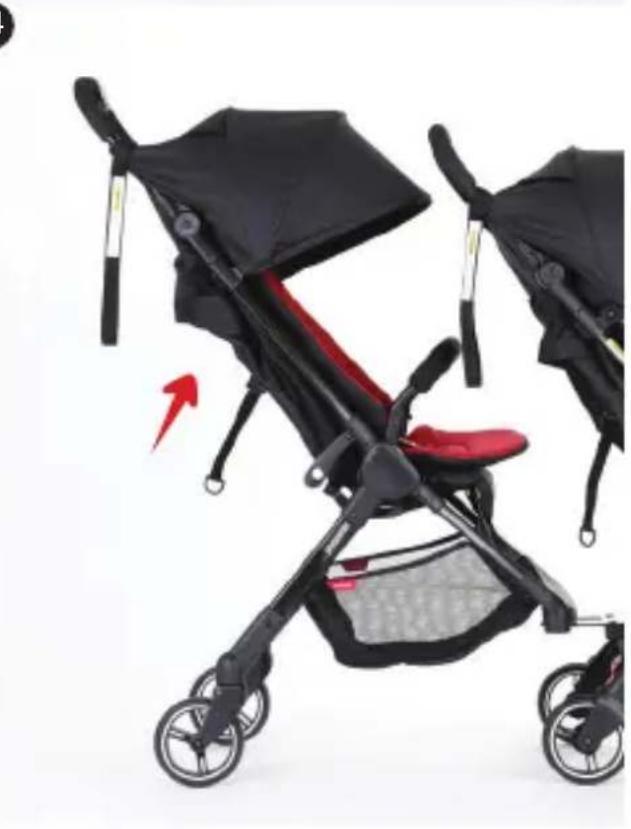

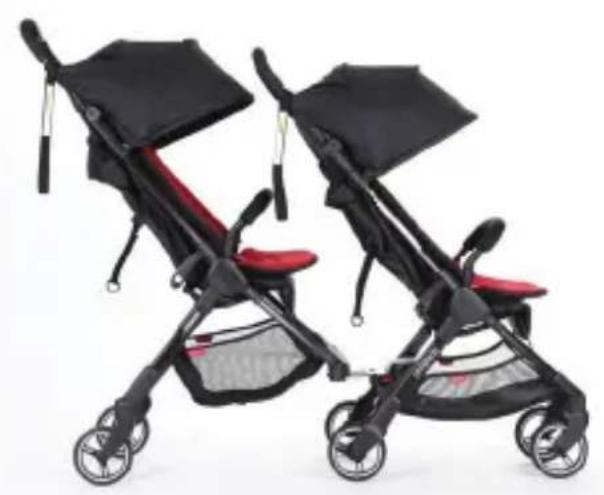

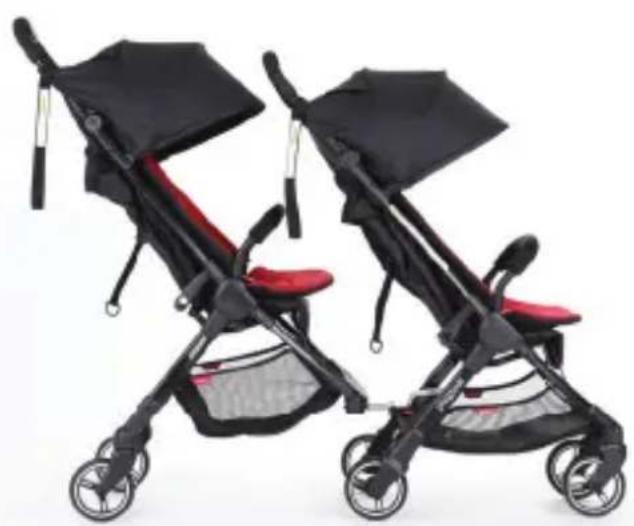

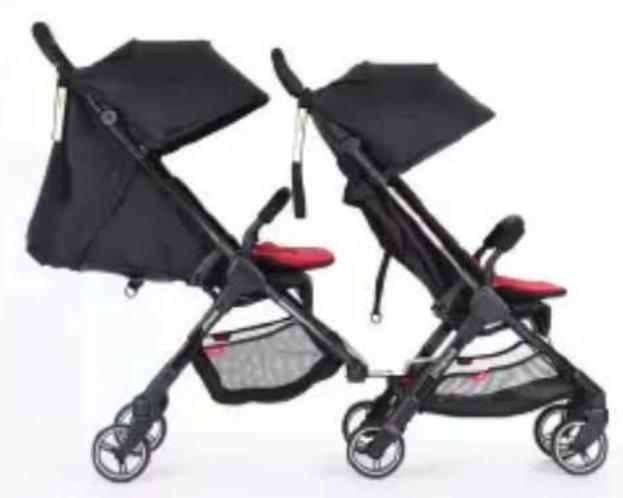

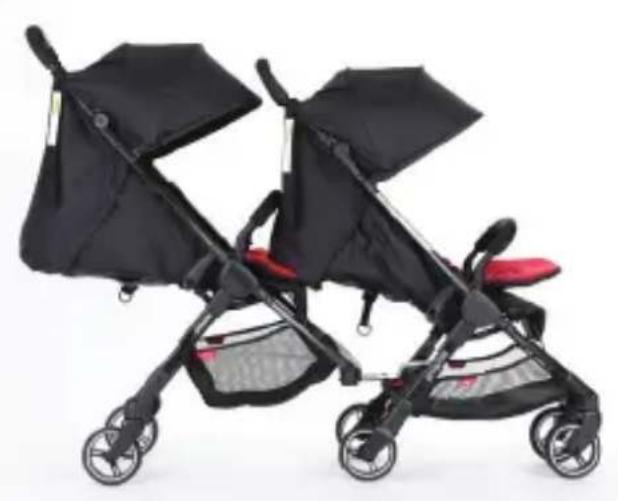

go™ double kit™

Product photo of a baby stroller with black and red colors, no visible text or symbols

rear buggy max load: 13kg / 28lbs

front buggy max load: 15kg / 33lbs

Product photo of a black and red compact car with wheels and accessories, labeled 02 to 05 (no text or symbols on main objects)

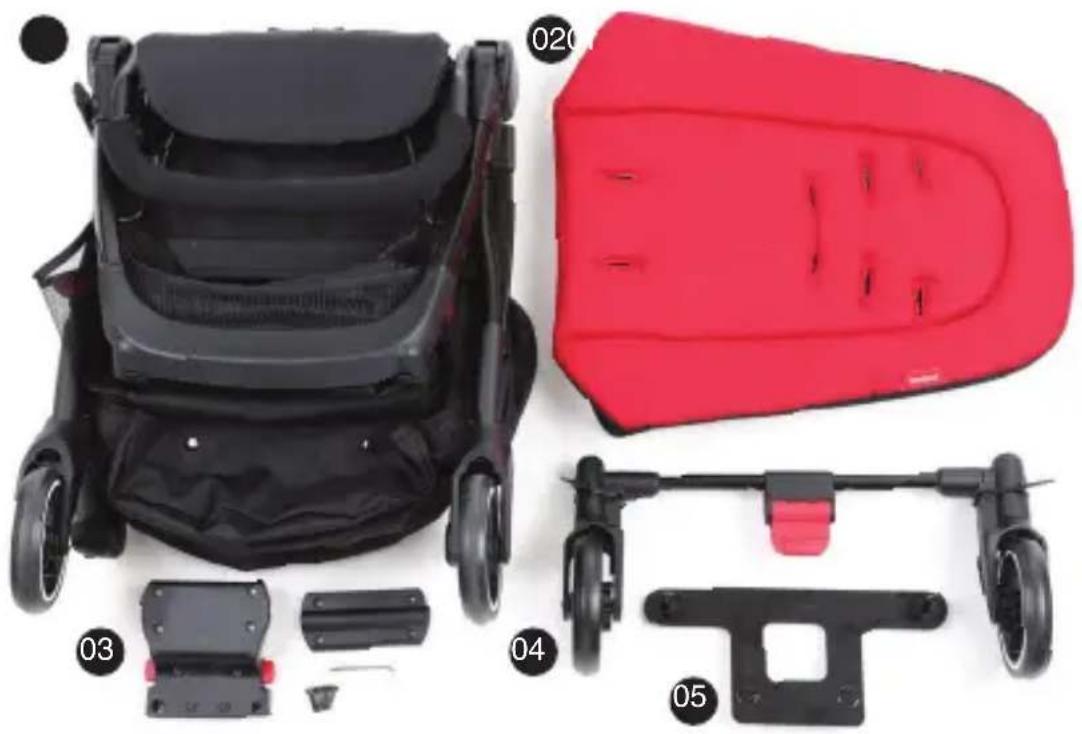

01 1 x go™ double kit™
02 1 x liner
03 1 x connector
04 1 x rear wheel set

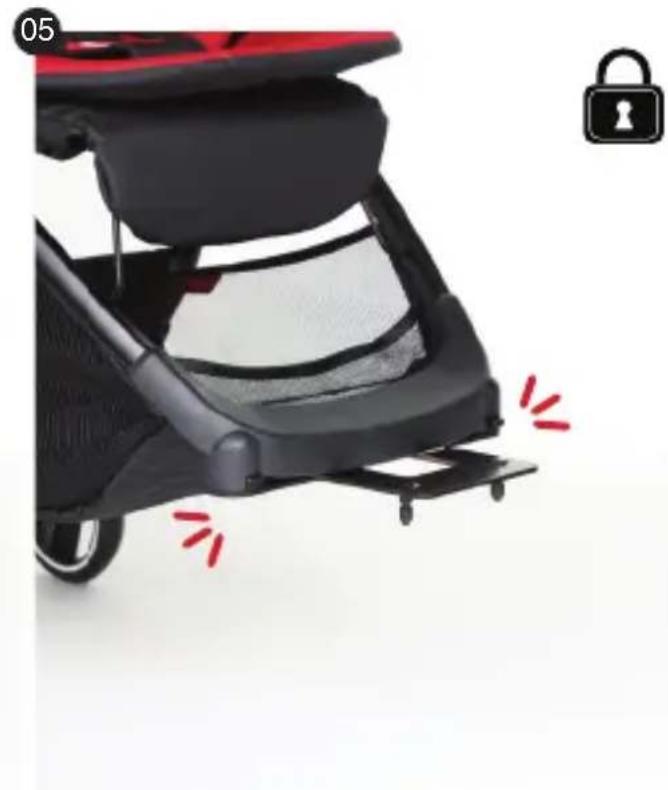

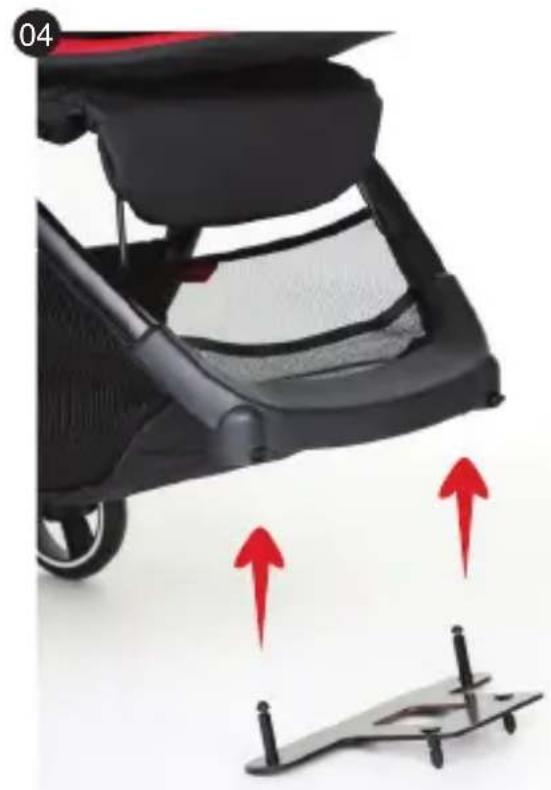

05 1 x connector plate

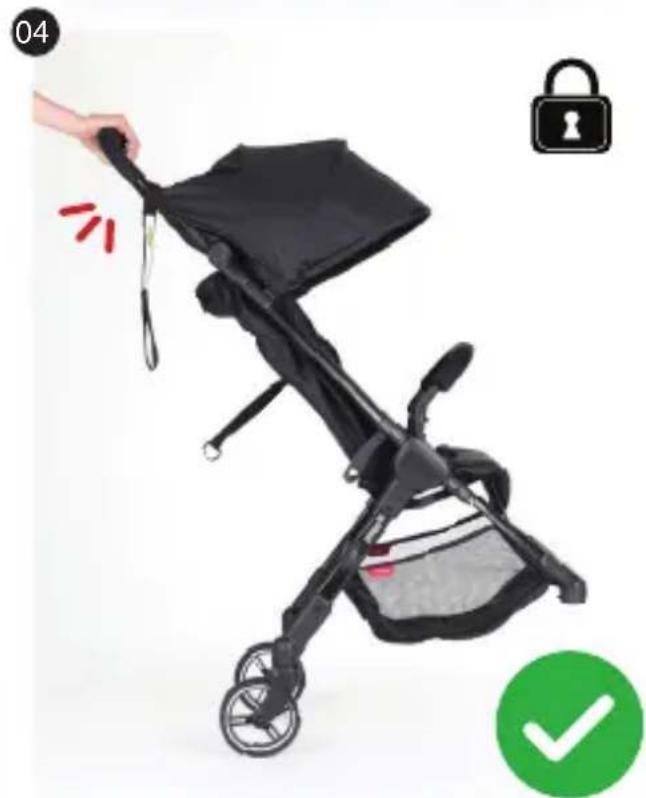

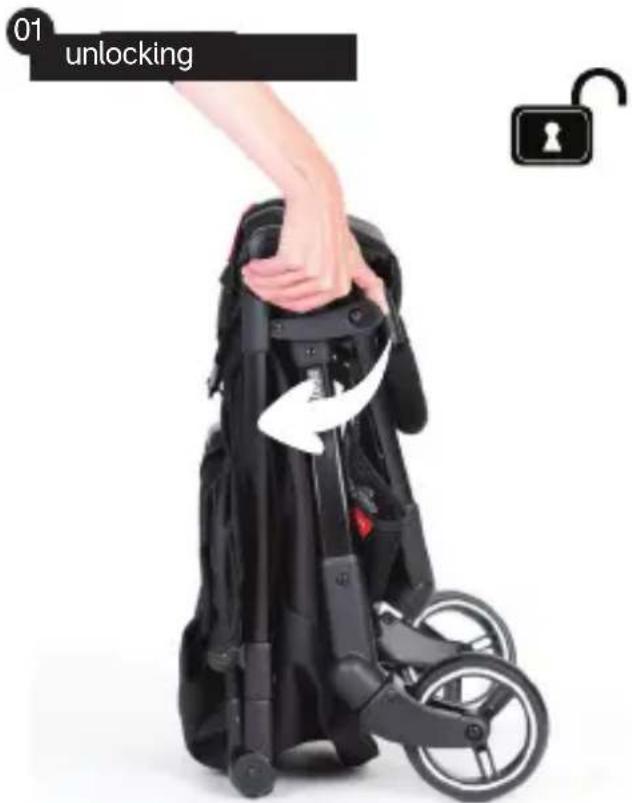

01 unlocking

Person assembling a black stroller with a magnified inset showing the interior detail (no text or symbols visible)

Black stroller with a hand adjusting its canopy, showing a red arrow indicating motion (no text or symbols)

Black stroller with black seat and side arm, hand holding handle, no visible text or symbols

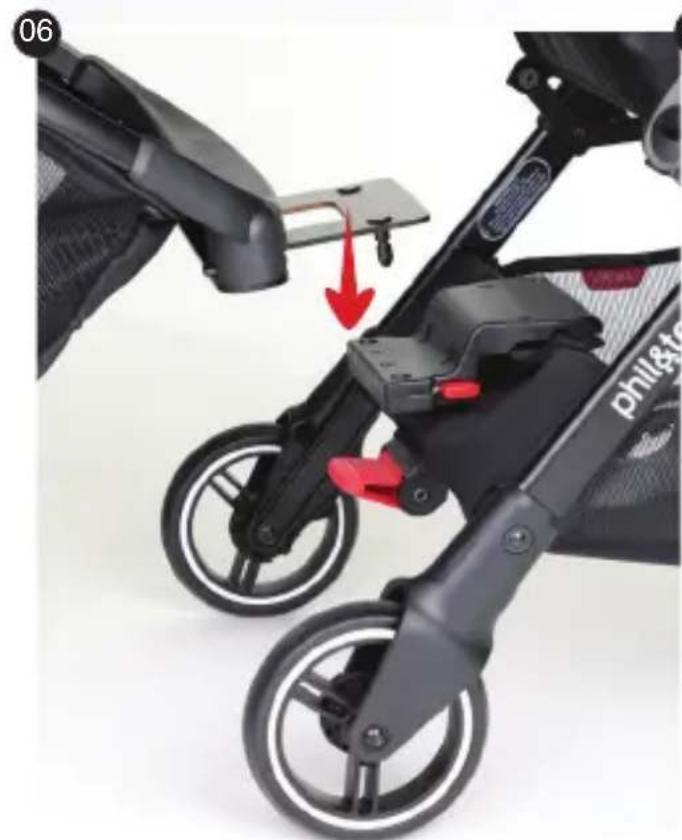

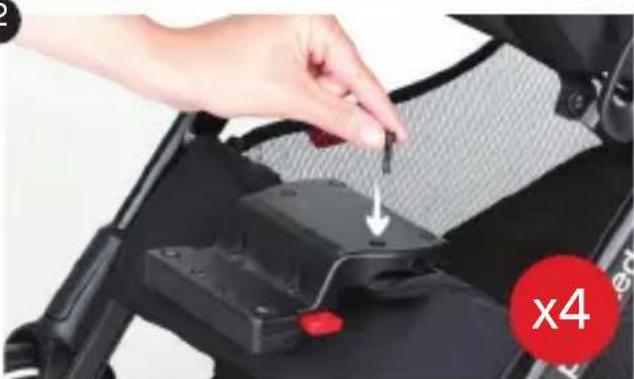

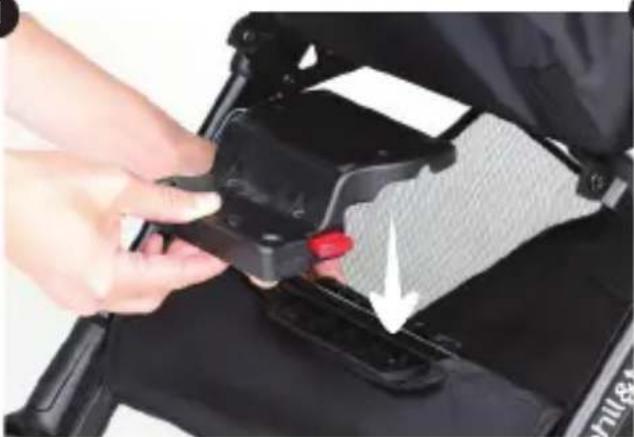

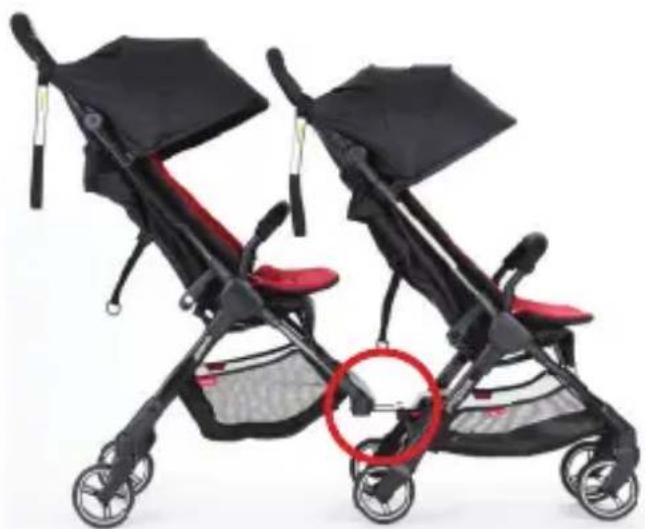

inline® connector

Two black and red baby strollers with a red circular button on the lower side (no text or symbols visible)

01

Close-up of a hand adjusting a black seatbelt buckle with a red button, showing a white arrow pointing to the buckle (no text or symbols visible)

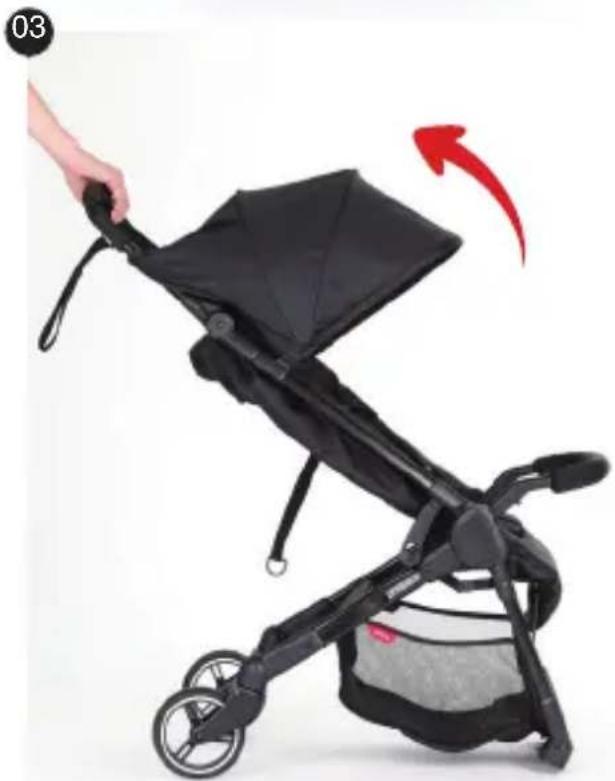

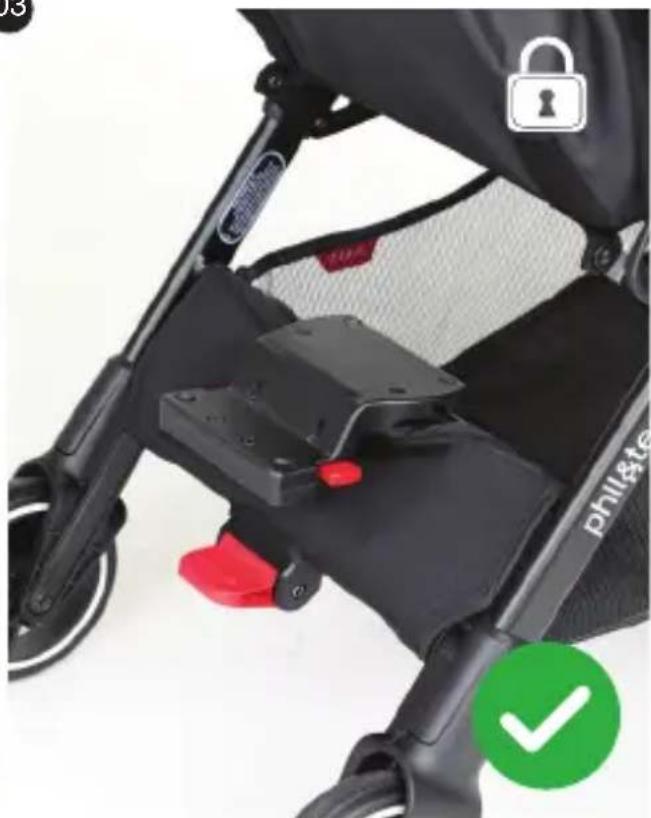

03

Close-up of a black stroller with red buttons and a lock icon, no visible text or symbols on the device itself.

02

Close-up of a hand placing a small black component into a black plastic housing, with a red circular badge labeled 'x4' in the corner (no readable text or symbols on the main subject)

6

Close-up of a black bicycle seat with red directional arrows indicating motion or movement (no text or symbols)

Close-up of a car seatbelt device with red accent and blue gait, showing no text or symbols on the device itself.

Close-up of a black athletic stroller with wheels and a red arrow indicating a adjustment or repair point (no text or symbols visible)

Close-up of a hand adjusting a black mechanical bracket with red buttons, against a white patterned fabric background (no text or symbols visible)

Close-up of a black stroller with red adjustment knobs and wheels, no visible text or symbols

Two black stroller models with red back cover, displayed side by side against white background (no text or symbols visible)

01

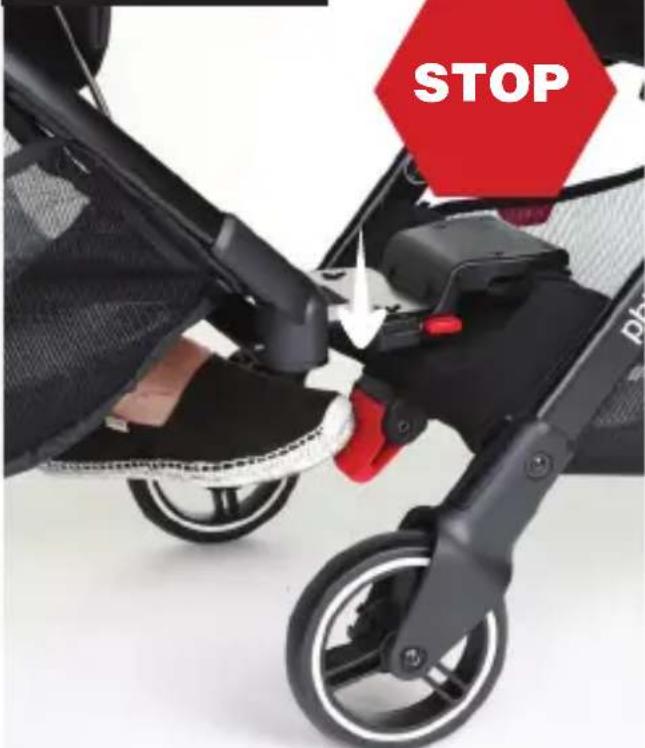

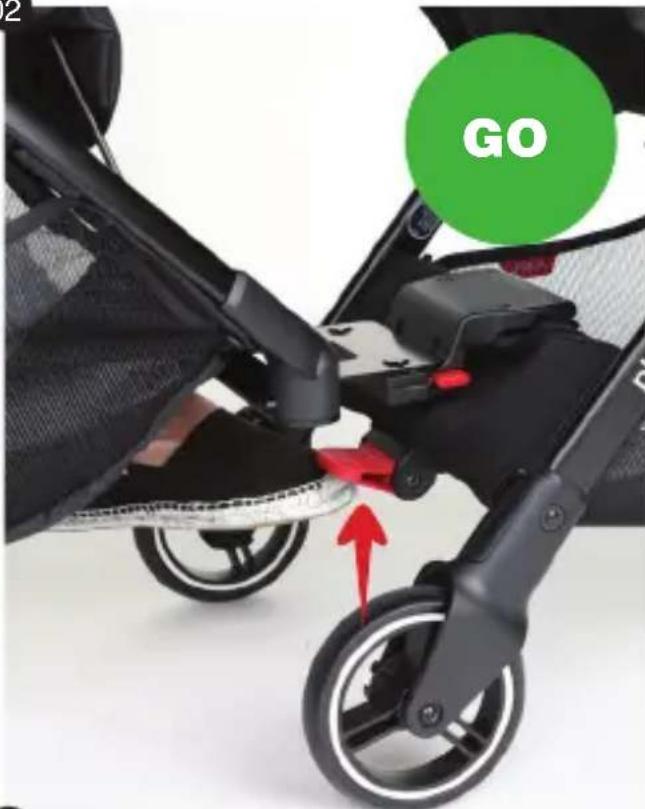

foot brake

STOP

02

GO

01

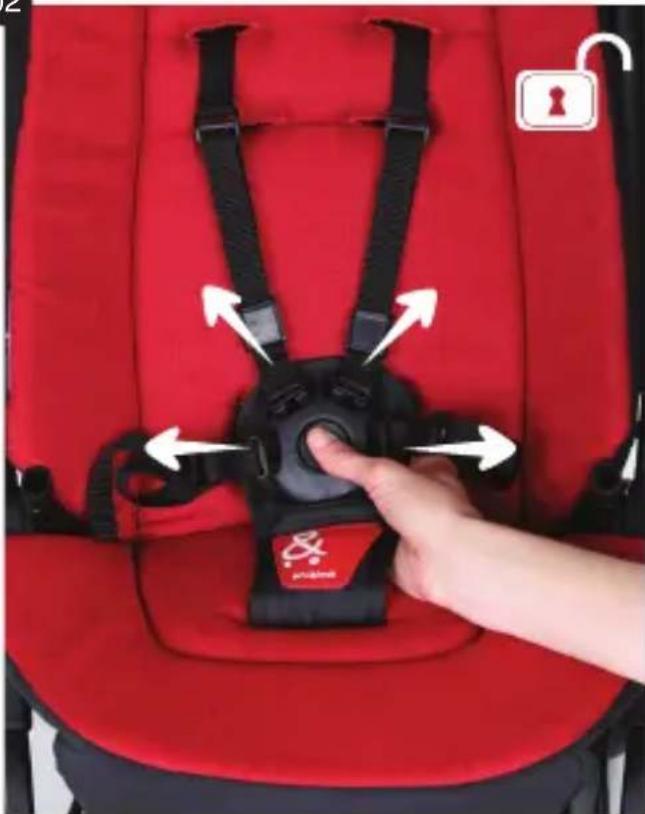

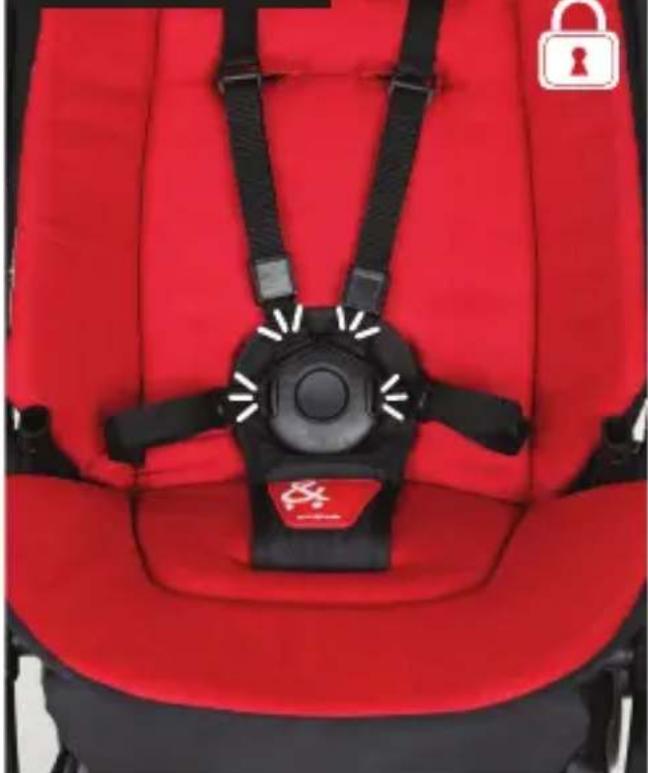

safety harness

Red car seatbelt with black straps and a lock icon, no text or symbols visible

02

Close-up of a red car seatbelt buckle with a hand adjusting the seat, showing white arrows indicating movement (no text or symbols visible)

01

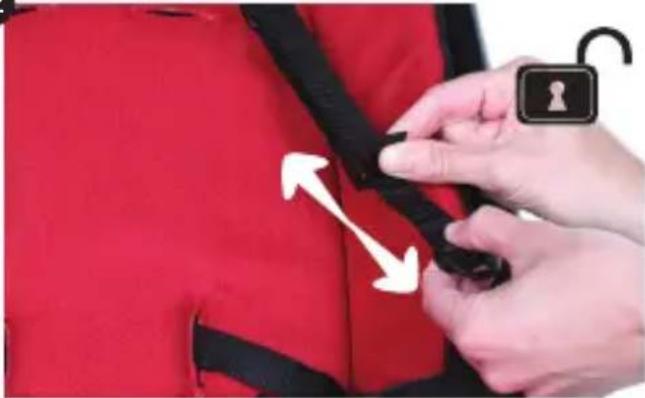

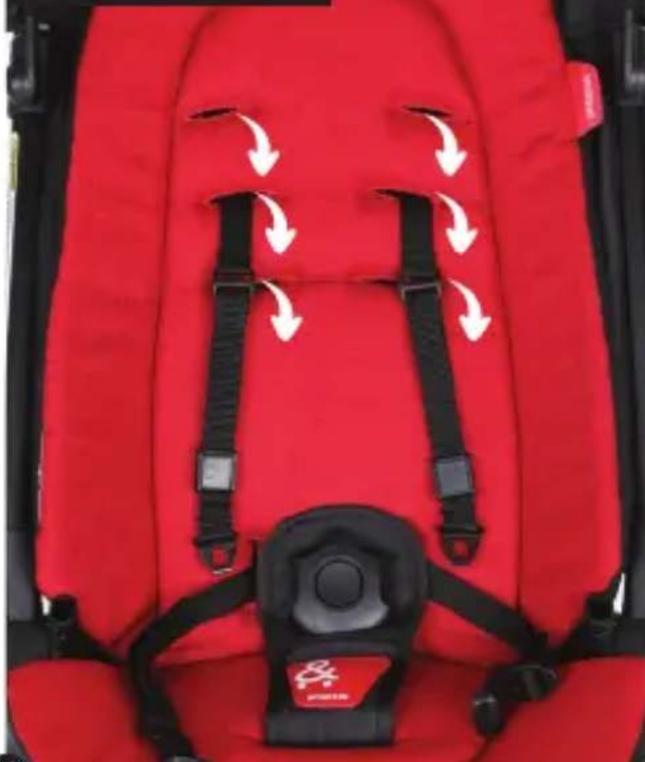

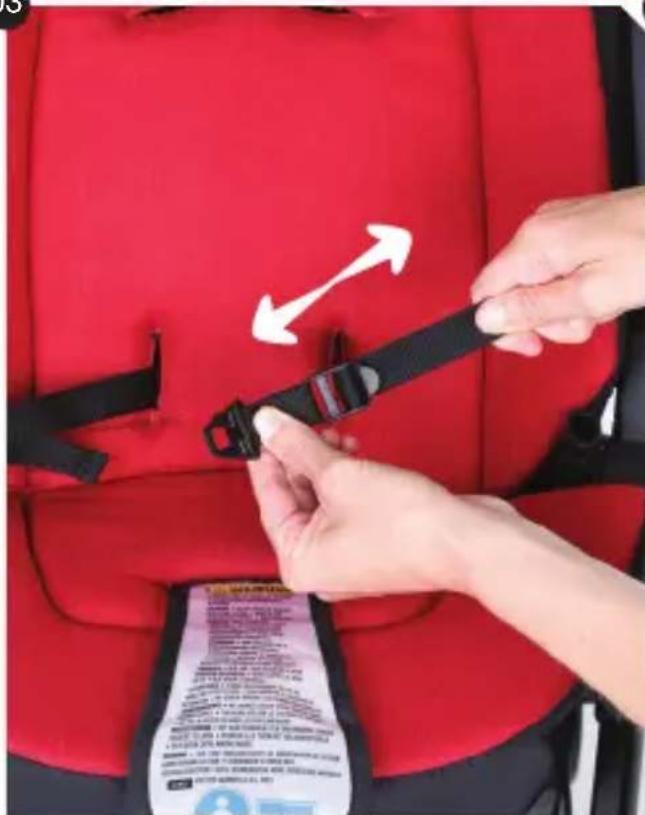

adjusting harness

Red car seat with black safety belt and white directional arrows indicating motion (no text or symbols)

02

Close-up of hands adjusting a red jacket with black straps and a padlock icon (no text or symbols visible)

Close-up of a hand adjusting a black belt buckle with a padlock icon (no text or symbols visible)

03

Photo of a red car seat with a black buckle strap, showing a white directional arrow indicating rotation or movement.

01

grab bar

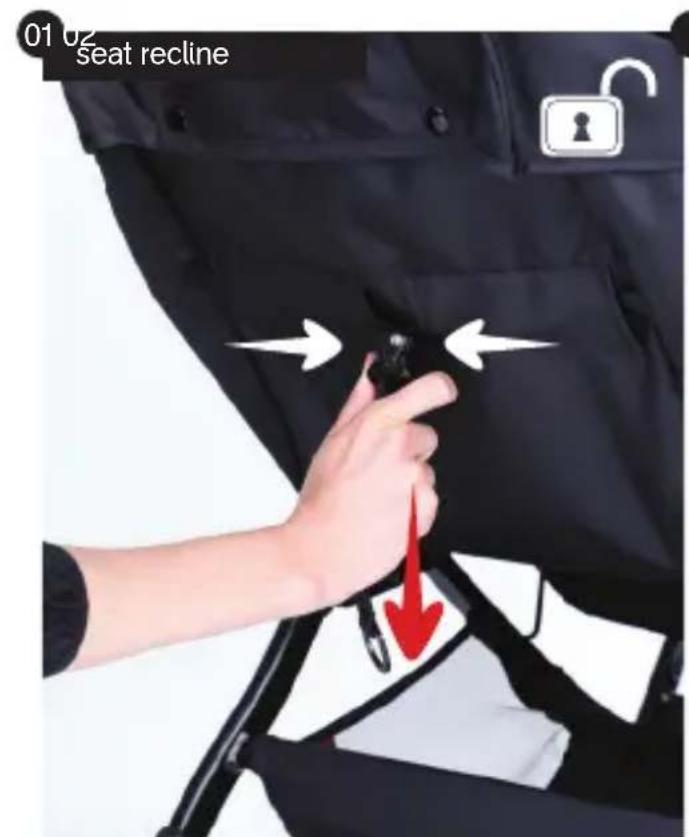

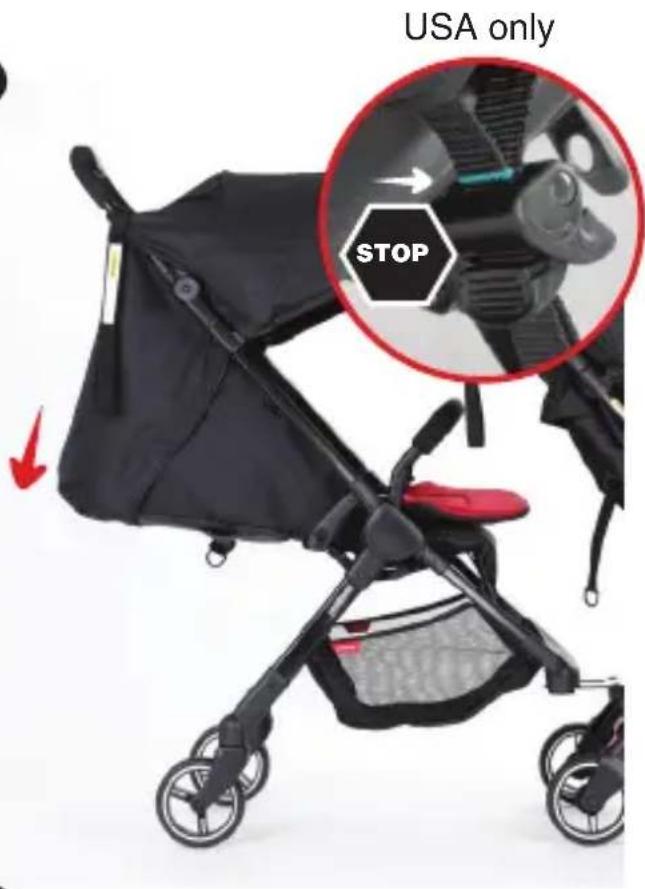

01 02 seat recline

USA only STOP

03

Black and red stroller with black canopy and red seat, no visible text or symbols

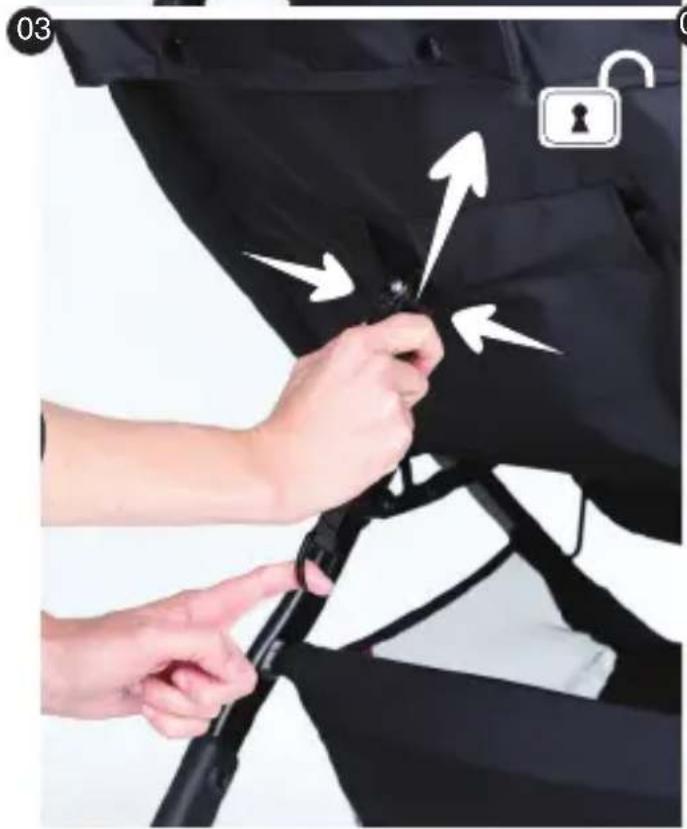

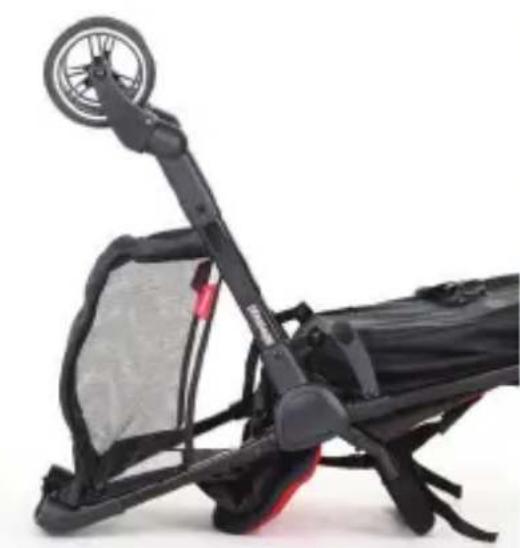

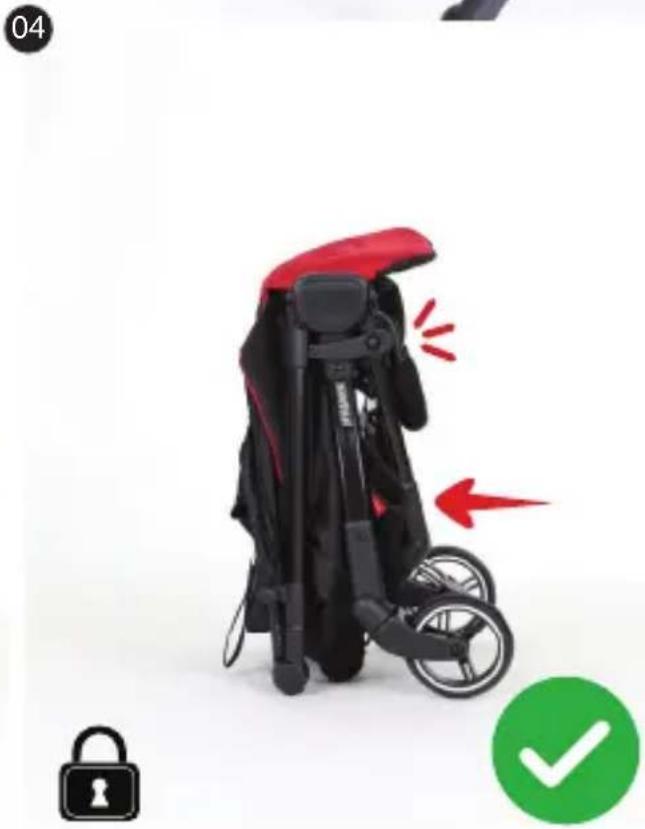

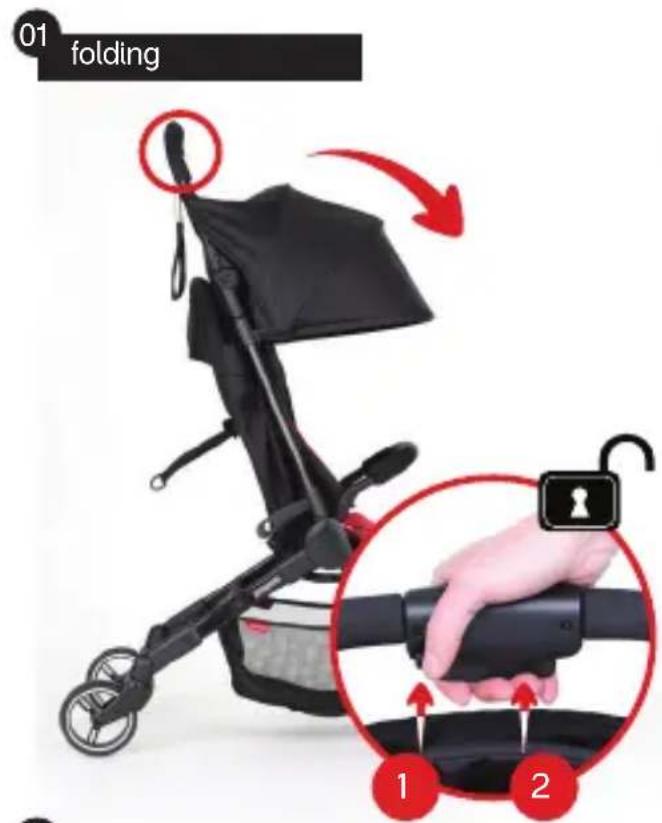

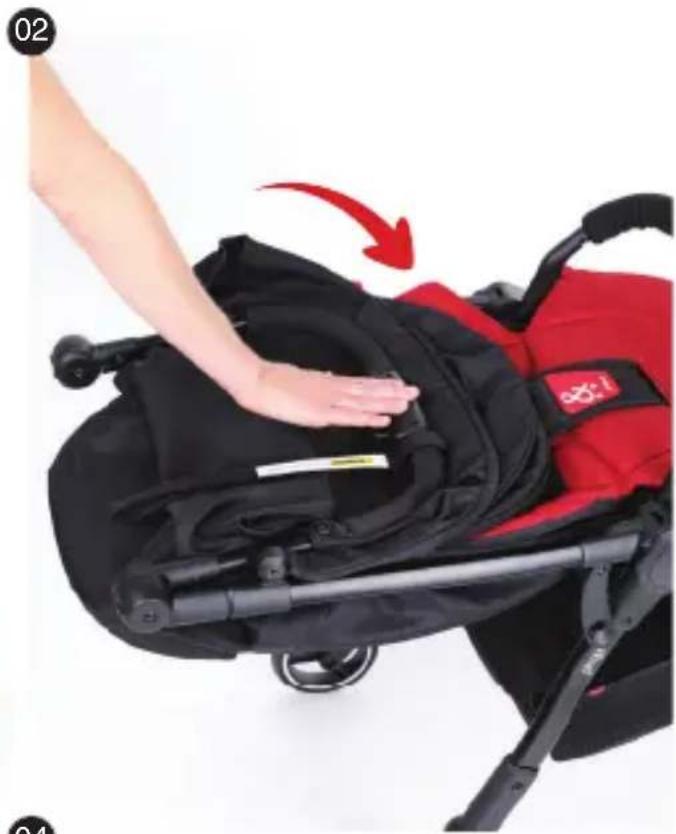

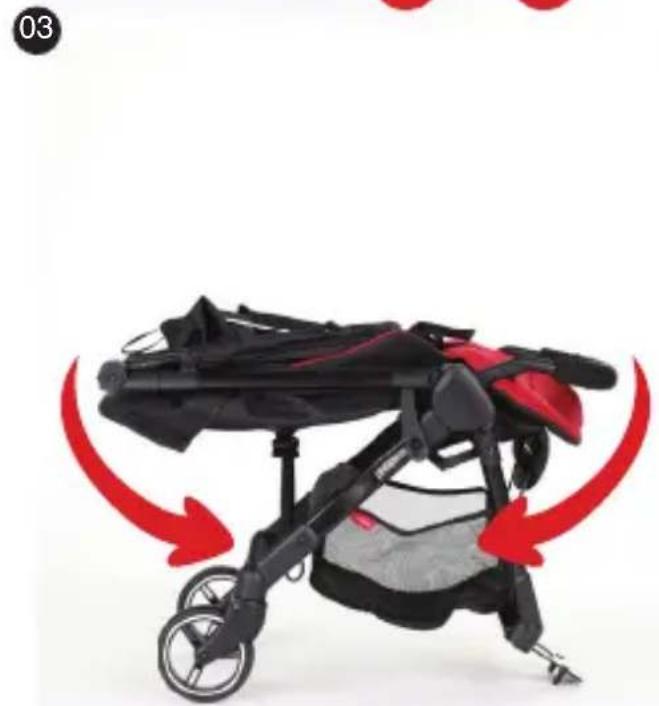

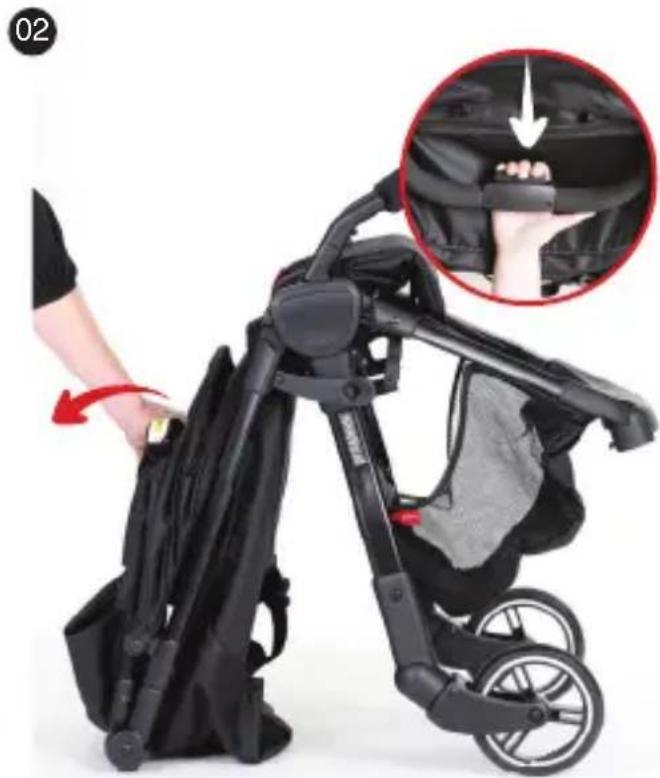

01 folding 1 2

Close-up of a red and black stroller with a hand adjusting the seat area, showing a red arrow indicating motion (no text or symbols visible)

Model of a stroller with black body and red seat, shown in motion with red arrows indicating rotation (no text or symbols)

Stroller with red seat and black body, no visible text or symbols

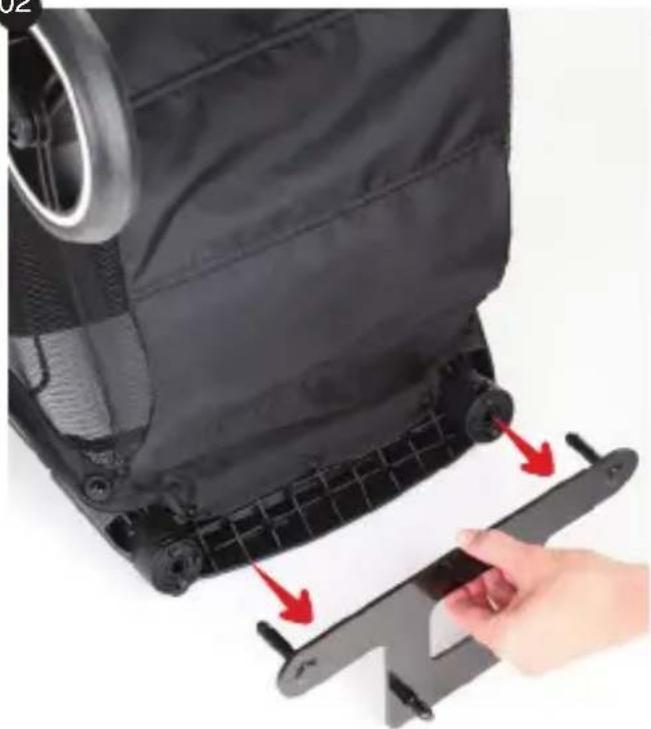

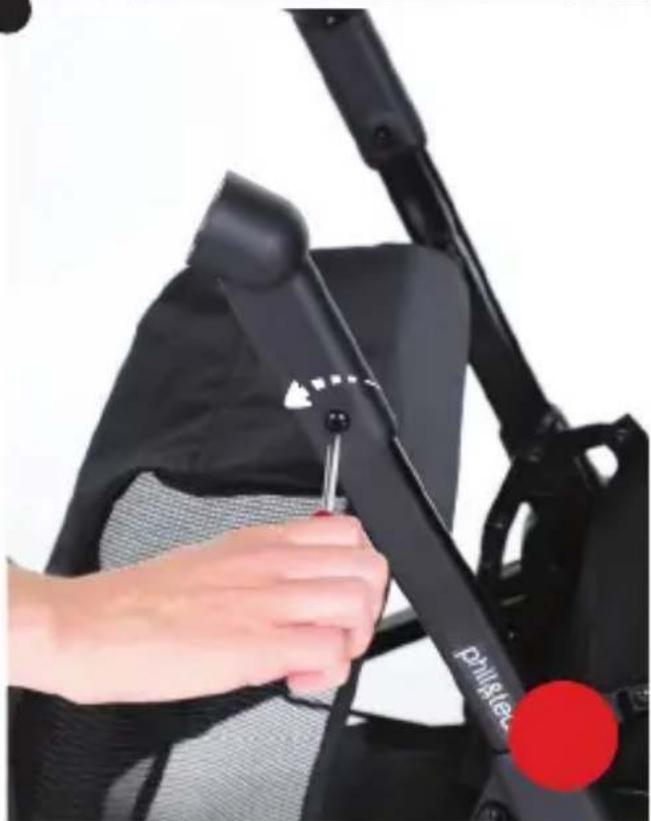

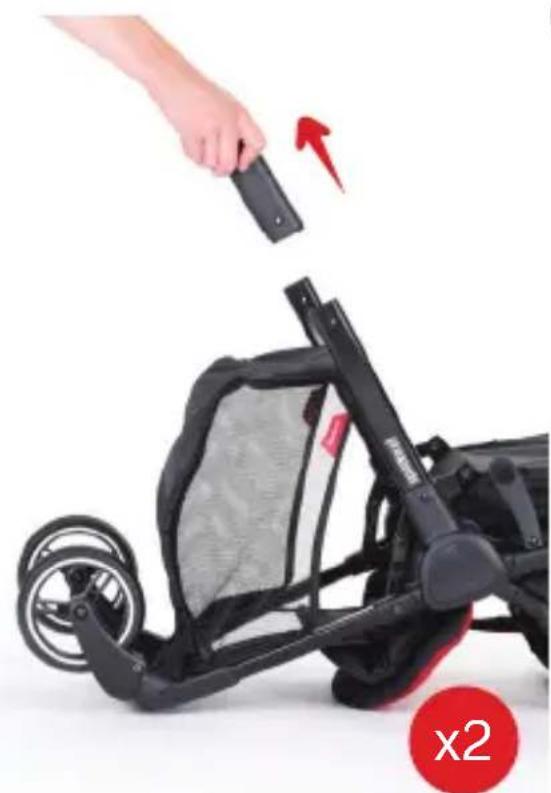

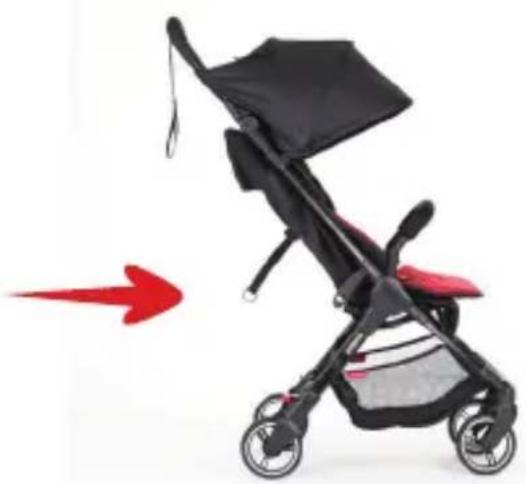

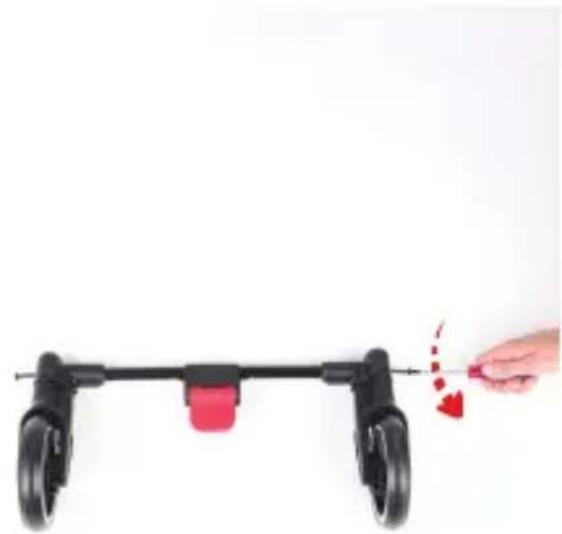

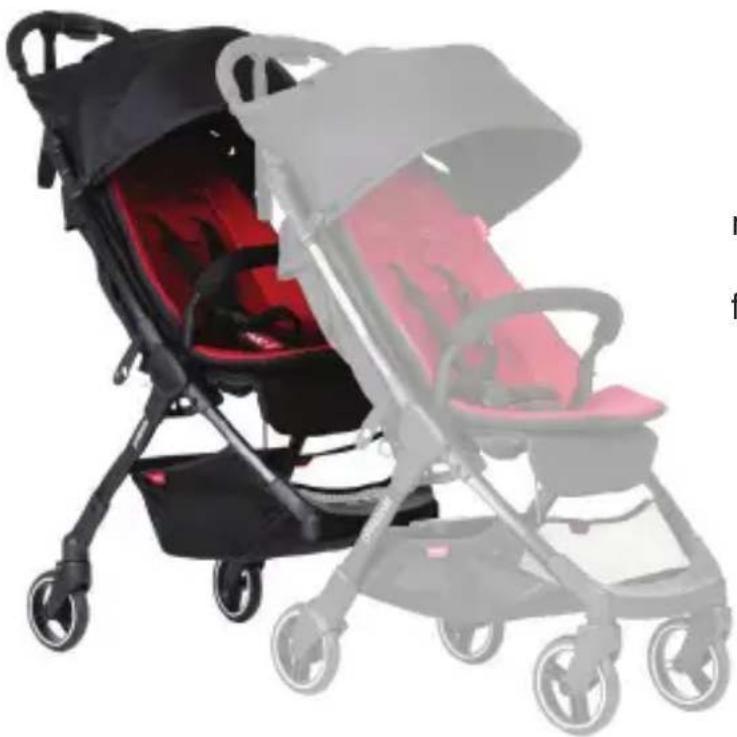

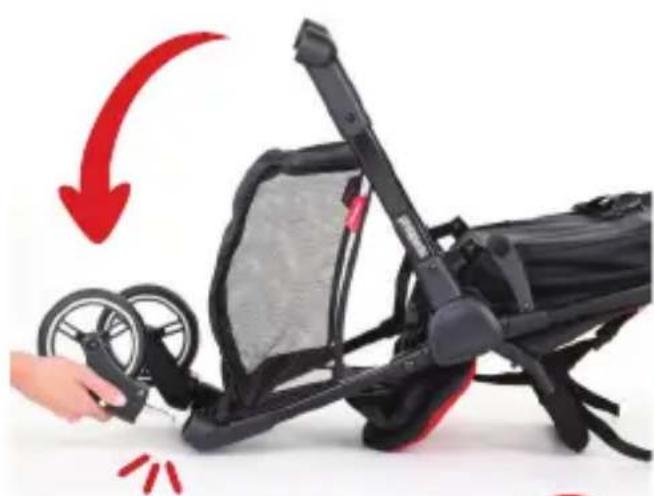

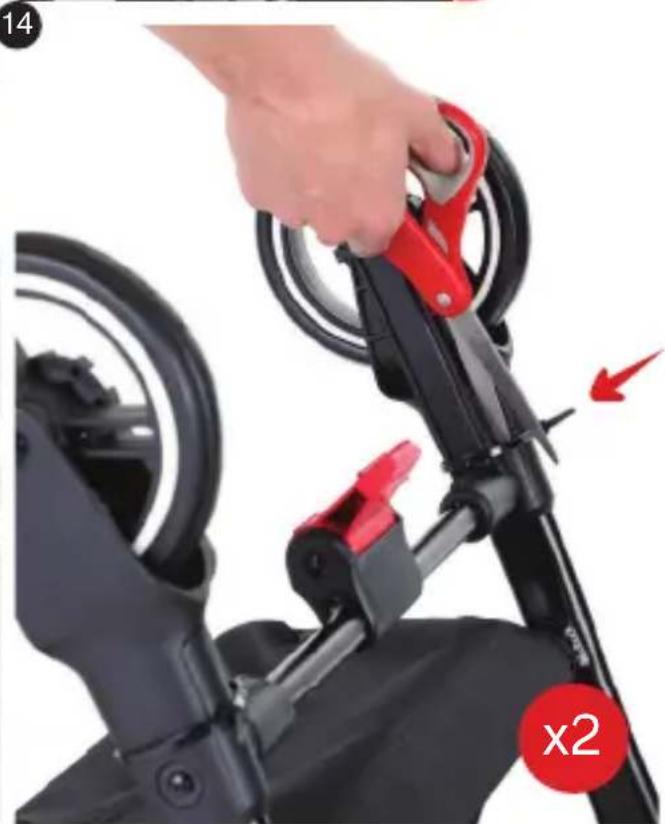

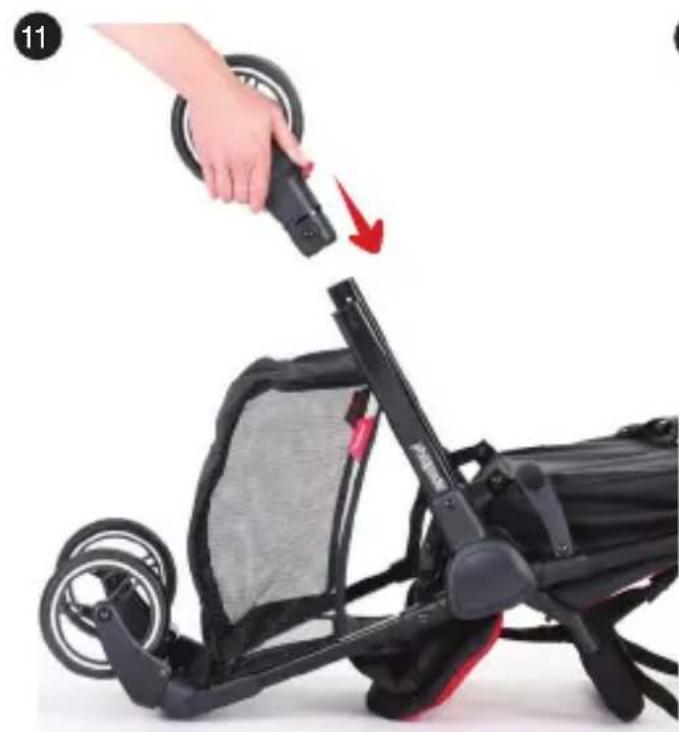

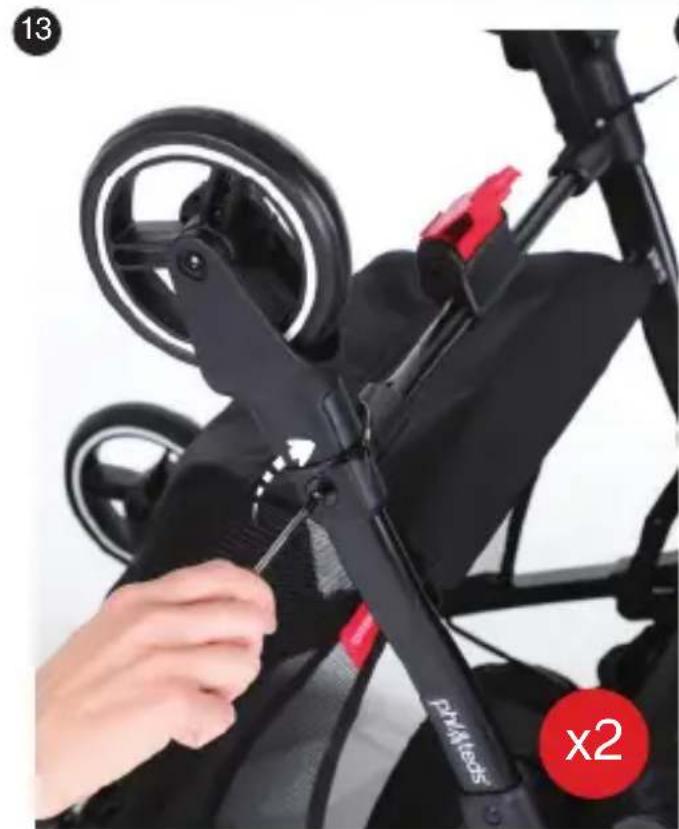

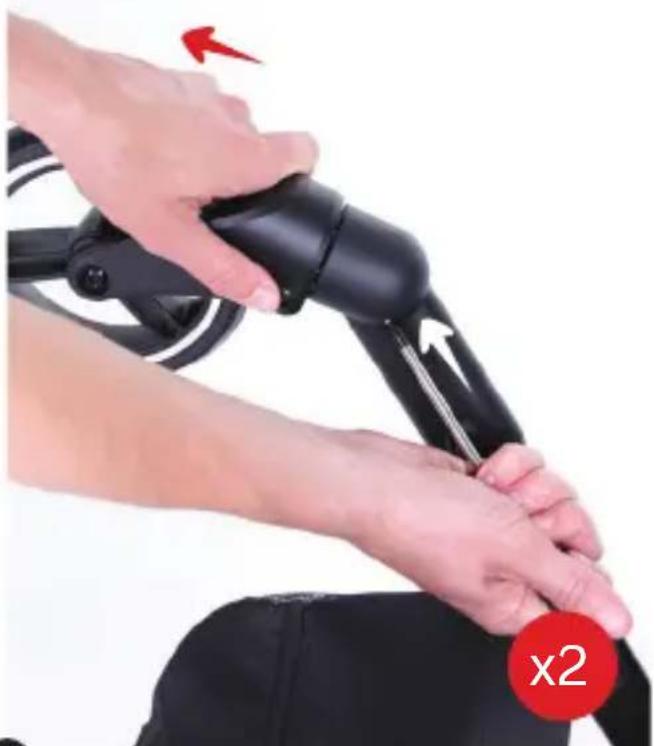

converting to single go™ buggy

Two black and red baby strollers with canopy cover, displayed side by side (no text or symbols visible)

Black stroller with red backrest and white wheels, showing a red arrow pointing to the side (no text or symbols)

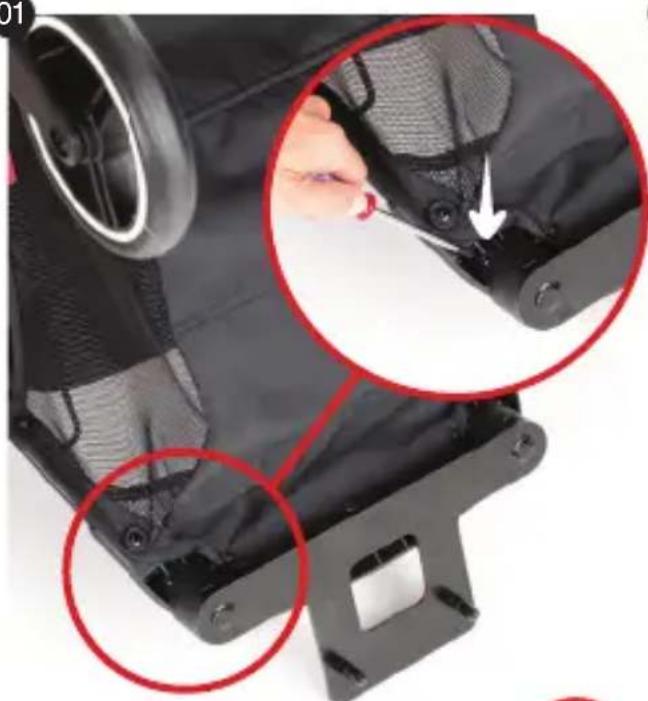

01

Close-up of a black athletic device with red circles highlighting a detail and a white arrow pointing to a specific component (no text or symbols visible)

02

Close-up of a hand adjusting a black plastic clip with red arrows indicating movement (no text or symbols visible)

x2

03

Close-up of a black electric scooter with attached steering wheel and red accents (no visible text or symbols)

04

Close-up of hands performing a wrist massage on a black bicycle (no text or symbols visible)

05

Close-up of a black bicycle seat with red-handled cable being inserted, showing a hand adjusting the seat (no text or symbols visible)

●

Close-up of a person using a Pilsted electric vehicle seatbelt, no visible text or symbols on the device itself

x2

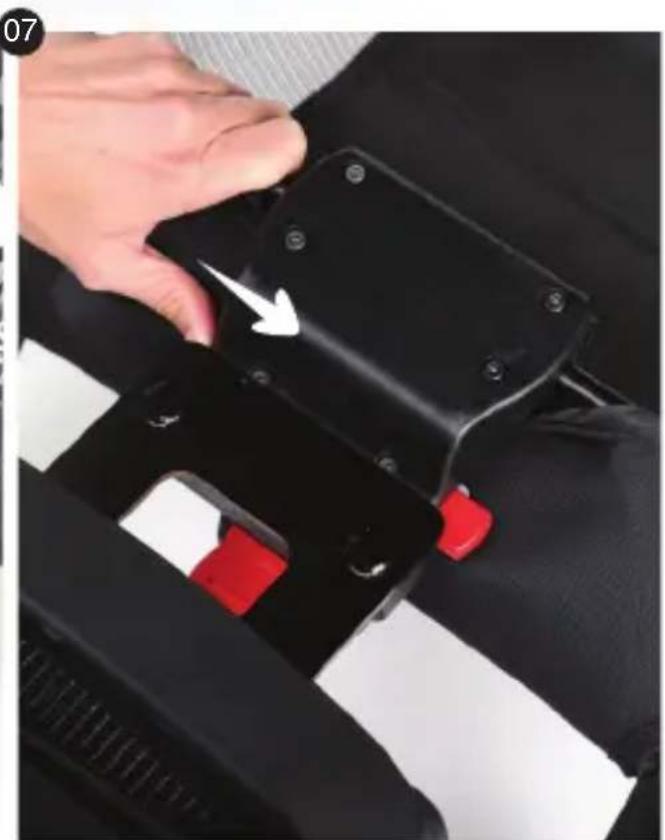

07

Close-up of a black electric scooter with a hand adjusting its seat, showing a red arrow and a red circle labeled 'x2' (no text or symbols on the main subject)

08

Hand holding a black wheeled cart with a red button, next to a red dotted arrow indicating motion (no text or symbols)

09

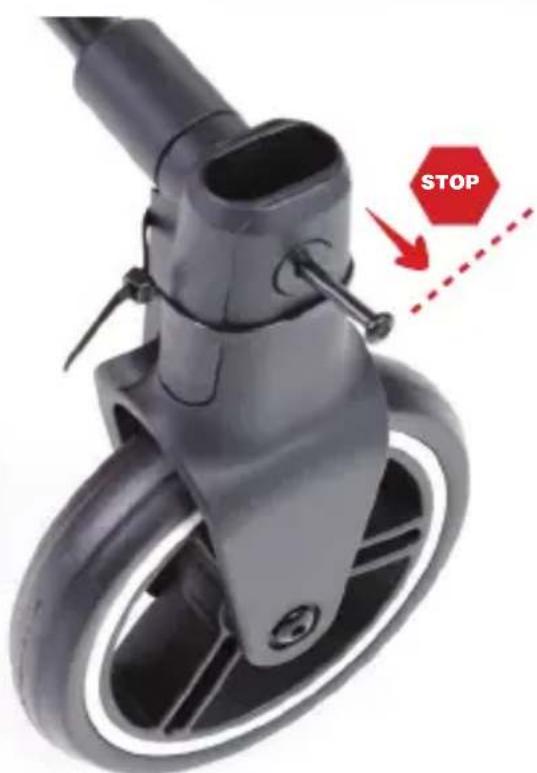

STOP

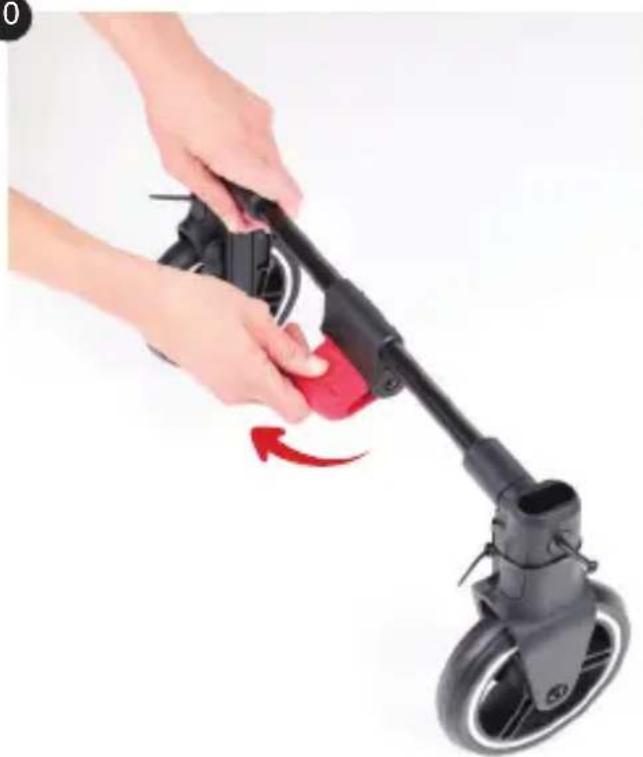

10

Person using a black weight ligation device to lift a wheeled cart (no text or symbols visible)

Close-up of a black and red bicycle seat with a hand adjusting the wheel (no text or symbols visible)

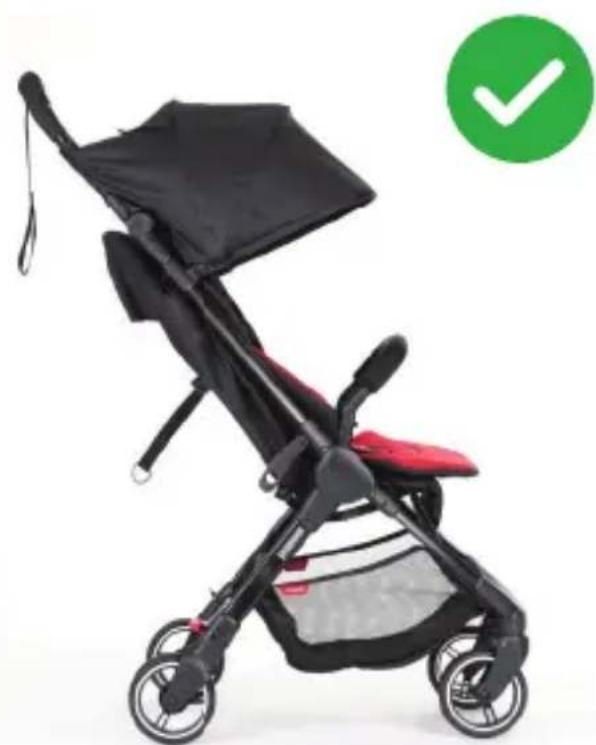

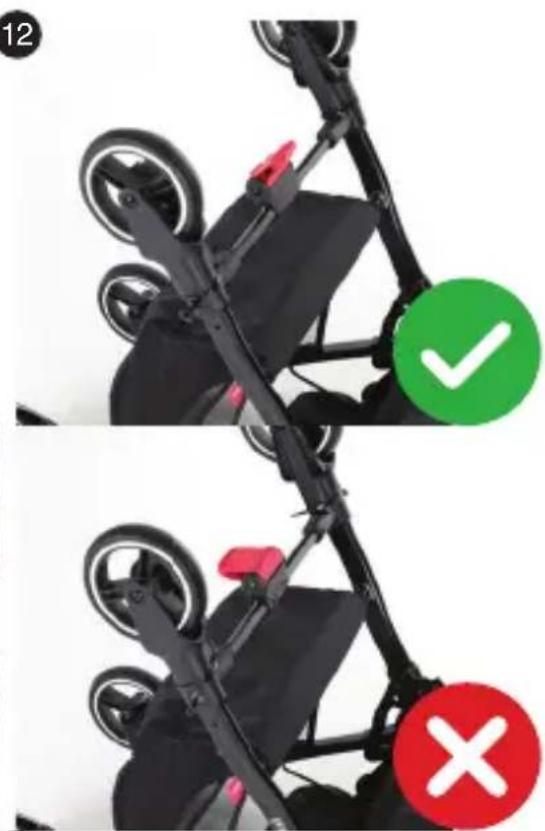

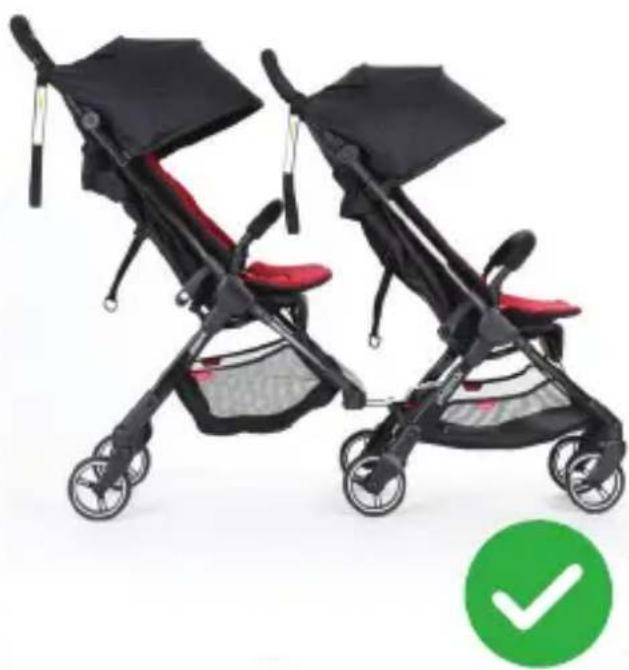

Two-panel image showing a stroller with a green checkmark and red X mark, no text or symbols present.

Close-up of a black PKN tests bicycle with a hand adjusting the wheel rim (no visible text or symbols)

Close-up of a hand adjusting a black and red bicycle seatbelt mechanism, with a red arrow pointing to the handle (no text or symbols visible)

Black and red baby stroller with a black canopy, displayed against a white background (no text or symbols visible)

WARNINGS

European safety standard states:

IMPORTANT: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

in inline mode:

- This is an accessory for the go™ buggy only. • Do not use with any other model of stroller. • The stroller shall only be used for a maximum of 2 children. • Do not place more than 5kg in each parcel tray. • It is recommended that the most reclined position be used for newborn babies. • Full recline may not be suitable for all age combinations in all markets.

when converted to a single stroller:

- The stroller shall only be used for a maximum of 1 child. • Do not place more than 5kg in the parcel tray. • It is recommended that the most reclined position be used for newborn babies. • This stroller is intended for children up to a maximum weight of 15kg

in both modes:

- Never leave the child unattended. • Accessories

or replacement parts that are not approved by the manufacturer or distributor should not be used. • Any load attached to the handle and / or back of the backrest and / or the sides of the stroller will affect stability of the stroller. • Always use the restraint system. • Check that the seat unit attachment devices are correctly engaged before use. • This product is not suitable for running or skating. • Ensure that all locking devices are engaged before use. • The parking device shall be engaged during the loading and unloading of children. • No additional mattress shall be added unless recommended by the manufacturer • To avoid injury ensure that the child is kept away when unfolding and folding this product. • Do not let the child play with this product. • A car seat used on a stroller does not replace a cot or a bed. Should your child need to sleep, place it in a suitable pram body, cot or bed.

WARNINGS

American safety standard states:

in inline mode:

- This is an accessory for the go™ buggy only. • Do not use

with any other model of stroller. • Do not place more than 11lbs in each parcel tray.

when converted to a single stroller:

- Do not place more than 11lbs in the parcel tray. • This stroller is intended for children up to a maximum weight of 33lbs.

in both modes:

- Never leave child unattended in the stroller. • Avoid serious injury from falling or sliding out. Always use safety harness. • Child may slip into leg openings and strangle. Never use in reclined carriage position unless child is securely restrained. • Do not recline the seat past the green mark on recline strap. • To prevent the stroller from becoming unstable, do not place parcels or accessory items anywhere except in the storage basket and pockets provided. Do not hang items such as shopping bags from the frame. • Excessive weight may cause a hazardous unstable condition to exist. • This seat is not suitable for children under 6 months old.

WARNINGS

Australia / New Zealand safety standard states:

To avoid injury or death:

in inline mode:

- This is an accessory for the go™ buggy only. • Do not use with any other model of stroller. • Do not place more than 5kg in each parcel tray. • Please disconnect the rear stroller before folding each stroller individually.

when converted to a single stroller:

- Do not place more than 5kg in the parcel tray. • This stroller is intended for children up to a maximum weight of 15kg.

in both modes:

• Always apply the brakes whenever the stroller is stationary. Do not leave children unattended. • Secure the child in the harness at all times. • Do not carry extra children or bags on this stroller. • Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured. • Use the harness at all times. • When not in use never leave the harness buckled as harness can form loops which may pose a strangulation hazard. • It is unsafe to use accessories

other than those approved by the vehicles manufacturer.
- Care should be taken if the stroller is used on stairs
or escalators. • The stroller should not be used near an
open fire or exposed flame. • Use the tether strap to stop the
stroller rolling away. • The stroller is designed for use on flat
or gently sloping surfaces and maybe unstable on higher
sloping and uneven surfaces, resulting in the possibility
of the stroller tipping over. • Due care should be exercised
when folding or unfolding the stroller, as there is potential
for fingers or body parts to be injured. • The stroller
should only be carried or lifted when it is properly folded.
Do not carry or lift the stroller by the wheels or the harness
- position your hands at the centre of the side frame.
- When folding the stroller, please check visually that the
automatic frame lock is engaged. • When using in lie-flat
mode, ensure the backflap is attached.

WARNINGS

Canadian safety standard states:

in inline mode:

- This is an accessory for the go™ buggy only. • Do not use with any other model of stroller. • Do not place more

than 5kg in each parcel tray. • The front stroller is intended for children up to a maximum weight of 15kg. • The rear stroller is intended for children up to a maximum weight of 13kg.

when converted to a single stroller:

- Do not place more than 5kg in the parcel tray. • This stroller is intended for children up to a maximum weight of 15kg.

in both modes:

- The stroller may become unstable if a parcel tray, other than one recommended by the manufacturer, is used. • The stroller may become unstable if the recommended load is exceeded. • Take care when folding or unfolding the stroller to prevent your fingers being entrapped. • Maximum height of the child is 100cm.

© 2020 Phil and Teds Design Limited.

Phil and Teds Design Limited owns the intellectual property rights in the brands, designs and inventions featured in this publication as licensed to Phil and Teds Most Excellent Buggy Company Limited. These include, without limitation, the phil&teds, adapt&survive!, &, INLINE trade marks, product names and INLINE double buggy shape and product names. phil&teds actively pursue people who infringe on its intellectual property.

FR

guide d'entretien

© 2020 Phil and Teds Design Limited.

© 2020 Phil and Teds Design Limited.

© 2020 Phil and Teds Design Limited.

European safety standard states:

BELANGRIJK - LEES ZORGVULDIG EN BEWAR VOOR LATERE RAADPLEGING

In de Inline-modus:

© 2020 Phil and Teds Design Limited.

© 2020 Phil and Teds Design Limited.

© 2020 Phil and Teds Design Limited.

© 2020 Phil and Teds Design Limited.

© 2020 Phil and Teds Design Limited.

Designed in New Zealand. Made in China
