USER MANUAL Alpatec VB02 TAURUS

Modern outdoor air conditioner unit with a digital display and coiled hose, no visible text or symbols on the device itself.

Fig. 1

Exploded view diagram of a washing machine with labeled parts from fan to door

Français

Ventilateur

VB 02

Cher Client,

Many thanks for choosing to purchase a Alpatec brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

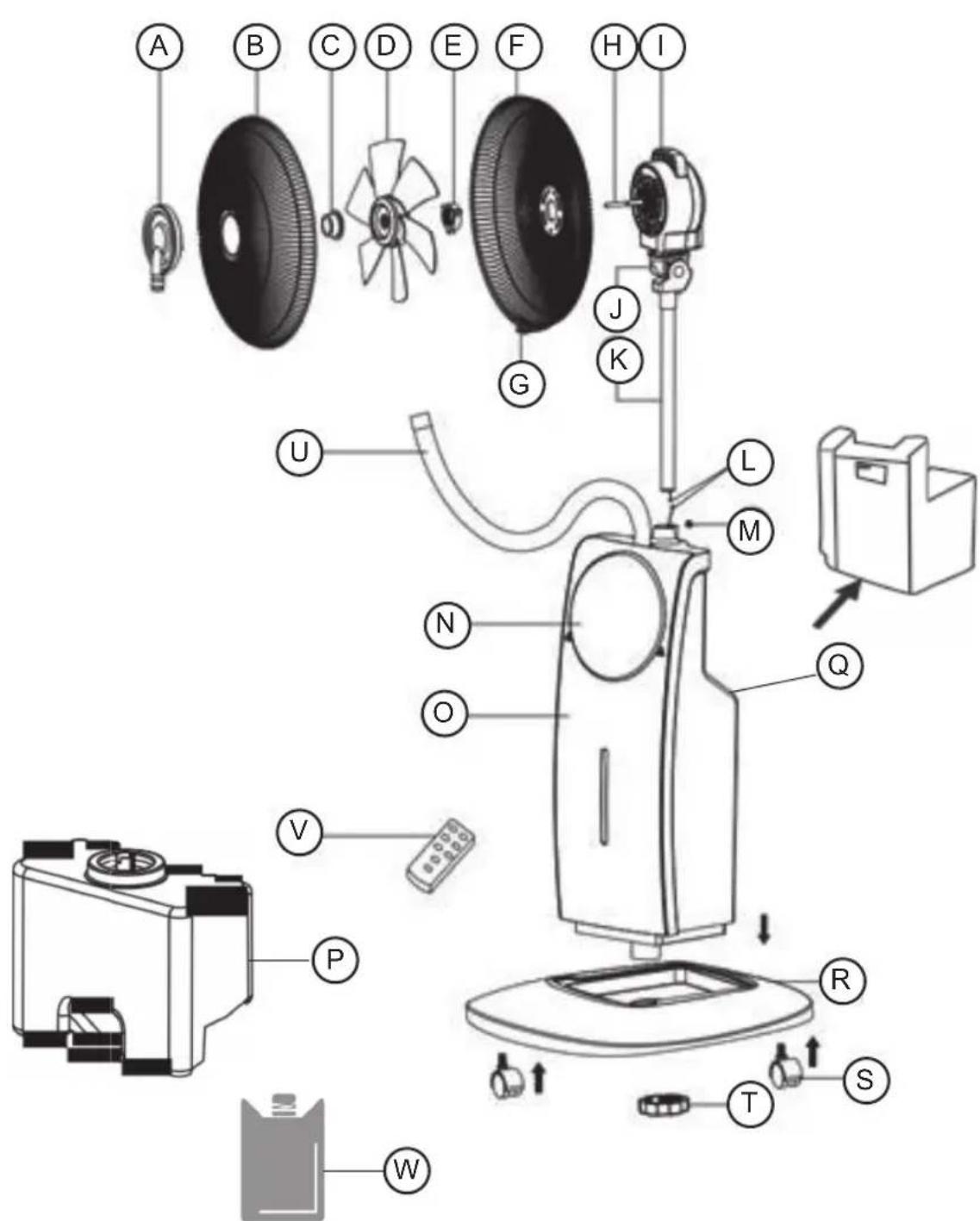

Description

A Decoration ring

B Front guard

C Blade lock

D Leaf

E Guard lock

F Rear guard

G Guard circle

H Motor

I Motor shell

J Connector

K Stanchion pole

L Connection terminal

M Handle screw

N Control panel

O Body rear shell

P Water tank

Q Body rear shell

R Base

S Castor (*5)

T Base lock

U Mist pole

V Remote control

W Ice box

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

Safety advice and warnings

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall

not be made by children unless they are supervised.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

Applicable if the user has to realize any installation operation (for example: asambly the grill...):

- Ensure that the fan is switched off from the supply mains before start any installation or assembly operation.

Mandatory if the guard has to be removed for cleaning purposes

- Disconnect the appliance from the mains before undertaking any cleaning task. Ensure that the fan is switched off from the supply mains before removing the guard.

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

Choose the adequate sentence/s depending of kind of appliance:

- Connect the appliance to a socket that can supply a minimum of 10 amperes.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

- The appliance must be used and placed on a flat, stable surface.

- CAUTION: In order to prevent overheating do not cover the appliance.

- Do not use the appliance if the cable or plug is damaged.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

- CAUTION: Maintain the appliance dry.

English

- CAUTION: Do not use the appliance near water.

• Do not use the appliance near bathtubs, showers or swimming pools.
• Do not use the appliance with damp hands or feet, or when barefooted.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Do not clip or crease the power cord.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• The appliance is not suitable for outdoor use.
• Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not touch any of the appliance's moving parts while it is operating.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the on/off switch does not work.
• Use the appliance handle/s, to catch it or move it.
• Do not use the appliance if it is tipped up and do not turn it over.
• Do not turn the appliance over while it is in use or connected to the mains.
• Unplug the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not professional, industrial use.
• This appliance should be stored out of reach of children and/or the disabled.
• Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

Service:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Installation

- Be sure to remove all packaging material from inside the appliance.

Applicable if the user has to realize any installation operation (for example: asambly the grill...):

• Ensure that the fan is switched off from the supply mains before start any installation or assembly operation.
• The appliance should be used with its base fitted.

Assembling the appliance:

• Install the five castors on the base.
• Install the body (O) into the base (R), and use the base lock (T) to screw on the base tightly.
• Connect motor (L) with terminals (M) well, and install support pole into body and screw it.
• Install the rear guard (F) and the guard circle (G) on the motor, and use guard lock (E) to fasten.
• Install the fan leaf (D) on to the motor axis, and screw anticlockwise.
• Install decoration ring (A) on the front guard (B) and screw it.
• Put the front guard (B) and rear guard (F) together, and screw to fasten decorating ring.
• Pull the mist pole through into decoration ring (A)

Filling water:

• Push the water tank upward and remove the water tank.
• Unscrew the filler cap and fill with water.
• Screw the filler cap and put the water tank back in position.
• CAUTION: The temperature of water should not be 40°C above.

Operating the ice box:

• Turn off the appliance and pull out plug from the electrical outlet.
• Take out water tank, and then take out the ice box from appliance.
• Put the ice box into refrigerator for freezing
• After freezing, put the ice box on water holder make temperature lower.
• It can be reused.

Operating aroma tray:

• Take aroma case out on the body rear shell.
• Put several drops aroma liquid into the aroma case, and put the aroma case back in position.
• Slowly the aroma evaporates and be full of room while the mist fan working.

Operating the remote control:

• Put 2 pcs battery AAA (1.5V) into before use, notice plus or minus pole.
• Close the lid of the remote control
• Remove the battery if you are not using it for a long time period.

Instructions for use

Before use:

- Make sure that all the product's packaging has been removed.

Use:

- Unroll the cable completely before plugging it in.

- Connect the appliance to the mains.

- To avoid a fierce start up of the fan, it is advisable start off from the lowest speed position and, once the fan has been switched on, progressively increase the speed to the desired position.

Fan function:

- Insert the power cord into plug socket and hear a "beep" sound after power is connected work.

- Use remote control point to receive window and push any button, various function work accordingly.

ON/OFF button:

- Firstly push ON/OFF button, the indicator light is on.

- Secondly push ON/OFF button, the wind speed is in the low level by default. Meanwhile, the indoor temperature shows on the panel.

Thirdly push ON/OFF button, all stop working, all indicator lights off.

Speed button:

- Firstly push speed button, the wing speed is in the medium level

- Secondly push speed button, the wind speed is in the high level

- Thirdly push speed button, the wind speed returns to the low level.

Mode button:

- Natural mode → Sleep mode → Normal mode

Natural mode : The wind imitate the blow of natural wind based on strong and soft wind.

Sleep mode: the first half hour after running as strong and soft natural wind, it becomes med natural wind and the second half hour it changes to soft natural wind until the end of preset time.

Normal mode: The wind blow based on Low/Med/High speed.

Mist function:

- Mist function can be used separately, or worked together with the fan.

- Firstly push Mist button, the mist spray in low volume.

Secondly push Mist button, the mist spray in medium volume.

- Thirdly push Mist button, the mist spray in high volume.

- Note: While the mist function work normally, the indicator light on the body shell is blue, while the water is lacking, the indicator light is red.

Oscillation function:

- The oscillation function makes it possible to direct the flow from the apparatus so that it automatically alternates over a range of 75^

- To activate this function, push the OSC button. The yellow light of OSC on .

- Press it again to stop oscillation, yellow light of Osc off.

Ionic function:

- Mist function can be used separately, or worked together

with the fan.

- The appliance can generate negative ions generated by the ionizer emanate from the unit throughout the room and cause dust, pollen, pet dander etc to clump together toand drop out of the air.

- Push the ion button, green light of lon function on,

- Push it again to stop working, the green light of lon function off.

Mosquito repellent function

- Mosquito repellent function can be used separately, or worked together with the fan.

- Put the mosquito repellent tablet (not included with the product) into its hole on the body rear shell.

- Push Mosquito button red light of mosquito repellent on, to avoid the mosquitoes annoy.

- Push it again to stop working, red light of mosquito repellent off.

Note:

- Turn off the power when you replacing the mosquito repellent tablet, wait for 10 minutes then replacement in order to avoid burns or electric shock.

- Do put the mosquito repellent tablet in contact with eyes or mouth. If put in mouth by accident, wash mouth and seek medical care immediately.

Timer function:

- The appliance's operating time can be controlled.

- It can be set the fan running time between 1-12hours and switches the fan off after preset time,

- To set a timer of 1 hour, push Timer button one time. Meanwhile, the indoor temperature display is replaced by timer display of 01H.

- To set 12 hours of running time, you need to press 12 times and the number of hours displayed on the panel will change every time.

- After setting 12 hours timer, push TIMER button again, timer is cancelled. Once timer cancelled, the indoor temperature will be displayed on the panel.

- While setting timer, the timer hour and the indoor temperature will be displayed on the panel every 5 seconds by turn. And the number of hours displayed on the panel will decrease per hour.

- The time programmed or remaining time will appear on the display (N).

Once you have finished using the appliance:

- Turn the appliance off using the on/off button.

- Unplug the appliance from the mains.

- Clean the appliance.

Cleaning

- Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

English

• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• Then dry all parts before its assembly and storage.

Features:

Puissance : 90 W

Voltage : 220-240 V

Fréquence : 50 Hz

Anomalies and repair

Take the appliance to an authorized technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

Problem Cause Solution
No rotation power on - Motor no working- Too low voltage- Motor shaft gets stuck- Circuit board broken	- Contact the after sales service
Apparent vibration - Rear guard loosens- Blade broken or imbalance	- Lock the protection guard- Replace the blade
Mist function not working - Water tank is empty- Water tank is broken	- Refill the water tank- Replace the water tank
Indicator light off once the appliance on	- Appliance is off - switch on the appliance- if still not working, contact the after sales service
Mist with odors - Odors will disappear after use for a period of time- The water tank interior part is dirty	- Open the water tank cap in a cool ventilated place- Change the water in water tank

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

The following information details the features related to ecodesign

VB02
Maximum fan flow rate(F) 60.66 m	^3 /min
Fan power input (P) 86.2 W
Serving Value (SV) (according to the IEC 60879) 0.7 (m	^3 /min)/W
Standby power consumption (PSB) 0.31W
Fan sound power level (LWA) 52.7 dB(A)
Maximum air velocity (c) 2.84 m/sec

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.- This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EC on Low Voltage, Directive 2014/30/EC on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.
