USER MANUAL KHTU105RSS KITCHENAID

You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING3 INSTALLATION REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Tools needed ■ Level■ Drill■ 1¹⁄₄" drill bit■ Pencil■ Pliers■ Wire stripper or utility knife■ Tape measure or ruler■ Caulking gun and weatherproof caulking compound■ Saber or keyhole saw ■ Duct tape■ Flat-blade screwdriver■ Metal snips■ Phillips screwdriver Parts supplied Check that all parts are included.■ Literature package■ Hardware package■ 4 screws Parts needed UL listed or CSA approved ¹⁄₂" (12.5 mm) strain reliefs (2) Power supply cable6" (15.2 cm) round wall or roof cap 6" (15.2 cm) metal vent system

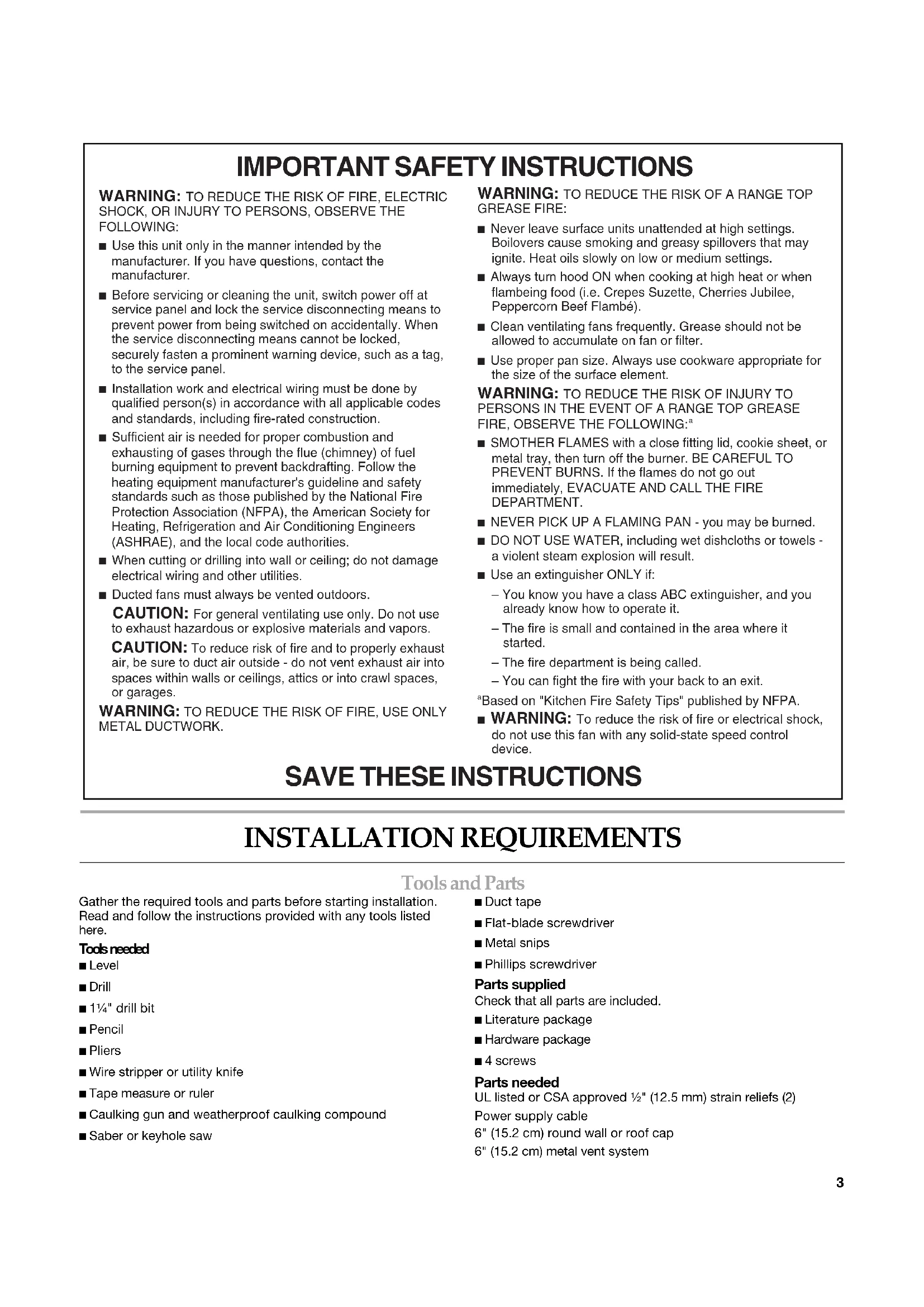

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: ■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.■ Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.■ When cutting or drilling into wall or ceiling; do not damage electrical wiring and other utilities.■ Ducted fans must always be vented outdoors. CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

GREASE FIRE:■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.■ NEVER PICK UP A FLAMING PAN - you may be burned.■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.■ Use an extinguisher ONLY if:– You know you have a class ABC extinguisher, and you already know how to operate it.– The fire is small and contained in the area where it started. – The fire department is being called.– You can fight the fire with your back to an exit. Based on "Kitchen Fire Safety Tips" published by NFPA.■ WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.4 Location Requirements IMPORTANT: Observe all governing codes and ordinances. For best performance, the 300 Series should not be used above cooking surfaces with a BTU rating of more than 60,000 BTUs. ■ It is the installer’s responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located inside the range hood on the rear wall. ■ Range hood location should be away from strong draft areas, such as windows, doors and strong heating vents. ■ Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance. Consult your cooktop/range manufacturer installation instructions before making any cutouts. ■ Grounded electrical outlet is required. See “Electrical Requirements” section. ■ The hood is factory set for vented installations. For recirculating installations, Recirculation Kit Part Number 4396565, including vent cover and 2 charcoal filters, is available from your dealer. ■ All openings in ceiling and wall where range hood will be installed must be sealed. For Mobile Home Installations The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A*, or latest edition, or with local codes. Product Dimensions Vent and electrical openings and mounting screw locations Installation Clearances 14 ⁷⁄₈"(37.8 cm)5 ⁷⁄₈" (14.9 cm) diam. exhaust collar10 ⁵⁄₁₆"(26.2 cm)19 ¹⁄₂"(49.5 cm)29 ⁷⁄₈" (75.9 cm) - 30" (76.2 cm) model35 ⁷⁄₈" (91.1 cm) - 36" (91.4 cm) model ³⁄₈"(3.5 cm)8 ¹⁄₁₆"(20.5 cm) centerline of hood mounting screws locations (4) centerline of hood

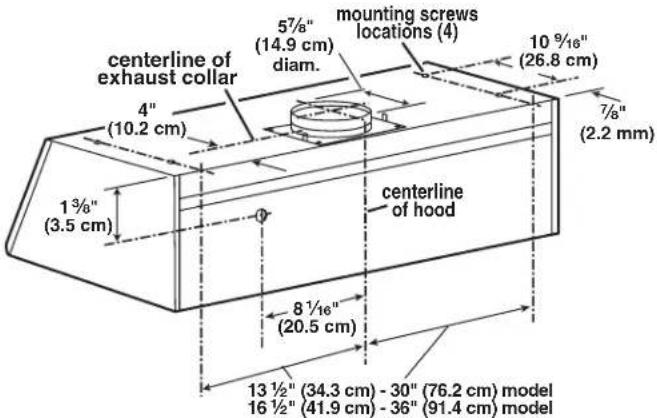

" (34.3 cm) - 30" (76.2 cm) model

" (41.9 cm) - 36" (91.4 cm) model

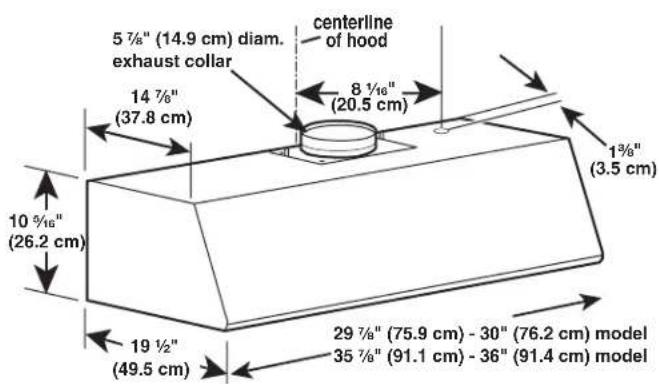

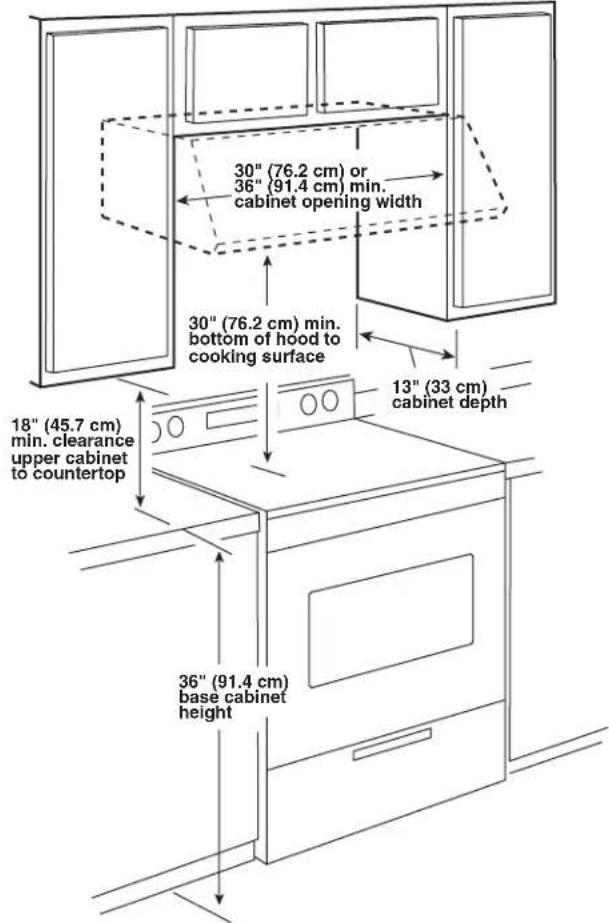

"(26.8 cm) " (2.2 mm) centerline of exhaust collar 4"(10.2 cm)30" (76.2 cm) or36" (91.4 cm) min. cabinet opening width30" (76.2 cm) min. bottom of hood to cooking surface18" (45.7 cm) min. clearance upper cabinet to countertop36" (91.4 cm) base cabinet height13" (33 cm)cabinet depth5 Venting Requirements ■ Do not terminate the vent system in an attic or other enclosed area. ■ Do not use a 4" (10.2 cm) laundry-type wall cap.■ Vent system must terminate to the outside.■ Use only a 6" (15.2 cm) round metal vent. Rigid metal vent is recommended. Do not use plastic or metal foil vent. ■ The size of the vent should be uniform.■ The vent system must have a damper. If roof or wall cap has a damper, do not use damper supplied with the range hood. ■ Use duct tape to seal all joints in the vent system.■ Use caulking to seal exterior wall or roof opening around the cap. ■ Determine which venting method is best for your application. For Best Performance: ■ Do not install 2 elbows together.■ Use no more than three 90° elbows.■ If an elbow is used, install it as far away as possible from the hood’s vent motor exhaust opening. ■ Make sure there is a minimum of 24" (61 cm) of straight vent between the elbows if more than one elbow is used. The length of vent system and number of elbows should be kept to a minimum to provide efficient performance. Cold Weather Installations An additional backdraft damper should be installed to minimize backward cold air flow and a nonmetallic thermal break installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break. Makeup Air Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area. Venting Methods This range hood is factory set for vented installations. Vent system can terminate through either the roof or wall. A 6" (15.2 cm) round vent system must be used. The vent system length should not exceed 35 ft (10.7 m). Calculating Vent System Length To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system. Example vent system NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance. Option 1 - Roof Venting Option 2 - Wall Venting A. 6" (15.2 cm) round roof ventingB. Roof capA. 6" (15.2 cm) round wall ventingB. Wall cap

System length = 13 ft (3.9 m) 90˚ elbow2 ft (0.6 m)6 ft (1.8 m) wall cap6 Electrical Requirements Observe all governing codes and ordinances. Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code,

Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes

and ordinances. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A copy of the above code standards can be obtained from: National Fire Protection Association One Batterymarch Park Quincy, MA 02269 CSA International 8501 East Pleasant Valley Road Cleveland, OH 44131-5575 ■ A 120 Volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required. ■ If the house has aluminum wiring follow the procedure below:

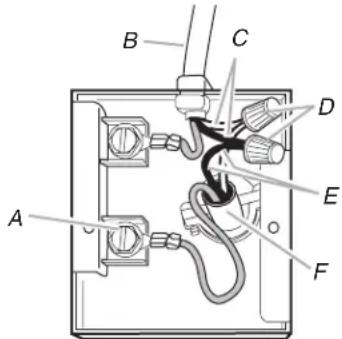

1. Connect a section of solid copper wire to the pigtail

2. Connect the aluminum wiring to the added section of

copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum. Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices. ■ Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial rating plate. The model/serial plate is located behind the filter on the rear wall of the hood. ■ Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances. INSTALLATION INSTRUCTIONS Venting Options General venting installation For vented installations: Make necessary cuts in the wall for vent fittings. IMPORTANT: Make sure the vent system is installed before installing range hood. Recirculating installations: A vent system (not provided) that directs the recirculated air back into the room either through the soffit or through the cabinet top is required. Use Recirculation Kit Part Number 4396565. For ordering information, see “Assistance or Service.” IMPORTANT: If venting through the cabinet top, do not terminate the exhaust into dead air space such as an attic or enclosed soffit. When venting through the soffit, assemble the vent system you will use over the exhaust collar, but do not attach the vent system yet. NOTE: The vent system can exhaust out the front of the soffit or be rotated to exhaust out the side or end of the soffit. Venting through the soffit

1. Assemble the vent system you will use over the exhaust

collar, but do not attach the vent system yet. NOTE: The vent system can exhaust out the front of the soffit or be rotated to exhaust out the side or end of the soffit.

2. Measure distance “A” (from top of hood to centerline of

6" [15.2 cm] round vent). Mark the distance “A” on soffit.

3. Mark and cut a 6" (15.2 cm) round vent opening.

Venting through cabinet top

1. Mark the location where vent cover will be installed in the

cabinet top and cut a 6" (15.2 cm) round vent opening for the vent cover. IMPORTANT: Do not terminate exhaust into a dead air space such as an attic or enclosed soffit. A. Vent systemB. Vent coverC. Cabinet topD. Ceiling or soffitE. Hood

Prepare Location ■ For vented installations, it is recommended that the vent system be installed before hood is installed. ■ Before making cutouts, make sure there is proper clearance within the ceiling or wall for vent fittings. ■ Check that all the installation parts and the box with filters have been removed from the shipping carton. Preparation

1. Select a flat surface for assembling the range hood. Cover

that surface with a covering such as a blanket or cardboard during assembly.

2. Using 2 or more people, slowly lift the range hood onto the

3. Tip range hood on its back to remove the metal filters. Turn

knob to the left (counterclockwise) and lift filters out.

4. Remove hardware package.

5. Add wood filler strips as needed to cabinet bottom. Drill

4 ³⁄₁₆" (4.8 mm) clearance holes for hood mounting screws.

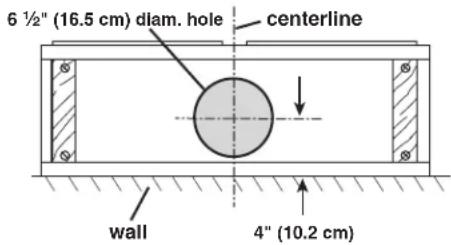

6. Cut a 6¹⁄₂" (16.5 cm) diameter hole in cabinet bottom as

8. Run wire through hole in accordance with the National

Electrical Code or CSA Standards and local codes and ordinances. There must be enough power supply cable from the fused disconnect (or circuit breaker) box to make the connection in the range hood’s electrical box.

9. Use caulking to seal all openings.

IMPORTANT: Do not turn on power until installation is complete. Install Range Hood

1. Remove the terminal box cover (located on back wall of

hood) from the hood. Remove the power supply cable knockout using a flat-blade screwdriver. Attach strain relief in power supply cable opening so that clamping screws are inside of range hood. Tip hood back to its bottom surface.

2. If roof or wall cap does not have a damper, attach damper to

exhaust opening on top of the range hood using 2 small screws from hardware package.

3. Place the range hood mounting screws close to the holes in

4. Lift range hood into place while feeding wiring through strain

5. Insert the screws through the clearance holes and start them

into the hood. Then, tighten screws securely.

6. Connect vent system, for either vented or recirculating, to

7. Seal all joints with duct tape.

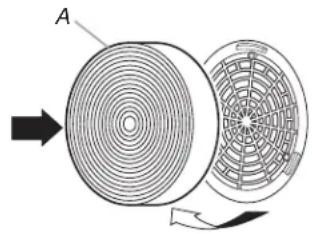

8. For recirculating installations, install the vent cover included

in Recirculation Kit Part Number 4396565 in soffit or cabinet top vent opening. WARNING Excessive Weight Hazard Use two or more people to move and install range hood. Failure to do so can result in back or other injury. 13 ¹⁄₂" (34.3 cm) - 30" (76.2 cm) model ¹⁄₂" (41.9 cm) - 36" (91.4 cm) model10 ⁹⁄₁₆" (26.8 cm

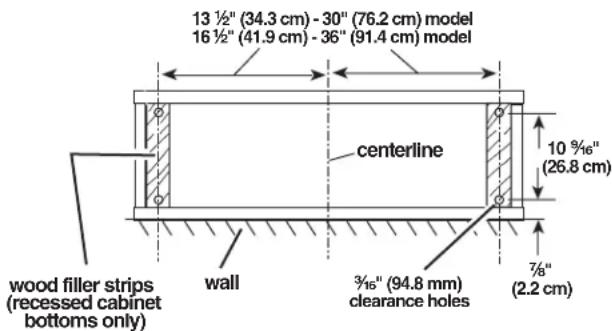

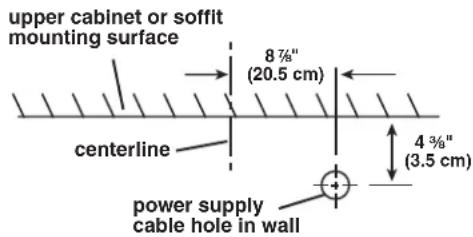

⁷⁄₈" (2.2 cm)³⁄₁₆" (94.8 mm) clearance holes wall wood filler strips (recessed cabinet bottoms only)centerline6 ¹⁄₂" (16.5 cm) diam. holecenterline wall 4" (10.2 cm)upper cabinet or soffit mounting surfacepower supply cable hole in wallcenterline8 ⁷⁄₈" (20.5 cm)4 ³⁄₈" (3.5 cm)8 Make Electrical Connection 1. Disconnect power at the circuit breaker of fused circuit box.2. Connect the white wire of the power supply cable with the white lead in the range hood using a twist-on connector.3. Connect the black wire of the power supply cable with the black lead in the range hood using a twist-on connector.4. Connect the green power supply ground wire to the unused, green ground screw.5. Tighten strain relief screws.6. Replace the terminal box cover. Install Filters 1. For recirculating installations only, install the charcoal filters included in Recirculation Kit Part Number 4396565. Place the charcoal filter against the blower cover and rotate to the right (clockwise) to attach to cover. Repeat with other charcoal filter.2. Replace metal filter. Turn knob on metal filter to the right (clockwise) to attached to range hood. Check Operation 1. Check operation of the range hood by turning on the power.2. The range hood controls are located on the right-hand underside of the range hood.

3. Move the light switch to “1” position. The light should turn on.

4. Move blower switch to “1” position. The blower should operate.5. Depending on your model, move the blower speed switch to “1” position for low speed, “2” position for medium speed (or high speed on some models), or “3” position for high speed.

6. Move blower and light switches to “0” position to turn blower

and light off.7. If range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown. Disconnect power supply and check that the wiring is correct.NOTE: To get the most efficient use from your new range hood, read the “Range Hood Use” section.A. Green ground screwB. Hood wiringC. White wiresD. Twist-on connectorsE. Black wiresF. Power su p pl y cable WARNING Electrical Shock HazardDisconnect power before servicing.Replace all parts and panels before operating.Failure to do so can result in death or electrical shock. WARNING Fire HazardElectrically ground the blower.Use copper wire.Connect ground wire to green ground screw in terminal box.Failure to do so can result in death, fire, or electrical shock.

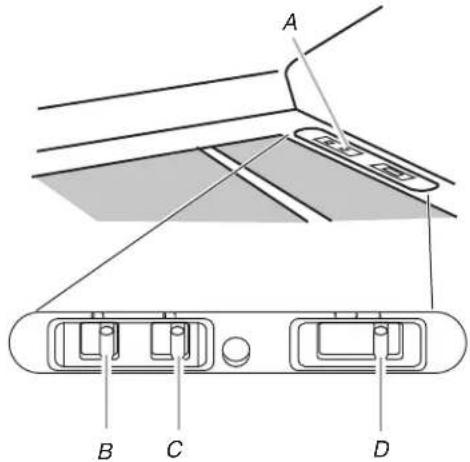

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen. The hood controls are located on the right-hand underside of the range hood. Range Hood Controls Operating the light

1. Move the light switch to the “1” position to turn range hood

2. Move the light switch to the “0” position to turn range hood

light OFF. Operating the blower

1. Move the blower switch to the “1” position to turn the blower

ON. The blower will begin operating at the speed set on the blower speed switch.

2. Move the blower switch to the “0” position to turn the blower

OFF. Adjusting the blower Depending on your model, the blower has either 2 or 3 speed controls. Move the blower speed switch to “1” position for low speed, “2” position for medium speed (or high speed on some models), or “3” position for high speed.

Range Hood Lamps Replacing a Halogen Lamp This hood uses four 12-volt, 20-watt halogen lamps. Turn off the range hood and allow the hallogen lamps to cool. To avoid damage or decreasing the life of the new bulb, do not touch bulb with bare fingers. Replace bulb using tissue or wearing cotton gloves to handle bulb. To Replace:

1. Disconnect power.

2. Remove 2 screws from the circular metal trim around the

3. Pull the trim and lamp assembly down far enough so that the

lamp can be pulled out of the socket clips.

4. Insert the new lamp into the socket clips and push the lamp

assembly back up into the hood.

5. Replace the screws.

6. Reconnect the power.

Cleaning Exterior surfaces: To avoid damage to the exterior surface,do not use steel wool or soap-filled scouring pads. Rub in direction of the grain line to avoid scratching the surface. Always wipe dry to avoid water marks. ■ Stainless Steel Cleaner and Polish.■ Mild liquid detergent and water.■ Wipe with damp soft cloth or nonabrasive sponge, then rinse with clean water and wipe dry. Metal Filters: For vented installations, use 2 hands to remove filters. Turn the knob to the left (counterclockwise) to release filter. Repeat with other filter. A. ControlsB. Light switchC. Blower switchD. Blower speed switch

A. Remove 2 screws.B. Pull trim with lamp assembly down.

B10 Wash metal filters as needed in dishwasher or hot detergent solution to clean.Reinstall the filter by placing the back edge in the channel at rear of hood. Push filter into place, turn the knob to the right (clockwise) to attach to range hood. Repeat with other filter. Recirculating Installation Filters: For recirculating installations, wash metal filters as needed in dishwasher or hot detergent solution to clean.Do not wash charcoal filter packs. Replace with Recirculation Kit Number 4396565.Remove the old charcoal filter:1. Rotate to the left (counterclockwise) and pull away from the blower cover and discard filter pack. Repeat for other filter.2. Place the charcoal filter against the blower cover and rotate to the right (clockwise) to attach to cover.3. Reinstall metal filter by placing back edge in channel at rear of range hood. Push filter up into place, turn the knob to the right (clockwise) to attach to range hood. Repeat with other filter. Accessories Optional installation kits are available from your dealer.Recirculation Kit Part Number 4396565 includes 2 charcoal filter packs and vent cover.

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below.When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new KITCHENAID

appliance. To locate factory specified parts in your area, call our Customer eXperience Center telephone number or your nearest designated service center. In the U.S.A. Call the KitchenAid Customer eXperience Center toll free: 1-800-422-1230.Our consultants provide assistance with:■ Features and specifications on our full line of appliances.■ Installation information.■ Use and maintenance procedures.■ Accessory and repair parts sales.■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).■ Referrals to local dealers, repair parts distributors and service companies. KitchenAid designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States.To locate the KitchenAid designated service company in your area, you can also look in your telephone directory Yellow Pages. For further assistance If you need further assistance, you can write to KitchenAid with any questions or concerns at:KitchenAid Brand Home AppliancesCustomer eXperience Center553 Benson RoadBenton Harbor, MI 49022-2692Please include a daytime phone number in your correspondence. In Canada Call the KitchenAid Canada Customer eXperience Centre toll free: 1-800-807-6777.Our consultants provide assistance with:■ Features and specifications on our full line of appliances.■ Use and maintenance procedures.■ Accessory and repair parts sales.■ Referrals to local dealers, repair parts distributors and service companies. KitchenAid Canada designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada. For further assistance If you need further assistance, you can write to KitchenAid Canada with any questions or concerns at:Customer eXperience CentreKitchenAid Canada1901 Minnesota CourtMississauga, Ontario L5N 3A7Please include a daytime phone number in your correspondence.A. Filter A11 KITCHENAID

VENTILATION WARRANTY LIMITED WARRANTY For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter “KitchenAid”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship. Service must be provided by a KitchenAid designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Outside the 50 United States and Canada, this limited warranty does not apply. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover: 1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage. 3. Repairs when your major appliance is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions. 4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by KitchenAid. 5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to KitchenAid within 30 days from the date of purchase. 6. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be repaired in the home and only in-home service is covered by this warranty.

7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

8. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized KitchenAid servicer is not available. 9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions. 10. Major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined. This warranty is void if the factory applied serial number has been altered or removed from your major appliance. The cost of repair or replacement under these excluded circumstances shall be borne by the customer. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE. If outside the 50 United States and Canada, contact your authorized KitchenAid dealer to determine if another warranty applies. If you need service, first see the “Troubleshooting” section of the Use & Care Guide. After checking “Troubleshooting,” you may find additional help by checking the “Assistance or Service” section or by calling KitchenAid. In the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777. 9/07 Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service. Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product. Dealer name____________________________________________________ Address ________________________________________________________ Phone number__________________________________________________ Model number __________________________________________________ Serial number __________________________________________________ Purchase date __________________________________________________12 WIRING DIAGRAM 2-Speed Models

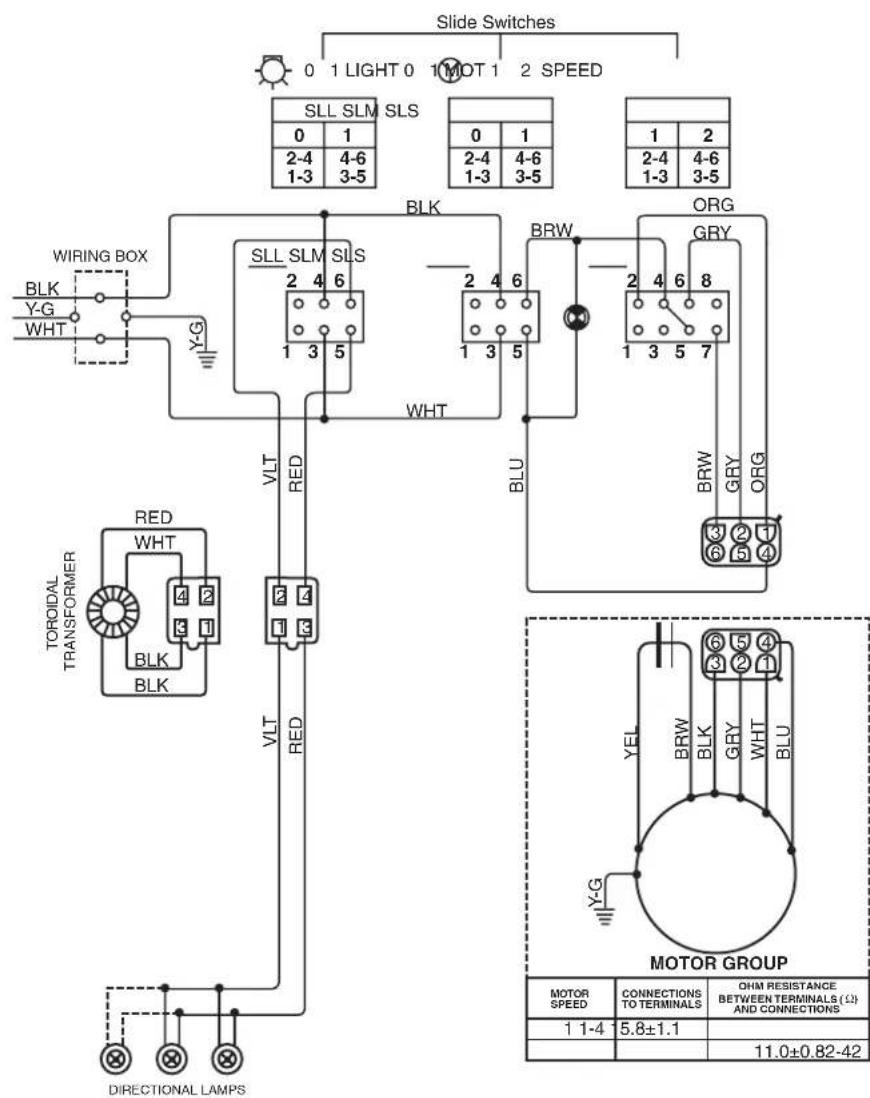

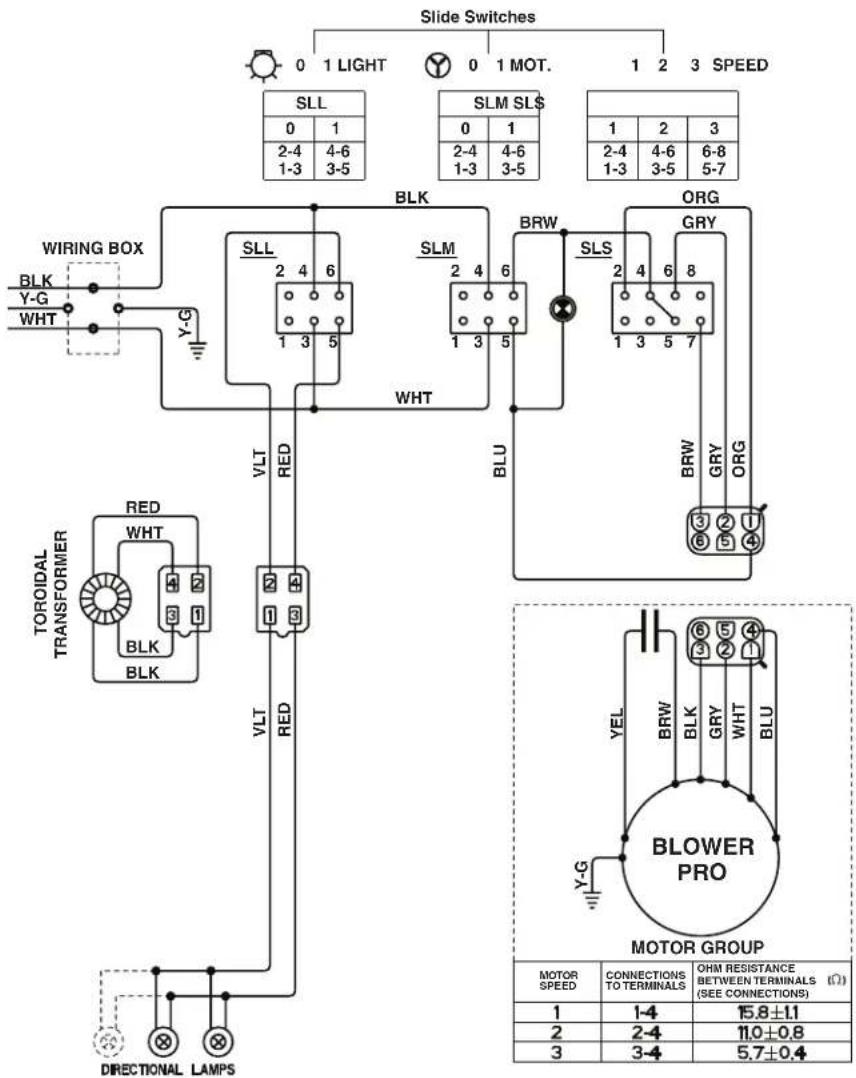

2-4 1-3 4-6 3-5 BLK SLM Slide Switches 0 1 LIGHT 0 1 MOT. SPEED SLM SLS
