USER MANUAL KXI9748YSS KITCHENAID

36" (91.4 CM) AND 48" (121.9 CM) DESIGNER COMMERCIAL-STYLE ISLAND- MOUNT CANOPY HOOD

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-800-422-1230

or visit our website at www.kitchenaid.com

In Canada, for assistance, installation and service, call: 1-800-807-6777

or visit our website at www.KitchenAid.ca

HOTTE D'EXTRACTION STYLISÉE POUR APPLICATIONS COMMERCIALES DE 36" (91,4 CM) ET 48" (121,9 CM) POUR CUISINE CONFIGURÉE EN ÎLOT

Isometric line drawing of three stacked rectangular blocks on a stepped base (no text or symbols)

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS.

POUR UTILISATION RÉSIDENTIELLE UNIQUEMENT.

TABLE OF CONTENTS

RANGE HOOD SAFETY 2

INSTALLATION REQUIREMENTS......4

Tools and Parts 4

Location Requirements....4

Venting Requirements....5

Electrical Requirements 6

INSTALLATION INSTRUCTIONS....7

Prepare Location....7

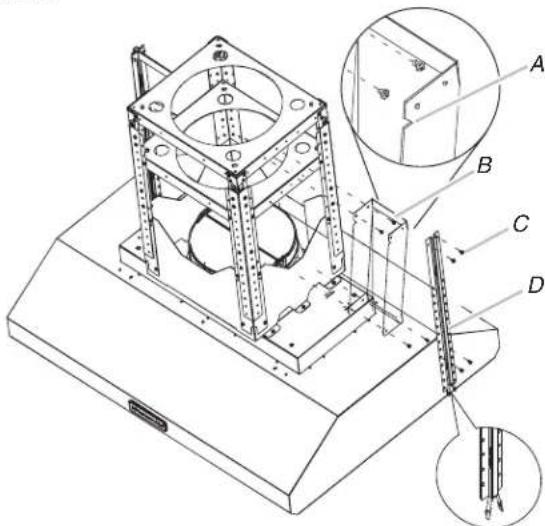

Install Range Hood....7

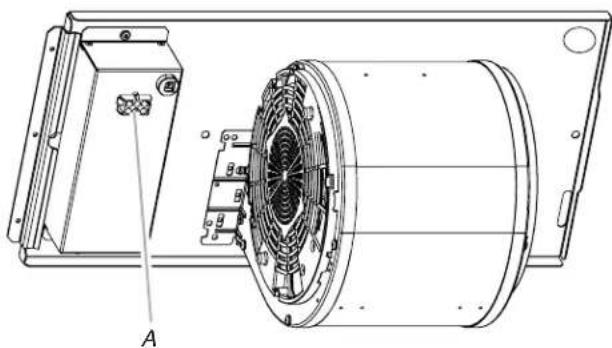

Install Range Hood Internal Blower Motor....9

Install Range Hood In-Line (External Type)

Blower Motor....11

Make Electrical Connections for In-Line Blower

Motor System....12

Make Electrical Power Supply Connection to Range Hood .....14

Install Chimney Covers 14

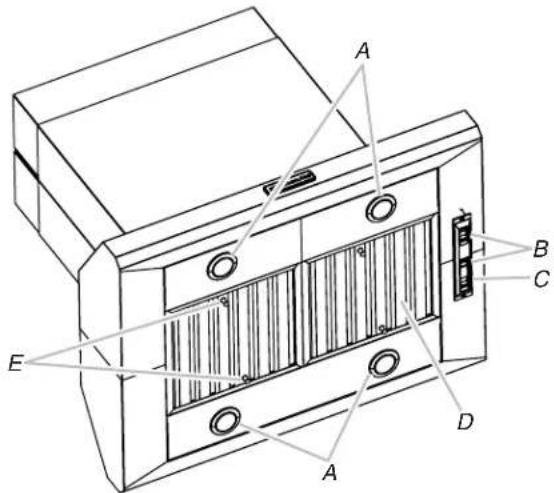

Complete Installation and Check Operation....15

RANGE HOOD USE....15

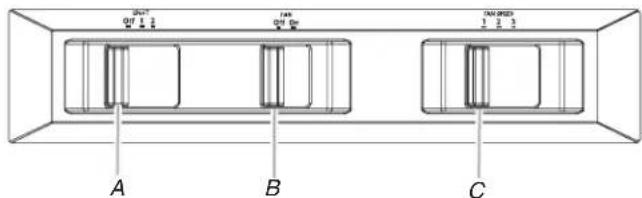

Range Hood Controls ....16

RANGE HOOD CARE....16

Cleaning....16

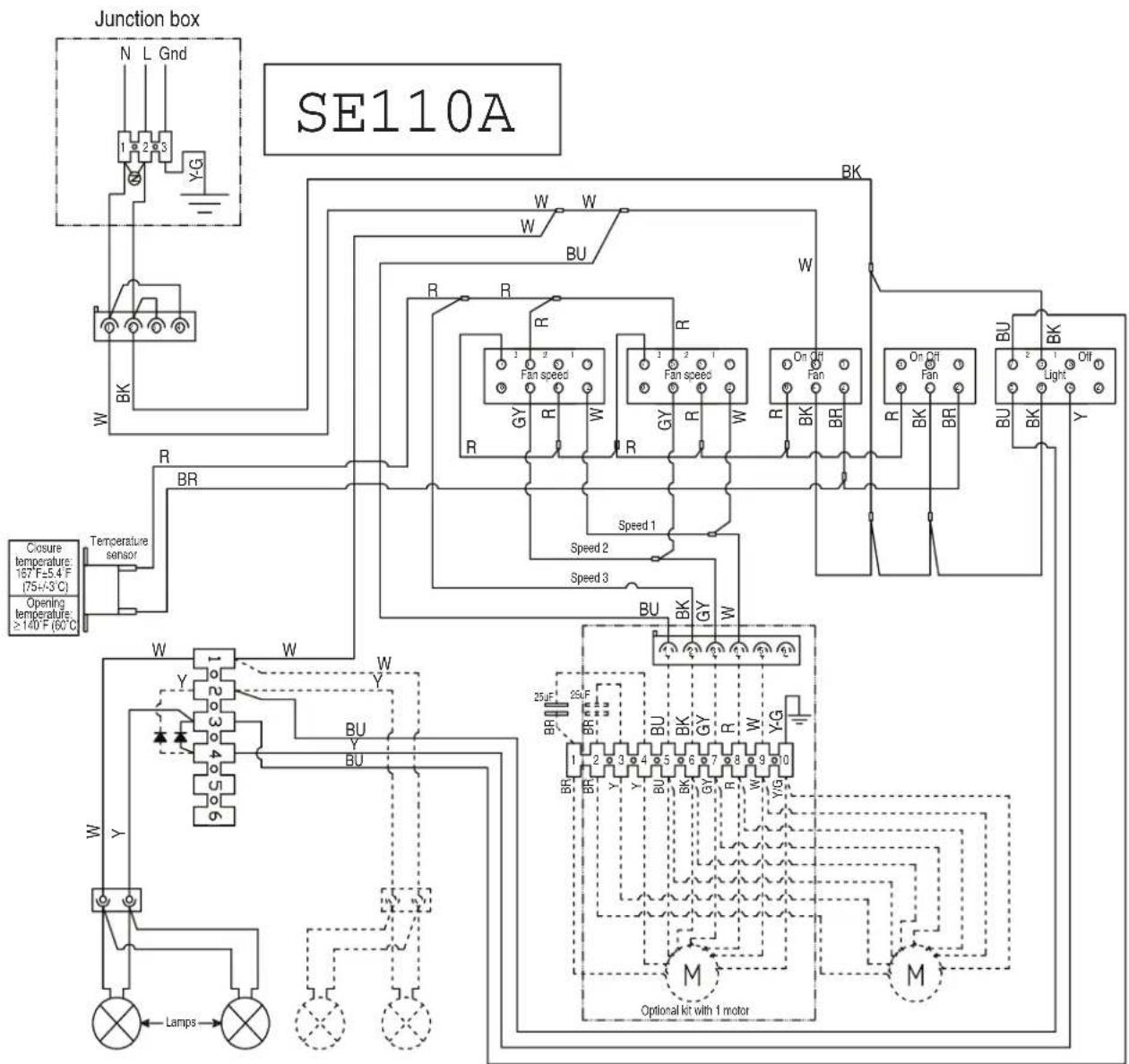

WIRING DIAGRAM 17

ASSISTANCE OR SERVICE....18

In the U.S.A. 18

In Canada 18

Accessories....18

WARRANTY 19

TABLE DES MATIÈRES

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE .....20

EXIGENCES D'INSTALLATION....22

INSTRUCTIONS D'INSTALLATION....26

ASSISTANCE OU SERVICE....38

Au Canada....38

Accessoires ....38

GARANTIE....39

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
■ Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

■ When cutting or drilling into wall or ceiling; do not damage electrical wiring and other utilities.

■ Ducted fans must always be vented outdoors.

CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ^a

■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

■ NEVER PICK UP A FLAMING PAN - you may be burned.

■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

■ Use an extinguisher ONLY if:

• You know you have a class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
  – The fire department is being called.
• You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

■ WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the safety instructions provided with any tools listed here.

Tools needed

Level
Drill
■ 1¼" (3.0 cm) drill bit
■ Pilot hole drill bits (determined by chimney support attachment method)
■ 316 " (5 mm) drill bit if installing in-line blower motor system
■ Pencil
■ Wire stripper or utility knife
■ Tape measure or ruler
■ Pliers
■ Caulking gun and weatherproof caulking compound
■ Jigsaw or keyhole saw
■ Flat-blade screwdriver
■ Phillips screwdriver
■ Vent clamps
■ Metal snips

Parts needed

■ 1 UL listed or CSA approved, 12 " (12.5 mm) strain relief
■ 3 UL listed wire connectors
■ Home power supply cable
■ 4 Concrete anchors for 14 " x 4" hex head lag bolts (for concrete installation)
■ 1 Wall or roof cap
■ Metal vent system
■ Blower motor system - internal or external (See “Blower Motor System” in the “Accessories” section.)

Parts supplied

Remove parts from packages. Check that all parts were included.

■ Hood canopy assembly with ventilator and light bulbs installed
■ 2 Grease Filters for 36" (91.4 cm) models 3 Grease Filters for 48" (121.9 cm) models
■ Mounting template
■ 2 Support brackets
■ 8 Vertical supports
■ 2 Vent cover supports
■ 2 Upper chimney covers
■ 2 Lower chimney covers (front and rear)
■ Upper horizontal support bracket

■ Horizontal support
■ 4 - 5 x 45 mm mounting screws
■ 72 - 4.2 x 8 mm mounting screws
■ T-20 TORX ^4 adapter

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Have a qualified technician install the range hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located inside the range hood on the rear wall of the range hood.

Island hood location should be away from strong draft areas, such as windows, doors and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.

It is recommended that the hood be fastened into solid wood.

The island hood is factory set for venting through the roof or through the wall.

All openings in ceiling and where island hood will be installed must be sealed.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes.

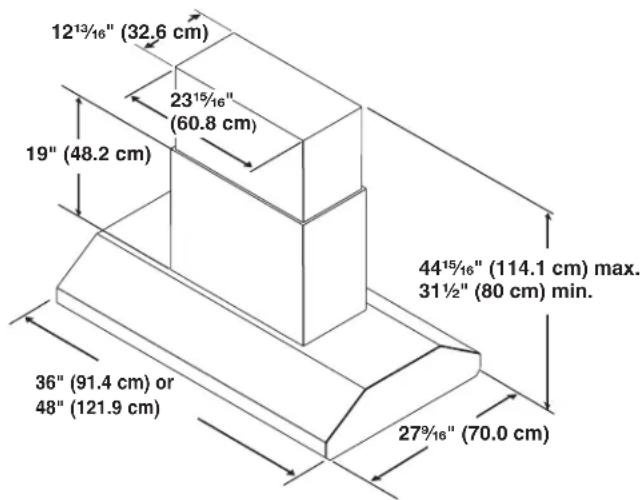

Product Dimensions
Vented Installations

12¹³/₁₆" (32.6 cm) 23¹⁵/₁₆" (60.8 cm) 19" (48.2 cm) 44¹⁵/₁₆" (114.1 cm) max. 31½" (80 cm) min. 36" (91.4 cm) or 48" (121.9 cm) 27⁹/₁₆" (70.0 cm)

†®TORX is a registered trademark of Saturn Fasteners, Inc.

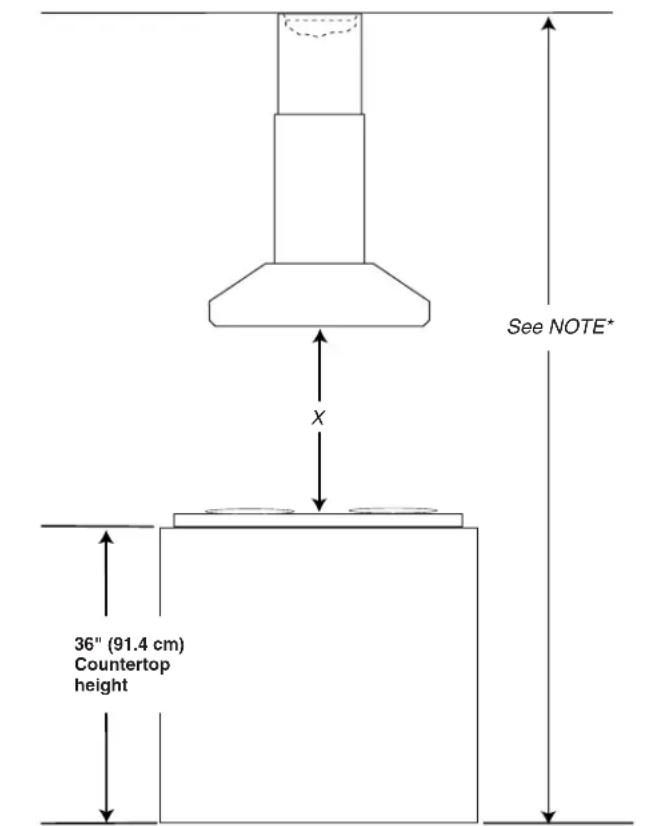

Installation Clearances

See NOTE* X 36" (91.4 cm) Countertop height

IMPORTANT:

Minimum distance "X": 24" (61.0 cm) to electric cooking surface

Minimum distance "X": 30" (76.2 cm) to gas cooking surface Suggested maximum distance "X": 36" (91.4 cm)

The chimneys can be adjusted for different ceiling heights. See the following chart.

	Vented Installations
	Min. ceiling height	Max. ceiling height
Electric cooking surface	7' 8" (2.34 m)	9' 8" (2.95 m)
Gas cooking surface	8' 2" (2.49 m)	9' 8" (2.95 m)

*NOTE: The hood chimneys are adjustable and designed to meet varying ceiling or soffit heights depending on the distance "X" between the bottom of the hood and the cooking surface. For higher ceilings an extension kit (Part Number W10352732) is available, see your dealer. The chimney extension replaces the upper chimney shipped with the hood.

Venting Requirements

■ Vent system must terminate to the outside.
■ Do not terminate the vent system in an attic or other enclosed area.
■ Do not use 4" (10.2 cm) laundry-type wall caps.
■ Use metal vent only. Rigid metal vent is recommended. Do not use plastic or metal foil vent.
■ The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood.

For the most efficient and quiet operation:

■ Use no more than three 90° elbows.
■ Make sure there is a minimum of 24" (61 cm) of straight vent between the elbows if more than 1 elbow is used.
■ Do not install 2 elbows together.
■ Use clamps to seal all joints in the vent system.
■ Use caulking to seal exterior wall or roof opening around the cap.
■ The size of the vent should be uniform.

Cold Weather Installations

An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.

Venting Methods

Typical Internal Blower Motor System Venting Installations A 10" (25.4 cm) round vent system is needed for installation (not included). The hood exhaust opening is 10" (25.4 cm) round.

NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance.

Vent system can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.

Roof Venting Wall Venting

A B

A. Roof cap
B. 10" (25.4 cm) round vent

Technical diagram showing a structural assembly with labeled components A and B, likely for engineering or mechanical design.

A. Wall cap
B. 10" (25.4 cm) round vent

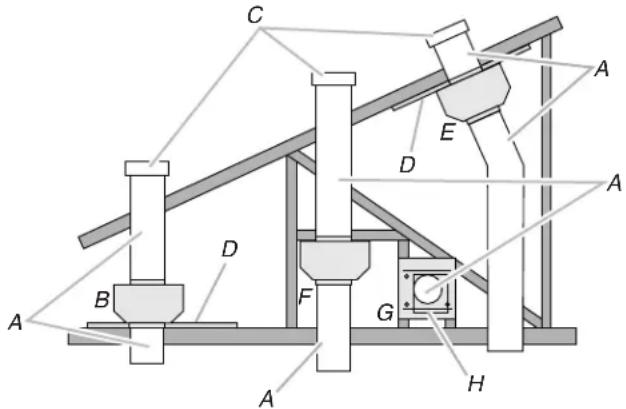

Typical In-line Blower Motor System Venting Installations

Technical diagram of a mechanical or structural assembly with labeled components A through H, likely from an engineering or physics context.

A. 10" (25.4 cm) round vent
B. Mount on top of ceiling joists.
C. Roof caps
D. Plywood (optional for some installations)
E. Mount on underside of roof rafters.
F. Mount from cross-members tied to trusses.
G. Duct horizontal; mount to cross-members tied to trusses.
H. Wall cap

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Vent piece

45° elbow 2.5 ft

(0.8 m)

90° elbow 5.0 ft

(1.5 m)

The maximum equivalent vent lengths are:

10" (25.4 cm) round vents - 60 ft (18.3 m)

Example Vent System

90° elbow 6 ft (1.8 m) Wall cap 2 ft (0.6 m)

The following example falls within the maximum vent length of 60 ft (18.3 m).

1 - 90° elbow = 5.0 ft (1.5 m)

1 - wall cap = 0.0 ft (0.0 m)

8 ft (2.4 m) straight = 8.0 ft (2.4 m)

System length = 13 ft (3.9 m)

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.
■ If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

■ Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial rating plate. The model/serial plate is located behind the filter on the rear wall of the range hood.
■ Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

INSTALLATION INSTRUCTIONS

Prepare Location

■ It is recommended that the vent system be installed before the range hood is installed.
■ Before making cutouts, make sure there is proper clearance within the ceiling for exhaust vent.
■ Range hood is to be installed 24" (61.0 cm) min. for electric cooking surfaces, 30" (76.2 cm) min. for gas cooking surfaces, to a suggested maximum of 36" (91.4 cm) above the cooking surface.
■ Check your ceiling height and the range hood height maximum before you select your hood.

1. Disconnect power.
2. Determine which venting method to use: roof or wall.
3. Select a flat surface for assembling the range hood. Place covering over that surface.

WARNING

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

1. Using 2 or more people, lift range hood onto covered surface.

2. Remove knockout in the back of the terminal box and install a UL listed or CSA approved 12 " strain relief.

Range Hood Mounting Screws Installation

1. Determine and mark the centerline on the ceiling where the range hood will be installed, considering the requirements for ceiling support structures. See the "Location Requirements" section. Make sure the range hood is centered over the cooking surface.
2. Tape template in place on the ceiling at the marked centerline.

Hand placing a square plate with a grid pattern on top, against a plain background (no text or symbols)

1. Use a pencil to mark the mounting screws, wire access and duct hole locations on the ceiling.

NOTE: Mounting hole locations should be into the ceiling support structure.

Remove the template.

1. Drill 4 - 3/16" (4.8 mm) pilot holes for mounting the upper horizontal support.

Complete Preparation

1. Determine the required location for the home power supply cable and drill a 12 " (1.3 cm) diameter hole for wire access.

2. Run wire through the home power supply cable according to the National Electrical Code or CSA Standards and local codes and ordinances. There must be enough 12 " conduit and wires from the fused disconnect (or circuit breaker) box to make the connection in the hood's electrical terminal box. NOTE: Do not reconnect power until installation is complete.

3. Use caulk to seal all openings.

4. Using a jigsaw or keyhole saw, cut a 10 ^1/4 " (26.0 cm) diameter hole for the vent duct.
5. Attach the upper horizontal support bracket with 4 - 5 x 45 mm wood screws.

Hand holding a tool with a small component labeled A, against a plain background (no text or symbols)

A. Upper horizontal support

IMPORTANT: All screws must be installed into wood. If there is no wood to screw into, additional wall framing supports may be required.

Install Range Hood

NOTE: Your range hood requires you to purchase either an internal type or an in-line (external type) blower motor system.

For internal blower systems, there are blower motor mounting parts in the blower motor installation packet that must be added to the range hood prior to mounting the range hood to the ceiling. See the "Install Range Hood Internal Blower Motor" section and the instructions supplied with the blower motor.

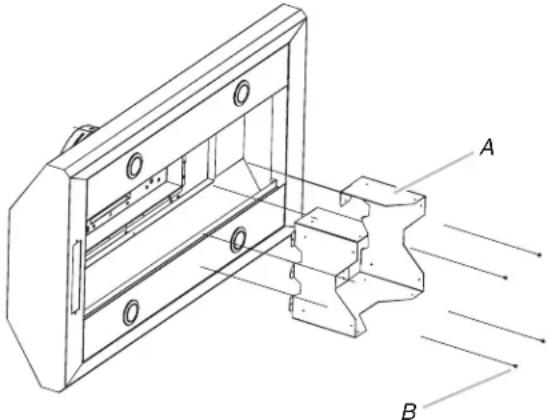

1. Before installing the range hood, remove the lower support bracket that is secured with 4 screws on the inside of the range hood.

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and flow direction arrows.

A. Lower support bracket
B. 4 - 4.2 x 8 mm mounting screws

1. Install the transition piece using 3 - 4.2 x 8 mm mounting screws to the range hood canopy.

2. Install the lower support bracket removed in Step 1 using the 10 - 4.2 x 8 mm mounting screws to the range hood canopy.

Technical diagram showing a mechanical assembly with labeled components A, B, and C, including a downward arrow indicating process flow.

A. Lower support bracket
B. 4.2 x 8 mm mounting screws
C. Transition piece

1. Position the 4 vertical supports (A) with the notches at the bottom and attach to the range hood using 16 - 4.2 x 8 mm screws.

2. Attach the horizontal support (B) to the vertical supports (A) in either the first or third set of holes from the top of the vertical supports.

A B A C C

A. Vertical supports
B. Horizontal support
C. Notched end

1. Attach a second set of vertical supports (A) and set the vertical height (B). See "Installation Clearances" in the "Location Requirements" section to help determine the desired dimension for vertical height "B."

A A B

A. Vertical supports
B. Vertical height

1. Attach the range hood assembly to the upper horizontal support attached to the ceiling using 16 - 4.2 x 8 mm screws and tighten.

A

A. Mounting screws

1. Install the 4 supports using 8 - 4.2 x 8 mm screws.

NOTE: The notch in the supports (B) must be to the external side when mounted.

1. Attach the vertical duct cover supports using 4 - 4.2 x 8 mm screws.

Technical diagram of a mechanical assembly with labeled components A, B, C, D and an inset view showing a cross-sectional view.

A. Notch in support
B. Support
C. 4.2 x 8 mm screws
D. Vertical duct cover support

Connect Vent System

1. Install vent system.

2. Push duct over the exhaust outlet. Seal all connections with vent clamps.

Install Range Hood Internal Blower Motor

NOTE: Your range hood requires you to purchase either an internal type or an in-line (external type) blower motor system. See "Blower Motor System" in the "Accessories" section.

Prepare the Internal Blower System

IMPORTANT: Perform steps 1-4 before mounting the range hood.

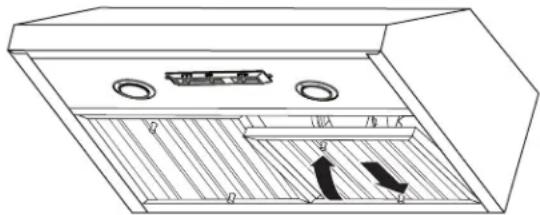

1. Remove grease filters from range hood. See the "Range Hood Care" section in the Use and Care Guide.
2. Install the motor support bracket using three 4.2 x 8 mm screws. Screw bracket to the inside top or back (alternate location on some models), toward the left side of the range hood.
3. Install motor spring clip using two 4.2 x 8 mm screws. Screw spring clip to the inside top or back (alternate location on some models) of the range hood at the proper location for the selected motor system. Slide the mounting tab of the spring clip through the slot in the panel and secure with the screws. Use the inside set of mounting holes for the single motor system. Use the outside set of mounting holes for the dual motor system.

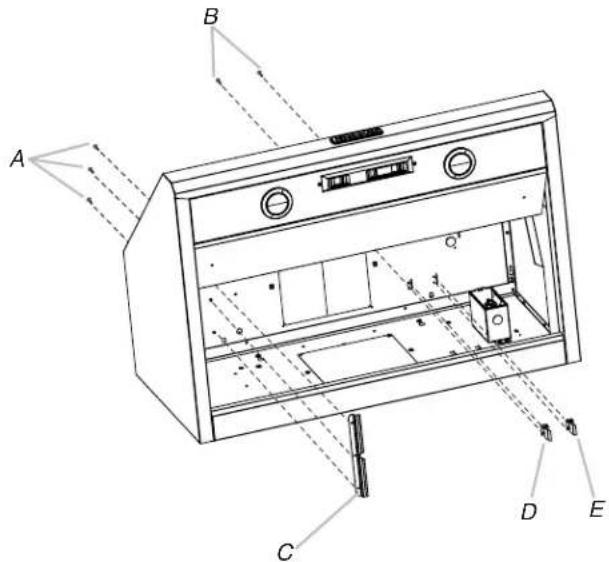

Technical diagram of a refrigerator with labeled parts A, B, C, D, E and internal compartments

A. 4.2 x 8 mm screws (3) for motor support bracket
B. 4.2 x 8 mm screws (2) for motor spring clip
C. Motor support bracket
D. Motor spring clip (single motor assembly location)
E. Motor spring clip (dual motor assembly location)

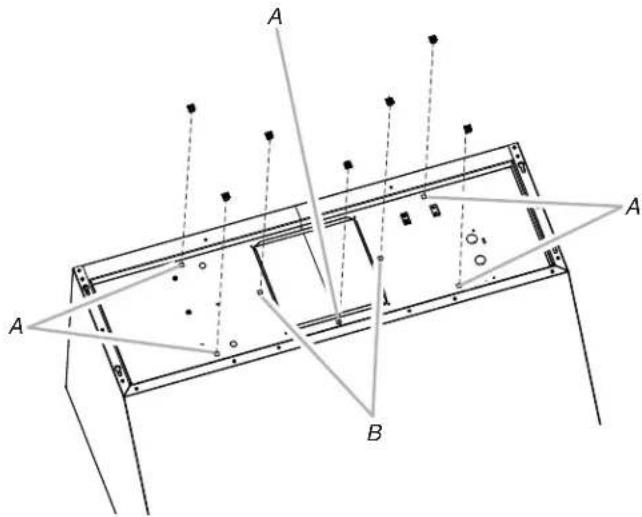

1. Install the 6 mm nuts to the outside top or outside back (alternate location on some models) of the range hood at the proper location for the selected motor system.

■ Two 6 mm nuts are required for the single motor system. Clip nuts into the small square notches located at the left and right end of the square vent opening.

■ Five 6 mm nuts are required for the dual motor system. Clip nuts into the small square notches, one located in the front of the square vent opening and the other four located at the left and right ends of the square vent opening.

Technical diagram showing a mechanical assembly with labeled components A and B, and alignment indicators.

A. Clip nut (6 mm) locations for dual motor assembly (quantity 5)
B. Clip nut (6 mm) locations for single motor assembly (quantity 2)

1. Mount range hood. See the "Install Range Hood" section.

Install Range Hood Internal Blower Motor

1. Install the range hood blower motor assembly inside the range hood canopy with the wiring connection to the left for the single motor system and to the front or top for the dual motor system.

Single Blower Motor Assembly

Technical line drawing of an electric motor assembly with labeled component A (no text or symbols beyond label)

A. Wiring connection

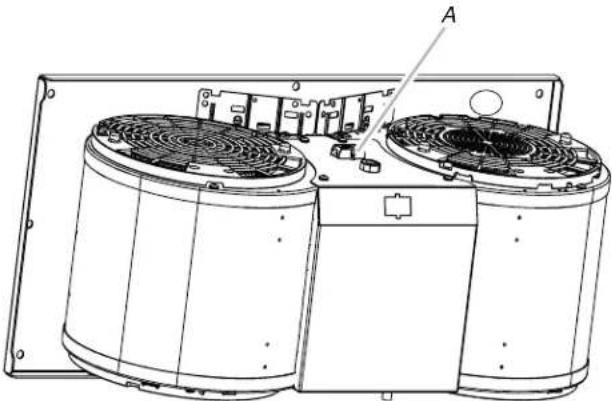

Dual Blower Motor Assembly

Technical line drawing of a dual air conditioning unit with fan and cooling fans (no text or symbols)

A. Wiring connection

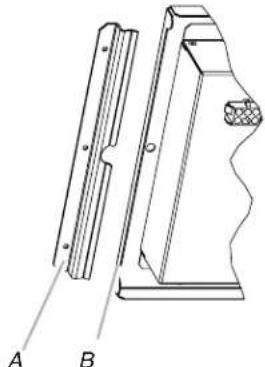

1. Slide the left mounting plate flange under the motor mounting bracket.

Technical line drawing of a mechanical bracket with labeled parts A and B (no text or symbols beyond labels)

A. Motor mounting bracket
B. Mounting plate left flange

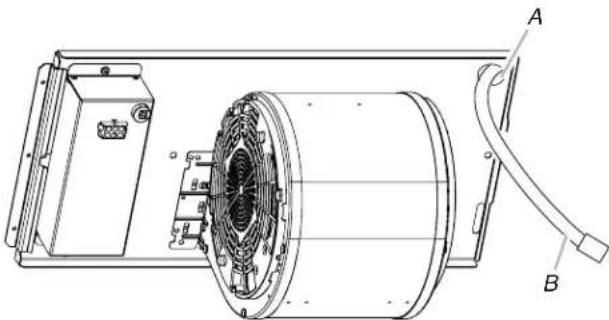

1. Run the power supply wires and connector from the range hood through the hole in the right end of the motor mounting plate.

Technical line drawing of an electric motor assembly with labeled components A and B (no text or symbols beyond labels)

A. Motor mounting plate hole
B. Power supply wires and connector

1. Push the right end of the motor mounting plate up and snap it into the spring tab.

NOTE: The spring tab should be outside the slot in the mounting plate.

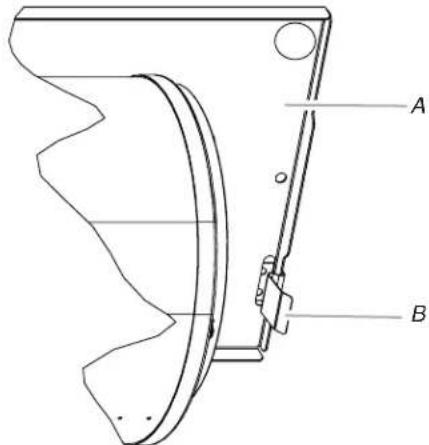

A B

A. Motor mounting plate
B. Spring clip

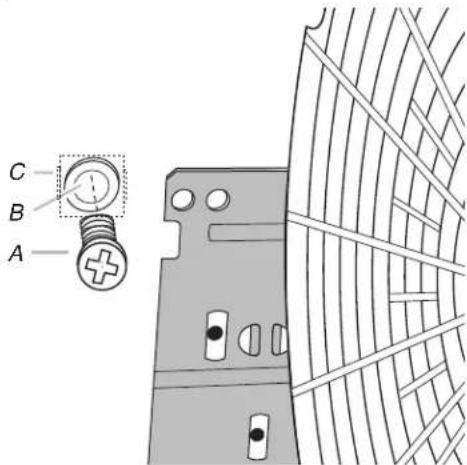

1. Align mounting holes in motor mounting plate with motor mounting clip nuts and install 6 x 16 mm screws and 6.4 mm lock washers (quantity 2 for single motor; quantity 5 for dual motor).

C B A

A. Screw with lock washer
B. Mounting hole in motor mounting plate
C. Clip nut (6 mm)

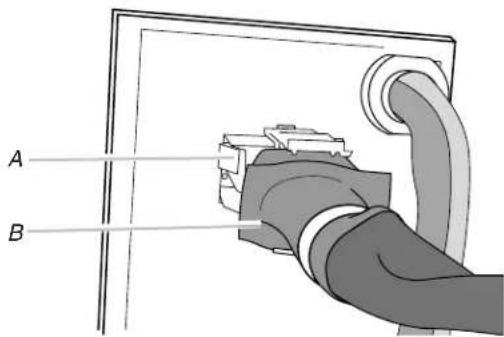

1. Attach power supply connector from the range hood to the connector on the blower motor assembly wiring box.

A B

A. Wiring box connector
B. Power supply connector from range hood

1. Go to the "Make Electric Power Supply Connection to Range Hood" section.

Install Range Hood In-Line (External Type) Blower Motor

NOTE: Your range hood requires you to purchase either an internal type or an in-line (external type) blower motor system. See “Blower Motor System” in the “Accessories” section.

Prepare for Mounting the In-Line Blower System

The in-line blower system must be fastened to a secure structure of the roof, ceiling, wall, floor, or new or existing frame construction. The 4 holes on either the inlet (bottom) side or the outlet (top) side of the blower must be used to mount the in-line blower system to the structure.

NOTE: The mounting hole locations must span the studs. Additional stud framing may be required. Plywood may be used to span open areas between ceiling joists or roof rafters to aid installation. This structure must be strong enough to support the weight of the in-line blower system (50 lb [22.6 kg] min).

Prepare the In-line Blower System

WARNING

Excessive Weight Hazard

Use two or more people to move and install in-line blower motor system.

Failure to do so can result in back or other injury.

1. Using 2 or more people, move the in-line blower motor system to the mounting location.
2. Remove the 10 screws from the front cover of the in-line blower motor housing and set them aside.
3. Remove the front cover of the in-line blower motor housing and set it aside.
   NOTE: To make the blower motor housing easier to mount, the blower motor assembly can be removed. If you do not want to remove the blower motor assembly, proceed to "Install In-line Blower System" in this section.
4. Disconnect the motor electrical plug from the blower motor assembly.

5. Remove the screws that secure the blower motor assembly to the in-line blower housing and set them aside.

6. Pull the spring clip to release the blower motor assembly. Remove the blower motor assembly from the housing and place it on a covered surface.

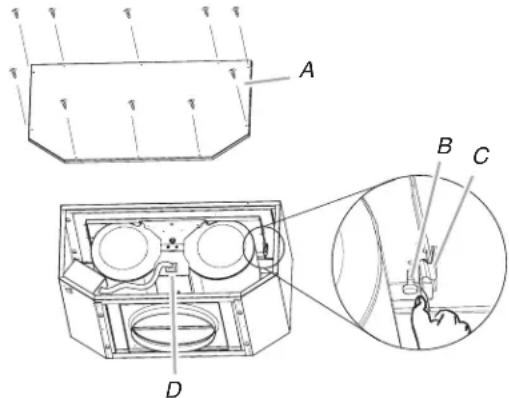

A B C D

A. Front cover
B. Blower mounting screws
C. Spring clip
D. Motor electrical plug

Install In-line Blower System

NOTE: The blower motor housing can be mounted using 4 holes from either the inlet side or the outlet side of the blower.

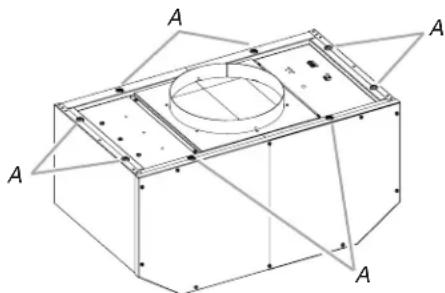

Outlet Side

Technical line drawing of a mechanical housing or enclosure with labeled components (A), showing internal components and mounting points (no text or symbols present)

A. Mounting holes

Inlet Side

Technical line drawing of a mechanical assembly with labeled points A and a central circular feature (no text or symbols beyond labels)

A. Mounting holes

1. Position the in-line blower motor housing in its mounting location and mark the 4 mounting hole locations.
2. Drill 4 mounting pilot holes using a 316 " (0.48 cm) drill bit.
3. Attach the in-line blower motor housing to the mounting location with four 6 x 80 mm mounting screws and washers.
4. If it is removed, reinstall the blower motor assembly and secure it with the screws previously removed.
5. If it is removed, reattach the motor electrical plug to the connector on the blower motor assembly.

Complete Preparation

1. Determine and make all necessary cuts for the vent system.
   IMPORTANT: When cutting or drilling into the ceiling or wall, do not damage electrical wiring or other hidden utilities.
2. Determine the location where the 12 " (1.3 cm) wiring conduit will be routed through the ceiling or wall.
3. Drill a 1¼" (3.2 cm) hole at this location.

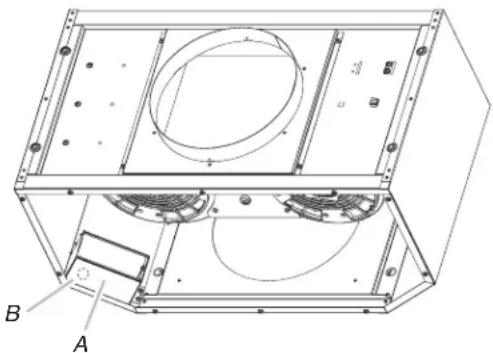

4. Locate the electrical terminal boxes in the in-line blower housing and range hood. Remove the terminal box covers and set the covers and screws aside.

Technical line drawing of a mechanical housing or enclosure with labeled components A and B (no text or symbols beyond labels)

A. Electrical terminal box
B. Electrical knockout

1. Remove the electrical knockout from the in-line blower housing and range hood to prepare for the installation of the UL listed or CSA approved 12 " (1.3 cm) wiring conduit and conduit connector.
2. With the range hood mounted (see the "Install Range Hood" section), run the 12 " (1.3 cm) wiring conduit between the in-line blower motor housing and the range hood. Pull enough 12 " (1.3 cm) wiring conduit to allow for easy connection to the terminal boxes in the in-line blower housing and range hood.
3. Run the six 18 AWG wires through the 12'' (1.3 cm) wiring conduit and conduit connectors and into the terminal boxes on the in-line blower housing and range hood. Leave enough wire length in each terminal box to make the wiring connections.
4. Install the conduit connectors and conduit to the in-line blower housing and range hood electrical terminal boxes.
5. Connect the vent system to the range hood and in-line blower system and seal all joints with clamps.

Make Electrical Connections for In-Line Blower Motor System

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

Electrical Connection Inside In-line Blower System

1. Disconnect power.

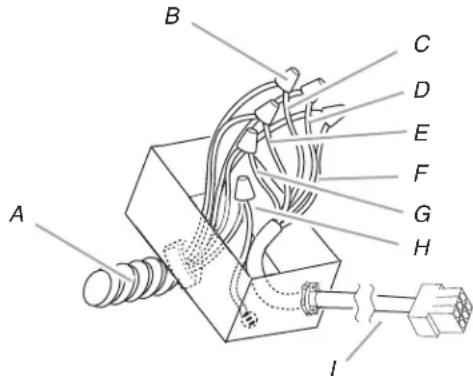

2. Connect the wires from the wiring conduit to the wires from the motor electrical plug cable inside the in-line blower housing terminal box.

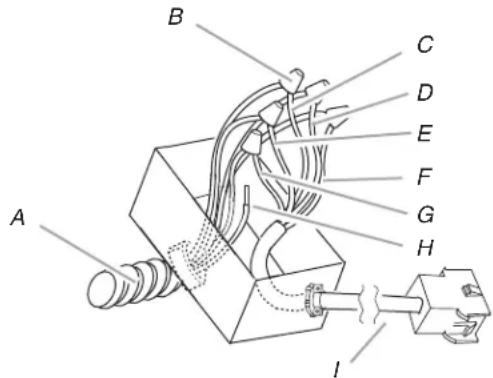

A B C D E F G H I

A. UL listed or CSA approved 12 (1.3 cm) wiring conduit
B. UL listed wire connectors
C.Black wires
D. White wires
E. Red wires

F. Blue wires

G. Gray wires

H. Green (or yellow/green) and green/yellow wires

I. Motor electrical plug cable

1. Use UL listed wire connectors and connect the black wires (C) together.
2. Use UL listed wire connectors and connect the white wires (D) together.
3. Use UL listed wire connectors and connect the red wires (E) together.
4. Use UL listed wire connectors and connect the blue wires (F) together.
5. Use UL listed wire connectors and connect the gray wires (G) together.

WARNING

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

1. Connect the green (or yellow/green) ground wire to the green/yellow ground wire (H) in the terminal box using UL listed wire connectors.
2. Reinstall the in-line blower terminal box cover and screw.
3. Reinstall the front cover of the in-line blower housing and secure it with 10 mounting screws.

Electrical Connection Inside Range Hood Between In-line Blower System and Range Hood

1. With the range hood mounted (see the "Install Range Hood" section), locate the wiring cable connector inside the range hood.
2. Connect the 6-wire connector assembly supplied with the in-line blower motor system to the mating cable connector from the range hood.

1. Locate the terminal box inside the range hood and install a 12 " (1.3 cm) UL listed or CSA approved strain relief (see "Complete Preparation" in the "Prepare Location" section).

2. Run the wire ends from the 6-wire connector assembly through the 12 " (1.3 cm) strain relief, leaving enough wire length to make the wiring connections. Tighten the strain relief screws.

3. Connect the wires from the 6-wire connector assembly to the wires from the wiring conduit inside the range hood terminal box.

4. Connect the same color wires to each other (black to black, white to white, etc.) using UL listed wire connectors.

NOTE: Connect the green (or green/yellow) ground wire from the wiring conduit to the green (or bare) ground wire from the home power supply using UL listed wire connectors (see the "Make Electrical Power Supply Connection to Range Hood" section).

A B C D E F G H I

A. UL listed or CSA approved 12 (1.3 cm) wiring conduit
B. UL listed wire connectors
C. Black wires
D. White wires
E. Red wires

F. Blue wires
G. Gray wires
H. Green (or green/yellow) wire
1. 6-wire connector assembly

1. Go to "Make Electrical Power Supply Connection to Range Hood" section.

Make Electrical Power Supply Connection to Range Hood

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.

2. Locate terminal box on top of the range hood.

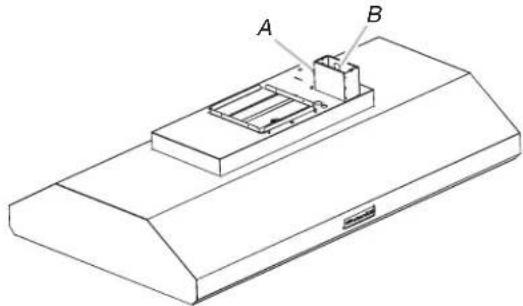

Technical line drawing of a roof-mounted device with labeled components A and B (no text or symbols beyond labels)

A. Back of terminal box
B. Top of terminal box

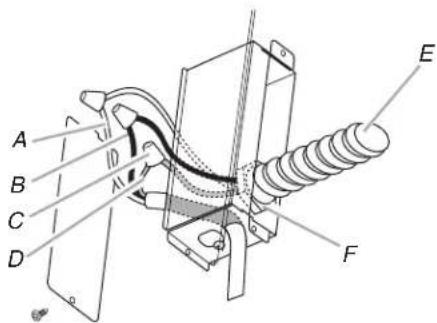

A B C D E F

A. White wires
B. Black wires
C. UL listed wire connectors
D. Green, bare or yellow/green wires
E. Home power supply
F. UL listed or CSA approved 1/2" (1.3 cm) strain relief

1. Use UL listed wire connectors and connect black wires (B) together.

2. Use UL listed wire connectors and connect white wires (A) together.

WARNING

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

NOTE: When using an In-line blower motor system, the green (or green/yellow) ground wire in the conduit from the In-line blower motor system is to be connected with the green (or bare) wire of the home power supply cable and with the green/yellow wire (D) in the terminal box.

1. Connect green (or bare) ground wire from home power supply to the green/yellow ground wire (D) in terminal box using UL listed wire connectors.

2. Install terminal box cover.

3. Check that all light bulbs are secure in their sockets.

4. Reconnect power.

Install Chimney Covers

Chimney Cover Installation

1. Remove the plastic covering from the chimney covers.

2. Slide upper chimney covers into place until springs "click."

A B

A. Upper chimney cover
B. Spring

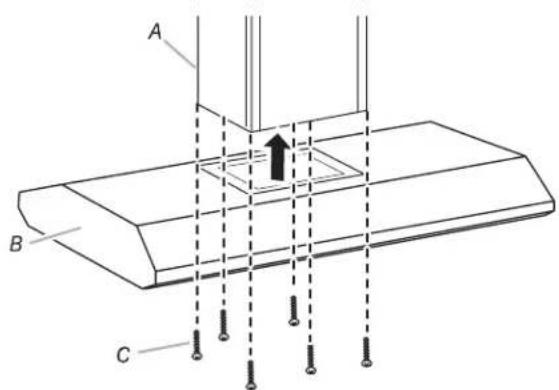

1. Install the lower chimney covers over the upper chimney covers and slide them down to the top surface of the range hood canopy.

2. Secure the lower chimney covers to the range hood canopy using 6 - 4.2 x 8 mm screws.

A B C

A. Lower chimney covers

B. Range hood canopy

C. 6 - 4.2 x 8 mm screws

Chimney Extension Kit Installation (optional)

1. Remove the plastic covering from the chimney covers.

2. Discard the upper chimney cover supplied with the hood.

3. Slide upper chimney covers from the chimney extension kit into place until springs "click."

A B

A. Upper chimney cover

B. Spring

1. Install the lower chimney covers over the upper chimney covers and slide them down to the top surface of the range hood canopy.

2. Secure the lower chimney covers to the range hood canopy using 6 - 4.2 x 8 mm screws.

A B C

A. Lower chimney covers

B. Range hood canopy

C. 6 - 4.2 x 8 mm screws

Complete Installation and Check Operation

1. Install grease filters. See "Range Hood Care" section.

2. Check operation of the range hood blower and lights. See "Range Hood Use" section.

Technical diagram of a device with labeled components A, B, C, D, E and internal structure

A. Halogen lights

B. Blower control switches

C. Halogen light switch

D. Grease filter

E. Grease filter handles

1. If range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown. Disconnect power supply and check that the wiring is correct.

NOTE: To get the most efficient use from your new range hood, read the "Range Hood Use" section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

The hood controls are located on the underside of the range hood.

A B C OUT 1/2 OUT 0/2 TAIN RED 1 2 3

A. Light control

B. Blower control

C. Fan speed control

Range Hood Controls

Operating the light

1. Move the light switch to the "1" position to turn range hood light to night light setting.
2. Move the light switch to the "2" position to turn range hood light to full light setting.
3. Move the light switch to the "Off" position to turn range hood light OFF.

Operating the fan

1. Move the fan switch to the "On" position to turn the fan ON. The fan will begin operating at the speed set on the fan speed switch.
2. Move the fan switch to the "Off" position to turn the fan OFF.

Auto On Fan

The range hood is equipped with a sensor to automatically turn on the fan when excessive heat is detected in the control area. When the fan switch is in the "Off" position, this sensor will turn the fan to high speed when necessary. When the heat decreases, the fan will turn off.

When the fan switch is in the "On" position, the heat sensor is not active and the range hood functions normally.

Adjusting the fan

The fan has 3 speed controls. Move the fan speed switch to "1" position for low speed, "2" position for medium speed, or "3" position for high speed.

Thermal Protector

The range hood is equipped with a thermal protector to avoid overheating conditions. If the range hood shuts off while in use, move fan slider switch to Off to turn off the range hood. Wait approximately 60 minutes, then move slider to On to restart the range hood.

RANGE HOOD CARE

Cleaning

IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filters before operating hood.

Exterior Surfaces:

To avoid damage to the exterior surface, do not use steel wool or soap-filled scouring pads.

Always wipe dry to avoid water marks.

Cleaning Method:

■ Liquid detergent soap and water, or all-purpose cleanser
■ Wipe with damp soft cloth or nonabrasive sponge, then rinse with clean water and wipe dry.

Metal Grease Filter

To Remove Metal Grease Filters:

1. Use 2 hands to remove the metal grease filters. Grasp filter handles, push toward the rear of the range hood and pull down on the front handle to remove.

Technical line drawing of a cabinet or enclosure with internal compartments and ventilation ducts (no text or symbols)

1. Repeat for each grease filter.
2. Wash metal grease filters as needed in a dishwasher or hand wash in a hot detergent solution to clean.

To Reinstall Metal Grease Filters:

1. Grasp filter handles and place rear of filter into rear track.
2. Push down on the rear handle and set the front of the grease filter into the front track to secure.
3. Repeat for each filter.

Replacing a Halogen Lamp

Turn off the range hood and allow the halogen lamp to cool. To avoid damage or decreasing the life of the new lamp, do not touch lamp with bare fingers. Replace lamp, using tissue or wearing cotton gloves to handle lamp.

If new lamps do not operate, make sure the lamps are inserted correctly before calling service.

1. Disconnect power.
2. Push up on the lens and turn it counterclockwise.

Diagram showing a lamp with a hanging device and directional arrows indicating rotation or circulation.

1. Remove the lamp and replace it with a 120-volt, 50-watt maximum halogen lamp with a GU10 base. Turn it clockwise to lock it into place.
2. Repeat steps 2-3 for the other lamp if needed.
3. Reconnect power.

WIRING DIAGRAM

Motor Resistance (Ohms)
Blue-Red: 18	Blue-White: 21.6 (min.)	Blue-Black: 9.8 (max)
Blue-Gray: 14.3	Room Temp: 73.4°F (23°C)

Motor Characteristics
Power supply: 120 VAC	Power absorption: 420 W
Frequency: 60 Hz	Current: 3.7A

Switch operation with button “1-2-3”
Position	1	2	3
Connection	4—2	4—6	5—7
Action	Speed 1	Speed 2	Speed 3

Switch operation with button “ON-OFF”
Position	ON	OFF
Connection	4—6	4—2
Action	Motor ON	Motor OFF

Switch operation with button “Light”
Position	OFF	1	2
Connection	4—2	4—6	5—76—8
Action	Lights Off	Low Intensity	High Intensity

ASSISTANCE OR SERVICE

When calling for assistance or service, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance. To locate factory specified replacement parts in your area, call us or your nearest designated service center.

In the U.S.A.

Call the KitchenAid Customer eXperience Center toll free: 1-800-422-1230.

Our consultants provide assistance with:

■ Features and specifications on our full line of appliances.
■ Installation information.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).
■ Referrals to local dealers, repair parts distributors and service companies. KitchenAid designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States.

To locate the KitchenAid designated service company in your area, you can also look in your telephone directory Yellow Pages.

For further assistance

If you need further assistance, you can write to KitchenAid with any questions or concerns at:

KitchenAid Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the KitchenAid Canada Customer eXperience Centre toll free: 1-800-807-6777.

Our consultants provide assistance with:

■ Features and specifications on our full line of appliances.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Referrals to local dealers, repair parts distributors and service companies. KitchenAid Canada designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance

If you need further assistance, you can write to KitchenAid Canada with any questions or concerns at:

Customer eXperience Centre

KitchenAid Canada

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Accessories

Chimney Extension Kit

Order Part Number W10352732 Stainless Steel

Blower Motor Systems (1 system is required)

600 CFM Internal Blower Motor System - Order Model Number UXB0600DYS

1200 CFM Internal Blower Motor System - Order Model Number UXB1200DYS

600 CFM In-Line Blower Motor System - Order Model Number UXI0600DYS

1200 CFM In-Line Blower Motor System - Order Model Number UXI1200DYS

KITCHENAID® VENTILATION WARRANTY

LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, KitchenAid brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter "KitchenAid") will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship. Service must be provided by a KitchenAid designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Outside the 50 United States and Canada, this limited warranty does not apply. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover:

1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage.
3. Repairs when your major appliance is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by KitchenAid.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to KitchenAid within 30 days from the date of purchase.
6. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be repaired in the home and only in-home service is covered by this warranty.
7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
8. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized KitchenAid servicer is not available.
9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
10. Major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined. This warranty is void if the factory applied serial number has been altered or removed from your major appliance.
    The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

If outside the 50 United States and Canada, contact your authorized KitchenAid dealer to determine if another warranty applies.

If you need service, first see the “Troubleshooting” section of the Use & Care Guide. After checking “Troubleshooting,” you may find additional help by checking the “Assistance or Service” section or by calling KitchenAid. In the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777.

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

Dealer name

Address

Phone number

Model number

Serial number

Purchase date

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE

Technical diagram showing a mechanical assembly with labeled components A and B, likely illustrating a structural or mechanical assembly.

Technical diagram of a mechanical or structural assembly with labeled components A through H, likely for engineering or physics purposes.

A. Conduit rond de 10" (25,4 cm)

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

Hand placing a square plate with a grid pattern on top, against a plain background (no text or symbols)

Technical diagram of a mechanical assembly with labeled parts A and B, showing internal components and directional arrows.

Technical diagram showing a mechanical assembly with labeled components A, B, and C, including a downward arrow indicating process flow.

Technical diagram of a mechanical assembly with labeled components A, B, C, and D, showing structural components and cross-sectional views.

Technical diagram of a multi-chamber refrigerator with labeled parts A, B, C, D, E and internal compartments

Technical diagram showing a structural frame with labeled points A and B, and alignment lines indicating measurement or assembly.

Technical line drawing of an electric motor assembly with labeled component A (no text or symbols beyond label)

Technical line drawing of a dual air conditioning unit with fan and cooling fans (no text or symbols)

Technical line drawing of a mechanical bracket with labeled parts A and B (no text or symbols beyond labels)

Technical line drawing of an electric motor assembly with labeled components A and B (no text or symbols beyond labels)

Technical diagram showing a component with labeled parts A, B, and C, alongside a wire mesh structure.

Technical line drawing of a mechanical housing or enclosure with labeled components (A), showing internal components and mounting points (no text or symbols present)

A. Trous de montage

Côté entrée

Technical line drawing of a mechanical assembly with labeled points A and D (no text or symbols beyond labels)

A. Trous de montage

Technical line drawing of a mechanical housing or enclosure with labeled components A and B (no text or symbols beyond labels)

A B C D E F G H I

A B C D E F G H I

Technical line drawing of a roof-mounted device with labeled components A and B (no text or symbols beyond labels)

Technical diagram of a mechanical assembly with labeled components A through F

Technical diagram of a device with labeled components A, B, C, D, E and internal structure

TENT OUT 1 2 TAR OUT On TAR PROD A B C

Technical line drawing of a mechanical or electrical component with internal channels and mounting holes (no text or symbols)

Diagram showing a hanging lamp with a circular component and directional arrows indicating rotation or motion.

ASSISTANCE OU SERVICE
