Product Type	Gas Range
Brand	Viking
Model	TVDR3614BDB
Fuel	Natural gas or propane (conversion kit included)
Width	91.4 cm (36 inches)
Number of Surface Burners	4 or 6 depending on configuration
Burner Power (propane)	Rear burner B: 2.5 kW (7,700 BTU), rear burner C: 4.0 kW (12,500 BTU), front burner D: 6.0 kW (18,500 BTU)
Griddle	Optional (included in some models)
Ignition	Electronic
Gas Regulator	Convertible (natural/propane) with reversible piston
Conversion Kit Included	Orifices, label, instructions (ref. LPKTVDR)
Safety	Safety valve, leak detection (soapy water test)
Maintenance	Regular cleaning of burner heads and grates
Spare Parts	Orifices, burner heads, regulator available
Repairability	Conversion and maintenance by qualified installer
Customer Service	Viking: 1-888-845-4641 (US) / vikingrange.com

Frequently Asked Questions - TVDR3614BDB VIKING

How to convert the range from natural gas to propane?

Use the included LPKTVDR conversion kit. Follow steps: shut off power, reverse the regulator piston (marked 'LP'), replace burner orifices with those from the kit, then check for leaks with soapy water.

What tools are needed for the conversion?

You will need a flathead screwdriver, a nut driver, and possibly adhesive tape to help remove the orifices.

Where is the rating label located?

The label is located under the control panel. After conversion, affix the conversion label next to it.

How to test for gas leaks after conversion?

Apply a soapy water solution to all connections and orifices. If bubbles form, there is a leak. Never use an open flame.

What to do if you smell gas?

Do not light any appliance, do not touch switches, do not use a phone in the building. Leave the premises and call your gas supplier or fire department.

How to clean the surface burners?

Remove the grates and burner heads. Clean with a damp cloth and mild soap. Dry thoroughly before reassembling.

What are the part numbers for propane orifices?

Rear burner B: #78, rear burner C: #105, front burner D: #120, griddle: #90.

Can the range be used with propane without conversion?

No, the range is factory-set for natural gas. Conversion is mandatory for propane use, otherwise improper operation and danger may occur.

How to correctly install the burner head after conversion?

Turn the burner head until it snaps into the groove. Make sure it is properly aligned and stable.

Where to find spare parts or after-sales service?

Contact Viking at 1-888-845-4641 or visit vikingrange.com (United States) or brigade.ca (Canada).

USER MANUAL TVDR3614BDB VIKING

Description Part Number/Size Quantity
Rear Surface Burner (B) #78 1
Rear Surface Burners (C) #105 2
Front Surface Burner (D) #120 3
Frenchtop Burner (F) #90 1
Conversion label PF030377 1
LPKTVDR Conversion Instructions 056242-000 1

NOTE: Depending on the model being converted, some of the orifices may not be used.

IMPORTANT - Please Read and Follow!

WARNING

FIRE/EXPLOSION HAZARD

If the information in this

guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

• DO NOT try to light any appliance.
  •DO NOT touch any electrical switch.
  •DO NOT use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

CAUTION

Be sure the electric power is turned off at the breaker box while the unit is being converted.

CAUTION

Before placing the appliance into operation, always check for gas leaks with a soapy water or other acceptable method.

DO NOT use an open fl ame to check for leaks.

Regulator Conversion

• Remove hex nut from top of regulator.
  •Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by pressing firmly.

NOTE: Plunger is marked "NAT" or "LP".

Converted fuel type will be shown on the lower portion of plunger.

Natural Orientation LP Orientation

Apply sideways finger pressure to remove pin from cap.

- Reinstall hex nut onto regulator in configuration desired.

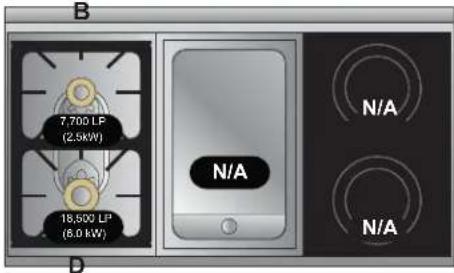

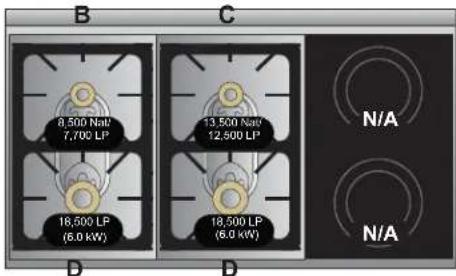

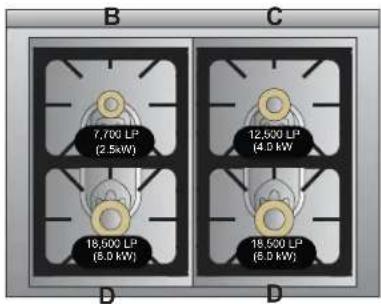

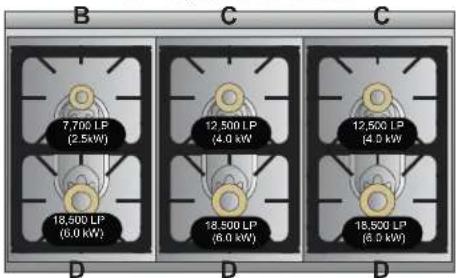

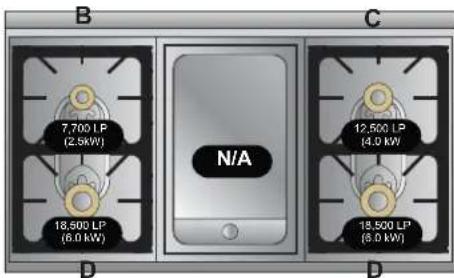

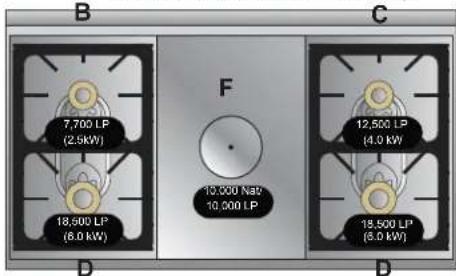

Orifi ce Locations

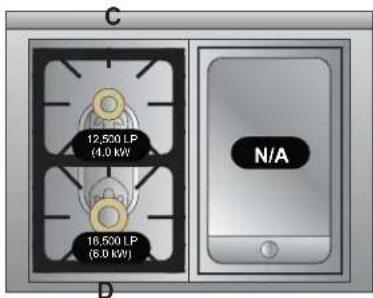

36" W /4 Surface Burners

36" W /2 Surface Burners/Griddle

48" W /6 Surface Burners

48" W /4 Surface Burners/Griddle

48" W /2 Surface Burners/Griddle/Induction

48" W /4 Surface Burners/French Top

48" W /4 Surface Burners/Induction

Surface Burner Conversion

Remove grates, surface burner caps and frenchtop (if applicable)

Surface Burner Conversion

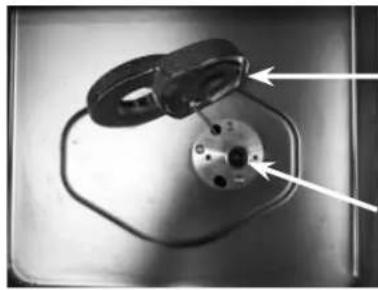

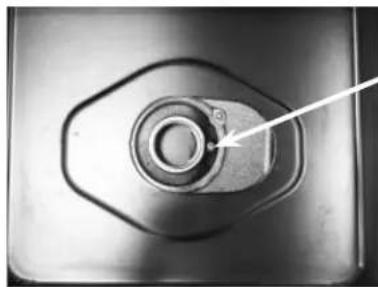

-Locate appropriate orifi ce

-Remove screw (Item #1) fl at-head screwdriver.

- Lay the burner fl ange to side - do not disconnect the igniter wire. (Item #2).

-Use a nut driver to remove orifi ce (Item #3).

-Replace with correct orifi ce - refer to next page.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

- After replacing the orifice, replace Item#2 burner fl ange.

-Reinstall screw and reverse procedure to reassemble.

NOTE: For proper placement of the burner head, rotate until burner head seats into groove.

Close-up of a mechanical component with a central bore and flange, no visible text or symbols

Item #1

Close-up of a mechanical component with a metallic housing and mounting holes, no visible text or symbols

Item #2
Item #3

Frenchtop Burner Conversion

-Remove frenchtop plate.

-Remove screws around burner.

-Remove screws holding burner box.

-Slide burner box forward and lift out.

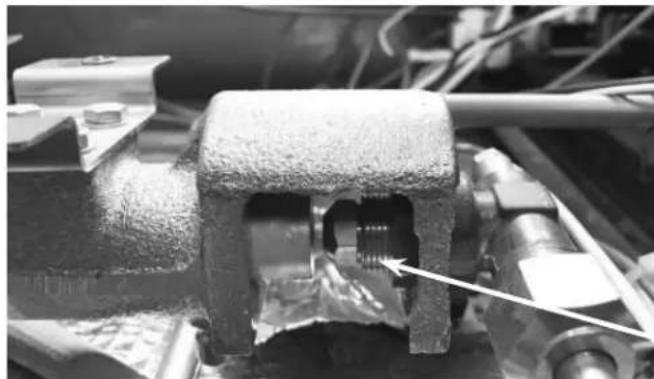

-Orifi ce is located under orifi ce bracket, attached to tubing.

-Use a nut driver to remove orifi ce.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

- After replacing the orifice, reinstall burner box and frenchtop plate

Mechanical testing setup with a perforated cylindrical component mounted on a metal frame, surrounded by wires and a white arrow pointing to a component (no visible text or symbols)

Orifi ce bracket

Close-up of a mechanical component with a highlighted internal section and an arrow pointing to it (no visible text or symbols)

Orifi ce

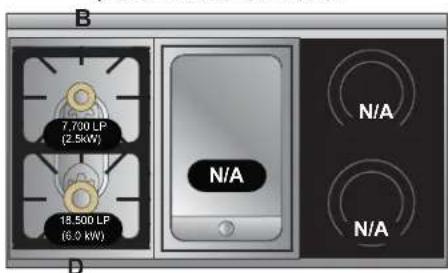

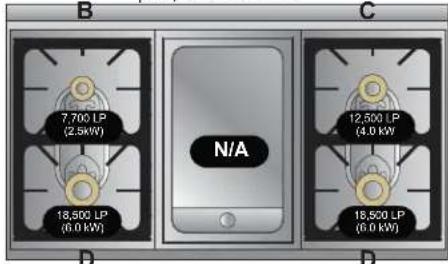

Rating Label Location

When the LP/Propane conversion is complete, complete the enclosed conversion label and place it next to the rating label.

The rating label is located under the control panel.

Diagram of a kitchen appliance interior showing a door, shelves, and decorative panels (no text or symbols)

48 po W /2 Brûleurs de surface/ plaque chauffante/Induction

36 po W /2 Brûleurs de surface/ plaque chauffante

48 po W /4 Brûleurs de surface/ plaque chauffante

Surface Burner Conversion

Close-up of a mechanical testing apparatus with no visible text or symbols

Close-up of a mechanical component with a highlighted internal section and an arrow pointing to it (no visible text or symbols)

l'orifi ce

Architectural detail drawing of a cabinet or elevator shaft with decorative patterns and a dashed oval highlighting a section (no text or symbols)

Viking Range, LLC

111 Front Street

Greenwood, Mississippi 38930 USA

[phone]

For product information, call 1-888-(845-4641)

or visit our web site at vikingrange.com in the U.S. or brigade.ca in Canada.
