Product type	Immersion blender (hand blender) with accessories: mixing bowl, whisk, mini chopper
Brand	Bosch
Model	MSM6M610
Power	800 - 1200 W (depending on model)
Power supply	Mains, 220-240 V ~ 50/60 Hz
Speed	Continuous adjustment via control lever with locking device
Main functions	Blending, chopping, pureeing, emulsifying, making mayonnaises, sauces, soups, drinks, baby food
Included accessories	Immersion blender, plastic mixing bowl, whisk, mini chopper (depending on model)
Usage	Domestic, at room temperature, max altitude 2000 m
Care and cleaning	Do not immerse the base unit or cord. Clean the immersion blender and accessories with a damp cloth. Some parts are dishwasher safe (see manual).
Safety	Locking device, overload protection (automatic shut-off), sharp blades (do not touch), do not use with wet hands
Material	Plastic (bowl, body) and stainless steel (blades, immersion blender)
Weight	Approximately 1.2 kg (estimated)
Dimensions	Approximately 40 x 10 x 10 cm (estimated)
Spare parts and repairability	Accessories available from Bosch after-sales service (e.g., universal grinder ref. 0012042772). Warranty according to country.

Frequently Asked Questions - MSM6M610 BOSCH

How to start the appliance?

Press the locking device (1) then operate the control lever (2) to adjust the speed continuously. The appliance works as long as the lever is held.

What to do if the appliance turns off during use?

This is the overload protection. Unplug the appliance and let it cool down for about 1 hour before using it again.

Can I blend hot food?

Yes, but let it cool to 70 °C or less before blending to avoid burns and protect the appliance.

How to clean the immersion blender?

Clean it with a damp cloth after use. Never immerse it in water or put it in the dishwasher.

Can I use the mixing bowl in the microwave?

No, never use the mixing bowl in a microwave or conventional oven.

How to prepare mayonnaise with this appliance?

Use the immersion blender with a whole egg, mustard, lemon juice, oil, and spices. Let the air escape before blending for a good emulsion.

Which accessories are compatible?

The immersion blender, mixing bowl, whisk, and mini chopper. The universal grinder (ref. 0012042772) is available as an option.

Can children use the appliance?

No, the appliance must not be used by children. Children should be kept away.

What to do if the power cord is damaged?

Only the manufacturer or its after-sales service can replace the cord to avoid any danger.

Where to find spare parts?

Contact Bosch after-sales service or visit the website to order accessories and parts.

USER MANUAL MSM6M610 BOSCH

QR code image containing encoded data, no visible human-readable text

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[da]	Scan QR-koden, eller besøg hjemmesiden, for at åbne de udvidede anvisninger om anvendelse. Der kan der findes yderligere oplysninger om apparatet eller tilbehøret.
[no]	Skann QR-koden eller besøk nettstedet for å åpne mer informasjon om bruken. Der finner du mer informasjon om apparatet eller tilbehøret.
[sv]	Scanna QR-koden eller gå till webbplatsen och öppna de utökade användningsanvisningarna. Där finns mer information om din apparat eller dina tillbehör.
[fi]	Skannaa QR-koodi tai vieraile internet-sivustollamme, jotta voit avata laajennetut käyttötiedot. Sieltä löydät laitetta tai varustetta koskevia lisätietoja.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επιοκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη συσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratin veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrıntılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[uk]	Щоб отримати докладніші вказівки з користування, зіскануйте QR-код або відвідайте сайт. Там ви знайдете додаткові відомості про прилад або приладдя.
[ru]	Чтобы узнать больше о пользовании, отсканируйте QR-код или зайдите на сайт. Там вы найдете более подробные сведения о приборе и принадлежностях.
[ar]	امسع رمز الاستجابة السر lyingفية ضوئيا تframes بزيارة الموقع الإلكتروني لفتاح الإرشادات الموسعة حول الاستخدام. تجد هناك

Illustration showing a hand holding a lock mechanism, with steps to press the lock and change in the blue grip.

2

Diagram showing three hairbells before and after adding liquid, with a cooking pot and checkmark indicating inspection.

3

CLICK

4

Diagram illustrating a toilet sink with warning symbols and checkmark, showing correct and incorrect states of the funnel.

5

Diagram illustrating the installation of a blue plug into a socket, with a hand using a spray can to clean or remove the liquid.

6

Diagram illustrating a chemical procedure: adding liquid into a beaker with a funnel, and using a checkmark to indicate maximum clearance.

7

Diagram showing two-step instructions for using a handheld device, labeled with step numbers 1 and 2.

8

Illustration of a hand holding a container with liquid, showing a hand pouring liquid into a cylindrical container (no text or symbols)

9

Diagram showing two steps of installing a wall-mounted electrical socket, with arrows indicating the process.

10

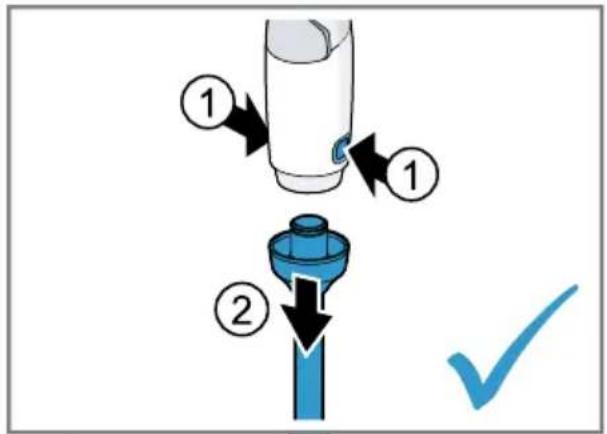

Diagram showing a mechanical assembly with numbered steps and a checkmark indicating action.

11

Illustration of a pitcher pouring liquid into a beaker with liquid dripping, accompanied by an inset image of a sandwich (no text or symbols)

The image is too blurry to recognize any text content.

Medical illustration showing a hand using a blue tool to test blood pressure in a beaker, with an inset showing the same object as a bottle labeled 'X'.

13

Illustration showing a funnel pouring liquid into a container with a hand holding a cup, indicating a process (no text or symbols present)

The image is too blurry to recognize any text content.

Illustration of a hand using a pipette to lift liquid into a glass container (no text or symbols)

15

Diagram showing a blue handheld device with labeled parts 1 and 2, indicating a process or operation.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

Illustration of a hand holding a handheld device in a clear container with an hourglass symbol nearby (no text or symbols present)

The image is too blurry to recognize any text content.

Diagram showing a hand using a handheld device to lift liquid, with arrows indicating upward and downward motion and a checkmark below.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

			200-600 g	40-90 s
			200-500 g	60-90 s
			200-500 g	60-90 s
			200-600 g	60-90 s
			1 x O	60-90 s
			200-600 g	40-60 s
			200-600 g	60-90 s

17

		√	×	×	×	×
		√	√	√	√	√

Diagram illustrating a safety hazard with a blue tool inside a container and a warning symbol with a 'i' icon.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a circled 'i' symbol.

18

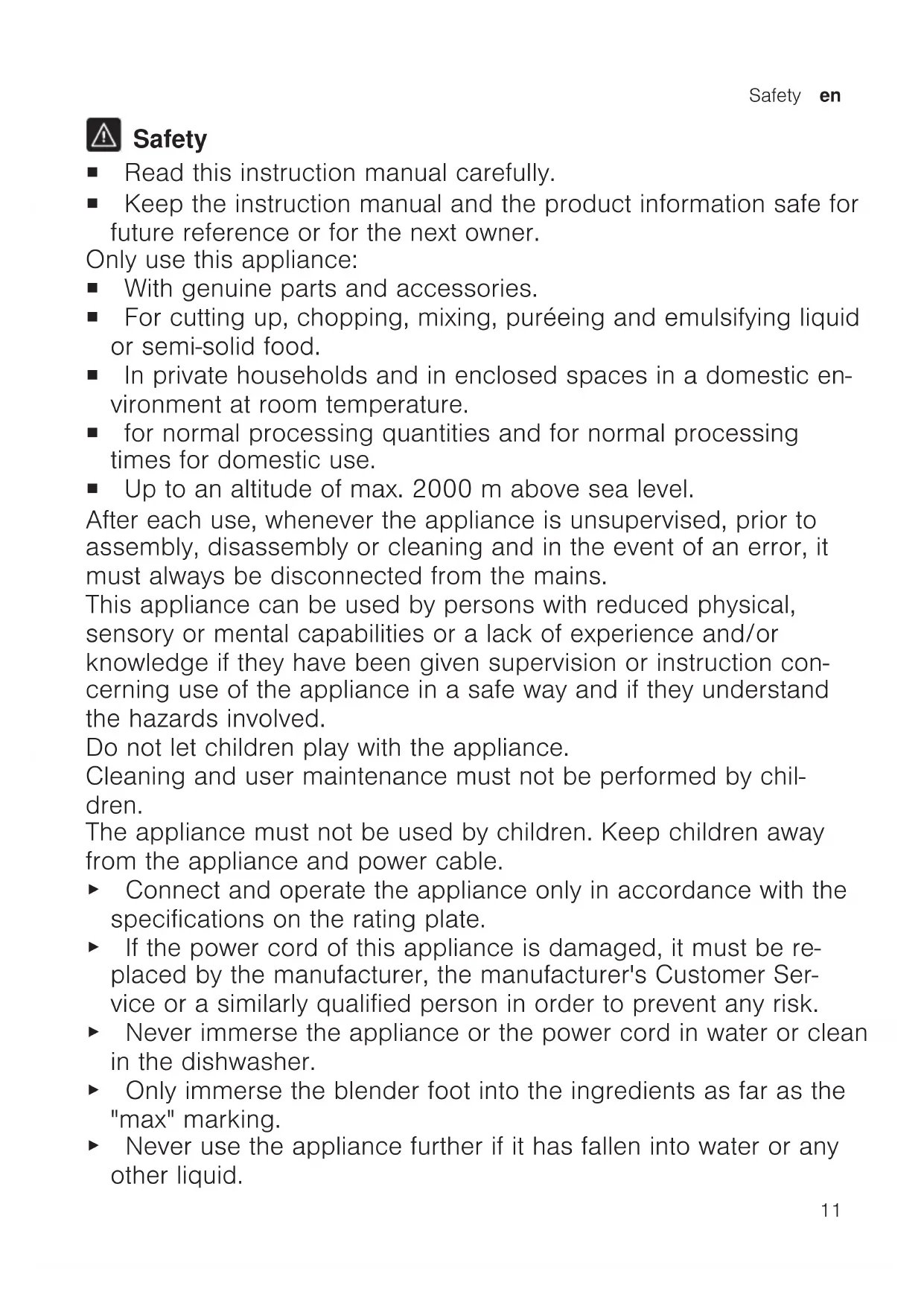

Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

Only use this appliance:

■ With genuine parts and accessories.
■ For cutting up, chopping, mixing, puréeing and emulsifying liquid or semi-solid food.
■ In private households and in enclosed spaces in a domestic environment at room temperature.
■ for normal processing quantities and for normal processing times for domestic use.
■ Up to an altitude of max. 2000 m above sea level.

After each use, whenever the appliance is unsupervised, prior to assembly, disassembly or cleaning and in the event of an error, it must always be disconnected from the mains.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children.

The appliance must not be used by children. Keep children away from the appliance and power cable.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
  ▶ Never immerse the appliance or the power cord in water or clean in the dishwasher.

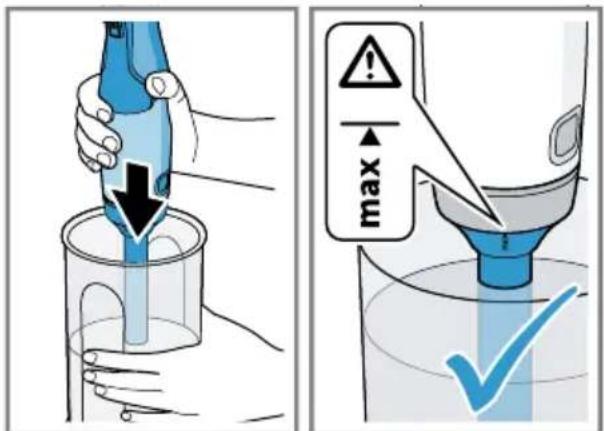

  ▶ Only immerse the blender foot into the ingredients as far as the "max" marking.
  ▶ Never use the appliance further if it has fallen into water or any other liquid.

en Avoiding material damage

▶ Do not use the appliance with damp hands.
▶ Never operate a damaged appliance.
▶ Never let the power cord come into contact with hot parts or be dragged over sharp edges.
▶ Never place the appliance on or near hot surfaces.
▶ After switching off, wait until the drive has come to a complete standstill.
- Keep hands, hair, clothing and utensils away from rotating parts.
▶ Never touch the edges of the blades with bare hands.
- Care should be taken when handling sharp blades, emptying the container and during cleaning.
▶ Be careful when processing hot food.
Leave boiling food to cool down to at least 70 °C before processing.
▶ Follow the cleaning instructions.
- Clean surfaces which come in contact with food before each use.

Avoiding material damage

▶ Do not operate the appliance at no-load.
▶ Never use the blender jug in the microwave or oven.

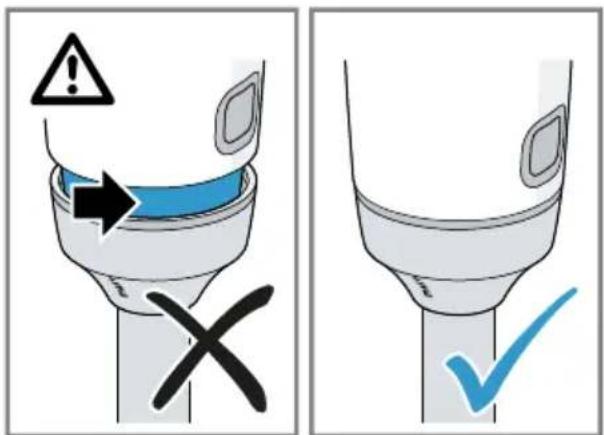

- Place the main unit fully on the blender foot or accessory and lock into position with a click.

Overview

→ Fig. 1

1	Switch-on lock
2	Control lever
3	Release buttons
4	Blender foot ^1
5	Plastic blender jug ^1
6	Whisk ^1 2
7	Universal cutter ^1 2

^1 Depending on the model ^2 separate operating instructions

Notes

■ If an accessory is not included in the scope of supply, it can be ordered from customer service.
■ Only CNHR37: The universal cutter can be ordered from Customer Service quoting order no. 0012042772. With the universal cutter use the appliance at full power when making the honey and apple mixture and follow the recipe in the instruction manual for the universal cutter.

Controls

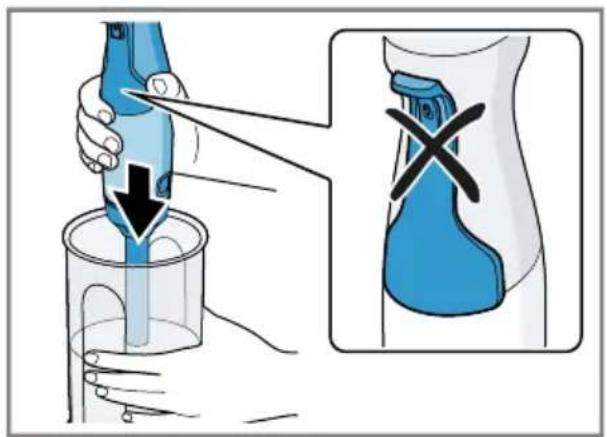

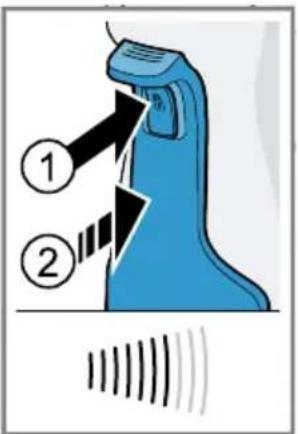

Control lever with switch-on lock

You can use the control lever for stepless control of the speed of your appliance. To switch on the appliance, first press the switch-on lock and then the control lever. The more firmly the control lever is pressed, the higher the speed of the motor.

Note: The appliance remains switched on as long as the control lever is pressed.

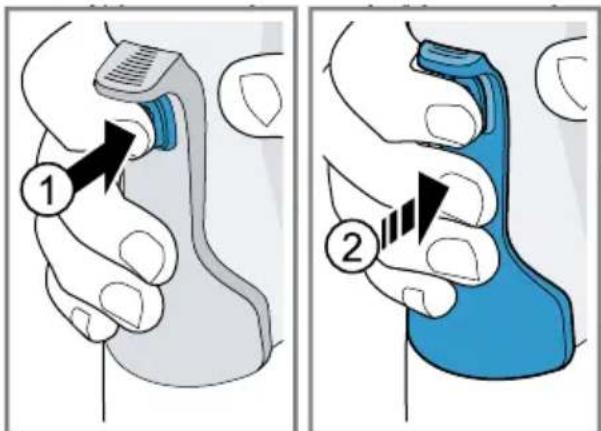

→ Fig. 2

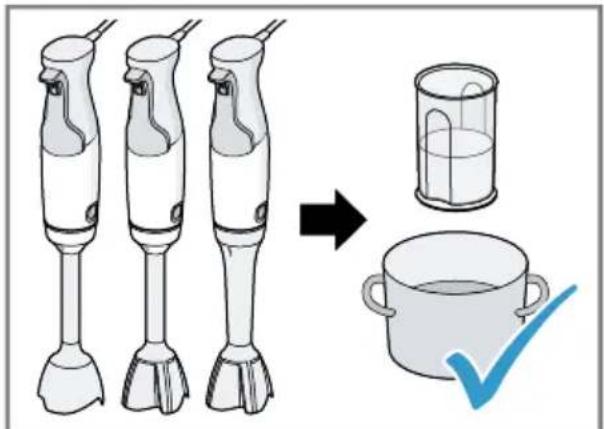

Blender feet

Note: The blender feet are not suitable for preparing purées consisting only of potatoes or foods with a similar consistency.

The blender feet are suitable for the following purposes:

■ Mixing drinks
■ Making pancake batter, mayonnaise, sauces and baby food
■ Puréeing cooked food, e.g. fruit, vegetables, soup

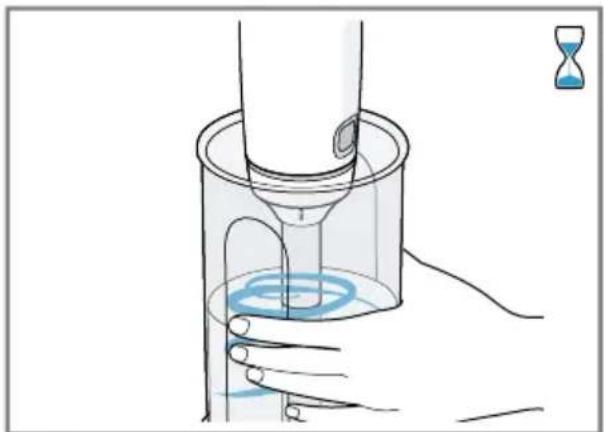

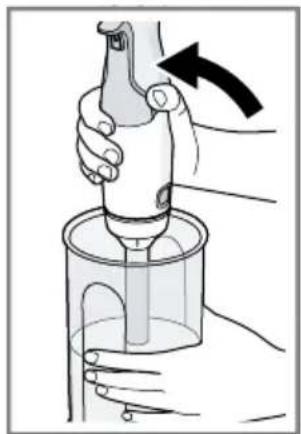

Processing food with the blender foot

Notes

■ Solid foods should always be cut up and cooked until soft before processing, e.g. apples, potatoes or meat.
■ Use the universal cutter for cutting up raw food without adding liquid, e.g. onions, garlic or herbs.
■ Before processing the food in a pan, take the pan off the heat.

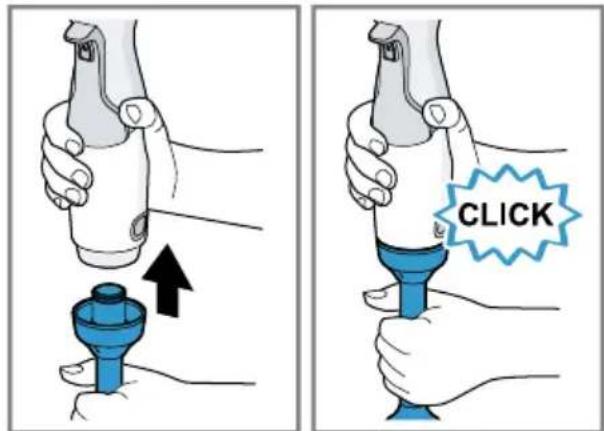

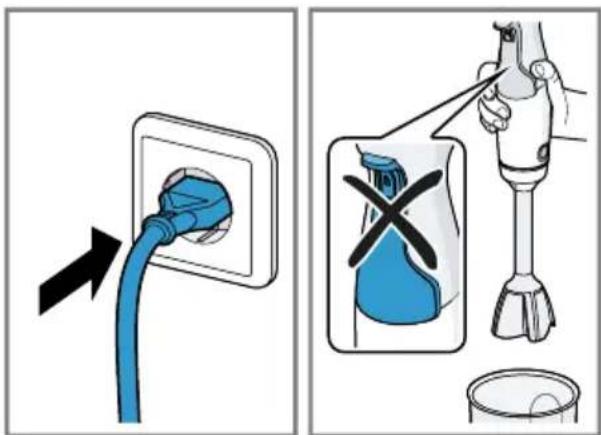

→ Fig. 3 - 11

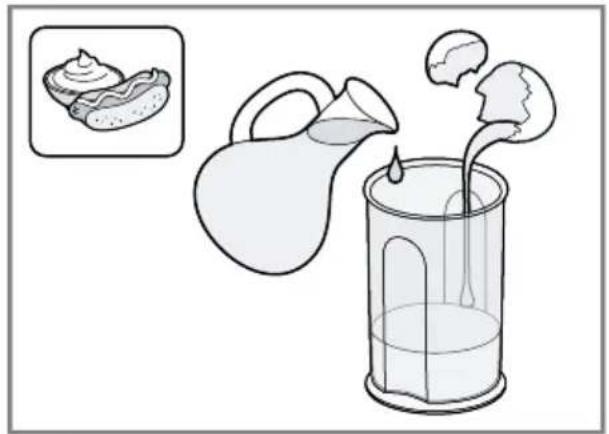

Sample recipe Mayonnaise

■ 1 egg (egg yolk and egg white)
■ 1 tbsp mustard
■ 1 tbsp lemon juice or vinegar
■ 200-250 ml oil
■ Salt and pepper to taste

Making mayonnaise

Notes

■ When using the blender foot, mayonnaise can only be made with whole eggs (egg white and egg yolk).

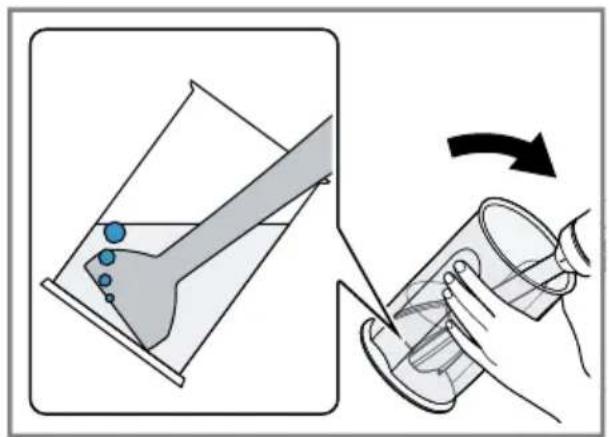

- When making mayonnaise, air underneath the blender foot prevents the ingredients blending together well. For optimum results, let the air escape before mixing.

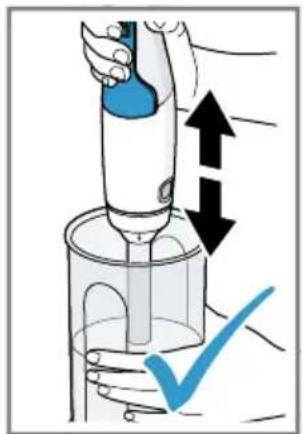

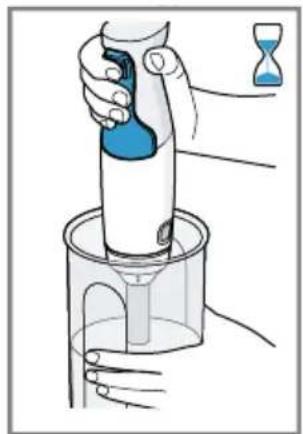

→ Fig. 12 - 16

Application examples

Always observe the maximum quantities and processing times in the table.

After each operating cycle let the appliance cool down to room temperature.

→ Fig. 17

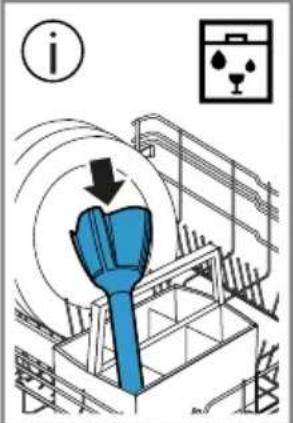

Overview of cleaning

Clean the individual parts as indicated in the table.

→ Fig. 18

Troubleshooting

Appliance switches off during processing (800 W – 1200 W models only).

The overload protection feature has been activated.

• Remove the mains plug and leave the appliance to cool down for approx.
  1 hour to deactivate the overload protection device.

Note: If the fault cannot be eliminated, please contact customer service.

Disposing of old appliance

• Dispose of the appliance in an environmentally friendly manner.
  Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

en Customer Service

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
