Product Type	Blender
Brand	Jarden (distributed by Sunbeam Products, Inc.)
Model	6629
Power Supply	120/127 V, 60 Hz, 10 A
Container Capacity	5 cups (heat-resistant glass or thermal) or 6 cups (unbreakable glass) depending on model
Container Material	Scratch-resistant glass or unbreakable glass, dishwasher safe
Blade Material	Stainless steel (ice crushing blade)
Speeds	10 to 16 speeds depending on model, with HIGH/LOW selection
Pulse Function	Yes, PULSE button for momentary action
Auto Blend™ Function	Built-in timer (15, 30, 45, 60 seconds) on select models
Automatic Shut-off	Yes, after several minutes of inactivity
Measuring Cap	Yes, to add ingredients while running
Lid	Leak-proof, with removable measuring cap
Cord Storage	Integrated under the base (wrap-around)
Cleaning	Dishwasher safe parts (except motor base); Easy Clean function
Safety	Three-prong grounded plug; very sharp blade, handle with care
Warranty	1-year limited (defects in materials and workmanship)
Use	Household use only

Frequently Asked Questions - 6629 Jarden

How to assemble the blender container?

Turn the container upside down, place the sealing gasket over the opening, insert the blade, then screw on the retaining ring clockwise. Make sure the ring is fully engaged.

Can I put parts in the dishwasher?

Yes, all parts except the motor base are dishwasher safe. The ring and retaining ring should go in the top rack only.

How to use the Pulse function?

Select HIGH or LOW, then press and hold the PULSE button for the desired duration. Release to stop. Repeat as needed.

What if the blender stops by itself?

This is normal: the blender automatically turns off after several minutes of inactivity. Press OFF then ON to restart.

Can I blend hot liquids?

It is not recommended to blend very hot liquids (over 60°C) in the standard glass container. Use only room temperature or cold ingredients to avoid risk of burns.

How to clean the blender quickly?

Use the Easy Clean function: pour 3 cups of hot water and 1-2 drops of detergent, then run for 10-15 seconds. Rinse with clean water.

What is the maximum ice crushing capacity?

Do not crush more than 6 ice cubes or about 2 cups of ice at a time to avoid overloading the motor.

How to use the Auto Blend™ timer?

Press BLEND TIME until the desired duration (15, 30, 45, 60 seconds), select the speed, then press START. The blender stops automatically.

Can I chop raw meat with this blender?

No, this blender is not designed to chop raw meat. It can chop cooked meat in pieces about 1 inch.

What if the power cord is damaged?

Immediately stop using the appliance and contact an authorized Sunbeam service center for repair. Do not attempt to repair yourself.

USER MANUAL 6629 Jarden

For product questions contact:

Sunbeam Consumer Service

USA:1.800.334.0759

Canada:1.800.667.8623

www.oster.com

©2004 Sunbeam Products, Inc. All rights reserved.

OSTER* and ALL-METAL DRIVE* are registered trademarks of Sunbeam Products, Inc.

Auto Blend™ is a trademark of Sunbeam Products, Inc.

Distributed by Sunbeam Products, Inc., Boca Raton, Fl. 33431

Sunbeam Consumer Service

Sunbeam Consumer Service

Line drawing of two Oster blender models with control knobs and a water level indicator (no text or symbols on the devices themselves)

Visit us at www.oster.com

P.N. 110500

IMPORTANT SAFEGUARDS

hen using electrical appliances, basic safety precautions should be llowed, including the following:

READ ALL INSTRUCTIONS BEFORE USE

Unplug cord from outlet when not in use or before cleaning.

To protect against risk of electrical shock, do not immerse the cord, plug or motor base in water or any other liquids.

Do not let cord hang over edge of table or counter or touch hot surfaces.

Never leave appliance unattended when in use.

Close supervision is necessary when used near children.

Avoid contact with moving parts. Keep hands and utensils out of jar while blending to prevent personal injury or damage to the blender. A rubber spatula may be used only when the blender is not running.

The blade is sharp. Handle with care.

Always put the lid on the jar before operating the blender.

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest Authorized Sunbeam Appliance Service center for examination, repair or electrical or mechanical adjustment.

Do not use outdoors or for commercial purposes; this appliance is for household use only. Use this appliance for its intended use as described in this manual. Do not use attachments that are not recommended by the manufacturer; they may cause injury.

Always operate on a flat surface.

Unplug the blender when it is not in use, before taking off or putting on parts and before cleaning.

The use of attachments not made by OSTER *, including canning or ordinary jar and processing assembly parts, is not recommended by Sunbeam Products, Inc., and may cause injury to persons.

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY

the maximum rating marked on the product is based on the attachment that draws the greatest load. Other attachments may draw less power.

POWER CORD INSTRUCTIONS

ease follow the instructions below to ensure the safe use of the power cord.

This appliance is equipped with a polarized plug. This type of plug has one blade that is wider than the other. This plug will fit in a polarized outlet only one way. This is a safety feature intended to help reduce the risk of electrical shock. If you are unable to insert the plug into the outlet, contact a qualified electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the polarized plug by modifying the plug in any way.

You may use an extension cord, if necessary, but be certain to follow these guidelines:

- The marked electrical rating of the extension cord must be at least 120/127 volt, 60 Hz, 10A.

- The extension must be arranged so that it will not drape over the countertop or tabletop, will not be within the reach of children, and will not be tripped over. Do not pull, twist, or otherwise abuse the power cord.

SAVE THESE INSTRUCTIONS

WELCOME

Congratulations on your purchase of an OSTER® Blender! To learn more about OSTER® products, please visit us at www.oster.com.

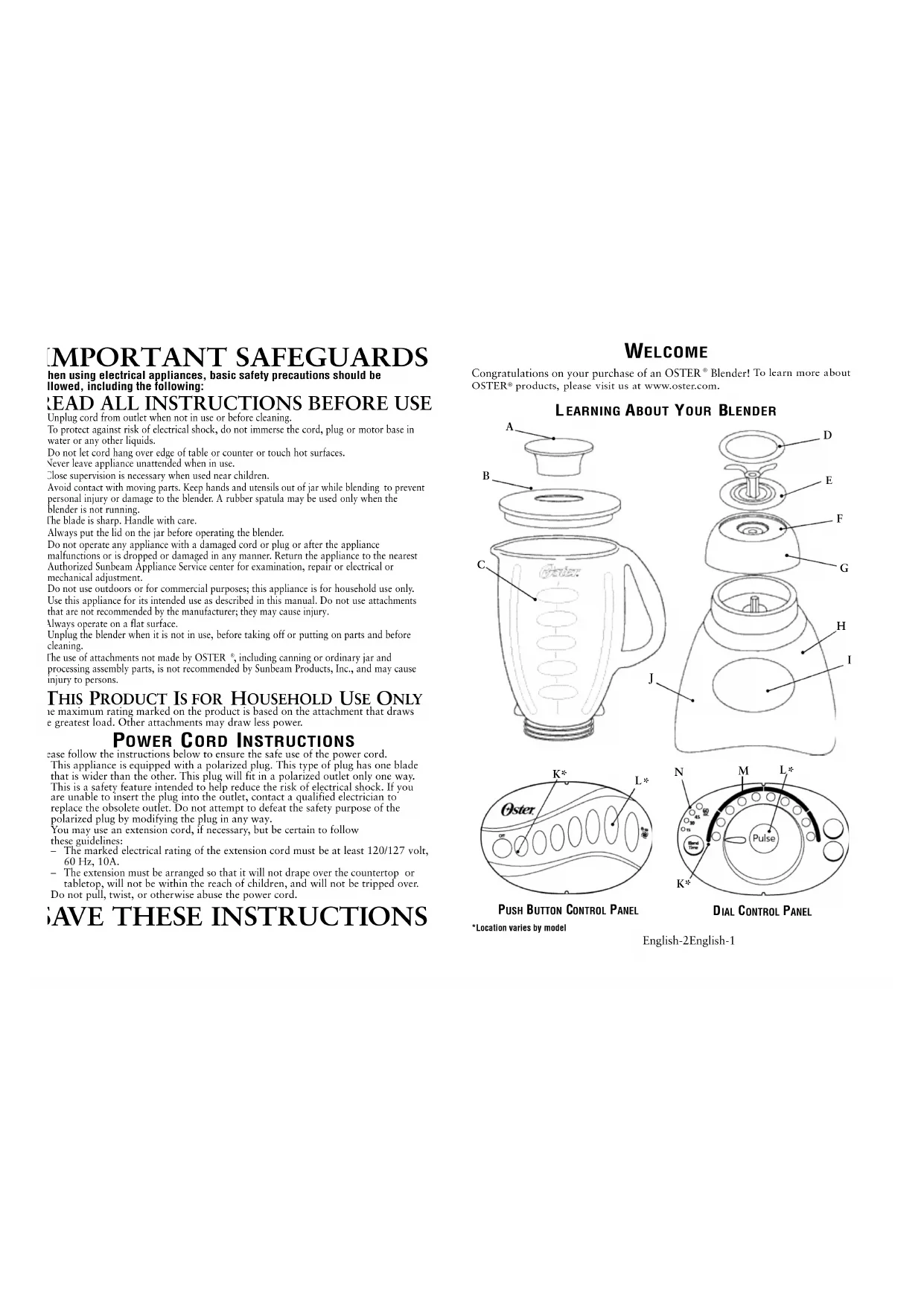

LEARNING ABOUT YOUR BLENDER

A B C D E F G H I J K* L* N M L* Pulse Push Button Control Panel Dial Control Panel

*Location varies by model

English-2 English-1

FEATURES OF YOUR BLENDER

Feeder Cap for adding ingredients while blending

Leakproof Lid

Jar - Your Oster Blender includes one of the following:

• 5-Cup Dishwasher Safe/Scratch Resistant Glass Jar
• 6-Cup Break-Resistant Jar
• 5-Cup Double Walled-Insulated Thermal Jar – keeps frozen drinks, smoothies and milkshakes cold for hours

Sealing Ring for tight seal

Ice Crush Blade pulverizes ice for smooth frozen drinks

Threaded Bottom Disc

G. Collar for stability from countertop to refrigerator to table
H. Powerful Motor with exclusive ALL-METAL DRIVE ^™ for extra durability

I. Control Panel
J. Convenient Cord Storage
K. Easy-Clean Feature – quickly cleans jars in between batches
L. Pulse for precise blending control
M. Food and drink selections for perfect results – controls allow you to keep your blender set at your favorite food/drink selection
N. Auto Blend ^™ Timer (selected models only)

Speed

1	2	3	4	5	6	7	8	9	10
GY CLEAN	PURE	CHSP	WHIP	NOX	DRATE	FLEND	ORIND	LIGHTY	ICE CHISP
←→ LOW →					←→ HIGH →

Speed

1	2	3	4	5	6	7	8	9	10	11	12
S/CLEAN	PUMBE	CREAM	CHOP	WHIP	MOX	GRATE	PERIOD	SHBED	GRND	LUXURY	ICE CROSET
←→						←→

Speed

1	2	3	4	5	6	7	8	9	10	11	12	13	14
Y CLEAN	BEAT	POWE	CREAM	CHOP	WHIP	MIX	MINICE	GRADE	FROOD	SHEDD	GRND	DUETRY	ICE GRUSH
←→			LOW→				←→			HIGH→

Speed

1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
LSE	EASY CLOW	STIM	BEAT	PUREE	CHOP	WHIP	MOX	ICE CHIPS	ORATE	BIEND	SHEDD	GRND	MASH	LIQUIDY	FRAPPE
←→								←→

USING YOUR BLENDER

Clean blender according to the instructions in the "Cleaning and Storing Your Blender" section.

Jar Assembly:

Turn jar upside down so the small opening is at the top. (Figure 1) Place scaling ring over jar opening. (Figure 2)

Place blade into jar. (Figure 3)

Line drawing of a glass pitcher with a handle and spout (no text or symbols)

FIGURE 1

Line drawing of a glass pitcher with a lid and handle, no text or symbols present

FIGURE 2

Simple line drawing of a glass pitcher with a handle and spout, no text or symbols present

FIGURE 3

Snap threaded bottom disc and collar together. Place collar over blade and jar. (Note: If there are slots on top of collar, line them up with notches on jar.) Place the collar on jar and turn the threaded bottom disc clockwise to tighten. (Figure 4)

Simple line drawing of a light bulb partially covered by a lid, with no text or symbols present.

FIGURE 4

Technical line drawing of a mechanical component with gears and wires (no text or symbols)

FIGURE 5

Line drawing of a blender with a downward arrow indicating compression or usage (no text or symbols)

FIGURE 6

rap the power cord from the core storage area on the base of the blender til the cord is the length you desire. (Figure 5)

acc jar assembly onto base. (Figure 6)

ace ingredients into jar.

ace lid with feeder cap on jar.

ug the power cord into a 120 Volt AC electrical outlet.

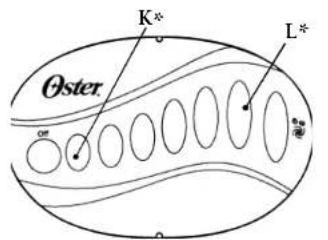

USHBUTTON MODELS

ide switch to HIGH or LOW (If your model does not have a slide switch, ish HIGH or LOW button.)

ish desired speed and blend ingredients to desired consistency.

ish OFF to stop the blender and turn blender off.

) use PULSE, select HIGH or LOW. Push PULSE and hold down for desired length of time. Release PULSE and allow blade to stop. Repeat cycle as desired.

IAL MODELS WITHOUT TIMER

urn dial to desired food/drink selection.

ess ON and blend ingredients to desired consistency.

ess OFF to stop the motor and turn blender off.

ote: Food/drink selection can be changed during blending by turning the dial the desired selection.

ote: This blender is programmed to turn the power off automatically if not ed for a period of several minutes.

) use PULSE, turn dial to desired food/drink selection. Press PULSE and hold own for desired length of time. Release and allow blade to stop. Repeat cycle desired.

DIAL MODELSWITH TIMER

PRESS POWER TO TURN THE BLENDER ON.

The blender is set to the food/drink selection identified by a blinking indicator light. Turn dial to change the food/drink selection.

Press START and blend ingredients to desired consistency.

Press STOP to stop the motor. (Pressing POWER stops the motor and turns the blender off.)

Note: Food/drink selection can be changed during blending by turning the dial to the desired selection.

Note: This blender is programmed to turn the power off automatically if not used for a period of several minutes.

To use PULSE, turn dial to desired food/drink selection. Press PULSE and hold down for desired length of time. Release and allow blade to stop. Repeat cycle as desired

To use Auto Blend™ Timer, press BLEND TIME until desired length of blending time (15, 30, 45, 60 seconds) is illuminated.

Turn dial to desired food/drink selection.

Press START. Blender will automatically stop when selected time has elapsed.

To stop blender before elapsed time, press STOP.

To use blender without timer, press BLEND TIME until no lights are illuminated

BLENDING TIPS

- Put liquids in the jar first, unless a recipe says otherwise.

- Crushing ice: Crush 6 ice cubes or approximately 2 cups of ice at a time.

- This blender has been designed to gently process foods when operating at low speeds. If blades do not rotate during operation, simply choose a higher speed.

- Do not remove the lid while in use. Remove feeder cap to add smaller ingredients. (Figure 7)

- Cut all firm fruits and vegetables, cooked meats, fish and seafood into pieces no larger than 1/2 inch (1.8 cm) to 1 inch (2.5 cm). Cut all kinds of cheeses into pieces no larger than 1/2 inch (1.8 cm).

- This blender will not mash potatoes, whip egg whites or substitute dairy toppings, mix stiff dough or grind raw meat.

Line drawing of a blender with a lid and spout, no text or symbols present

FIGURE 7

PROCESSING FOODSIN BLENDER

FOOD	PROCESSED QUANTITY	UNPROCESSED QUANTITY	SPECIAL INSTRUCTIONS
readcrumbs	1/2-cup (125 ml)	1 slice, torn in 8 pieces	Pulse 1 – 4 times
elery	3/4-cup (200 ml)	1-cup (250 ml) of 1-inch (2.5 cm) pieces	Pulse 2 – 3 times
heese, Cheddar	1-cup (250 ml)	1-cup (250 ml) of 1-inch (2.5 cm) pieces	Pulse 2 times
heese, Swiss	1-cup (250 ml)	1-cup (250 ml) of 1-inch (2.5 cm) pieces	Pulse 5 times
heese,ard or Scmi-Hard	1-cup (250 ml)	1-cup (250 ml) of 1-inch (2.5 cm) pieces	Chop continuously
offee Beans	1-cup (250 ml)	1-cup (250 ml)	Grind 45 seconds for percolators and 60 seconds for drip
ookies, Wafer	1/2-cup (125 ml)	10 wafers	Pulse 3 times
rackers, Graham	1/2-cup (125 ml)	8 crackers	Pulse 3 times
:ppers	2/3-cup (150 ml)	1-cup (250 ml)	Pulse 1 time
leat, Boneless, Cooked	1-cup (250 ml)	1-cup (250 ml) of 1-inch (2.5 cm) pieces	Chop continuously
uts, almonds, peanuts, pecans, walnuts	1-cup (250 ml)	1-cup (250 ml)	Pulse 2 – 4 times

CLEANING AND STORING YOUR BLENDER

IMPORTANT: UNPLUG BEFORE CLEANING BASE and DO NOT IMMERSE THE ENDER BASE IN WATER OR ANY OTHER LIQUIDS. Use a damp, soft sponge with mild ergent to clean the outside of the blender base. All parts except for the blender base are dishwasher safe. pillar and threaded bottom disc are top rack dishwasher safe ONLY. Collar and threaded bottom disc can be varated for cleaning. Hold collar with both hands and press down on top of disc with thumbs. Place sealing g in bottom basket of dishwasher. You can also wash the parts in warm, soapy water. Rinse well and dry.

ASY CLEAN

ur 3 cups of warm water in the blender jar. Add 1 – 2 drops of liquid dishwashing detergent. Lect Easy Clean. Blend detergent for 10 – 15 seconds. Empty jar of soapy water into sink. nse jar thoroughly with clean water.

OTE: Easy Clean is not a substitute for regular cleaning described above. It is especially portant to disassemble and thoroughly clean your blender when processing milk,iry products, meats, seafood and eggs.

STORING YOUR BLENDER

After cleaning, reassemble blade to jar with sealing ring and collar. Store blender with cover ajar to prevent container odor.

English-7

1-Year Limited Warranty

Sunbeam Products, Inc, or if in Canada, Sunbeam Corporation (Canada) Limited (collectively "Sunbeam" warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performanc Sunbeam dealers, service centers, or retail stores selling Sunbeam products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the followingnegligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than Sunbeam or an authorized Sunbeam servic center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoe

What are the limits on Sunbeam's Liability?

Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of express implied or statutory warranty or condition.

Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fit for a particular purpose is limited in duration to the duration of the above warranty.

Sunbeam disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.

Sunbeam shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, inability to use the product including incidental, special, consequential or similar damages or losses, for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other part

Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages. Limitations on how long an implied warranty lasts, so the above limitations or exclusion not apply to you

This warranty gives you specific legal rights, and you may also have other rights that vary from province province, state to state or jurisdiction to jurisdiction.

How To Obtain Warranty Service

If you have any question regarding this warranty or would like to obtain warranty service:

In the U.S.A. – Please call 1-800-334-0759 and a convenient service center address will be provided to you. In Canada – Please call 1-800-667-8623 and a convenient service center address will be provided to yo In the U.S.A., this warranty is offered by Sunbeam Products, Inc located in Boca Raton, Florida 33431 In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited, located at 5975 Falbourne Street, Mississauga, Ontario 1.5R 3V8.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE

English-8

PRÉCAUTIONS IMPORTANTES

Technical diagram of a blender with labeled parts from A to J, showing internal structure and color coding.

K* θster L*

N M L* 45 30 ns Sand Time Pulse K*

Line drawing of a glass pitcher with handle and spout (no text or symbols)

FIGURE 1

Line drawing of a glass pitcher with a handle and spout, no text or symbols present

FIGURE 2

Simple line drawing of a glass jar with a lid and an arrow pointing to it (no text or symbols)

FIGURE 3

Simple line drawing of a container with a lid and a handle, no text or symbols present

FIGURE 4
Francais-4

Technical line drawing of a mechanical component with no visible text or symbols

FIGURE 5

Line drawing of a blender with a downward arrow indicating compression or usage (no text or symbols)

FIGURE 6

Line drawing of a blender with a lid and handle, showing internal seating (no text or symbols)

FIGURE 7

PRÉPARATION D'ALIMENT DANS LE MÉLANGEUR

Technical diagram of a blender with labeled parts from A to J, showing internal structure and color coding.

K* L* Oster

Line drawing of a glass pitcher with handle and side handles (no text or symbols)

FIGURA 1

Line drawing of a glass pitcher with handle and lid, showing a drop in the top part (no text or symbols)

FIGURA 2

Line drawing of a glass pitcher with a handle and lid, showing a small object above it (no text or symbols)

FIGURA 3

Simple line drawing of a container with a lid and a spool, no text or symbols present

FIGURA 4

Español-5 Español-6

Technical line drawing of a mechanical component with no visible text or symbols

FIGURA 5

Line drawing of a blender with a handle and arrow indicating compression (no text or symbols)

FIGURA 6

This blender has been designed to gently process foods when operating at low speeds. If blades do not rotate during operation, simply choose a higher speed.

Line drawing of a blender with a lid and internal spiral pattern (no text or symbols)

FIGURA 7

PN 102560-010-000 Rev.

Español-10

PARA SERVICIO DE GARANTÍA Y VENTA DE PARTES Y REFACCIONES

SUNBEAM MÉXICANA, S.A. de C.V.

Avenida Juárez No. 40-201, Ex-Hacienda de Santa Mónica,

Tlalnepantla, Estado de México

TALLERESDE SERVICIO AUTORIZADOS
