Shake Away - Blender TAURUS - Free user manual and instructions

Brand	Taurus
Model	Shake Away
Product type	Personal blender (portable mixer)
Number of glasses included	2 glass glasses
Glass capacity	600 ml (estimated)
Blade material	Stainless steel, sharpened blades
Body material	Plastic (motor body)
Power supply	220-240 V, 50/60 Hz
Power	300 W (estimated)
Main functions	Blending, smoothies, plant-based milk, crushed ice
Maximum continuous usage time	1 minute, then 3 minutes minimum rest
Automatic shut-off function	Thermal protection in case of overheating
Noise level	Not specified
Maintenance	Manual cleaning or dishwasher (lids, glasses, blades)
Self-cleaning function	Yes, with water and detergent
Safety	Protected blades, locking system, thermal protection
Included accessories	1 blade unit, 2 glasses, 2 lids (one with slot, one for storage)
Spare parts	Available from approved technical service
Use	Domestic use only
Dimensions (approx.)	Height 20 cm, diameter 8 cm (glass)
Approximate weight	1.2 kg

Frequently Asked Questions - Shake Away TAURUS

How to use the Shake Away blender?

Cut ingredients into pieces, place them in the glass with liquid without exceeding the MAX level. Screw the blade unit onto the glass by turning left. Plug in the appliance, place the glass on the motor and turn clockwise until it clicks. The appliance runs as long as you maintain pressure. To stop, turn the glass to the left.

What is the maximum continuous usage time?

Do not exceed 1 minute of continuous use. Let the appliance rest for at least 3 minutes before using it again.

Can I blend hot liquids?

No, never pour boiling liquids into the glass. Hot liquids can be suddenly ejected and cause burns.

How to clean the blades?

Unplug the appliance and disassemble the blade unit. Wash it with hot soapy water or in the dishwasher (gentle cycle). Be careful, the blades are very sharp.

Can I put the parts in the dishwasher?

Yes, the glasses, lids, and blade unit can go in the dishwasher on a gentle cycle. Dry all parts thoroughly before reassembling.

What to do if the appliance stops by itself?

This is due to thermal protection in case of overheating. Unplug the appliance and wait about 15 minutes for it to cool down before plugging it back in. If the problem persists, contact an approved technical service.

What recipes can I make with this blender?

The instruction manual suggests recipes like green smoothie (spinach, kiwi, water, strawberries) or banana milk (banana, water, cinnamon). You can also crush ice (4 small cubes at a time).

Are the blades removable?

Yes, the blade unit (C) can be screwed on and off the glass. To remove it, turn it to the left.

How to assemble the glass and blades?

Place the ingredients in the glass, then screw on the blade unit (C) by turning left until it is tightly closed. Check the seal before placing the glass on the motor.

Where can I get spare parts?

Accessories (glasses, blades, lids) can be purchased separately from Taurus approved technical assistance services.

USER MANUAL Shake Away TAURUS

Line drawing of a taurus blender with no text or symbols on the device itself

Fig.1

Diagram showing a folding table with a curved arrow indicating rotation (no text or symbols)

Fig.2

Español

Batidora Personal

Shake Away

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Safety advice and warnings

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
• Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance is not a toy. Children should be supervised

to ensure that they do not play with the appliance.

• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
• Blades are sharp and could cause harm, be careful and avoid direct contact with the blades' cutting edges.
• Pay special attention when handling the blades, during assembly and disassembly operations, emptying the bowl and during cleaning.
• Always switch off the appliance and disconnect from supply if it is left unattended and before changing accessories or approaching parts that move in use, assembling, disassembling and cleaning.

• If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

• Connect the appliance to a socket that can supply a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not

use plug adaptors.

- The appliance must be used and placed on a flat, stable surface.

- Do not use the appliance if the cable or plug is damaged.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

- Do not touch the plug with wet hands.

- Take the necessary measures to avoid starting the appliance involuntarily.

- Before using the appliance ensure that the blades are properly fixed in the appliance.

- Exercise precaution after employing the stop operation on the appliance as the blade/s will continue moving from the effect of its own mechanical inertia.

- Never assemble the blades in the motor body without the cup.

Use and care:

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance if the accessories attached to it are defective. Replace them immediately.

- Do not use the appliance if it is empty.

- Do not use the appliance if the on/off switch does not work.

- Do not use the appliance if it is tipped up and do not turn it over.

- Do not force the appliance's work capacity.

- Respect the MAX level indicator.

- This appliance is for household use only, not professional, industrial use.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and

knowledge.

- Never use boiling liquids.

- Check that the blades unit is closed properly before starting the appliance.

- Do not use the appliance for more than 1 minute at a time. In case of operate in cycles; allow the appliance a resting period of at least 3 minutes between each cycle. Under no circumstances should the appliance be operated for more time than necessary.

- As a reference in the annexed table appears several recipes, that include the amount of food to process, and the operating time of the appliance.

Ingredient	Max quantity	Duration
Green smoothie	1 handful of spinach, 1 kiwi (ripe), 150 ml of water and 3-4 strawberries	30-45 s
Banana milk	1 large banana, 200 ml fo water and 12 teaspoon of cinnamon	30-45 s
Ice	4 small cubes at a time	20 seconds (3 s operation cycles)

- If you use too many ice cubes or they are too large, you Will not get a satisfactory result.

- After each maximum period of use, please allow the appliance to cool to room temperature before reusing the appliance.

- CAUTION: Do not use the appliance if the glass is cracked or broken.

Service:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

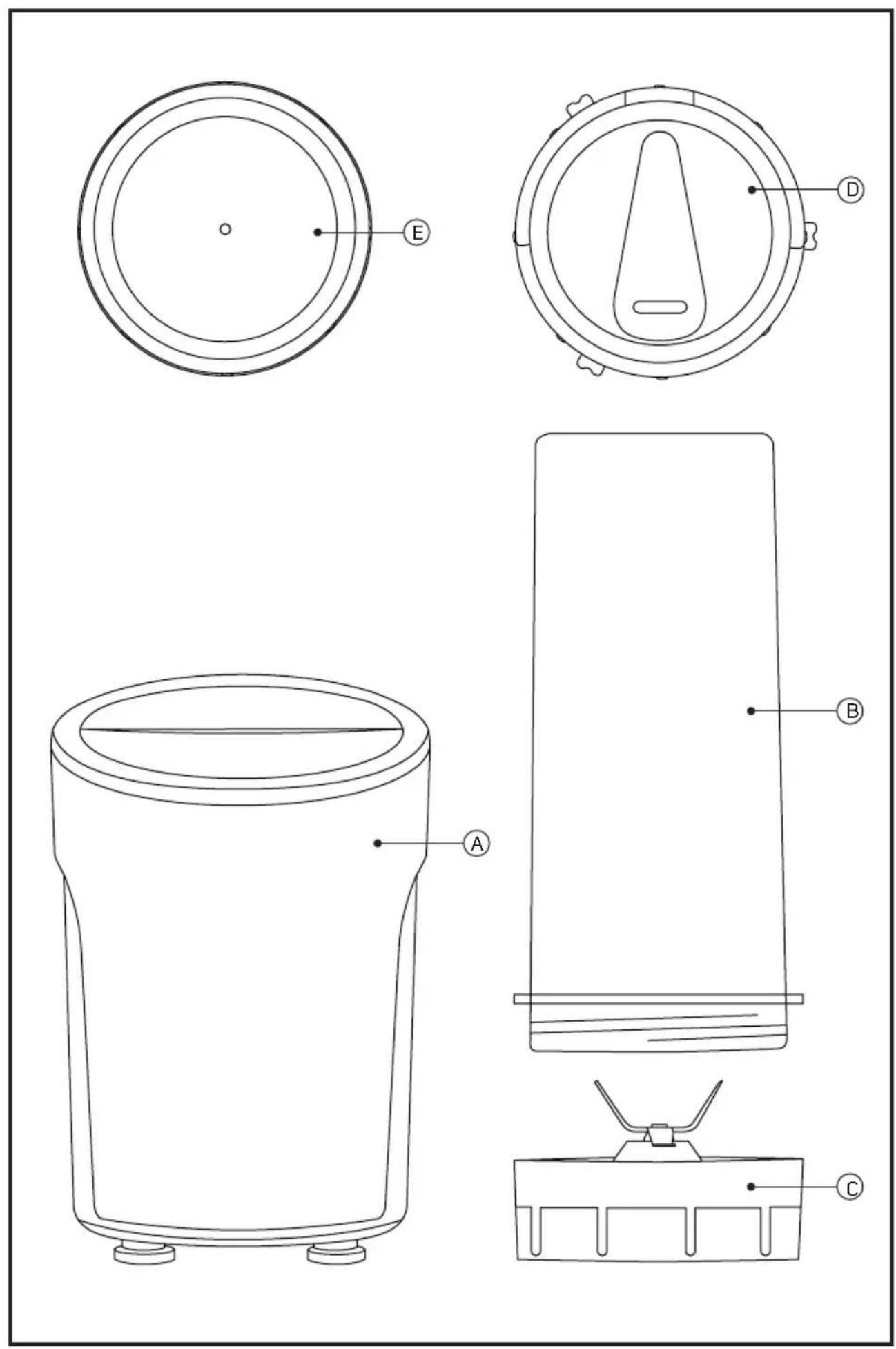

Description

A Motor body

B Cup (2 units)

C Blades unit

D Flip-to-go lid

E Storage lid

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

Instructions for use

Before use:

- Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

Use:

• Unroll the cable completely before plugging it in.
• Put the ingredients, after having first chopped them into small piece, into the cup with liquid (do not exceed the maximum marker).

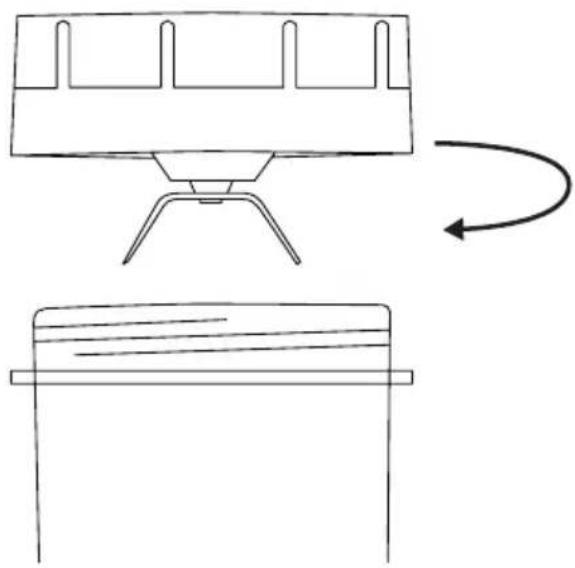

• Screw the unit blades to the cup. Make sure that the unit blades are fixed properly to the cup (by turning it clockwise) before putting on the motor body. (Fig.1).
• Connect the appliance to the mains.

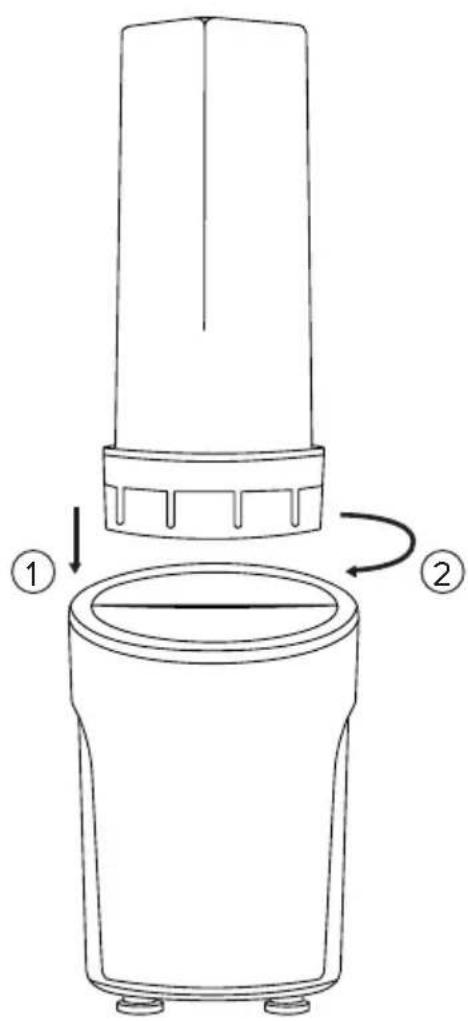

• Place the cup onto to the motor unit and turn clockwise until it is properly coupled in blocking position and hear the click. (Fig.2).
• The appliance will begin to process the mixture, keep the appliance in this position until achieving the desired result without exceeding the working time.

Once you have finished using the appliance:

• Stop the appliance, selecting position 0 on the selector control.
• Unplug the appliance from the mains.
• Turn the cup and unscrew it from the blades unit (C) anticlockwise.
• You can keep the mixture with any of two available lids, to transport it or to store it.
• Clean the unit blades.

Safety thermal protector:

• The appliance has a safety device, which protects the appliance from overheating.
• If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorized technical assistance.

Cleaning

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• During the cleaning process, take special care with the blades, as they are very sharp.
• It is advisable to clean the appliance regularly and remove any food remains.

• The following pieces may be washed in a dishwasher (using a soft cleaning program):

• Flip-to-go lid

• Storage lid
• Cup

- Then dry all parts before its assembly and storage.

Self-cleaning function:

• Put water and a small amount of washing up liquid in the jar.
• Place the cup in the motor unit (Fig. 2) to activate the appliance for 30 seconds and clean it.

Anomalies and repair

- Take the appliance to an authorized technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

For eu product versions and/or in case that it

is requested in your country:

Ecology and recyclability of the product

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

- This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorized waste agent for the

tive collection of Waste from

Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

François

Mixeur personnel

Shake Away

Cher Client,
