6111CF - Grill plate WestBend - Free user manual and instructions

Product type	Electric grill plate
Brand	WestBend
Model	6111CF
Power supply	120 V~, 60 Hz (polarized plug)
Adjustable thermostat	Yes, with settings WARM (82°C), LO (121°C), MED (163°C), HI (190°C)
Indicator light	Indicates cooking temperature is reached
Cooking surface	Non-stick, with solid end for eggs, pancakes, etc.
Lid	Glass with handle (button to assemble)
Drip tray	Removable, maximum water capacity: about 3 cups (0.7 L)
Base	Plastic, not dishwasher safe
Use	On a flat, dry, heat-resistant surface
Assembly instructions	Lid button to be fastened with a Phillips screwdriver
Cleaning	Grid, drip tray, and lid are dishwasher safe; base hand wash only
Safety precautions	Do not immerse, hot surfaces, use oven mitts
Warranty	1 year limited (parts and labor)
Customer service	Focus Electrics: [phone] or [e-mail]
Spare parts	Available at www.focuselectrics.com
Plug type	Polarized (one wider blade)
Usage	Household only, indoors
Included accessories	Grid, drip tray, glass lid, thermostat, lid button

Frequently Asked Questions - 6111CF WestBend

How to assemble the lid button?

Place the disc and button on top of the lid, aligning the holes. Insert the screw with the washer and plastic sleeve, then tighten with a Phillips screwdriver without overtightening.

How much water should I put in the drip tray?

Fill the drip tray with water up to the maximum level mark, about 3 cups (0.7 L). This reduces smoke and makes cleaning easier.

How to clean the WestBend 6111CF grill plate?

Let it cool, remove the thermostat. Wash the grid, drip tray, and lid with warm soapy water or in the dishwasher. The plastic base should be hand washed only.

Can I use metal utensils on the non-stick surface?

No, use nylon, plastic, or wooden utensils to avoid scratching the non-stick surface. Avoid knives and sharp utensils.

What if smoke comes out during first use?

This is normal: it's the manufacturing oils burning off. Ensure there is water in the drip tray and use the grill in a well-ventilated area.

How to flip food without piercing it?

Use tongs for meat and a wide spatula for fish, steaks, and hamburgers. Avoid piercing the food to keep it juicy.

Can I leave the appliance on unattended?

No, never leave the appliance unattended while in use. Surfaces become very hot and present a risk of burns or fire.

How to order spare parts?

Visit www.focuselectrics.com or contact customer service at [phone]. Have your model number 6111CF and credit card ready.

What is the warranty period?

The limited warranty is one year from the date of purchase. It covers defects in parts and labor, but not cosmetic damage or damage from misuse.

Can I use an extension cord?

Use of an extension cord is not recommended. If necessary, use an extension cord with a power rating at least equal to that of the appliance (120 V) and place it out of reach of children.

USER MANUAL 6111CF WestBend

Line drawing of a Chris Procter electric cooker with grating and power cord (no text or symbols)

Register this and other Focus Electrics products through our website:

www.registerfocus.com

Important Safeguards 2

Precautions For Use Around Children 2

Electricity Precautions....3

Heat Precautions....4

Assembling and Using Your Health Grill 4

Cleaning Your Health Grill 6

Grilling Tips 6

Grilling Chart 7

Recipes 8

Warranty....10

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• Do not use appliance for other than intended use.
• The use of accessory attachments not recommended by Focus Electrics may cause injuries.
• Always use grill on a dry, level, heat-resistant surface, away from any edge. Never use grill without drip pan in base. Do not use grill unless securely positioned in base.
• Do not use glass cover if chipped, cracked or has deep scratches as weakened glass can shatter during use. Discard immediately. See Replacement Part section in this booklet on how to obtain a replacement.
• Do not operate when the appliance is not working properly or when it has been damaged in any manner. For service information see warranty page.
  • Do not attempt to repair this appliance yourself.
  • For household use only.

CAUTION

To prevent burns or other personal injuries to children, read and follow all instructions and warnings.

PRECAUTIONS FOR USE AROUND CHILDREN

• Close supervision is necessary when this appliance is used by or near children.
• Do not allow cord to hang over any edge where a child can reach it. Arrange cord to avoid pulling, tripping or entanglement.

CAUTION

To prevent electrical shock, personal injury or property damage, read and follow all instructions and warnings.

ELECTRICITY PRECAUTIONS

• To protect against electric shock, do not immerse cord, plugs, or other electric parts in water or other liquids.
• Do not operate any appliance with a damaged cord or plug.
• Do not use this appliance outdoors.
• Do not plug cord into wall outlet unless control is set to "OFF" position.
• Always turn control to "OFF" and unplug the appliance from outlet when not in use and before cleaning. Allow unit to cool completely before putting or taking off parts and before cleaning.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. While use of an extension cord is not recommended, if you must use one, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. The cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled by children or tripped over.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.
• Keep the cord away from hot parts of the appliance and hot surfaces during operation.

CAUTION

To prevent burns, personal injury or property damage, read and follow all instructions and warnings.

HEAT PRECAUTIONS

• Do not touch hot surfaces. Use handle and knobs where provided. Use hot pads or oven mitts if you lift or carry the cover when it is hot.
  • Do not move an appliance containing hot oil or other hot liquids.
  • Lift cover slowly, directing steam away from you.
• Set cover on hot pad, trivet or other heat protective surface. Do not set hot cover directly on the counter, table or other surface.
  • Do not place on or near a hot gas or electric burner, or in a heated oven.
  • Do not place the glass cover in the microwave oven as it has a metal ring.
• Do not touch the metal probe on the plug or let it touch any surface after use, as it will be hot.

SAVE THESE INSTRUCTIONS

ASSEMBLING AND USING YOUR HEALTH GRILL

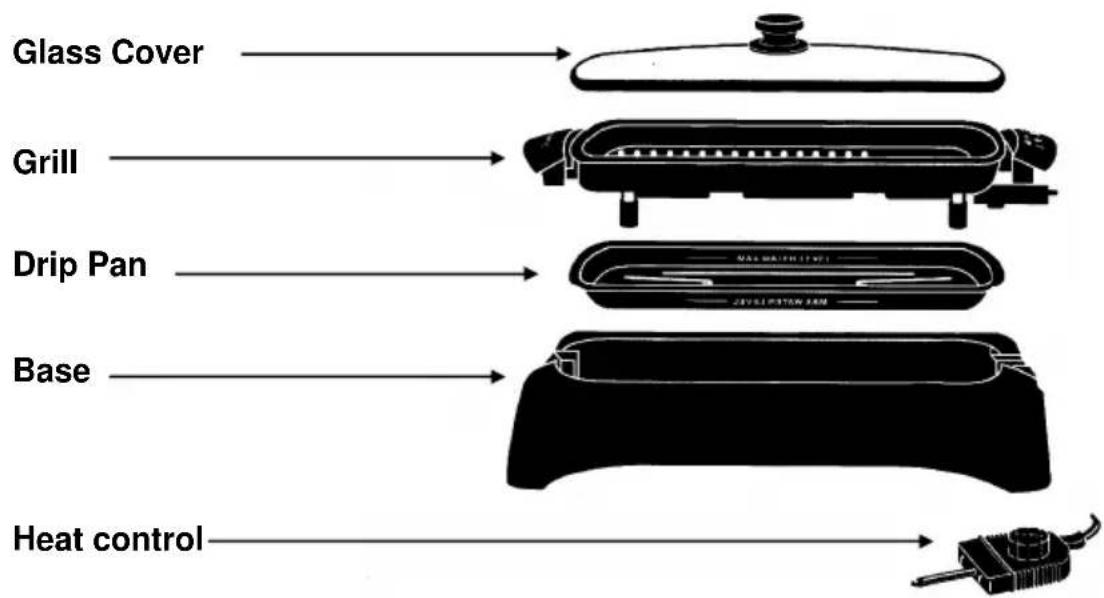

Glass Cover Grill Drip Pan Base Heat control

Follow the assembly directions below to properly assemble the cover knob before use. Do not use the cover without the cover knob properly assembled to the topside of the cover.

Parts Included:

Cover Knob

Tool Required:

Common Phillips screwdriver

Disc

Phillips screw with washer and plastic sleeve attached.

Cover Knob Assembly:

1. Position the disc and cover knob on the topside of the cover aligning the hole in the disc and cover knob with the hole in the cover.

2. Insert the screw with the washer and plastic sleeve attached, through the cover

hole into the knob. Tighten with a screwdriver until secured. Do not over tighten to prevent stripping of threads. Do not use the cover without the cover knob attached.

Technical diagram of a mechanical assembly with a bracket and insulator (no text or symbols)

Grill Assembly:

- Always use the grill on a dry, level, heat-resistant surface, away from any edge. Never use the grill without the drip pan in base. Do not use the grill unless securely positioned in the base.

1. Place the drip pan in to the base. Fill the drip pan with water to the maximum water level line, about 3 cups.

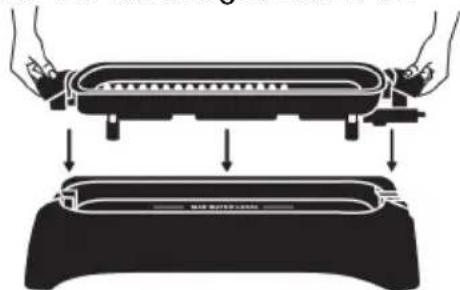

2. Position the grill on to the base with the handles in the recessed areas of the base. The grill may be positioned with the control to the left or right end of the base.

3. With the heat control set at the "OFF" position, plug the cord into a 120 volt, AC electrical outlet only.

4. Preheat the grill, uncovered, at the recommended setting for the food being cooked. Refer to the grilling chart in this

Diagram showing hands operating a flat-screen scanner with a base, illustrating the process (no text or symbols present)

manual or on the handle for selecting the heat setting and grilling times.

1. When the signal light on the heat control goes out indicating the grilling temperature has been reached, add the food. If desired, the cover may be placed on the grill to shorten the cooking time and help contain spatters. The heat may be increased or decreased, depending upon personal preference and the type or amount of food being prepared. The signal light will go on and off periodically to indicate the proper temperature is being maintained.

2. Use hot pads when handling the grill and cover as the handles become warm. For turning food, nylon, plastic or wooden cooking tools are recommended for use on the non-stick surface. Do not use sharp edged cooking tools or knives.

3. When grilling is completed, set the heat control at "WARM" for serving, or set the dial at "OFF" if food will be removed immediately from the grill. After the dial is set to "OFF," unplug the cord from the wall outlet. Let the grill cool completely before removing the heat control.

4. Unplug the cord from the electrical outlet after use and allow the grill to cool completely before cleaning.

5. Do not allow children to use the grill or be around the grill, as the outside surfaces of the grill are hot during use.

CLEANING YOUR HEALTH GRILL

1. After using the grill, allow it to cool completely before cleaning.

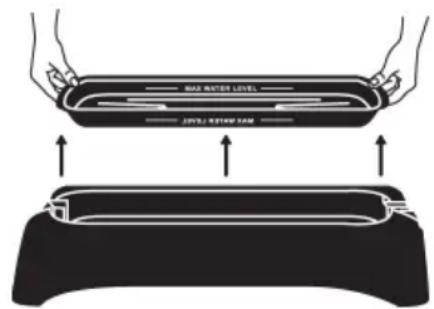

2. Remove the heat control. Lift the grill out of the base using the handles. Carefully lift the drip pan out of the base. Dispose of any liquid in the drip pan.

3. Wash the base, drip pan, cover, and grill in warm, soapy water using a non-metal cleaning pad. Do not use metal scouring pads or harsh scouring powders. A soft bristled brush may be used to clean the underside of the grill. After washing, rinse and dry. Be careful not to drop the cover. The drip pan, grill, and cover may be cleaned in an automatic dishwasher. Position the pieces in the dishwasher so they do not touch

RAD WATER LEVEL JOGUJ RETAW TAM

one another or other objects being washed. DO NOT PUT THE PLASTIC BASE IN THE DISHWASHER, AS WARPAGE WILL OCCUR.

GRILLING TIPS

• Always use the grill on a dry, level, heat-resistant surface with the drip pan and grill securely positioned in base.
• Some smoke and/or odor may occur upon heating due to the release of oils – this is normal.
• Always place water in the drip pan to the maximum water level line to help reduce smoking and make clean up easier.
• Always use hot pads when handling the grill as handles and grill become hot during use.
• Begin grilling at the recommended heat setting. Adjust the heat setting if needed during cooking.
• The heat control dial can be set at “LO”, “MED”, “HI” or in between for grilling or at “WARM” for serving. Approximate temperatures of each setting are “WARM” (180°F), “LO” (250°F), “MED” (325°F) and “HI” (375°F).
• Use the solid end of the grill to fry eggs, hash browns, grill pancakes, French toast, sandwiches, vegetables, or warm buns. Brush vegetables with olive oil or vegetable oil for an attractive appearance.
• Tender cuts of meat are best for grilling; to tenderize less tender cuts of meat, marinate before grilling.
• Fish and seafood may be basted with melted butter or a flavored butter during grilling.
• For best results, use tongs to turn meats to avoid piercing the skin. Use a wide spatula to turn fish, steaks, hamburgers, etc.
• If using a barbecue sauce, baste meat during the last 5 minutes of grilling.

GRILLING CHART

FOOD HEAT	SETTING COMMENTS
Bacon, 7 slices MED		Do not preheat. Grill 6-7 minutes per side until crisp.
Bratwurst/raw sausages	MED	Turn frequently for uniform browning, grill until well done, total time 30-35 minutes.
Chicken Breasts, 3-4 boneless or bone-in	MED	Grill 10-15 minutes per side. (boneless) 25-30 minutes per side (bone-in) or until juices run clear.
Chicken Pieces, 6-8 MED		Grill 20-25 minutes per side or until juices run clear
Eggs, fried 1-2 MED		Use solid end of grill only. Melt 1-tsp. butter or margarine. Grill 2 minutes per side, or to desired doneness.
Fish Steaks, 2-4, ^3/_4 -1 inch thick	LO 10-12 min	minutes per side or until fish flakes.
Frankfurters/other precooked sausages	MED	Turn frequently with tongs for uniform browning, 10-15 minutes or until heated through.
Grilled Sandwiches, 1-2	HI	Use solid end of grill only. Grill 2-3 minutes per side, or until heated through and golden brown.
Ham Steak, ^1/_2 -1 inch thick	MED	Score any fat on sides. Grill 10-12 minutes per side or until heated through.
Hamburgers, 4-6 ^1/_2 inch thick	HI	Grill 5 minutes per side (rare), 6 minutes per side (medium), 7 minutes per side (well), or to desired doneness.
Pancakes/French Toast, 1-2	MED	Use solid end of grill only. Grill 1^1/_2 minutes per side or until golden brown.
Pork/Lamb Chops 2-4, ^3/_4 -1 inch thick	HI	8-10 minutes per side. Pork should be well done.
Shrimp, shelled fresh or frozen, thawed	LO	6-8 minutes per side or until shrimp turn pink.
Steak, 2 1-inch thick HI		Score any fat on sides. Grill 5-7 minutes (rare), 6-9 minutes (medium), 8-10 minutes per side (well), or until desired doneness.
Vegetables MED		Brush with olive or vegetable oil. Grill onions, mushrooms, peppers, etc. on solid end while grilling other foods.

RECIPES

Try some of our favorite recipes using the Chris Freytag Health Grill that we have included on the following pages to get you started.

Teriyaki Marinade

^1/_3 Cup Soy sauce

^1/_3 Cup Dry white wine

^1/_3 Cup Vegetable oil

2 Tbsp Dried minced onion

1 Tbsp Sugar

1 Clove garlic, minced

^1/_4 Tsp Ground ginger

1. Combine all ingredients in a small bowl, set aside.
2. Place beef, chicken or pork in 9x13-inch baking pan. Pour the prepared marinade over the meat; cover and place in the refrigerator for several hours. Spoon marinade over the meat occasionally.
3. Drain the meat thoroughly before grilling. Makes approximately 1 cup.

Lemon Butter

^1/_4 Cup Butter

1 Tbsp Dried parsley flakes

1 Tbsp Lemon juice

^1/_2 Tsp Onion salt

^1/_4 Tsp Pepper

1. Melt the butter in a small saucepan over low heat. Add the remaining ingredients; stir to combine. Use to baste fish, seafood, meats or vegetables during grilling.

Dill Butter

^1/_4 Cup Butter

^1/_4 Tsp Onion powder

1 Tsp Dried dill weed

1. Melt butter in small saucepan over low heat. Add remaining ingredients; stir to combine. Use to baste fish, seafood, meats or vegetables during grilling.

Beef Kebabs

1^1/_2 Ibs Beef sirloin steak, cut in 1-inch cubes

1 Cup Marinade

12 Medium mushrooms

1 Large onion, cut in 1-inch pieces

1 Green pepper, cut in 1-inch pieces

1 Red pepper, cut in 1-inch pieces

12 Cherry tomatoes

1. Marinate the beef cubes in the refrigerator for several hours, using one of the following recipes or one of your favorite marinade recipes.
2. Drain the beef cubes thoroughly before grilling.
3. Thread onto skewers, alternating meat and vegetables. Leave space between for even cooking.
4. Preheat the grill at "MED." Place the kebabs lengthwise on the grill. Grill 15 to 20 minutes or to desired doneness, turning occasionally. Serves 4-6.

Herb Marinade

^1/_2 Cup Vegetable oil

^1/_3 Cup Red wine vinegar

3 Tbsp Worcestershire sauce

1 Tsp Dried thyme leaves

1 Tsp Dried marjoram leaves

^1/_4 Tsp Pepper

^1/_4 Tsp Salt

1. Combine all ingredients in a small bowl, set aside.

2. Place the beef, chicken or pork in 9x13-inch baking pan. Pour the prepared marinade over the meat; cover and place in the refrigerator for several hours. Spoon marinade over the meat occasionally.

3. Drain the meat thoroughly before grilling. Makes approximately 1 cup.

Italian Herb Rub

2 Tsp Italian herb seasoning

^3/_4 Tsp Salt

^1/_2 Tsp Garlic powder

^1/_4 Tsp Pepper

1. Combine all ingredients in a small bowl. Rub into the surface of the meat before grilling. Use with beef, chicken or pork.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electrics, LLC (“Focus Electrics”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electrics’ discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electrics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL FOCUS ELECTRICS BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electrics Customer Service Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. Focus Electrics is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electrics, LLC several ways. Order online at www.focuselectrics.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095

To order with a check or money order, please first contact Customer Service for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the unit, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Electrics, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electrics product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift: ____

Where purchased and price, if known: ____

Item number and Date Code (shown bottom/back of product):

WestBend®

Chris Trentao GRIL DE SANTÉ

Line drawing of a Chiapas electric cooker with grid-patterned top and side ports (no text or symbols on body)

Technical diagram of a mechanical assembly with a bracket and insulator component, showing no text or symbols.

Diagram showing hands operating a flat-screen grater with a base, illustrating the process (no text or symbols present)

Focus Electrics, LLC

Attn : Service clientèle

P. O. Box 2780

West Bend, WI 53095

Line drawing of a Chris Proggon electric stove with grating and control panel (no text or symbols)

Diagram of a mechanical assembly with a component inserted into a housing, showing internal components (no text or labels)

MAX WATER LEVEL

LIMPIEZA DE LA PARRILLA

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095
