Product Type	Electric Griddle Plate
Brand	WestBend
Model	79012
Power Supply	120 V ~, 60 Hz, rated power (see label under appliance) – estimated 1500 W
Dimensions (approx.)	50.8 x 30.5 x 8.9 cm (20 x 12 x 3.5 inches)
Weight (approx.)	2.7 kg (6 lb)
Cooking Surface	Non-stick coating
Thermostat	Removable temperature control with indicator light, settings from Warm to 400°F (approx. 95 to 204°C)
Capacity	Up to 6 eggs, 4-6 pancakes, 1 lb of bacon, etc.
Drip tray	Integrated, removable, to collect grease
Use	Grill, fry, reheat, keep warm
Safety	Polarized plug, short cord, insulated handles, do not immerse
Maintenance	Dishwasher safe (plate and drip tray, except controller); clean with soapy water
Warranty	1 year limited (parts and labor)
Removable parts	Temperature controller, drip tray, handles/feet (screws)
Included documents	Temperature guide, safety instructions, maintenance

Frequently Asked Questions - 79012 WestBend

How to season the non-stick surface before first use?

Wash the griddle and drip tray in hot soapy water. Dry thoroughly. Apply a few teaspoons of cooking oil over the entire non-stick surface, then wipe off the excess. Use vegetable oil, not butter or animal fat.

Can I use metal utensils on the griddle?

It is recommended to use utensils made of nylon, plastic, wood, or rubber. Metal utensils with rounded ends can be used with care, but avoid knives, forks, or any sharp objects that could scratch the surface.

How to clean the griddle after use?

Let it cool completely. Remove the temperature controller and drip tray. Discard grease. Wash the griddle and drip tray in hot soapy water with a non-metal sponge. Rinse and dry. Wipe the temperature controller with a damp cloth. The griddle and drip tray are dishwasher safe (drip tray in top rack).

What to do if the non-stick surface has white spots?

This is a mineral deposit. Wipe with a cloth soaked in lemon juice or vinegar, then wash with soapy water, rinse, and dry. Re-season the surface with cooking oil.

What temperature setting for steaks?

For 2.5 cm thick sirloin steaks, set to 400°F (204°C). Cooking time per side: 4-6 min for rare, 5-8 min for medium, 8-10 min for well done. Use tongs to flip.

The appliance emits a slight odor or smoke during first use, is this normal?

Yes, it is normal. This comes from the emission of manufacturing oils during heating. Ventilate the room and let it heat for a few minutes before adding food.

Can I use the griddle without the drip tray?

It is recommended to always use the drip tray to collect grease and prevent overflow. Never remove the drip tray during cooking, wait until the griddle cools.

How to set the temperature to keep food warm?

After cooking, turn the controller to the WARM setting (approximately 150-175°F, or 65-80°C). The indicator light will turn off and on to maintain the temperature. To stop, set to OFF then unplug.

What to do if the power cord is damaged?

Do not use the appliance. Contact WestBend customer service at 1-866-290-1851 or by email at [e-mail] for repair or replacement instructions.

How long is the warranty and what does it cover?

The warranty is 1 year from the date of purchase. It covers defects in parts and labor. It does not cover deterioration of the non-stick coating, scratches, overheating, or improper use.

USER MANUAL 79012 WestBend

Modern stainless steel grater with three round plates on a black tray (no text or symbols visible)

Register this and other Focus Electrics products through our website: www.westbend.com

Important Safeguards....2

Precautions For Use Around Children....2

Electricity Precautions....3

Heat Precautions....4

Using Your Griddle....4

Cleaning Your Griddle....6

Temperature Guide 7

Warranty....8

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including:

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• Do not use appliance for other than intended use.
• Do not place on or near a hot gas or electric burner, in a heated oven, or in the refrigerator or freezer.
• Do not operate when the appliance is not working properly or when it has been damaged in any manner. For service information see warranty page.
• The use of accessory attachments not recommended by Focus Electrics may cause injuries.
• Do not attempt to repair this appliance yourself.

CAUTION

To prevent burns or other personal injuries to children, read and follow all instructions and warnings.

PRECAUTIONS FOR USE AROUND CHILDREN

• Always supervise children.
- Do not allow children to operate or be near the appliance, as the outside surfaces are hot during use.
- Do not allow cord to hang over any edge where a child can reach it. Arrange cord to avoid pulling, tripping or entanglement.

CAUTION

To prevent electrical shock, personal injury or property damage, read and follow all instructions and warnings.

ELECTRICITY PRECAUTIONS

• To protect against electric shock, do not immerse cord, plugs, or other electric parts in water or other liquids.
• Do not operate any appliance with a damaged cord or plug.
• Do not use this appliance outdoors.
• Always check to ensure handles/legs are assembled and fastened properly. Over tightening can result in stripping of screws or cracking of handles/legs.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Always unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
• Your appliance has a short cord as a safety precaution to avoid pulling, tripping or entanglement. Position the cord so that it does not hang over the edge of the counter, table or other area or touch hot surfaces.
• While use of an extension cord is not recommended, if you must use one, make sure the cord has the same or higher wattage rating as the griddle (wattage is stamped on the underside of the plug protector). If the appliance is of the grounded type, the extension cord should be a grounded-type 3-wire cord. To avoid pulling, tripping or entanglement, position the extension cord so that it does not hang over the edge of the counter, table or other area.
• Use an electrical outlet that accommodates the polarized plug on the appliance. On a polarized plug, one blade of the plug is wider than the other. To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet or extension cord, reverse the plug. If the plug still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.
• Keep the cord away from hot parts of the appliance and hot surfaces during operation.
• CAUTION: Risk of fire or electric shock. Only operate this appliance with the WB #8 plug in place.

CAUTION

To prevent burns, personal injury or property damage, read and follow all instructions and warnings.

HEAT PRECAUTIONS

• Do not touch hot surfaces. Use handles or knobs and hot pads or oven mitts.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Do not use temperature setting above 200°F (95°C) in warming applications.
• Do not place plastic cooking or serving containers or utensils directly on heating surface as melting of plastic could occur.

SAVE THESE INSTRUCTIONS

USING YOUR GRIDDLE

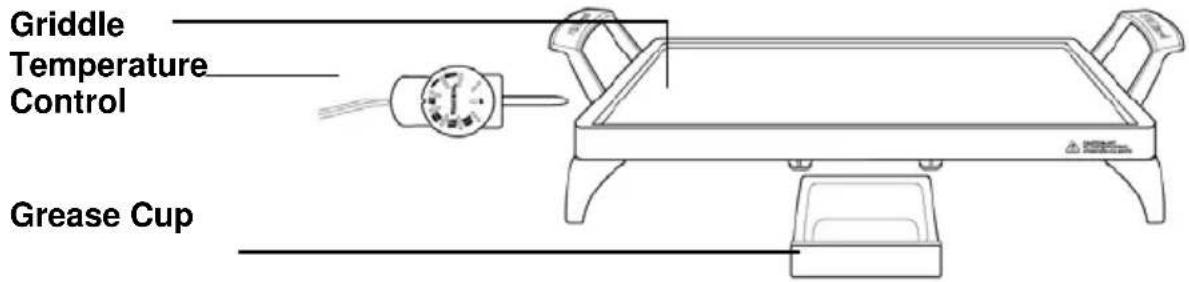

Griddle Temperature Control Grease Cup

BEFORE USING THE FIRST TIME:

1. Wash griddle and grease cup in warm soapy water with a dishcloth or sponge to remove any manufacturing oils. Rinse thoroughly and dry. Be sure temperature control socket is removed and socket is completely dried. Slide grease cup securely in place below drain hole on griddle surface. It is recommended that the grease cup be used with any cooking application to help contain possible overflows or spills.

2. Condition the non-stick finish by lightly wiping two teaspoons of cooking oil with paper toweling or a soft cloth over the entire cool surface. Let cooking oil remain on the finish. Do not use butter or shortening to condition the non-stick surface.

3. Check to ensure handles/legs are secured tightly to the griddle base. To tighten, place cool griddle upside down on tabletop. Tighten handle/leg screws by turning in a clockwise direction using the appropriate screwdriver. Do not over tighten as stripping of the screws can occur. Periodic tightening may be required.

- A small amount of smoke and/or odor may occur upon heating due to the release of manufacturing oils – this is normal.

- Some minor expansion/contraction sounds may occur during heating and cooling – this is normal.

USING YOUR GRIDDLE

1. Always use on a dry, level, heat-resistant surface. Do not operate griddle when hands are wet. Check to ensure handles/legs are secured tightly to the griddle

base. Attach temperature control to griddle with dial set to the OFF position. Be sure grease cup is securely in place below drain hole on griddle surface. Do not block airflow under griddle. Plug cord into a 120-volt AC electrical outlet ONLY.

1. Refer to the Temperature Guide in this booklet for selecting correct heat

settings. (If food is taken directly from freezer, use heat setting as indicated on guide, but allow longer cooking time.) Most foods require a preheat period.

1. The signal light on the temperature control will go out when the cooking

temperature has been reached; add food. Heat may be increased or decreased, depending upon personal preference and the type or amount of food being prepared. The signal light will go on and off periodically to indicate that proper temperature is being maintained.

1. Foods may be prepared with or without fats. When frying, the use of a small amount of butter, fat or oil will improve the flavor, color and crispness of foo

When frying fatty foods such as bacon or sausage, excess grease will drain into the grease cup through the drain hole located on the surface of the griddle. Do not remove the grease cup during cooking. Always allow griddle to cool completely before removing grease cup.

1. Nylon, plastic, wooden or rubber cooking tools are recommended for use on the non-stick surface. Smooth-edged metal cooking tools may be used with care.

Do not use sharp-edged cooking tools such as forks, knives or food choppers as scratching may occur. Minor scratching will affect only the appearance of the finish; it will not harm its non-stick property.

1. When cooking period is completed, set the temperature control dial at WARM

for later serving, or set dial at OFF if food will be removed immediately from griddle. After the dial is set at OFF, disconnect cord from wall outlet. Let griddle cool before removing temperature control and grease cup.

CLEANING YOUR GRIDDLE

1. Clean griddle thoroughly after each use. Do not immerse griddle in cold water when it is hot. Let griddle cool completely, then remove temperature control and grease cup. Dispose of grease. Immerse griddle and grease cup in warm soapy water. Wipe temperature control with a damp cloth if necessary. Rinse and dry thoroughly.
2. Clean the non-stick surface of the griddle with warm soapy water, using a non-metal cleansing pad such as Scrunge® scrubber sponge Dobie® or Scotch-Brite Cookware Scrub'n Sponge®. A dishcloth or sponge may give the non-stick surface a clean look, but will not remove the tiny food particles that can settle in the finish. Do not use metal scouring pads or harsh scouring powders.
3. Clean the non-coated aluminum underside of the griddle with warm soapy water and a soap-filled steel wool scouring pad. Remove stains with household cleanser. Remove burned-on grease with a special cleanser for appliances, such as Wantz™Frypan and Grill Cleaner, Afta™Fry Pan Cleaner, Whink™Metal Cleaner or SS-T®Metal Cleaner.
4. After washing, rinse griddle thoroughly with warm water and dry completely, including temperature control socket area. Replace grease cup.
5. Your griddle and grease cup (with temperature control removed) may be cleaned in an automatic dishwasher. Clean grease cup in top rack only. The under side of griddle will discolor due to the mineral in water and the high heat of drying cycle. This will not affect the cooking ability of griddle. Each time griddle is cleaned in a dishwasher; the non-stick surface should be reconditioned with cooking oil to ensure stick-free cooking. Replace grease cup.

SPECIAL CARE:

1. A spotted white film may form on the non-stick surface. This is a buildup of minerals from foods or water and is not a defect in the surface. To remove, soak a soft cloth in lemon juice or vinegar and rub on the cool surface. Wash the non-stick surface thoroughly, rinse and dry. Recondition the non-stick surface with cooking oil.
2. The non-stick surface may also become stained from improper cleaning or overheating. To remove stains, clean the non-stick surface by the following method. Combine 1 cup of water and 1 tablespoon of ONE of the following cleaners: Dip-It® coffee pot destainer, automatic dishwasher detergent or dry oxygen bleach crystals. USE ONLY ONE OF THE ABOVE CLEANERS; DO NOT COMBINE. Make sure grease cup is in place. Preheat griddle to 225^ . Wearing rubber gloves, dip sponge into water mixture and wipe over surface.

Continue cleaning procedure until mixture is gone. Turn griddle to OFF and allow to cool. Remove temperature control and grease cup. Scour the non-stick surface of the griddle with warm soapy water and a non-metal scouring pad. Rinse thoroughly and dry. Wash grease cup in warm soapy water and dry. Slide grease cup back into griddle. Recondition the non-stick surface with cooking oil before using.

TEMPERATURE GUIDE

Allow griddle to preheat to temperature shown, unless otherwise noted. Griddle has reached desired temperature setting when temperature control indicator light goes off. The quantities of food listed on the following pages are the maximum amount that can be grilled at one time.

FOOD	SETTING	COMMENTS
BACON (up to 1 lb.)	300°F	Place bacon on cold griddle. Set heat at 300°F. Turn and separate as bacon cooks, or separate cold slices with tongs. Fry 5 to 8 minutes per side.
EGGS (fried, up to 6)	250°F	Fry with or without oil or butter about 3 minutes per side.
FRENCH TOAST (4-6 slices)	350°F	Dip bread in milk-egg mixture. Place bread on ungreased griddle or sauté in butter. Bake 2 minutes per side.
FISH (up to 1.5lbs.)	350°F	Melt 2 Tbsp. cooking oil or butter on grill. Start frying skin side up. Fry 4 to 6 minutes per side.
FRANKFURTERS (1.5 lbs)	300°F	May be placed on griddle while it is preheating. Turn with tongs to prevent bursting. Total grilling time: 10 to 12 minutes.
HAM (2-3 slices)	325°F	Have slices cut 1⁄2" to 1" thick. Score fat and grill 10 minutes on each side. Add canned peach halves or pineapple slices during the last 5 minutes.
PANCAKES (4-6)	350°F	Add 2 Tbsp. melted butter or cooking oil to package mix batter. Bake until bubbles appear, turn and brown other side (about 1 minute per side).
POTATOES (fried) (up to 1-1/2 lbs.)	350°F	Slice or shred raw or parboiled potatoes. Add 2 Tbsp. shortening or butter to grill. Brown potatoes, stirring occasionally.
SANDWICHES (4-6)	375°F	Place filling between slices of bread. Spread outside of bread with softened butter. Grill 3 to 4 minutes per side.
SAUSAGE (up to 1.5 lbs)	300°F	Brown about 8 to 10 minutes per side. Pork should always be served well done.
STEAK (3-4 T-bone steaks)	400°F	Score fat on sirloin, porterhouse, club, tenderloin or T-bone steak. Grill steak 1" thick 4 to 6 minutes each side (rare), 5 to 8 minutes (medium), or 8 to 10- minutes (well done). Turn with tongs.
WARMING/ SERVING	WARM (150°F to 175°F)	Place food on griddle to warm. To keep warm until serving time, turn heat control down to WARM about 1 minute before cooking is completed.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electrics, LLC warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the Focus Electrics Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electrics ^® discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electrics if the appliance is damaged through accident, misuse, abuse, scratching, overheating, if the appliance is altered in any way, or if used outside of an indoor household setting.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL FOCUS ELECTRICS, LLC BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORESEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH ITS APPLIANCE.

If you think that the appliance has failed or requires service within its warranty period, please contact the Focus Electrics Customer Service Department at [phone] or e-mail us at [e-mail]. Return shipping fees are non-refundable. Hand-written receipts are not accepted. Focus Electrics, LLC is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electrics, LLC online at www.focuselectrics.com: Replacement Parts. Or you may call or e-mail the service department at the number/e-mail address listed above, or by writing to us at:

Focus Electrics, LLC

Attn: Customer Service

P.O. Box 2780

West Bend, WI 53095

Be sure to include the catalog/model number of your appliance (located on the bottom/back of the unit) and a description and quantity of the part you wish to order. Along with this include your name, mailing address, Visa/MasterCard number, expiration date and the name as it appears on the card. Checks can be made payable to Focus Electrics, LLC. Call Customer Service to obtain purchase amount. Your state's sales tax and a shipping/processing fee may be added to your total charge. Please allow two (2) weeks for delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electrics, LLC product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift: ____

Where purchased and price, if known: ____

Item Number and Date Code (shown bottom/back of product): ____

PROferred™

APPLIANCES

PLAQUE ÉLECTRIQUE

Mode d'emploi

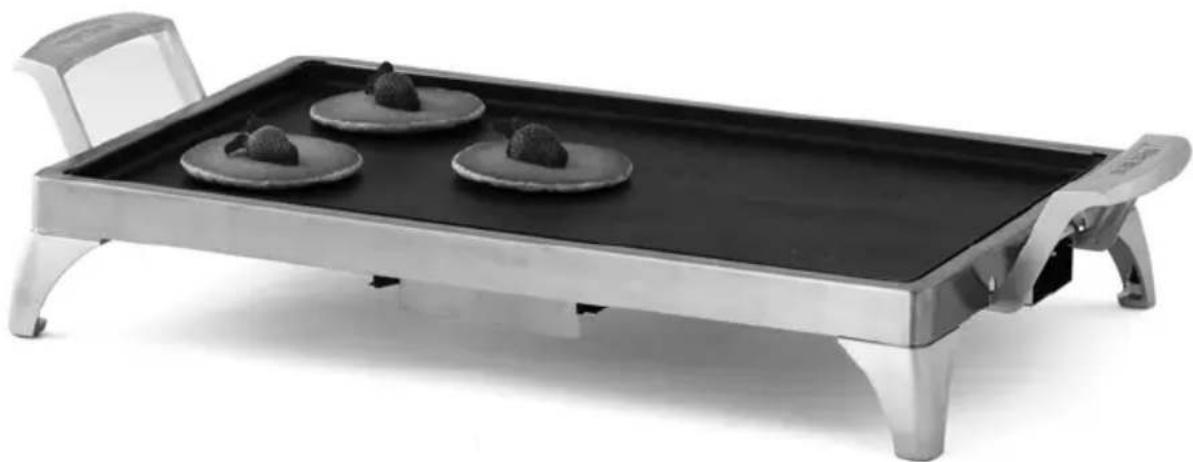

Modern stainless steel grater with three circular plates on a black tray, no visible text or symbols
