Important Safeguards....2

Before Using for the First Time .... 4

Using Your Convection Countertop Oven 4

Helpful Hints....7

Cleaning Your Convection Countertop Oven 7

Troubleshooting Guide 8

Warranty....9

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• Do not touch heating elements as serious burns may result.
• A fire may occur if the appliance is covered or touching flammable material including curtains, draperies, walls and the like, when in operation. Do not store any item on top of appliance when in operation.
• Oversize foods or metal utensils must not be inserted in this appliance as they may create a fire or risk of electric shock.
• Unplug oven and close door if fire is observed.
• Do not store any materials, other than manufacturers recommended accessories in this oven when not in use.
• Do not place any of the following materials in the oven: plastic, paper, cardboard, and the like.
• Extreme caution should be exercised when using containers constructed of other than metal or glass.
• Do not cover rack, bake/drip pan or any parts of the oven with aluminum foil, as overheating will occur.
• Always turn timer control and function control to "OFF" and unplug the appliance from outlet when not in use and before cleaning.
• Failure to clean after each use may result in fire hazard.
• Do not clean with metal scouring pads. Pieces can break off of the pad and touch electrical parts, creating a risk of electrical shock.
• Do not use sharp utensils to clean oven door glass as scratching may weaken it and cause shattering.
• Set cooking containers, pans, bake/drip pan and rack on a hot pad, trivet or other heat protective surface. Do not set directly on the counter, table, or other surface.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• This device is not intended to heat oil or other liquids.
• Extreme caution must be used when removing the bake/drip pan or disposing of hot grease.
• To protect against fire, electric shock, and injury to persons do not immerse cord, plugs, or other electric parts in water or other liquids.
• Close supervision is necessary when this appliance is used by or near children.
• Always plug cord into wall outlet. To disconnect, turn any control to "OFF," then remove plug from wall outlet.
• Always unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.

• The use of accessory attachments not recommended by Focus Products Group International may cause fire, electric shock, or injury.

• Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. For service information see warranty page.

• Do not use this appliance outdoors.
• Do not let cord hang over the edge of the table or counter, or touch hot surfaces.
• Do not use appliance for other than intended use.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer extension cords are available, but care must be exercised in their use. While use of an extension cord is not recommended, if you must use one, ensure that the marked electrical rating of the extension cord is equal to or greater than that of the appliance. If the plug is of the grounded type, the extension cord must be a grounding-type 3-wire cord. To avoid pulling, tripping or entanglement, position the extension cord so that it does not hang over the edge of the counter, table or other area where it can be pulled on by children or tripped over.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.
• Do not attempt to repair this product yourself.
  • For household use only.

SAVE THESE INSTRUCTIONS

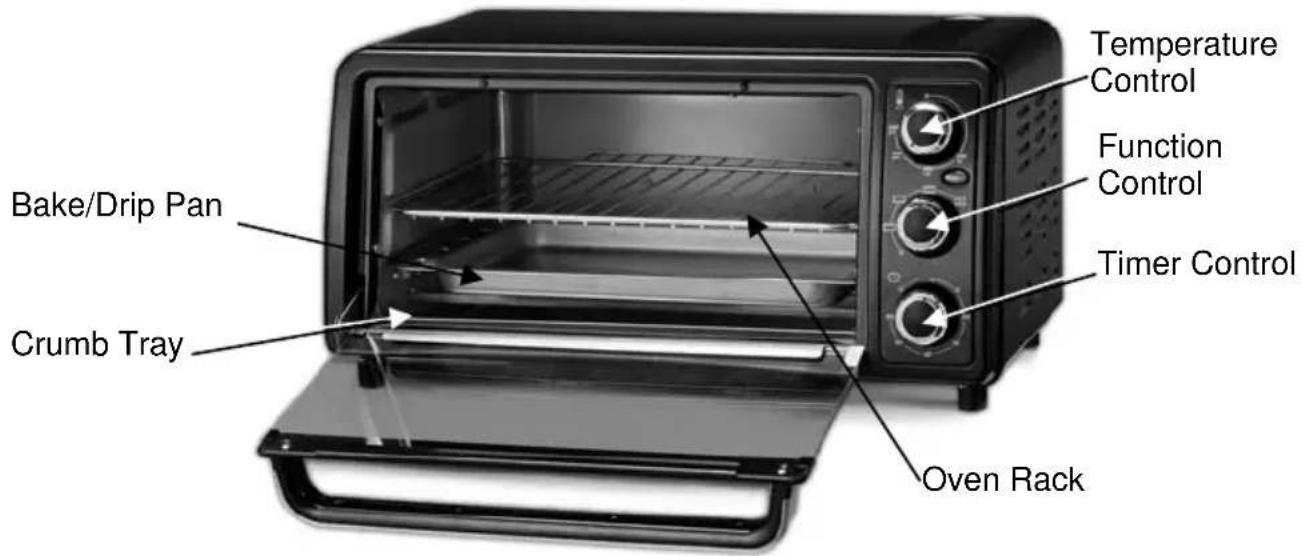

Temperature Control Function Control Timer Control Bake/Drip Pan Crumb Tray Oven Rack

Oven Rack: Your oven includes a chrome plated oven rack. This must be placed in the oven with the extended side towards the back of the oven.

Bake/Drip Pan: The bake/drip pan may be used for baking or reheating foods or to catch drippings.

Crumb Tray: Allows for easy disposal of crumbs.

BEFORE USING FOR THE FIRST TIME

Please check all packaging material carefully before discarding. Accessory parts may be contained within the packaging material.

• Remove any stickers or labels from heating surfaces.
• Make sure the oven is free from any paper or objects not intended for use in the oven.
• Clean the interior, oven rack, crumb tray, and bake/drip pan as described in the "Cleaning Your Countertop Oven" section of this manual.
• Ensure clean, dry crumb tray is in position before operating the countertop oven.
• Select a location for your oven that is level, in an open area with at least 6" clearance from walls, curtains, or cabinets.
• Before using for the first time, turn the temperature control to 450^ F and set timer control for 5 - 10 minutes. (See Step 6 in “Basic Use” instructions for how to set timer control.) This will eliminate any manufacturing oils.

USING YOUR CONVECTION COUNTERTOP OVEN

Basic Use:

1. Place countertop oven on a dry, level, heat-resistant surface, away from any edges.
2. Plug the cord in to a 120 volt, AC electrical outlet ONLY. Ensure that the cord is not touching any part of the oven before and during operation.
3. Insert the crumb tray into the bottom of the countertop oven, under the heating elements. Place the oven rack and/or bake/drip pan in to the desired position. Note: Do not use aluminum foil to line the crumb tray, rack, or bake/drip pan in your countertop oven as it could cause arcing or overheating.
4. Set the function control to the desired setting.
5. Set the temperature control to the desired cooking temperature.
6. Set the timer control and allow the oven to preheat for 4 - 8 minutes. When setting the timer control for less than 10 minutes, turn it past the 10 minute mark, then back to the number of minutes you wish to time. This must be done to activate timer and turn the appliance on. If desired, turn timer control to “⏻” (stay on) for “Stay On” feature. In “Stay On,” there is no timer countdown. Please carefully monitor foods. Note: The “TOAST” function requires no preheating.
7. After the oven has preheated, place the food in the oven, onto the oven rack. Use the appropriate cooking container if required. Set the timer control to the desired cooking time.
8. When the time has elapsed, a bell will sound and the oven will turn off automatically. Heating can also be turned off manually by turning the timer, temperature, or function control to "○" (off). Using hot pads or oven mitts, open the door and remove the food container. Unplug from the electrical outlet. Allow the oven to cool completely before cleaning.

CAUTION: “💡” (stay on) keeps the oven on. Always turn all controls to “💡(off) and unplug the oven after use. Use extreme caution when opening the door. Keep your hands and face away as very hot air or steam may be released when the door is opened. Never set anything on the glass door, as damage could occur.

NOTE: Follow the package or recipe directions for baking times and temperatures when baking pizza, appetizers, cookies, cakes, etc. Because your countertop oven is smaller than a conventional oven, it may heat up faster and cook in a shorter time period. Be sure to monitor the food closely to prevent burning. Also, if making multiple batches, you may need to reduce cook times for subsequent batches after the initial batch is done. For easy cleanup, position the bake/drip pan in the bottom rack support guide to catch any spillover.

English - 4

Bake or Convection Function: ,

Convection baking tends to bake more quickly than standard baking, as there is movement of the hot air around your foods. This generally means setting a shorter cook time on “CONVECTION” when baking.

CAUTION: Do not use roasting bags, plastic, or glass containers in the oven as damage could occur.

1. Position the oven rack in to the bottom rack support guide.
2. Place item to be baked (in proper cooking container) onto the oven rack.
3. Set the temperature control to the desired temperature.

4. Set the function control to "BAKE" or "CONVECTION". Preheat the oven by setting the timer control to desired preheat time. (See Step 6 in "Basic Use" instructions for how to set timer control.) We recommend 4 - 8 minutes.

5. Once preheated, turn the timer control to desired cook time. If baking is complete before the timer sounds, turn the timer control counter-clockwise to "○" (off). When the time has elapsed, a bell will sound and the oven will turn off. Use hot pads or oven mitts to open the door and remove the cooking container.

CAUTION: “ ⏻ ” (stay on) keeps the oven on. Always turn all controls to “ ⏻(off) and unplug the oven after use. Use extreme caution when opening the door. Keep your hands and face away as very hot air or steam may be released when the door is opened. Never set anything on the glass door, as damage could occur.

Baking/Roasting Guide

All roasting times are approximate and based on cooking thawed meats. Frozen meats may take much longer. Use of a meat thermometer is highly recommended. Cooking results may vary; adjust these times to suit your individual requirements. For best results, pre-heat the countertop oven for 4 - 8 minutes at the desired cooking temperature. (See Step 6 in “Basic Use” instructions for how to set timer control.)

FOOD OVEN TEMP TIME PER LB.
Pizza Per package directions. Per package directions.
Cookies, cakes, pies, etc. Per recipe/pkg. directions. Per recipe/pkg. directions.
Pork Roast 325°F (165°C) 40-45 min.
Beef Roast 300-325°F (150°-165°C) 25-30 min.
Ham	300-325°F (150°-165°C)	35
Chicken	350°F (175°C)	25-30 min.

Broil Function:

1. Set the function control to "BROIL." Set the temperature control to 450°F (232°C). Preheat the oven by setting the timer control to desired preheat time. (See Step 6 in "Basic Use" instructions for how to set timer control.) We recommend 15 minutes.
2. Place the food item into the bake/drip pan.
3. Place the oven rack in the appropriate rack support. Place the pan with food on to the oven rack. Ensure there is at least a 1" clearance between the food and the heating elements.
4. Once preheated, turn the timer control to desired cook time. If broiling is complete before the timer sounds, turn the timer control counter-clockwise to "○" (off). When the time has elapsed, a bell will sound and the oven will turn off automatically. Using hot pads or oven mitts, open the door and remove the

bake/drip pan with food. CAUTION: “💡” (stay on) keeps the oven on. Always turn all controls to “💡(off) and unplug the oven after use. Use extreme caution when opening the door. Keep your hands and face away as very hot air or steam may be released when the door is opened. Never set anything on the glass door, as damage could occur.

Broiling Guide

All broiling times are approximate and based on cooking thawed meats. Use of a meat thermometer is highly recommended. Results may vary; adjust the cooking temperatures and times to suit your individual requirements. Check often during broiling to avoid overcooking. For best results, pre-heat the countertop oven for 4 - 8 minutes at the desired cooking temperature. (See Step 6 in “Basic Use” instructions for how to set timer control.)

MEAT	OVEN		TEMP	COOKING	TIME
Hamburger	450°F	(232°C)	20-25	min.
Steak	450°F	(232°C)	20-25	min.
Pork	450°F	(232°C)	20-25	min.
Lamb	450°F	(232°C)	20-25	min.
Chicken	450°F	(232°C)	30-35	min.
Fish Filets 400°F (205°C) 20-25 min.

Toast Function:

The large capacity oven allows for toasting 1 to 6 slices of bread, 6 English muffin halves, frozen waffles, or pancakes. When toasting only 1 or 2 items, place the food in the center of the oven.

1. Ensure the crumb tray is in position.
2. Place the oven rack in a rack support guide. Place food to be toasted onto the oven rack.
3. Set the temperature control to 450^ F ( 232^ C). No preheat is required in this setting.
4. Set the function control to "TOAST" setting.

5. Set the timer control to the desired time. (See Step 6 in "Basic Use" instructions for how to set timer control.) Longer time will produce darker toast. We do not recommend toasting for more than 7 minutes. Always watch your toast to prevent possible burning of the item being toasted.

6. When toasting is complete, remove the oven rack using hot pads or oven mitts. Note: If toasting several batches of bread, one after the other, set the timer control for less time after the first batch as the oven will be warm and require less toasting time. CAUTION: “💡” (stay on) keeps the oven on. Always turn all controls to “○” (off) and unplug the oven after use. Use extreme caution when opening the door. Keep your hands and face away as very hot air or steam may be released when the door is opened. Never set anything on the glass door, as damage could occur.

HELPFUL HINTS

• Countertop ovens are a smaller version of your standard oven and are designed to provide the same great functions with less energy consumption. They often cook in less time as well. Use your favorite recipes to make your favorite meals, but do be sure to check your food and adjust recipes as needed to prevent over or under cooking.
• Convection cooking uses hot air movement, by means of a fan, and provides faster cooking in many cases than regular radiant type countertop ovens. The fan sends hot air to every area of the food, quickly sealing in moisture and flavor, producing more of an even temperature all around the food. The Countertop Convection oven was designed with a very quiet fan. If you do hear a motor running (humming), it's the convection feature. Check to ensure that your oven is on a level surface.
• Recommended Pan Sizes – The following pan sizes should fit your Countertop Oven. To be sure the pan will fit, place the pan inside the oven prior to preparing your recipe. When baking in loaf pans, we recommend you do not fill the pan more than half full.

➢ 12-cup mini muffin pan
▶ 6-cup muffin pan
▶ 8 x 4 loaf pan
9 x 5 loaf pan
▶ 8" round or square baking pan or dish
1-112 quart casserole dish – most types

CLEANING YOUR CONVECTION COUNTERTOP OVEN

CAUTION: Before cleaning any part of the oven, always set the timer control and function control to "O" (off), unplug the cord from the electrical outlet and allow the oven to cool completely.

To keep your countertop oven clean, wipe away food spills, spatters, and crumbs after each use.

1. The oven rack, bake/drip pan, and crumb tray may be washed in warm, soapy water with a dishcloth, rinsed and dried or in an automatic dishwasher. Do not use any metal or abrasive scouring pads or cleansers on these parts as damage to the finish may occur.
2. Wipe the exterior of the oven and glass door with a soft, damp cloth and dry. Do not use any type of scouring pad or cleaner on the exterior surfaces or the glass door as scratching will occur. If glass is scratched, it can weaken and shatter.
3. Wipe the interior of the oven with a damp cloth, wipe clean and dry. Do not use any metal or abrasive scouring pads, cleansers, or oven cleaner on the inside of oven, as damage will occur. Be careful when wiping around the heating elements to prevent damage.

This appliance has no user serviceable parts.

TROUBLESHOOTING GUIDE

PROBLEM	POTENTIAL CAUSE SOLUTION
Overcooked/under cooked foods	Incorrect temperature or function settingRack placement	Adjust time or temperature.Because your countertop oven is smaller than your regular oven, it will heat up faster and cook in shorter periods of time.Rack may need to be adjusted to accommodate specific food types.
Smoke or odor upon heatingBurnt smell	Manufacturing OilsFood SpillsFood build-up inside oven, on heating elements, or in crumb tray	Some smoke and/or odor may occur upon initial heating due to the release of manufacturing oils – this is normal. Run empty oven through heating cycle for 5-10 minutes at “TOAST”.Refer to “Cleaning Your Oven” section.
Noises	Expansion/Contraction upon heatingConvection Fan	Some minor expansion/contraction sounds may occur during heating and cooling – this is normal.Make sure that your oven is on a level surface. A low hum is normal.
Oven does not turn on	Appliance is unpluggedThe timer, temperature, or function control set to “○” (off)Timer is not on	Plug appliance in to electrical outletSet controls to desired setting.Turn timer control to desired setting.
Heating element does not stay on		Heating elements will cycle on and off to maintain the proper temperature.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Products Group International, LLC (“the Company”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided that the appliance is operated and maintained in conformity with the Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at the Company’s discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by the Company, if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Customer Care Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from the Company several ways. Order online at www.westbend.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

Focus Products Group International, LLC.

Attn: Customer Care Dept.

P. O. Box 53

West Bend, WI 53095

To order with a check or money order, please first contact Customer Care for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the appliance, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Products Group International, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift: ____

Where purchased and price, if known: ____

Item number and Date Code (shown bottom/back of product): ____

NOTES
