Important Safeguards....2

Operating Precautions....3

Accessories....4

Using Your Countertop Oven 5

Cleaning Your Countertop Oven 7

Troubleshooting Guide 7

Warranty....8

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including the following:

- Read all instructions, including these important safeguards and the care and use instructions in this manual.

- Do not touch hot surfaces. Use handles or knobs.

- To protect against electric shock, do not immerse cord, plugs, or other electric parts in water or other liquids.

- Close supervision is necessary when this appliance is used by or near children.

- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.

- Do not operate this appliance with a damaged cord or plug, after the appliance malfunctions or if the appliance is dropped or damaged in any manner. If you experience any problems with your appliance, unplug it immediately from the electrical outlet. For service information see warranty page.

- The use of accessory attachments not recommended by Focus Electrics may cause injuries.

- Do not use this appliance outdoors.

- Do not let cord hang over the edge of a table or counter, or touch hot surfaces.

- Do not place on or near a hot gas or electrical burner or in a heated oven.

- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

- To disconnect, turn all controls to "OFF", then remove plug from wall outlet.

- Do not use appliance for other than intended use.

- This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

- Use extreme caution when removing the trays or disposing of hot grease.

- Do not clean with metal scouring pads. Pieces can break off of the pad and touch electrical parts, creating a risk of electrical shock.

• Oversize foods or metal utensils must not be inserted in this appliance as they may create a fire or risk of electric shock.
• A fire may occur if the appliance is covered or touching flammable material including curtains, draperies, walls and the like, when in operation. Do not store any item on top of appliance when in operation.
• Extreme caution should be exercised when using containers constructed of other than metal or glass. Do not store any materials, other than manufacturers recommended accessories in this oven when not in use.
• Do not place any of the following materials in the oven: plastic, paper or cardboard.
• Do not cover racks, trays or any parts of the oven with aluminum foil, as overheating will occur.
• Always turn Timer control and Heat Selector to "OFF" and unplug the appliance from outlet when not in use and before cleaning
• For household use only

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

OPERATING PRECAUTIONS

• This device is not intended to heat oil or other liquids.
• Do not use sharp utensils to clean oven door glass as scratching may weaken it and cause shattering.
• Do not touch heating elements as serious burns may result.
• Set cooking containers, pans, trays and racks on a hot pad, trivet or other heat protective surface. Do not set directly on the counter, table or other surface.
• Failure to clean after each use may result in fire hazard.
• Unplug oven and close door if fire is observed.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer, detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. While use of an extension cord is not recommended, if you must use one, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. The cord should be arranged so that it will not hang over the counter top or tabletop where it can be pulled by children or tripped over.
• Do not attempt to repair this product yourself.

SAVE THESE INSTRUCTIONS

ACCESSORIES

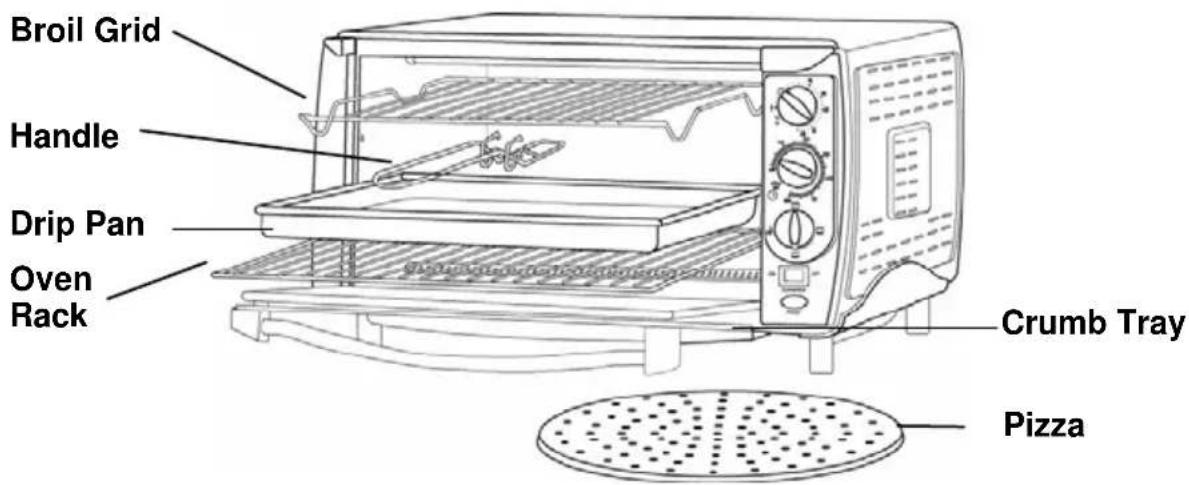

Broil Grid Handle Drip Pan Oven Rack Crumb Tray Pizza

Oven Rack: Your oven includes a chrome plated oven rack. The edges of the rack slide into the guides on both sides of the oven. Adjust the height of the rack by choosing the appropriate guide.

Drip Pan and Broil Grid: The broil grid allows fat to drip into the drip pan, channeling grease away from food, helping to prevent spattering. The broil grid must always used with the drip pan. Never use the broil grid by itself as grease may drip onto a heating element, creating a fire hazard. The drip pan may be used by itself for baking or reheating items.

Handle: A metal handle is provided that can be used for inserting and removing the rack or drip pan. Do not attempt to use the handle to remove the rack or pan with food on it.

Pizza Disc: This oven is equipped with a 12" pizza disc to allow for even baking of pizzas. Do not bake any pizza larger than 12" in this oven.

Crumb Tray: Allows for easy disposal of crumbs.

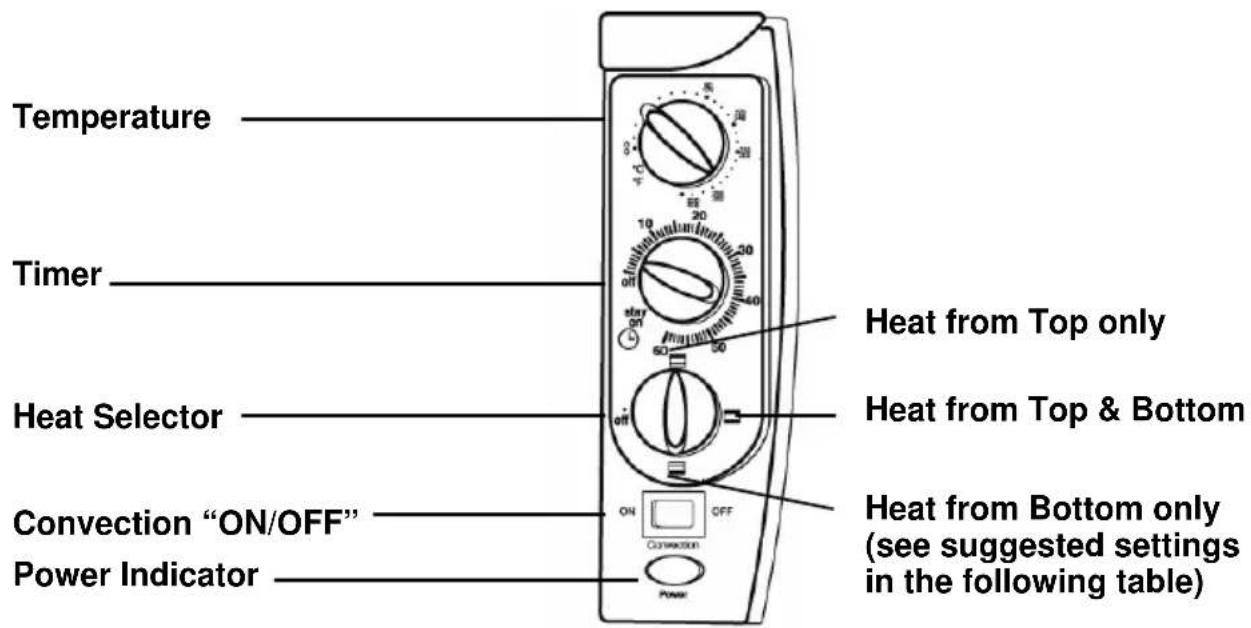

CONTROL PANEL

Temperature Timer Heat Selector Convection "ON/OFF" Power Indicator 5 20 40 60 80 10 30 50 60 OFF ON OFF C:\WINDOWS\CN\ POWER Heat from Top only Heat from Top & Bottom Heat from Bottom only (see suggested settings in the following table)

USING YOUR COUNTERTOP OVEN

Suggested Heat Selector and Temperature Settings
Function Heat Selector Setting Temperature
Warm	Top only	175
Broil	Both	Max
Toast	Both	Max –control color with time
Bake/Roast	Both	Per

re

*If foods brown too dark or too quickly, turn off the top unit or remove foods from the oven.

Before first use: Remove any stickers or labels from heating surfaces. Make sure the oven is free from any paper or objects not intended for use in the oven. Clean the interior, oven rack, pans, trays and other accessories as described in the "Cleaning Your Countertop Oven" section of this manual.

Basic Use:

1. Plug the cord into 120 volt AC electrical outlet ONLY.
2. Place the oven rack, trays, and pans into the desired position.
3. Place the food in a proper cooking container on the oven rack.
4. Select the desired temperature.
5. Set the timer to the desired time or "STAY ON" position. Allow the oven to preheat for 10 minutes. Note: When setting the timer for less than 15 minutes, you must turn the timer past the 15 minute mark and then back to the number of minutes you wish to time. This must be done to activate timer and turn the appliance on.
6. Select the desired heat selector position: "Top Only", "Top & Bottom", "Bottom Only".
7. Set the convection setting to "ON" or "OFF". The convection feature is recommended for most baking to aid in even browning and faster results.
8. When cooking is complete, set the heat selector to "OFF". Use hot pads or oven mitts to open the door and remove the cooking container. Unplug from the electrical outlet. Allow the oven to cool completely before cleaning.

CAUTION: Use extreme caution when opening the door and keep your hands and face away because very hot air or steam may be released. Do not rest cooking containers on glass door as damage could occur.

Baking Pizzas:

1. Place the oven rack into the middle rack support guide.
2. Set the temperature to 350^ F ( 176^ C).

3. Preheat the oven for 10 minutes. Place a pizza on the pizza disc and slide the disc onto the oven rack making sure it is as far back as it will go inside the oven. Bake to the desired doneness.

4. A small amount of smoke and/or odor may occur upon heating due to the release of manufacturing oils – this is normal.

5. Some minor expansion/contraction sounds may occur during heating and cooling – this is normal.

CLEANING YOUR COUNTERTOP OVEN

CAUTION: Before cleaning any part of the oven, always set the timer control and heat selector to "OFF", unplug the cord from the electrical outlet and allow the oven to cool completely.

To keep your countertop oven clean, wipe away food spills, spatters and crumbs after each use.

1. The oven rack, drip pan, broil grid and crumb tray may be washed in warm, soapy water with a dishcloth, rinsed and dried or in an automatic dishwasher. Do not use any metal or abrasive scouring pads or cleaners on these parts as damage to the finish may occur.
2. Wipe the exterior of the oven and glass door with a soft, damp cloth and dry. Do not use any type of scouring pad or cleaner on the exterior surfaces or the glass door as scratching will occur. If glass is scratched, it can weaken and shatter.
3. Wipe the interior of the oven with a damp cloth, wipe clean and dry. Do not use any metal or abrasive scouring pads, cleaners or oven cleaner on the inside of the oven, as damage will occur. Be careful when wiping around the heating elements to prevent damage.

TROUBLESHOOTING GUIDE

PROBLEM POTENTIAL CAUSE		SOLUTION
Overcooked/under cooked foods	Incorrect temperature or setting	Adjust time or temperature. Because your countertop oven is smaller than your regular oven, it will heat up faster and cook in shorter periods of time.
	Rack placement Racks may need to be adjusted to accommodate specific food types.
Burnt smell	Food build-up inside oven, on heating elements or in crumb tray.	Refer to “Cleaning Your Oven” section.
Oven does not turn on	Unit is unplugged. Heat selector is set to “OFF”.	Plug unit into electrical outlet Turn timer to desired setting.
Only one heating element is heating	Heat selector is set to heat from only one element.	Check heat selector to ensure it is set to heat from both sides.
Heating element does not stay on	Heating elements will cycle on and off to maintain the proper temperature.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electrics, LLC (“Focus Electrics”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electrics’ discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electrics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL FOCUS ELECTRICS BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electrics Customer Service Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. Focus Electrics is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electrics, LLC several ways. Order online at www.focuselectrics.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095

To order with a check or money order, please first contact Customer Service for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the unit, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Electrics, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electrics product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:
