DPV1711 - Monitor CANON - Free user manual and instructions

Product type	4K reference video monitor
Brand	Canon
Model	DPV1711
Screen size	17 inches (diagonal)
Native resolution	3840 x 2160 (4K UHD)
Backlight	High-brightness LED system
HDR display	SMPTE ST 2084 (PQ) and Hybrid Log-Gamma (HLG)
Supported color gamut	ITU-R BT.2020, BT.709, DCI-P3, Adobe RGB, SMPTE-C, etc.
Video inputs	4 x SDI (12G/6G/3G/HD-SDI), 1 x HDMI (HDCP 2.2)
Video outputs	4 x SDI (loop-through)
Other interfaces	USB (calibration sensor, memory), LAN (remote control), REMOTE (GPI), headphone jack
Power supply	AC 100-240 V, 50/60 Hz or DC 12 V (4-pin XLR)
Included accessories	HT-21 power cord, cord clamp, instruction manual
Main functions	Built-in calibration with external probe, L/R comparison mode, 2x/4x/8x zoom, waveform monitor, vectorscope, false color, CDL/LUT, multi-view display (dual/quad)
Screen cleaning	Use a soft, dry cloth; for stubborn dirt, moisten with diluted neutral detergent. Never use alcohol, benzene, or thinner.
Important safety instructions	Do not open or modify, use correct voltage, avoid shocks and moisture, unplug if abnormal, ensure adequate ventilation.
Spare parts and optional accessories	PP-17U protection panel, RB-02 mounting bracket (19-inch), HC-01 cable collar, USB key for settings
Repairability	One-year manufacturer warranty; repairs by Canon authorized centers. Firmware updates are possible via USB.

Frequently Asked Questions - DPV1711 CANON

How to adjust image quality on the DPV1711 monitor?

Access the OSD menu by pressing the MENU button. Navigate in Adjustment to adjust contrast, brightness, chrominance, sharpness, color temperature (gain and bias), and gamma. Use the selection wheel to confirm. A warm-up of at least 10 minutes is recommended before any adjustment.

How to perform calibration with an external probe?

Connect a Konica Minolta CA-310 or CA-210 screen analyzer to the USB port on the front. Go to Adjustment > Calibration, select a user mode (User 1-7), set the target values, then start calibration. Follow the on-screen instructions. Perform calibration in a dark room.

What video signals are supported by the DPV1711?

The monitor accepts SDI signals up to 12G (12G/6G/3G/HD-SDI) and HDMI. It supports 4K (3840x2160) and 2K (2048x1080) resolutions via Quad Link (Square Division), Dual Link, Single Link, and 2 Sample Interleave. Formats such as 1080p, 1080i, 720p, 480p, etc., are also supported.

How to connect multiple sources simultaneously?

The DPV1711 allows multi-screen display: use the SDI A-D inputs. In Multi View (Quad) mode, four signals can be displayed side by side. Configure the input type, format, and number of screens in Channel Settings. The CH1-CH3 buttons change the channel instantly.

How to use the zoom function?

In the OSD menu, go to Display Settings > Zoom. Select a preset (2x, 4x, 8x) and move the zoomed area with the wheel. You can also assign the zoom to the F keys for quick access.

How to export or import settings and LUTs?

Insert a USB key formatted as FAT16/FAT32. For settings: System Settings > Export/Import. For LUTs: Adjustment > Detail Settings > LUT Import. LUT files must be in .clut format. Up to 1000 files are recognized.

What functions can be assigned to the F and CH buttons?

The F1-F8 buttons can be configured in System Settings > Function/Channel Button. You can assign actions like toggling zoom, image mode, marker, etc. The CH1-CH3 buttons change the channel (input presets). Press and hold to display the list.

How to update the monitor's firmware?

Download the update file from the Canon website, extract it to a USB key (FAT16/FAT32). Insert the key, the monitor detects the file and offers the update. Follow the instructions. The power indicator blinks during the update.

How to clean the LCD screen correctly?

Disconnect the power. Use a soft cloth (like eyeglass cleaning cloth) dry for dust. For stains, moisten the cloth with diluted neutral detergent. Never use alcohol, benzene, thinner, or abrasive products. Do not press hard on the screen.

How to install the PP-17U protection panel?

Remove the four screws on the front bezel. Remove the protective film from the panel. Align the panel with the holes and screw in the screws using the supplied 1.5 mm hex key. Be careful not to touch the screen during installation.

USER MANUAL DPV1711 CANON

Function Settings 83

Picture Function Settings 96

Network/IMD Settings 100

System Settings 102

Signal Information 109

System Information 109

Line drawing of a coiled cable with a connector (no text or symbols)

Line drawing of a mechanical clamp or tool with a handle and clasp (no text or symbols)

HC-01

Simple line drawing of a blank rectangular object with no text or symbols

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON EUROPA N.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

Technical diagram of a device rear panel with numbered components and labeled ports

Front view of a Canon laptop computer with control buttons and a top handle (no text or symbols on the device body)

ATTENTION

Technical line drawing of a mechanical housing or enclosure with mounting holes and mounting screws (no text or symbols)

ATTENTION

Technical line drawing of a rectangular electronic device with mounting feet and a handle (no text or symbols)

Remarque

Line drawing of a Canon electronic device front panel with ports and mounting feet (no text or symbols on the device body)

Trou de vis 2-φ4,5

Technical line drawing of a mechanical device with pulleys and a perforated base (no text or symbols)

Technical line drawing of a rectangular electronic device with labeled ports and connectors (no text or symbols beyond basic labels)

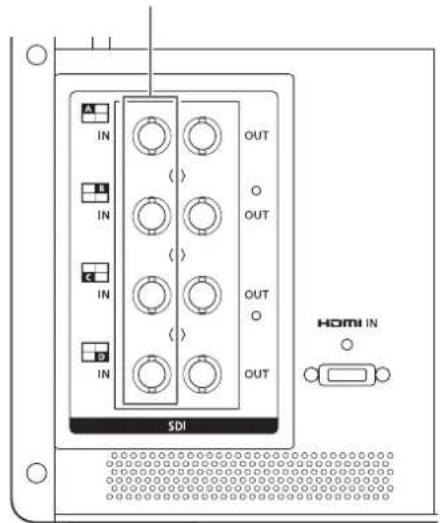

IN OUT A IN OUT E IN OUT C IN OUT G IN OUT HDMI IN 6G/3G/HD-SDI

IN OUT IN OUT IN OUT IN OUT HDMI IN SDI

Simple diagram of a circular component with four labeled pins (1, 2, 3, 4) and two side holes, no text or symbols present.

N° de broche	Signal
1 - (GND)
2 N.C.
3 N.C.
4 + (12 V, max. 10 A)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or movement.

A ⑤ ④ ④ ② AC

Retrait

Menuprincipal Sous-menu Options de réglage Adjustment Picture Mode Contrast Brightness Chroma Sharpness Backlight Control Color Temperature Color Gamut Gamma/EOTF Color Range CDL/User LUT Detail Settings (Boost,LUT Import...) Anchor Adjustment Reset ITU-R BT.709 1000 0 1000 Local Dimming High D65 ITU-R BT.709 2.2 Automatic (Limited) Off

Adjustment Picture Mode SMPTE-C Contrast EBU Brightness ITU-R BT.709 Chroma ITU-R BT.2020 Sharpness Adobe RGB Backlight Control DCI-P3 Color Temperature User 1 (2020 PQ) Color Gamut User 2 (2020 HLG) Gamma/EOTF User 3 (DCI PQ) Color Range User 4 (DCI PQ D65) CDL/User LUT User 5 Detail Settings (Boost,LUT Im) User 6 Anchor Adjustment User 7 Reset CINEMA EOS SYSTEM ACESproxy (ver. 1.0.1)

i Remarque

Brightness 10

MENU ▶Adjustment] [Color Temperature]

MENU ▶Adjustment] [▶Color Temperature]

MENU ▶ Adjustment] [Anchor Adjustment]

Simple diagram with a rectangle containing a plus sign, no text or symbols present

i Remarque

MENU ▶Channel Settings] [Select Channel]

MENU ➕Channel Settings] [Picture Mode] [Type]

MENU ▶Adjustment] [Picture Mode] [User 1-7]

2 Ouvrez le menu [Type].

MENU Channel Settings [Picture Mode] [Type]

MENU ▶Adjustment] [Detail Settings] [HDMI Link] [Automatic Adjustment]

MENU Channel Settings] [Picture Mode] [Type]

MENU Channel Settings [Image Division]

① MENU ▶ Adjustment] [Picture Mode] [User 1-7]

② ME[Adjustment] [Detail Settings] [Calibration]

Bouton F Mode normal Mode CDL
F1 Picture Mode CDL/User LUT
F2 Brightness CDL SOP/SAT
F3 TC/ALM CDL/User LUT Bypass
F4 WFM/VEC Single Input Dual View
F5	Histogram/Frame Luminance	False Color
F6	Pixel Value Check	Over Range
F7	Zoom Preset	2020 Outside of Gamut View
F8	Boost Contrast	Compare View

Référence

MENU ▶System Settings] [▶unction/Channel Button] [▶Display Channel]

MENU ➤ Network/IMD Settings] [➤ Monitor Display]

File Export/Import Target Filename LUT Import (User LUT) User LUT 1 Select File Frame Lum. Monitor Export All Settings Export All Settings Import All Select File Execute Execute Execute Execute

[LUT Import (User LUT)]

View Control Setting Information Link Adjustment Picture Mode ITU-R BT.709 Contrast 1000 Brightness 0 Chroma 1000 Sharpness 0 Backlight Control Local Dimming Low Color Temperature D65 Gamma/EDTF 2.2 Color Range Automatic (Limited) CDL/User LUT Off YCbCr Color Matrix Automatic Channel Settings Select Channel CH1 Input Configuration 12-3G/HD-SDI Select Input Signal Automatic Format Automatic Internal Sync Off

Écran [Link]

Display Setting Link Display Name IP Address MAC Address DP-V241T Set 169.254.9.38 2C:9E-FC:CS:00:00 Off DP-V2420 Set 102.168.6.11 00:11:22:33:44:55 Adjustment DP-V1710 Set 102.168.9.22 66:77:88:99:AA:BB Channel DP-V241S 102.168.9.33 CC:CD:FE:FF:01:23 Adjustment / Channel DP-V241T 102.168.9.43 45:57:89:AB:CD:D

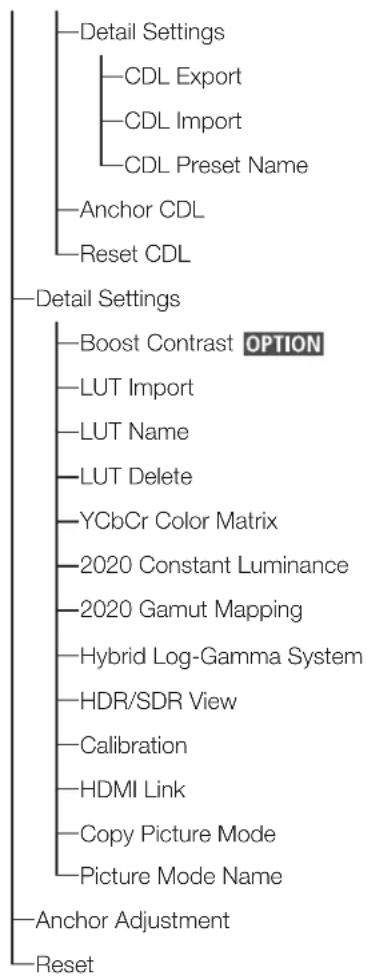

Index du menu OSD

Adjustment (52)

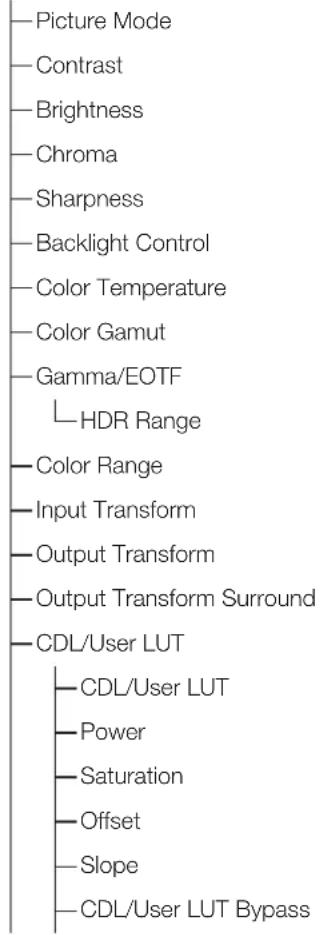

Picture Mode Contrast Brightness Chroma Sharpness Backlight Control Color Temperature Color Gamut Gamma/EOTF HDR Range Color Range Input Transform Output Transform Output Transform Surround CDL/User LUT CDL/User LUT Power Saturation Offset Slope CDL/User LUT Bypass

Channel Settings (68)

Select Channel Input Configuration Select Input Signal Image Division Link Order Format Audio Input

Marker/TC/CameraInfo Input Internal Sync Channel Name Picture Mode Single Input Dual View Separator

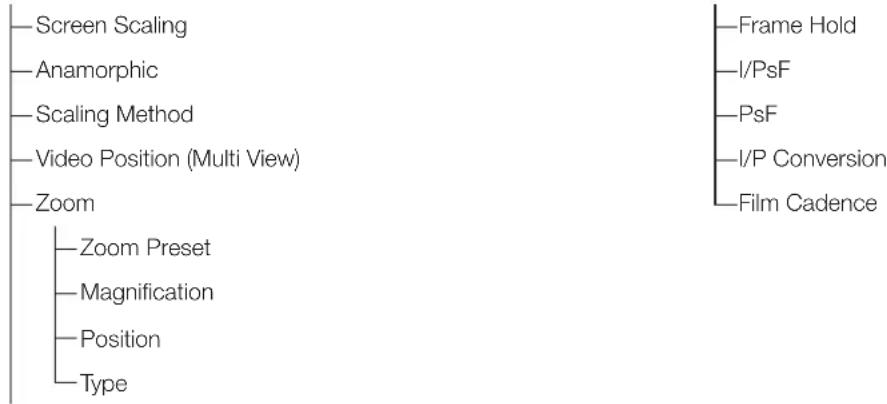

Display Settings (73)

Audio Settings (77)

—SDI Group —CH L/R (SDI) —CH L/R (HDMI)

Marker Settings (78)

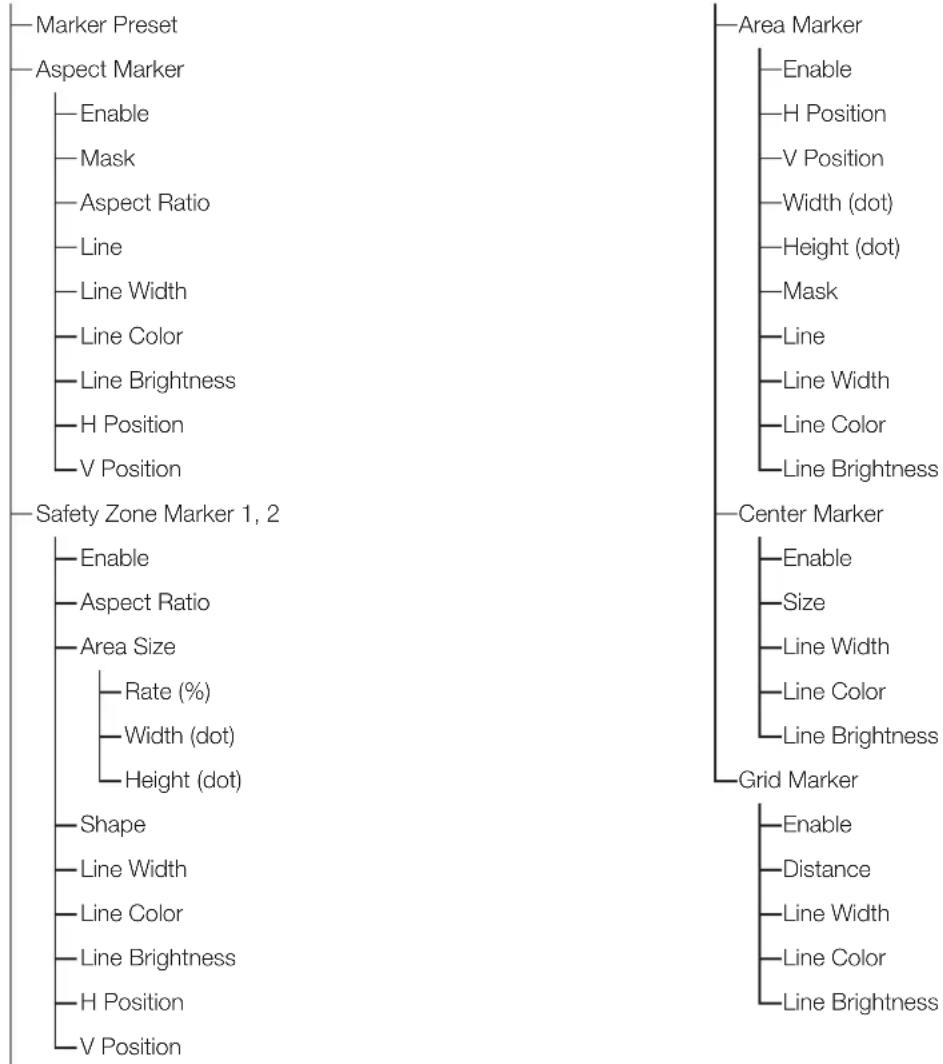


    L["Area Marker"] --> M["Enable"]
    L --> N["H Position"]
    L --> O["V Position"]
    L --> P["Width (dot)"]
    L --> Q["Height (dot)"]
    L --> R["Mask"]
    L --> S["Line"]
    L --> T["Line Width"]
    L --> U["Line Color"]
    L --> V["Line Brightness"]

    W["Safety Zone Marker 1, 2"] --> X["Enable"]
    W --> Y["Aspect Ratio"]
    W --> Z["Area Size"]
    Z --> AA["Rate (%)"]
    Z --> AB["Width (dot)"]
    Z --> AC["Height (dot)"]

    AD["Center Marker"] --> AE["Enable"]
    AD --> AF["Size"]
    AD --> AG["Line Width"]
    AD --> AH["Line Color"]
    AD --> AI["Line Brightness"]

    AJ["Grid Marker"] --> AK["Enable"]
    AJ --> AL["Distance"]
    AJ --> AM["Line Width"]
    AJ --> AN["Line Color"]
    AJ --> AO["Line Brightness"]

Function Settings (83)

—Audio Level Meter

— Wave Form Monitor

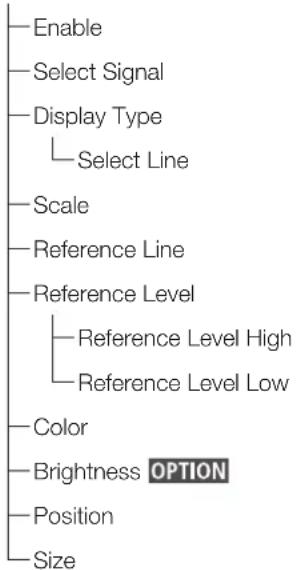


— Vector Scope

—Frame Luminance Monitor

—Pixel Value Check

—Test Pattern

—Signal Monitoring

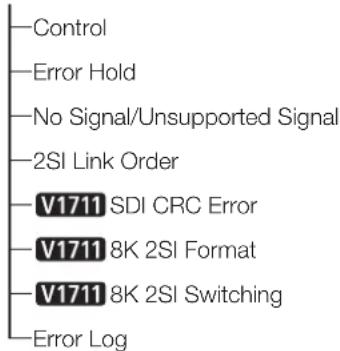

Control Error Hold No Signal/Unsupported Signal 2SI Link Order V1711 SDI CRC Error V1711 8K 2SI Format V1711 8K 2SI Switching Error Log

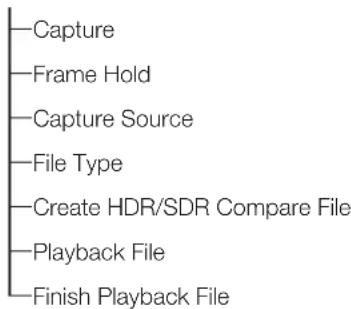

—Screen Capture

Menu OSD

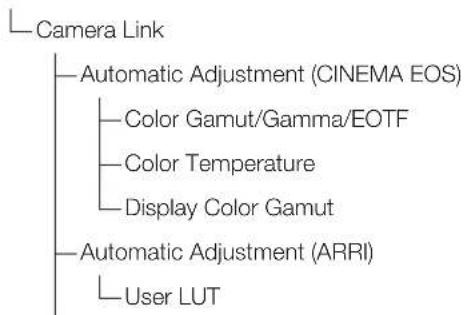

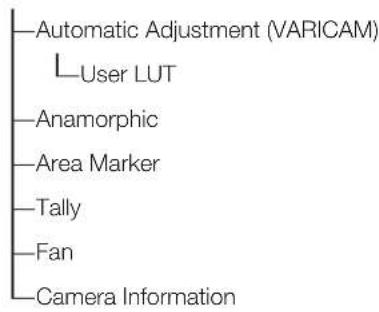

    A["Automatic Adjustment (VARICAM)"] --> B["LUser LUT"]
    B --> C["Anamorphic"]
    C --> D["Area Marker"]
    D --> E["Tally"]
    E --> F["Fan"]
    F --> G["Camera Information"]

Picture Function Settings (96)

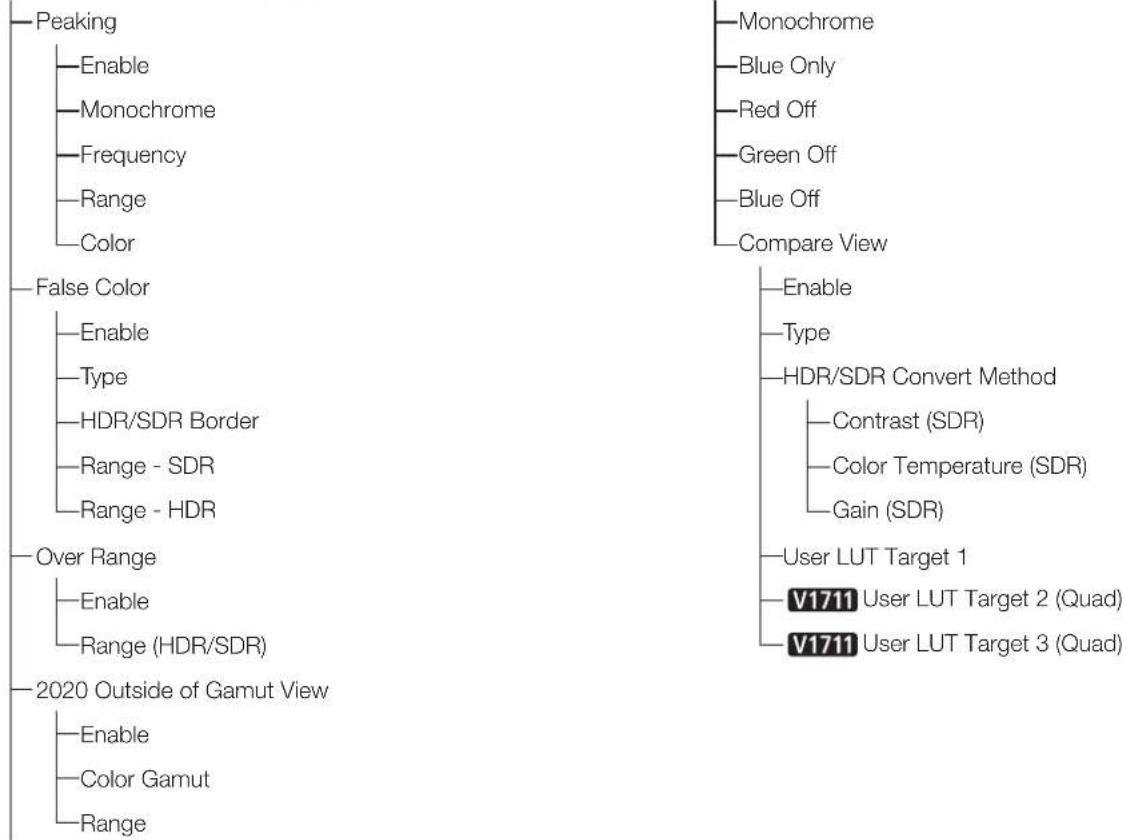


Network/IMD Settings (100)

System Settings (102)

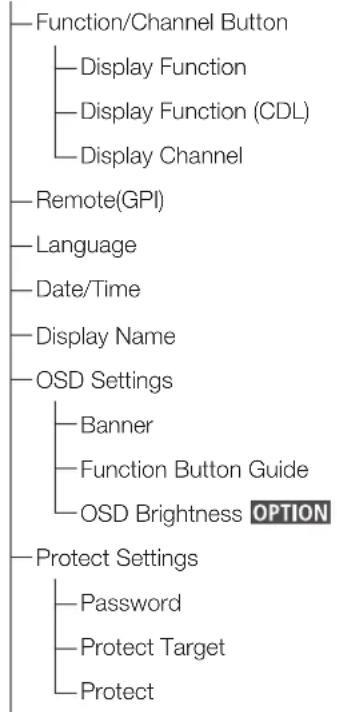

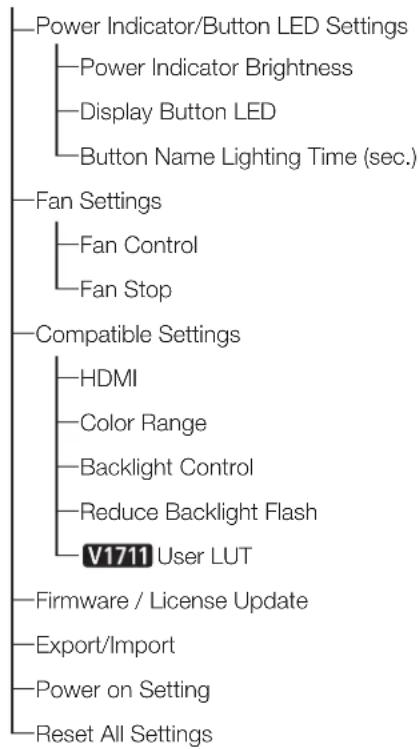


Signal Information (109)

System Information (109)

Adjustment

Canon Log 800% signal

(Contraste : [3000])

- Lorsque [CDL/User LUT] ▶ [ARRI (Rec2100-PQ-1K-100)], [ARRI (Rec2100-HLG-1K-200)], [VARICAM (V-Log to V-709)], [2020 PQ to 2020 SDR], [2020 PQ to 709 SDR], [2020 HLG to 709 HLG] ou [2020 HLG to 709 SDR] est sélectionné.

Picture Function Settings

- Quand [Peaking], [False Color], [Over Range] ou [2020 Outside of Gamut View] ▶ Enable] [▶]

- Quand [Monochrome], [Blue Only], [Red Off], [Green Off] ou [Blue Off] On

Network/IMD Settings

Élément Options
Function Settings	Signal Monitoring Log
	Capture
	Camera Information
Picture Function Settings	Peaking
	Peaking 1
	Peaking 2
	False Color
	False Color 1
	False Color 2
	Over Range
	2020 Outside of Gamut View
	Monochrome
	Blue Only
	Red Off
	Green Off
	Blue Off
	Compare View
System Settings	Signal Information
	Hide OSD^3
	Fan Stop

Copyright (c) 2000-2003 Intel Corporation All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
* Neither name of Intel Corporation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL INTEL OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

libxml License

Copyright (C) 1998-2003 Daniel Veillard. All Rights Reserved.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE DANIEL VEILLARD BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Except as contained in this notice, the name of Daniel Veillard shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization from him.

■Newlib(libc) License

Copyright (c) 1990 The Regents of the University of California. All rights reserved.

Redistribution and use in source and binary forms are permitted provided that the above copyright notice and this paragraph are duplicated in all such forms and that any documentation, and other materials related to such distribution and use acknowledge that the software was developed by the University of California, Berkeley. The name of the University may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED "AS IS" AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Copyright (c) 1991, 2000 The Regents of the University of California. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the University of California, Berkeley and its contributors.

4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

■Newlib(libm) License

Copyright (C) 1993 by Sun Microsystems, Inc. All rights reserved.

Developed at SunPro, a Sun Microsystems, Inc. business.

Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved.

■openssl

Copyright (C) 1998-2017 The OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment:
   "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)"

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Copyright (C) 1995-1998 Eric Young ([e-mail])

All rights reserved.

This package is an SSL implementation written by Eric Young ([e-mail]).

The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson ([e-mail]).

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement:

"This product includes cryptographic software written by Eric Young ([e-mail])"

The word 'cryptographic' can be left out if the rouines from the library being used are not cryptographic related :-).

1. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement:

"This product includes software written by Tim Hudson ([e-mail])"

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]

■wpa\_supplicant, hostapd

Copyright (C) 2002-2016, Jouni Malinen [e-mail] and contributors

All Rights Reserved.

This software may be distributed, used, and modified under the terms of BSD license:

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name(s) of the above-listed copyright holder(s) nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Copyright (c) 2004-2014 by Internet Systems Consortium, Inc. ("ISC")

Copyright (c) 1995-2003 by Internet Software Consortium

Permission to use, copy, modify, and distribute this software for any purpose with or without fee is hereby granted, provided that the above copyright notice and this permission notice appear in all copies.

THE SOFTWARE IS PROVIDED "AS IS" AND ISC DISCLAIMS ALL WARRANTIES WITH REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL ISC BE LIABLE FOR ANY SPECIAL, DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

Internet Systems Consortium, Inc.

950 Charter Street

Redwood City, CA 94063

[e-mail]

https://www.isc.org/

Nomble

2 Sample Interleave 69
3G-SDI RAW 68
200% (Screen Scaling) 73
2020 Constant Luminance 59
2020 Gamut Mapping 59
2020 Outside of Gamut View 97

A

ACESproxy 52
Adjustment 52
Adobe RGB 52
Anamorphic 73,91
Anchor Adjustment 28,61
Area Marker 81
Area Marker (Camera Link) 91
Aspect Marker 78
Audio Input 70
Audio Level Meter 83
Audio Settings 77
Automatic Adjustment (CINEMA EOS/ARRI/VARICAM) 90

B

Backlight Control 52, 104
Banner 103
Bias R/G/B 53
Bicubic 74
Black (Test Pattern) 89
Blue Off 98
Blue Only 98
Boost Contrast OPTION 58
Brightness 52
Button Name Lighting Time 104

C

Calibration 31,60
Camera Information 91
Camera Link 90
Canon Log, CanonLog 2, Canon Log 3 54
CDL Export/CDL Import 34
CDL/User LUT 57
CDL/User LUT Bypass 57

Center Marker 81
Channel Name 70
Channel Settings 68
Chroma 52
CINEMA EOS SYSTEM (Picture Mode) 52
Cinema Gamut to 709 53
Cinema Gamut to 2020 .... 53
Cinema Gamut to DCI 53
Color Bars (Test Pattern) 89
Color Gamut 53
Color Range 56,104
Color Temperature 53
Compare View 98
Compatible Settings 104
Contrast 52
Copy Picture Mode 60
Custom (xy) (Color Temperature) 53

D

Date/Time 35,102
DCI-P3 52
DCI-P3+ to 709 53
DCI-P3+ to DCI 53
Detail Settings
Adjustment 58
CDL/User LUT 57
Display Button LED 104
Display Channel 102
Display Function/Display Function (CDL) 102
Display Name 35,103
Display Setting Link 101
Display Settings 73
Dual Input 68
Dual Link 3G-SDI 69

E

EBU 52

Export/Import 33,105

F

False Color 96
Fan (Camera Link) 91
Fan Settings 104

Film Cadence 75
Firmware/License Update 104
Firmware/License Ver. 109
Format 69
Frame Hold 75
Frame Luminance Monitor 87
Function Button Guide 103
Function/Channel Button 102
Function Settings 83

G

Gain R/G/B 53
Gamma/EOTF 54
Gamma LUT 54
Gamut LUT 53
Global Dimming 52
Gray (Test Pattern) 89
Green Off 98
Grid Marker 82

H

HDMI 12, 22, 104
HDMI Link 60
HDR Range 55
HDR/SDR View 59
Hide OSD 108
Histogram 86
Hybrid Log-Gamma 54
Hybrid Log-Gamma System 59

|

Image Division 69
Image Priority 75
In Monitor Display 101
Input Configuration 68
Input Transform 56
Internal Sync 70
I/P Conversion 75
I/PsF 75
ITU-R BT.709 52
ITU-R BT.1886 54
ITU-R BT.2020 52

L

LAN 12
Language 102
LAN (Network/IMD Settings) 100
Link Order 69
Local Dimming 52
LTC 83
Lumière de contrôle 11
LUT Import 32,58

M

MAC Address 109
Marker Preset 78
Marker Settings 78
Marker/TC/Cameralinfo Input 70
Menu OSD 25,47
Monochrome 98
Multi View (Dual/Quad) 69

N

Native Input Resolution (Screen Scaling) 73
Nearest Neighbor 74
Network/IMD Settings 100

0

Offset 57
OSD Brightness 103
OSD Settings 103
Output Transform 56
Output Transform Surround 56
Over Range 97

P

Password 100, 103
Peaking 96
Picture Function Settings 96
Picture Mode 52,70
Pixel Value Check 88
PLUGE (Test Pattern) 89
Power 57
Power Indicator Brightness 104
Power Indicator/Button LED Settings.... 104

Power on Setting 105

Protect Settings 103

PsF 75

Q

Quad Input 68

R

Ramp (Test Pattern) 89

Red Off 98

Remote(GPI) 102

Reset 61

Reset All Settings 105

s

Safety Zone Marker 1, 2 ...... 79

Saturation 57

Scaling Method 74

Screen Capture 90

Screen Scaling 73

SDI 12, 21

Select Channel 68

Select Input Signal 68

Separator 71

Serial No. 109

Shape Trace 74

Sharpness 52

Signal Information 109

Signal Monitoring 89

Single Input 68

Single Input Dual View 71

Slope 57

SMPTE-C 52

Speed Priority 75

Square Division 69

Subnet Mask 100

System Information 109

System Settings 102

T

Tally (Camera Link) 91

Test Pattern 89

Time Code 83

U

Usage Time 109

USB 11

User 1-7 52

User LUT 57,104

V

Vector Scope 85

Video Position (Multi View) 74

VITC 83

W

Wave Form Monitor 84

Web 44,100

White (Test Pattern) 89

Wi-Fi 42,100

Y

YCbCr Color Matrix 59

Z

Zoom 74

GARANTIE LIMITÉE DE CANON SUR ÉQUIPEMENT DE MONITEUR PROFESSIONNEL POUR DES PRODUITS ACHETÉS AU CANADA

Canon Inc. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON Europa N.V. Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands www.canon-europa.com

BELGIQUE www.canon.be

Canon Belgium NV/SA

Berkenlaan 3, 1831 Diegem (Machelen)

[phone]

2) 721 3274

CANADA

CANON CANADA INC.

http://www.canon.ca

Canon France SAS, Canon Communication & Image
