USER MANUAL 979659 Westfalia

Cord/Cordless Hair Clipper and Beard Trimmer

Art. 97 96 59

GB Original Instructions

Black and silver electric toothbrush with visible teeth and control buttons (no text or symbols)

Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

If you pass the device on to third parties, enclose these instructions.

Chers clients,

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

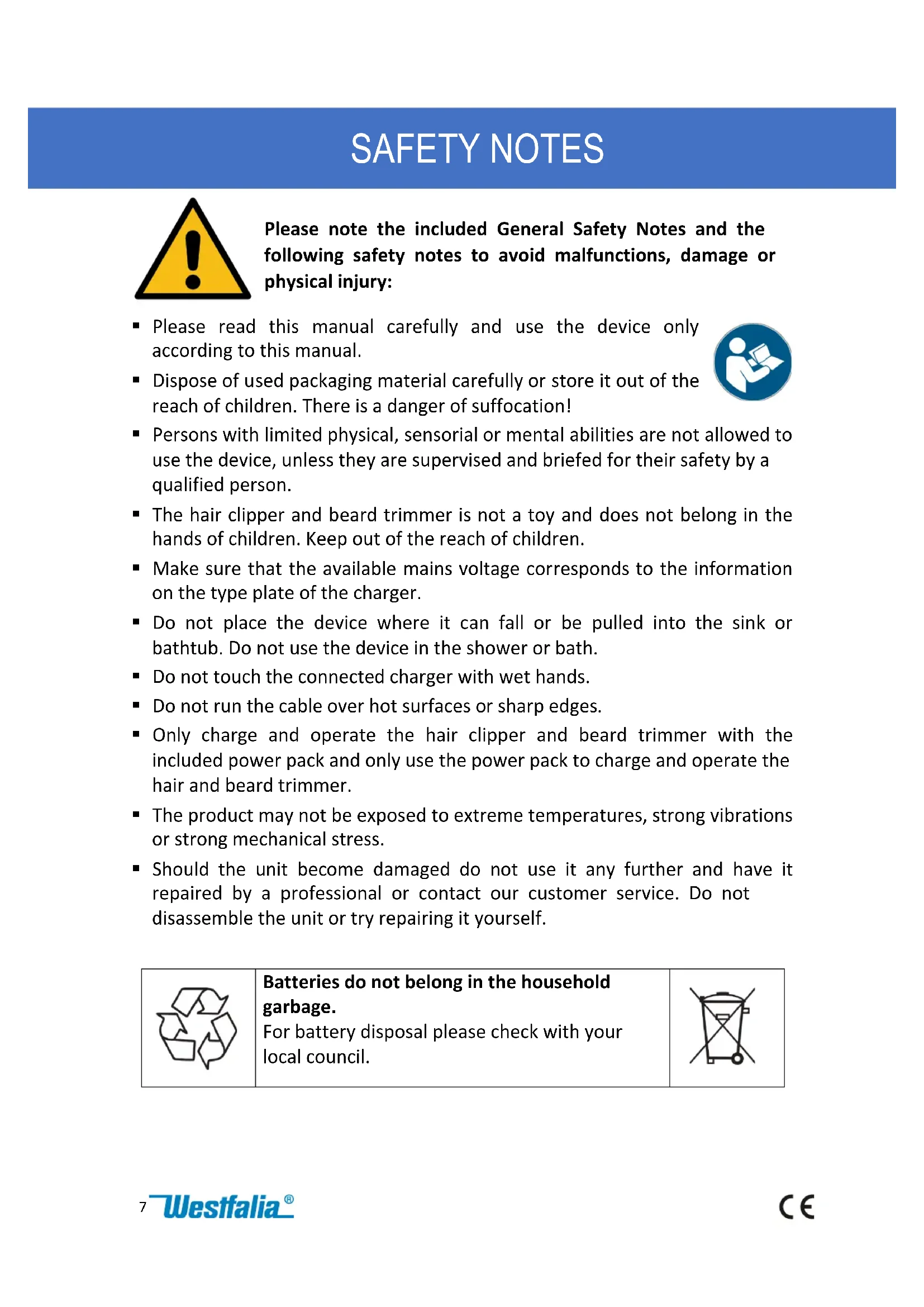

Please note the included General Safety Notes and the following safety notes to avoid malfunctions, damage or physical injury:

• Please read this manual carefully and use the device only according to this manual.
• Dispose of used packaging material carefully or store it out of the reach of children. There is a danger of suffocation!
• Persons with limited physical, sensorial or mental abilities are not allowed to use the device, unless they are supervised and briefed for their safety by a qualified person.
• The hair clipper and beard trimmer is not a toy and does not belong in the hands of children. Keep out of the reach of children.
• Make sure that the available mains voltage corresponds to the information on the type plate of the charger.
• Do not place the device where it can fall or be pulled into the sink or bathtub. Do not use the device in the shower or bath.
• Do not touch the connected charger with wet hands.
• Do not run the cable over hot surfaces or sharp edges.
• Only charge and operate the hair clipper and beard trimmer with the included power pack and only use the power pack to charge and operate the hair and beard trimmer.
• The product may not be exposed to extreme temperatures, strong vibrations or strong mechanical stress.
• Should the unit become damaged do not use it any further and have it repaired by a professional or contact our customer service. Do not disassemble the unit or try repairing it yourself.

Batteries do not belong in the household garbage.

For battery disposal please check with your local council.

OPERATION

Charging the Hair Clipper and Beard Trimmer

Connect the power mains adaptor (7) to a wall socket and to the charging socket on the clipper. The LED indicator light (3) will light up red to indicate the unit is charging. Charging will take approximately 1.5 hours and the LED indicator light will turn blue once the charge is complete. There will be more than 1 hour of running time.

The charger must not be used in damp rooms.

The hair clipper and beard trimmer can be operated during the charging process.

Before Clipping or Trimming

Inspect the clipper to make sure that it is free from hair and dirt. Before cutting. The Hair must be dry before cutting. Always comb the hair so it is tangle free and dry.

Attaching a Comb

Unlock the mounting slide with the slide (4). Fully retract the mounting slide for the comb (8) with the adjustment wheel (2). Place the comb over the front of the clipper and push down the mounting latch (5) until it engages with an audible click.

Removing a Comb

Fully retract the mounting slide for the comb (8) with the adjustment wheel (2) and lock it in position with the slider (4) on the underside of the clipper. Then push the mounting latch forward and away from the machine with your finger until it disengages.

Adjusting the trim Length

The comb assembly can be extended and retracted by turning the Adjustment wheel (2). Make sure you lock the comb assembly in place with the slider (4) on the underside of the clipper.

Operation

Slide the ON/OFF Switch (1) forward to turn on the clipper. Slide the switch back to turn off the clipper.

After each Use

■ Make sure the clipper is switched off.
- Gently brush the remaining hairs away from the comb and trimmer blade.

Cleaning and Maintenance

Your clipper is fitted with high quality ceramic blades and stainless steel blades that are permanently lubricated. To ensure long lasting performance of your clipper, clean the blade assembly regularly.

To detach the blade assembly (6), first remove the comb as described above and then remove the blade assembly. To remove the blade assembly, place your thumb against the underside of the blade assembly (white ceramic blade) and force the assembly forward until it releases with an audible click. Be careful not to let the blade assembly fly off.

Rinse the blade assembly under running water and remove all hair stuck between the blades. To reattach the blade, hook the blade assembly into the horseshoe-shaped top of the blade assembly retainer and press the blades down until they snap into place with an audible click.

Do not disassemble the clipper any further, it does not contain any parts serviceable by you.

Do not immerse the remaining parts of the clipper besides the blade assembly in liquids of any kind. Also, do not use abrasives or aggressive chemicals to avoid damaging the surfaces.

Technical Data

Clipper

Input: 5 V, 1 A, 5 W

Charging Time:

90 min

Operating time:

60 min

Battery:

1x 3,7 V, 600 mAh, 2,22 Wh, Li-Ion

Blades:

Stainless Steel, Ceramic

Charging Station

Input/Output:

Power Mains Adapter

Input: 100-240 V\~ 50/60Hz, 0,2 A

Output:

5 V---, 1 A, 5 W

Protection Class:

CONSIGNES DE SÉCURITÉ

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

declare by our own responsibility that the product

Coed/Cordless Hair Clipper and Beard Trimmer

Article No. 97 96 59

is according to the basic requirements, which are defined in the European Directives and their amendments.

2011/65/EU Restriction of the Use of certain hazardous Substances in electrical and electronic Equipment (RoHS)

2009/125/EC Energy-related Products (ErP)

Hagen, 11 ^th of April 2023

Thomas Klingbeil,

Symbol of a trash bin with no text or numbers, enclosed in a rounded square frame (no readable text or labels)

Werter Kunde,

Please help avoid waste materials.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled. Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
