Product Type	Plasma monitor
Brand	NEC
Model	PlasmaSync 50XM5
Screen diagonal	50 inches (127 cm)
Aspect ratio	16:9
Resolution	1365 x 768 pixels
Pixel pitch	0.81 mm (H) x 0.81 mm (V)
Color processing	4,096 steps, 68.7 billion colors
Horizontal sync frequency	15.5 to 110.0 kHz (automatic)
Vertical sync frequency	50.0 to 120.0 Hz (automatic)
Input signals	RGB, NTSC (3.58/4.43), PAL (B,G,M,N), PAL60, SECAM, HD, DVD, DTV
Video inputs	BNC (x1), RCA (x1), S-Video (4-pin DIN x1)
RGB inputs	Mini D-sub 15-pin (x1), BNC (x1, 5-pin), DVI-D 24-pin (x1)
DVD/HD inputs	RCA (Y, Cb/Pb, Cr/Pr x1), BNC (x1), DVI-D (x1)
Audio inputs	Stereo RCA x3 (selectable)
External control	D-sub 9-pin (RS-232C)
Audio output	9 W + 9 W (6 ohms)
Power supply	AC 100-240 V, 50/60 Hz, 7.6 A max
Power consumption (typical)	435 W

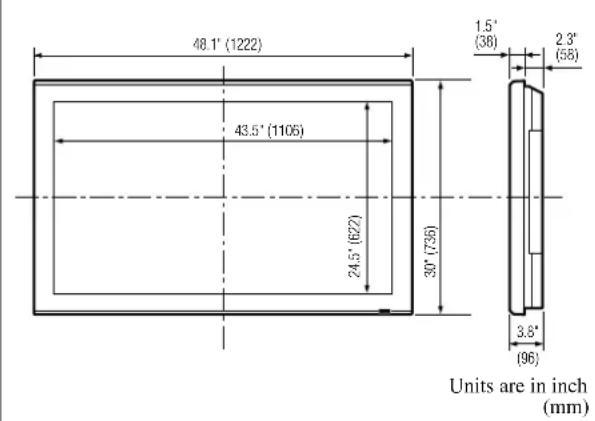

Dimensions (W x H x D)	1222 x 736 x 96 mm
Operating temperature	0°C to 40°C
Operating humidity	20 to 80% (non-condensing)
Key features	3D converter, digital zoom 100-900%, image wall 4-25 screens, anti-image retention (inversion, white, pixel rotation, screen wiper), color temperature (4 settings), gamma correction, lock, input skip, timer, plug and play, image crop (side-by-side, inset)
Maintenance and cleaning	Clean the front panel with a soft dry cloth. Do not use alcohol or thinner. Vacuum the ventilation slots with a soft brush monthly.
Safety	Use a grounded power outlet. Leave 50 mm of space around for ventilation. Do not open the casing.

Frequently Asked Questions - PlasmaSync 50XM5 NEC

How to clean the screen of the NEC PlasmaSync 50XM5?

Use a soft dry cloth to clean the front panel and frame. Never use alcohol or thinner. For ventilation slots, use a vacuum cleaner with a soft brush attachment.

What to do in case of image retention (phosphor burn)?

Activate the anti-image retention functions in the LONG DURATION menu: use PIXEL ROTATION (auto or manual), INVERSION (positive/negative) or SCREEN WIPER. Reduce contrast and avoid prolonged static images.

What resolutions are supported by this monitor?

The monitor supports many resolutions, including 640x480, 1024x768, 1280x1024, 1360x768 and 1920x1080i in HD. Refer to the signal table in the manual for the complete list.

How to connect external speakers?

Use the EXT SPEAKER terminals on the rear of the monitor. Connect the positive (+) cable to the ⊕ terminal and the negative (-) cable to the ⊖ terminal for each left and right channel. Observe polarity.

How to create a video wall with multiple monitors?

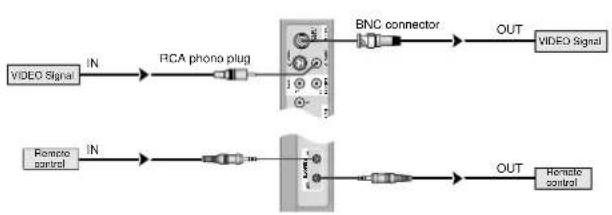

Connect the monitors in series via the VIDEO1 and RGB1 terminals (input/output). Use BNC cables of 1 to 2 meters. Set the VIDEO WALL menu options to configure the matrix (4, 9, 16 or 25 screens). A distribution amplifier is recommended for more than 9 screens.

How to reduce power consumption in standby?

Activate the POWER SAVE function in the OPTION2 menu. When the monitor receives a computer signal and remains inactive, it automatically enters standby mode (red LED). To restore the image, move the mouse or press a keyboard key.

Can I use the remote control without batteries?

Yes, in wired remote control mode. Connect the remote control cable to the jack on the remote and to the REMOTE IN terminal on the monitor. The remote then operates without batteries.

How to adjust the position and size of the image?

In the IMAGE ADJUSTMENT menu, you can adjust V-POSITION, H-POSITION, V-SIZE and H-SIZE. Use the AUTO ADJUST function for automatic adjustment, or disable it for fine manual adjustment.

What is the typical lifespan of the plasma panel?

The brightness of the plasma panel gradually decreases over time, as with any phosphor-based display (e.g., CRT). Normal use allows several years of operation. To extend lifespan, avoid static images and use anti-image retention functions.

How to use the picture-in-picture (PIP) function?

Press the PICTURE IN PICTURE button on the remote control to activate inset mode. Use the cursor keys to move the small image. Press SELECT/FREEZE to activate the main or secondary image.

USER MANUAL PlasmaSync 50XM5 NEC

(Enhanced split screen Model)

ENGLISH

Precautions

Please read this manual carefully before using your plasma monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warnings and Safety Precaution

This plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Please see the section "Plasma monitor cleaning procedure".

The plasma display panel consists of fine picture elements (cells) with more than 99.99 percent active cells. There may be some cells that do not produce light or remain lit.

For operating safety and to avoid damage to the unit, read carefully and observe the following instructions.

To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install the unit in a closed cabinet or shelves.

If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for 60 minutes to cool the monitor. If the problem persists, contact your dealer for service.

1. Do not use this unit's polarized plug with extension cords or outlets unless the prongs can be completely inserted.

2. Do not expose the unit to water or moisture.

3. Avoid damage to the power cord, and do not attempt to modify the power cord.

4. Unplug the power cord during electrical storms or if the unit will not be used over a long period.

5. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.

6. Do not attempt to service or repair the unit. The manufacturer is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Service Centers.

7. This equipment shall be connected to a MAIN outlet with a protective earth-ground connection.

8. The outlet shall be installed near the equipment and shall be easily accessible.

To avoid damage and prolong operating life:

1. Use only with 100-240V 50/60Hz AC power supply. Continued operation at line voltages greater than 100-240 Volts AC will shorten the life of the unit, and might even cause a fire hazard.

2. Handle the unit carefully when installing it and do not drop.

3. Set the unit away from heat, excessive dust, and direct sunlight.

4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the power cord and have it serviced by an authorized Service Center.

5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.

6. For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.

8. To avoid sulfurization it is strongly recommended not to place the unit in a dressing room in a public bath or hot spring bath.

9. Do not use in a moving vehicle, as the unit could drop or topple over and cause injuries.

10. Do not place the unit on its side, upside-down or with the screen facing up or down, to avoid combustion or electric shock.

Plasma monitor cleaning procedure:

1. Use a soft dry cloth to clean the front panel and bezel area. Never use solvents such as alcohol or thinner to clean these surfaces.

2. Clean plasma ventilation areas with a vacuum cleaner with a soft brush nozzle attachment.

3. To ensure proper ventilation, cleaning of the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.

Recommendations to avoid or minimize image retention:

Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to image retention under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in image retention if proper precautions are not taken. To protect your investment in this plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image retention:

* Always enable and use your computer's screen saver function during use with a computer input source.

* Display a moving image whenever possible.

* Change the position of the menu display from time to time.

* Always power down the monitor when you are finished using it.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of image retention:

* Lower the Brightness and Contrast levels as much as possible without impairing image readability.

* Display an image with many colors and color gradations (i.e. photographic or photo-realistic images).

* Create image content with minimal contrast between light and dark areas, for example white characters on black backgrounds. Use complementary or pastel color whenever possible.

* Avoid displaying images with few colors and distinct, sharply defined borders between colors.

Plasma monitor driving sound

The panel of the Plasma monitor is composed of extremely fine pixels and these pixels emit light according to received video signals. This principle may cause you to hear a buzz or electrical hum coming from the Plasma monitor. Also note that the rotation speed of the cooling fan motor increases when the ambient temperature of the Plasma monitor becomes high. You may hear the sound of the motor at that time.

Note:

The following items are not covered by the warranty.

- Image retention

- Panel generated sound, examples: Fan motor noise, and electrical circuit humming /glass panel buzzing.

Contact your dealer for other recommended procedures that will best suit your particular application needs.

Warning

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment ANSI/NFPA 75.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

NOTE:

When you connect a computer to this monitor, use an RGB cable including the ferrite core on both ends of the cable. And regarding power cable, attach the supplied ferrite cores. If you do not do this, this monitor will not conform to mandatory FCC standards.

Set the ferrite cores on both ends of the power cable (supplied).

Use the band to fasten the ferrite core (supplied) to the power cable.

Power cable (supplied) band core band core

Caution

This model is for use with the following optional accessories. Use with other optional accessories is capable of resulting in instability causing possible injury.

42 inch

Manufacturer's name: NEC Viewtechnology, Ltd.

Speakers: PX-42SP1U, PX-SP2U/S, PX-SP2U/B

Stand: PX-ST1U, PX-ST1U/S

50 inch

Manufacturer's name: NEC Viewtechnology, Ltd.

Speakers: PX-50SP1U, PX-50SP1U/S

PX-SP2U/S, PX-SP2U/B

Stand: PX-ST1U, PX-ST1U/S

61 inch

Manufacturer's name: NEC Viewtechnology, Ltd.

Speakers: PX-61SP1U, PX-61SP1U/S

PX-SP2U/S, PX-SP2U/B

Stand: PX-61ST1U, PX-61ST1U/S

Please contact NEC Solutions (America), Inc. for approved optional accessories.

Disposing of your used product

EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes plasma monitors and their electrical accessories. When you dispose of such products, please follow the guidance of your local authority and/or ask the shop where you purchased the product.

After collecting the used products, they are reused and recycled in a proper way. This effort will help us reduce the wastes as well as the negative impact to the human health and the environment at the minimum level.

The mark on the electrical and electronic products only applies to the current European Union Member States.

CAUTION

When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country/area.

Important Information ...... En-2

Contents ...... En-4

Contents of the Package .... En-4

Options En-4

Installation En-5

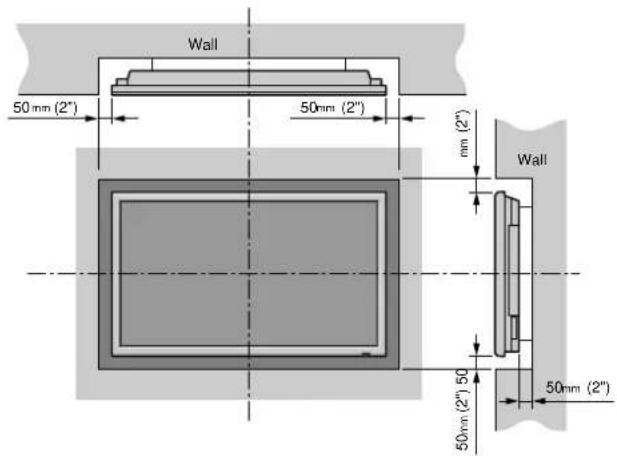

Ventilation Requirements for enclosure mounting ..... En-5

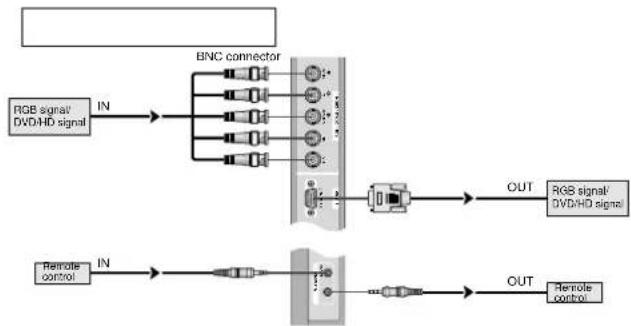

Creating a video wall En-6

Cable Management......En-6

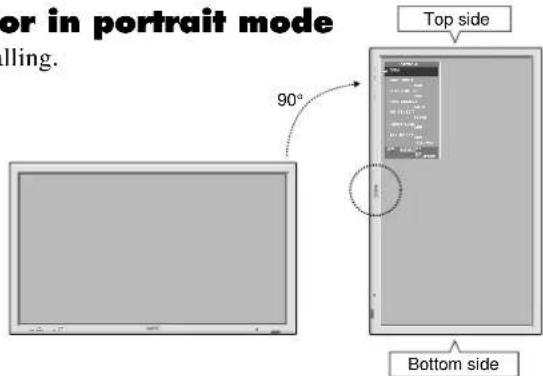

Caution when placing the plasma monitor in portrait mode ..... En-7

Using the remote control En-7

Battery Installation and Replacement En-7

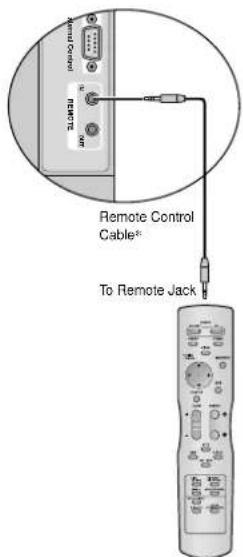

Using the wired remote control mode ...... En-7

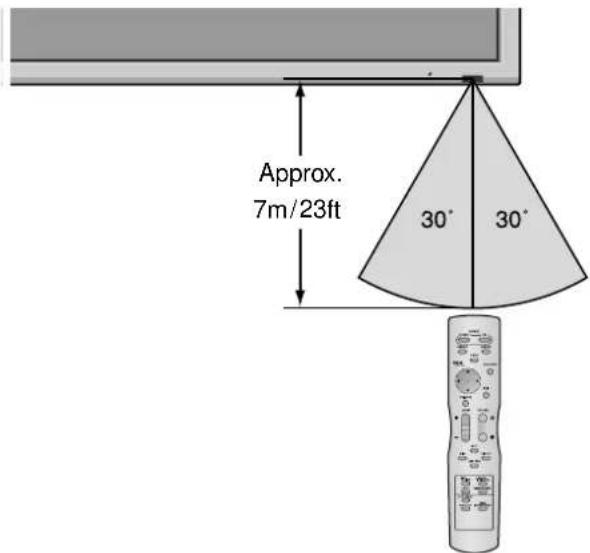

Operating Range En-7

Handling the remote control En-7

Part Names and Function ...... En-8

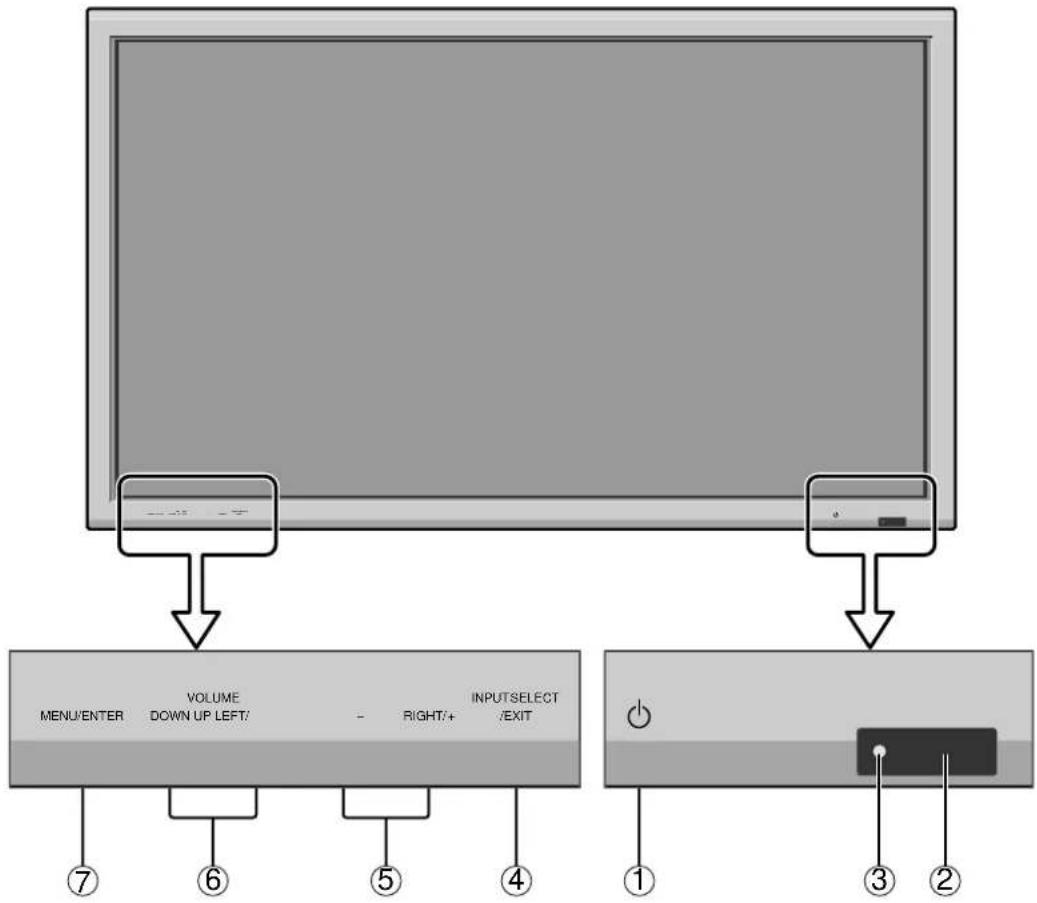

Front View En-8

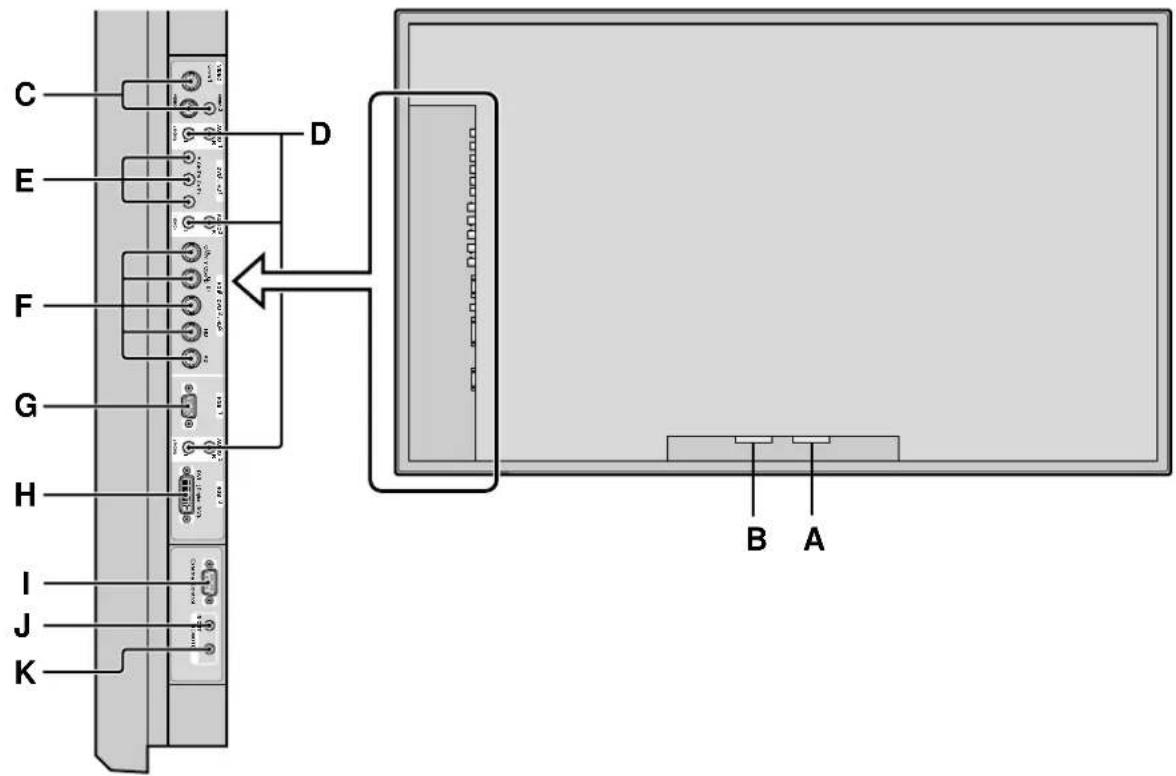

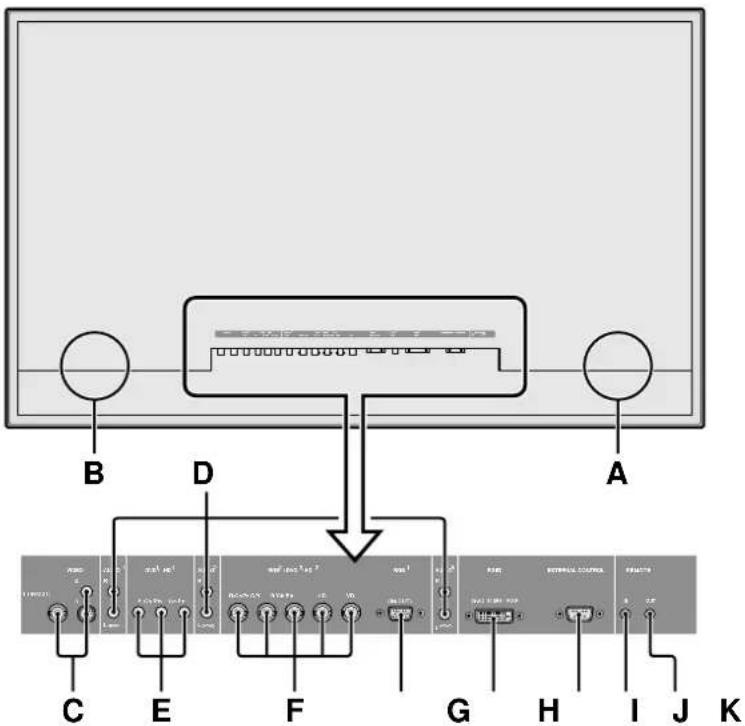

Rear View/ Terminal Board En-9

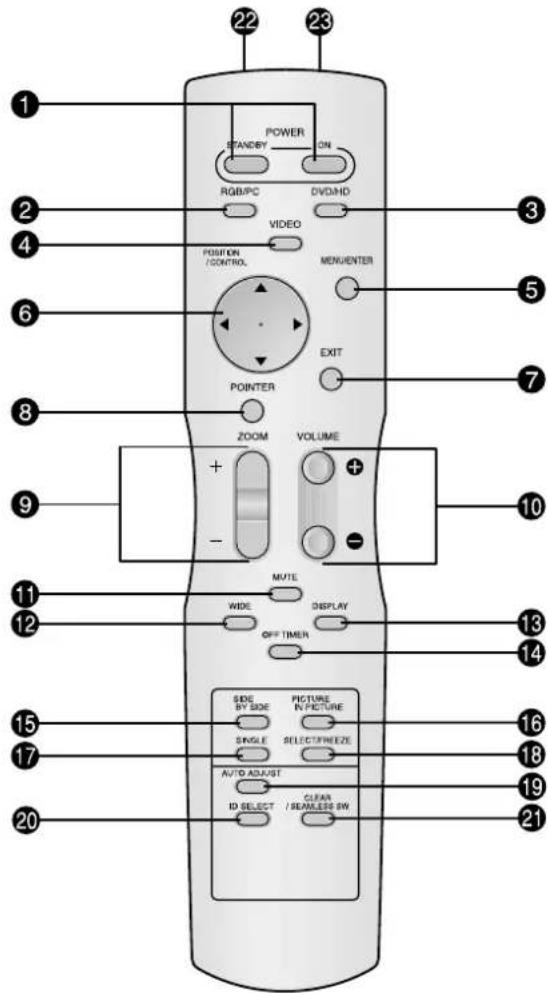

Remote Control En-11

Basic Operations ...... En-12

POWER En-12

To turn the unit ON and OFF: En-12

VOLUME En-12

To adjust the sound volume: En-12

MUTE En-12

To mute the audio: En-12

DISPLAY En-12

To check the settings: En-12

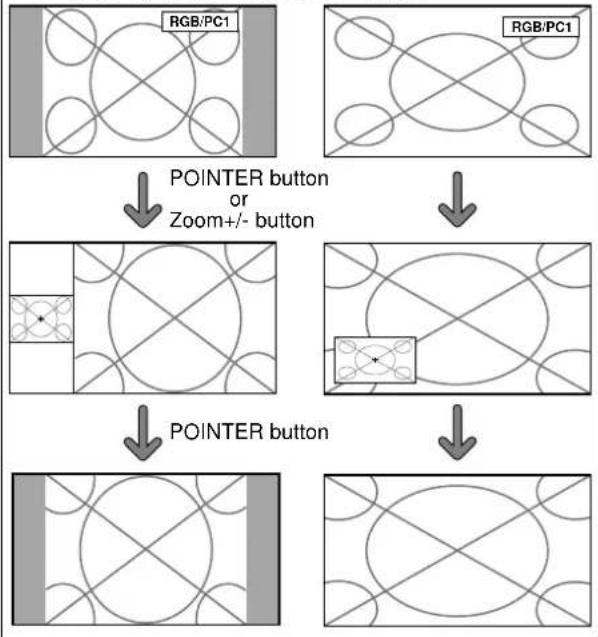

DIGITAL ZOOM En-12

AUTO ADJUST En-12

To adjust the size or quality of the picture automatically: En-12

OFF TIMER En-12

To set the off timer: En-12

To check the remaining time: En-12

To cancel the off timer: En-12

WIDE Operations ...... En-13

Wide Screen Operation (manual) En-13

When viewing videos or digital video discs ...... En-13

Wide Screen Operation with Computer Signals ..... En-14

When "PICTURE SIZE" is set to "OFF" ...... En-14

SPLIT SCREEN Operations ...... En-15

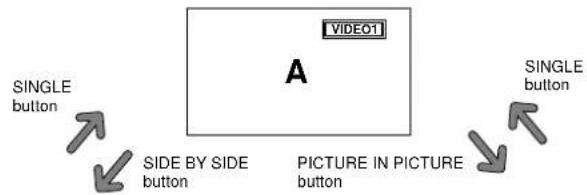

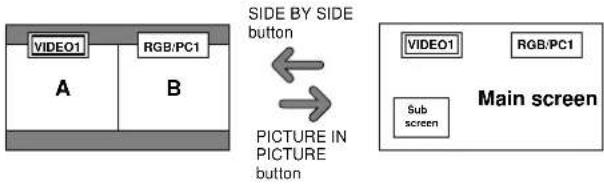

Showing a couple of pictures on the screen at the same

time En-15

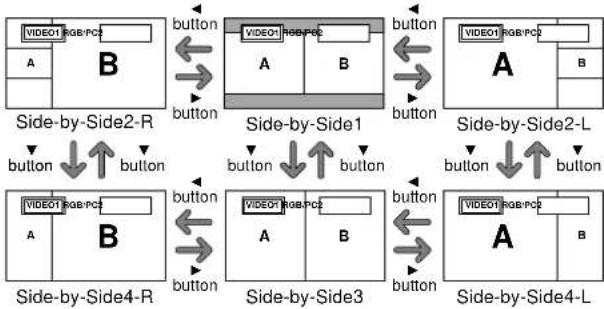

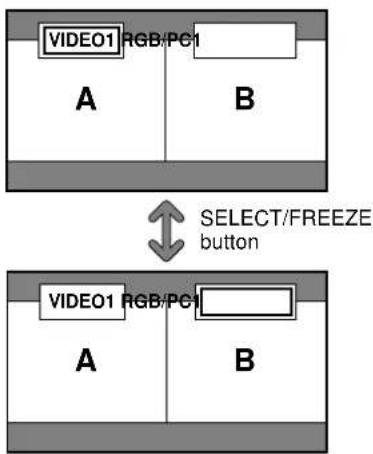

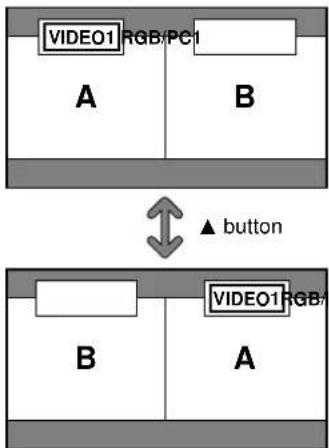

Operations in the Side-by-side mode ...... En-15

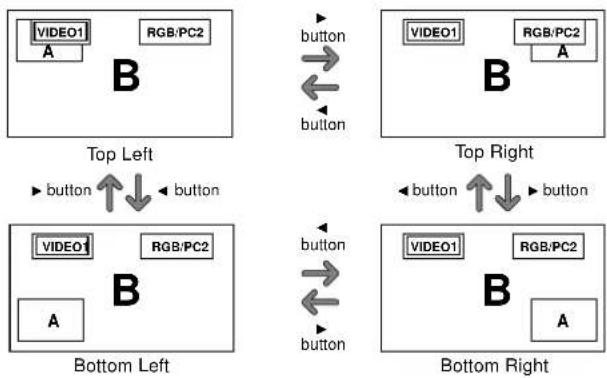

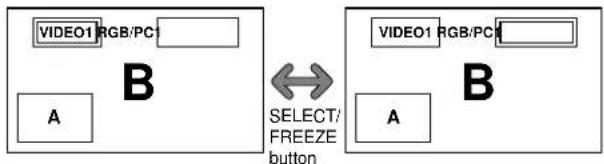

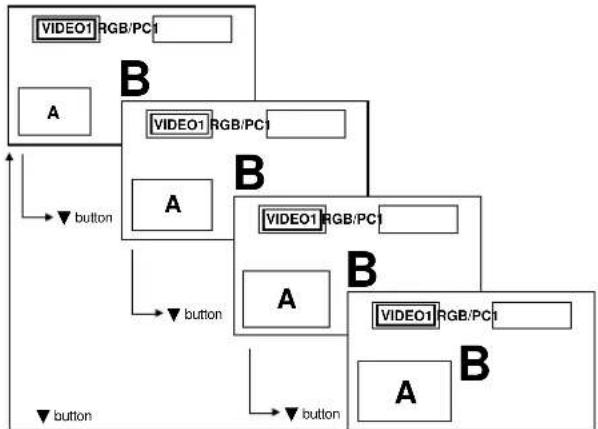

Operations in the Picture-in-picture mode ...... En-16

Selecting the input signals to be displayed ...... En-16

Zooming in on a specific input En-16

Adjusting the OSM controls En-16

OSM (On Screen Menu) Controls ...... En-17

Menu Operations En-17

Menu Tree En-18

Picture Settings Menu.... En-20

Adjusting the picture ...... En-20

Setting the picture mode according to the brightness of the room En-20

Reducing noise in the picture En-20

Setting the color temperature En-20

Adjusting the color to the desired level ...... En-21

Changing the Gamma Curve En-21

Making the Low Tone adjustments ...... En-21

Adjusting the colors En-21

Audio Settings Menu En-22

Adjusting the treble, bass and left/right balance and audio input select.... En-22

Setting the allocation of the audio connectors ...... En-22

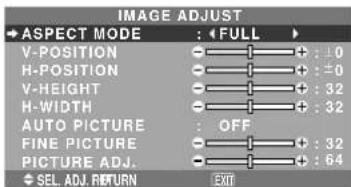

Image Adjust Settings Menu En-22

Adjusting the Position, Size, Fine Picture, Picture Adj En-22

Option1 Settings Menu En-23

Setting the on-screen menu En-23

Setting the BNC input connector type ...... En-23

Checking the signal being transmitted to RGB1 terminal En-23

Setting a computer image to the correct RGB select screen .... En-23

Setting high definition images to the suitable screen size ... En-24

Setting the Input Skip En-24

Resetting to the default values ...... En-24

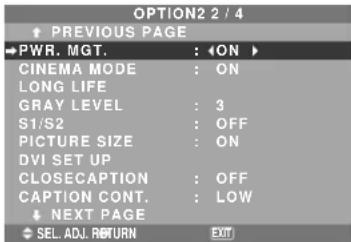

Option2 Settings Menu En-25

Setting the power management for computer images .... En-25

POWER/STANDBY indicator En-25

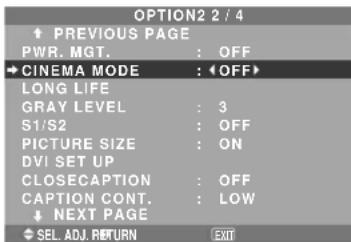

Setting the picture to suit the movie ...... En-25

Reducing image retention En-25

Setting the gray level for the sides of the screen ..... En-27

Setting the screen size for S1/S2 video input ...... En-28

Setting the picture size for RGB input signals ...... En-28

Setting the signal and black level for DVI signal ..... En-28

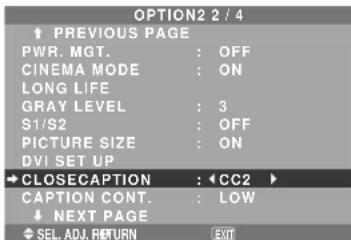

Setting CloseCaption En-28

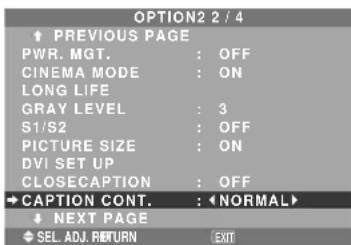

Setting the contrast of CloseCaption ...... En-28

Option3 Settings Menu En-29

Using the timer En-29

Setting the power on mode.... En-30

Enabling/disabling the front panel controls ...... En-30

Enabling/disabling remote control wireless transmission .... En-31

Loop Out setting En-31

REMOTE ID setting En-31

ID number setting En-31

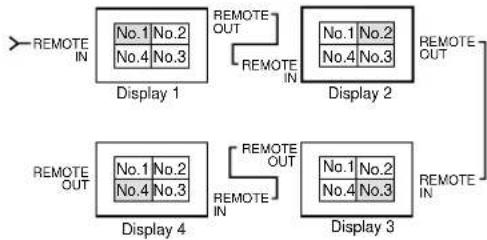

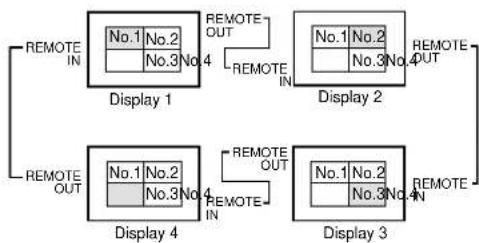

Video Wall setting En-32

Option4 Settings Menu En-34

Removing the sub screen area when there is no input signal detected for the sub picture ...... En-34

Displaying the entire image during DIGITAL ZOOM operations .... En-34

Displaying still images in the sub screen ...... En-35

Switching the input source quickly En-35

Displaying the information as a text ...... En-36

Advanced OSM Settings Menu En-36

Setting the menu mode En-36

Language Settings Menu En-36

Setting the language for the menus En-36

Color System Settings Menu En-37

Setting the video signal format En-37

Source Information Menu En-37

Checking the frequencies, polarities of input signals, and resolution .... En-37

External Control En-38

Application En-38

Connections En-38

Type of connector: D-Sub 9-pin male En-38

Communication Parameters En-38

External Control Codes (Reference) En-38

Pin Assignments ...... En-38

mini D-Sub 15-pin connector (Analog) ...... En-38

DVI-D 24-pin connector (Digital) En-38

Troubleshooting En-39

Table of Signals Supported ...... En-40

Specifications En-44

Limited Warranty Plasma Monitors ...... En-47

Contents of the Package

□ Plasma monitor

□ Power cord

□ Remote control with two AAA Batteries

□ Manuals (Start up Guide and CD-ROM)

□ Ferrite cores

□ Cable clamps

Options

- Wall mount unit

- Ceiling mount unit

- Tilt mount unit

- Tabletop Stand

- Attachable speakers

You can attach your optional mounts or stand to the plasma monitor in one of the following two ways:

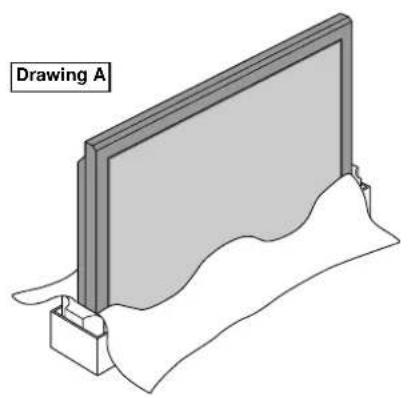

* While it is upright. (See Drawing A)

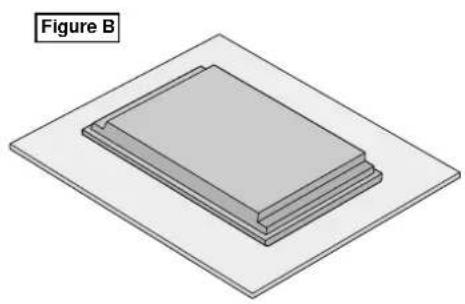

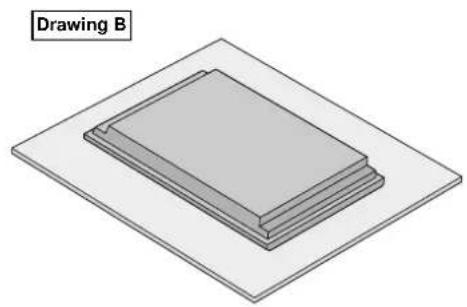

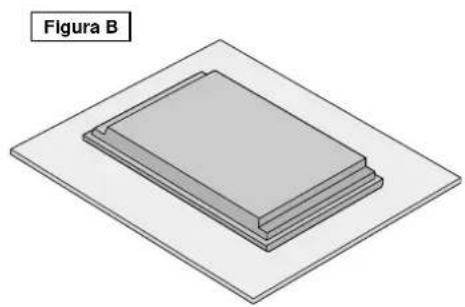

* As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.
* Do not touch or hold the screen face when carrying the unit.

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)
• For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

* Use only a mounting kit or stand recommended by the manufacturer and listed as an accessory.

3D illustration of a flat-screen monitor mounted on a base with a wavy cable underneath (no text or symbols)

3D diagram of a layered rectangular block labeled 'Drawing B' on a flat base (no other text or symbols)

Ventilation Requirements for enclosure mounting

To allow heat to disperse, leave space between surrounding objects as shown on the diagram when installing.

Wall 50 mm (2") 50 mm (2") mm (2") Wall 50 mm (2") 50 50 mm (2")

Creating a video wall

With built-in matrix display capability, you can create a (2 × 2, 3 × 3, 4 × 4, 5 × 5) video wall.

- Connect signal cables and remote cables as shown below.

Video signal RGB/DVD/HD signal

Note:

1. The VIDEO1 and RGB1 terminals can be used for either INPUT or OUTPUT.
   When LOOP OUT is ON, do not connect an OUTPUT signal from another unit as it may damage the other unit due to an extraordinary load.
2. LOOP OUT can not be turned ON while signals are input to the RGB1 terminal.
3. LOOP OUT can be turned ON while signals are input to the RGB1 terminal if the POWER is switched ON.

Information

• To loop signals out to another plasma display, set the LOOP OUT to ON.
• To create a video wall, set the VIDEO WALL menu items properly.
- To connect monitors, please use a 1\~2m (3.3\~6.6 feet) BNC cable (any commercially available cable).
- If the image quality is poor, do not use the monitor's out terminal. Use a distribution amplifier (any commercially available distribution amplifier) to connect the split signals to the respective monitor INPUT terminals.
- Being used as a video wall function, maximally 4-screen is rough-standard with lower than 1024 × 768 , 60Hz signal.
- A distribution amplifier is particularly recommended when creating a 3 × 3 (or greater) video wall.
- When looping from plasma to plasma, a 1\~2m (3.3\~6.6 feet) 15 pin male D-Sub - 5BNC conversion cable is required.

Cable Management

Using the cable clamps provided with the plasma display; Bundle the signal and audio cables at the back of the unit to connect to the display.

42 inch 50/61 inch

Back of the unit mounting holes

Back of the unit mounting holes

To attach To detach

1.2.

mounting hole clamp

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Caution when placing the plasma monitor in portrait mode

• Use the optional unit. Contact your store of purchase when installing.
• Rotate 90^ clockwise as seen from the front when installing.
  • After installing, make sure the NEC logo is located at the left hand side of the screen when facing the plasma from the front.
• Be sure to set "OSM ANGLE" to "V" when using.
  * Failure to heed the above cautions may lead to malfunction.

Using the remote control Battery Installation and Replacement

Insert the 2 "AAA" batteries, making sure to set them in with the proper polarity.

1. Press and open the cover.

Technical line drawing of a remote control panel with a black arrow indicating the component (no text or symbols present)

1. Align the batteries according to the (+) and (−) indication inside the case.

Technical illustration of a mechanical component with a black arrow indicating a specific feature (no text or symbols present)

1. Replace the cover.

Technical line drawing of a mechanical tool or clamp device (no text or symbols visible)

Using the wired remote control mode

Connect the remote cable* to the remote control's remote jack and the "REMOTE IN" terminal on the monitor.

When the cable is connected, the mode automatically switches to wired remote control. When the wired remote control mode is used, the remote control can be operated even if no batteries are loaded.

Remote Control Cable* To Remote Jack

or in portrait mode rolling. Top side 90° Bottom side

Operating Range

* Use the remote control within a distance of about 7 m/23ft. from the front of the monitor's remote control sensor and at horizontal and vertical angles of up to approximately 30°.
* The remote control operation may not function if the monitor's remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.

Approx. 7m/23ft 30° 30°

Handling the remote control

• Do not drop or mishandle the remote control.
• Do not get the remote control wet. If the remote control gets wet, wipe it dry immediately.
• Avoid heat and humidity.
• When not using the remote control for a long period, remove the batteries.
• Do not use new and old batteries together, or use different types together.
• Do not take apart the batteries, heat them, or throw them into a fire.
• When using the remote control in the wireless condition, be sure to unplug the remote cable from the REMOTE IN terminal on the monitor.

Part Names and Function

Front View

VOLUME MENU/ENTER DOWN UP LEFT/ RIGHT/+ INPUTSELECT /EXIT ⑦ ⑥ ⑤ ④ ① ③ ②

①Power

Turns the monitor's power on and off.

②Remote sensor window

Receives the signals from the remote control.

③POWER/STANDBY indicator

When the power is on .... Lights green. When the power is in the standby mode ... Lights red.

④INPUT SELECT / EXIT

Switches the input. Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.

⑤LEFT/- and RIGHT/+

Enlarges or reduces the image. Functions as the CURSOR (◄/►) buttons in the On-Screen Menu (OSM) mode.

⑥VOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (▲/▼) buttons in the On-Screen Menu (OSM) mode.

⑦MENU/ENTER

Sets the On-Screen Menu (OSM) mode and displays the main menu.

WARNING

The Power on/off switch does not completely disconnect power from the display.

Rear View/ Terminal Board

42 inch

B D A C E F G H I J K

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers (optional) here. Maintain the correct polarity. Connect the ⊕ (positive) speaker wire to the ⊕ EXT SPEAKER terminal and the ⊖ negative) speaker wire to the ⊖ EXT SPEAKER terminal on both LEFT and RIGHT channels.

Please refer to your speaker's owner's manual.

C VIDEO1, 2, 3 (BNC, RCA, S-Video)

Connect VCR's, DVD's or Video Cameras, etc. here. VIDEO1 can be used for Input or Output.

D AUDIO1, AUDIO2, AUDIO3

These are audio input terminals. The input is selectable. Set which video image corresponds to the audio input from the audio menu screen.

E DVD1 / HD1

Connect DVD's, High Definition or Laser Discs, etc. here.

F RGB2/ DVD2/ HD2

RGB2: You can connect an analog RGB signal and the synchronization signal. DVD2/ HD2: You can connect DVDs, High Definition sources, Laser Discs, etc. here. This input can be set for use with an RGB or component source.

G RGB1 (mini D-Sub 15pin)

Connect an analog RGB signal from a computer, etc. here. This input can be used for Input or Output.

H RGB3 (DVI 24pin)

Connect a digital signal (TMDS) from a source with a DVI output.

This input can be set for use with an RGB/PC3.

| EXTERNAL CONTROL

This terminal is used when operating and controlling the monitor externally with a control system (by RS-232C).

J REMOTE IN (DC +5V)

Connect the remote cable* to the remote control's remote jack to obtain wired remote control.

K REMOTE OUT (C-MOS DC +5V)

Connect the remote cable* to the REMOTE IN jack of the other display monitor to obtain wired remote control.

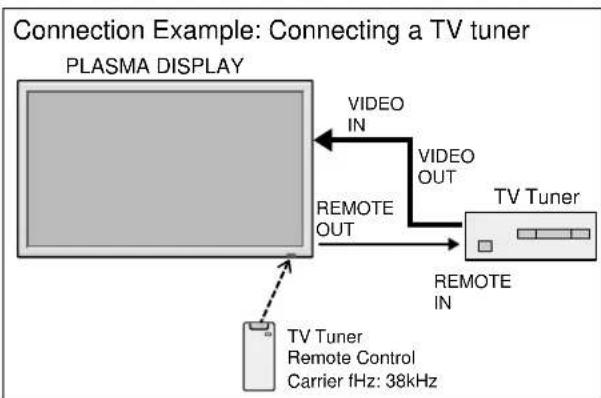


* The 1/8 Stereo Mini cable must be purchased separately.

Rear View/ Terminal Board 50/61 inch

C E F G H I J K D B A

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers (optional) here. Maintain the correct polarity. Connect the ⊕ (positive) speaker wire to the ⊕ EXT SPEAKER terminal and the ⊖ (negative) speaker wire to the ⊖ EXT SPEAKER terminal on both LEFT and RIGHT channels.

Please refer to your speaker's owner's manual.

C VIDEO1, 2, 3 (BNC, RCA, S-Video)

Connect VCR's, DVD's or Video Cameras, etc. here. VIDEO1 can be used for Input or Output.

D AUDIO1, AUDIO2, AUDIO3

These are audio input terminals.

The input is selectable. Set which video image corresponds to the audio input from the audio menu screen.

E DVD1 / HD1

Connect DVD's, High Definition or Laser Discs, etc. here.

F RGB2/ DVD2/ HD2

RGB2: You can connect an analog RGB signal and the synchronization signal.

DVD2/ HD2: You can connect DVDs, High Definition sources, Laser Discs, etc. here.

This input can be set for use with an RGB or component source.

G RGB1 (mini D-Sub 15pin)

Connect an analog RGB signal from a computer, etc. here. This input can be used for Input or Output.

H RGB3 (DVI 24pin)

Connect a digital signal (TMDS) from a source with a DVI output.

This input can be set for use with an RGB/PC3.

I EXTERNAL CONTROL

This terminal is used when operating and controlling the monitor externally with a control system (by RS-232C).

J REMOTE IN (DC +5V)

Connect the remote cable* to the remote control's remote jack to obtain wired remote control.

K REMOTE OUT (C-MOS DC +5V)

Connect the remote cable* to the REMOTE IN jack of the other display monitor to obtain wired remote control.

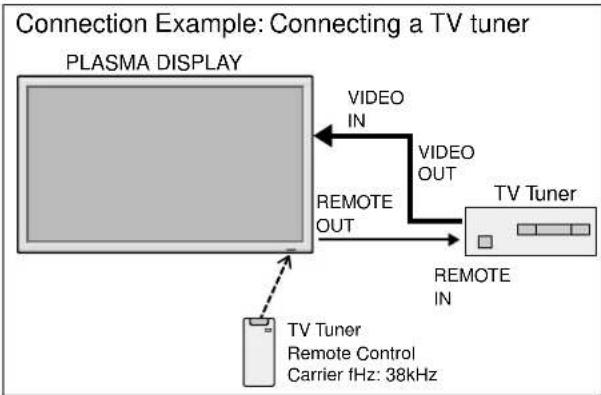


* The 1/8 Stereo Mini cable must be purchased separately.

Remote Control

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 POWER STANDBY ON RGB/PC DVD/HD VIDEO POSITION /CONTROL MENUENTER POINTER EXIT ZOOM VOLUME + - MUTE WIDE DISPLAY OFF TIMER SIDE BY SIDE PICTURE SINGLE SELECT/FREEZE AUTO ADJUST ID SELECT CLEAR /SEAMERS SW

① POWER ON/STANDBY

Switches the power on/standby. (This does not operate when the POWER/STANDBY indicator of the plasma is off.)

② RGB/PC

Press this button to select RGB/PC as the source. RGB/PC can also be selected using the INPUT SELECT button on the monitor.

③ DVD / HD

Press this button to select DVD/HD as the source. DVD/HD can also be selected using the INPUT SELECT button on the monitor.

④ VIDEO

Press this button to select VIDEO as the source.

VIDEO can also be selected using the INPUT SELECT button on the monitor.

⑤ MENU/ENTER

Press this button to access the OSM controls. Press this button during the display of the main menu to go to the sub menu.

⑥ CURSOR (▲ / ▼ / ◀ / ▶)

Use these buttons to select items or settings and to adjust settings or switch the display patterns.

⑦ EXIT

Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the previous menu.

8 POINTER

Press this button to display the pointer.

⑨ ZOOM (+ /−)

Enlarges or reduces the image.

⑩ VOLUME (+/-)

Adjusts the audio volume.

⑪ MUTE

Mutes the audio.

⑫ WIDE

Automatically detects the signal and sets the aspect ratio. Wide button is not active for all signals.

⑬ DISPLAY

Displays the source settings on the screen.

14 OFF TIMER

Activates the off timer for the unit.

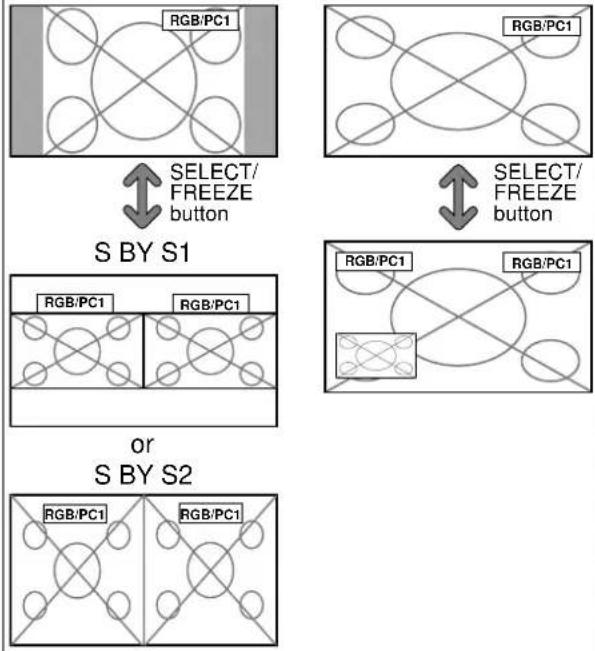

⑮ SIDE BY SIDE

Press this button to show a couple of pictures in the side-by-side mode.

16 PICTURE IN PICTURE

Press this button to show a couple of pictures in the picture-in-picture mode.

17 SINGLE

Cancels the split screen mode.

⑱ SELECT/FREEZE

Press this button to select the active picture in a split screen mode. When the PIC FREEZE function is operating, this button can be used to display still images on the sub screen.

⑲ AUTO ADJUST

Press this button to adjust Fine Picture, Picture ADJ, Position, and Contrast automatically. Press this button in video mode and the Auto Adjust switches to ZOOM mode automatically when a letter box image is displayed.

20 ID SELECT

Set the ID number in the remote control. The remote control can then be used only for a display with the same ID number. When several displays are used together they can be controlled individually.

21 CLEAR/SEAMLESS SW

Clears the number set by the ID SELECT button. When the SEAMLESS SW function is operating, this button can be used to switch the input source quickly.

22 Remote control signal transmitter

Transmits the remote control signals.

23 Remote Jack

Insert the plug of the remote cable (The 1/8 Stereo Mini cable) here when using the supplied remote control in the wired condition.

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.
2. Press the Power button (on the unit).

The monitor's POWER/STANDBY indicator turns red and the standby mode is set.

1. Press the POWER ON button (on the remote control) to turn on the unit.

The monitor's POWER/STANDBY indicator will light up (green) when the unit is on.

1. Press the POWER STANDBY button (on the remote control) or the Power button (on the unit) to turn off the unit.

The monitor's POWER/STANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).

VOLUME

To adjust the sound volume:

1. Press and hold the VOLUME ⏻ button (on the remote control or the unit) to increase to the desired level.
2. Press and hold the VOLUME button (on the remote control or the unit) to decrease to the desired level.

MUTE

To mute the audio:

Press the MUTE button on the remote control to mute the audio; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is pressed.
2. If the button is not pressed for approximately three seconds, the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1. (Be sure ZOOM NAV is off.)

Press the POINTER button to display the pointer. ( )

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture.

The pointer will change to resemble a magnifying glass.

( )

A press of the ZOOM- button will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲▼◀▶ buttons.

1. Press the POINTER button to delete the pointer.

AUTO ADJUST

To adjust the size or quality of the picture automatically:

Press the AUTO ADJUST button.

Information

■ AUTO ADJUST ON setting

When RGB (still picture) input is selected:

Fine Picture, Picture ADJ, Position, and Contrast will be adjusted automatically.

When RGB (motion picture), VIDEO, or Y/Pb/Pr (component) input is selected:

The screen size switches to ZOOM mode automatically when a letter box image is displayed.

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

1. Press the OFF TIMER button to start the timer at 30 minutes.
2. Press the OFF TIMER button to the desired time.
3. The timer starts when the menu turns off.

OFF TIMER 30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER button once.
2. The remaining time is displayed, then turns off after a few seconds.
3. When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER 28

To cancel the off timer:

1. Press the OFF TIMER button twice in a row.
2. The off timer is canceled.

OFF TIMER 0

Note:

After the power is turned off with the off timer ...

A slight current is still supplied to the monitor. When you are leaving the room or do not plan to use the system for a long period of time, turn off the power to the monitor.

Wide Screen Operation (manual)

With this function, you can select one of six screen sizes.

When viewing videos or digital video discs

1. Press the WIDE button on the remote control.

2. Within 3 seconds ...

Press the WIDE button again.

The screen size switches as follows:

When a 720P or 1080I signal is input:

FULL 2.35:1

When displaying enhanced split screen:

NORMAL FULL

NORMAL size screen (4:3)

Geometric pattern with intersecting circles and diagonal lines, no text or symbols present

The normal size screen is displayed.

* The picture has the same size as video pictures with a 4 : 3 aspect ratio.

FULL size screen

Geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

The image is expanded in the horizontal direction.

* Images compressed in the horizontal direction (“squeezed images”) are expanded in the horizontal direction and displayed on the entire screen with correct linearity. (Normal images are expanded in the horizontal direction.)

STADIUM size screen

Geometric pattern with a central circle and four surrounding circles, no text or symbols present.

The picture is expanded in the horizontal and vertical directions at different ratios.

* Use this for watching normal video programs (4:3) with a wide screen.

ZOOM size screen

Geometric pattern with concentric circles and intersecting lines forming a cross (no text or symbols)

The picture is expanded in the horizontal and vertical direction, maintaining the original proportions.

* Use this for theater size (wide) movies, etc.

2.35:1 size screen

Original image

Pure geometric diagram with circles and diagonal lines inside a rectangle, no text or symbols present

Information is lost on both sides.

The squeezed film image is expanded to fulfill the entire screen at a ratio of 2.35:1. Black bands do not appear at the top and bottom but information is lost on the left and right margins.

- This feature is available when the input signal is video, component (480I, 480P, 576I, 576P, 720P, 1080I) or RGB (525P or 625P signal from a scan converter).

* If black bands appear on the top and bottom in the full size screen, select the 2.35:1 size screen to fill the screen and avoid image retention.

14:9 size screen

Geometric diagram with a circle and two intersecting lines inside a rectangle (no text or symbols)

The image is displayed at a 14:9 aspect ratio.

* This feature is available when the input signal is video, component (480I, 480P, 576I, 576P) or RGB (525P or 625P signal from a scan converter).

Note:

Do not allow 4:3 content to be displayed for extended periods of time without using gray bars. This can cause image retention.

Wide Screen Operation with Computer Signals

Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen.

1. Press the WIDE button on the remote control.

2. Within 3 seconds ...

Press the WIDE button again.

The screen size switches as follows:

NORMAL → FULL → ZOOM

When displaying enhanced split screen:

NORMAL ↔ FULL

NORMAL size screen (4:3 or SXGA 5:4)

Geometric pattern with intersecting circles and diagonal lines forming a symmetrical design (no text or symbols)

The picture has the same size as the normal computer image.

FULL size screen

Geometric diagram with four circles arranged in a cross pattern around an oval, enclosed in a rectangle (no text or symbols)

The image is expanded in the horizontal direction.

ZOOM size screen

Geometric diagram with concentric circles and intersecting lines inside a rectangle (no text or symbols)

When wide signals are input.

FULL size screen

Pure geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

When "PICTURE SIZE" is set to "OFF"

* This cannot be set in some models. "TRUE" size will not be displayed in such cases.

The screen size switches as follows:

→ TRUE → FULL → ZOOM

TRUE size screen (VGA, SVGA 4:3)

Symmetrical geometric pattern with four circles and a central cross (no text or symbols)

The image is true resolution.

FULL size screen

Geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

The image is expanded in the horizontal and vertical direction.

ZOOM size screen

Geometric diagram with concentric circles and intersecting lines inside a rectangle (no text or symbols)

When wide signals are input.

TRUE

The image is true resolution.

FULL

Pure geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

Information

■ Supported resolution

See page En-40 for details on the display output of the various VESA signal standards supported by the monitor.

■ "PICTURE SIZE" setting

When the setting of "PICTURE SIZE" is OFF, the size of RGB-input pictures will be TRUE in place of NORMAL.

■ When 852 (848) dot × 480 line wide VGA\* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are input

Select an appropriate setting for RGB SELECT mode referring to the "Table of Signals Supported" on page En-40.

* "VGA", "SVGA" and "SXGA" are registered trademarks of IBM, Inc. of the United States.

Note:

Do not allow 4:3 content to be displayed for extended periods of time without using gray bars. This can cause image retention.

SPLIT SCREEN Operations

Showing a couple of pictures on the screen at the same time

* There may be some RGB-input signals that may not be displayed as not all signals are supported.
1. Press the button to select a screen mode from among single mode, side-by-side, and picture-in-picture.

Note:

Picture A and B on the above screen are not always of the same height.

Information

Split screen operations may not function depending on the combination of input signals. In the table below, "○" means Yes, "×" means No.

■ Split screen operations may not function depending on the frequency of the RGB signals.

Operations in the Side-by-side mode

To change the picture size, press the cursor ◀▶ or ▼ button.
To swap the picture on the right and the left, press the cursor ▲ button.

VIDEO1 RGB/PCI A B ▲ button VIDEO1 RGB/ B A

To make the desired picture active, press the SELECT/FREEZE button.
        B1["B"]
    end
    subgraph Right_Side
        C1["VIDEO1 RGB/PCI"] --> A3["A"]
        B2["B"]
    end
    A2 <-->|SELECT/FREEZE button| C1

Operations in the Picture-in-picture mode

To move the position of the sub screen, press the cursor◀ or ▶ button.
    subgraph_TopLeft["Top Left"]
        A1["VIDEO1"] --> B1["RGB/PC2"]
        B1 --> B2["button"]
    end
    subgraph_TopRight["Top Right"]
        B1 --> C1["VIDEO1"] --> D1["RGB/PC2"] --> E1["button"]
    end
    subgraph_BottomLeft["Bottom Left"]
        A2["VIDEO1"] --> B2["RGB/PC2"] --> C2["button"]
    end
    subgraph_BottomRight["Bottom Right"]
        B2 --> C2
        C2 --> D2["button"]
    end

To change the size of the sub screen, press the ▼ button.

To make the desired picture active, press the SELECT/FREEZE button.
Selecting the input signals to be displayed

1. Press the SELECT/FREEZE button to make the desired picture active.

2. Press the RGB/PC, VIDEO, or DVD/HD button. Each press of the button changes the selection of the input signal.

The INPUT SELECT button on the monitor can also be used to change the selection.

Zooming in on a specific input

1. Press the SELECT/FREEZE button to make the desired picture active.

2. Use the POINTER button and the ZOOM +/- button to enlarge the picture.

For details, see "DIGITAL ZOOM" on page En-12.

Adjusting the OSM controls

1. Press the SELECT/FREEZE button to make the desired picture active.
2. Press the MENU/ENTER button to display the MAIN MENU.
3. Adjust the setting to your preference.

For details, see "OSM (On Screen Menu) Controls" on page En-17.

Note:

During enhanced split screen, some functions of OSM controls are not available.

Menu Operations

The OSM window is displayed with respect to the screen as shown on the diagram.

* Depending on the screen's mode, the OSM may be displayed differently.

In the explanation, the OSM section is shown close up.

The following describes how to use the menus and the selected items.

1. Press the MENU/ENTER button on the remote control to display the MAIN MENU.

MAIN MENU 1 / 2 →PICTURE AUDIO IMAGE ADJUST OPTION1 ADVANCED OSM : OFF ↓ NEXT PAGE SEL (MERQUENTEROK) EXIT EXIT

MAIN MENU 2 / 2 ↑ PREVIOUS PAGE →LANGUAGE COLOR SYSTEM SOURCE INFORMATION SEL MENUE NTEROK EXIT EXIT

1. Press the cursor buttons ▲ ▼ on the remote control to highlight the menu you wish to enter.
2. Press the MENU/ENTER button on the remote control to select a sub menu or item.

PICTURE 1 / 2 CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE : NORMAL NR : OFF NEXT PAGE SEL. ADJ. RETURN EXIT

1. Adjust the level or change the setting of the selected item by using the cursor buttons ◀▶ on the remote control.
2. The adjustments or settings are then stored in memory. The change is stored until another change is made.
3. Repeat steps 2 - 5 to adjust an additional item, or press the EXIT button on the remote control to return to the main menu.
   * When adjusting using the bar at the bottom of the screen, press the ◀ or ▶ button within 5 seconds. If not, the current setting is stored and the previous screen appears.

Note: The main menu disappears by pressing the EXIT button.

Information

■ Advanced menu mode

When “ADVANCED OSM” is set to “ON” in the main menu (1/2), full menu items will be shown.

MAIN MENU 1 / 2 +PICTURE AUDIO IMAGE ADJUST OPTION1 OPTION2 OPTION3 OPTION4 ADVANCED OSM : ON ♦ NEXT PAGE ♦ SEL MENUENTEROK EXITEXIT

* The actual screen may be different from the ones in this manual.

Menu Tree

:Shaded areas indicate the default value.

- ← → + : Press the ◀ or ▶ button to adjust.

☐:Menu items in a ruled box are available when the ADVANCED OSM is set to ON.

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET							REFERENCE
PICTURE	CONTRAST	-←→+	0←52→72		YES	En-20
	BRIGHTNESS	-←→+	0←32→64		YES	En-20
	SHARPNESS	-←→+	0←16→32		YES	En-20
	COLOR	-←→+	0←32→64		YES	En-20
	TINT	R←→G	0←32→64		YES	En-20
	PICTURE MODE BRIGHT/NORMAL/THEAT.1/THEAT.2/DEFAULT YES En-20
	NR	OFF/NR-1/NR-2/NR-3			YES En-20
	COLOR TEMP.	LOW/MID LOW/MID/HIGH			YES En-20
	WHITE BALANCE	GAIN RED	-←→+	0←40→70	YES	En-21
		GAIN GREEN	-←→+	0←40→70	YES	En-21
		GAIN BLUE	-←→+	0←40→70	YES	En-21
		BIAS RED	-←→+	0←40→70	YES	En-21
		BIAS GREEN	-←→+	0←40→70	YES	En-21
		BIAS BLUE	-←→+	0←40→70	YES	En-21
		RESET	OFF←→ON		YES En-21
	GAMMA	1←→2----4			YES En-21
	LOW TONE*3	AUTO←→1----3			YES En-21
	COLOR TUNE	RED	Y←→M	0←32→64	YES	En-21
		GREEN	C←→Y	0←32→64	YES	En-21
		BLUE	M←→C	0←32→64	YES	En-21
		YELLOW	G←→R	0←32→64	YES	En-21
		MAGENTA	R←→B	0←32→64	YES	En-21
		CYAN	B←→G	0←32→64	YES	En-21
		RESET	OFF←→ON		YES	En-21

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET				REFERENCE
AUDIO	BASS	- +0 13 26	YES	En-22
	TREBLE	- +0 13 26	YES	En-22
	BALANCE	L R -22 -0 +22	YES	En-22
	AUDIO INPUT1	VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3	YES En-22
	AUDIO INPUT2	VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3	YES En-22
	AUDIO INPUT3	VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3	YES En-22

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET					REFERENCE
IMAGE ADJUST	ASPECT MODE	NORMAL/FULL/STADIUM/ZOOM/2.35:1/14:9/TRUE*3		—	En-22
	V-POSITION	- +	-64 0 +64	YES	En-22
	H-POSITION	- +	-128 0 +127	YES	En-22
	V-HEIGHT	- +	0 -64	YES	En-22
	H-WIDTH	- +	0 -64	YES	En-22
	AUTO PICTURE	OFF ON^*2		NO En-22
	FINE PICTURE*1	- + ^*2	0 -64	YES En-22
	PICTURE ADJ.*1	- + ^*2	0 -128	YES En-22

Main menu Sub menu 2 Sub menu 3 Sub menu 4 RESET					REFERENCE
OPTION1	OSM	DISPLAY OSM	OFF←→ON	YES	En-23
		OSM ADJ.	1←⋯→6	YES En-23
		OSM ANGLE	H←→V	YES	En-23
		OSM ORBITER	OFF←→ON	YES	En-23
		OSM CONTRAST	LOW←→NORMAL	YES	En-23
	BNC INPUT RGB←→COMP.			YES En-23
	D-SUB INPUT	RGB		—	En-23
	RGB SELECT AUTO			YES En-23
	HD SELECT	1080B/1035I/1080A		NO	En-24
	INPUT SKIP	OFF←→ON		YES	En-24
	ALL RESET	OFF←→ON		—	En-24

Main menu Sub menu 2 Sub menu 3 Sub menu 4 RESET						REFERENCE
OPTION2PWR. MGT. OFF--→ON YES En-25CINEMA MODE OFF--→ON YES En-25LONG LIFE PLE AUTO/LOCK 1/LOCK 2/LOCK 3 YES En-25ORBITER AUTO 1 YES En-26AUTO 2 YES En-26MANUAL H-DOT/V-LINE/TIME YES En-26OFFYES En-26INVERSE OFFYES En-26ONWORKING TIME/WAITING TIMEYES En-26WHITEYES En-26SCREEN WIPEROFFYES En-27ONWORKING TIME/WAITING TIME/SPEEDYES En-27SOFT FOCUSOFF/1/2/3/4YES En-27GRAY LEVEL 0←...→3←...→15YES En-27S1/S2AUTO←→OFFYESEn-28PICTURE SIZE*3OFF--→ON YES En-28DVI SET UPPLUG/PLAYPC←→STB/DVDNOEn-28BLACK LEVELLOW←→HIGHNOEn-28CLOSECAPTIONOFF←→CC1-4←→TEXT1-4YESEn-28CAPTION CONT. LOW←→NORMALYES En-28
Main menu Sub menu 2 Sub menu 3 Sub menu 4 RESET						REFERENCE
OPTION3TIMER	PRESENT TIME	DAYLIGHT SAVING TIME	OFF←→ON	NO En-29
		DAY/HOUR/MINUTES		NO En-29
	PROGRAM	OFF		YES En-29
		ON	DATE/ON/OFF(HOUR, MINUTES)/INPUT/FUNCTION YES En-29
	MULTI REPEAT	OFF		YES En-30
		ON	MULTI MODE/WORK TIME/INPUT MODE	YES En-30
	PWR. ON MODE	INPUT	LAST /MULTI/VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3	YES	En-30
		VOLUME	LAST --→0----→44	YES En-30
	CONTROL LOCK	OFF←→ON		YES	En-30
	IR REMOTE	OFF←→ON		YES	En-31
	LOOP OUT OFF←→ON YES En-31
	REMOTE ID	ALL←→1----→4		NO En-31
	ID NUMBER	ALL←→1----→256		YES En-31
	VIDEO WALL DIVIDER	OFF/1/4/9/16/25	YES En-32
		POSITION	No.1←...→No.4/No.7←...→No.15/No.16←...→No.31/No.32←...→No.56	—	En-32
		DISP. MODE	SPLIT←→BLANK	YES	En-32
		AUTO ID	OFF←→ON	YES	En-32
		IMAGE ADJUST	ASPECT MODE NORMAL/FULL/STADIUM/ZOOM/2.35:1/14:9/TRUE*3V-POSITION/H-POSITION/V-HEIGHT/H-WIDTH/AUTO PICTURE/FINE PICTURE*1PICTURE ADJ.*1	—	En-33
		P. ON DELAY	OFF/ON/MODE1/MODE2	YES	En-33
		PLE LINK	OFF←→ON	YES	En-33
		REPEAT TIMER	OFF	YES En-34
			ON	DIVIDER/SOURCE/WORK TIME	YES En-34
Main menu Sub menu 2 Sub menu 3 Sub menu 4 RESET						REFERENCE
OPTION4	SUB. PICTURE	SUB. P DETECT	OFF←→AUTO	YES	En-34
		DISPLAY	FADE←→NORMAL	YES	En-34
		SUB. P RATE	20%←...→100%	YES En-34
	ZOOM NAV	OFF←→S BY S←→BTM LFT←→BTM RGT←→TOP RGT←→TOP LFT		YES	En-34
	PIC FREEZE	OFF←→S BY S1←→S BY S2←→BTM LFT←→BTM RGT←→TOP RGT←→TOP LFT		YES	En-35
	SEAMLESS SW	OFF		YES En-35
		ON	SELECT1/SELECT2	YES En-35
	TEXT INSERT	OFF/TOP/MID HIGH/MID LOW/BOTTOM		YES En-36
		INPUT/PIC. RATE/DISPLAY		YES En-36
Main menu Sub menu 2 Sub menu 3 Sub menu 4 RESET						REFERENCE
ADVANCED OSM	OFF←→ON			YES	En-36
LANGUAGE	ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA/РУССКИЙ/PORTUGUÉS			NO	En-36
COLOR SYSTEM	AUTO/3.58NTSC/4.43 NTSC/PAL/PAL 60/PAL-N/PAL-M/SECAM			NO	En-37
SOURCE INFORMATION	—			—	En-37

Information

■ Restoring the factory default settings

Select "ALL RESET" under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

Picture Settings Menu

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be adjusted as desired.

Example: Adjusting the contrast

On "CONTRAST" of "PICTURE" menu, adjust the contrast.

PICTURE 1 / 2 + CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE : NORMAL NR : OFF + NEXT PAGE + SEL. ADJ. RETURN EXT

CONTRAST 52

Note: If "CAN NOT ADJUST" appears ...

When trying to enter the PICTURE submenu, make sure PICTURE MODE is not set to DEFAULT.

Information

■ Picture adjustment screen

CONTRAST: Changes the picture's white level.
BRIGHTNESS: Changes the picture's black level.
SHARPNESS: Changes the picture's sharpness.
Adjusts picture detail of VIDEO display.
COLOR: Changes the color density.
TINT: Changes the picture's tint. Adjust for natural colored skin, background, etc.

■ Adjusting the computer image

Only the contrast and brightness can be adjusted when a computer signal is connected.

■ Restoring the factory default settings

Select “DEFAULT” under the “PICTURE MODE” settings.

Setting the picture mode according to the brightness of the room

There are four picture modes that can be used effectively according to the environment in which you are viewing the display.

Example: Setting the "THEAT. 1" mode

On “PICTURE MODE” of “PICTURE” menu, select “THEAT.1”.

PICTURE 1 / 2 CONTRAST BRIGHTNESS SHARPNESS COLOR TINT • PICTURE MODE : NR • NEXT PAGE • SEL ADJ. RETURN • OFF

PICTURE MODE : THEAT. 1

Information

■ Types of picture modes

THEAT. 1, 2: Set this mode when watching video in a dark room.

This mode provides darker, finer pictures, like the screen in movie theaters.

For a darker image, select THEAT. 2.

NORMAL: Set this mode when watching video in a bright room.

This mode provides dynamic pictures with distinct differences between light and dark sections.

BRIGHT: This mode provides brighter pictures than NORMAL.

DEFAULT: Use this to reset the picture to the factory default settings.

Reducing noise in the picture

Use these settings if the picture has noise due to poor reception or when playing video tapes on which the picture quality is poor.

Example: Setting "NR-3"

On "NR" of "PICTURE" menu, select "NR-3".

PICTURE 1 / 2 CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE : NORMAL NR : OFF NEXT PAGE SEL. ADJ. RETURN EXIT

NR : NR-3

Information

NR

* "NR" stands for Noise Reduction.
* This function reduces noise in the picture.

■ Types of noise reduction

There are three types of noise reduction. Each has a different level of noise reduction.

The effect becomes stronger as the number increases (in the order NR-1 → NR-2 → NR-3).

OFF: Turns the noise reduction function off.

Setting the color temperature

Use this procedure to set color tone produced by the plasma display.

Example: Setting "HIGH"

On "COLOR TEMP." of "PICTURE" menu, select "HIGH".

PICTURE 2 / 2 ↑ PREVIOUS PAGE + COLOR TEMP. : ◀ HIGH ▶ GAMMA : 2 LOW TONE : AUTO COLOR TUNE SEL. ◀ ADJ. EXIT RETURN

Information

■ Setting the color temperature

LOW: More red

MID LOW: Slightly red

MID: Standard (slightly bluer)

HIGH: More blue

Adjusting the color to the desired level

Use this procedure to adjust the white balance for each color temperature to achieve the desired color quality.

Example: Adjusting the "GAIN RED" of "HIGH" color temperature

Set "ADVANCED OSM" to "ON" in the MAIN MENU.

On "COLOR TEMP." of "PICTURE" menu, select "HIGH", then press the MENU/ENTER button.

The "WHITE BALANCE" screen appears.

On “GAIN RED”, adjust the white balance.

WHITE BALANCE COLOR TEMP. HIGH + GAIN RED : 40 + GAIN GREEN : 40 + GAIN BLUE : 40 + BIAS RED : 40 + BIAS GREEN : 40 + BIAS BLUE : 40 RESET : OFF + SEL. ADJ. RETURN [EXT]

GAIN RED 70

Information

■ Adjusting the white balance

GAIN R/G/B: White balance adjustment for white level.

BIAS R/G/B: White balance adjustment for black level.

RESET: Resets settings to the factory default values.

Use ◀ and ▶ buttons to select "ON", then press the MENU/ENTER button.

■ Restoring the factory default settings

Select "RESET" under the WHITE BALANCE menu.

Changing the Gamma Curve

This feature adjusts the brightness of the midtone areas while keeping shadows and highlights unchanged.

Example: Setting "3"

Set "ADVANCED OSM" to "ON" in the MAIN MENU.

On "GAMMA" of "PICTURE" menu, select "3".

PICTURE 2 / 2 ↑ PREVIOUS PAGE COLOR TEMP. : MID →GAMMA : ◀3► LOW TONE : AUTO COLOR TUNE SEL. ADJ. RETURN EXIT

Information

■ GAMMA settings

The picture becomes darker as the number increases (in the sequence of 1, 2, 3, 4).

Making the Low Tone adjustments

This feature allows more detailed tone to be reproduced especially in the dark area.

* This function is available only for 50 and 61 inch types.

Example: Setting "2"

Set "ADVANCED OSM" to "ON" in the MAIN MENU.

On "LOW TONE" of "PICTURE" menu, select "2".

PICTURE 2 / 2 ↑ PREVIOUS PAGE COLOR TEMP. : MID GAMMA : 2 → LOW TONE : ◀ 2 ▶ COLOR TUNE SEL. ADJ. RETURN [EXIT]

Information

■ LOW TONE settings

AUTO: Will automatically appraise the picture and make adjustments.

1: Will apply the dither method suitable for still pictures.
2: Will apply the dither method suitable for motion pictures.
3: Will apply the error diffusion method.

Adjusting the colors

Use this procedure to adjust hue and color density for red, green, blue, yellow, magenta and cyan without changing the white point.

You can accentuate the green color of trees, the blue of the sky, etc.

Example: Adjusting the color tune for blue

Set "ADVANCED OSM" to "ON" in the MAIN MENU.

On "PICTURE" menu, select "COLOR TUNE", then press the MENU/ENTER button.

The "COLOR TUNE" screen appears.

On "BLUE" of "COLOR TUNE", adjust the color tune.

COLOR TUNE RED Y M : 32 GREEN C Y : 32 →BLUE M C : 32 YELLOW G R : 32 MAGENTA R B : 32 CYAN B G : 32 RESET : OFF SEL. ADJ. RETURN EXIT

Information

■ COLOR TUNE settings

RED: Adjusts hue of Red

GREEN: Adjusts hue of Green

BLUE: Adjusts hue of Blue

YELLOW: Adjusts hue of Yellow

MAGENTA: Adjusts hue of Magenta

CYAN: Adjusts hue of Cyan

RESET: Resets settings to the factory default value.

Use ◀ and ▶ buttons to select "ON", then press the

MENU/ENTER button.

Audio Settings Menu

Adjusting the treble, bass and left/right balance and audio input select

The treble, bass and left/right balance can be adjusted to suit your tastes.

Example: Adjusting the bass

On "BASS" of "AUDIO" menu, adjust the bass.

AUDIO BASS TREBLE BALANCE AUDIO INPUT1 : VIDEO1 AUDIO INPUT2 : HD/DVD1 AUDIO INPUT3 : RGB1 SEL. ADJ. RETURN EXIT

Note : If "CAN NOT ADJUST" appears...

Set "AUDIO INPUT" on the AUDIO menu correctly.

Information

■ Audio settings menu

BASS: Controls the level of low frequency sound.

TREBLE: Controls the level of high frequency sound.

BALANCE: Controls the balance of the left and right channels.

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired input.

Example: Setting "AUDIO INPUT1" to "VIDEO 2"

On "AUDIO INPUT1" of "AUDIO" menu, select "VIDEO2".

The available sources depend on the settings of input.

AUDIO BASS : 13 TREBLE : 13 BALANCE : 0 AUDIO INPUT1 : VIDEO2 AUDIO INPUT2 : HD/DVD1 AUDIO INPUT3 : RGB1 SEL. ADJ. RETURN EXIT

Information

AUDIO INPUT

A single audio input cannot be selected as the audio channel for more than one input terminal.

Image Adjust Settings Menu

Adjusting the Position, Size, Fine Picture, Picture Adj

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position in the normal mode

On "V-POSITION" of "IMAGE ADJUST" menu, adjust the position.

The mode switches as follows each time the ◀ or ▶ button is pressed:

NORMAL → FULL

* The mode can also be switched by pressing the WIDE button on the remote control.
* The settings on the IMAGE ADJUST menu are not preset at the factory.

IMAGE ADJUST ASPECT MODE : NORMAL ● V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE : OFF FINE PICTURE PICTURE ADJ. ◆ SEL. ADJ. RETURN

V-POSITION +64

Information

■ When "AUTO PICTURE" is "OFF"

IMAGE ADJUST ASPECT MODE : FULL V-POSITION : 10 H-POSITION : ±0 V-HEIGHT : 32 H-WIDTH : 32 AUTO PICTURE : OFF FINE PICTURE : 32 PICTURE ADJ. : 64 SEL ADJ RETURN EXIT

When Auto Picture is off, the Fine Picture and the Picture ADJ. items are displayed so that you can adjust them.

■ Adjusting the Auto Picture

ON: The Picture ADJ., Fine Picture and Position adjustments are made automatically.

Not available for digital ZOOM.

OFF: The Picture ADJ., Fine Picture and Position adjustments are made manually.

* If FINE PICTURE can't be adjusted, set Auto Picture to OFF and adjust manually.

■ Adjusting the position of the image

V-POSITION: Adjusts the vertical position of the image.

H-POSITION: Adjusts the horizontal position of the image.

V-HEIGHT: Adjusts the vertical size of the image.

(Not available for STADIUM mode)

H-WIDTH: Adjusts the horizontal size of the image.

(Not available for STADIUM mode)

FINE PICTURE*: Adjusts for flickering.

PICTURE ADJ.*: Adjusts for striped patterns on the image (i.e. vertical banding).

* The Picture ADJ. and Fine Picture features are available only when the “Auto Picture” is off.
* The AUTO PICTURE, FINE PICTURE and PICTURE ADJ. are available only for RGB signals.

But, these features are not available for moving pictures on VIDEO, HD/DVD or RGB.

Option1 Settings Menu

Setting the on-screen menu

This sets the position of the menu, the display format (horizontal or vertical) etc.

Example: Turning the DISPLAY OSM off

On "OPTION1" menu, select "OSM", then press the MENU/ENTER button.

The "OSM" menu appears.

On "DISPLAY OSM" of "OSM" menu, select "OFF".

OSM DISPLAY OSM : OFF OSM ADJ. : 1 OSM ANGLE : H OSM ORBITER : OFF OSM CONTRAST : LOW SEL. ADJ. RETURN EXIT

Information

■ DISPLAY OSM settings

ON: The informations on screen size, volume control, etc. will be shown.

OFF: The informations on screen size, volume control, etc. will not be shown.

The DISPLAY button on the remote control will not function either.

■ OSM ADJUST settings

Adjusts the position of the menu when it appears on the screen.

The position can be set between 1 to 6.

1	2	3
4	5	6

OSM ANGLE settings

Sets the display format (landscape "H" or portrait "V"). When the unit is installed vertically set the OSM ANGLE at "V".

“H”

“

ONION 1.4 +OR HOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NOY FOLD/NO Y/Y FOLD/NO Y/Y FOLD/NO Y/Y FOLD/NO Y/Y FOLD/NO Y/Y FOLD/NO Y/Y FOLD/NO Y/Y FOLD/NO Y/Y FOLD/NO Y/Y FOLD/NO Y/Y FOLD/NO Y/Y FOLD/NO Y/Y FOLD/NO Y/Y FOLD/NO Y/Y FOLD/NO Y/Y GND

■ OSM ORBITER settings

ON: The position of the menu will be shifted by eight dots each time OSM is displayed.

OFF: OSM will be displayed at the same position.

■ OSM CONTRAST settings

NORMAL: OSM brightness is set to normal.

LOW: OSM brightness is set to lower.

Setting the BNC input connector type

Select whether to set the input of the 5 BNC connectors to RGB or Component.

Example: Set the BNC INPUT mode to "COMP."

On "BNC INPUT" of "OPTION1" menu, select "COMP".

OPTION1 1 / 4 OSM +BNC INPUT : D-SUB INPUT : RGB RGB SELECT : AUTO HD SELECT : 1080B INPUT SKIP : OFF ALL RESET : OFF ↓ NEXT PAGE SEL ADJ RETURN EXIT

Information

■ BNC INPUT Settings

RGB: Use the 5BNC terminals for RGB input.

COMP.: Use the 3BNC terminals for component input.

Checking the signal being transmitted to RGB1 terminal

Use this to confirm the signal being transmitted to the RGB1 terminal.

It is set to RGB and can not be adjusted.

OPTION1 1 / 4 OSM BNC INPUT : RGB +D-SUB INPUT : RGB RGB SELECT : AUTO HD SELECT : 1080B INPUT SKIP : OFF ALL RESET : OFF $ NEXT PAGE CAN NOT ADJUST

Setting a computer image to the correct RGB select screen

With the computer image, select the RGB Select mode for a moving image such as (video) mode, wide mode or digital broadcast.

Example: Setting the "RGB SELECT" mode to "852×480"

On "RGB SELECT" of "OPTION1" menu, select "852x480".

OPTION1 1 / 4 OSM BNC INPUT : RGB D-SUB INPUT : RGB +RGB SELECT : <852×480> HD SELECT : 1080B INPUT SKIP : OFF ALL RESET : OFF ↓ NEXT PAGE SEL ADJ RETURN EXIT

Information

RGB SELECT modes

AUTO: Select the suitable mode for the specifications of input signals as listed in the table "Computer input signals supported by this system" on page En-40.

The others: The available resolutions are shown.

See page En-40 for the details of the above settings.

Setting high definition images to the suitable screen size

Use this procedure to set whether the number of vertical lines of the input high definition image is 1035 or 1080.

Example: Setting the "HD SELECT" mode to "1035I"

On "HD SELECT" of "OPTION1" menu, select "1035T".

OPTION1 1 / 4 OSM BNC INPUT : RGB D-SUB INPUT : RGB RGB SELECT : AUTO HD SELECT : ◀1035I INPUT SKIP : OFF ALL RESET : OFF ← NEXT PAGE SEL ADJ. RETURN EXIT

Information

■ HD SELECT modes

These 3 modes are not displayed in correct image automatically.

1080B: Standard digital broadcasts

1035l: Japanese "High Vision" signal format

1080A: Special Digital broadcasts (for example : DTC100)

Setting the Input Skip

When this is ON, signals which are not present will be skipped over and only pictures whose signals are being transmitted will be displayed.

This setting is valid only for the INPUT SELECT button on the unit.

Example: Set to "ON"

On "INPUT SKIP" of "OPTION1" menu, select "ON".

OPTION1 1 / 4 OSM BNC INPUT : RGB D-SUB INPUT : RGB RGB SELECT : AUTO HD SELECT : 1080B ←INPUT SKIP : ←ON ► ALL RESET : OFF ↓ NEXT PAGE SEL. ADJ. RETURN EXIT

Information

■ INPUT SKIP settings

OFF: Regardless of the presence of the signal, scan and display all signals.

ON: If no input signal is present, skip that signal.

* "SETTING NOW" will appear during the input search.

Resetting to the default values

Use these operations to restore all the settings (PICTURE, AUDIO, IMAGE ADJUST, OPTION1\~4, etc) to the factory default values.

Refer to page En-18 for items to be reset.

On "ALL RESET" of "OPTION1" menu, select "ON", then press the MENU/ENTER button.

OPTION1 1 / 4 OSM BNC INPUT : RGB D-SUB INPUT : RGB RGB SELECT : AUTO HD SELECT : 1080B INPUT SKIP : OFF ALL RESET : ON $ NEXT PAGE SEL RETURN/KEY/OK EBIT

ALL RESET SETTING NOW

When the “SETTING NOW” screen disappears, then all the settings are restored to the default values.

Option2 Settings Menu

Set "ADVANCED OSM" to "ON" in the MAIN MENU. Setting the power management for computer images

This energy-saving (power management) function automatically reduces the monitor's power consumption if no operation is performed for a certain amount of time.

Example: Turning the power management function on On "PWR. MGT." of "OPTION2" menu, select "ON".

OPTION2 2 / 4 + PREVIOUS PAGE ←PWR. MGT. : ←ON ► CINEMA MODE : ON LONG LIFE GRAY LEVEL : 3 S1/S2 : OFF PICTURE SIZE : ON DVI SET UP CLOSECAPTION : OFF CAPTION CONT. : LOW + NEXT PAGE SEL. ADJ. RETURN EXIT

Information

■ Power management function

* The power management function automatically reduces the monitor's power consumption if the computer's keyboard or mouse is not operated for a certain amount of time. This function can be used when using the monitor with a computer.
* If the computer's power is not turned on or if the computer and selector tuner are not properly connected, the system is set to the off state.
* For instructions on using the computer's power management function, refer to the computer's operating instructions.

■ Power management settings

ON: In this mode the power management function is turned on.

OFF: In this mode the power management function is turned off.

■ Power management function and POWER/STANDBY indicator

The POWER/STANDBY indicator indicates the status of the power management function. See below for indicator status and description.

POWER/STANDBY indicator

Power management mode	POWER/ STANDBY indicator	Power management operating status	Description	Turning the picture back on
On	Green	Not activated.	Horizontal and vertical synchronizing signals are present from the computer.	Picture already on.
Off	Red	Activated.	Horizontal and/or vertical synchronizing signals are not sent from the computer.	Operate the keyboard or mouse. The picture reappears.

Setting the picture to suit the movie

The film image is automatically discriminated and projected in an image mode suited to the picture.

[NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I (50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]

Example: Setting the "CINEMA MODE" to "OFF"

On "CINEMA MODE" of "OPTION2" menu, select "OFF".

OPTION2 2 / 4 ↑ PREVIOUS PAGE PWR. MGT. : OFF →CINEMA MODE : ◀OFF> LONG LIFE GRAY LEVEL : 3 S1/S2 : OFF PICTURE SIZE : ON DVI SET UP CLOSECAPTION : OFF CAPTION CONT. : LOW ↓ NEXT PAGE SEL. ADJ. RETURN EXIT

Information

CINEMA MODE

ON: Automatic discrimination of the image and projection in cinema mode.

OFF: Cinema mode does not function.

Reducing image retention

The brightness of the screen, the position of the picture, positive/negative mode and screen wiper are adjusted to reduce image retention.

On "OPTION2" menu, select "LONG LIFE", then press the MENU/ENTER button.

The "LONG LIFE" screen appears.

LONG LIFE + PLE : AUTO > ORBITER : AUTO1 INVERSE : OFF SCREEN WIPER : OFF SOFT FOCUS : OFF SEL. ADJ. RETURN EXIT

PLE (Peak Luminance Enhancement)

Use this to activate the brightness limiter.

Example: Setting "PLE" to "LOCK1"

On "PLE" of "LONG LIFE" menu, select "LOCK1".

LONG LIFE → PLE : ←LOCK1 ORBITER : AUTO1 INVERSE : OFF SCREEN WIPER : OFF SOFT FOCUS : OFF SEL. ADJ. RETURN [EXIT]

Information

PLE settings

AUTO: The brightness of the screen is adjusted automatically to suit the picture quality.

LOCK1, 2, 3: Sets maximum brightness.

The brightness level decreases in the order of LOCK 1, 2, 3. LOCK 3 provides minimum brightness.

ORBITER

Use this to set the picture shift.

Example: Setting "ORBITER" to "AUTO2"

On "ORBITER" of "LONG LIFE" menu, select "AUTO2".

LONG LIFE PLE : AUTO ORBITER : AUTO2 INVERSE : OFF SCREEN WIPER : OFF SOFT FOCUS : OFF SEL. ADJ. RETURN EXIT

Information

■ ORBITER settings

OFF: Orbiter mode does not function.

This is the default setting when RGB is input.

AUTO1: The picture moves around the screen intermittently, making the picture smaller. This is the default setting when a Video or a DVD/HD/DTV signal is input. Set to "OFF" when these signals are not used.

AUTO2: The picture moves around the screen intermittently, making the picture bigger.

MANUAL: User can adjust the orbiter function (Horizontal Dot, Vertical Line and Time) manually.

See the following explanation.

* When a Video or a DVD/HD/DTV signal is input, the AUTO1 and 2 functions will affect only the moving picture and will not make the screen smaller or bigger.

Adjust the ORBITER function manually

Set the amount of shift and the time between movement.

Example: Setting so that the picture moves 2 dots horizontally and 4 lines vertically every 3 minutes.

On “ORBITER” of “LONG LIFE” menu, select “MANUAL”, then press the MENU/ENTER button.

THE "ORBITER" screen appears.

Adjust the items.

ORBITER H-DOT : 2DOT V-LINE : 4LINE TIME : 3M SEL. ADJ. RETURN EXIT

Information

■ ORBITER Function settings

H-DOT: Moves from 1 to 20 dots in the horizontal direction.

V-LINE: Moves from 1 to 20 lines in the vertical direction.

TIME: Interval of 1\~5 minutes (1 horizontal dot or 1 vertical line per interval).

INVERSE

Use this to set the inverse mode or to display a white screen.

Example: Setting "INVERSE" to "WHITE"

On "INVERSE" of "LONG LIFE" menu, select "WHITE".

LONG LIFE PLE : AUTO ORBITER : AUTO1 + INVERSE : ◀ WHITE SCREEN WIPER : OFF SOFT FOCUS : OFF SEL. ADJ. RETURN EXIT

Information

■ INVERSE Settings

ON: The picture is displayed alternately between positive image and negative image.

You can set the time by pressing the MENU/ENTER button while "ON" is set.

OFF: Inverse mode does not function.

WHITE: The entire screen turns white.

You can set the time by pressing the MENU/ENTER button while "ON" is set.

Setting the time for INVERSE/WHITE

Set a time duration.

Example: Setting to that the INVERSE mode starts in 2 hours and proceeds for one hour and a half.

On “INVERSE” of “LONG LIFE” menu, select “ON”, then press the MENU/ENTER button.

THE "INVERSE/WHITE" screen appears.

Adjust the times.

INVERSE/WHITE WORKING TIME : 01H30M WAITING TIME : 02H00M SEL. ADJ. RETURN EXIT

Information

■ Setting the time

WORKING TIME: Set the time duration for "INVERSE/WHITE".

When the WORKING TIME is set to "ON" the mode will stay on.

WAITING TIME: Set the standby time until the "INVERSE/WHITE" mode starts.

* The “WAITING TIME” can not be set when the “WORKING TIME” is ON.

* THE "WORKING TIME" and "WAITING TIME" can be set for up to 12 hours and 45 minutes in units of 3 minutes.

* Ending a WORKING TIME function, the monitor will go to STAND BY.

[Example]

WORKING TIME: 01H30M

WAITING TIME: 02H00M

|←---- 2 H ----→←-- 1.5 H --→ ←---- Start INVERSE/WHITE Start STAND BY

■ To select "ON" for the "WORKING TIME"...

Set the hours of the working time to 0H and the minutes to 0M. “ON” will be displayed.

SCREEN WIPER

When this is set to ON, a white vertical bar moves repeatedly from the left and of the screen to the right end at a constant speed.

Example: Setting "SCREEN WIPER" to "ON"

On “SCREEN WIPER” of “LONG LIFE” menu, select “ON”.

LONG LIFE PLE : AUTO ORBITER : AUTO1 INVERSE : OFF →SCREEN WIPER : ◀ON ► SOFT FOCUS : OFF SEL. ADJ. RETURN EXIT

Information

■ SCREEN WIPER

ON: The white vertical bar appears.

You can set the time by pressing the MENU/ENTER button while "ON" is set.

OFF: Screen wiper mode does not function.

Setting the time for SCREEN WIPER

Set a time duration and the speed.

Example: Setting so that the SCREEN WIPER mode starts in 30 minutes and proceeds for one and a half hours.

On “SCREEN WIPER” of “LONG LIFE” menu, select “ON”, then press the MENU/ENTER button.

THE "SCREEN WIPER" screen appears.

Adjust the times and speed.

SCREEN WIPER →WORKING TIME : ◄01H30M ► WAITING TIME : 00H30M SPEED : 3 SEL. ADJ. RETURN EXIT

Information

■ Setting the time

WORKING TIME: Set the time duration for “SCREEN WIPER”.

When the WORKING TIME is set to "ON" the mode will stay on.

WAITING TIME: Set the standby time until the "SCREEN WIPER" mode starts.

SPEED: Set the moving speed for the “SCREEN WIPER”. The speed decreases as the number increases.

* The “WAITING TIME” can not be set when the “WORKING TIME” is ON.

* THE “WORKING TIME” and “WAITING TIME” can be set for up to 12 hours and 45 minutes in units of 3 minutes.

■ To select "ON" for the "WORKING TIME"...

Set the hours of the working time to 0H and the minutes to 0M. “ON” will be displayed.

SOFT FOCUS

Reduces edges and softens the image.

Example: Setting "SOFT FOCUS" to "2"

On "SOFT FOCUS" of "LONG LIFE" menu, select "2".

LONG LIFE PLE : AUTO ORBITER : AUTO1 INVERSE : OFF SCREEN WIPER : OFF +SOFT FOCUS : ◀2 ► SEL. ADJ. RETURN EXIT

Information

■ SOFT FOCUS settings

OFF: Turns the SOFT FOCUS function off.

1, 2, 3, 4: Activates the SOFT FOCUS setting. The higher numbers create a softer image.

“SHARPNESS” can not be adjusted in the “PICTURE” menu.

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.

Example: Setting "GRAY LEVEL" to "5"

On "GRAY LEVEL" of "OPTION2" menu, select "5".

OPTION2 2 / 4 ↑ PREVIOUS PAGE PWR. MGT. : OFF CINEMA MODE : ON LONG LIFE + GRAY LEVEL : ◀5 ► S1/S2 : OFF PICTURE SIZE : ON DVI SET UP CLOSECAPTION : OFF CAPTION CONT. : LOW ↓ NEXT PAGE + SEL ADJ. RETURN EXIT

Information

■ GRAY LEVEL settings

This adjusts the brightness of the black (the gray level) for the sides of the screen.

The standard is 0 (black). The level can be adjusted from 0 to 15. The factory setting is 3 (dark gray).

Setting the screen size for S1/S2 video input

If the S-video signal contains screen size information, the image will be automatically adjusted to fit the screen when this S1/S2 is set to AUTO.

This feature is available only when an S-video signal is input via the VIDEO3 terminal.

Example: Setting "S1/S2" to "AUTO"

On "S1/S2" of "OPTION2" menu, select "AUTO".

OPTION2 2 / 4 ↑ PREVIOUS PAGE PWR. MGT. : OFF CINEMA MODE : ON LONG LIFE GRAY LEVEL : 3 →S1/S2 : PICTURE SIZE : ON DVI SET UP CLOSECAPTION : OFF CAPTION CONT. : LOW ↓ NEXT PAGE SEL. ADJ. RETURN EXIT

Information

■ S1/S2 settings

AUTO: Adjusts the screen size automatically according to the S1/S2 video signal.

OFF: Turns the S1/S2 function off.

Setting the picture size for RGB input signals

Use this procedure to switch the setting to "ON" or "OFF".

* This function is available only for 50 and 61 inch types.

Example: Setting the "PICTURE SIZE" mode to "OFF"

On "PICTURE SIZE" of "OPTION2" menu, select "OFF".

OPTION2 2 / 4 ↑ PREVIOUS PAGE PWR. MGT. : OFF CINEMA MODE : ON LONG LIFE GRAY LEVEL : 3 S1/S2 : OFF →PICTURE SIZE : ◀OFF ▶ DVI SET UP CLOSECAPTION : OFF CAPTION CONT. : LOW ↓ NEXT PAGE SEL ADJ RETURN EXIT

Setting the signal and black level for DVI signal

Choose the signal for the DVI connector (PC or STB/DVD) and set the black level.

Example: Setting the "PLUG/PLAY" mode to "STB/DVD"

On "OPTION2" menu, select "DVI SET UP", then press the MENU/ENTER button.

The "DVI SET UP" screen appears.

On “PLUG/PLAY” of “DVI SET UP” menu, select “STB/DVD”.

DVI SET UP PLUG/PLAY : BLACK LEVEL : HIGH SEL. ADJ. RETURN EXIT

Information

■ PLUG/PLAY settings

PC: When connected to the PC signal.

BLACK LEVEL is set to "LOW" automatically.

STB/DVD: When connected to the SET TOP BOX, DVD etc.

BLACK LEVEL is set to "HIGH" automatically.

LOW: When connected to the PC signal.

HIGH: When connected to the SET TOP BOX, DVD etc.

Change “HIGH” into “LOW” if the black level appears gray.

Setting CloseCaption

Choose the closed caption mode that allows text to be superimposed in the active video.

Example: Setting "CLOSECAPTION" to "CC2"

On “CLOSECAPTION” of “OPTION2” menu, select “CC2”.

OPTION2 2 / 4 ↑ PREVIOUS PAGE PWR. MGT. : OFF CINEMA MODE : ON LONG LIFE GRAY LEVEL : 3 S1/S2 : OFF PICTURE SIZE : ON DVI SET UP →CLOSECAPTION : ◀CC2 ▶ CAPTION CONT. : LOW ↓ NEXT PAGE SEL. ADJ. RETURN EXIT

Information

■ CLOSECAPTION settings

OFF: This exits the closed caption mode.

CC1\~4: Text is superimposed.

TEXT1\~4: Text is displayed in full screen.

A closed caption signal may not be decoded in the following signature;

1. when a video tape has been dubbed.
2. when the signal reception is weak.
3. when the signal reception is nonstandard.

When using closed captioned channel or the text mode, the text screen always appears.

When there is no signal, however, the text screen will not display text characters.

Setting the contrast of CloseCaption

Choose the brightness of the closed caption.

Example: Setting "CAPTION CONT." to "NORMAL"

On “CAPTION CONT.” of “OPTION2” menu, select “NORMAL”.

OPTION2 2 / 4 ↑ PREVIOUS PAGE PWR. MGT. : OFF CINEMA MODE : ON LONG LIFE GRAY LEVEL : 3 S1/S2 : OFF PICTURE SIZE : ON DVI SET UP CLOSECAPTION : OFF → CAPTION CONT. : ↕ NORMAL▶ ↓ NEXT PAGE SEL. ADJ. RETURN EXIT

Information

■ CAPTION CONT. settings

NORMAL: Closed Caption brightness is set to normal.

LOW: Closed Caption brightness is set to lower.

Option3 Settings Menu

Set "ADVANCED OSM" to "ON" in the MAIN MENU.

Using the timer

This function sets the monitor to turn ON/OFF automatically at a set time.

On “OPTION3” menu, select “TIMER”, then press the MENU/ENTER button.

The "TIMER" screen appears.

TIMER →PRESENT TIME PROGRAM : OFF MULTI REPEAT : OFF SEL. RETURN/ENTER OK EXIT

PRESENT TIME

This sets the day of the week and present time.

Example: Setting "WEDNESDAY", "22:05"

On “TIMER” menu, select “PRESENT TIME”, then press the MENU/ENTER button.

The "PRESENT TIME" screen appears.

Adjust the items.

PRESENT TIME RETURN DAYLIGHT SAVING TIME : OFF WEDNESDAY (22:05:00) SET SEL. ADJ. RETURN EXIT

Select "SET", then press the MENU/ENTER button.

The adjustments are stored and the TIMER menu reappears.

* If you press the EXIT button instead of the MENU/ENTER button, the settings can not be made.

PRESENT TIME RETURN DAYLIGHT SAVING TIME : OFF WEDNESDAY 22:05:00 →SET SEL. RETURN/ENTER OK EXIT

Information

■ PRESENT TIME settings

DAYLIGHT SAVING TIME: Use to set DAYLIGHT SAVING TIME.

ON: The present time + 1 hour.

OFF: Cancelled

Day: Set the day of the week (e.g. Sunday).

Hour: Set the hour in the 24-hour format (range 00 to 23).

Minutes: Set the minutes (range 00 to 59).

PROGRAM TIMER

This sets the day and time at which the power will be switched ON/OFF as well as the input mode.

Example: Setting so that the power will be switched on at 8:30 A.M., Monday, displaying RGB2 source, and switched off at 10:30 A.M.

On “PROGRAM” of “TIMER” menu, select “ON”, then press the MENU/ENTER button.

The "PROGRAM TIMER" screen appears.

Adjust the items.

Each mode switches each time the ZOOM +/− button is pressed.

PROGRAM TIMER DATE ON OFF INPUT FUNCTION MON 08:30 10:30 RGB2 INVERSE — --- --- --- --- — — --- --- --- --- — — --- --- --- --- — — --- --- --- --- — — --- --- --- --- — SEL. RETURN ADJ. OKON EXIT

Information

■ PROGRAM TIMER settings

DATE: Set the day of the week (e.g. Sunday).

ON (hour, minutes): Set the time at which the power will be turned on in the 24-hour format.

OFF (hour, minutes): Set the time at which the power will be turned off in the 24-hour format.

INPUT: Set the input mode that will be displayed when the timer is on.

FUNCTION: Set the LONG LIFE function.

■ To reset the program

Align the cursor with the DATE field that you wish to reset, then press the CLEAR/SEAMLESS SW button.

■ To reset the data

Align the cursor with the field (ON/OFF/INPUT/FUNCTION) that you wish to reset, then press the CLEAR/SEAMLESS SW button.

■ Special characters in the PROGRAM TIMER screen

PROGRAM TIMER DATE ON OFF INPUT FUNCTION MON 08:30 10:30 RGB2 INVERSE TUE --:-- 18:15 — — SAT 08:30 12:15 VIDEO1 WHITE *FRI 08:30 10:00 HD/DVD1 — — --:-- --:-- — — SAT 08:30 12:15 VIDEO1 WHITE * 15:30 16:00 RGB1 — SEL. RETURN ADJ. EXIT

- An asterisk “*” in the DATE field

An asterisk “*” means “every”. For example, “*FRI” means every Friday and “*” means everyday.

- A hyphen “-” in the ON field or OFF field If any hyphen remains in the ON field or OFF field, the FUNCTION can not be set.

- A hyphen “-” in the FUNCTION field

A hyphen “-” means last mode (the mode that was last selected at the time the power was switched off).

■ To set MULTI INPUT

- Set the INPUT button to “MULTI”, then press the MENU/ENTER button.

The “MULTI SCREEN SETTING” will appear on the screen.

- Use the ▲ and ▼ buttons to select “MULTI MODE”, then use the ◀ and ▶ buttons to choose from

“SINGLE”, “SIDE BY SIDE1\~3” and “PICTURE IN PICTURE (BOTTOM LEFT\~TOP LEFT)”.

- Use the ▲ and ▼ buttons to select “MAIN”/“SUB” and “LEFT”/“RIGHT”, then use the ◀ and ▶ buttons to choose from “VIDEO1\~3”, “HD/DVD1\~2” and “RGB/PC1\~3”.

PROGRAM TIMER DATE ON OFF INPUT FUNCTION MON 08:30 10:30 MULTI INVERSE TUE --:-- 18:15 — — SAT 08:30 12:15 VIDEO1 WHITE *FRI 08:30 10:00 HD/DVD1 — — --:-- --:-- — — SAT 08:30 12:15 VIDEO1 WHITE * 15:30 16:00 RGB1 — SEL RETURN NOW ADJ. EXIT

SIDE BY SIDE

PICTURE IN PICTURE

PROGRAM TIMER MULTI SCREEN SETTING + MULTI MODE : < BOTTOM LEFT> INPUT MODE MAIN : RGB/PC1 SUB : VIDEO1 SEL. ADJ. RETURN ENT

PROGRAM TIMER MULTI SCREEN SETTING ► MULTI MODE : ◀ SIDE BY SIDE1► INPUT MODE LEFT : RGB/PC1 RIGHT : VIDEO1 ◆ SEL ▶ ADJ. EXT RETURN

MULTI REPEAT

Two repeat timers are available.

Each timer has MULTI MODE, WORK TIME and INPUT MODE functions.

Example:

TIMER1 is set to display RGB/PC1 (MAIN) and VIDEO1 (SUB) for 4 hours in picute-in-picture mode. TIMER2 is set to display RGB/PC3 (LEFT) and HD/DVD1 (RIGHT) for 2.5 hours in side-by-side mode.

On “MULTI REPEAT” of “TIMER”, select “ON”, then press the MENU/ENTER button.

The "MULTI REPEAT TIMER" screen appears.

Adjust the items.

MULTI REPEAT TIMER +1 MULTI MODE : WORK TIME : 04H00M INPUT MODE MAIN : RGB/PC1 SUB : VIDEO1 2 MULTI MODE : S BY S1 WORK TIME : 02H30M INPUT MODE LEFT : RGB/PC3 RIGHT : HD/DVD1 SEL ADJ RETURN EXT

Information

■ MULTI REPEAT settings

MULTI MODE: Set the input mode to be displayed while the timer is on.

WORK TIME: Set the time duration of the display. Time range is from 1 minutes to 4 hours and 15 minutes. INPUT MODE: Set the signal that will be displayed within the selected screen.

Select “MAIN” or “SUB” for “PICTURE IN PICTURE (BTM LFT\~TOPLFT)” and “LEFT” or “RIGHT” for “S BY S1\~3”. Only one signal is selected for “SINGLE”.

* The two repeat timers run consecutively, i.e., Timer1–Timer2–Timer1–Timer2.
* When both PROGRAM TIMER and MULTI REPEAT TIMER are set, priority is given to PROGRAM TIMER.

Setting the power on mode

This function sets the input mode and the sound volume at the time the power is switched on.

Example: Setting the input mode to "VIDEO2"

On “OPTION3” menu, select “PWR.ON MODE”, then press the MENU/ENTER button.

The "PWR.ON MODE" screen appears.

On “INPUT” of “PWR.ON MODE” menu, select “VIDEO2”.

The available inputs depend on the setting of input.

PWR. ON MODE ←INPUT : ◀VIDEO2 ▶ VOLUME : LAST SEL. ADJ. RETURN [EXIT]

Information

■ INPUT settings

LAST: Last mode (the input that was last selected at the time the power was switched off).

VIDEO1, 2, 3: VIDEO input mode.

RGB1, 2, 3: RGB input mode.

HD/DVD1, 2: HD/DVD input mode.

MULTI: Multi screen mode.

Follow the procedure used for PROGRAM TIMER. See page 29.

PICTURE IN PICTURE SIDE BY SIDE

VOLUME settings

LAST: Last mode (the volume that was last selected at the time the power was switched off).

0 to 44: The level of sound volume.

Enabling/disabling the front panel controls

This function enables/disables the front panel controls.

Example: Setting "ON"

On “CONTROL LOCK” of “OPTION3” menu, select “ON”, then press the MENU/ENTER button.

OPTION3 ↑ PREVIOUS PAGE TIMER PWR. ON MODE →CONTROL LOCK : ◀ON ► IR REMOTE : ON LOOP OUT : OFF REMOTE ID : ALL ID NUMBER : ALL VIDEO WALL ↓ NEXT PAGE SEL. ADJ. EXIT RETURN

Information

■ CONTROL LOCK settings

ON: Disables the buttons on the front panel.

OFF: Enables the buttons on the front panel.

* Even when the CONTROL LOCK is set, the POWER switch will not be locked.
* This becomes effective when the on-screen menu goes out.

Enabling/disabling remote control wireless transmission

This function enables/disables remote control wireless transmission.

Example: Setting "OFF"

On "IR REMOTE" of "OPTION3" menu, select "OFF", then press the MENU/ENTER button.

OPTION3 3 / 4 ↑ PREVIOUS PAGE TIMER PWR. ON MODE CONTROL LOCK : OFF →IR REMOTE : (OFF) LOOP OUT : OFF REMOTE ID : ALL ID NUMBER : ALL VIDEO WALL ↓ NEXT PAGE SEL ADJ. RETURN EXIT

Information

■ IR REMOTE settings

ON: Enables remote control wireless transmission.

OFF: Disables remote control wireless transmission.

Set “OFF” to avoid unwanted control from other remote controls.

Loop Out setting

When this feature is set to ON, the received signal will be looped out.

Example: Setting "ON"

On "LOOP OUT" of "OPTION3" menu, select "ON".

OPTION3 3 / 4 ↑ PREVIOUS PAGE TIMER PWR. ON MODE CONTROL LOCK : OFF IR REMOTE : ON →LOOP OUT : ←ON ► REMOTE ID : ALL ID NUMBER : ALL VIDEO WALL ↓ NEXT PAGE SEL. ADJ. RETURN EXIT

Information

■ LOOP OUT settings

ON: The received signal will be looped out via PC1 terminal or VIDEO1 terminal.

OFF: The received signal will not loop out.

* Even if LOOP OUT is ON, signals won't be sent out if POWER is being turned off.

■ To connect another display...

See page En-6.

■ If the RGB/PC1 signal is present at the time the power switched on...

The RGB/PC1 input will be displayed regardless of the setting of LOOP OUT.

REMOTE ID setting

Set the remote code to adapt the plasma monitor to the remote control.

Example: Setting to "1"

On the "REMOTE ID" of "OPTION3" menu, select "1".

OPTION3 3 / 4 ↑ PREVIOUS PAGE TIMER PWR. ON MODE CONTROL LOCK : OFF IR REMOTE : ON LOOP OUT : OFF →REMOTE ID : ◀1 ► ID NUMBER : ALL VIDEO WALL ↓ NEXT PAGE SEL. ADJ. RETURN EXIT

- Press and hold the POWER ON button, and release the button when the indication saying that the code is set is displayed. Or, press and hold the POWER STANDBY button, and release the button when the power is turned off.

Information

■ REMOTE ID setting

ALL: The remote code is not set.

1 to 4: The specified remote code is applied.

ID number setting

When using more than one of these displays, this function sets ID numbers so that operation of the remote control does not cause multiple monitors to operate at the same time.

Example: Setting "2"

On "ID NUMBER" of "OPTION3" menu, select "2".

OPTION3 3 / 4 ↑ PREVIOUS PAGE TIMER PWR. ON MODE CONTROL LOCK : OFF IR REMOTE : ON LOOP OUT : OFF REMOTE ID : ALL →ID NUMBER : <2 > VIDEO WALL ↓ NEXT PAGE SEL. ADJ. RETURN EXIT

* To reset back to ALL

Press the CLEAR/SEAMLESS SW button.

Information

ID NUMBER settings

ALL: ID NUMBER will not be set.

1 to 256: ID NUMBER will be set.

■ When the ID NUMBER have been set

You can also set ID NUMBER for each remote control to operate the plasma display individually. To do so, see below.

To set the ID number for the remote control

Example: Setting "2"

Press the ID SELECT button on the remote control.

The "ID SELECT" screen appears.

On "ID NUMBER" of "ID SELECT" menu, select "2".

ID SELECT POSITION : 1 ID NUMBER : 2 ADJ. RETURN EXIT

* To reset back to ALL

Press the CLEAR/SEAMLESS SW button.

Video Wall setting

Use this feature to configure a (2 × 2, 3 × 3, 4 × 4, 5 × 5) video wall.

On "OPTION3" menu, select "VIDEO WALL", then press the MENU/ENTER button.

The "VIDEO WALL" screen appears.

VIDEO WALL
DIVIDER	: OFF
POSITION
DISP. MODE	: SPLIT
AUTO ID	: OFF
IMAGE ADJUST
P. ON DELAY	: OFF
PLE LINK	: OFF
REPEAT TIMER	: OFF
SEL ADJ. RETURN	EXIT

Note: A contingency method of shutting off the electric power should be used in cases of emergency during video wall setup.

DIVIDER

Set the (2·2) video wall.

Example: Setting "4"

On "DIVIDER" of "VIDEO WALL" menu, select "4".

VIDEO WALL
DIVIDER	: 4
POSITION
DISP. MODE	: SPLIT
AUTO ID	: OFF
IMAGE ADJUST
P. ON DELAY	: OFF
PLE LINK	: OFF
REPEAT TIMER	: OFF
SEL ADJ. RETURN	EXIT

Information

■ DIVIDER settings

OFF, 1:1 Screen (Matrix display function does not work)

4: 4 Screens (2·2 video wall)

9: 9 Screens (3·3 video wall)

16: 16 Screens (4·4 video wall)

25: 25 Screens (5·5 video wall)

* When selecting a 2·2, 3·3, 4·4, 5·5 VIDEO WALL POSITION.

VIDEO WALL POSITION

Set the position of each display.

Example: Setting "4"

On "VIDEO WALL" menu, select "POSITION", then press the MENU/ENTER button.

The "VIDEO WALL POSITION" screen appears.

Select "NO. 4" of "POSITION NO.".

VIDEO WALL POSITION POSITION NO. 4 ADJ. RETURN EXIT

Information

■ VIDEO WALL POSITION settings

1 Screen: There is no need to set POSITION.

4 Screens 9 Screens

NO. 1	NO. 2
NO. 4	NO. 3

NO. 7	NO. 8	NO. 9
NO. 10	NO. 11	NO. 12
NO. 13	NO. 14	NO. 15

16 Screens 25 Screens

NO. 16	NO. 17	NO. 18	NO. 19
NO. 20	NO. 21	NO. 22	NO. 23
NO. 24	NO. 25	NO. 26	NO. 27
NO. 28	NO. 29	NO. 30	NO. 31

NO.32	NO.33	NO.34	NO.35	NO.36
NO.37	NO.38	NO.39	NO.40	NO.41
NO.42	NO.43	NO.44	NO.45	NO.46
NO.47	NO.48	NO.49	NO.50	NO.51
NO.52	NO.53	NO.54	NO.55	NO.56

DISP. MODE

Select the screen mode between two choices (Splitting, Blanking).

Example: Setting "BLANK"

On "DISP. MODE" of "VIDEO WALL" menu, select "BLANK".

VIDEO WALL DIVIDER : 1 POSITION → DISP. MODE : ◀ BLANK AUTO ID : OFF IMAGE ADJUST P. ON DELAY : OFF PLE LINK : OFF REPEAT TIMER : OFF SEL. ADJ. RETURN EXIT

Information

■ DISP. MODE settings

SPLIT: Combines enlarged screens and creates multiple screens.

BLANK: Corrects misalignment of combined screen portions and creates multiple screens

AUTO ID

This feature automatically sets the ID numbers of multiple displays connected to each other.

Example: Setting "ON"

Set the ID number for the No. 1 display on ID NUMBER menu.

On "AUTO ID" of "VIDEO WALL" menu, select "ON", then press the MENU/ENTER button.

Information

■ AUTO ID settings

ON: Enables Auto ID function. In the case shown below, display 1 will be set as ID 1, display 2 as ID2, etc.

This can be set only when a 2·2 or 3·3 video wall is selected.

OFF: Disables Auto ID function.

IMAGE ADJUST

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position

On "VIDEO WALL" menu, select "IMAGE ADJUST", then press the MENU/ENTER button.

The "IMAGE ADJUST" screen appears.

On "V-POSITION" of "IMAGE ADJUST" menu, adjust the position.

IMAGE ADJUST ASPECT MODE : NORMAL V-POSITION : ±0 H-POSITION : ±0 V-HEIGHT : 0 H-WIDTH : 0 AUTO PICTURE : OFF FINE PICTURE : 0 PICTURE ADJ. : 0 SEL ADJ. RETURN : EXT

V-POSITION +64

Information

■ IMAGE ADJUST settings

These are the same functions as the IMAGE ADJUST menu on page En-22.

P. ON DELAY (Power on delay)

Use this function to activate power-on delay.

Turn on the AUTO ID before the following operations.

Example: Setting "ON"

On "P. ON DELAY" of "VIDEO WALL" menu, select "ON".

VIDEO WALL DIVIDER : 1 POSITION DISP. MODE : SPLIT AUTO ID : OFF IMAGE ADJUST →P. ON DELAY : ←ON PLE LINK : OFF REPEAT TIMER : OFF SEL ADJ. RETURN EXIT

Information

■ P. ON DELAY settings

ON: Turns on the main power of each display after a delay time.

OFF: Turns on the main power of all displays at the same time.

(Only for 4·4 and 5·5 video wall modes)

MODE1: Turns on the main power of each display delayed.

MODE2: Turns on the main power of each display more delayed.

* Once this function has been set to "ON", the POWER ON/OFF button on the remote control does not function except for the No.1 monitor.

By pressing the POWER ON button on the remote control the No.1 monitor will turn on and the others will be turned on one by one automatically.

* From the second monitor onward, neither the POWER button on the unit nor the POWER ON button on the remote control works. However, by pressing and holding the POWER ON button for more than 3 seconds, the monitor will be turned on.

PLE LINK

Use this function to set a uniform brightness for each display.

Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9) before the following operations.

Example: Setting "ON"

On "PLE LINK" of "VIDEO WALL" menu, select "ON", then press the MENU/ENTER button.

VIDEO WALL DIVIDER : 1 POSITION DISP. MODE : SPLIT AUTO ID : OFF IMAGE ADJUST P. ON DELAY : OFF →PLE LINK : ←ON ► REPEAT TIMER : OFF SEL. ADJ. RETURN EXIT

Information

■ PLE LINK settings

ON: Sets a uniform brightness for each screen in a video wall. This can be set only when a 2·2 or 3·3 video wall is selected.

OFF: Sets the individual screen brightness for each screen in a video wall.

* When this function is set "ON", connect your plasma displays with the remote cable (optional) in the order of the position numbers for the 2·2 video wall. See the drawing below.

* If there are changes in the DIVIDER or POSITION, the PLE LINK will automatically turn OFF.

* With the 3·3 video wall, connect the final display to the first display the same way as with 2·2 video wall.

Note: The remote control can be operated unless the IR REMOTE is set to "OFF".

REPEAT TIMER

Use this to set two timers. Each timer can use the DIVIDER, SOURCE and WORK TIME functions.

Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9) before the following operations.

Example:

TIMER1...VIDEO1 will be displayed for 3 minutes.

TIMER2...RGB1 will be displayed for 6 minutes in a 2·2 video wall.

On “REPEAT TIMER” of “VIDEO WALL” menu, select “ON”, then press the MENU/ENTER button.

The "REPEAT TIMER" screen appears.

Adjust the items.

REPEAT TIMER 1 DIVIDER : 1 SOURCE : VIDEO1 WORK TIME : 00H03M 2 DIVIDER : 4 SOURCE : RGB1 → WORK TIME : <00H06M> SEL. ADJ. RETURN EXIT

Information

■ REPEAT TIMER settings

DIVIDER: Divide the screen into 1, 4 or 9 sections.

SOURCE: Set the input mode to be displayed.

WORK TIME: Can be set to up to 4 hours 15 minutes in units of 1 minute.

If you set both timers, Timer 1 and Timer 2 run consecutively.

In the case of the Video wall, timer No.1 can be used to control all the displays simultaneously.

* This becomes effective when the on-screen menu goes out.

Option4 Settings Menu

Set "ADVANCED OSM" to "ON" in the MAIN MENU.

Removing the sub screen area when there is no input signal detected for the sub picture

This function automatically removes the black frame of the sub screen when there is no sub screen input signal.

This feature is available only when the picuture-in-picuture mode is selected.

Example: Setting "DISPLAY" to "FADE"

On “SUB. PICTURE” of “OPTION4” menu, press the MENU/ENTER button.

The "SUB. PICTURE" screen appears.

Adjust the items.

SUB. PICTURE SUB. P DETECT : AUTO → DISPLAY : ◀FADE ▶ SUB. P RATE : 100% SEL. ADJ. RETURN EXIT

Information

SUB. PICTURE Function

* Loss of the input signal means a condition in which the video signal and the sync signal are not present.
* Under conditions in which the sub screen has disappeared, the ZOOM NAV, PIC FREEZE, and SEAMLESS SW functions will not work. The WIDE button will not function either.

■ SUB. P DETECT setting

AUTO: The black frame disappears 3 seconds after the input signal is lost.

OFF: Turns off the SUB. PICTURE function.

■ DISPLAY setting

NORMAL: The sub screen is displayed consistently.

FADE: The sub screen fades in.

SUB. P RATE setting

Set the transparency of the sub screen.

Displaying the entire image during DIGITAL ZOOM operations

Use this function to display the entire image within the sub screen together with an enlarged image on the main screen.

Example: Setting "ZOOM NAV" to "S BY S"

On "ZOOM NAV" of "OPTION4" menu, select "S BY S".

OPTION4 4 / 4 ↑ PREVIOUS PAGE SUB. PICTURE →ZOOM NAV : ◀S BY S ▶ PIC FREEZE : S BY S1 SEAMLESS SW : OFF SELECT1 : — SELECT2 : — TEXT INSERT : OFF SEL. ADJ. RETURN EXIT

Information

■ ZOOM NAV Function

* This feature does not function during multi screen mode.
* This feature does not function while PIC FREEZE is operating.
* Providing a 2-screen display will cancel this function.

■ ZOOM NAV settings

OFF: Will not show the entire image on the sub screen.

S BY S: Will show the entire image on the sub screen of side-by-side mode.

BTM LFT\~TOP LFT: Will show the entire image on the sub screen of picture-in-picture mode.

Side-by-Side Picture-in-Picture

Displaying still images in the sub screen

This feature enables display in the sub screen of still images captured by pressing the SELECT/FREEZE button.

Example: Setting "PIC FREEZE" to "BTM LFT"

On "PIC FREEZE" of "OPTION4" menu, select "BTM LFT".

OPTION4 4 / 4 ↑ PREVIOUS PAGE SUB. PICTURE ZOOM NAV : BTM LFT →PIC FREEZE : SEAMLESS SW : OFF SELECT1 : — SELECT2 : — TEXT INSERT : OFF → SEL. ADJ. RETURN EXIT

Information

PIC FREEZE Function

* This feature does not function during split screen mode.
* Digital zoom is not available while this function is operating.
* A further press of the SELECT/FREEZE button while this function is operating will cancel this function.
* Providing a 2-screen display will cancel this function.

PIC FREEZE settings

OFF: Will not show the still image.

S BY S1, 2: The still images captured by pressing the SELECT/FREEZE button will be shown on the sub screen of side-by-side mode.

BTM LFT\~TOP LFT: The still images captured by pressing the SELECT/FREEZE button will be shown on the sub screen of picture-in-picture mode.

Side-by-Side Picture-in-Picture

Switching the input source quickly

This feature enables quick input selection.

After setting ON, press the CLEAR/SEAMLESS SW button for quick switching between the two selected input signals.

Example: Set to switch quickly between RGB1 and RGB2.

On "SEAMLESS SW" of "OPTION4" menu, select "ON". Select "RGB1" and "RGB2".

OPTION4 4 / 4 ↑ PREVIOUS PAGE SUB. PICTURE ZOOM NAV : BTM LFT PIC FREEZE : S BY S1 SEAMLESS SW : ON SELECT1 : RGB1 → SELECT2 : TEXT INSERT : OFF ← SEL. ADJ. RETURN EXIT

* The available sources depend on the setting of input.

Information

■ SEAMLESS SW Function

* This feature will not function for certain input combinations. See the table on page En-15.
* After switching to the selected input, please operate this function.
* This feature will not function during split screen mode.
* When SEAMLESS SW is first turned on, or when signals being transmitted are changed, there may be a slight delay due to signal analysis.

■ SEAMLESS SW settings

OFF: Turns off the SEAMLESS SW function.

ON: When the CLEAR/SEAMLESS SW button is pressed, input signals will switch quickly according to the setting of SELECT1 and SELECT2.

Displaying the information as a text

Example: Setting "TEXT INSERT" to "BOTTOM", "INPUT" to "RGB1", "PIC. RATE" to "100%" and "DISPLAY" to "NORMAL"

On “TEXT INSERT” of “OPTION4” menu, select “BOTTOM”, then press the MENU/ENTER button.

The "TEXT INSERT" screen appears.

Adjust the items.

Enhanced split screen Model

Information

■ TEXT INSERT setting

OFF: Displays no text.

TOP/MID HIGH/MID LOW/BOTTOM: Displays a text at the specified location.

■ INPUT setting

Sets the input of the text to the RGB1 to 3.

PIC. RATE setting

Sets the transparency of the text.

■ DISPLAY setting

NORMAL: The sub screen is displayed consistently. FADE: The sub screen fades in.

Advanced OSM Settings Menu Setting the menu mode

This allows you to access the complete menu.

When P. ON DELAY or PLE LINK is ON, this won't be turned OFF.

Example: Setting "ON"

On “ADVANCED OSM” of “MAIN MENU”, select “ON”.

MAIN MENU 1 / 2 PICTURE AUDIO IMAGE ADJUST OPTION1 ADVANCED OSM : OFF NEXT PAGE SEL. ADJ. EXITEXIT

MAIN MENU 1 / 2 PICTURE AUDIO IMAGE ADJUST OPTION1 OPTION2 OPTION3 OPTION4 ADVANCED OSM : NEXT PAGE SEL ADJ EXIT EXIT

Information

■ ADVANCED OSM settings

ON: All of the main menu items are available for advanced users.

OFF: Some of the main menu items are not available (e.g. OPTION2, OPTION3 and OPTION4).

Language Settings Menu Setting the language for the menus

The menu display can be set to one of eight languages.

Example: Setting the menu display to "DEUTSCH"

On "MAIN MENU", select "LANGUAGE", then press the MENU/ENTER button.

The "LANGUAGE" screen appears.

On “LANGUAGE”, select “DEUTSCH”, then press the MENU/ENTER button.

LANGUAGE →LANGUAGE : DEUTSCH ADJ. MENU ENTER OK EXIT RETURN

The “LANGUAGE” is set to “DEUTSCH” and return to the main menu.

Information

■ Language settings

ENGLISH .....English

DEUTSCH.....German

FRANÇAIS ..... French

ESPAÑOL .....Spanish

ITALIANO ..... Italian

SVENSKA ..... Swedish

РУССКИЙ......Russian

PORTUGUÊS ..... Portuguese

Color System Settings Menu Setting the video signal format

Use these operations to set the color systems of composite video signals or Y/C input signals.

Example: Setting the color system to "3.58 NTSC"

On the MAIN MENU, select "COLOR SYSTEM", then press the MENU/ENTER button.

The "COLOR SYSTEM" screen appears.

On "COLOR SYSTEM", select "3.58NTSC".

COLOR SYSTEM →COLOR SYSTEM : 3.58NTSC ADJ. EXIT RETURN

Information

■ Video signal formats

Different countries use different formats for video signals. Set to the color system used in your current country.

AUTO: The color systems are automatically identified and the format is set accordingly.

PAL: This is the standard format used mainly in the United Kingdom and Germany.

SECAM: This is the standard format used mainly in France and Russia.

4.43 NTSC, PAL60: This format is used for videos in countries using PAL and SECAM video signals.

3.58 NTSC: This is the standard format used mainly in the United States and Japan.

PAL-M: This is the standard format used mainly in Brazil.

PAL-N: This is the standard format used mainly in Argentina.

Source Information Menu

Checking the frequencies, polarities of input signals, and resolution

Use this function to check the frequencies and polarities of the signals currently being input from a computer, etc. On “MAIN MENU”, select “SOURCE INFORMATION”, then press the MENU/ENTER button.

The "SOURCE INFORMATION" is displayed.

SOURCE INFORMATION
H. FREQUENCY	: 48.4KHZ
V. FREQUENCY	: 60.0HZ
H. POLARITY	: NEG.
V. POLARITY	: NEG.
MEMORY	: 24
RESOLUTION	: 1024-768
	EXIT RETURN

-PC: MEMORY will be displayed.

Others: MODE will be displayed.

Application

These specifications cover the communications control of the plasma monitor by external equipment.

Connections

Connections are made as described below.

Display

Connector on the plasma monitor side: EXTERNAL CONTROL connector.

Use a crossed (reverse) cable.

Type of connector: D-Sub 9-pin male

Pin No.	Pin Name	Pin No.	Pin Name
1	No Connection	6	DSR (DCE side ready)
2	RXD (Receive data)	7	RTS (Ready to send)
3	TXD (Transmit data)	8	CTS (Clear to send)
4	DTR (DTE side ready)	9	No connection
5	GND

Communication Parameters

(1) Communication system Asynchronous
(2) Interface RS-232C
(3) Baud rate 9600 bps
(4) Data length 8 bits
(5) Parity Odd
(6) Stop bit 1 bit
(7) Communication code Hex

External Control Codes (Reference)

FUNCTION CODE DATA

Power ON 9FH 80H 60H 4FH 00H CDH

OFF 9FH 80H 60H 4FH 00H CEH

Input Switch Video1 (BNC) DFH 80H 60H 47H 01H 01H 08H

Video2 (RCA) DFH 80H 60H 47H 01H 02H 09H

Video3 (S-Video) DFH 80H 60H 47H 01H 03H 0AH

DVD1/HD1 (RCA) DFH 80H 60H 47H 01H 05H 0CH

DVD2/HD2 (BNC) DFH 80H 60H 47H 01H 06H 0DH

RGB1 (mini D-sub 15-pin) DFH 80H 60H 47H 01H 07H 0EH

RGB2 (SBNC) DFH 80H 60H 47H 01H 08H 0FH

RGB3 (DVI) DFH 80H 60H 47H 01H 0CH 13H

Audio Mute ON		9FH 80H 60H 3EH 00H BDH
	OFF	9FH 80H 60H 3FH 00H BEH
Picture Mode	NORMAL	DFH 80H 60H 0AH 01H 01H CBH
	THEAT. 1	DFH 80H 60H 0AH 01H 02H CCH
	THEAT. 2	DFH 80H 60H 0AH 01H 03H CDH
	DEFAULT	DFH 80H 60H 0AH 01H 04H CFH
	BRIGHT	DFH 80H 60H 0AH 01H 05H CFH
Screen Mode	STADIUM	DFH 80H 60H 51H 01H 02H 13H
	ZOOM	DFH 80H 60H 51H 01H 03H 14H
	NORMAL	DFH 80H 60H 51H 01H 04H 15H
	FULL	DFH 80H 60H 51H 01H 05H 16H
	14 : 9	DFH 80H 60H 51H 01H 09H 1AH
	2.35 : 1	DFH 80H 60H 51H 01H 0AH 1BH
Auto Picture	ON	DFH 80H 60H 7FH 03H 03H 09H 00H 4DH
	OFF	DFH 80H 60H 7FH 03H 03H 09H 01H 4EH
Cinema Mode	ON	DFH 80H 60H C1H 01H 01H 82H
	OFF	DFH 80H 60H C1H 01H 02H 83H

Note: Contact your local dealer for a full list of the External Control Codes if needed.

Pin No.	Signal (Analog)
1	Red
2	Green or sync-on-green
3	Blue
4	No connection
5	Ground
6	Red ground
7	Green ground
8	Blue ground
9	No connection
10	Sync signal ground
11	No connection
12	Bi-directional DATA (SDA)
13	Horizontal sync or Composite sync
14	Vertical sync
15	Data clock

DVI-D 24-pin connector (Digital)

The unit is equipped with a type of connector commonly used for digital.

(This cannot be used for an analog input.)

(TMDS can be used for one link only.)

RGB 3

Pin No.	Signal (Digital)
1	T.M.D.S Data 2 -
2	T.M.D.S Data 2 +
3	T.M.D.S Data 2 Shield
4	No connection
5	No connection
6	DDC Clock
7	DDC Data
8	No connection
9	T.M.D.S Data 1 -
10	T.M.D.S Data 1 +
11	T.M.D.S Data 1 Shield
12	No connection
13	No connection
14	+5V Power
15	Ground
16	Hot Plug Detect
17	T.M.D.S Data 0 -
18	T.M.D.S Data 0 +
19	T.M.D.S Data 0 Shield
20	No connection
21	No connection
22	T.M.D.S Clock Shield
23	T.M.D.S Clock +
24	T.M.D.S Clock -

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Symptom	Checks	Remedy
The unit emits a crackling sound.	·Are the image and sound normal?	·If there are no abnormalities in the image and sound, the noise is caused by the cabinet reacting to changes in temperature. This will not affect performance.
Picture is disturbed.Sound is noisy.Remote control operates erroneously.	·Is a connected component set directly in front or at the side of the display?	·Leave some space between the display and the connected components.
The remote control does not work.	·Are the remote control's batteries worn out?	·Replace both batteries with new ones.
	·Is IR REMOTE set to ON?	·Set IR REMOTE OFF on OPTION3 menu.
	·Has an ID number been set for the main unit?	·Set an ID number with the ID SELECT button, or set the ID number to ALL.
Monitor's power does not turn on when the remote control's power button is pressed.	·Is the monitor's power cord plugged into a power outlet?	·Plug the monitor's power cord into a power outlet.
	·Are all the monitor's indicators off?	·Press the power button on the monitor to turn on the power.
	·Are the remote control's batteries worn out?	·Replace both batteries with new ones.
	·Is IR REMOTE set to OFF?	·Set IR REMOTE ON.
	·Has an ID number been set for the main unit?	·Set an ID number with the ID SELECT button, or set the ID number to ALL.
Monitor does not operate when the remote control's buttons are pressed.	·Is the remote control pointed at the monitor, or is there an obstacle between the remote control and the monitor?	·Point the remote control at the monitor's remote control sensor when pressing buttons, or remove the obstacle.
	·Is direct sunlight or strong artificial light shining on the monitor's remote control sensor?	·Eliminate the light by closing curtains, pointing the light in a different direction, etc.
	·Are the remote control's batteries worn out?	·Replace both batteries with new ones.
	·The remote cable is plugged into the REMOTE IN terminal (Wired).	·Unplug the remote cable from the monitor.
The front panel buttons of the main unit do not function.	·The front panel buttons do not function during Control Lock.	·Set the Control Lock to OFF.
No sound or picture is produced.	·Is the monitor's power cord plugged into a power outlet?	·Plug the monitor's power cord into a power outlet.
Picture appears but no sound is produced.	·Is the volume set at the minimum?	·Increase the volume.
	·Is the mute mode set?	·Press the remote control's MUTE button.
	·Are the speakers properly connected?	·Connect the speakers properly.
	·Is AUDIO INPUT set correctly?	·Set AUDIO INPUT on the AUDIO menu correctly.
Poor picture with VIDEO signal input.	·Improper control setting.Local interference.Cable interconnections.Input impedance is not correct level.	·Adjust picture control as needed.Try another location for the monitor.Be sure all connections are secure.
Poor picture with RGB signal input.	·Improper control setting.Incorrect 15 PIN connector pin connections.	·Adjust picture controls as needed.Check pin assignments and connections.
Tint is poor or colors are weak.	·Are the tint and colors properly adjusted?	·Adjust the tint and color (under PICTURE).
Nothing appears on screen.	·Is the computer's power turned on?	·Turn on the computer's power.
	·Is a source connected?	·Connect source to the monitor.
	·Is the power management function in the standby or off mode?	·Operate the computer (move the mouse, etc.).
	·Is LOOP OUT set to ON?	·Set LOOP OUT OFF.
Part of picture is cut off or picture is not centered.	·Is the position adjustment appropriate?	·Adjust the IMAGE ADJUST properly.
Image is too large or too small.	·Is the screen size adjustment appropriate?	·Press the WIDE button on the remote control and adjust properly.
Picture is unstable.	·Is the computer's resolution setting appropriate?	·Set to the proper resolution.
POWER/STANDBY indicator is lighted in red.	·Horizontal and / or vertical sync signal is not present when the Intelligent Power Manager control is on.	·Check the input signal.
POWER/STANDBY indicator is blinking in red.	·The temperature inside the main unit has become too high and has activated the protector.	·Promptly switch off the power of the main unit and wait until the internal temperature drops. See*1.
POWER/STANDBY indicator is blinking in green and red, or green.	——	·Prompty switch off the power of the main unit. See *2.

*1 Overheat protector
If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor to cool for 60 minutes. If the problem persists, contact your dealer.
*2 In the following case, power off the monitor immediately and contact your dealer or authorized Service Center.
The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit, plasma display panel, temperature sensor, or one or more fans have been damaged.

Table of Signals Supported

Supported resolution (42XM4)

- When the screen mode is NORMAL, each signal is converted to a 768 dots × 768 lines signal. (Except for ^2,4 )

- When the screen mode is FULL, each signal is converted to a 1024 dots × 768 lines signal.

Computer input signals supported by this system

Model

Dots × lines

Vertical frequency (Hz)

Horizontal frequency (kHz)

Sync Polarity

Presence

Screen mode

RGB select*5

DVI

Memory

Horizontal

Vertical

Horizontal

Vertical

NORMAL (4:3)

FULL (16:9)

Signal Type

NEC PC-9800

640×400

70.1

31.5

NEG

NEG

YES

YES

YES*2

YES

--

NO

4

720×400

70.1

31.5

NEG

NEG

YES

YES

--

YES

720×400

YES

82

IBM PC/AT*6 compatible computers

640×480

59.9

31.5

NEG

NEG

YES

YES

YES

YES

640×480

YES

5

72.8

37.9

NEG

NEG

YES

YES

YES

YES

--

YES

7

75.0

37.5

NEG

NEG

YES

YES

YES

YES

640×480

YES

8

85.0

43.3

NEG

NEG

YES

YES

YES

YES

--

YES

9

100.4

51.1

NEG

NEG

YES

YES

YES

YES

--

YES

41

120.4

61.3

NEG

NEG

YES

YES

YES

YES

--

YES

42

720×400

85.1

37.9

NEG

POS

YES

YES

--

YES

--

YES

73

848×480

60.0

31.0

POS

POS

YES

YES

--

YES

848×480

YES

19

852×480*1

60.0

31.7

NEG

NEG

YES

YES

--

YES

852×480

YES

17

800×600

56.3

35.2

POS

POS

YES

YES

YES

YES

800×600

YES

11

60.3

37.9

POS

POS

YES

YES

YES

YES

800×600

YES

12

72.2

48.1

POS

POS

YES

YES

YES

YES

--

YES

13

75.0

46.9

POS

POS

YES

YES

YES

YES

--

YES

14

85.1

53.7

POS

POS

YES

YES

YES

YES

--

YES

15

99.8

63.0

POS

POS

YES

YES

YES

YES

--

YES

43

120.0

75.7

POS

POS

YES

YES

YES

YES

--

YES

44

1024×768

60.0

48.4

NEG

NEG

YES

YES

YES

YES*3

1024×768

YES

24

70.1

56.5

NEG

NEG

YES

YES

YES

YES*3

--

YES

25

75.0

60.0

POS

POS

YES

YES

YES

YES*3

1024×768

YES

26

85.0

68.7

POS

POS

YES

YES

YES

YES*3

--

YES

27

100.6

80.5

NEG

NEG

YES

YES

YES

YES*3

--

YES

45

1152×864

75.0

67.5

POS

POS

YES

YES

YES

YES

1152×864

YES

51

1280×768

56.2

45.1

POS

POS

YES

YES

--

YES

1280×768

YES

52

59.8

48.0

POS

NEG

YES

YES

--

YES

1280×768

YES

80

1280×768*9

69.8

56.0

NEG

POS

YES

YES

--

YES

1280×768

YES

66

1280×800*9

60.0

49.7

NEG

NEG

YES

YES

--

YES

1280×800

YES

21

1280×854*9

60.0

53.1

NEG

NEG

YES

YES

--

YES

1280×854

YES

37

1280×960

60.0

60.0

POS

POS

YES

YES

YES

YES

--

YES

63

1360×765

60.0

47.7

POS

POS

YES

YES

--

YES

1360×765

NO

22

1360×768

60.0

47.7

POS

POS

YES

YES

--

YES

1360×768

YES

22

1376×768

59.9

48.3

NEG

POS

YES

YES

--

YES

1376×768

YES

53

1280×1024

60.0

64.0

POS

POS

YES

YES

YES*4

YES

1280×1024

YES

29

75.0

80.0

POS

POS

YES

YES

YES*4

YES

--

YES

30

85.0

91.1

POS

POS

YES

YES

YES*4

YES

--

YES

40

100.1

108.5

POS

POS

YES

YES

YES*4

YES

--

NO

47

1680×1050*9

60.0

65.3

NEG

NEG

YES

YES

--

YES

1680×1050

YES

38

1600×1200

60.0

75.0

POS

POS

YES

YES

YES

YES

--

YES

54

65.0

81.3

POS

POS

YES

YES

YES

YES

--

NO

55

70.0

87.5

POS

POS

YES

YES

YES

YES

--

NO

56

75.0

93.8

POS

POS

YES

YES

YES

YES

--

NO

57

85.0

106.3

POS

POS

YES

YES

YES

YES

--

NO

58

1920×1200*9

60.0

74.6

NEG

NEG

YES

YES

--

YES

1920×1200

--

81

1920×1200RB*9

60.0

74.0

NEG

NEG

YES

YES

--

YES

1920×1200

YES

88

Apple Macintosh*6.8

640×480

66.7

35.0

Sync on G

Sync on G

--

--

YES

YES

--

NO

6

832×624

74.6

49.7

Sync on G

Sync on G

--

--

YES

YES

--

NO

16

1024×768

74.9

60.2

Sync on G

Sync on G

--

--

YES

YES*3

1024×768

NO

28

1152×870

75.1

68.7

Sync on G

Sync on G

--

--

YES

YES

1152×870

NO

39

1440×900*9

60.0

56.0

NEG

NEG

YES

YES

--

YES

--

YES

89

Work Station (EWS4800)*8

1280×1024

60.0

64.6

NEG

NEG

YES

YES

YES*4

YES

--

YES

29

71.2

75.1

NEG

NEG

YES

YES

YES*4

YES

--

YES

48

Work Station (HP)*8

1280×1024

72.0

78.1

--

--

--

--

YES*4

YES

--

YES

59

Work Station (SUN)*8

1152×900

66.0

61.8

C Sync

C Sync

--

--

YES

YES

--

YES

60

76.0

71.7

C Sync

C Sync

--

--

YES

YES

--

YES

61

1280×1024

76.1

81.1

C Sync

C Sync

--

--

YES*4

YES

--

YES

30

Model

Dots × lines

Vertical frequency (Hz)

Horizontal frequency (kHz)

Sync Polarity

Presence

Screen mode

RGB select*5

DVI

Memory

Horizontal

Vertical

Horizontal

Vertical

NORMAL (4:3)

FULL (16:9)

Signal Type

Work Station (SGI)

1024×768

60.0

49.7

--

--

--

--

YES

YES*0

--

YES

62

1280×1024

60.0

63.9

--

--

--

--

YES*4

YES

--

YES

29

IDC-3000G

PAL625P

768×576

50.0

31.4

NEG

NEG

YES

YES

YES*7

YES*7

--

NO

31

NTSC525P

640×480

59.9

31.5

NEG

NEG

YES

YES

YES*7

YES*7

640×480

NO

32

1152×864

60.0

53.7

POS

NEG

YES

YES

YES

YES

1152×864

YES

84

72.0

64.9

POS

NEG

YES

YES

YES

YES

--

YES

85

1400×1050

60.0

65.3

NEG

POS

YES

YES

YES

YES

--

YES

65

75.0

82.3

NEG

POS

YES

YES

YES

YES

--

YES

71

85.0

93.9

NEG

POS

YES

YES

YES

YES

--

NO

72

*1 Only when using a graphic accelerator board that is capable of displaying 852×480.
*2 Display only 640 lines with the screen center of the vertical orientation located at the center.
*3 The picture is displayed in the original resolution. The picture will be compressed for other signals.
*4 Aspect ratio is 5:4. This signal is converted to a 720 dots × 768 lines signal.
*5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the RGB mode prepared for the input signals listed in the table above.
*6 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer's video port.
*7 Other screen modes (ZOOM and STADIUM) are available as well.
*8 When viewing a moving picture at a vertical frequency greater than 65Hz, the picture may sometimes be unstable (jumpy). If this occurs, please set the refresh rate of the external equipment to 60Hz.
*9 CVT standard compliant.

NOTE:

• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size of the picture or the fine picture because of errors in synchronization of your computer.
• This monitor has a resolution of 1024 dots × 768 lines. It is recommended that the input signal should be XGA, wide XGA, or equivalent.
• With digital input some signals are not accepted.
• The sync may be disturbed when a nonstandard signal other than the aforementioned is input.
• If you are connecting a composite sync signal, use the HD terminal.

What is HDCP/HDCP technology?

HDCP is an acronym for High-bandwidth Digital Content Protection. High bandwidth Digital Content Protection (HDCP) is a system for preventing illegal copying of video data sent over a Digital Visual Interface (DVI).

If you are unable to view material via the DVI input, this does not necessarily mean the PDP is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC).

• "IBM PC/AT" and "XGA" are registered trademarks of International Business Machines, Inc. of the United States.
• “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

Supported resolution (50XM5/61XM4)

- When the screen mode is NORMAL, each signal is converted to a 1024 dots × 768 lines signal. (Except for *2.3.4)

- When the screen mode is TRUE, the picture is displayed in the original resolution.

- When the screen mode is FULL, each signal is converted to a 1365 dots × 768 lines signal. (Except for *3)

Computer input signals supported by this system

Model

Dots × lines

Vertical frequency (Hz)

Horizontal frequency (kHz)

Sync Polarity

Presence

Screen mode

RGB select*5

DVI

Memory

Horizontal

Vertical

Horizontal

Vertical

NORMAL(4:3)

TRUE

FULL(16:9)

Signal Type

NEC PC-9800

640×400

70.1

31.5

NEG

NEG

YES

YES

YES*2

YES

YES

--

NO

4

720×400

70.1

31.5

NEG

NEG

YES

YES

--

YES

YES

720×400

YES

82

IBM PC/AT*3 compatible computers

640×480

59.9

31.5

NEG

NEG

YES

YES

YES

YES

YES

640×480

YES

5

72.8

37.9

NEG

NEG

YES

YES

YES

YES

YES

--

YES

7

75.0

37.5

NEG

NEG

YES

YES

YES

YES

YES

640×480

YES

8

85.0

43.3

NEG

NEG

YES

YES

YES

YES

YES

--

YES

9

100.4

51.1

NEG

NEG

YES

YES

YES

YES

YES

--

YES

41

120.4

61.3

NEG

NEG

YES

YES

YES

YES

YES

--

YES

42

720×400

85.1

37.9

NEG

POS

YES

YES

--

YES

YES

--

YES

73

848×480

60.0

31.0

POS

POS

YES

YES

--

YES

YES

848×480

YES

19

852×480*1

60.0

31.7

NEG

NEG

YES

YES

--

YES

YES

852×480

YES

17

800×600

56.3

35.2

POS

POS

YES

YES

YES

YES

YES

800×600

YES

11

60.3

37.9

POS

POS

YES

YES

YES

YES

YES

800×600

YES

12

72.2

48.1

POS

POS

YES

YES

YES

YES

YES

--

YES

13

75.0

46.9

POS

POS

YES

YES

YES

YES

YES

--

YES

14

85.1

53.7

POS

POS

YES

YES

YES

YES

YES

--

YES

15

99.8

63.0

POS

POS

YES

YES

YES

YES

YES

--

YES

43

120.0

75.7

POS

POS

YES

YES

YES

YES

YES

--

YES

44

1024×768

60.0

48.4

NEG

NEG

YES

YES

YES*3

--

YES

1024×768

YES

24

70.1

56.5

NEG

NEG

YES

YES

YES*3

--

YES

--

YES

25

75.0

60.0

POS

POS

YES

YES

YES*3

--

YES

1024×768

YES

26

85.0

68.7

POS

POS

YES

YES

YES*3

--

YES

--

YES

27

100.6

80.5

NEG

NEG

YES

YES

YES*3

--

YES

--

YES

45

1152×864

75.0

67.5

POS

POS

YES

YES

YES

--

YES

1152×864

YES

51

1280×768

56.2

45.1

POS

POS

YES

YES

--

--

YES

1280×768

YES

52

59.8

48.0

POS

NEG

YES

YES

--

--

YES

1280×768

YES

80

1280×768*9

69.8

56.0

NEG

POS

YES

YES

--

--

YES

1280×768

YES

66

1280×800*9

60.0

49.7

NEG

NEG

YES

YES

--

--

YES

1280×800

YES

21

1280×854*9

60.0

53.1

NEG

NEG

YES

YES

--

--

YES

1280×854

YES

37

1280×960

60.0

60.0

POS

POS

YES

YES

YES

--

YES

--

YES

63

1360×765

60.0

47.7

POS

POS

YES

YES

--

--

YES*3

1360×765

NO

22

1360×768

60.0

47.7

POS

POS

YES

YES

--

--

YES*3

1360×768

YES

22

1376×768

59.9

48.3

NEG

POS

YES

YES

--

--

YES

1376×768

YES

53

1280×1024

60.0

64.0

POS

POS

YES

YES

YES*4

--

YES

1280×1024

YES

29

75.0

80.0

POS

POS

YES

YES

YES*4

--

YES

--

YES

30

85.0

91.1

POS

POS

YES

YES

YES*4

--

YES

--

YES

40

100.1

108.5

POS

POS

YES

YES

YES*4

--

YES

--

NO

47

1680×1050*9

60.0

65.3

NEG

NEG

YES

YES

--

--

YES

1680×1050

YES

38

1600×1200

60.0

75.0

POS

POS

YES

YES

YES

--

YES

--

YES

54

65.0

81.3

POS

POS

YES

YES

YES

--

YES

--

NO

55

70.0

87.5

POS

POS

YES

YES

YES

--

YES

--

NO

56

75.0

93.8

POS

POS

YES

YES

YES

--

YES

--

NO

57

85.0

106.3

POS

POS

YES

YES

YES

--

YES

--

NO

58

1920×1200*9

60.0

74.6

NEG

NEG

YES

YES

--

--

YES

1920×1200

--

81

1920×1200RB*9

60.0

74.0

NEG

NEG

YES

YES

--

--

YES

1920×1200

YES

88

Apple Macintosh*6,8

640×480

66.7

35.0

Sync on G

Sync on G

--

--

YES

YES

YES

--

NO

6

832×624

74.6

49.7

Sync on G

Sync on G

--

--

YES

YES

YES

--

NO

16

1024×768

74.9

60.2

Sync on G

Sync on G

--

--

YES*3

--

YES

1024×768

NO

28

1152×870

75.1

68.7

Sync on G

Sync on G

--

--

YES

--

YES

1152×870

NO

39

1440×900*9

60.0

56.0

NEG

NEG

YES

YES

--

--

YES

--

YES

89

Work Station (EWS4800)*8

1280×1024

60.0

64.6

NEG

NEG

YES

YES

YES*4

--

YES

--

YES

29

71.2

75.1

NEG

NEG

YES

YES

YES*4

--

YES

--

YES

48

Work Station (HP)*8

1280×1024

72.0

78.1

--

--

--

--

YES*4

--

YES

--

YES

59

Work Station (SUN)*8

1152×900

66.0

61.8

C Sync

C Sync

--

--

YES

--

YES

--

YES

60

76.0

71.7

C Sync

C Sync

--

--

YES

--

YES

--

YES

61

1280×1024

76.1

81.1

C Sync

C Sync

--

--

YES*4

--

YES

--

YES

30

Model

Dots × lines

Vertical frequency (Hz)

Horizontal frequency (kHz)

Sync Polarity

Presence

Screen mode

RGB select*5

DVI

Memory

Horizontal

Vertical

Horizontal

Vertical

NORMAL (4:3)

TRUE

FULL (16:9)

Signal Type

Work Station (SGI)

1024×768

60.0

49.7

--

--

--

--

YES*3

--

YES

--

YES

62

1280×1024

60.0

63.9

--

--

--

--

YES*4

--

YES

--

YES

29

IDC-3000G

PAL625P

768×576

50.0

31.4

NEG

NEG

YES

YES

YES*7

--

YES*7

--

NO

31

NTSC525P

640×480

59.9

31.5

NEG

NEG

YES

YES

YES*7

--

YES*7

640×480

NO

32

1152×864

60.0

53.7

POS

NEG

YES

YES

YES

--

YES

1152×864

YES

84

72.0

64.9

POS

NEG

YES

YES

YES

--

YES

--

YES

85

1400×1050

60.0

65.3

NEG

POS

YES

YES

YES

--

YES

--

YES

65

75.0

82.3

NEG

POS

YES

YES

YES

--

YES

--

YES

71

85.0

93.9

NEG

POS

YES

YES

YES

--

YES

--

NO

72

*1 Only when using a graphic accelerator board that is capable of displaying 852×480.
*2 This signal is converted to a 1024 dots × 640 lines signal.
*3 The picture is displayed in the original resolution.
*4 The aspect ratio is 5:4. This signal is converted to a 960 dots × 768 lines signal.
*5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the RGB mode prepared for the input signals listed in the table above.
*6 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer's video port.
*7 Other screen modes (ZOOM and STADIUM) are available as well.
*8 When viewing a moving picture at a vertical frequency greater than 65Hz, the picture may sometimes be unstable (jumpy). If this occurs, please set the refresh rate of the external equipment to 60Hz.
*9 CVT standard compliant.

NOTE:

• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size of the picture or the fine picture because of errors in synchronization of your computer.
• When a 1280 dots × 1024 lines signal or 1600 dots × 1200 lines signal is input to the monitor, the picture will be compressed.
• This monitor has a resolution of 1365 dots × 768 lines. It is recommended that the input signal should be XGA, wide XGA, or equivalent.
• With digital input some signals are not accepted.
• The sync may be disturbed when a nonstandard signal other than the aforementioned is input.
• If you are connecting a composite sync signal, use the HD terminal.

What is HDCP/HDCP technology?

HDCP is an acronym for High-bandwidth Digital Content Protection. High bandwidth Digital Content Protection (HDCP) is a system for preventing illegal copying of video data sent over a Digital Visual Interface (DVI).

If you are unable to view material via the DVI input, this does not necessarily mean the PDP is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC).

• “IBM PC/AT” and “XGA” are registered trademarks of International Business Machines, Inc. of the United States.
• “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

42XM4

Screen Size

36.3"(H)×20.3"(V) inches922(H)×515(V) mmdiagonal 42"

Aspect Ratio 16:9

Resolution 1024(H) × 768(V) pixels
Pixel Pitch	0.036"(H) × 0.027"(V) inches
	0.9(H) × 0.671(V) mm

Color Processing 4,096 steps, 68.7 billion colors

Signals

Synchronization Range Horizontal : 15.5 to 110.0 kHz(automatic : step scan)Vertical : 50.0 to 120.0 Hz(automatic : step scan)

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),PAL60, SECAM, HD*1, DVD*1, DTV*1

Input Terminals (VIDEO1 and RGB1 can also be used as OUTPUT terminals)

RGB
Visual 1 (Analog)	mini D-sub 15-pin × 1
Visual 2 (Analog)	BNC (R, G, B, HD, DV) × 1*2
Visual 3 (Digital)	DVI-D 24-pin × 1*3

Video

Visual 1 BNC × 1

Visual 2 RCA-pin × 1

Visual 3 S-Video: DIN 4-pin × 1

DVD/HD

Visual 1	RCA-pin (Y, Cb/Pb, Cr/Pr) × 1*1
Visual 2	BNC (Y, Cb/Pb, Cr/Pr) × 1*1,*2
Visual 3 DVI-D 24-pin × 1*	3

Audio Stereo RCA × 3 (Selectable)

External Control

D-sub 9-pin × 1(RS-232C)

Sound output 8W+8W at 6 ohm

Power Supply AC100-240V 50/60Hz
Current Rating	4.5A (maximum)
Power Consumption	285W (typical)
Dimensions	40.2 (W) × 24 (H) × 3.9 (D) inches1022 (W) × 610 (H) × 98(D) mm
Weight	66 lbs / 30 kg (without stand)

Environmental Considerations

Operating Temperature		0°C to 40°C / 32°F to 104°F
	Humidity	20 to 80% (no condensation)
	Altitude	720 to 1114 hPa(0 to 9180 feet / 0 to 2800 m)
Storage	Temperature	-10°C to 50°C / 14°F to 122°F
	Humidity	10 to 90% (no condensation)
	Altitude	700 to 1114 hPa(0 to 9840 feet / 0 to 3000 m)

Other Features

Motion compensated 3D Scan Converter (NTSC, PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I (60Hz)), 2-2 pull down Converter (PAL, 576I, 625I, NTSC, 480I, 525I), Digital Zoom Function (100-900% Selectable), Video Wall 4-25 multi screen, Self Diagnosis, Image Burn reduction tools (PLE LOCK1~3, INVERSE, WHITE, ORBITER (Auto1,2/Manual), SCREEN WIPER), Color Temperature select (high/mid/mid low/low, user has 4 memories), Control lock (Except power SW), Auto Picture, Input Skip, Color Tune, Low Tone (3 mode), Auto ID, Programmable Timer, Gamma Correction (4 mode), Loop through interface, Plug and play (DDC1, DDC2b, RGB3: DDC2b only), Split screen operations

Regulations UL 60950-1, CAN/CSA-C22.2 No.60950-1-03, FCC class B, ICES-003 class B

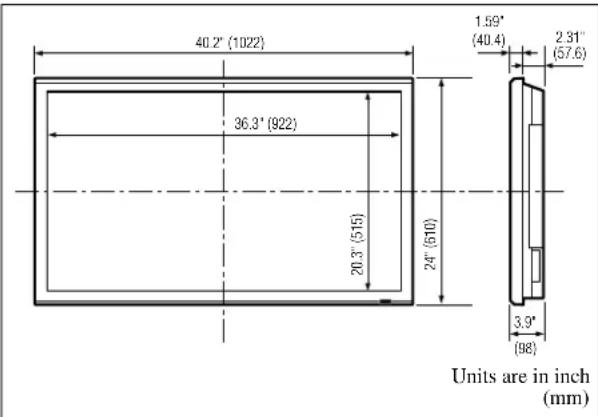

40.2" (1022) 36.3" (922) 20.3" (515) 24" (670) 1.59" (40.4) 2.31" (57.6) 3.9" (98) Units are in inch (mm)

The features and specifications may be subject to change without notice.

*1 HD/DVD/DTV input signals supported on this system.

480P (60 Hz)	480I (60 Hz)	525P (60 Hz)
525I (60 Hz)	576P (50 Hz)	576I (50 Hz)
625P (50 Hz)	625I (50 Hz)	720P (60 Hz)
720P (50 Hz)	1035I (60 Hz)	1080I (50 Hz)
1080I (60 Hz)	1080P (50 Hz)	1080P (60 Hz)

*2The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input. Select one of them under "BNC INPUT".

*3 Compatible with HDCP.
Supported Signals

• 640×480P @ 59.94/60Hz	• 1920×1080I @ 50Hz
• 1280×720P @ 59.94/60Hz	• 720×576P @ 50Hz
• 1920×1080I @ 59.94/60Hz	• 1280×720P @ 50Hz
• 720×480P @ 59.94/60Hz

Note: In some cases a signal on the plasma monitor may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc...). If you do experience such a problem please contact NEC Solutions (America), Inc. and also the manufacturer of the source equipment.

50XM5

Screen Size	43.5"(H)×24.5"(V) inches
	1106(H)×622(V) mm
	diagonal 50"

Aspect Ratio 16:9

Resolution 1365(H) × 768(V) pixels
Pixel Pitch	0.032"(H) × 0.032"(V) inches
	0.81(H) × 0.81(V) mm

Color Processing 4,096 steps, 68.7 billion colors

Signals

Synchronization Range Horizontal : 15.5 to 110.0 kHz(automatic : step scan)Vertical : 50.0 to 120.0 Hz(automatic : step scan)

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),PAL60, SECAM, HD*1 , DVD*1 , DTV*1

Input Terminals (VIDEO1 and RGB1 can also be used as OUTPUT terminals)

RGB
Visual 1 (Analog)	mini D-sub 15-pin × 1
Visual 2 (Analog)	BNC (R, G, B, HD, VD) × 1*2
Visual 3 (Digital)	DVI-D 24-pin × 1*3

Video

Visual 1 BNC × 1

Visual 2 RCA-pin × 1

Visual 3 S-Video: DIN 4-pin × 1

DVD/HD

Visual 1	RCA-pin (Y, Cb/Pb, Cr/Pr) × 1*1
Visual 2	BNC (Y, Cb/Pb, Cr/Pr) × 1*1, *2
Visual 3 DVI-D 24-pin × 1*	3

Audio Stereo RCA×3 (Selectable)

External Control D-sub 9-pin × 1 (RS-232C)

Sound output 9W+9W at 6 ohm

Power Supply AC100-240V 50/60Hz
Current Rating	7.6A (maximum)
Power Consumption	435W (typical)
Dimensions	48.1 (W) × 30 (H) × 3.8 (D) inches1222 (W) × 736 (H) × 96(D) mm
Weight	97 lbs / 44 kg (without stand)

Environmental Considerations

Operating Temperature		0°C to 40°C / 32°F to 104°F
	Humidity	20 to 80% (no condensation)
	Altitude	720 to 1114 hPa(0 to 9180 feet / 0 to 2800 m)
Storage	Temperature	-10°C to 50°C / 14°F to 122°
	Humidity	10 to 90% (no condensation)
	Altitude	700 to 1114 hPa(0 to 9840 feet / 0 to 3000 m)

Other Features

Motion compensated 3D Scan Converter (NTSC, PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I (60Hz)), 2-2 pull down Converter (PAL, 576I, 625I, NTSC, 480I, 525I), Digital Zoom Function (100-900% Selectable), Video Wall 4-25 multi screen, Self Diagnosis, Image Burn reduction tools (PLE LOCK1~3, INVERSE, WHITE, ORBITER (Auto1,2/Manual), SCREEN WIPER), Color Temperature select (high/mid/mid low/low, user has 4 memories), Control lock (Except power SW), Auto Picture, Input Skip, Color Tune, Low Tone (3 mode), Auto ID, Programmable Timer, Gamma Correction (4 mode), Loop through interface, Plug and play (DDC1, DDC2b, RGB3: DDC2b only), Split screen operations

Regulations UL 60950-1, CAN/CSA-C22.2 No.60950-1-03, FCC class B, ICES-003 class B

48.1" (1222) 43.5" (1106) 24.5" (622) 30" (736) 1.5" (38) 2.3" (58) 3.5" (96) Units are in inch (mm)

The features and specifications may be subject to change without notice.

*1 HD/DVD/DTV input signals supported on this system.

480P (60 Hz)	480I (60 Hz)	525P (60 Hz)
525I (60 Hz)	576P (50 Hz)	576I (50 Hz)
625P (50 Hz)	625I (50 Hz)	720P (60 Hz)
720P (50 Hz)	1035I (60 Hz)	1080I (50 Hz)
1080I (60 Hz)	1080P (50 Hz)	1080P (60 Hz)

*2The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input. Select one of them under "BNC INPUT".

*3 Compatible with HDCP.
Supported Signals

• 640×480P @ 59.94/60Hz	• 1920×1080I @ 50Hz
• 1280×720P @ 59.94/60Hz	• 720×576P @ 50Hz
• 1920×1080I @ 59.94/60Hz	• 1280×720P @ 50Hz
• 720×480P @ 59.94/60Hz

Note: In some cases a signal on the plasma monitor may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc...). If you do experience such a problem please contact NEC Solutions (America), Inc. and also the manufacturer of the source equipment.

61XM4

Screen Size

53.2"(H)×29.9"(V) inches1351(H)×760(V) mmdiagonal 61"

Aspect Ratio 16:9

Resolution 1365(H) × 768(V) pixels
Pixel Pitch	0.039"(H) × 0.039"(V) inches
	0.99(H) × 0.99(V) mm

Color Processing 4,096 steps, 68.7 billion colors

Signals

Synchronization Range Horizontal : 15.5 to 110.0 kHz(automatic : step scan)Vertical : 50.0 to 120.0 Hz(automatic : step scan)

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),PAL60, SECAM, HD*, DVD*, DTV*1

Input Terminals (VIDEO1 and RGB1 can also be used as OUTPUT terminals)

RGB
Visual 1 (Analog)	mini D-sub 15-pin × 1
Visual 2 (Analog)	BNC (R, G, B, HD, VD) × 1*2
Visual 3 (Digital)	DVI-D 24-pin × 1*3

Video

Visual 1 BNC × 1

Visual 2 RCA-pin × 1

Visual 3 S-Video: DIN 4-pin × 1

DVD/HD

Visual 1	RCA-pin (Y, Cb/Pb, Cr/Pr) × 1*1
Visual 2	BNC (Y, Cb/Pb, Cr/Pr) × 1*1,*2
Visual 3 DVI-D 24-pin × 1*	3

Audio Stereo RCA×3 (Selectable)

External Control D-sub 9-pin × 1 (RS-232C)

Sound output 9W+9W at 6 ohm

Power Supply AC100-240V 50/60Hz
Current Rating	8.0A (maximum)
Power Consumption	540W (typical)
Dimensions	57.9 (W) × 34.7 (H) × 4.7 (D) inches1470 (W) × 880 (H) × 119(D) mm
Weight	134.5 lbs / 61.0 kg (without stand)

Environmental Considerations

Operating Temperature		0°C to 40°C / 32°F to 104°F
	Humidity	20 to 80% (no condensation)
	Altitude	720 to 1114 hPa(0 to 9180 feet / 0 to 2800 m)
Storage	Temperature	-10°C to 50°C / 14°F to 122°F
	Humidity	10 to 90% (no condensation)
	Altitude	700 to 1114 hPa(0 to 9840 feet / 0 to 3000 m)

Other Features

Motion compensated 3D Scan Converter (NTSC, PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I (60Hz)), 2-2 pull down Converter (PAL, 576I, 625I, NTSC, 480I, 525I), Digital Zoom Function (100-900% Selectable), Video Wall 4-25 multi screen, Self Diagnosis, Image Burn reduction tools (PLE LOCK1~3, INVERSE, WHITE, ORBITER (Auto1,2/Manual), SCREEN WIPER), Color Temperature select (high/mid/mid low/low, user has 4 memories), Control lock (Except power SW), Auto Picture, Input Skip, Color Tune, Low Tone (3 mode), Auto ID, Programmable Timer, Gamma Correction (4 mode), Loop through interface, Plug and play (DDC1, DDC2b, RGB3: DDC2b only), Split screen operations

Regulations UL 60950-1, CAN/CSA-C22.2 No.60950-1-03, FCC class B, ICES-003 class B

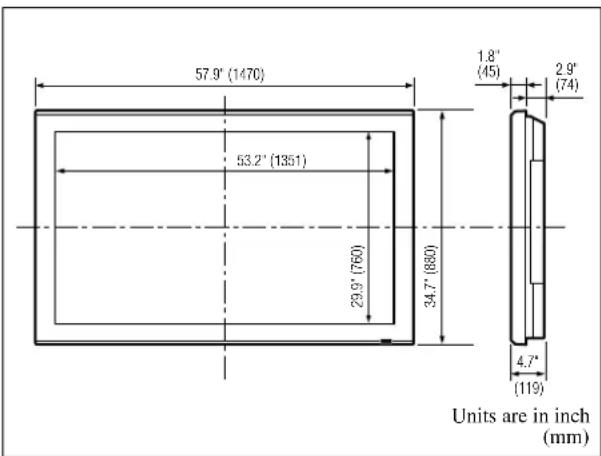

57.9" (1470) 53.2" (1351) 29.9" (760) 34.7" (880) 1.8" (45) 2.9" (74) 4.7" (119) Units are in inch (mm)

The features and specifications may be subject to change without notice.

*1 HD/DVD/DTV input signals supported on this system.

480P (60 Hz)	480I (60 Hz)	525P (60 Hz)
525I (60 Hz)	576P (50 Hz)	576I (50 Hz)
625P (50 Hz)	625I (50 Hz)	720P (60 Hz)
720P (50 Hz)	1035I (60 Hz)	1080I (50 Hz)
1080I (60 Hz)	1080P (50 Hz)	1080P (60 Hz)

*2The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input. Select one of them under "BNC INPUT".

*3 Compatible with HDCP.
Supported Signals

• 640×480P @ 59.94/60Hz	• 1920×1080I @ 50Hz
• 1280×720P @ 59.94/60Hz	• 720×576P @ 50Hz
• 1920×1080I @ 59.94/60Hz	• 1280×720P @ 50Hz
• 720×480P @ 59.94/60Hz

Note: In some cases a signal on the plasma monitor may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc...). If you do experience such a problem please contact NEC Solutions (America), Inc. and also the manufacturer of the source equipment.

NEC Solutions, Inc. (hereinafter NEC Solutions) warrants this product to be free from defects in material and workmanship under the following terms and, subject to the conditions set forth below, agrees to repair or replace (at NEC Solutions' sole option) any part of the enclosed unit which proves defective. Replacement parts or products may be new or refurbished and will meet specifications of the original parts or products.

HOW LONG IS THE WARRANTY?

Parts and labor are warranted for (1) one year from the date of the first customer purchase.

WHO IS PROTECTED?

This warranty may be enforced only by the first purchaser.

WHAT IS COVERED AND WHAT IS NOT COVERED

Except as specified below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:

1. Any product which is not distributed in the U.S.A. or Canada by NEC Solutions or which is not purchased in the U.S.A. or Canada from an authorized NEC Solutions dealer.
2. Any product of which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
   a. Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
   b. Repair or attempted repair by anyone not authorized by NEC Solutions.
   c. Any shipment of the product (claims must be presented to the carrier).
   d. Removal or installation of the product.
   e. Any other cause which does not relate to a product defect.
   f. Burns or residual images upon the phosphor of the panel.
4. Cartons, carrying cases, batteries, external cabinets, magnetic tapes, or any accessories used in connection with the product.
5. Service outside of the U.S.A. and Canada.

WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR

We will pay labor and material expenses for covered items, but we will not pay for the following:

1. Removal or installation charges.

2. Costs of initial technical adjustments (set-up), including adjustment of user controls. These costs are the responsibility of the NEC Solutions dealer from whom the product was purchased.

3. Shipping charges.

HOW YOU CAN GET WARRANTY SERVICE

1. To obtain service on your product, consult the dealer from whom you purchased the product.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage. Please also include in any mailing your name, address and a description of the problem(s).
3. For the name of the nearest NEC Solutions authorized service center, call NEC Solutions at 800-836-0655.

LIMITATIONS OF LIABILITY

Except for the obligations specifically set forth in this warranty statement, we will not be liable for any direct, indirect, special, incidental, consequential, or other types of damages, whether based on contract, tort, or any other legal theory, whether or not we have been advised of the possibility of such damages. This warranty is in lieu of all other warranties expressed or implied, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose.

EXCLUSION OF DAMAGES

NEC Solutions' liability for any defective product is limited to the repair or replacement of the product at our option. NEC Solutions shall not be liable for:

1. Damage to other property caused by any defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss; or
2. Any other damages whether incidental, consequential or otherwise. Some states do not allow limitation on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

HOW STATE LAW RELATES TO THE WARRANTY

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

FOR MORE INFORMATION,

TELEPHONE [phone]

NEC SOLUTIONS (AMERICA), INC.

1250 N. Arlington Heights Road, Suite 400

Itasca, Illinois 60143-1248

Note: All products returned to NEC Solutions (America), Inc. for service MUST have prior approval. To get approval, call NEC Solutions (America), Inc. at 800-836-0655.

RISQUE D'ELECTROCUTION NE PAS OUVRIR

ATTENTION:

PX-SP2U/S, PX-SP2U/B

Support: PX-ST1U, PX-ST1U/S

Type 61 pouces

Nom du fabricant : NEC Viewtechnology, Ltd.

Enceintes: PX-61SP1U, PX-61SP1U/S

PX-SP2U/S, PX-SP2U/B

Support: PX-61ST1U, PX-61ST1U/S

Isometric illustration of a flat-panel electronic device with a wavy surface and a base, labeled Figure A (no text or symbols on the device itself)

3D diagram of a layered rectangular block on a flat plane, labeled 'Figure B' (no text or symbols on the diagram itself)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Illustration of a remote control device with a black arrow pointing to a button (no text or symbols)

Technical illustration of a mechanical clamp or connector (no text or symbols visible)

Technical line drawing of a mechanical clamp or tool component (no text or symbols)

Approx. 7m/23 pieds 30° 30°

B D A C E F G H I J K

A AC IN (ENTREE DU CORDON D'ALIMENTATION ELECTRIQUE CA)

C E F G H I J K D B A

A AC IN (ENTREE DU CORDON D'ALIMENTATION ELECTRIQUE CA)

16 PICTURE IN PICTURE

②1 CLEAR (EFFACER)/SEAMLESS SW

Geometric diagram with four circles arranged in a square pattern, no text or symbols present

Geometric diagram with four circles and diagonal lines inside a rectangle (no text or symbols)

Geometric diagram with concentric circles and diagonal lines inside a rectangle (no text or symbols)

Geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with circles and diagonal lines inside a rectangle, no text or symbols present

Geometric diagram with a circle and two diagonal lines inside a rectangle (no text or symbols)

Geometric pattern with intersecting circles and diagonal lines forming a symmetrical design (no text or symbols)

Geometric pattern with intersecting circles and diagonal lines forming a cross (no text or symbols)

Geometric pattern with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

Symmetrical geometric pattern with four circles and diagonal lines inside a square (no text or symbols)

Geometric diagram with four circles and diagonal lines inside a rectangle (no text or symbols)

Geometric diagram with concentric circles and intersecting arcs inside a rectangle (no text or symbols)

Pure geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

Informations

PLE (Peak Luminance Enhancement)

NO. 1	NO. 2
NO. 4	NO. 3

NO. 7	NO. 8	NO. 9
NO. 10	NO. 11	NO. 12
NO. 13	NO. 14	NO. 15

16 écrans 25 écrans

NO. 16	NO. 17	NO. 18	NO. 19
NO. 20	NO. 21	NO. 22	NO. 23
NO. 24	NO. 25	NO. 26	NO. 27
NO. 28	NO. 29	NO. 30	NO. 31

NO. 32	NO. 33	NO. 34	NO. 35	NO. 36
NO. 37	NO. 38	NO. 39	NO. 40	NO. 41
NO. 42	NO. 43	NO. 44	NO. 45	NO. 46
NO. 47	NO. 48	NO. 49	NO. 50	NO. 51
NO. 52	NO. 53	NO. 54	NO. 55	NO. 56

AFFICHAGE

Diagram showing a circular pattern with intersecting diagonal lines and a label 'RGB/PC1' in the top-right corner (no other text or symbols)

Image-dans-Image

Pure electrical circuit lines without any symbols

Geometric diagram with concentric circles and intersecting lines, no text or symbols present

Abstract geometric pattern with intersecting circles and a central square (no text or symbols)

bouton POINTER

Geometric pattern with concentric circles and intersecting lines, no text or symbols present

Geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting circles and diagonal lines, no text or symbols present

bouton SELECT/ FREEZE

CTACT1

RGB/PC1 RGB/PC1

ou

CTACT2

RGB/PC1 RGB/PC1

Image-dans-Image

RGB/PC1

bouton SELECT/ FREEZE

Enhanced split screen Model

Informations

■ Réglage AFFICH. TEXT

Poids 97 lbs / 44 kg (sans support)

NEC SOLUTIONS (AMERICA), INC.

1250 N. Arlington Heights Road, Suite 400

Itasca, Illinois 60143-1248

PX-SP2U/S, PX-SP2U/B

Soporte: PX-ST1U, PX-ST1U/S

Tipo 61 pulgadas

PX-SP2U/S, PX-SP2U/B

Soporte: PX-61ST1U, PX-61ST1U/S

Conector DVI-D 24-pin (Digital) Sp-38

Isometric illustration of a layered rectangular block on a flat plane, labeled 'Ilustración B' (no other text or symbols)

Pared 50mm (2") 50mm (2") mm (2") Pared 50mm (2") 50mm (2") 50mm (2)

Diagram of a remote control device with a black arrow indicating a component (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

1. Instale la tapa.

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Aprox. 7m/23pies 30° 30°

A B D C E F G H I J K

A AC IN

C E F G H I J K D B A

A AC IN

16 PICTURE IN PICTURE

② CLEAR (cancelar)/SEAMLESS SW

Geometric diagram with four circles and diagonal lines forming a cross pattern (no text or symbols)

Geometric diagram with four circles arranged in a cross pattern inside a rectangle (no text or symbols)

Geometric diagram with concentric circles and diagonal lines inside a rectangle (no text or symbols)

Geometric pattern with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with circles and diagonal lines inside a rectangle, no text or symbols present

Geometric diagram with a circle intersected by two diagonal lines within a rectangle (no text or symbols)

→ NORMAL → FULL → ZOOM

Geometric pattern with four circles and diagonal lines forming a symmetrical design (no text or symbols)

Geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

Geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

Cuando "PICTURE SIZE" se pone en "OFF"

→ REAL → FULL → ZOOM

Symmetrical geometric pattern with four circles and intersecting lines inside a square (no text or symbols)

Geometric pattern with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

Geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

Información

DAYLITE SAVE: Para ajustar DAYLITE SAVE.

NO. 1	NO. 2
NO. 4	NO. 3

NO. 7	NO. 8	NO. 9
NO. 10	NO. 11	NO. 12
NO. 13	NO. 14	NO. 15

Enhanced split screen Model

Información

■ Ajuste INSERT. TEXT

Visual 1	RCA-pin (Y, Cb/Pb, Cr/Pr) × 1*1
Visual 2	BNC (Y, Cb/Pb, Cr/Pr) × 1*1, *2
Visual 3	DVI-D 24-pin × 1*3

Visual 1	RCA-pin (Y, Cb/Pb, Cr/Pr) × 1*1
Visual 2	BNC (Y, Cb/Pb, Cr/Pr) × 1*1, *2
Visual 3 DVI-D 24-pin × 1*	3

Visual 1	RCA-pin (Y, Cb/Pb, Cr/Pr) × 1*1
Visual 2	BNC (Y, Cb/Pb, Cr/Pr) × 1*1, *2
Visual 3 DVI-D 24-pin × 1*	3

NEC SOLUTIONS (AMERICA), INC.

1250 N. Arlington Heights Road, Suite 400

Itasca, Illinois 60143-1248

Controle remoto Po-11

Ajustar as cores ...... Po-21

3D diagram of a flat-panel display panel with a base and cushion, labeled 'Figura A' (no other text or symbols)

3D diagram of a layered rectangular structure on a flat plane, labeled 'Figura B' (no other text or symbols)

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical component with a highlighted internal section (no text or symbols)

1. Volte a colocar a tampa.

Aprox. 7m 30° 30°

Manusear o controle remoto

A B D C E F G H I J K

A AC IN

C E F G H I J K D B A

A AC IN

16 PICTURE IN PICTURE

21 CLEAR/SEAMLESS SW

Geometric pattern with four circles and diagonal lines forming a symmetrical design (no text or symbols)

É visualizado o tamanho de écran normal.

Geometric diagram with four circles arranged in a cross pattern within a rectangle (no text or symbols)

Geometric pattern with a central circle and four surrounding circles, no text or symbols present.

Geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with circles and diagonal lines inside a rectangle, no text or symbols present

Geometric diagram with a circle and two shaded rectangular regions (no text or symbols)

Geometric pattern with four circles arranged in a square, intersected by diagonal lines (no text or symbols)

Geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

Symmetrical geometric pattern with four circles and diagonal lines forming a cross (no text or symbols)

Geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

Geometric diagram with concentric circles and intersecting lines inside a rectangle (no text or symbols)

Pure geometric diagram with intersecting lines and circles inside a rectangle (no text or symbols)

Pure geometric diagram with intersecting circles and diagonal lines inside a rectangle (no text or symbols)

Informação

PROGR. TEMPORIZADOR DATA LIG. DESL. ENTR. FUNÇÃO SEG 08 : 30 10 : 30 RGB2 INVERTER — --- --- --- --- — — — --- --- --- --- — — — --- --- --- --- — — — --- --- --- --- — — — --- --- --- --- — — — --- --- --- --- — — SEL. VOLTAROM ADJ. EXIT

Informação

IMAGEM-A-IMAGEM
LADO-A-LADO

MODO LIGADO CONF. MULTI-ÉCRAN ► MULTI-MODO : «INF. ESQUERDO ► MODO ENTRADA PRINCIPAL : HD/DVD1 SECUNDARIO : VIDEO1 ► SEL. ► ADJ. EXT VOLTAR

MODO LIGADO CONF. MULTI-ECRAN • MULTI-MODO : «LADO-A-LADO1» MODO ENTRADA ESQUERDA : HD/DVD1 DIREITA : VIDEO1 SEL ADJ EDIT/VOLTAR

NO. 1	NO. 2
NO. 4	NO. 3

NO. 7	NO. 8	NO. 9
NO. 10	NO. 11	NO. 12
NO. 13	NO. 14	NO. 15

16 telas 25 telas

NO. 16	NO. 17	NO. 18	NO. 19
NO. 20	NO. 21	NO. 22	NO. 23
NO. 24	NO. 25	NO. 26	NO. 27
NO. 28	NO. 29	NO. 30	NO. 31

NO. 32	NO. 33	NO. 34	NO. 35	NO. 36
NO. 37	NO. 38	NO. 39	NO. 40	NO. 41
NO. 42	NO. 43	NO. 44	NO. 45	NO. 46
NO. 47	NO. 48	NO. 49	NO. 50	NO. 51
NO. 52	NO. 53	NO. 54	NO. 55	NO. 56

MODO ÉCRAN

POSIÇÃO-V +64

Informação

Pure geometric diagram with intersecting circles and diagonal lines, no text or symbols present

Enhanced split screen Model

Informação

■ Configurar INSERT. TEXT

Visual 1	Pino RCA (Y, Cb/Pb, Cr/Pr) × 1*1
Visual 2	BNC (Y, Cb/Pb, Cr/Pr) × 1*1,*2
Visual 3	DVI-D 24 pinos × 1*3

Audio	RCA Stereo × 3 (Selecionável)
Controle externo D-sub 9-pinos 1(RS-232C)

Saída de som 8W+8W a 6 ohm

Visual 1	Pino RCA (Y, Cb/Pb, Cr/Pr) × 1*1,*2
Visual 2 BNC (Y, Cb/Pb, Cr/Pr) × 1
Visual 3 DVI-D 24 pinos × 1	*3

Audio	RCA Stereo × 3 (Selecionável)
Controle externo D-sub 9-pinos 1(RS-232C)

Saída de som 9W+9W a 6 ohm

Visual 1	Pino RCA (Y, Cb/Pb, Cr/Pr) × 1*1,*2
Visual 2 BNC (Y, Cb/Pb, Cr/Pr) × 1
Visual 3 DVI-D 24 pinos × 1	*3

Audio	RCA Stereo × 3 (Selecionável)
Controle externo D-sub 9-pinos 1(RS-232C)

Saída de som 9W+9W a 6 ohm

NEC SOLUTIONS (AMERICA), INC.

1250 N. Arlington Heights Road, Suite 400

Itasca, Illinois 60143-1248

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party:

Address:

Tel. No.:

NEC SOLUTIONS (AMERICA), INC.

1250 N. Arlington Heights Road, Suite 400

Itasca, Illinois 60143-1248

800-836-0655

Type of Product:

Plasma Display

Equipment Classification:

Class B Peripheral

Models:

PX-42XM4A

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party:

Address:

Tel. No.:

NEC SOLUTIONS (AMERICA), INC.

1250 N. Arlington Heights Road, Suite 400

Itasca, Illinois 60143-1248

800-836-0655

Type of Product:

Plasma Display

Equipment Classification:

Class B Peripheral

Models:

PX-50XM5A

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party:

Address:

Tel. No.:

NEC SOLUTIONS (AMERICA), INC.

1250 N. Arlington Heights Road, Suite 400

Itasca, Illinois 60143-1248

800-836-0655

Type of Product:

Plasma Display

Equipment Classification:

Class B Peripheral

Models:

PX-61XM4A

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.
