USER MANUAL BKS 1420 BEKO

BKS 1410 BKS 1420 Vacuum Cleaner User Manual EN TR FR RU KK BS MK SQ SR TH 01M-8934193200-3017-06 01M-8934203200-3017-06 01M-8837053200-3017-01 01M-8837043200-3017-01Please read this user manual first! Dear Customer, Thank you for prefering a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. Explanation of symbols Throughout this user manual the following symbols are used:

Warning for hazardous situations with regard to life and property. Protecton class for electrc shock. This product has been produced in environmentally friendly, modern facilities.Does not contain PCB.Made in P.R.C.Vacuum cleaner / User manual 3 / EN CONTENTS ENGLISH 4-11

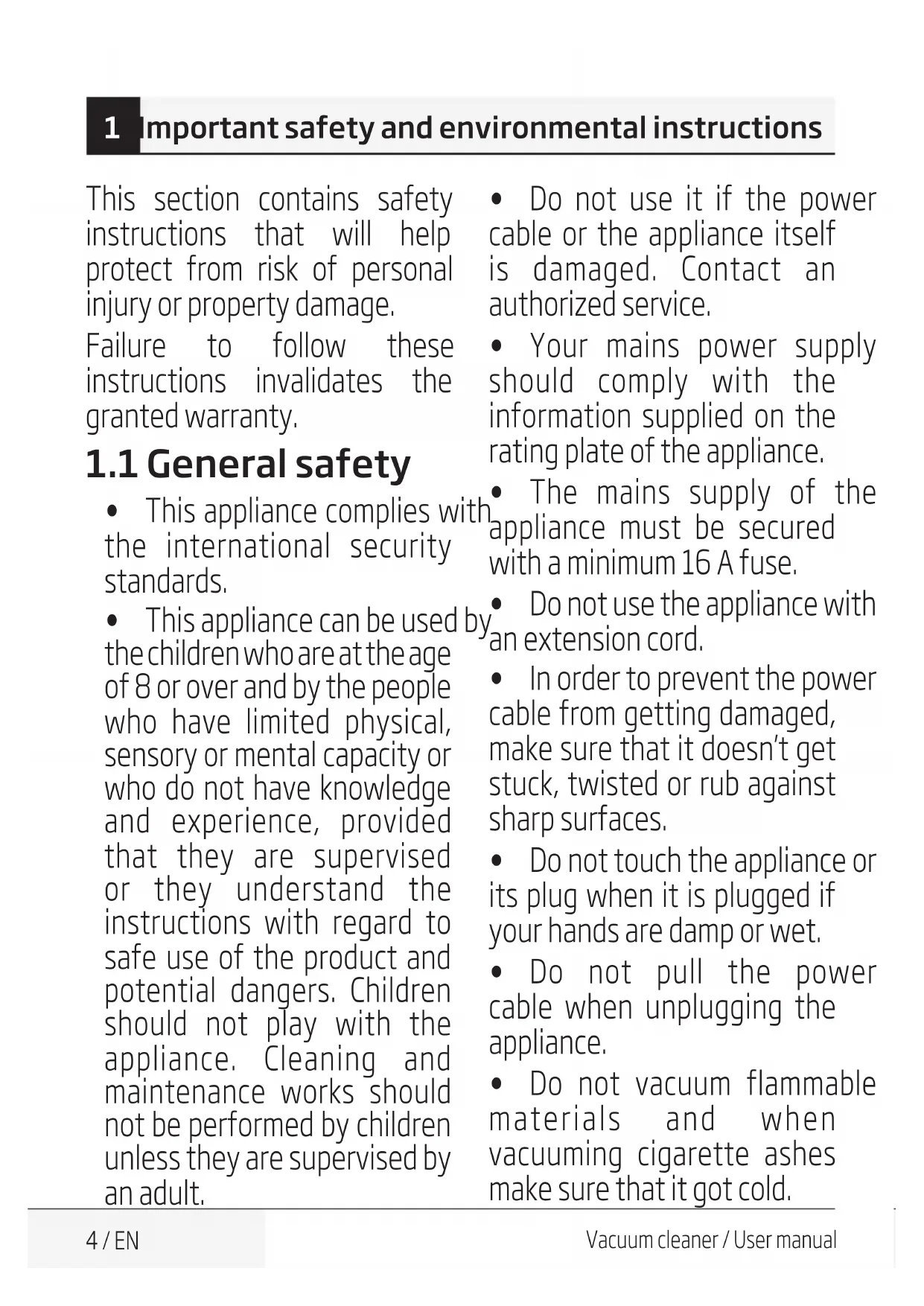

РУССКИЙ 31-40 KAZAKH 41-50 BOSNIAN 51-59 МАКЕДОНСКИ 60-69 SHQIPTARE 70-79 СРПСКИ 80-88 ไทย 89-974 / EN Vacuum cleaner / User manual This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions invalidates the granted warranty.

• Ths applance comples wth the nternatonal securty standards.

• Ths applance can be used by the chldren who are at the age of 8 or over and by the people who have lmted physcal, sensory or mental capacty or who do not have knowledge and experence, provded that they are supervsed or they understand the nstructons wth regard to safe use of the product and potental dangers. Chldren should not play wth the applance. Cleanng and mantenance works should not be performed by chldren unless they are supervsed by an adult.

• Do not use t f the power cable or the applance tself s damaged. Contact an authorzed servce.

• Your mans power supply should comply wth the nformaton suppled on the ratng plate of the applance.

• The mans supply of the applance must be secured wth a mnmum 16 A fuse.

• Do not use the applance wth an extenson cord.

• In order to prevent the power cable from gettng damaged, make sure that t doesn’t get stuck, twsted or rub aganst sharp surfaces.

• Do not touch the applance or ts plug when t s plugged f your hands are damp or wet.

• Do not pull the power cable when unpluggng the applance.

• Do not vacuum flammable materals and when vacuumng cgarette ashes make sure that t got cold. 1 Important safety and environmental instructionsVacuum cleaner / User manual 5 / EN

• Do not vacuum water or other liquid materials.

• Protect the appliance from rain, humidity and heat sources.

• Never use the appliance in or near to combustible or inflammable places and materials.

• Unplug the appliance before cleaning and maintenance.

• Do not dip the appliance or its cable in water to clean it.

• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.

• Do not attempt to dismantle the appliance.

• Only use the original parts or parts recommended by the manufacturer.

• If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.

• Do not use the appliance without filters; otherwise it can get damaged.

• When vacuuming the stairs, the appliance should be located below the user.

• If your store the package material, keep it out of the reach of children.

1.2 Compliance with the WEEE

Directive and disposal of waste products This product does not include harmful and prohibited materials specified in the “Regulation for Supervision of the Waste Electric and Electronic Appliances” issued by the Ministry of Environment and Urban Planning. This appliance conforms to the WEEE regulation. This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Ask the local authority in your area for these collection points. Contribute to the preservation of environment and natural sources by taking the used products to the recycling points.

1.3 Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. 1 Important safety and environmental instructions6 / EN Vacuum cleaner / User manual

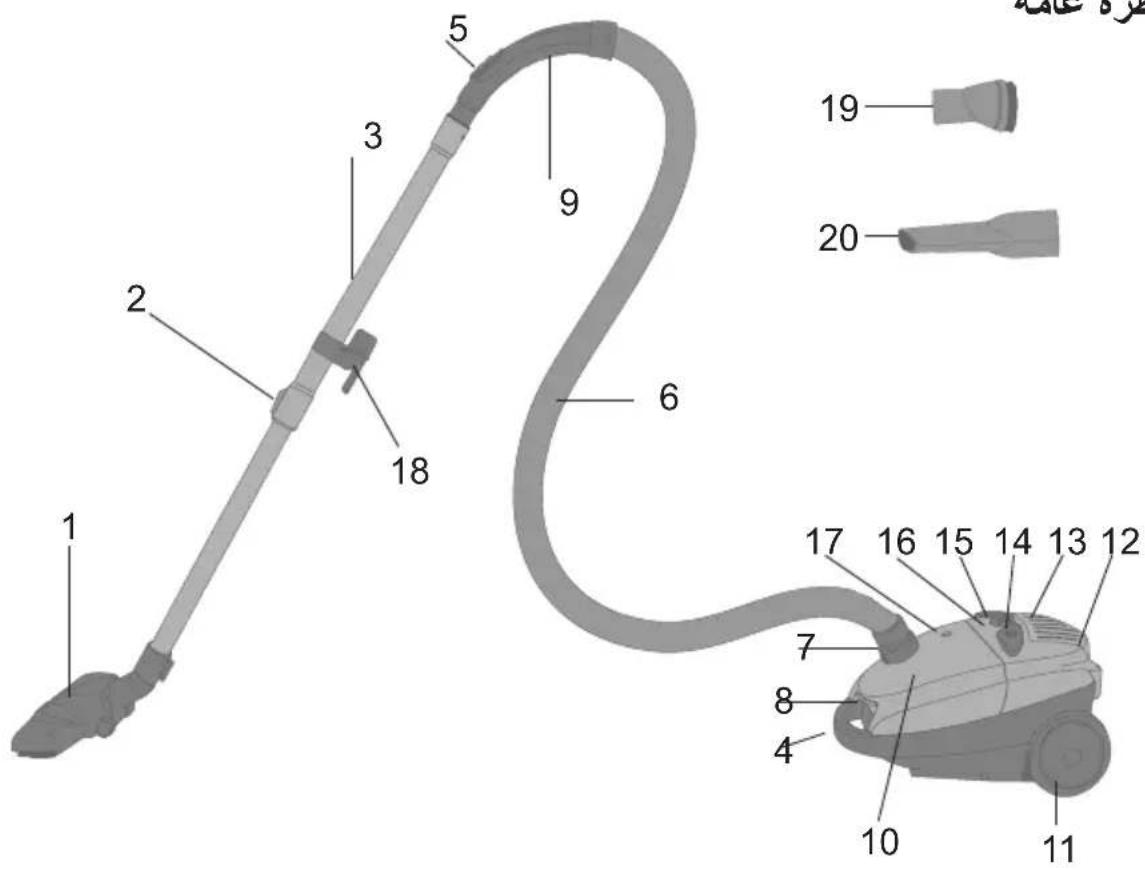

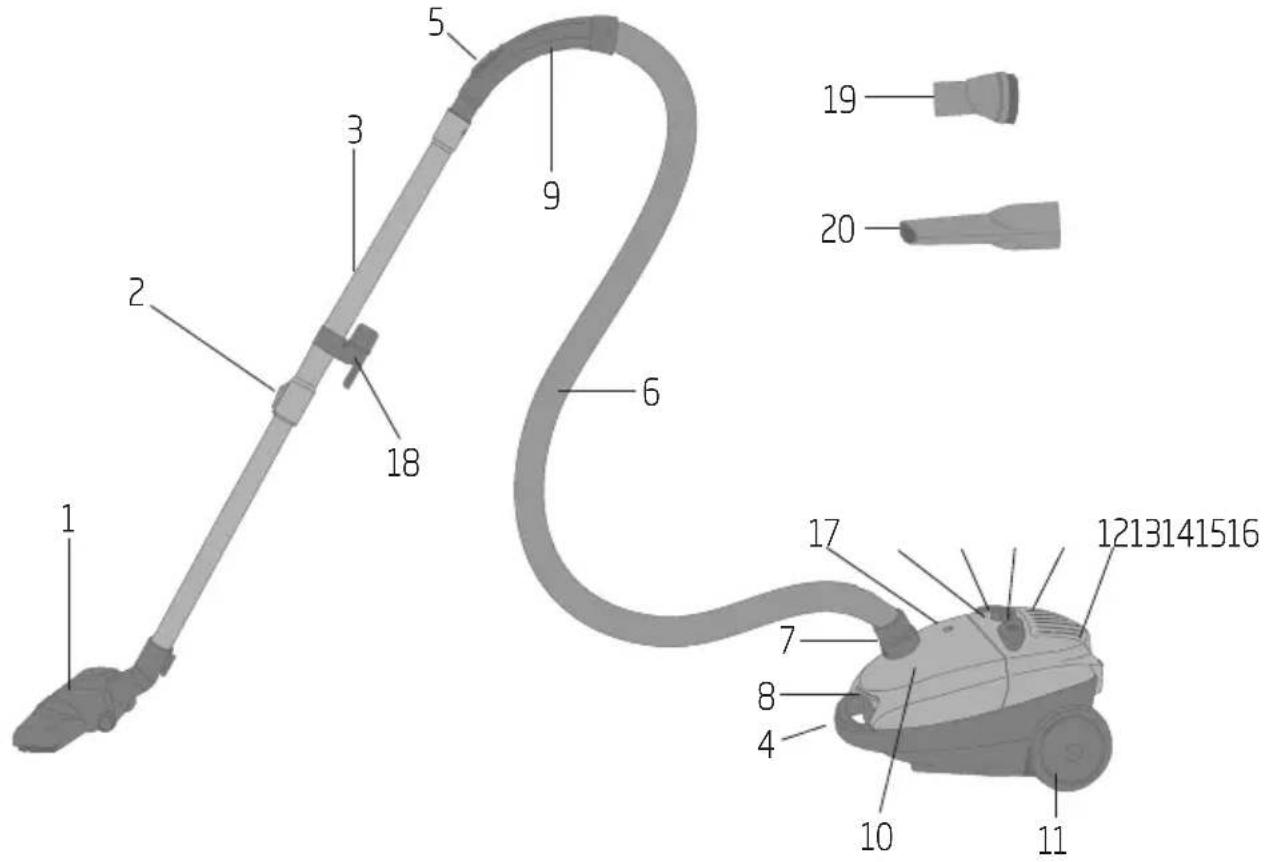

The values which are declared in the markings affixed on your product or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions. 2 Your vacuum cleaner

1. Parquetry carpet brush

2. Height adjustment switch

6. Elastic vacuum hose

7. Flexible connection adaptor for exible hose

8. Front cover release button

14. Pushbutton for switching on and o

15. Suction power adjustment switch

Rights to make technical and design changes are reserved.

17Vacuum cleaner / User manual 7 / EN 3 Individual parts / accessories

The appliance was designed to be used in houses, and is not fit for industrial use.

Flexible hose (7) is the connection between the appliance and metal telescopic pipe.

1. Insert the flexible hose with flexible connection

port (7) into the suction intake (8) on the appliance until it fits securely.

2. Attach the other end of the flexible hose

1. Metal telescopic pipe (3). You can adjust this by

sliding the lock switch forwards and extending the pipe to the required length.

2. Release the lock switch to lock the pipe.

The vacuum cleaner is supplied with a high quality multi-floor brush whose height can be adjusted according to the thickness of the carpet. Suitable for all types of carpets as well as hard floors and is adjustable by foot.

1. Push the multi-floor brush (1) onto the

telescopic pipe (3).

2. Alter the switch on the multi-floor brush

depending on the carpet thickness.

Use small brush (19) to clean furniture and picture frames. It can rotate up to 90°.

• Push the small brush directly onto the cleaning handle (9).

• Push the small brush onto the metal telescopic pipe (3) to obtain a better reach.

3.6 Narrow crevice tool

Use the narrow crevice tool (20) to clean places which are narrow and difficult to reach.

telescopic pipe (3) to obtain a better reach.8 / EN Vacuum cleaner / User manual 4 Preparation and usage Make sure that the supply voltage ndcated on the ratng plate (under the applance) conforms to the local supply voltage.

Your applance s suppled wth a dust bag already ftted. Once you have assembled the ndvdual parts the applance s ready to use.

1. Push the plug-n contact of the elastc hose (6)

To remove the elastc hose (6) press the sde release buttons on the plug-n contact and then pull out the hose.

2. Attach the other end of the flexble hose onto

the metal telescopc ppe (3).

3. Attach the requred brush or accessores to the

Ft together all the plug-n connectons wth a push and turn movement and undo them wth a pull and turn movement.

4.2 Switching on and off

1. Pull out the required length of power cord.

The maxmum cable length s ndcated by a red mark. Never try to pull out the power cord beyond the red mark.

2. Plug the power cord plug nto the wall socket.

3. Swtch on the applance by pressng pushbutton

4. Set the required suction power with control

appliance and remove the power cord plug from the socket.

If the applance s not beng used, always dsconnect the mans plug at the wall socket.Vacuum cleaner / User manual 9 / EN 4 Preparation and usage

You can adjust the air slider (5) on the cleaning handle with your thumb. If the slider (5) is closed completely, max. suction power is attained. In some cases such as cleaning upholstery, fabric or plush carpets, it may be necessary to decrease the suction power. If this is the case, open the air slider as required.

4.4 Dust bag full indicator

This indicator (17) shows the fullness level of the dust bag. If the indicator shows a fullness level above 50%, you must change the dust bag.

4.5 Rewind power cord

1. Unplug the power cord plug from the wall

2. Hold the power cord in one hand, and press and

hold the button (16).

3. Carefully guide the power cord back into the

Always rewind the power cord with care as pressing one side of the button (16) and a high rewinding speed can cause unforeseeable cable movements.10 / EN Vacuum cleaner / User manual 5 Cleaning and maintenance Swtch off and unplug the applance ,before cleanng t.

Never use gasolne, solvent, abrasve cleanng agents, metal objects or hard brushes to clean the applance.

5.1 Changing the dust bag

If the ndcator (17) on the dust contaner changes to red you must change the dust bag.

1. Unplug the power cord plug from the wall

2. Open the dust contaner by pressng the front

cover release button (8) and lft up the cover.

3. Push the flter bracket forward.

4. Seal the dust bag by pushng the tab of the

cardboard renforcement nto the openng.

5. Dispose of the sealed dust bag.

Do not try to empty and reuse the dust bag.

6. Insert a new dust bag in the bracket.

7. Close the cover of the dust container.

Test the applance after changng the dust bag. If the ndcator (17) s stll red, the tools, hoses or flter are blocked (see followng secton).

Never start up the applance wthout a dust bag. The cover of the dust contaner cannot be closed unless a dust bag has been nserted.

If you are usng cloth dust bags nstead of paper ones, you may empty and reuse the bag several tmes.

• Cleanng the cloth dust bag:

1. Hold the cloth dust bag upside down over a

trash can. Push the clips sideways to remove it.

2. Shake the dust bag to pour its content into the

3. Wash the cloth bag by hand in lukewarm water.

Leave it to dry after washing and do not use it unless it is dry.

4. Push the clips under the dust bag to close the

5. If you are usng a cloth dust bag, we recommend

you to wash the motor protecton flter every sx months n cold water. Ensure that the flter s completely dry before nstallng t back to the applance.

5.3 Cleaning or replacing the

The dust bag and flter must be nserted before startng up the applance as otherwse the motor wll be damaged.Vacuum cleaner / User manual 11 / EN

5.4 Cleaning the dust

container filter (motor protective filter)

1. Open the dust contaner by pressng the release

button (8) of the dust contaner and lftng up the cover.

2. Pull the dust bag out of the bracket, remove and

3. Pull out the flter.

4. Shake out the flter, then wash t n hot soapy

water, rnse well and leave to ar dry.

Ensure the flter s completely dry before you nstall t back nto the vacuum cleaner.

5. If necessary replace with a new filter and install

it into the vacuum cleaner.

6. Change the dust bag.

5.5 Cleaning the exhaust filter

1. Press the release button (on the rear of the

appliance) and pull up the filter bracket to remove it.

2. Remove the filter from the filter bracket.

3. Shake out the filter, then wash it in hot soapy

water, rinse well and leave to air dry.

Ensure the flter s completely dry before you nstall t back nto the vacuum cleaner.

4. Carefully replace all the parts.

The flter n the dust contaner should be changed every sx months or sooner f necessary.

The exhaust ar flter should be replaced every sx to nne months or sooner f necessary.

Washng the flter frequently results n flter wear and tear.

• If you do not ntend to use the applance for a long tme, store t carefully.

• Pull the applance's plug out.
