Product type	Interactive flat panel (IFP)
Model	IFP7501
Screen size	75 inches (diagonal)
Resolution	4K UHD (3840 x 2160 pixels)
Touch technology	Multi-touch (up to 20 points)
Network connectivity	Ethernet, Wi-Fi
Screen sharing protocols	AirPlay, Miracast, Chromecast, BytelloShare
Number of simultaneous devices	Up to 9 in broadcast
Client application	Windows, macOS, Android, iOS, Chrome OS
Collaboration features	Screen sharing, screen copy, remote control, remote camera, workstation synchronization
Power supply	100-240 V AC, 50/60 Hz
Power consumption	Approximately 250 W (max)
Dimensions (W x H x D)	Approximately 1700 x 1000 x 80 mm
Weight	Approximately 50 kg
Maintenance	Clean with a soft dry cloth, avoid abrasive products
Security	AirPlay/Miracast support disabled by default, activation via security settings
Repairability	Spare parts available on request, repair by authorized technician

Frequently Asked Questions - IFP7501 V7

How to activate AirPlay on the IFP7501 interactive display?

For security reasons, AirPlay is disabled by default. You need to activate it in the security settings of the BytelloShare server. Make sure the Apple device and the IFP are connected to the same local network.

Can I cast my Android smartphone screen with Miracast?

Yes, the IFP7501 supports Miracast. Activate Miracast in the server security settings, then on your Android, go to Settings > Wireless display and select the IFP.

How to use Chromecast to cast from a Chrome browser?

Make sure your computer and the IFP are on the same network. In the Chrome browser, click the menu (three dots) then Cast... and select your IFP.

How many devices can connect simultaneously to the IFP?

Up to 9 devices can cast their screen simultaneously. You can rearrange the screens or display them in floating windows.

How to use the BytelloShare client application?

Download the client application from the V7 website. Connect using a connection code displayed on the IFP or via service discovery. You can share the entire screen or a specific application.

Is it possible to control the IFP remotely with a smartphone?

Yes, the Remote control function allows using an Android or iPhone as a touchpad or air mouse to control the server.

How to enable the Touchback function?

The Touchback command allows controlling the IFP from the connected device in synchronized desktop mode. Enable it in the device management page of the server. Note: not available on mobile systems.

Can I share photos or videos directly from my mobile?

Yes, the Photo/Video sharing option allows casting the content of your iOS/Android album. You can zoom, control playback from the mobile or the IFP.

How to copy the IFP screen to other devices?

Use the Screen copy function: on the source device, choose 'Start sharing', then on the target devices, 'Join now'. All screens will synchronize.

Where can I find the security settings to enable casting?

The security settings are located in the BytelloShare server application on the IFP. You can enable/disable support for AirPlay, Miracast, or Chromecast, and set the authorization mode for connections.

USER MANUAL IFP7501 V7

Screen Casting by Client Application 9

Floating window.... 13

Screen rearrange 13

Photo/Video sharing 14

Desktop sync.... 14

Screen copy 15

Remote Control 15

Remote Camera 17

Device Management 18

Settings 21

About 22

User Guide....24

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

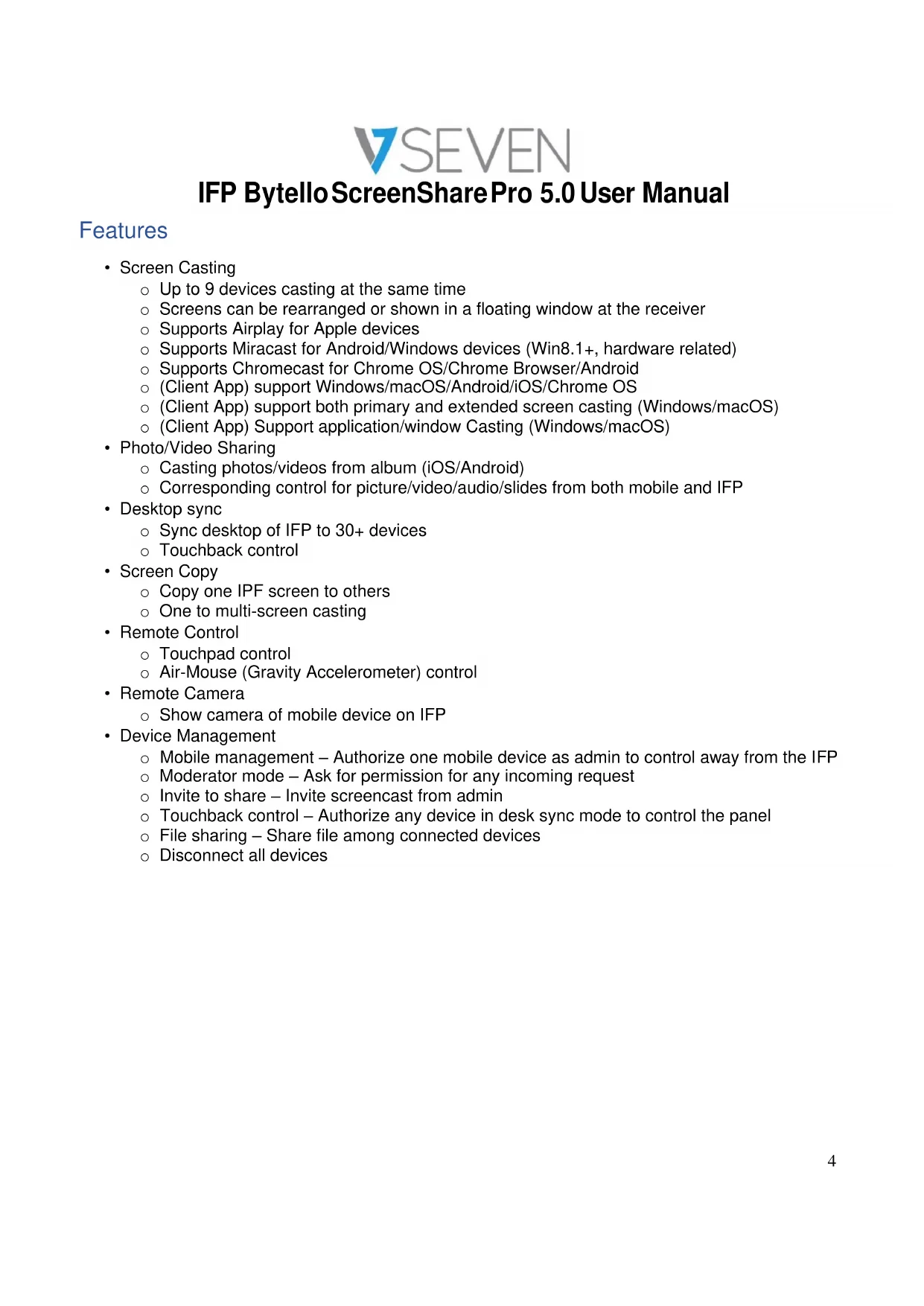

Features

- Screen Casting

• Up to 9 devices casting at the same time
• Screens can be rearranged or shown in a floating window at the receiver
  o Supports Airplay for Apple devices
• Supports Miracast for Android/Windows devices (Win8.1+, hardware related)
• Supports Chromecast for Chrome OS/Chrome Browser/Android
  ○ (Client App) support Windows/macOS/Android/iOS/Chrome OS
  ○ (Client App) support both primary and extended screen casting (Windows/macOS)
  ○ (Client App) Support application/window Casting (Windows/macOS)

• Photo/Video Sharing

○ Casting photos/videos from album (iOS/Android)
○ Corresponding control for picture/video/audio/slides from both mobile and IFP

- Desktop sync

○ Sync desktop of IFP to 30+ devices
- Touchback control

- Screen Copy

• Copy one IPF screen to others
  ○ One to multi-screen casting

- Remote Control

• Touchpad control
  ○ Air-Mouse (Gravity Accelerometer) control

- Remote Camera

○ Show camera of mobile device on IFP

• Device Management

• Mobile management – Authorize one mobile device as admin to control away from the IFP
• Moderator mode – Ask for permission for any incoming request
• Invite to share – Invite screencast from admin
• Touchback control – Authorize any device in desk sync mode to control the panel
• File sharing – Share file among connected devices
  ○ Disconnect all devices

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

Screen Casting via Standard Protocol

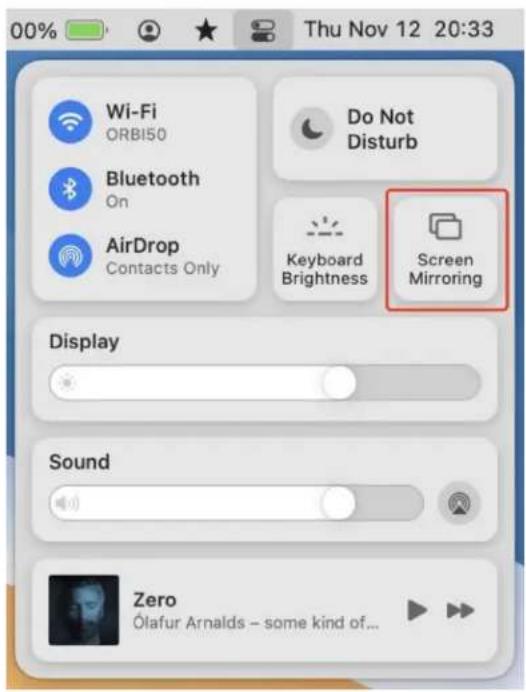

Airplay Mirroring

For security consideration, Airplay support is disabled by default, it could be enable in sever settings.

When Apple device is in the same network with BytelloShare server. You can simply cast the screen by choosing the "Screen Mirroring" from Control Center (the entry may different due to the OS versions).

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

Android Miracast/Chromecast

For security consideration, Miracast/Chromecast support is disabled by default, it could be enable in sever settings.

For Miracast, please make sure the client device is nearby the server device;

For Chromecast, please make sure the client and server are in the same network.

Android Device:

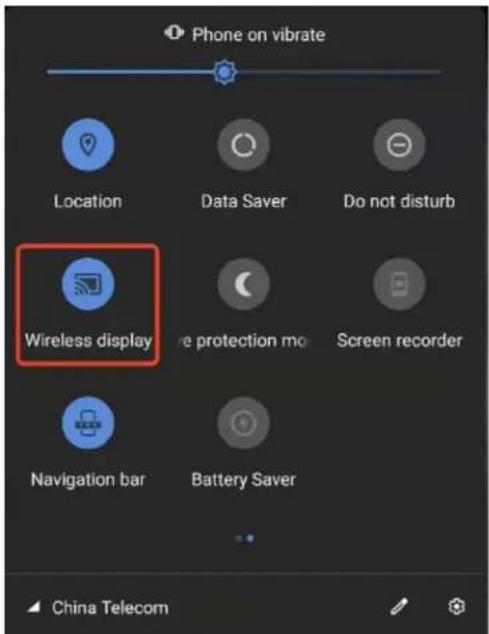

Find "Wireless Display" in Quick Setting menu or settings, then choose the target device.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

Windows Device:

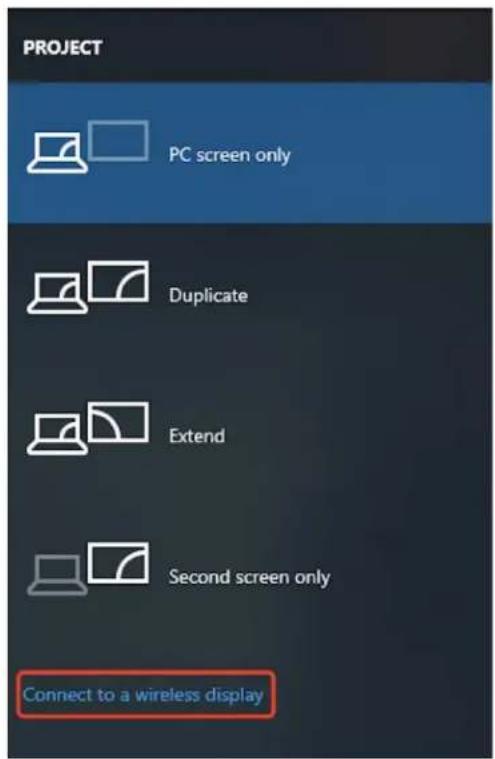

Press Win+P, click "Connect to a wireless display", choose the target device.

Not all windows devices support Miracast, please check the below link:

https://www.tenforums.com/tutorials/59107-check-miracast-support-windows-10-pc.html

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

Chrome OS/Browser:

Choose "Cast..." from the menu.

New Tab			T
New Window			N
New Incognito Window			N
History
Downloads			L
Bookmarks
Zoom	- 100% +
Print...			P
Cast...
Find...			F
More Tools
Edit	Cut	Copy	Paste
Settings			,
Help

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

Screen Casting by Client Application

Connect (with a code)

A connection code is displayed on the server.

7H4 G63

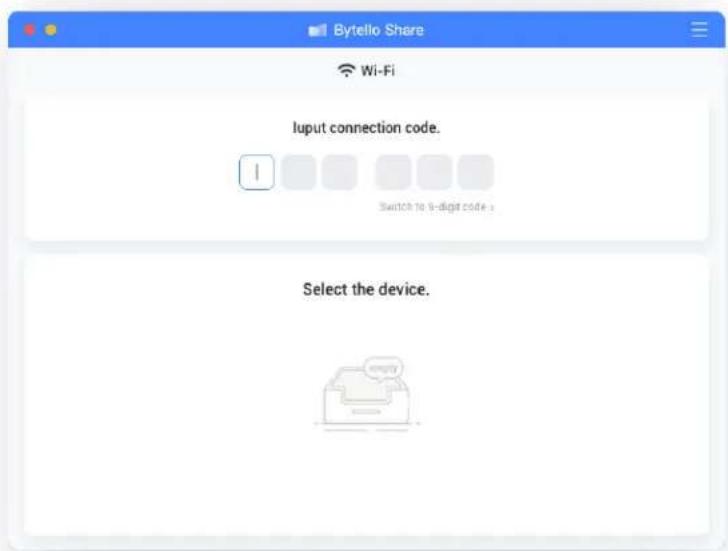

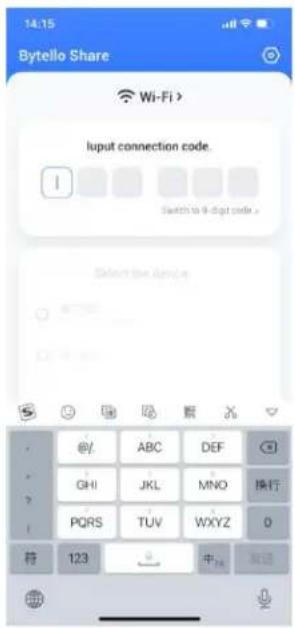

Input the connection code on client to connect to the server.

Note: If the connection code on the server is 9-digits, please switch to 9-digits input mode on the sender.

MacOS

iOS

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

Connect (by services discovery)

Available server devices can be found in connection page. Simply connect by choosing the right server.

macOS

iOS

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

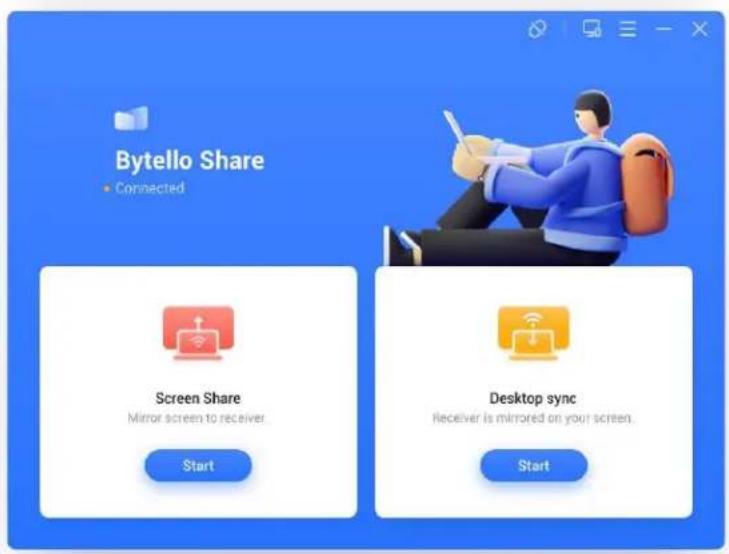

Mirroring

Click "Start" will casting the client to the server.

Windows

Android

For Windows/macOS, you can share one application or window instead of entire desktop, or you can choose to share primary or extended screen.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

Notes:

1. Touchback control is only available when casting entire desktop and needs to be authorized from the server-side in device management page.
2. When multi-screen sharing at the same time, touchback only available on the maximized screen.
3. Touchback could not be used on mobile systems (Android, iOS) due to system limitation.
4. For the IFP system that supports free-form mode, the sharing content could be shown as a window by sliding down from the top of the screen.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

Floating window

Click this button on touch panel to turn the casting screen into a floating window.

Long press the casting screen and drag the window to adjust the order.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

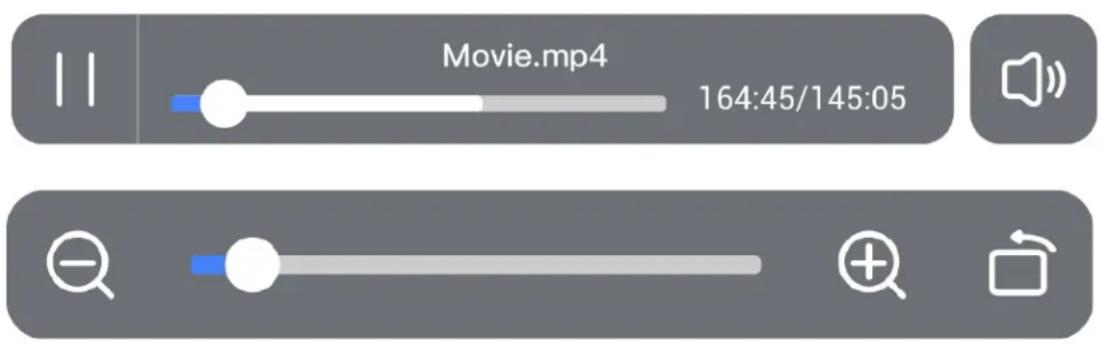

Photo/Video sharing

For mobile device, user could choose sharing photos or videos from album, operations like zoom in/out, adjusting playback progress can be made from the mobile devices or IFP.

Desktop sync

Mobile device could sync the desktop of the server.

Annotation could be made by enter the annotation mode from the icon besides the connection code.

Touchback is disabled by default for safety consideration, could be enabled from the device management page.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

Screen copy

Make a group of displays, copy one screen to others to make them show the same content. The content may from a sender device or it can be anything on the display.

Screen Copy

Screen Copy

Share your screen with other IFP devices after opening:

Strat sharing

Join sharing

Copy screen after connecting to initiator's IFP device.

Join now

Choose "Screen Copy" – "Start Sharing" from the source device.

Choose "Screen Copy" – "Join now" from the target device.

All target device will sync the desktop from the source.

Remote Control

Android phone or iPhone could be used as a touchpad or air-mouse to control the server.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

Remote Camera

Android phone or iPhone could share the camera view to the server.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

Device Management

Device management page shows all connected devices status, and allow you to perform several quick controls.

Device management

1 device connected

Xphone

Connected

Xphone

Req to RC

AV sending

Chromecast

Req to mirror

Wong

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

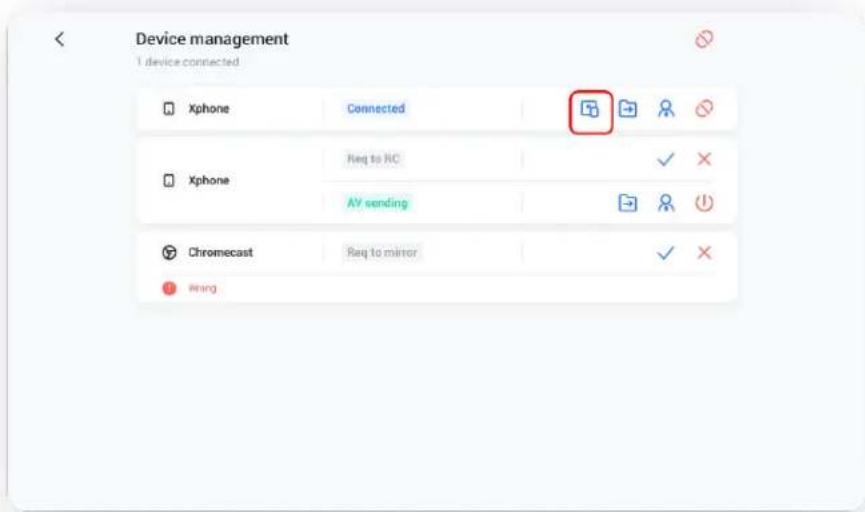

Invite to share

One could invite connected device to casting their desktop from the server.

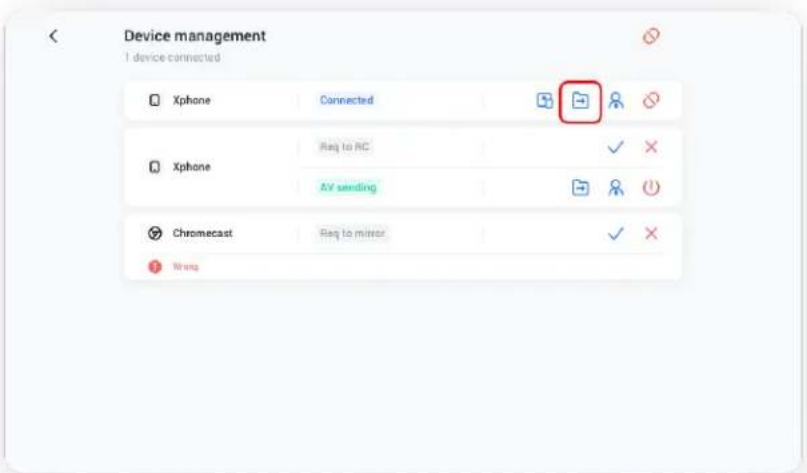

File sharing

File on the server could be send to any connected device.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

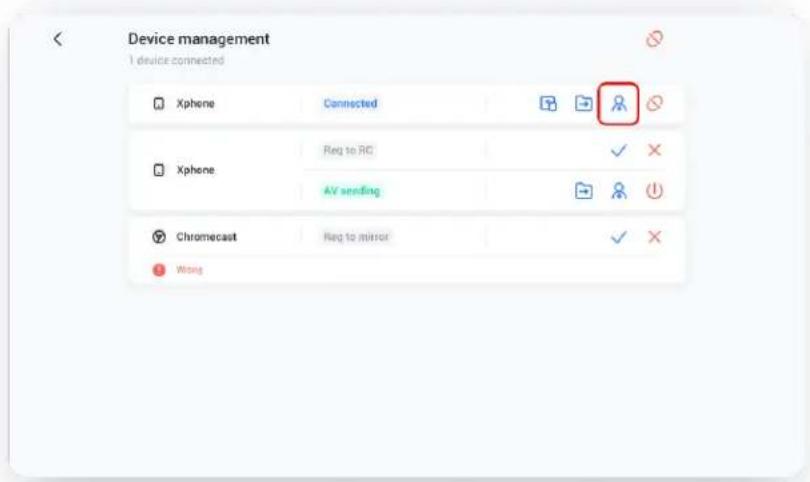

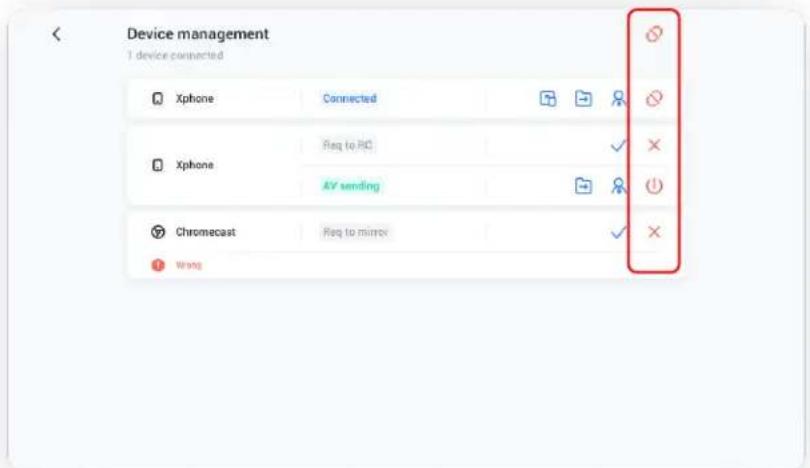

Admin authorizes

Set one device to administrator to accept or reject further casting requests.

Stop sharing / disconnect one or all devices

Stop sharing or disconnect from admin.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

Settings

<

Settings

Permission

Allow connection via search without verification

Permission mode

Screen sharing requires permission

No-client mirroring

Support Chromecast device

Support Airplay device

Support Miracast cast

This functioning may occur by network resource, close it is home when not in use.

Generai

Device name

BytelloShare >

Start automatically on boot

Code refresh rate

10 minutes

Floating window size

Normal

Help and improvement

User experience plan

We will collect general statistics about how you use the products to help us improve our products and service. About User Experience Improvement Program.

Device name

Change the device name of the server, for any clients to identify.

Allow this device to be discovered

The server can be searched by the sender device.

Permission mode

When enable "Screenshare requires permission" option in settings, any casting request will ask for permission.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

Support Chromecast/Airplay device

Make the server discoverable for Chromecast/Airplay supported device.

Support Miracast device

Make the server discoverable for Miracast supported device.

Start automatically on boot

The server application will run as the system start.

Code refresh rate

The connection code will change every several minutes to prevent user from remembering.

Floating windows size

Normal (connection code with icon), small (only icon), minimize (disabled)

About

Update the software version or view the legal agreement. When there is a new version, please click "Update" to upgrade.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

<

About

Bytello Share V5.0

V5.1 is available.

Here is the update instructions.

Terms of Service

Privacy Policy

Copyright © 2017-2021 Byrello. All Rights Reserved.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

User Guide

Including how to use the app client for connection and how to cast screen via AirPlay, ChromeCast, Miracast.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

How to share screen without client?

Airplay

Chromecast

Miracast

iPhone

① Please down the system menu from the top of the phone and click the [Screen Mirroring].

② Making sure to connect to the same Wi-Fi, then select [Bytello Share] to start mirroring.

Mac

① Making sure to connect to the same Wi-Fi,

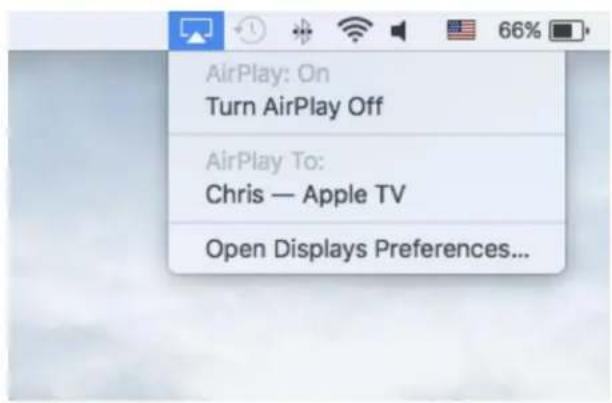

② Select Airplay in the status bar at the top of the system
③ Select the receiver device to mirror.

How to share screen without client?

Airplay

Chromecast

Miracast

Chrome Browser

① Select [cast] in the chrome browser menu.

② Making sure to connect to the same Wi-Fi, then select [Bytello Share] in the cast tab.

7SEVEN

IFP Bytello ScreenShare Pro 5.0 User Manual

How to share screen without client?

Airplay

Chromecast

Miracast

Android Device

① Turn on Wi-Fi and enter Display.

③ Turn on Wireless display.

② Enter Wireless display.

③ Search for devices and connect.

7SEVEN

7SEVEN

https://www.tenforums.com/tutorials/59107-check-miracast-support-windows-10-pc.html

7SEVEN

macOS

iOS

7SEVEN

Windows

Android

Hinweise:

Desktop setup with smartphone, desktop, and Windows monitor (no visible text or symbols)

7SEVEN

7 SEVEN

Dateiweitergabe

7SEVEN

7SEVEN

Gerätename

7SEVEN

7SEVEN

7SEVEN

How to share screen without client?

Dividend

Mccard

iPhone

1. Please show the aptitude many from his leg of the otomia and circle this [toome libriating].

② WORING, acute AD increased to the same 95-17; three-wave Hybrid Board to which smoothing.

Max

① Identifying some in contact to this service (A) ② Contact Address is the initial time of the day of the Internet ③ Contact the customer's name to country

How to share screen without client?

Mescad

Chrome Browser

① Correct (cost) to this chromosome browser entry.

② Making sure to connect to the above W-FL then

7SEVEN

How to share screen without client?

Airplay

Overreach

Android Device

7SEVEN

- Control touchback.

see controls of IED a detection

7SEVEN

7SEVEN

https://www.tenforums.com/tutorials/59107-check-miracast-support-windows-10-pc.html

7SEVEN

7SEVEN

macOS

iOS

7SEVEN

Windows

Android

Notas:

7SEVEN

7SEVEN

7SEVEN

7SEVEN

7SEVEN

7SEVEN

How to share screen without client?

Davonacat

Microsoft

Pissie

① Pugno glow the journet verla, that the fag of the ulonate and Old the Tigrana-Morahan.

② ordering note to cover the arcra (M-1), then named Dababa Brand by each homing.

Mec

① Making parts in contact by the joints (N-1). ② Select Months to the starting bar at the line of the same. ③ Select the second position to them.

How to share screen without client?

Airplay

Mitarist

Chrome Browser

② Select [usst] in the otherwise browser menu.

② Making sure to connect to the same 98-PJ, then set out [Tobello Shares] in the next tab.

7SEVEN

How to share screen without client?

Airplay

Chromecast

Miracast

Android Device

① Turn on Wi-Fi and enter Display.

③ Turn on Wireless display.

② Enter Wireless display.

③ Search for devices and connect.

7SEVEN

7SEVEN

7SEVEN

https://www.tenforums.com/tutorials/59107-check-miracast-support-windows-10-pc.html

7SEVEN

MacOS

iOS

7SEVEN

iOS

7SEVEN

Windows

Android

Remarques :

7SEVEN

7SEVEN

7SEVEN

7SEVEN

Partage de fichiers

7SEVEN

7SEVEN

Nom du périphérique

Here is the update instructions.

Terms of Service

Privacy Policy

Copyright © 2017-2021 Byrello. All Rights Reserved.

7SEVEN

7SEVEN

How to share screen without client?

Airplay

Chromecast

Miracast

iPhone

① Please down the system menu from the top of the phone and click the [Screen Mirroring].

② Making sure to connect to the same Wi-Fi, then select [Bytello-Share] to start mirroring.

Mac

① Making sure to connect to the same Wi-Fi, ② Select Airplay in the status bar at the top of the system ③ Select the receiver device to mirror.

How to share screen without client?

Airplay

Chromecast

Miracast

Chrome Browser

① Select [cast] in the chrome browser menu.

② Making sure to connect to the same Wi-Fi, then select [Bytello Share] in the cast tab.

7SEVEN

How to share screen without client?

Airplay

Chromecast

Miracast

Android Device

① Turn on Wi-Fi and enter Display.

③ Turn on Wireless display.

② Enter Wireless display.

③ Search for devices and connect.

7SEVEN

Telecamera remota 117

7 SEVEN

7 SEVEN

https://www.tenforums.com/tutorials/59107-check-miracast-support-windows-10-pc.html

7 SEVEN

MacOS

iOS

7 SEVEN

iOS

7 SEVEN

Windows

Android

Note:

7SEVEN

7 SEVEN

7 SEVEN

Condivisione file

7 SEVEN

7 SEVEN

Allow connection via search without verification

Permission mode

Screen sharing requires permission

No-client mirroring

Support Chromecast device

Support Airplay device

Support Miracast cast

This function may occupy network resource, close it in terms when not in use.

General

Device name

BytelloShare >

Start automatically on boot

Code refresh rate

10 minutes

.

Floating window size

Normal

.

Help and improvement

User experience plan

We will collect general statistics about how you use the products to help us improve our products and service. About User Experience Improvement Program >>

Nome dispositivo

Here is the update instructions.

Terms of Service Privacy Policy

Copyright © 2017-2021 Bytello. All Rights Reserved

7 SEVEN

7 SEVEN

How to share screen without client?

Chromecast

Miracast

iPhone

① Please down the system menu from the top of the phone and click the [Screen Mirroring].

② Making sure to connect to the same Wi-Fi, then select [Bytello Share] to start mirroring.

Mac

① Making sure to connect to the same Wi-Fi.

② Select Airplay in the status bar at the top of the system

③ Select the receiver device to mirror.

How to share screen without client?

Airplay

Miracast

Chrome Browser

① Select [cast] in the chrome browser menu.

② Making sure to connect to the same Wi-Fi, then select [Bytello Share] in the cast tab.

7 SEVEN

How to share screen without client?

Airplay

Chromecast

Miracast

Android Device

① Turn on Wi-Fi and enter Display.

② Enter Wireless display.

③ Turn on Wireless display.

③ Search for devices and connect.
