USER MANUAL HL DA 61 MH BRENNENSTUHL

GB Operating instructions 6

FR Mode d'emploi 10

Technical diagram of a mobile phone casing with labeled components including front, side, and top views

Technical diagram of a sewing machine with labeled parts and numbered parts

LADEN

Operating instructions 6+1 LED Rechargeable Multi-Function Light HL DA 61 MH with charging station

SAFETY INFORMATION

• Read the operating instructions carefully before using the lamp.
• Do not use if the lamp or the power adapter are damaged – danger to life! Contact a qualified electrician or the service department listed.
• Do not look directly at the lamp.
• Do not open the device.
• Do not use the lamp in potentially explosive atmospheres – danger to life!
• Only use the included charging station with the charger to charge the lamp or charge it directly on the lamp using a tested USB charger.
• During the charging process, the product is not IP54-compliant (dust-protected and protected against splashing water).

OPERATION:

• Drain the battery completely and recharge before using the lamp for the first time.
• Front switch ①: Push once: top LED On / push twice: front LEDs On / push three times: all LEDs Off.
  • The product can be used during charging.
• Status LED ④: the green bar for the respective charging status blinks while charging; all remain green when the battery is charged.
• If the lamp is not used for an extended period of time, it is recommended that the battery be charged every 3 months.

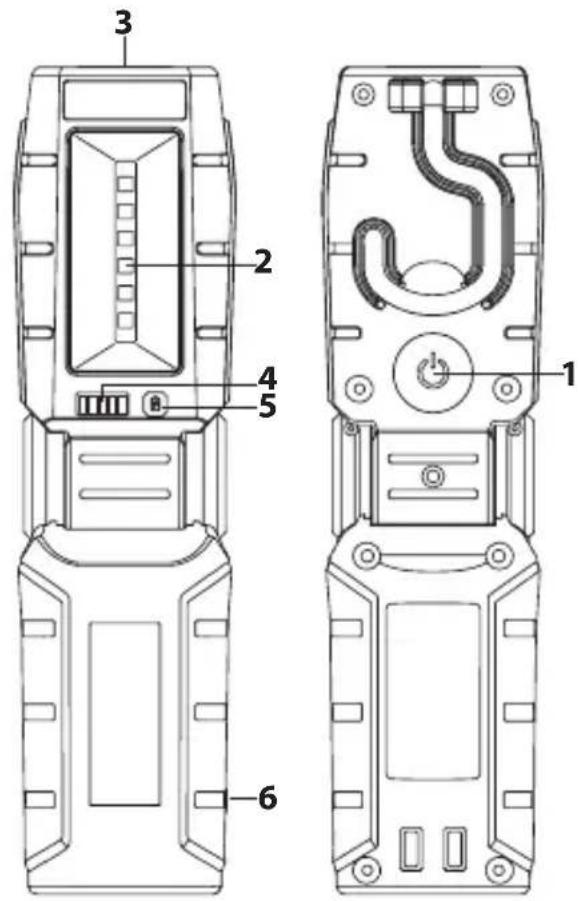

OVERVIEW OF THE CONTROLS:

① On / Off switch Charging indicator (green)
2 Front LEDs Charging status switch 5
③ Lamp head LED

Technical diagram of a mobile phone casing with labeled components including front, side, and top views

6 F Charging port lamp

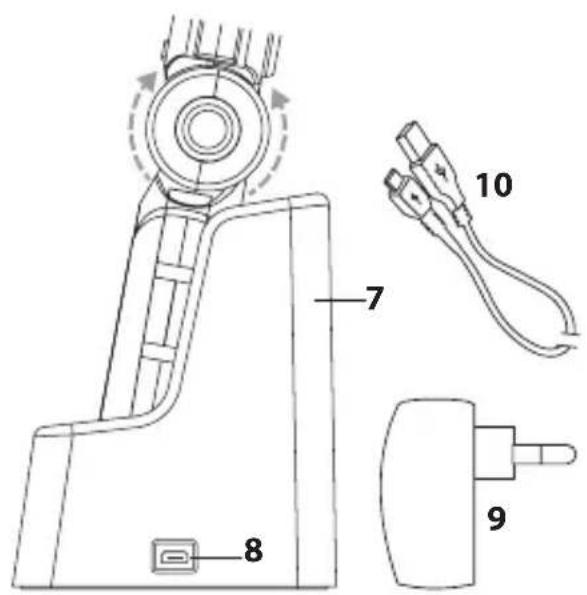

⑦ Charging station
8 Charging station charging port
9 USB power supply unit 230 V
10 USB charging cable

Technical diagram of a handheld device with labeled parts and numbered annotations

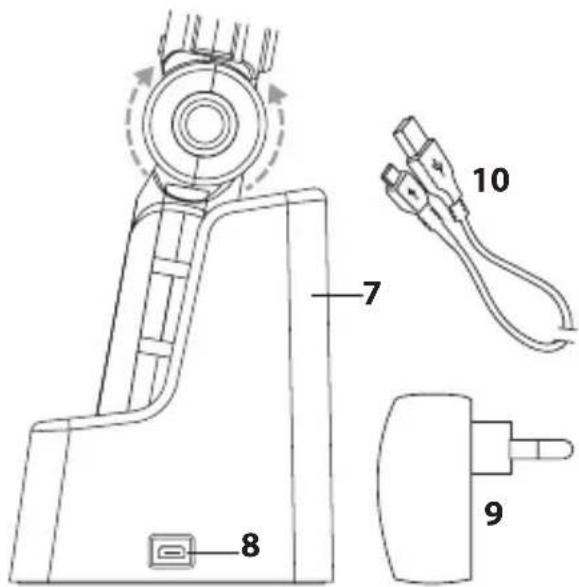

CHARGING

• with charging station and 230 V charger:

Place the lamp in the charging station ⑦

USB power supply unit 230 V ⑨ – USB charging cable ⑩ – Charging station ⑧

Hand-held lamp is fully charged when the charging display LED on the lamp ④ remains green

- directly with USB cable (from a tested USB power source):

USB charging cable 10 – Lamp charging port 6

SPECIFICATIONS:

LEDs: Front 6x SMD, head 1x SMD

Flux: Front 280 lm / head 70 lm

Light color: 6000 K

Battery: Integrated, Li-ion 3.7 V/2.0 Ah

Operating time: Front 3 hrs, head 8 hrs

Charging time: 3 hrs

Protection class: IP 54

Temperature range: -10 °C – +40 °C

Power Adapter:

Model identifier: ICY0500-1000WU

Input voltage: 100 – 240 V

Input AC frequency: 50 – 60 Hz

Output voltage: 5,0 V

Output current: 1,0 A

Output power: 5,0 W

Average active efficiency: 75,40%

Efficiency at low load (10%): 69,01%

No-load power consumption (Standby): 0,06 W

EU DECLARATION OF CONFORMITY

UK DECLARATION OF CONFORMITY

The declaration of conformity is deposited with the manufacturer.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner!

Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

Batteries and accumulators must not be disposed of in the household waste!

As a consumer, you are legally obliged to hand in all batteries and accumulators at a collection point in your community/urban district or in the trade, so that they can be disposed of in an environmentally friendly manner, otherwise there are possible risks to the environment and human health.

MANUFACTURER

For more information, we recommend the Service/FAQs

section on our homepage www.brennenstuhl.com.

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a handheld device with labeled parts and wiring, including numbered components 7, 8, 9, and 10.

CHARGEMENT

CE DÉCLARATION DE CONFORMITÉ UE

Technical diagram of a mobile phone receiver with labeled parts including front, side, and top views

Technical diagram of a sewing machine with labeled parts and numbered parts

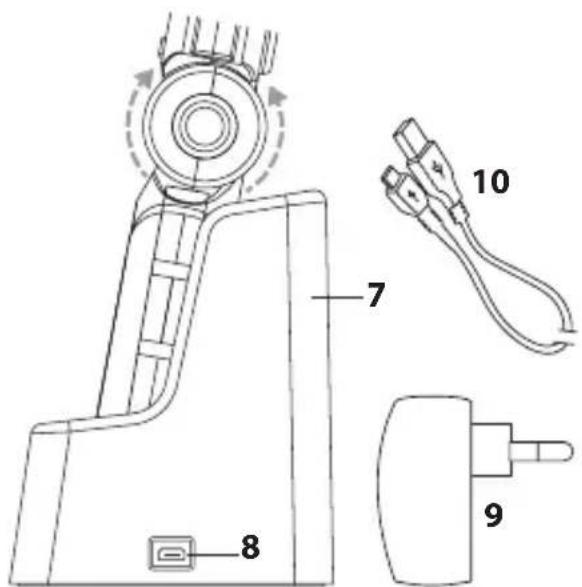

LADEN

Technical diagram of a mobile phone receiver with labeled parts including front, side, and top views

Technical diagram of a sewing machine with labeled parts and numbered parts

PROCESSO DI CARICA

Technical diagram of a mobile phone receiver with labeled parts including front, side, and top views

⑦ Batteriladdare

Technical diagram of a sewing machine with labeled parts and numbered parts

LADEN

Utgående effekt: 5,0 W

Technical diagram of a mobile phone receiver with labeled parts including front, side, and top views

Technical diagram of a sewing machine with labeled parts and exploded view

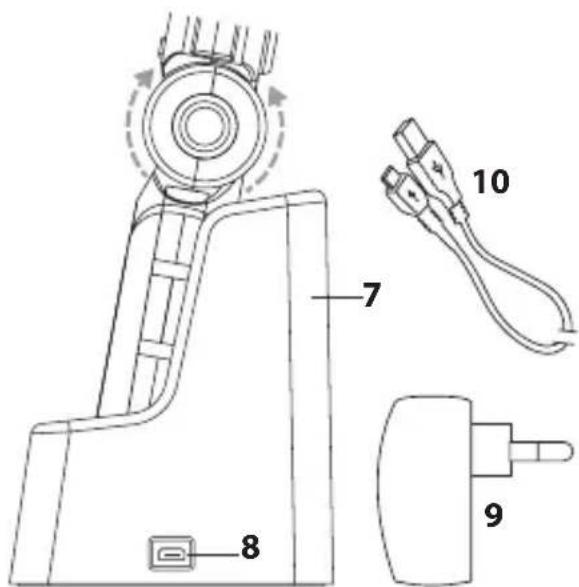

CARGAR

Technical diagram of a mobile phone receiver with labeled parts including front, side, and top views

Technical diagram of a handheld device with labeled parts and directional arrows indicating motion or flow.

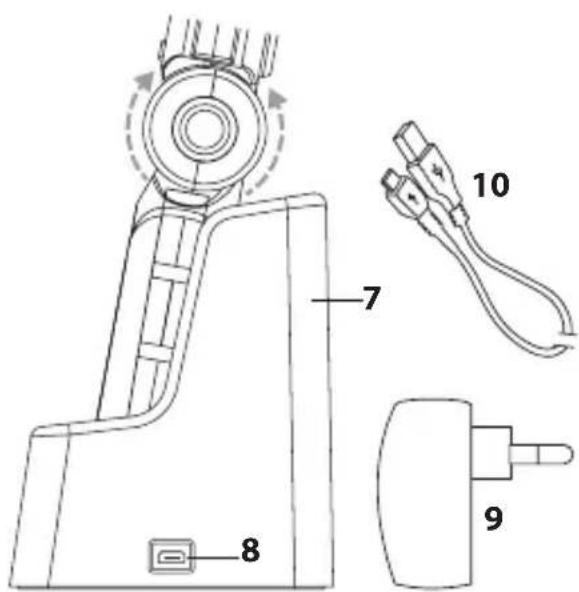

ŁADOWANIE

Technical diagram of a mobile phone receiver with labeled parts including front, side, and top views

Technical diagram of a sewing machine with labeled parts and numbered parts

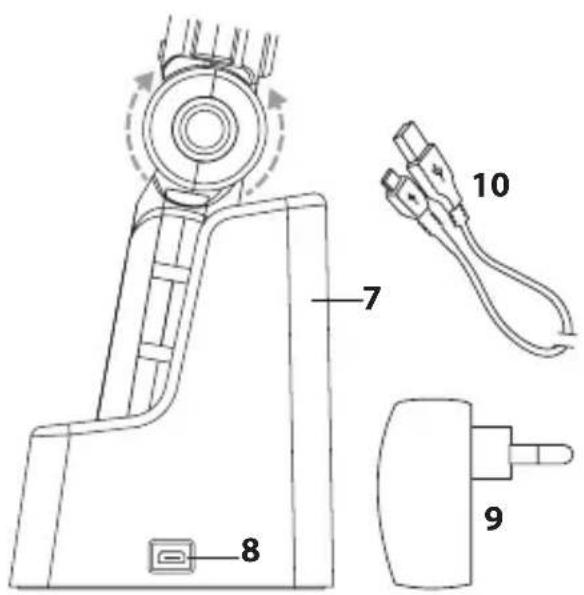

NABÍJENÍ

Technical diagram of a mobile phone casing with labeled components including front, side, and top views

Technical diagram of a handheld device with labeled parts and numbered annotations

TÖLTÉS

Technical diagram of a mobile phone receiver with labeled parts including front, side, and top views

Technical diagram of a handheld device with labeled parts and numbered annotations

ЗАРЯДКА

Technical diagram of a mobile phone casing with labeled components including front, side, and top views

Technical diagram of a sewing machine with labeled parts and directional arrows indicating motion or assembly.

ŞARJ ETME

Technical diagram of a mobile phone receiver with labeled parts including front, side, and top views

Technical diagram of a sewing machine with labeled parts and numbered parts

LATAUS

Technical diagram of a mobile phone casing with labeled components and exploded view

Technical diagram of a sewing machine with labeled parts and exploded view

ΦΟΡΤΙΣΗ

Technical diagram of a mobile phone casing with labeled components including front, side, and top views

Technical diagram of a sewing machine with labeled parts and numbered parts

CARREGAR

Technical diagram of a mobile phone casing with labeled components including front, side, and top views

Technical diagram of a mechanical device with labeled parts and numbered annotations

NABÍJANIE

- s nabíjačkou a 230 V nabíjacím prístrojom:
