Product type	Hot air brush styler
Brand	Remington
Model	Coconut Smooth Air AS5901
Power	1000 W
Included accessories	2 mixed bristle round brushes (50 mm and 30 mm)
Temperature settings	High (thick hair) and low (fine/damaged hair)
Speeds	2 speeds
Cool air function	Yes (cool shot button)
Brush type	Mixed bristle round brush
Cord length	Approximately 2 m
Safety	Automatic shut-off if air vents blocked
Cleaning	Clean the filter regularly with a soft brush
Maintenance	Wipe surfaces with a damp cloth
Recommended use	Hair damp to 70-80% dry
Suitable for	All hair types (fine, thick, damaged)
Voltage	220-240 V (depending on country)
Weight	Approximately 500 g
Dimensions	Approximately 30 cm length (handle)

Frequently Asked Questions - Coconut Smooth Air AS5901 REMINGTON

What is the power of the device?

The device has a power of 1000 W.

How to clean the filter of the Air Styler?

Unplug the device and let it cool down. Regularly clean dust and dirt from the filter with a soft brush.

Can I use the device on wet hair?

It is recommended to dry your hair until it is about 70-80% dry before using the device.

Which brush to use to create volume?

Use the 50 mm brush to add volume at the roots: place it under a section near the roots and hold for a few seconds while lifting.

How to set a curl with the Air Styler?

To curl the ends inward, place the brush under a section near the ends and rotate inward. For outward curl, rotate outward. Then use the cool air function to set.

What to do if the device shuts off automatically?

This happens if the air vents are blocked. Turn off the device and let it cool down. Make sure the vents are not obstructed before turning it back on.

Can I use the device in a bathroom?

The device can be used in a bathroom but unplug it after use. Do not use near water and keep it out of reach of children.

How to change accessories?

Press the lock/unlock button on the accessory and separate it from the handle. Be careful as accessories are hot after use.

What temperature for fine or damaged hair?

Use the low setting for fine, delicate, damaged, or color-treated hair to avoid damage.

How to use the cool air function?

To set the hairstyle, press the cool shot button and slide it forward. Slide it backward to deactivate.

USER MANUAL Coconut Smooth Air AS5901 REMINGTON

Two hair styling irons, one with black bristles and the other with a gray brush (no text or symbols visible)

Coconut Smooth Airstyler AS5901

Diagram of a hairdryer with labeled parts including a snowflake, fan, and bulb

A

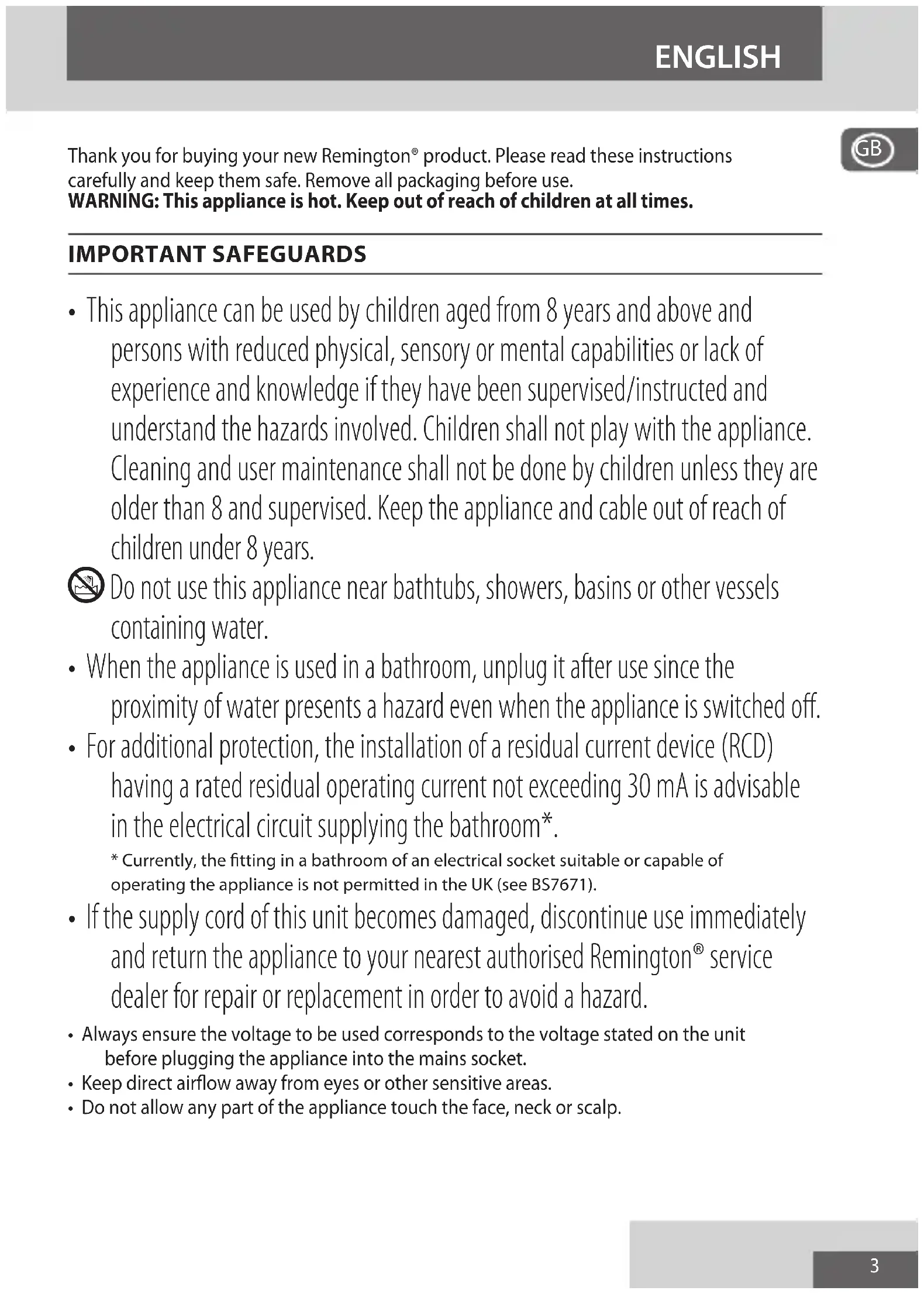

Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use.

WARNING: This appliance is hot. Keep out of reach of children at all times.

IMPORTANT SAFEGUARDS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom*.
  * Currently, the fitting in a bathroom of an electrical socket suitable or capable of operating the appliance is not permitted in the UK (see BS7671).
• If the supply cord of this unit becomes damaged, discontinue use immediately and return the appliance to your nearest authorised Remington® service dealer for repair or replacement in order to avoid a hazard.
• Always ensure the voltage to be used corresponds to the voltage stated on the unit before plugging the appliance into the mains socket.
• Keep direct airflow away from eyes or other sensitive areas.

• Do not allow any part of the appliance touch the face, neck or scalp.

• During use, always ensure the inlet and outlet grilles are not blocked in any way as this will cause the unit to automatically stop. If this should occur, switch off and allow the unit to cool.

• Keep the power plug and cord away from heated surfaces.
• Do not leave the appliance unattended while plugged in.
• Do not place the appliance on any soft furnishings.
• Do not use attachments other than those we supply.
• Do not set the appliance down while still on.
• Do not twist or kink the cable, or wrap it round the appliance.
• Do not use the appliance if it is damaged or malfunctions.
• Check the cord regularly for any sign damage.
  • This appliance is not intended for commercial or salon use.

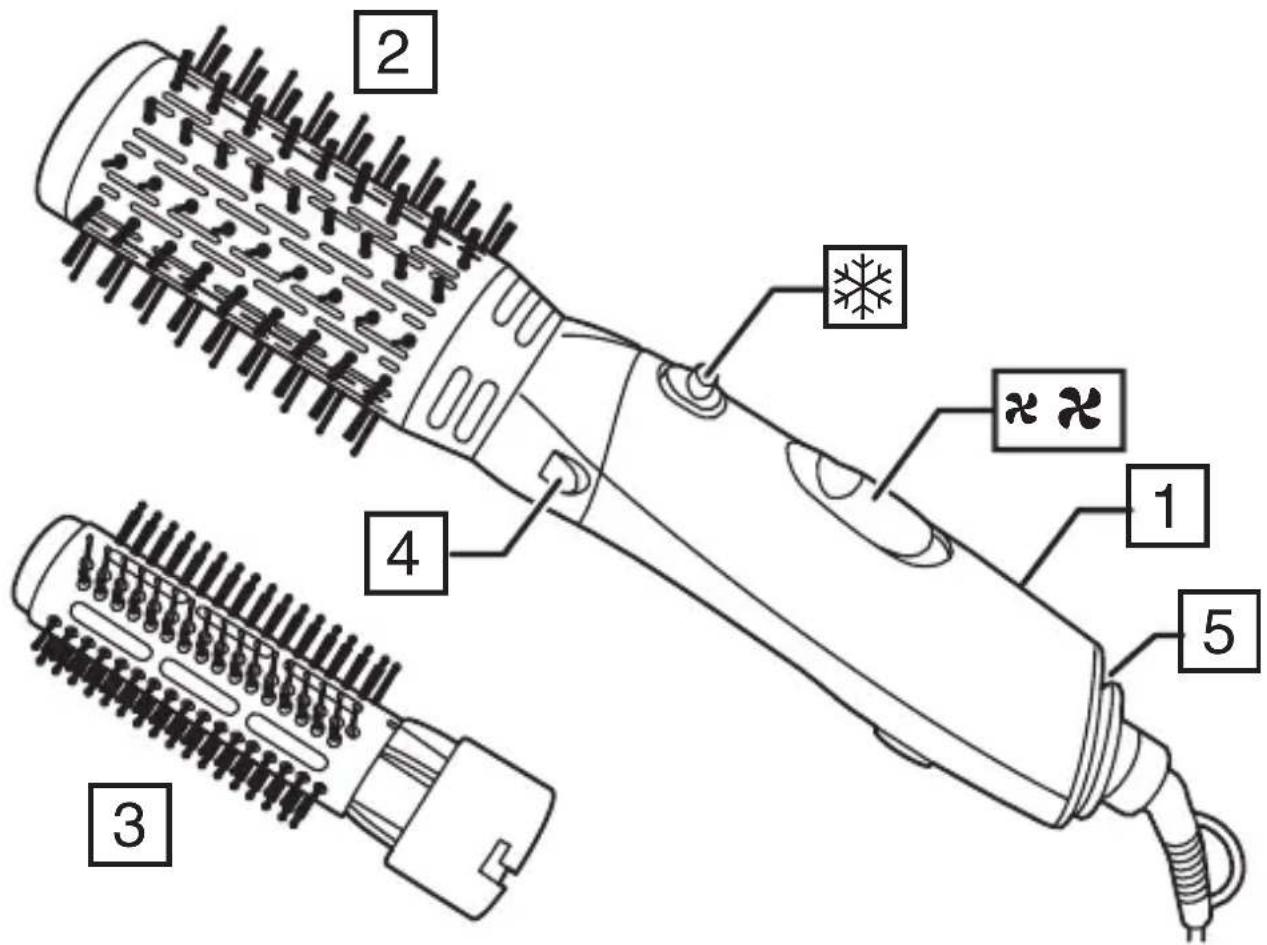

PARTS

1. 1000W power handle

2. 50mm round mixed bristle brush

3. 30mm round mixed bristle curling brush

4. Attachment lock/release button

5. Inlet grille

Controls:

✗, ✗ Speed/heat selector switch

Cool shot

INSTRUCTIONS FOR USE

Prepare the hair for styling

• Wash and condition the hair as normal.
• Squeeze out excess moisture with a towel and comb through.
• For best results, dry your hair as normal until it is about 70-80% dry.
• Divide the hair into sections, style the lower layers first.

To fit attachments

• Fit the brush head before you turn on the appliance.

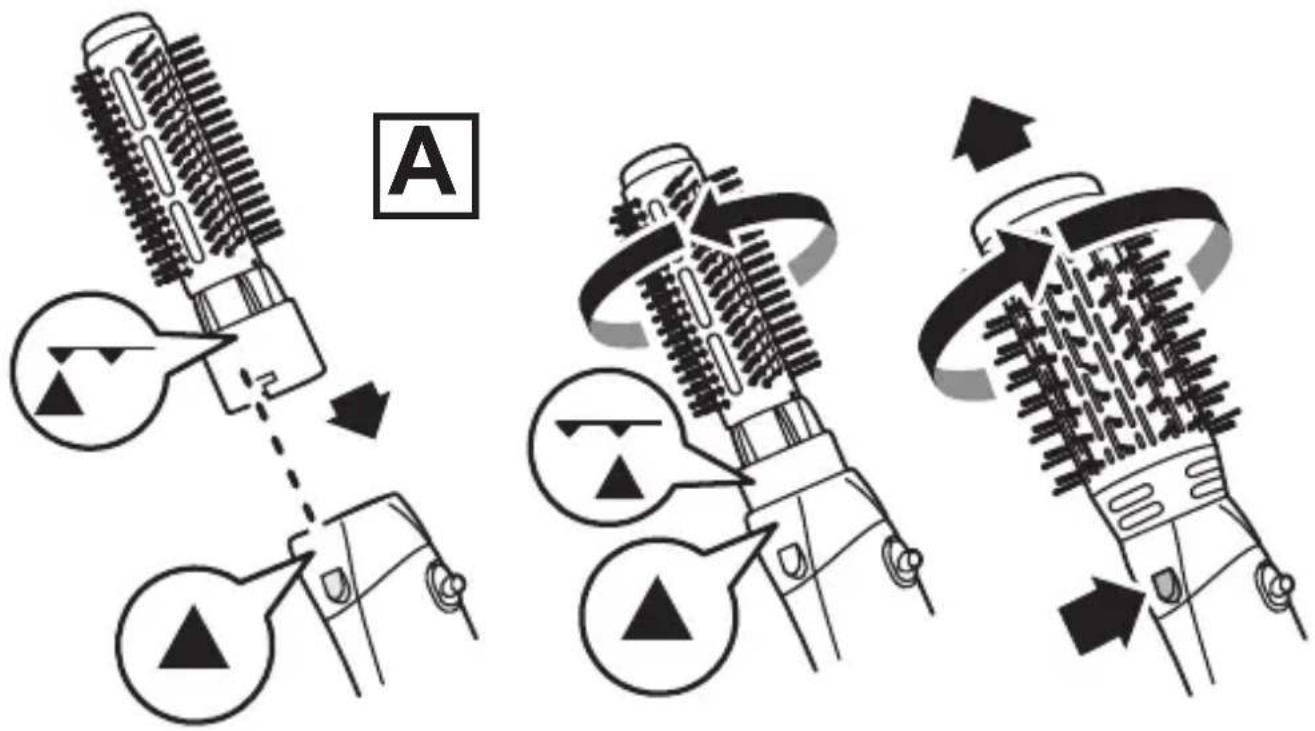

- Fit the brush as shown in figure A aligning the symbols as shown.
- To remove, press the attachment lock/release button and pull the attachment off the power handle. Take care when you do this as attachments will be hot after use.

Speed and temperature settings

1. Plug your styler in to the mains power supply.
2. To turn your air stylist on, slide the speed/heat selector switch to the ✗ (low) or ✘ (high) position.
3. Your air styler has two temperature settings:
   • High (✗): Thick and difficult to style hair
4. Low (✗): Thin/fine, damaged or bleached hair
5. Use the heat selector switch to select the appropriate temperature for your hair type.

Creating volume using the 50mm brush

1. To dry your roots and add volume, place the brush underneath the section close to the roots and hold for a few seconds, lifting the hair as you dry.
2. Move the stylister downward through the hair section.
3. Repeat this around the head.
4. Let the hair cool before further styling.

Creating curls and shaped ends using the 30mm and 50mm brushes

1. To curl the ends in, place the brush underneath the section close to the ends and rotate the stylister inwards allowing the hair to wrap around the barrel and hold for a few seconds.
2. To curl the ends out, place the brush on top of the section close to the ends and rotate the stylisty outwards allowing the hair to wrap around the barrel and hold for a few seconds.
3. Repeat this around the head.
4. Let the hair cool before further styling.

Cool Setting

1. To set your style, use the cool setting. To operate press the cool shot button down and slide forward. Slide back to turn off.

CLEANING AND MAINTENANCE

• After use, turn the appliance off and unplug.
- Unplug the appliance and allow to cool before cleaning and storing away.
- To maintain peak product performance and to prolong motor life, it is important to regularly remove any dust and dirt from the air filter grille and clean with a soft brush.
- Don't use harsh or abrasive cleaning agents or solvents.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

CLEANING AND MAINTENANCE

• Unplug the appliance and allow to cool.
• To maintain peak product performance and to prolong motor life, it is important to regularly remove any dust and dirt from the air filter grille and clean with a soft brush.
- Wipe all the surfaces with a damp cloth.
- Don't use harsh or abrasive cleaning agents or solvents.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

Solid gray rectangular shape with no text, symbols, or discernible features

Ref. No. AS5901

Type No. AS7051

Remington ^® is a Registered Trade Mark of Spectrum Brands, Inc., or one of its subsidiaries

Russell Hobbs Deutschland GmbH, Am Unisyspark 1, 65843 Sulzbach, Germany remington-europe.com
