Brand	ELAC
Model	Vertex III SBVJ41L (SB-VJ41L)
Product type	Passive soundbar
Dimensions (W x H x D)	57 x 5-15/16 x 3-7/16 inches (approx. 144.8 x 15.1 x 8.7 cm)
Net weight	33.51 lb (approx. 15.2 kg)
Power	Passive, requires external amplifier (100 W max)
Nominal impedance	6 Ohms
Sensitivity	86 dB @ 2.83 V/1 m
Frequency response	60 Hz – 35,000 Hz
Crossover frequency	2,800 Hz
Speakers	3 x Jet tweeters, 4 x 4-inch aluminum woofers
Radiator type	Passive radiator
Cabinet finish	Satin black
Grille	Black, magnetic (removable)
Wall mount included	Yes, with 4.5 cm lateral adjustment
Connections	Screw terminals (L, C, R channels) – speaker wire
Mounting	Wall or cabinet (minimum distance from TV: 2.5 cm)
Cleaning	Soft dry cloth; no abrasive products
Safety	Do not open, do not expose to moisture, moderate volume
Warranty (North America)	1 year limited (parts and labor)
Package contents	Soundbar, wall mount, manual

Frequently Asked Questions - Vertex III SBVJ41L ELAC

How do I install the ELAC Vertex III soundbar on the wall?

Use the supplied wall mount as a template to mark holes. Drill according to your wall type (hardware not included). Fix the mount, then hang the soundbar. A 4.5 cm lateral adjustment is possible. Leave at least 2.5 cm between the mount and the TV.

What cables should I use to connect the soundbar?

Use speaker wire of at least 16 gauge for lengths up to 25 feet. Respect polarity (red to red, black to black). Strip 1/2 inch of insulation and insert into the screw terminals.

Can I remove the grille of the soundbar?

Yes, the grille is magnetic and removable. To remove it, gently pull on the edges. To reattach, align it and it will fix in place thanks to the built-in magnets.

How do I clean the soundbar?

Use a soft dry cloth or a dusting brush. Never use abrasive products, alcohol, benzene, or furniture wax.

What is the maximum supported power?

The maximum input power is 100 Watts. Excessive overload may damage the speakers. Do not leave the device unattended at very high volume.

What should I do if the soundbar is not working properly?

Check connections and polarity. Make sure the amplifier is on and the audio source is correct. If the problem persists, do not open it; contact a professional.

Is the soundbar compatible with all TVs?

Yes, it is passive. It connects to the speaker output of your amplifier or AV receiver. Ensure your amp supports a 6 Ohm load.

What is the warranty on the soundbar?

In North America, the warranty is one year for the original purchaser, covering hardware and labor defects. Shipping costs are borne by the customer.

Can I use the soundbar without an amplifier?

No, it is a passive soundbar. It requires an external amplifier or AV receiver to function.

How should I recycle the soundbar at end of life?

Do not dispose of the device with household waste. Take it to an electronic waste collection point or contact your local municipality for recycling options.

USER MANUAL Vertex III SBVJ41L ELAC

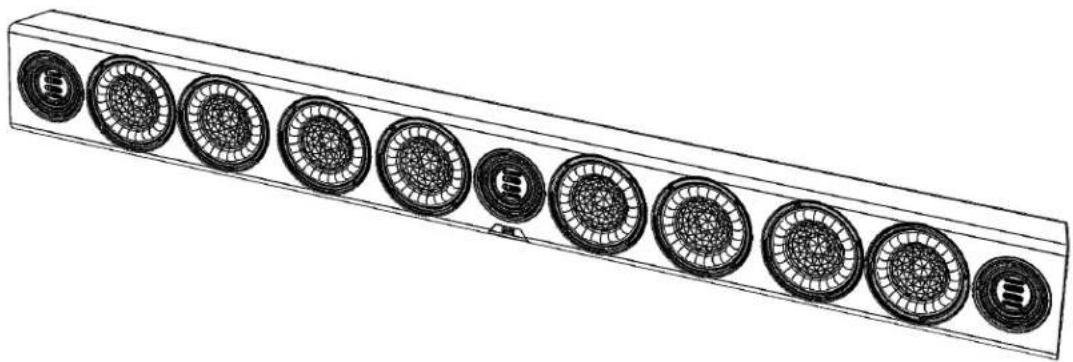

Technical line drawing of a mechanical component with circular components and mounting holes (no text or symbols)

SB-VJ41L 3 CHANNEL PASSIVE SOUNDBAR FOR TV's 65" and larger

SB-VJ41S 3 CHANNEL PASSIVE SOUNDBAR FOR TV's 55" and larger

OPERATING INSTRUCTIONS

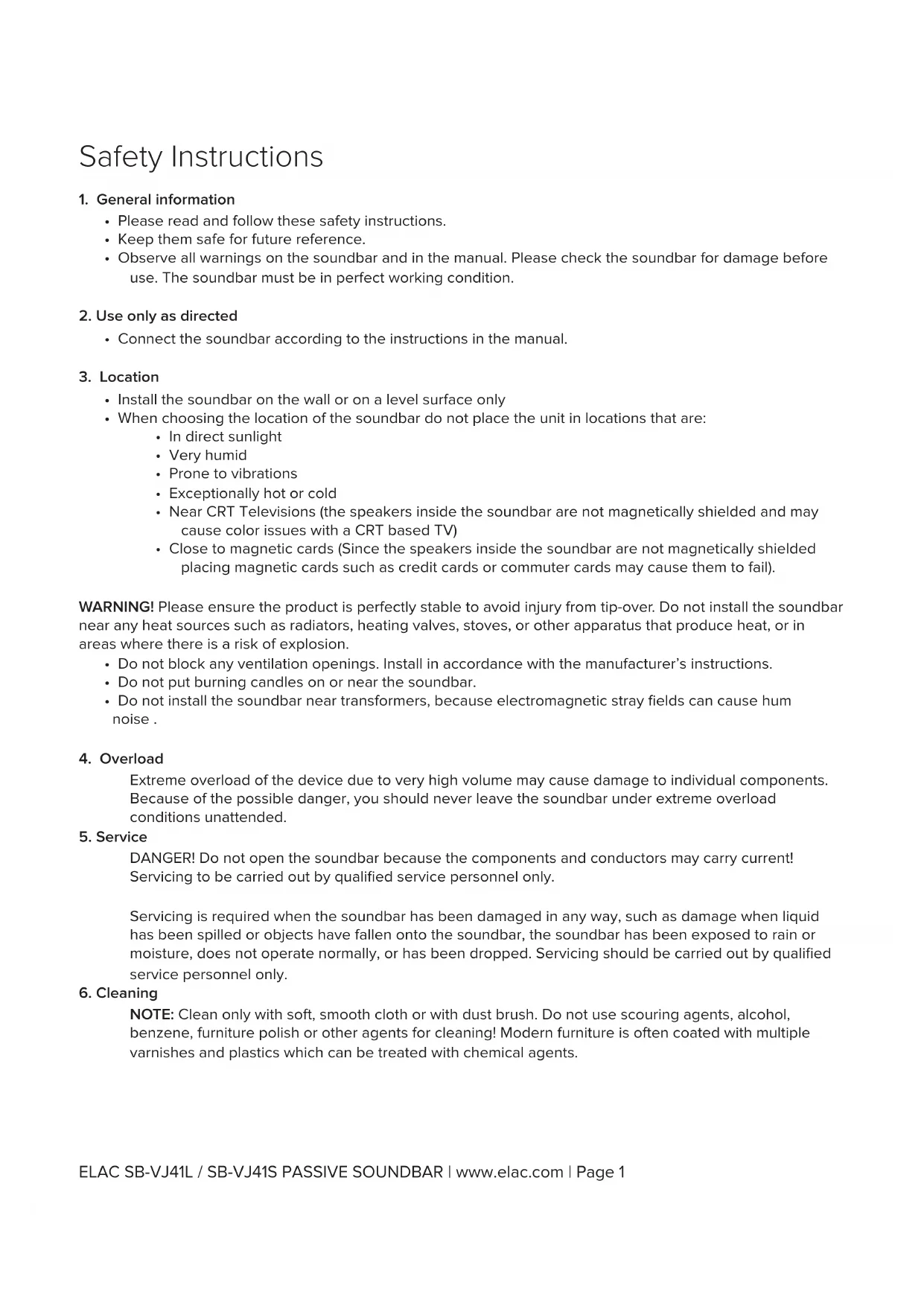

Safety Instructions

1. General information

• Please read and follow these safety instructions.
• Keep them safe for future reference.
• Observe all warnings on the soundbar and in the manual. Please check the soundbar for damage before use. The soundbar must be in perfect working condition.

2. Use only as directed

- Connect the soundbar according to the instructions in the manual.

3. Location

• Install the soundbar on the wall or on a level surface only
- When choosing the location of the soundbar do not place the unit in locations that are:

• In direct sunlight
- Very humid
- Prone to vibrations
• Exceptionally hot or cold
- Near CRT Televisions (the speakers inside the soundbar are not magnetically shielded and may cause color issues with a CRT based TV)
- Close to magnetic cards (Since the speakers inside the soundbar are not magnetically shielded placing magnetic cards such as credit cards or commuter cards may cause them to fail).

WARNING! Please ensure the product is perfectly stable to avoid injury from tip-over. Do not install the soundbar near any heat sources such as radiators, heating valves, stoves, or other apparatus that produce heat, or in areas where there is a risk of explosion.

• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not put burning candles on or near the soundbar.
• Do not install the soundbar near transformers, because electromagnetic stray fields can cause hum noise.

4. Overload

Extreme overload of the device due to very high volume may cause damage to individual components. Because of the possible danger, you should never leave the soundbar under extreme overload conditions unattended.

5. Service

DANGER! Do not open the soundbar because the components and conductors may carry current! Servicing to be carried out by qualified service personnel only.

Servicing is required when the soundbar has been damaged in any way, such as damage when liquid has been spilled or objects have fallen onto the soundbar, the soundbar has been exposed to rain or moisture, does not operate normally, or has been dropped. Servicing should be carried out by qualified service personnel only.

6. Cleaning

NOTE: Clean only with soft, smooth cloth or with dust brush. Do not use scouring agents, alcohol, benzene, furniture polish or other agents for cleaning! Modern furniture is often coated with multiple varnishes and plastics which can be treated with chemical agents.

7. Volume

CAUTION! Continuous high volume may cause severe damage to your hearing. Please listen responsibly.

8. Disposal

The packaging is made from recyclable materials. Dispose of this in an environmentally friendly manner. At end of life do not dispose of the soundbar with standard household waste. The product must be recycled in accordance with local legislation. Ask your local government for further information on recycling as the device contains valuable raw materials.

Philosophy

Thank you for purchasing this ELAC product.

Since the time we started (1926), ELAC has always striven to achieve the very best.

Your new ELAC passive soundbar is built to the highest standards using high-quality components that are carefully constructed to deliver the best-in-class sound quality. The soundbar has been developed by a passionate group of individuals whose soul purpose is to bring a new dimension of sound quality into your home. Enjoy!

Wall Mounting of the Passive Soundbar

Avoid damage to the soundbar and other components:

• Carefully unbox the soundbar to avoid physically damaging the unit.
• Depending on your existing audio-video configuration it is recommended to carefully choose the channel connection (left - center - right) of the passive soundbar..
• Both soundbar models can be mounted on the wall using the provided wall bracket.
• Use the provided wall bracket as a template to mark up on the wall the location of the holes.

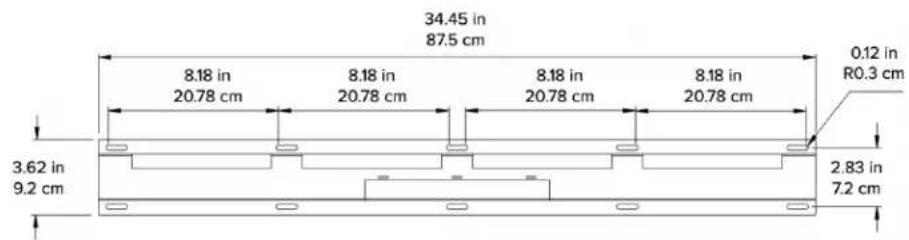

  • The wall bracket is the same for both soundbar models SB-VJ41L and SB-VJ41S . See Fig.1.

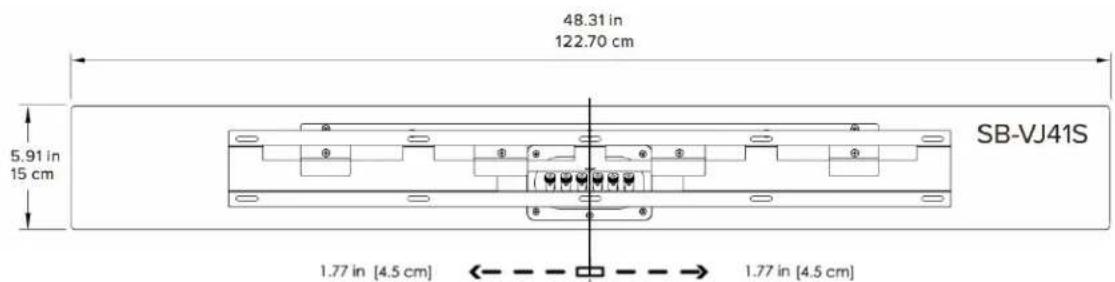

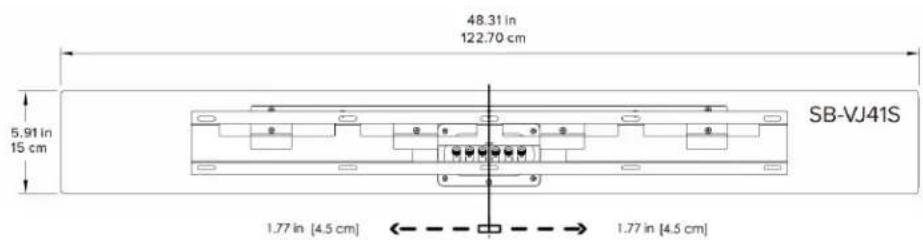

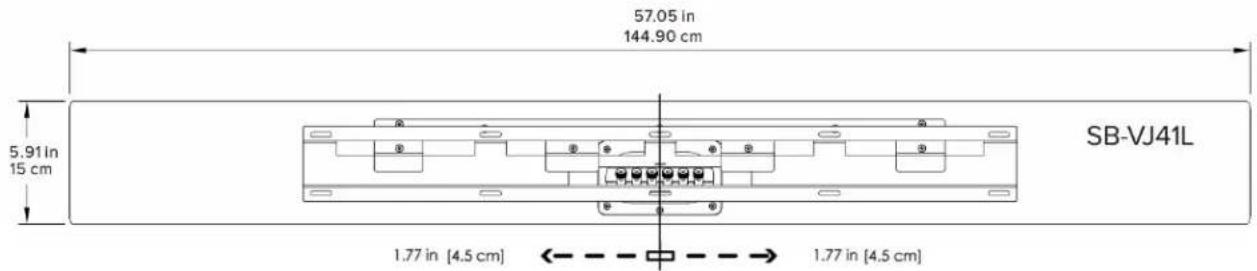

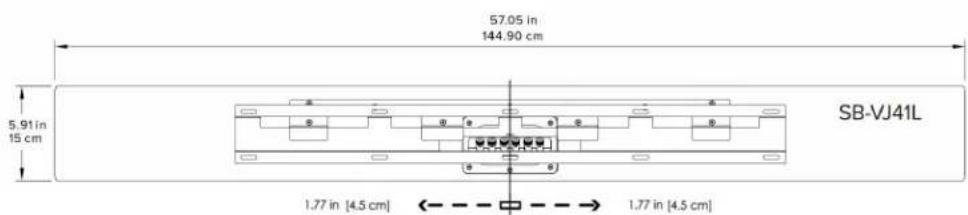

• The design of the soundbar and wall bracket allow you to adjust the position of the soundbar by 1.77 in [4.5 cm] in both directions: left and right from the center axis of the wall bracket. See Fig.2 and Fig.3.
• The adjustment left and right of the soundbar allows you to better align the soundbar with the TV unit above.

Fig.1

Fig.2

Fig.3

Soundbar Connection

After choosing the position of the soundbar, do the following to avoid damaging the soundbar:

• Ensure your equipment is turned off before connecting the soundbar.
• Use appropriate gauge wires (minimum of 16 gauge wire for runs up to 25 feet).

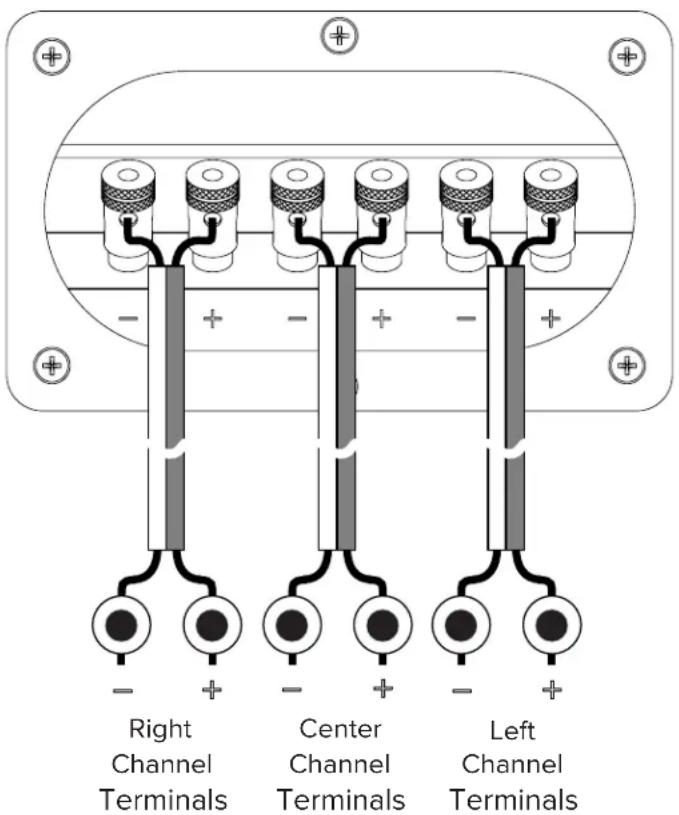

• Connect the left, center and right channel output terminals of your audio source to the appropriate soundbar binding posts as shown in Fig.4.

- Make sure wire polarity is connected correctly. Most speaker cables are coded for ease of use. Make sure positive (red) connection on the audio source terminal is connected to the positive (red) on your soundbar. Follow the same instructions for the negative side. Strip off approximately 1/2" of the insulation from the ends of the speaker cable, twist the bare strands and insert into the binding post.

- Check to ensure positive and negative wires are not touching each other once they're connected to the soundbar terminals. See Fig.4.

View from the back of passive soundbar

Audio Source Output Terminals

Fig.4

Installing and Removing the Grill

The mesh grill of your passive soundbar is designed to be removable if desired. To remove it, hold the top or bottom edges of the grill and pull gently. To install the grill, align the edges of the grills with the edges of the soundbar. The grill will be positioned and hold in place by the magnets incorporated in the grill.

On-Wall Soundbar Setup

The Elac SB-VJ41L and SB-VJ41S41S passive soundbars are designed to be mounted on the wall primarily, but you can also place them on a horizontal surface of a piece of furniture under your TV.

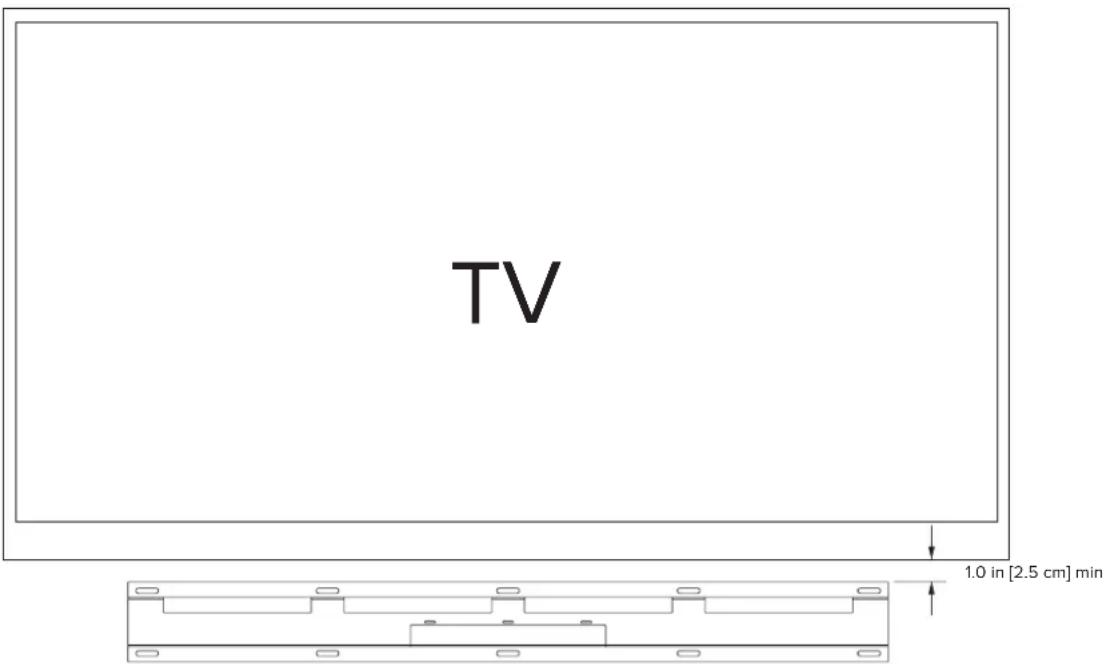

If you choose the on-wall mounting of the soundbar, you should allow a minimum distance of 1 inch [2.5 cm] between the upper edge of the wall bracket and your TV. See Fig.5.

We highly suggest that a professional installer performs the on-wall installation of passive soundbar. Different wall materials require different types of mounting hardware.

Fig.5

Specifications

Parameter / Model SB-V	J41S SB-V41JL
Speaker Type Passive Radiator Passive Radiator
Tweeter JET Tweeter x 3	JET Tweeter x 3
Woofer 4" Aluminum x 3	4" Aluminum x 4
Frequency Response 65Hz - 35000Hz 60Hz - 35000Hz
Crossover Frequency 2800Hz 2800Hz
Sensitivity 86db @ 2.83 v/1m	86db @ 2.83 v/1m
Max Power Input	100 Watts	100 Watts
Nominal Impedance	6 Ohms	6 Ohms
Biding Posts	Metal Push	Metal Push
Cabinet Finish	Satin Black	Satin Black
Grill	Black Magnetic	Black Magnetic
Wall Mount	Included	Included
Height	5-15/16"	5-15/16"
Width	48-5/16"	57"
Depth	3-7/16"	3-7/16"
Net Weight	29.98 lbs	33.51 lbs

Warranty

North America Limited Liability Warranty

ELAC Americas Inc. warrants to the original purchaser that this product be free from defects and or workmanship for a period of 1 (One) year on the soundbar from the original date of purchase.

During this time period, repair or replacement of parts will be free of charge to the original owner (See below limitations). Shipping to and return from the repair center will be the responsibility of the original purchaser.

Limitations

Warranty begins on the date of original purchase from an authorized ELAC Americas Inc. dealer.

• Product is warranted only if used in home applications. Commercial use of this product is not warranted.
• Product that has been modified or altered in anyway will not be warranted.
• Product that has been abused or subjected to faulty equipment will not be warranted.
• Products with defaced or removed serial numbers will not be warranted.

If service is required

In the event that service is required, please contact ELAC America at 714-252-8843 or at [e-mail] to arrange for service or replacement. You will be responsible to provide proof of purchase (Copy or original sales receipt). Shipping to and from our repair center will be the responsibility of the original purchaser.

Warranty Outside of North America

This warranty applies to products purchased in the United States and Canada. For warranty claims outside of North America please contact the local dealer/distributor in the country of purchase.

ELAC AMERICAS INC.

1938 N. Batavia St. Suite K

ORANGE, CA 92865

ELAC ELECTROACUSTIC GMBH

FRAUNHOFERSTRAße 16

D-24118 KIEL, GERMANY
