Product type	Electric shoe polisher
Brand	Bartscher
Model	120109
Power supply	230 V ~ 50 Hz
Power	120 W
Dimensions (W x D x H)	400 x 240 x 260 mm
Weight	6.4 kg
Noise level	≤ 60 dB(A)
Brushes	3 rotating brushes: 1 cleaning brush, 2 polishing brushes (for light and dark shoes)
Frame material	Powder-coated steel, matte and black
Included accessories	1 funnel
Polish dispenser	With ball valve, capacity approx. 100 ml
Dirt collection mat	Yes, removable
Main functions	Cleaning, waxing, polishing
Intended use	For shoes only
Installation	On a flat, dry surface
Safety	On/Off button; do not immerse; unplug before cleaning
Care and cleaning	Clean with a soft, damp cloth; vacuum the mat regularly
Storage	In a dry, dust-free place
Warranty	According to manufacturer's conditions

Frequently Asked Questions - 120109 BARTSCHER

How to fill the polish dispenser?

Remove the dispenser from its bracket by pulling on the sides. Unscrew the cap, remove the spring and the ball, then pour the polish (colorless preferably) using the supplied funnel. Replace the spring, ball, and cap, then reinstall the dispenser by clipping it back.

Which brushes to use for light or dark shoes?

Use the right polishing brush for dark shoes and the left one for light shoes. A symbol on the device indicates the correspondence.

How to clean the dirt collection mat?

Regularly shake the mat or clean it with a vacuum cleaner. It is removable for easy cleaning.

What to do if the device does not work?

First check that the device is properly plugged into a grounded outlet. Check the condition of the cord. If the problem persists, contact a qualified after-sales service.

Can I use a different color polish?

It is recommended to use colorless polish to avoid any color mismatch. If you use a colored polish, make sure it matches the color of the shoe.

How to safely turn off the device?

Press the On/Off button to turn off the device. If not using for a long period, unplug from the outlet.

How often to clean the device?

Clean the device regularly, especially the collection mat. For the frame, use a soft, damp cloth with a mild detergent. Never immerse the device.

Can I use the device on wet shoes?

No, shoes must be dry before cleaning and polishing. The device is not designed to be used on wet surfaces.

What to do if the power cord is damaged?

Do not use the device. Have the cord replaced by a qualified electrician or after-sales service to avoid any electrical risk.

How to dispose of the device at the end of its life?

Unplug the device and cut the cord to make it unusable. Dispose of it according to local electronic waste regulations.

USER MANUAL 120109 BARTSCHER

Electric shoe polisher

from page 13 to 24

GB/UK

Mode d'emploi

1.1 Information about the instruction manual 14
1.2 Key to symbols 14
1.3 Liability and Warrantees 15
1.4 Copyright protection 15
1.5 Declaration of conformity 15

2. Safety 16

2.1 General information 16
2.2 Safety instructions for use of the device 16-17
2.3 Intended use 17

3. Delivery, packaging and storage 18

3.1 Delivery check 18
3.2 Packaging 18
3.3 Storage 18

4. Technical data 19

4.1 Overview of parts 19
4.2 Technical specification 20

5. Installation and operation 20

5.1 Safety instructions 20-21
5.2 Installation and connection 21
5.3 Operating 21-23

6. Cleaning and maintenance 23

6.1 Safety advice 23
6.2 Cleaning 23
6.3 Safety instructions for maintenance 24

7.Waste disposal 24

Bartscher GmbH

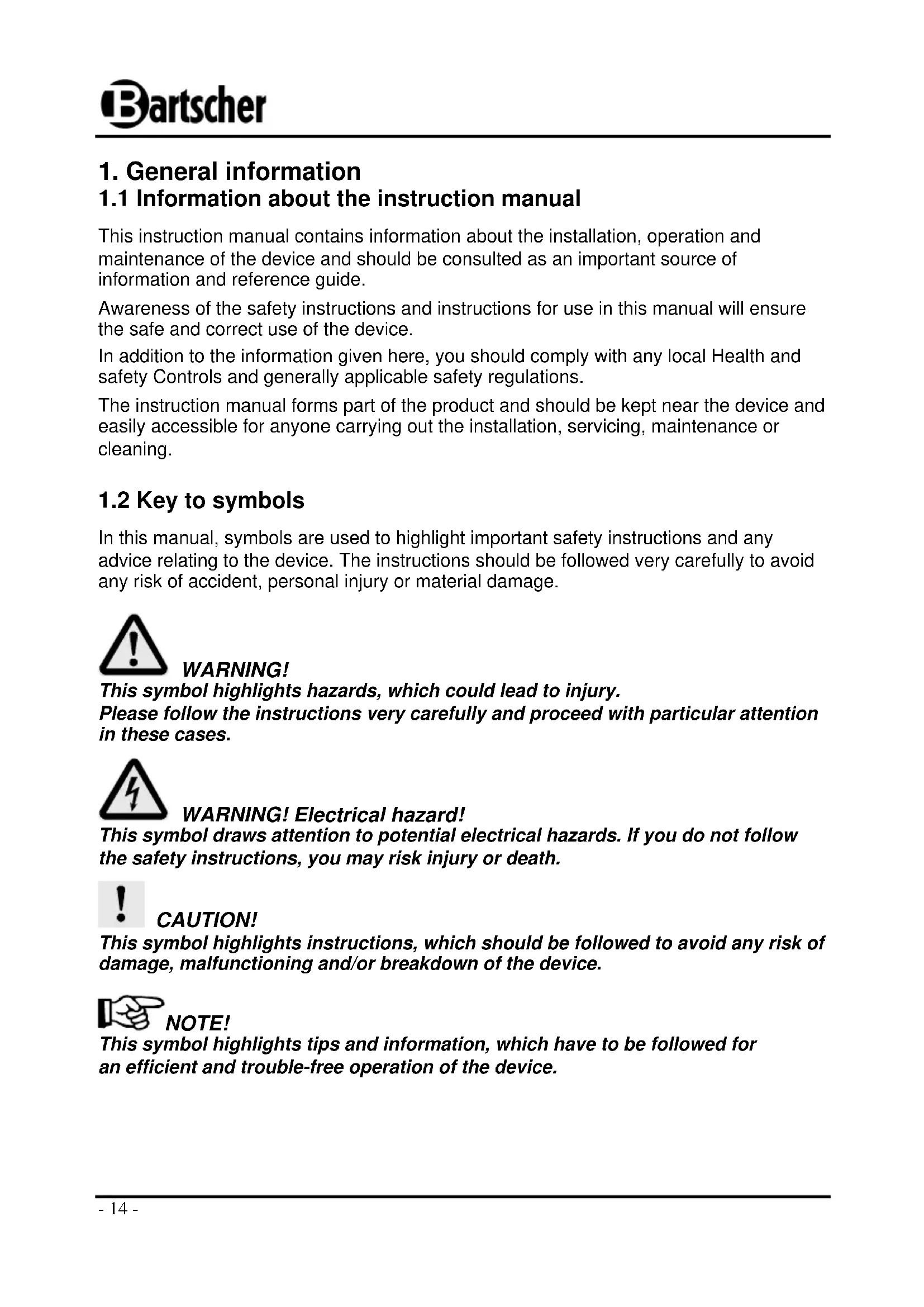

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device.

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology. If you have any questions, you should contact the manufacturer.

NOTE!

Read the instruction manual carefully before using the device. The manufacturer does not accept liability for any damage or malfunction resulting from not following the instructions for use.

The instruction manual should be kept near the device, easily accessible for anyone wishing to work with or using it. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity.

If required we will be glad to send you the according declaration of conformity.

2. Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

2.1 General Information

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications.

Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.

CAUTION!

The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device.
Children should be observed to ensure that they are not playing with the device.
o Preserve this manual safely. When passing on/selling the device to a third party, the manuals must be handed over along with the device.
○ Every person using the device must act in accordance to the manuals and under consideration of the safety advice.
The device is to be used indoors only.

2.3 Intended use

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

The shoe shiner is intended only for cleaning and shining shoes.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt.

In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint.

Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
• In case of longer storage ( >3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

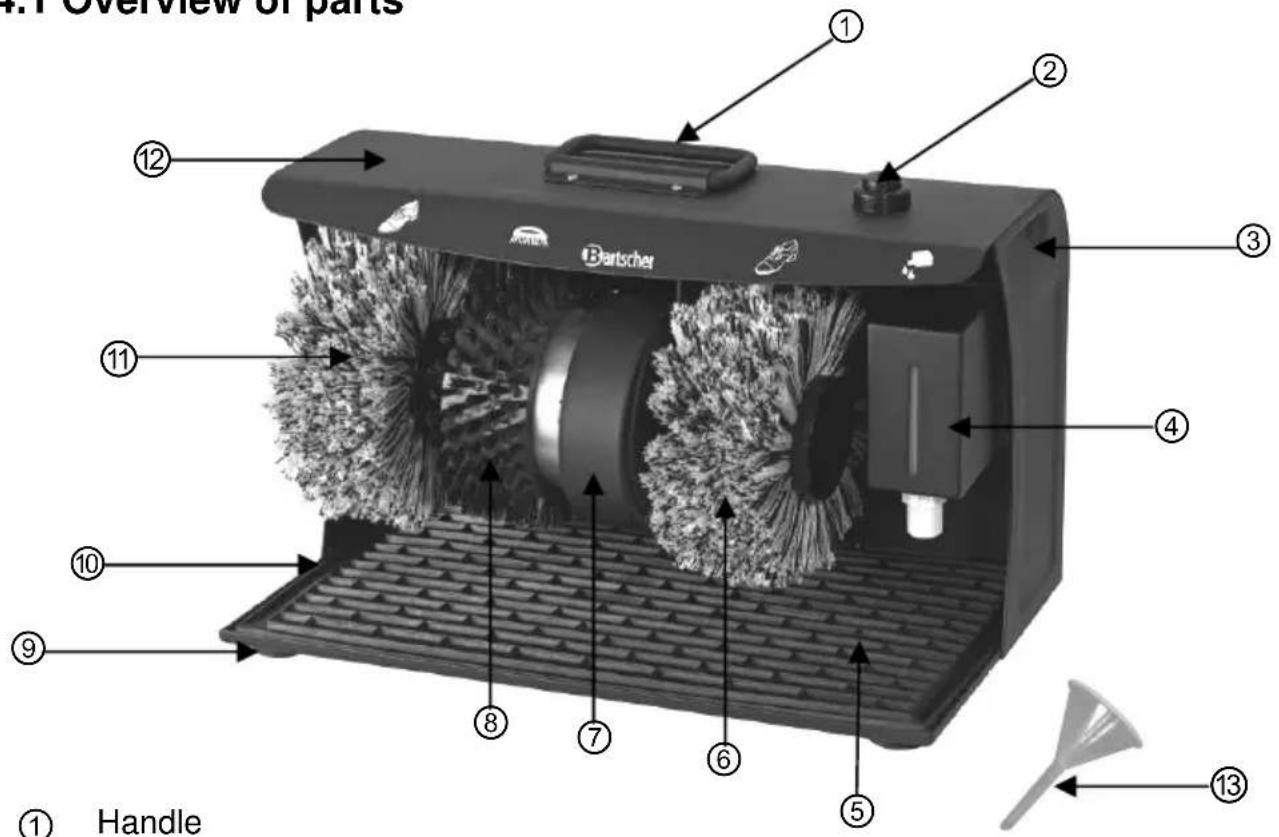

4. Technical data 4.1 Overview of parts

① Handle
② ON/OFF button
③ Side handles
④ Shoe polish dispenser with ball valve
⑤ Dirt-catching mat
⑥ Dark colour polishing brush
⑦ Motor casing
⑧ Cleaning brush
(9) Feet
10 Dirt-catching mat shelf
Light colour polishing brush
② Housing
⑬ Funnel

4.2 Technical specification

Name Electric shoe polisher
Article no.:	120.109
Construction: Powder-painted steel, matt, black
Rotating brushes:	Quantity: 3 2 polyester polishing brushes for light and dark shoes; 1 cleaning brush for dirt
Power:	230 V ~ 50 Hz 120 W
Dimensions: W 400 x D 240 x H 260 mm
Weight: 6.4 kg
Noise output:	≤ 60 dB(A)
Equipment: 1 funnel

We reserve the right to make technical changes!

5. Installation and operation

5.1 Safety instructions

WARNING! Electrical hazard!

The device must only be connected to a properly installed single socket with protective contact.

Never yank cord to disconnect from outlet.

Cable must not touch any hot parts.

• See that the cable does not touch any heat sources or sharp edges. Do not let the cable dangle over the counter edge.
• Do not use the device in case it does not function properly, has been damaged or dropped.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.
  If water or any other liquid touches the surface wipe it off right away.

• Do not expose the device to moist or wet weather conditions or environments at any time.
  Children may use the device under supervision of adults only.

• Do not move or tilt the device when in operation.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that of the device (see type label).

Connect the device only in case of compliance!

Take note of the security advice!

5.2 Installation and connection

• Discard the complete packing material after unpacking the device.
• Set up the device at an even and dry spot.
  Make sure this spot is easily accessible.
• Not at any time should you place the device on an inflammable surface.
• You must not position the device near open fireplaces, electric ovens/arc furnaces, furnaces/electric heaters or other heat sources.
• The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips.
• Place the device so that the plug is easily accessible and can be quickly removed from its socket in case of necessity.

5.3 Operating

Filling the shoe polish

• Before using the device, fill the shoe polish dispenser with an appropriate polish.

• Remove the shoe polish dispenser by squeezing it at the sides and pulling it out.

• Remove the container from the shoe polish dispenser.

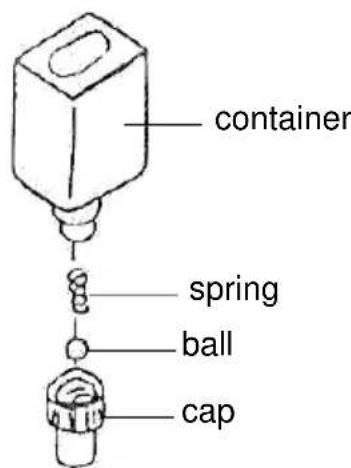

• Unscrew the cap and remove the spring and ball (Dia. 1).
• Fill the container with 100ml of appropriate shoe polish using the included funnel.

Dia. 1

ATTENTION!

Pay attention to the colour of shoe polish! Use a colourless polish to avoid mistakes.

• Replace the screw and ball and replace the cap on the container.
• Replace the container in the shoe polish dispenser.
• Replace the dispenser into the device by squeezing it at the sides then inserting into the support until it clicks into place.

Operating the device / polishing shoes

• Connect the device to a single grounded outlet.

• Turn on the device by pressing the ON/OFF button.

• First, remove dirt and dust from the shoes by using the central cleaning brush. Dirt will be removed to the mat under the brush.

NOTE!

Regularly clean or vacuum the dirt-catching mat!

• Place polish on the shoes by gently pressing the ball below the shoe polish dispenser.
• Leave the polish for a moment to dry, then shine the shoes using the polishing brushes

on the right side dark shoes, and on the left for light shoes (Dia. 2).

Dia. 2

NOTE!

When polishing shoes, pay attention to the signs on the device and use the proper brushes matching the colour of the shoes!

After polishing, turn the device off by pressing the ON/OFF switch.
- Pay attention to the amount of polish in the dispenser by looking at the indicator. Fill with polish as needed.
- Disconnect the device from its power source by removing the plug from its socket if the device will remain unused for a longer period.

6. Cleaning and maintenance

6.1 Safety advice

Before beginning with repair or cleaning works make sure the device has been disconnected from power socket (pull the power plug!!!) and has cooled down.
Do not use any acid agents and make sure no water ingresses the device.
To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

CAUTION!

The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!

6.2 Cleaning

Clean the device regularly.
o Before cleaning, disconnect the device from its socket by removing the plug.
Clean the casing with a soft, moist cloth and mild cleaning agent.
- Use only soft cloths for cleaning and polishing the device.
Never use any substances or tools to clean the device that may scratch it.
o Regularly clean the dirt-gathering mat and its shelf with a vacuum cleaner.

6.3 Safety instructions for maintenance

Check the mains connection cable for damage from time to time. Never operate the device when the cable is damaged. A damaged cable must immediately be replaced by customer service or a qualified electrician to avoid dangers.
In case of damage or malfunction, please contact your stockist or our customer service centre.
○ Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

7. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH

4.2 Indications techniques
