Product type	Milk frother
Brand	Bartscher
Model	MSI400
Product code	190129
Base materials	Stainless steel
Jug material	Removable stainless steel
Lid material	Synthetic material
Dimensions (W × D × H)	125 × 150 × 180 mm
Weight	1 kg
Power supply	600 W / 230 V ~ 50 Hz
Maximum capacity	400 ml
Available functions	Cold emulsion, emulsion and heating at 65°C, emulsion and heating at 70°C
Heating temperatures	65°C and 70°C
Frothing time (150 ml)	Approximately 80 to 90 seconds
Heating time (400 ml)	Approximately 240 seconds
Technology	Induction, energy efficient
Automatic shut-off	Yes, at end of cycle
Non-slip feet	4 silicone feet
Included accessories	3 magnetic stirrers (1 for froth, 2 for milk drinks)
Cleaning of removable parts	Dishwasher safe (jug, lid, stirrers)

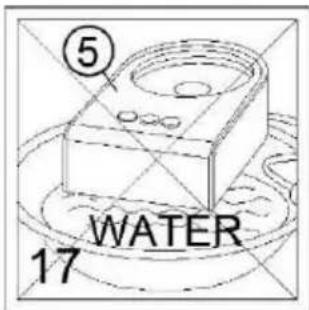

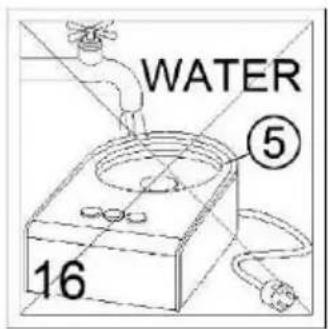

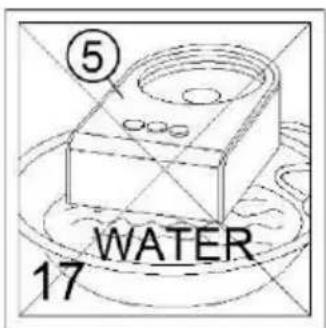

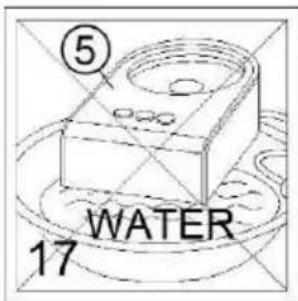

Base maintenance	Wipe with a damp cloth, never immerse
Storage	Cable housing and stirrer storage compartment under the base
Safety	Do not use unattended, hot surface, risk of burns

Frequently Asked Questions - MSI400 BARTSCHER

How to prepare milk froth?

Pour cold milk into the jug without exceeding the MAX mark (400 ml). Place the appropriate froth disc (magnetic stirrer) in the jug, close the lid, and place the jug on the base. Plug in the appliance, then press the button for the desired temperature: cold, 65°C or 70°C. The appliance stops automatically at the end of the cycle. Remove the jug by the handle and serve.

What are the different operating modes?

The appliance offers three modes: cold emulsion (without heating), emulsion with heating at 65°C and emulsion with heating at 70°C. Each mode corresponds to a specific button on the base. The 65°C mode is ideal for warm frothy milk, the 70°C mode for hotter milk. The cold mode allows making cold froth for iced drinks.

How to clean the appliance?

Always unplug the appliance and let it cool before cleaning. The removable parts (jug, lid, magnetic stirrers) can be washed by hand with a soft sponge and dish soap, or in the dishwasher. The base must never be immersed: wipe it with a damp non-abrasive cloth. Make sure no water enters the inside of the base.

Can I put the jug in the dishwasher?

Yes, the stainless steel jug, the synthetic lid and the magnetic stirrers are all dishwasher safe. Place them in the top basket preferably. The base, on the other hand, should not be washed in the dishwasher.

How much milk to use?

Never exceed the MAX mark (400 ml) indicated inside the jug. For milk froth, a quantity of 150 ml is recommended for optimal results (frothing time of about 80 to 90 seconds). If you overfill, the milk may overflow during emulsion.

What to do if the appliance does not turn on?

First check that the plug is properly connected to a working mains socket and that the cable is not damaged. Make sure the base is dry and the jug is correctly positioned. If the appliance still does not turn on, contact Bartscher customer service. Do not attempt to repair the appliance yourself.

Can I use cold milk directly?

Yes, thanks to the built-in heating function, it is not necessary to preheat the milk. You can use cold milk straight from the refrigerator. The appliance heats it to the selected temperature while frothing it.

How to avoid overflowing?

To avoid any overflow, strictly observe the MAX mark on the jug (400 ml). Use the appropriate stirrer: the froth disc for milk froth, and the stirrers for milk drinks for thick preparations (hot chocolate, etc.). Do not operate the appliance without the lid.

Does the appliance stop automatically?

Yes, the appliance is equipped with an automatic shut-off at the end of the cycle. Depending on the mode selected, the cycle lasts between 80 and 240 seconds approximately. The indicator light of the selected button turns off when the appliance stops. You can also interrupt the cycle manually by pressing the button again.

Can I use plant-based milk?

The appliance is designed for all types of fresh milk, regardless of their fat content. Plant-based milks (soy, almond, oat, etc.) can be used, but their frothing ability varies. For best results, choose plant-based milks specifically formulated for frothing or fortified with protein. Always respect the maximum quantity of 400 ml.

USER MANUAL MSI400 BARTSCHER

Exterior view of a Bartscher coffee maker on a square base (no signage or text visible)

190129

Instruction manual Milk frother

from page 17 to 32

GB/UK

1.1 Safety instructions.... 18
1.2 Key to symbols 21
1.3 Intended use 22

2. General information 23

2.1 Liability and Warrantees 23
2.2 Copyright protection 23
2.3 Declaration of conformity.... 23

3. Transport, packaging and storage.... 24

3.1 Delivery check.... 24
3.2 Packaging 24
3.3 Storage.... 24

4. Technical data 25

4.1 Overview of parts 25
4.2 Technical specification 26

5. Installation and operation.... 27

5.1 Installation 27
5.2 Operation 28

6. Cleaning 31

7. Waste disposal 32

Read this instruction manual before using and keep them available at all times!

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

Please keep these instructions and give them to future owners of the device.

1. Safety

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

All persons using the device must follow the recommendations and instructions in this instruction manual.

1.1 Safety instructions

• The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers. Children should not play with the device. Cleaning and maintenance cannot be performed by children. Children under the age of 8 years old must be kept away from the device and its power cord.
• Never leave the device unattended when in use.
  • Only use the device indoors.

• The device is not adapted for use with an external timer or remote control.

• This device may only be operated in technically proper and safe condition.

• Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard!
• Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
• To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

DANGER! Electric shock hazard!

To avoid the hazard results please follow the safety instructions below.

• Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable.
• The power cable must not be folded, bent or tangled, and must always remain fully unrolled. Never place the device or other objects on the power cable.
• Do not lay the power cable over carpets or other inflammable materials. Do not cover the cable. Keep away the cable from operating range and do not immerse it into water.

• Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers.

• The supply cable must be disconnected from the socket only by pulling the plug.
  • Never carry or lift the device by the supply cable.

• In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.

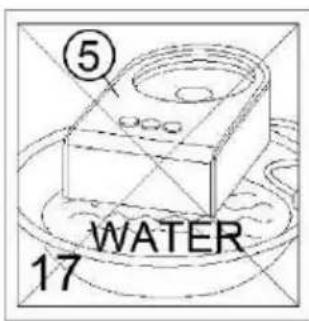

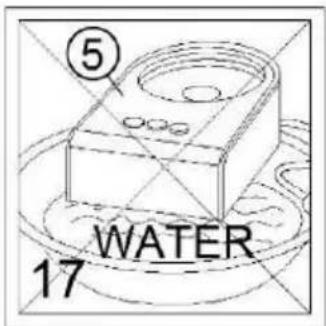

• Never immerse the appliance, the power cord and the power plug in water or other liquids.
• Do not use any acid agents and make sure no water ingresses the device.
• Never operate the device with moist hands or standing on wet floor.

• Remove the plug from its socket:

• when the device is not used,

• in case of anomalies during operation,
• before cleaning.

HOT SURFACE! Burn hazard!

To avoid the effects of this risk, follow the safety instructions presented below.

• The mug gets very hot when the device is in use. To avoid burns, do not touch it with bare hands. Remove it from the base only using its handle. To remove the lid from the mug use only the lid handle.
• The device remains hot for some time after it has been switched off. Leave it to cool off before cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards which could lead to injury.

WARNING!

This symbol highlights dangerous situations which could lead to injury or death.

HOT SURFACE!

This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns!

CAUTION!

This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device.

NOTE!

This symbol highlights recommendations and information aimed for effective and trouble-free device operation.

1.3 Intended use

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

The device is not suitable for continuous commercial use.

The device is intended for home use or in similar places such as:

→ in kitchens, for store or office employees or in other service locations;
→ in agricultural holdings;
→ by guests of hotels, motels and other typical places of accommodation;
→ in Bed & Breakfasts.

The Milk frother is intended only for preparing foamed milk, mixing milk-based drinks or heating milk.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

2. General information 2.1 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology.

CAUTION!

Read this manual carefully and thoroughly before any operation of the device, and especially before turning it on!

Manufacturer is not liable for any damages or faults caused by:

• violation of advice concerning operation and cleaning;
• use other than designed;
• alterations made by user;
• use of inadequate spare parts.

We reserve the right to make technical changes for purposes of developing and improving the useful properties.

2.2 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

2.3 Declaration of conformity

The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
• In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

4. Technical data

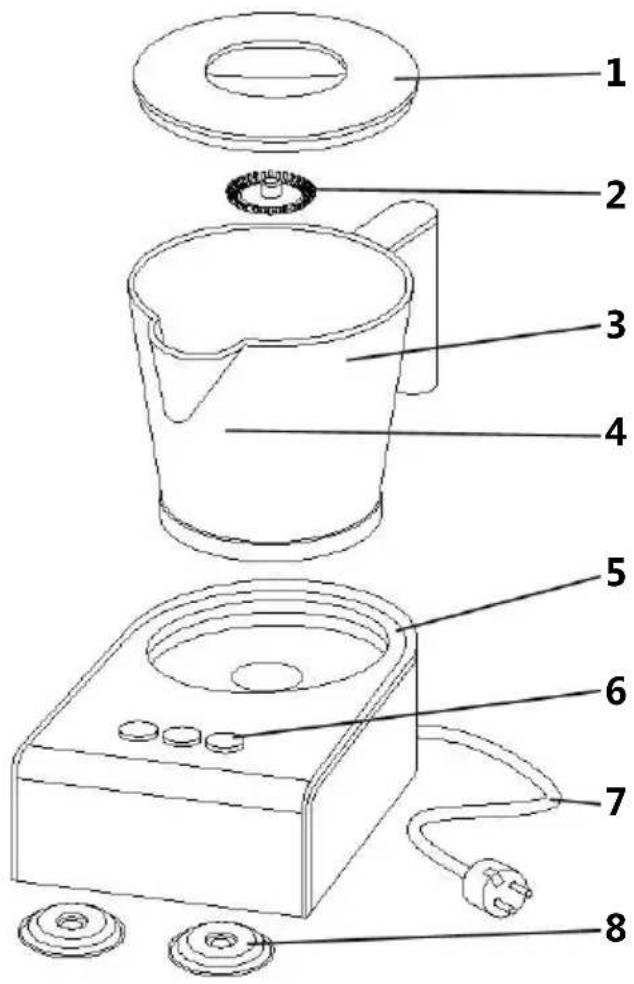

4.1 Overview of parts

1 Lid
2 Mixing rod (disc) for milk foam
3 Removable mug
4 MIN/MAX lines in mug
5 Base
6 Function buttons

7 Power cord
8 Mixing rod (disc) for mixed milk-based drinks (2)

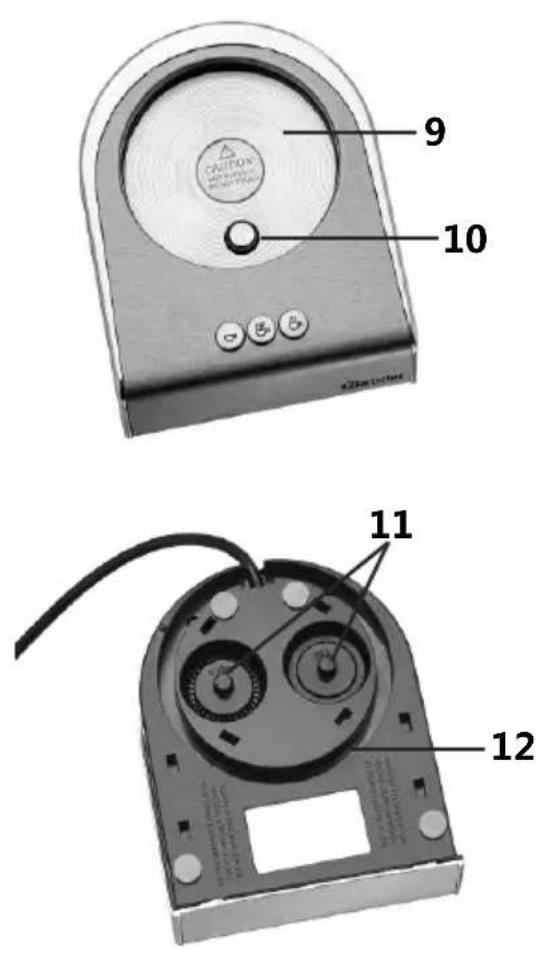

9 Heating plate
10 Switch
11 Mixing rod storage
12 Cord storage

4.2 Technical specification

Name	Milk frother "Induction" MSI400
Art. no.:	190129
Material:	Base: stainless steel,Removable mug: stainless steel,lid: plastic
Functions (3):	cold foaming,65 °C frothing/heating,70 °C frothing/heating
Power: 600 W / 230 V	50 Hz
Dimensions: W 125 x	D 150 x H 180 mm
Weight: 1.1 kg
Equipment:	3 magnetic mixing rods:1 x for milk froth,2 x for mixing milk-based drinks

We reserve the right to make technical changes!

Characteristics

easy, fully-automatic foaming of milk to creamy or thick consistency, or simple heating;
perfect for both hot and frozen coffee creations;
▶ automatic switch-off;
no preheating of milk required - suitable for fresh milk of all fat levels;
➢ energy-saving induction technology: burning milk is impossible;
➢ Foaming of 150 ml of milk during approx. 80-90 seconds, heating of 400 ml of milk during approx. 240 seconds;
4 non-slip silicone feet;
▶ cord storage;
easy cleaning: mug, lid and mixing rods dishwasher safe

5. Installation and operation

5.1 Installation

Positioning

- Unpack the device and remove the packing material. Ensure no packing elements are accessible to children. Risk of suffocation!

CAUTION!

Never remove the nameplate and warning signs from the device.

• Put the device on an even, stable, dry and waterproof surface which is resistant to high temperature.
• Never place the device on an inflammable surface.
• Never place the device at the edge of a table to avoid tilting or falling.
• Never put the device in a moist or wet area.
• Do not place the device near open flame, electric heaters or other heat source.
• Place the device so that the plug is easily accessible so as to quickly disconnect the device if the need arises.

Connection

DANGER! Electric shock hazard!

The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance! Connect the device only to properly installed single socket with protective terminal.

- The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips.

5.2 Operation

• Before using the device, clean it thoroughly in accordance with the instructions contained in 6 „Cleaning“.
• Place the device on a table, with a surface resistant to heat and which is dry, level and stable.
  • Prepare milk for foaming.

NOTE!

The heating function means makes preheating milk unnecessary.

Preparing frothed milk

Fig. 1 Remove the lid from the mug.

Fig. 2 Place the milk foaming rod in the mug.

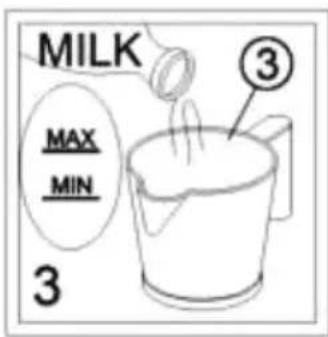

Fig. 3 Pour the desired amount of milk into the mug (not above the MAX marking of 400 ml). If more milk is poured into the mug, it may splash during foaming.

Fig. 4 Put the lid on the mug.

Fig. 5 Place the mug on the heating plate. Connect the device to a single grounded socket.

Fig. 6 To foam and heat milk, press

the button marked for heating milk to approx. 65 °C, the button marked for heating milk to approx. 70 °C.

To foam cold milk, press the button marked 🌐

After activating the device, the control light for the relevant button will come on and milk will be foamed. After a short time (approx. 90 to 240 seconds) the device will turn off automatically, the control light will go odd and the mug may be removed; fill your coffee cup with cold/warm milk foam.

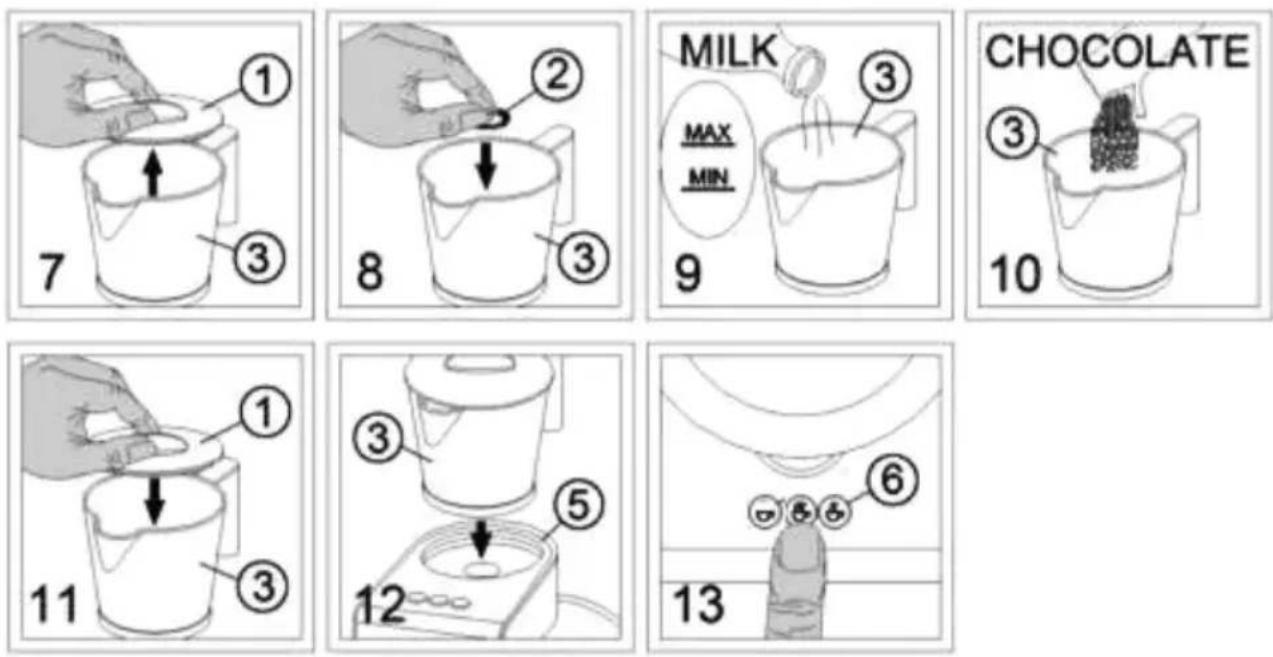

Preparing hot chocolate

Fig. 7 Remove the lid from the mug.
Fig. 8 Place the milk foaming rod in the mug.
Fig. 9 Pour the desired amount of milk into the mug (not above the MAX marking of 400 ml). If more milk is poured into the mug, it may splash during foaming.
Fig. 11 Place the lid on the mug.

Fig. 10 Place the desired amount of chocolate powder into the mug.

Fig. 12 Place the mug on the heating plate. Connect the device to a single grounded socket.

Fig. 13 Press the button marked 🎨 on the device's base; the control light will come on, then the chocolate will be heated. After between 90-480 seconds the device will turn off automatically and the control light will go off. Remove the mug with hot chocolate and pour into cups. If it becomes necessary to turn the device off during heating, press the button. To resume heating, press the button again.

Heating milk

• Remove the lid from the mug.
• Remove the mixer from the mug.
  • Pour the desired amount of milk into the mug and heat it by pressing
  the button marked for heating milk to approx. 65 °C, the button marked for heating milk to approx. 70 °C.
• When finished heating the device will turn off automatically.
• Remove the mug from its base and pour milk into your coffee cup.

• To speed up the heating process, place a bit of water on the bottom of the mug like in the picture.

Preparing mixed milk-based drinks

• Remove the lid from the mug.
• Place the mixed milk-based drinks mixing rod inside the mug.
• Pour the desired amount of milk and extras into the mug (not above the MAX marking of 400 ml). If more milk is in the mug, it may spill over.
• Mix the drink.

6. Cleaning

WARNING!

Disconnect the device from the power supply (unplug!) before cleaning. Let the device cool down.

The device is not designed to be rinsed with running water.

Do not use a pressure washer to clean the device!

Be careful and do not let the water into the device.

• Clean the device regularly.
  Before cleaning, remove the device's plug from its socket and leave it to cool.

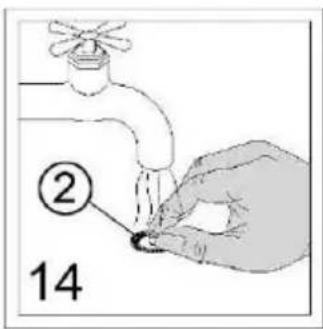

Fig. 14 Wash the mixing rods thoroughly under warm running water. As needed, a mild cleaning agent can be used. Rinse them with clean water to remove any leftover cleaning substances.
Fig. 15 Pour a bit of warm water into the mug after every use in order to wet any remaining milk. Water will prevent leftover milk and flavours from gathering at the bottom of the mug. This makes cleaning easier, and avoids substances from burning during the next heating process. Use a soft brush or cloth for cleaning the mug. Rinse thoroughly with clean water.
Fig. 16 Never wash the device's base under running water. Wipe the base with a soft, moist cloth.

Fig. 17 Never immerse the device's base in water or other liquids. If water gets inside the device it will cause a risk of electric shock when used.

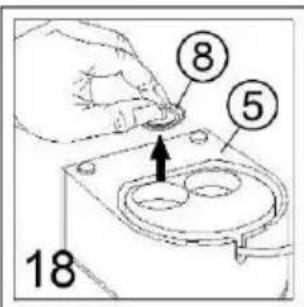

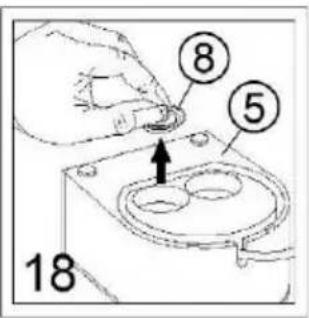

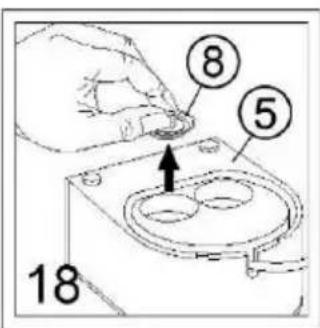

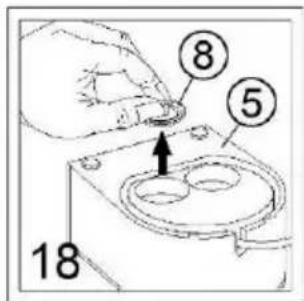

Fig. 18 When finished using the device, place the mixing rods and power cord in the storage areas at the bottom of the device.

- Use only soft cloths, never use harsh cleaners that could damage the device's surface.

- After cleaning, dry the device's surface and polish with a dry cloth.

7. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

CAUTION!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH

4.2 Indications techniques

4. Specifications 105
