USER MANUAL 190.128 BARTSCHER

Oi oyniecs xphoans Tou akoalouoov

Euokeu npaywyns aqpoyalou

D/A/CH	Bedienungsanleitung griffbereit am Produkt aufbewahren!	Seite 1 bis 12
GB/UK	Keep this instruction manual ready to hand at the product!	from page 13 to 24
F/B/CH	Conserver le mode d'emploi à portée de main avec le produit	de page 25 à page 36
I/CH	Il manuale di utilizzo deve essere sempre accessibile!	pageine da 37 a 48
E	iMantenga las instrucciones en un sitio accesible!	de la página 49 a la 60
P	Mantenha este manual de instruções pronto a ser utilizescado com o produits!	as páginas desde 61 até 72
NL/B	Bedieningshandeliding binnen handbereik van het product bewaren!	blz. 73 t/m 84
DK	Brugsanvising skal altid vare lige ved harenden!	side fra 85 til og med 96
RUS	Инструктою по эхellenуатчинхразиь в достуйом месе!	страниça 97 do 108
TR	Kullanma kulavuzu ürünün yakıninda hari hazir tutulmalidir!	sayfalar: 109-120
PL	Instrukcja obslugi powinna byc zawsze pod ręka!	strony od 121 do 132
CZ	Návod k obsslze by měl být vždy po ruce!	stránka 133 až 144
HR	Upute za upotrebu trebaju biti uvijek pri ruci!	stranica 145 do 156
H	A használati útmató mindig legyen kéz alatt !	157 - 168. oldal
GR	Одneyдах рожддов ackoаошоiv� πρέται va εieval συνεχός νυώρη!	σελίδες από 169 ως 180

1. Allgemeines 2

1.1 Information about the instruction manual 14
1.2 Key to symbols 14
1.3 Liability and Warrantees 15
1.4 Copyright protection 15
1.5 Declaration of conformity 15

2. Safety 16

2.1 General information 16
2.2 Safety instructions for use of the device 16-17
2.3 Intended use 17

3.Delivery,packaging and storage 18

3.1 Delivery check 18
3.2 Packaging 18
3.3 Storage 18

4. Technical data 19

4.1 Technical specification 19
4.2 Overview of parts 19

5. Installation and operation 20

5.1 Safety instructions 20
5.2 Installation and connection 21
5.3 Operating 21-22

6. Cleaning and maintenance 22

6.1 Safety advice 22
6.2 Cleaning 22-23
6.3 Safety instructions for maintenance 23

7.Waste disposal 24

Bartscher GmbH

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device.

WARNING! Hot external surface!

This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns!

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology. If you have any questions, you should contact the manufacturer.

NOTE!

Read the instruction manual carefully before using the device. The manufacturer does not accept liability for any damage or malfunction resulting from not following the instructions for use.

The instruction manual should be kept near the device, easily accessible for anyone wishing to work with or using it. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity.

If required we will be glad to send you the according declaration of conformity.

2. Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

2.1 General Information

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications.

Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.

CAUTION!

The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device.
Children should be observed to ensure that they are not playing with the device.
o Preserve this manual safely. When passing on/selling the device to a third party, the manuals must be handed over along with the device.
○ Every person using the device must act in accordance to the manuals and under consideration of the safety advice.
The device is to be used indoors only.

2.3 Intended use

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

The device is not intended for commercial use.

The milk frother is intended only for frothing milk.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt.

In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint.

Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
  In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

4. Technical data

4.1 Technical specification

Name	Milk frother
Article no.:	190.128
Construction:	Plastic
Volume:	800 ml
Temperature range:	0 °C – max. 75 °C
Power:	230 V ~ 50 Hz 550 W
Dimensions:	W 155,5 x D 131 x H 226,5 mm
Weight:	0.85 kg

We reserve the right to make technical changes!

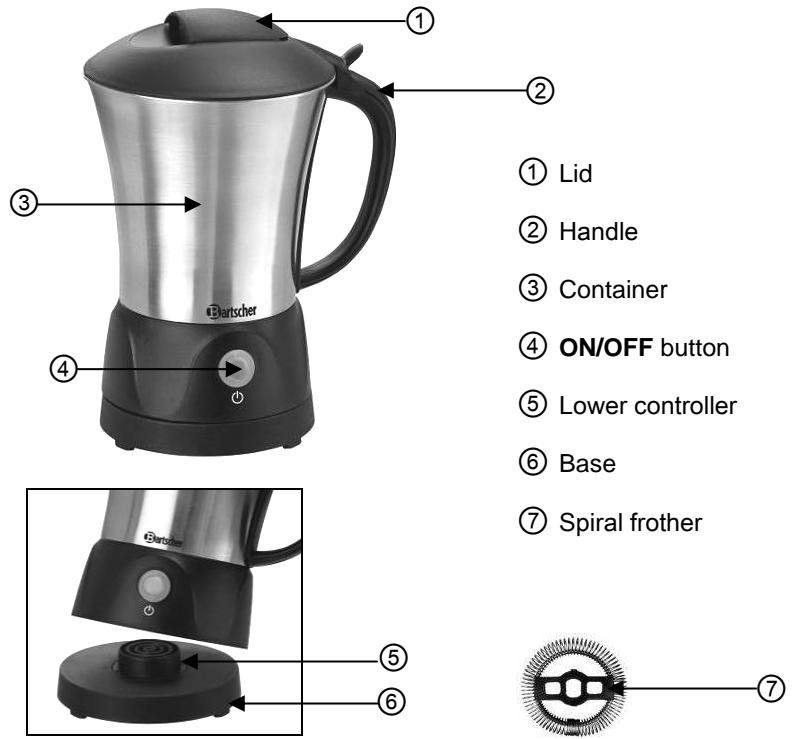

4.2 Overview of parts

5. Installation and operation

5.1 Safety instructions

WARNING! Electrical hazard!

The device must only be connected to a properly installed single socket with protective contact.

Never yank cord to disconnect from outlet.

Cable must not touch any hot parts.

• See that the cable does not touch any heat sources or sharp edges. Do not let the cable dangle over the counter edge.

WARNING! Hot surface!

During operation some elements of the device very become hot. To avoid burns, do not touch hot elements!

• Do not use the device in case it does not function properly, has been damaged or dropped.
• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.
• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.
• Do not move or tilt the device when in operation.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that of the device (see type label).

Connect the device only in case of compliance!

Take note of the security advice!

5.2 Installation and connection

• Discard the complete packing material after unpacking the device.
• Place the device on top of an even and safe surface which supports the weight of the device and is not heat sensitive.
• Not at any time should you place the device on an inflammable surface (such as: table cloth, carpet, etc.).
• You must not position the device near open fireplaces, electric ovens/arc furnaces, furnaces/electric heaters or other heat sources.
• The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket; do not use any extension cords or power strips.
• Place the device so that the plug is easily accessible and can be quickly removed from its socket in case of necessity.

5.3 Operating

• Wash the device thoroughly prior to first use (see 6.2 Cleaning).
• Place the device's base on a table. The table surface must be temperature resistant, dry, flat and stable.
• Place the container on the base to that the lower controller is inserted into the appropriate openings in the base.

Frothing milk:

1. Open the plastic lid and mount the spiral frother to the bottom of the container.

NOTE!

It is not necessary to heat the milk thanks to the integrated hearing function.

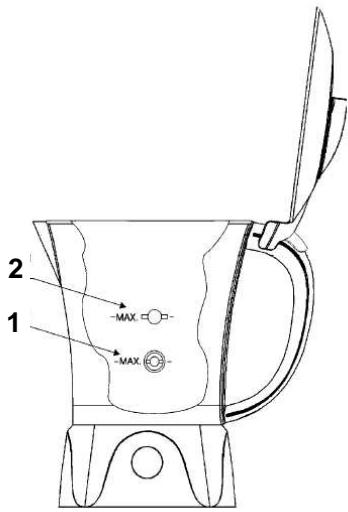

1. Pour fresh, cold milk into the container, up to the lower "MAX" marking (1).
2. Plug the device into a grounded socket.
3. Press the ON/OFF switch. The control light at by button will come on.
4. The milk inside the container will be stirred and heated.
5. The device will automatically turn itself off after 90 seconds.

WARNING! Hot surface!

When in use the container is very hot. To avoid burns, never touch the container with bare hands. To remove the container from the base, hold it by the handle.

1. After the device goes off, the frothed milk is ready.

Heating milk

Fix the spiral frother to the bottom of the container.
- Pour fresh, cold milk into the container, up to the upper „MAX" marking (2).
Plug the device into a grounded socket.
- Press the ON/OFF button. The control light by the button will come on.
- The milk in the container will be stirred and heated.
- If the device will not be used further, disconnect it by removing the plug from its socket.

6. Cleaning and maintenance

6.1 Safety advice

Before beginning with repair or cleaning works make sure the device has been disconnected from power socket (pull the power plug!!!) and has cooled down.
o Do not use any acid agents and make sure no water ingresses the device.
To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

CAUTION!

The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!

6.2 Cleaning

o Wash the device regularly.
○ Remove the device's plug from its socket prior to washing. Leave the device to cool.
For easier washing, remove the spiral frother and lid from the container. Wash these elements in warm water with a washing-up liquid. Rinse under running water in order to remove all washing-up liquid.
Pour a small amount of warm water into the container after each use. This water prevents any remaining milk and other substances from drying and sticking to the Teflon coating. This makes it easier to wash the device, and during the next use helps to avoid scorching of such substances.

○ Use a soft brush or sponge for washing the container. After washing, rinse under running water.
- Never wash the container in a dishwasher, as it contains electrical parts that may be damaged if wet!

WARNING! Hazard via electrical current!

Never immerse the container in water or other liquids. There is a danger of electric shock.

• Wash the base with a soft, moist cloth. Ensure no water gets into the lower controller.
  ○ Use only soft cloths, never use harsh cleaners that may damage the device's surface and interior Teflon coating.
  After washing, dry the surface of the device and polish with a soft, dry cloth.
  Ensure that the device has been thoroughly washed.

6.3 Safety instructions for maintenance

Check the mains connection cable for damage from time to time. Never operate the device when the cable is damaged. A damaged cable must immediately be replaced by customer service or a qualified electrician to avoid dangers.
In case of damage or malfunction, please contact your stockist or our customer service centre.
o Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

7. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH
