Product type	Immersion blender
Brand	Bartscher
Model	130206
Code	130206
Power supply	230 V ~ 50 Hz, 700 W
Speeds	5 levels (continuous adjustment)
Blender shaft length	207 mm
Total length	410 mm
Weight	1.05 kg
Motor housing material	Die-cast metal
Handle material	Plastic
Blender shaft material	Stainless steel
Package contents	1 whisk, 1 mixing beaker (800 ml), 2 special containers with curved blade (500 ml + 1250 ml), 1 lid suitable for both containers, 2 non-slip counter mats, 1 wall bracket
Key functions	Blend, purée, chop, mix, beat (cream, egg whites)
Use as chopper	Yes, with special containers and curved blades for meat, cheeses, onions, herbs, etc.
Use of whisk	Beat cream, egg whites, pre-mix cake batter, desserts
Safety	Automatic shut-off in case of overload; never operate outside a container; blade is very sharp – wear protective gloves when cleaning
Cleaning and maintenance	Motor housing cleaned with a damp cloth; other parts dishwasher-safe; do not immerse motor housing
Wall bracket included	Yes, for wall storage
Warranty	CE compliance; manufacturer's warranty according to terms

Frequently Asked Questions - 130206 BARTSCHER

How to use the Bartscher 130206 immersion blender?

Insert the stainless steel blender shaft into the motor housing until it locks. Place it into the container with food, set the speed from 1 to 5, then press button I (slow rotation) or II (fast rotation) to start.

Can I use the blender to chop meat?

Yes, with the special containers and curved blade. Place the meat cut into 1-2 cm pieces into the container (max 250 g for 500 ml, 500 g for 1250 ml), close the lid, attach the motor housing and press button II. Do not exceed 10 seconds of continuous operation.

How to clean the blender?

Unplug the appliance and let it cool down. The motor housing is cleaned with a damp cloth, never immerse it. All other parts (whisk, blender, containers, lids) can be washed in the dishwasher or with hot water and mild detergent. Caution: the curved blade is very sharp, wear protective gloves.

What are the power and voltage of the appliance?

The appliance operates on 230 V ~ 50 Hz with a power of 700 W. Only plug into a grounded outlet.

How long can I use the blender continuously?

For the hand blender, do not exceed 1 minute without a break. For the whisk, do not exceed 2 minutes without a break. Observe these times to avoid overheating.

Is the blender suitable for blending hot foods?

Yes, the blender can be used for hot soups, but do not immerse it in boiling liquid. Let it cool slightly before blending. The mixing beaker withstands moderate heat.

What to do if the appliance does not work?

First check that the appliance is properly plugged in and the fuse has not tripped. Ensure the blender or whisk is correctly locked. If the problem persists, contact an authorized after-sales service. Do not attempt to repair it yourself.

Can I use non-supplied accessories?

No, only use accessories and spare parts recommended by the manufacturer. Using non-compliant accessories may pose a hazard and void the warranty.

How to store the blender?

Use the included wall bracket to mount the blender on the wall. Alternatively, you can place it flat on a non-slip counter mat. The blender does not stand upright on its own.

Can children use this appliance?

Children from the age of 8 may use it under supervision. Do not let children play with the appliance. Cleaning and maintenance should not be performed by children under 8 without supervision.

USER MANUAL 130206 BARTSCHER

Product photo of kitchen utensils including blender, mixing bowl, whisk, and stand mixer (no text or symbols visible)

130206

Bedienungsanleitung

Stabmixer

Seite 1 bis 14

D/A/CH

Instruction manual

Stick mixer

from page 15 to 28

GB/UK

Mode d'emploi

Mixeur à main

Labeled diagram of a blender with 16 parts including a blender, blender, and cup, showing internal components.

Exterior view of a modern office building (no signage)

Diagram illustrating four stages of a digital brush tool: adding, mixing, stirring, and adding into a bowl.

Diagram illustrating a mechanical device operation with labeled steps and warning symbols

Diagram illustrating the step-by-step cooking process of a hand mixer, showing mixing and whisking steps.

ACHTUNG!

of the original instruction manual

Read these instructions before using and keep them available at all times!

1. General information.... 16

1.1 Information about the instruction manual 16
1.2 Key to symbols.... 16
1.3 Liability and Warrantees.... 17
1.4 Copyright protection 17
1.5 Declaration of conformity.... 17

2.Safety 18

2.1 General information.... 18
2.2 Safety instructions for use of the device 18
2.3 Intended use 19

3. Transport, packaging and storage.... 20

3.1 Delivery check....20
3.2 Packaging 20
3.3 Storage....20

4. Technical data 21

4.1 Overview of parts 21
4.2 Technical specification 22

5. Installation and operation.... 22

5.1 Safety instructions....22
5.2 Operation 23

6. Cleaning and maintenance.... 27

6.1 Safety advice....27
6.2 Cleaning 27
6.3 Safety instructions for maintenance 28

7. Waste disposal 28

Bartscher GmbH

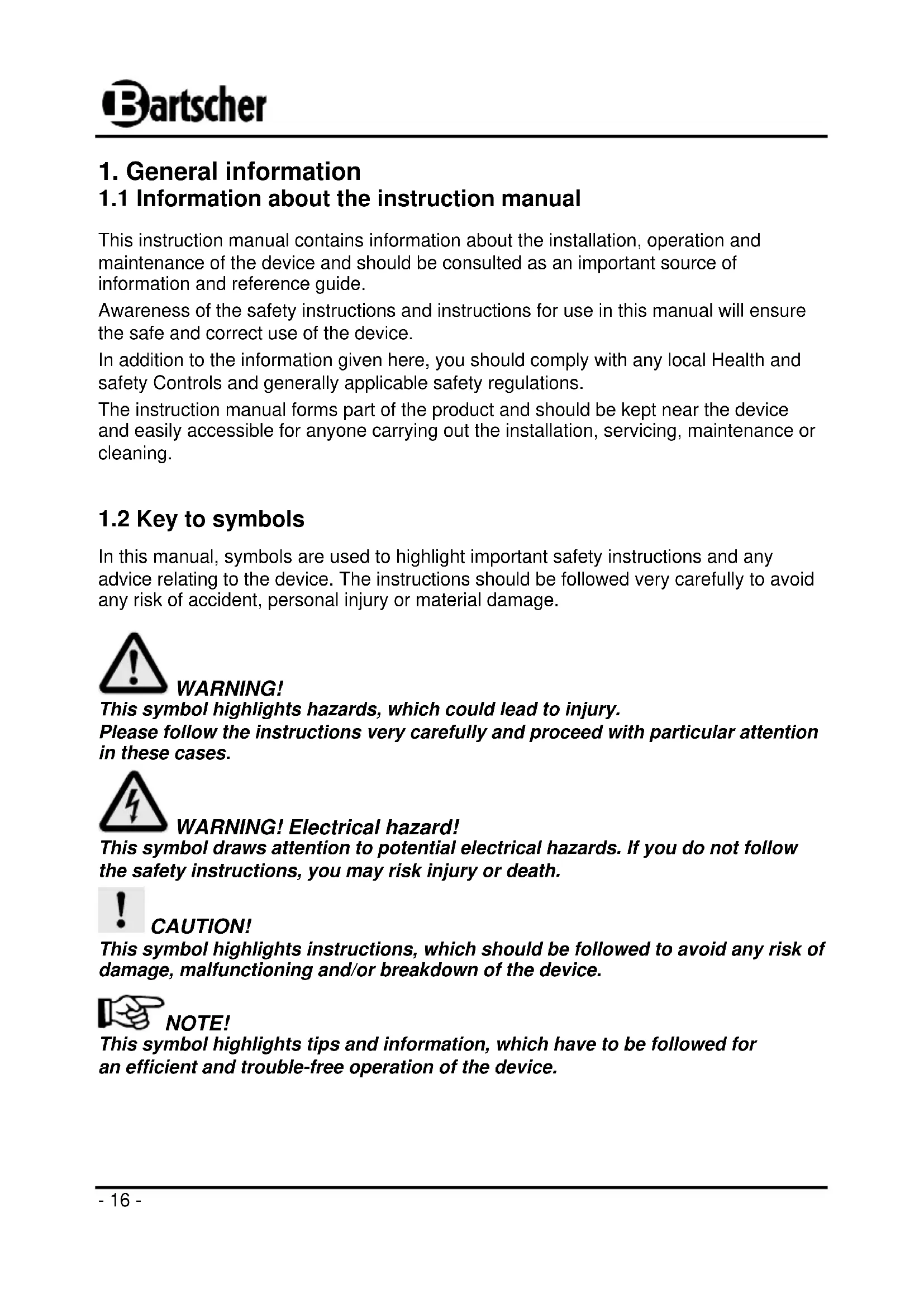

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device.

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology. If you have any questions, you should contact the manufacturer.

NOTE!

Read the instruction manual carefully before using the device. The manufacturer does not accept liability for any damage or malfunction resulting from not following the instructions for use.

The instruction manual should be kept near the device, easily accessible for anyone wishing to work with or using it. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved.

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity.

If required we will be glad to send you the according declaration of conformity.

2.Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

2.1 General information

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications.

Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.

CAUTION!

The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers.
○ Children should not play with the device.
○ Cleaning and maintenance cannot be performed by children younger than 8 years old and must be done under supervision.
○ Children under the age of 8 years old must be kept away from the device and its power cord.
o Please keep these instructions and give them to future owners of the device.
- All people using the device should follow the instructions and tips contained in these instructions.
○ Only use the device indoors.

2.3 Intended use

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only.

The stick mixer is intended only for stirring, mulling puree, grinding and mixing of appropriate foodstuffs.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible.

The operator is liable for all damages resulting from inappropriate use.

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier's bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

• Do not store outdoors.
• Keep it dry and dust-free.
• Do not expose it to aggressive media.
• Do not expose it to direct sunlight.
• Avoid mechanical shocks and vibration.
• In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.

4. Technical data 4.1 Overview of parts

Labeled diagram of a blender with 16 parts including blender, blender, and cup, showing internal components and parts.

A Speed regulator
B Switch I
C Switch II
D Motor body
E Mixing arm
F Whisk handle
G Whisk
H Cover for special containers 500 ml + 1250 ml

I Falcate knife for special container 1250 ml

J Special container 1250 ml

K Falcate knife for special container 500 ml

L Special container 500 ml

M Lid for special container 500 ml + 1250 ml

N Mixing container 800 ml

O Lid for mixing container 800 ml

P Wall-mounted clamp

4.2 Technical specification

Description Stick mixer
Code-No.:	130206
Construction:	Casing: cast metal; Handle: synthetic materials;Mixer arm: stainless steel
Power: 230 V 50 Hz 700 W
Speeds: 5
Dimensions: Motor body length: 207 mm, Total length: 410 mm
Equipped with:	1 whisk, 1 mixing container (800 ml);2 special containers with falcate knife (500 ml + 1250 ml),1 fitted cover, suits both containers;2 anti-slick pads; 1 wall clamp
Weight: 1,05 kg

We reserve the right to make technical changes!

5. Installation and operation

5.1 Safety instructions

WARNING! Risk of electric shock!

The device must only be connected to a properly installed single socket with protective contact.

Never remove the power cable by pulling the cable itself; always grab the plug housing.

• Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable.
• The power cable must not be folded, bent or tangled, and must always remain fully unrolled.
• Never place the device or other objects on the power cable.
• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.
• Do not use the device in case it does not function properly, has been damaged or dropped.

• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.

• Never use the device with wet or moist hands.

• Never touch the devices' moving parts whilst its turned on.

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that of the device (see type label).

Connect the device only in case of compliance!

Take note of the security advice!

5.2 Operation

Unit mounting and setup

• Unpack the unit and remove all packing material.
• The set includes a useful wall-mounted clamp, allowing for space saving and easr-of-access to the mixer. Fix the clamp to a convenient location and place the mixir in it.
• If the wall-mounted clamp will not be used, lay the mixer on a flat surface as it is not stable in an upright position.
• Clean the unit prior to first use (see 6.2 „Cleaning“).
  • Prepare foodstuffs for processing.
• Connect the unit to an appropriate electrical outlet.

Exterior view of a modern office building (no signage)

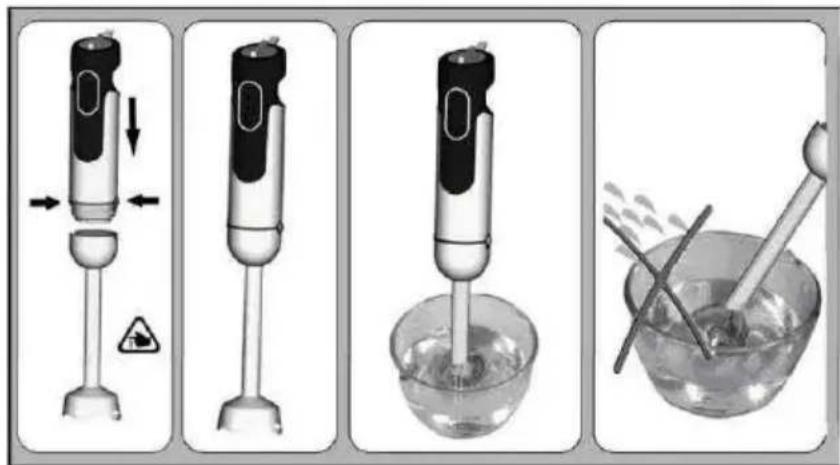

Using the stick mixer

The stick mixer is best for preparing dips, sauces, soups, mayonnaise, dishes for children, and mixing of milk-based dishes and cocktails.

Diagram illustrating four stages of a digital device: adding a sensor, using a dropper, adding liquid, and adding a dish with chopsticks.

1. Fix the stainless steel mixer to the motor body by inserting it until it clicks into place.
2. Insert the mixing arm into a container with the foodstuff intended for processing.
3. Choose a speed from 1 - 5 using the speed regulator located at the top of the motor body. Select „I“ (low speed) or „II“ (high speed) to start the unit.
4. The stick mixer may be used in a measuring cup or other container.

CAUTION!

Never turn the unit on outside a container!

1. After finishing, turn the unit off and remove the plug from its socket..
2. Disconnect the mixing arm from the motor body.

CAUTION!

Never leave the unit turned on for longer than one minute.

WARNING! Danger of injury!

The unit's knife is very sharp, be careful when handling the stick mixer!

Using the stick mixer as a dicer

The stick mixer can be used as a dicer for harder foodstuffs such as meat, cheese, onions, herbs, garlic, carrots, nuts, plums, etc.

ATTENTION!

Never dice very hard products, such as ice, nutmeg, coffee beans or grains.

Diagram illustrating a mechanical device operation with labeled parts and directional arrows indicating motion or assembly.

Prior to dicing...

1. Carefully remove the plastic cover from the knife.

WARNING! Danger of injury!

The falcate knife is very sharp! For this reason the unit should be held by the part made of synthetic material.

1. Place the falcate knife in the desired special container. Press down until the knife locks into place. Place the special container on the anti-slick pad.
2. Place the foodstuffs in the special container.
3. Put the lid on the special container.
4. Screw the motor body onto the special container lid until it locks into place.
5. Press the „II” button to activate the dicer. While in use, hold the motor body with one hand and the special container with the other hand.
6. After finishing, turn the unit off and remove the plug from its socket.
7. Unscrew the motor body from the special container lid.
8. Carefully remove the lid and falcate knife.
9. Remove the foodstuff from the special container.

Preparation of particular foodstuffs (for the special container)

Dish	Quantity (max)	Time needed (in seconds)	Quantity (max)	Time needed (in seconds)	Preparation
Special container 500 ml			Special container 1250 ml
Meat 250 g 8	500 g 10 1	-2 cm
Herbs 50 g 8	100 g 8
Nuts 100 g 8	300 g 10
Cheese 100 g	5 200 g 8	1-2 cm
Bread 80 g 5	160 g 6 2 cm
Onions	150 g 8	300 g 8 2 cm
	Special container 500 ml		Special container 1250 ml
Baked goods	150 g 6 300	g 6 2 cm
Soft fruits 200	g 6 400 g	8 1-2 cm
Flour Water Yeast Sugar Salt	/ / 400 g			10	/
	/ / 240 g /
	/ / 8 g /
	/ / 8 g /
	/ / 8 g /

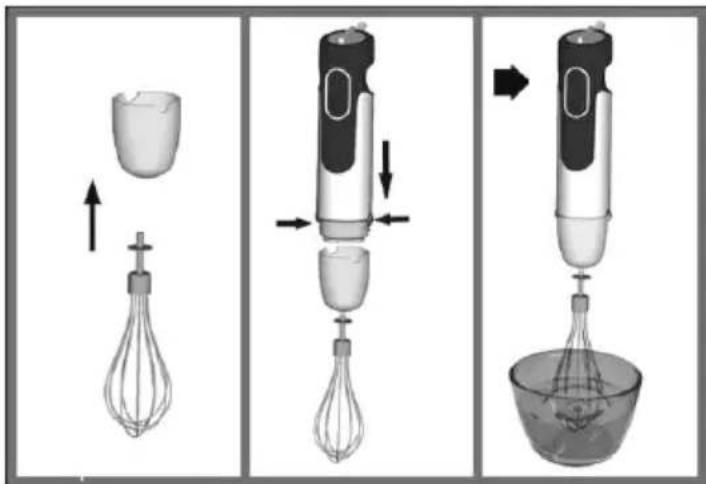

Use of unit with whisk

Use the whisk only for whisking of cream, eggs, cake mixes and prepared deserts.

1. Insert the whisk into its socket and turn the casing of the motor body until it clicks into place.
2. Insert the whisk to the appropriate container and select the desired speed (1 - 5). Turn the switch do „I“ or „II“ to activate the whisk.

Diagram illustrating the step-by-step cooking process of a hand mixer, showing mixing, whisking, and pouring steps.

! CAUTION!

Never operate the whisk for longer than two minutes.

1. After finishing, turn the unit off and remove the plug from its socket.
2. Turn the motor body. Remove the whisk from the casing.

6. Cleaning and maintenance

6.1 Safety advice

Before beginning with repair or cleaning works make sure the device has been disconnected from power supply and has cooled down.
o Do not use any acid agents and make sure no water ingresses the device.
To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids.

CAUTION!

The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!

6.2 Cleaning

o Clean the unit regularly.
o Clean the motor body only with a moist cloth.

CAUTION!

Never immerse the motor body in water or other liquids!

o Clean removable parts with a mild cleaning agent and warm water. Rinse with clean water. Leave out to dry.

WARNING! Danger of injury!

The falcate knife is very sharp. Be careful when cleaning! Never touch the knife with bare hands! Always wear protective gloves when cleaning!

o All removable parts (excepting the motor body) may be washed in a dishwasher.
o Ensure that the dishwasher has an appropriate level of cleaning and descaling agents.
○ If the foodstuffs processed contain colorings, the part made of synthetic materials may be colored. These parts should be wiped down with vegetable oil prior to placing them in the dishwasher.

6.3 Safety instructions for maintenance

• Inspect the power cable regularly for damage. Never use the device if the cable is damaged. If the power cable is damaged, have an authorised service center or qualified electrician replace it.
• In case of damage or malfunction, please contact your stockist or our customer service centre.
  ○ Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.

7. Waste disposal

Discarding old devices

At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community.

WARNING!

To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device.

NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.

Bartscher GmbH

A B C D E F G H I J K L M N O -P

4.2 Indications techniques

Exterior view of a modern office building (no signage)

Diagram illustrating a laboratory setup with four stages: electrophoresis, liquid displacement, and mixing bowl.

Diagram illustrating a mechanical device operation with labeled steps and warning symbols

Avant de hacher...

Diagram illustrating the step-by-step cooking process of a hand mixer, showing mixing, whisking, and pouring steps.

ATTENTION!

A B C D E F G H I J K L M N O P

Exterior view of a modern office building (no signage)

Diagram illustrating four stages of a digital device: adding a sensor, adding liquid, adding a glass bowl with chopsticks, and adding a dish with chopsticks.

Diagram illustrating a mechanical device operation with labeled steps and warning symbols

Diagram illustrating the step-by-step cooking process of a hand mixer, showing mixing and whisking steps.

OPGELET!

A B C D E F G H I J K L M N O P

Exterior view of a modern office building (no signage)

Diagram illustrating four stages of a digital device with labeled components and warning symbols

Diagram illustrating a mechanical device operation with labeled parts and directional arrows indicating process flow.

Diagram illustrating the step-by-step cooking process of a hand mixer, showing mixing and whisking steps.

OSTRZEŻENIE!
