Product type	Digital breathalyzer
Brand	Seecode
Model	UNI1017
Dimensions	95 x 36 x 18 mm
Power supply	2 AAA alkaline batteries 1.5 V
Main functions	Alcohol test, audible warning signal, auto power-off, low battery indicator
Accuracy	0.01% BAC (0.1 g/l)
Measurement range	0.00% to 0.19% BAC (0.0 to 1.9 g/l)
Warm-up time	10 seconds
Response time	Less than 5 seconds
Auto power-off	After approx. 35 seconds
Display	LCD screen
Sensor	Advanced semiconductor oxide
Box contents	Breathalyzer, wrist strap, user manual
Care and cleaning	Do not use chemicals (benzene, thinner, gasoline); do not inject liquid
Safety	Do not smoke or eat 20 minutes before test; wait 20 minutes after alcohol consumption; do not use near excitant substances
Usage precautions	Wait 3 minutes between tests; do not modify internal components
Intended use	Aid to promote sensible driving, not intended for legal or medical use
Rest after use	Wait 20 minutes after drinking before testing

Frequently Asked Questions - UNI1017 Seecode

How to install the batteries?

Slide the battery compartment cover on the back of the device to open it. Insert two alkaline AAA batteries (UM-4) following the indicated polarity. Put the cover back on.

How to perform a test?

Turn on the device by pressing the power button once. Wait for the end of warm-up (countdown from 10 to 0). When the 'Blow' icon appears, exhale into the mouthpiece for 3 to 5 seconds. Read the result on the LCD screen.

What does the 'Caution' symbol mean?

The 'Caution' symbol appears when the alcohol concentration reaches an intermediate level: between 0.02% and 0.05% BAC (or 0.2 g/l and 0.5 g/l). It indicates a warning.

What does the 'Danger' symbol mean?

The 'Danger' symbol appears with an audible signal if the alcohol level is equal to or exceeds 0.05% BAC (or 0.5 g/l). It indicates a high alcohol level.

Why does the device turn off automatically?

The device turns off automatically about 15 seconds after displaying the result. The 'OFF' symbol then appears for 2-3 seconds before shutdown. This saves battery power.

How to know if the batteries are low?

If the 'L' symbol blinks on the screen, it indicates low batteries. The device will turn off automatically. Replace the used batteries with two new AAA batteries.

Should I wait before taking a test after drinking?

Yes, it is recommended to wait at least 20 minutes after drinking before taking a test. This allows the alcohol to be absorbed into the blood and any residual alcohol in the mouth to dissipate.

Can I clean the device with alcohol?

No, do not use chemicals such as benzene, thinner, or gasoline. Do not clean the device with liquids and do not inject any liquid into the breath tube.

Can I use the device for legal control?

No, this breathalyzer is designed as an aid to promote sensible driving. It should not be used for legal or medical decisions. The manufacturer disclaims any legal responsibility regarding the results.

What to do if the device displays '0.00'?

If you do not exhale into the mouthpiece during test mode, the screen will show '0.00'. Make sure to blow properly for 3 to 5 seconds. If the problem persists, check the batteries or perform a new warm-up.

USER MANUAL UNI1017 Seecode

This product is in accordance with all relevant regulations of the European parlament. The full CE-declaration with all applied test standards can be found as download on our homepage www.s2g.info

Technical diagram of a mobile phone with labeled parts including screen, lens, and battery casing

Diagram of a remote control device showing internal components and battery structure (no text or labels)

Diagram of a digital glucose meter with a hand pressing the button, showing measurement display and control buttons.

Warm up 8 8

Before 9 9

Simple line drawing of a person's face with a book, no text or symbols present

Line drawing of a device with a handle and ventilation slots, no text or symbols present

Spezifikationen

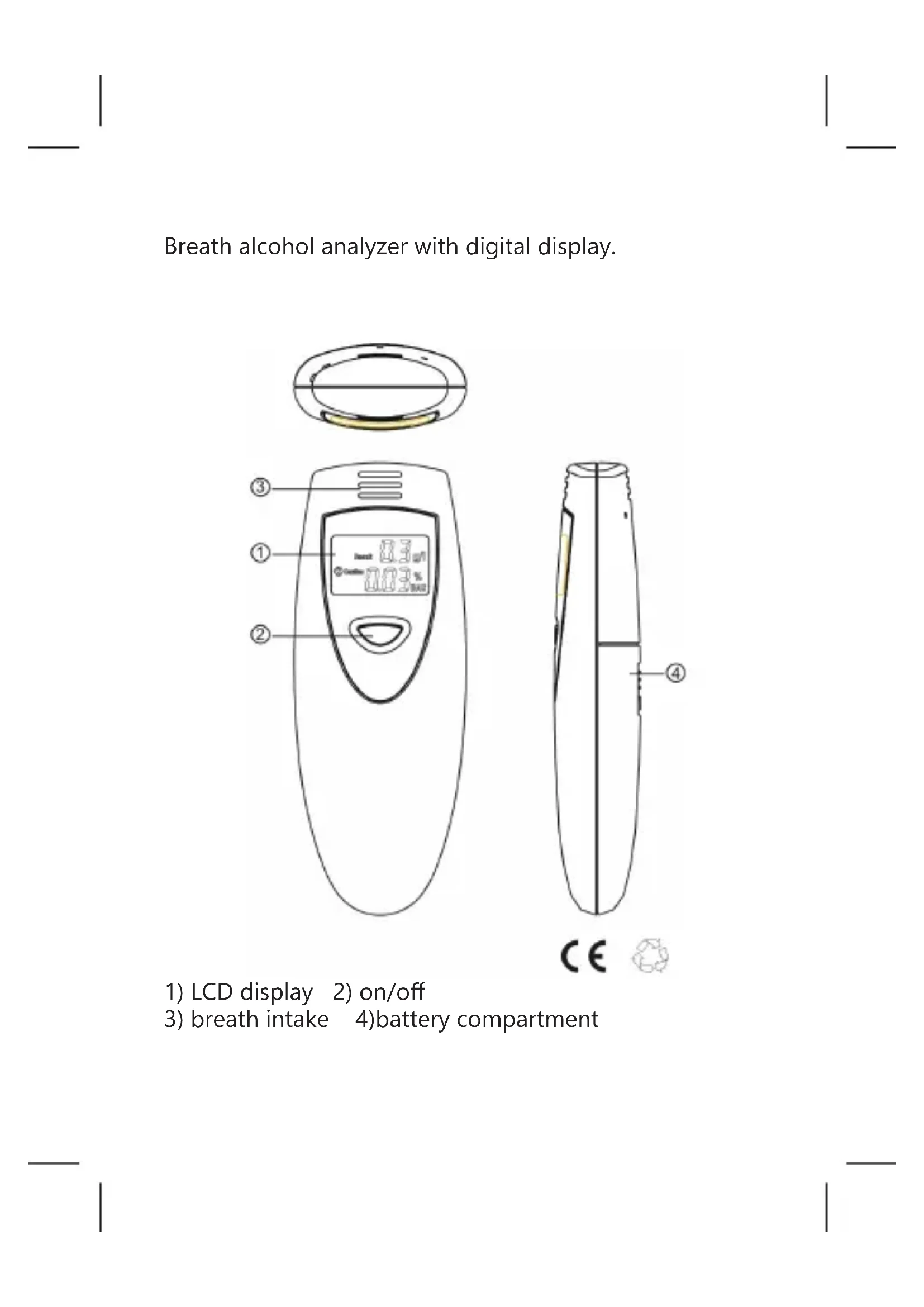

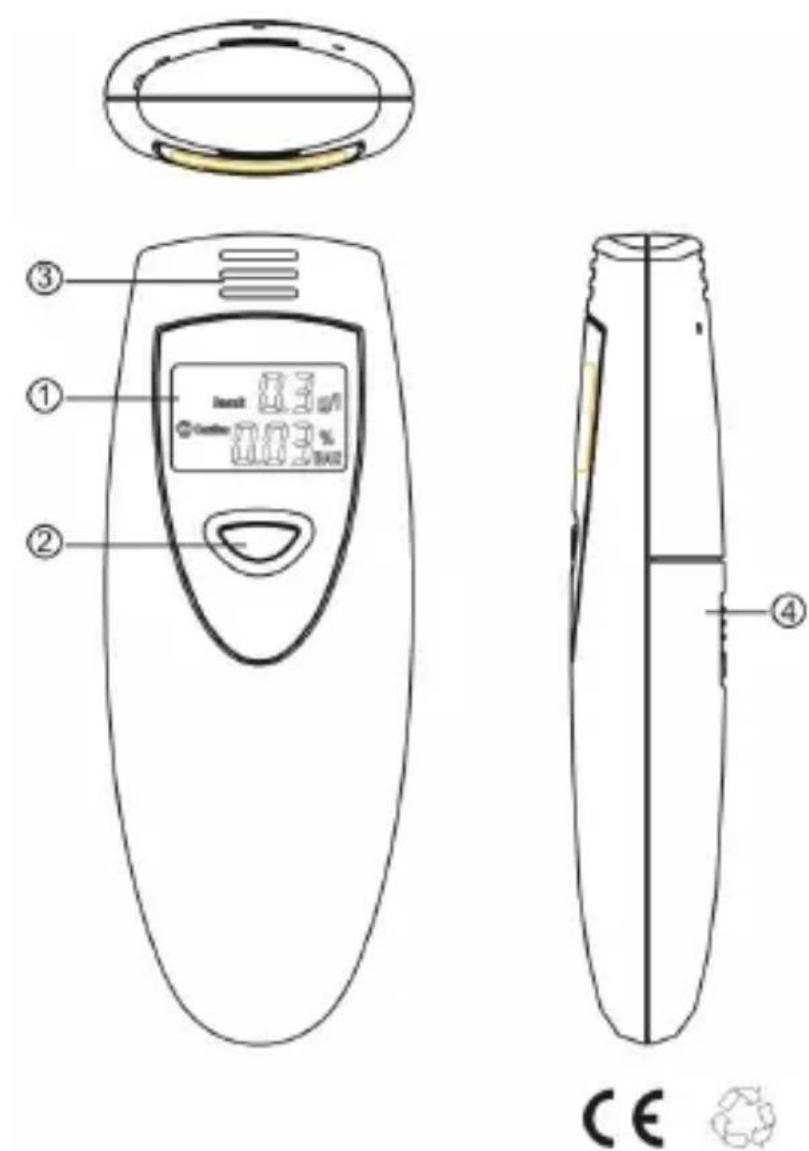

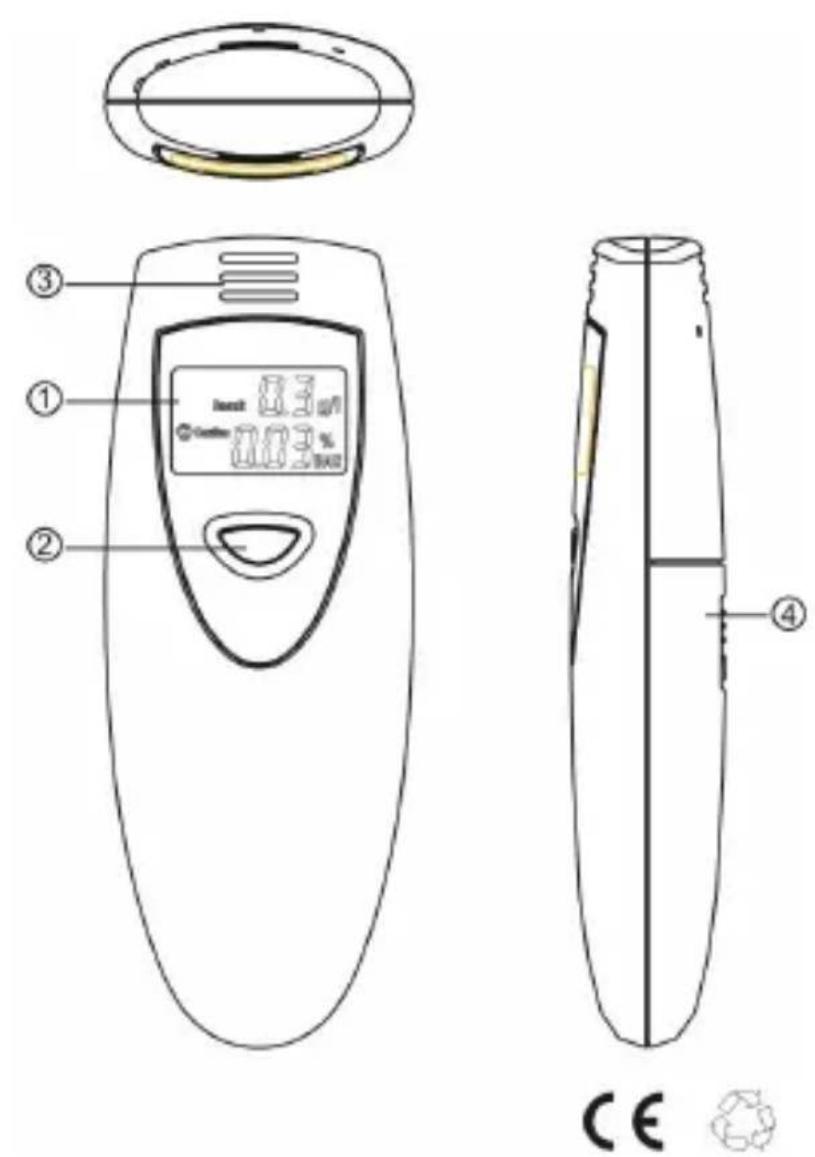

Breath alcohol analyzer with digital display.

1) LCD display 2) on/off
3) breath intake 4) battery compartment

Features

1. Breath analyze with acoustic warning
2. Range 0.00-0,19%BAC 6 0.0-1,9g/l (or 0.00-0,95mg/l BRAC)
3. Quick calculation and result
4. Automatic switch-off

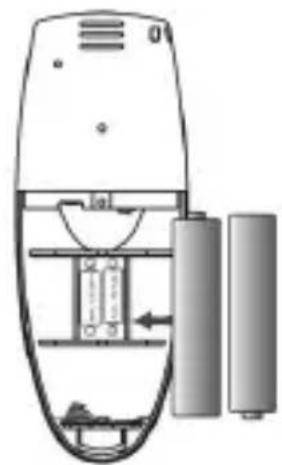

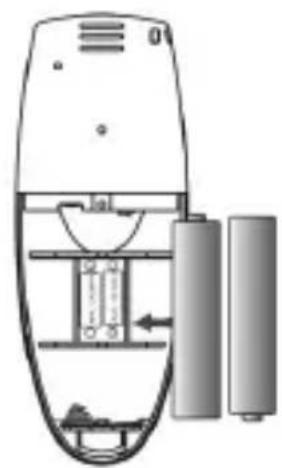

Inserting the batteries

1. Open the battery compartment by pushing down its lid.
2. Insert two 1,5V AAA batteries, take care that their position is shown in the compartment.
3. Close the battery compartment

Simple line drawing of a handheld device with a downward arrow and internal button (no text or symbols)

Cross-sectional diagram of a mobile phone showing internal components and battery casing (no text or labels)

Usage of the analyzer

Preparation

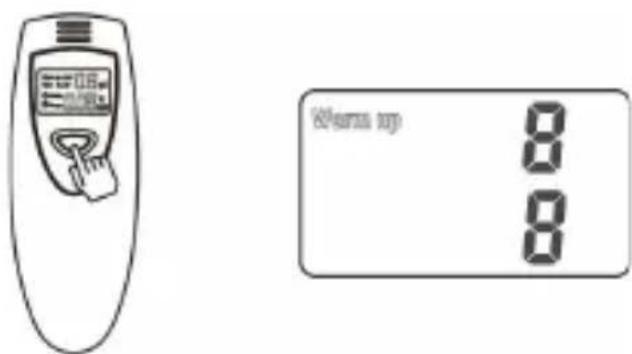

1. Press the on/off switch once, the display will light up and you will hear a signaltone

Warm up 8 8

1. The display will show the warm up symbol and a countdown will count backwards from 10 to 0, the tester is in preparation mode

Note

At the first time usage or after a longer period of not using it there might be gas and air pollution on the analyzer. In this case it will need multiple preparation phase, please switch the on/off switch multiple times.

Usage

1. The display will show the blow symbol and a countdown will count backwards from 10 to 0, the tester is ready.

8 9 9

1. Put your mouth close to the breath intake and blow in it for 3-5 seconds.

2. Read the result on the display

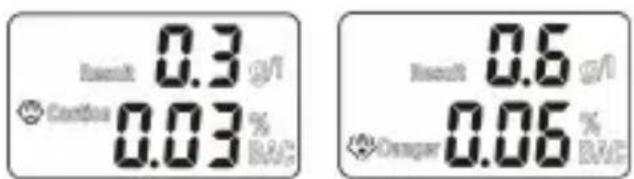

3. When reaching a value of 0,02%BAC (or 0,2g/l) up to 0,05% (or 0,5g/l) a caution symbol will be shown in the display:

2% BAC(or 0.2g/l) to 0.05% BAC(or 0.5g/l).
0.05% BAC(or 0.5g/l) to 0.08% BAC(or 0.8g/l).

Result 0.3 g/l ● Control 0.03 % BNC Result 0.6 g/l ● Danger 0.06 % BNC

1. When reaching a value of 0,05 BAC (or 0,5g/l) a Danger symbol will be shown in the display:

over & equal 0.05% BAC(or 0.5g/l).

over & equal 0.08% BAC(or 0.8g/l)

Automatic switch off

1. The test result will be shown for around 15 seconds, then the off symbol will be shown for 2-3 seconds and the tester will switch off.

OFF

1. When not blowing in the breath intake the display will show 0.0 as result.

Note

To reach an accurate result we suggest to take the test at least two times.

Display Battery low

If the L symbol is blinking when switching on the batteries are getting low, please exchange them.

Exchange them at least when the unit can not be powered on or enter the preparation mode.

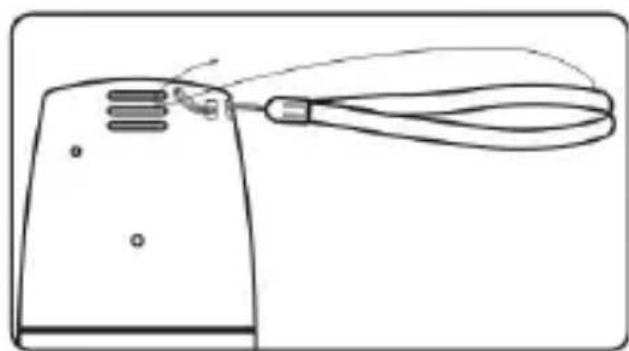

Handstrap

Mount the included hand strap according to the following picture

Line drawing of a device with a handle and ventilation slots, no text or symbols present

Speifications

• Sensor: extended oxygen/alcohol Sensor
  • Range : 0.00-0.19% BAC & 0,0-1,9 BRAC
  • Accuracy : 0,01% BAC (0,1g/l)
  • Power : 2 x 1.5v AAA batteries
  • Preparation : 10 seconds, Result in 5 seconds
  • Automatic switch off after 35 seconds
• Size : 95x36x18mm.

Precaution

• When after drinking, it is recommended to last after 20 minutes, it is because 20 minutes is approximately for alcohol to be absorbed into blood from the digestive organs, and residual alcohol remaining in the mouth takes this long to dissipate.
• For accurate result, do not repeat next testing within 3 minutes after last time.
• Do not smoke and eat for 20 minutes prior testing.
• Do not use chemicals such as benzene, thinner or petrol to clean the tester directly.
• Do not blowing liquid into the breath pipe.
• Do not use any excitant substances near the tester, such as pains, insecticides, alcohols.
• Do not place the tester in the closed environment with contaminated air.
• Modifying or tampering with the unit's internal components may cause a malfunction.
• The unit is designed to be used as an aid to promote reasonable driving. It should not be used in anticipation of the use or operation of vehicles, machinery, or equipment. The unit makes no references whatsoever to blood alcohol content or other such measures of intoxication promulgated by government, medical or other agencies or bodies. The result of this alcohol gives BAC for reference only, manufacturer does not to take any legal responsibility.
• Each individual's body responds differently to alcohol. A person may become legally impaired to drive at a point below the legal blood alcohol limit.
